Model UniMac UWL105K1M Washer – Common Parts & Diagrams
Control Module (Drawing 1 of 2)
Control Module (Drawing 2 of 2)

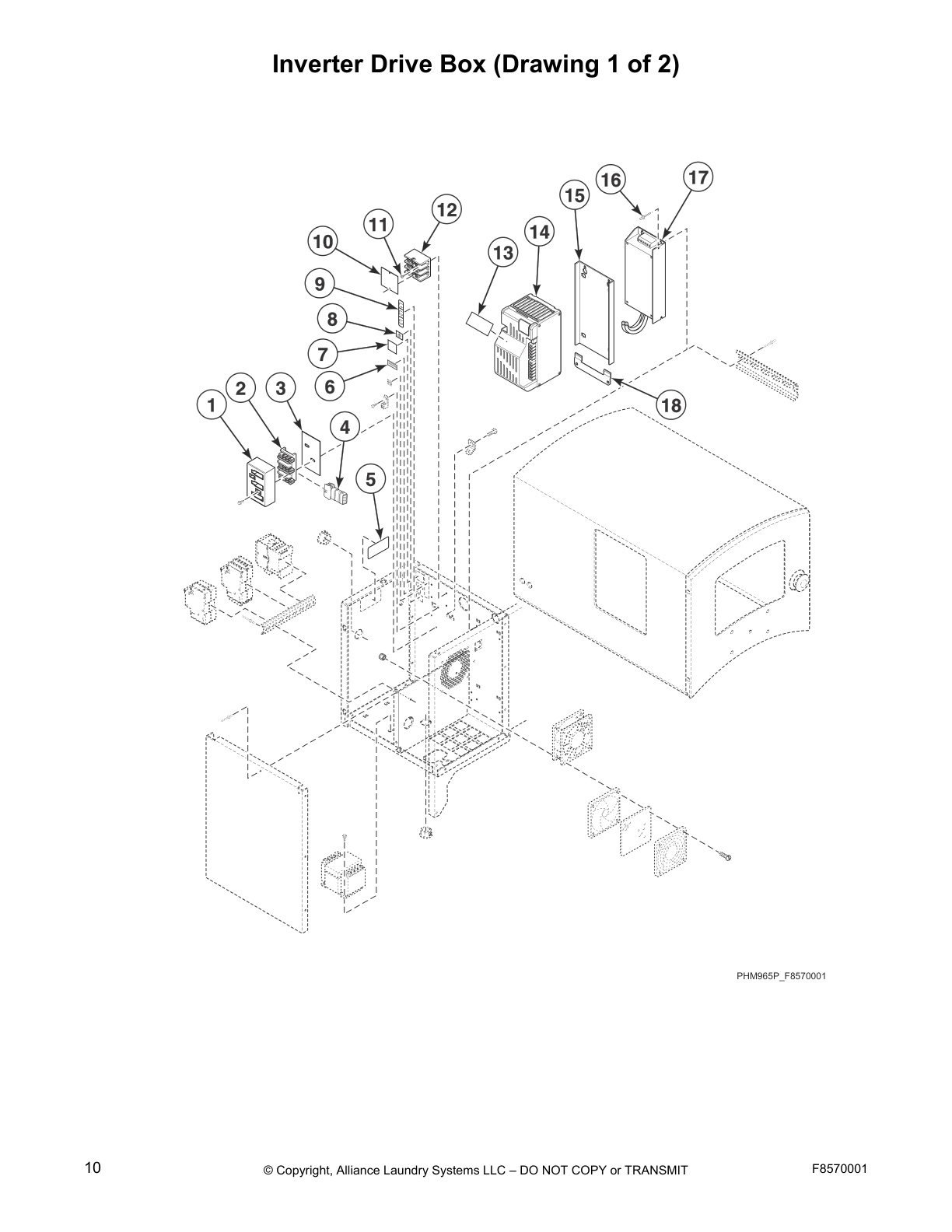

Inverter Drive Box (Drawing 1 of 2)

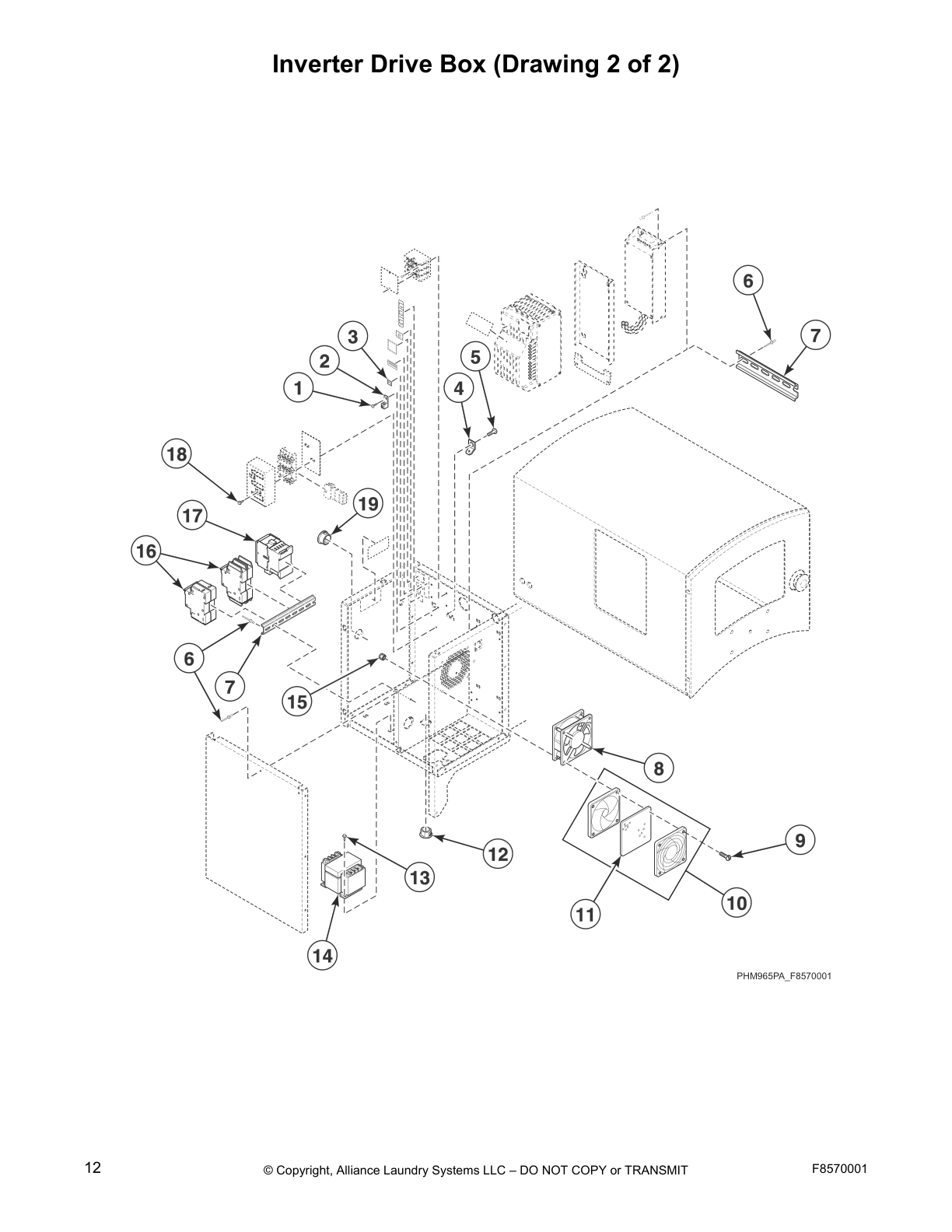

Inverter Drive Box (Drawing 2 of 2)

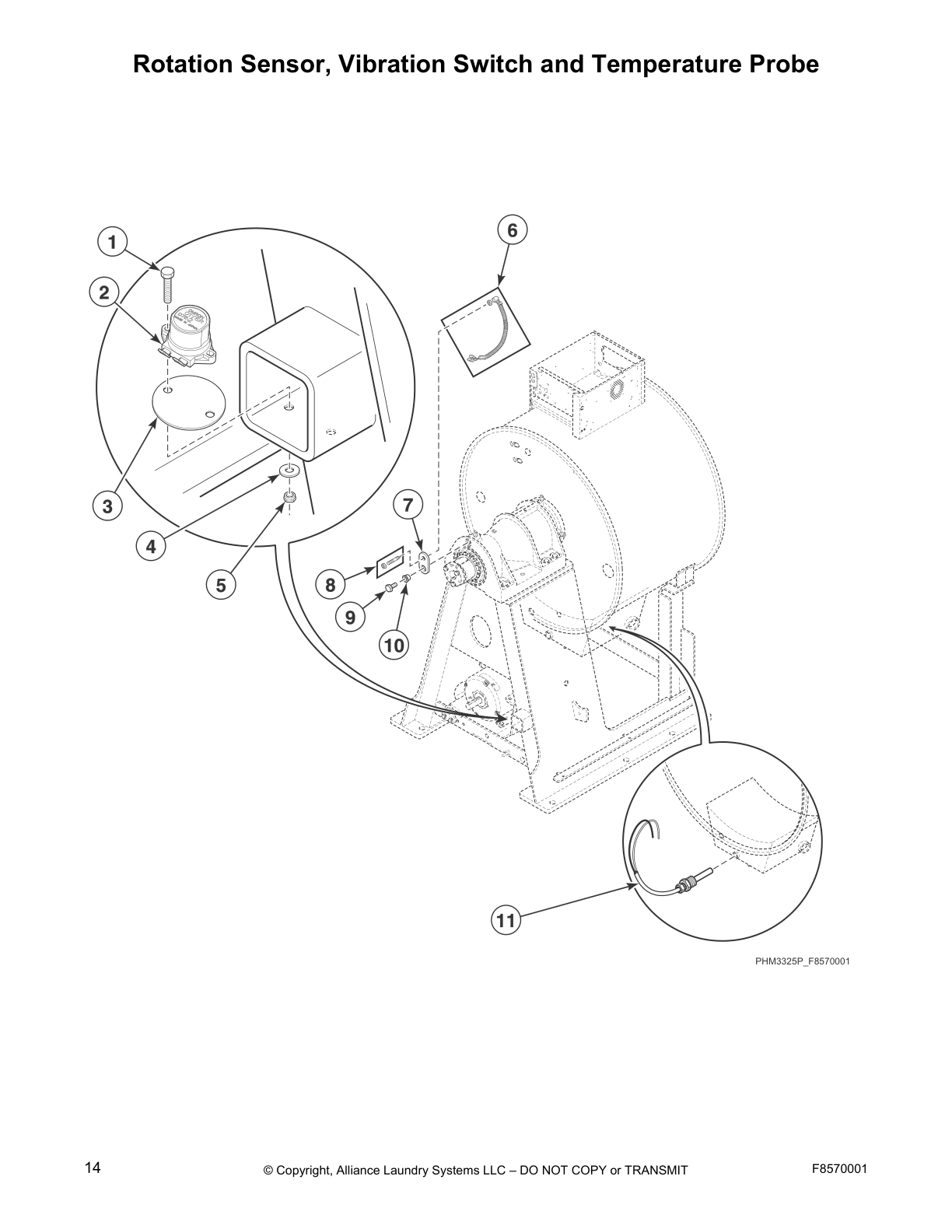

Rotation Sensor, Vibration Switch and Temperature Probe

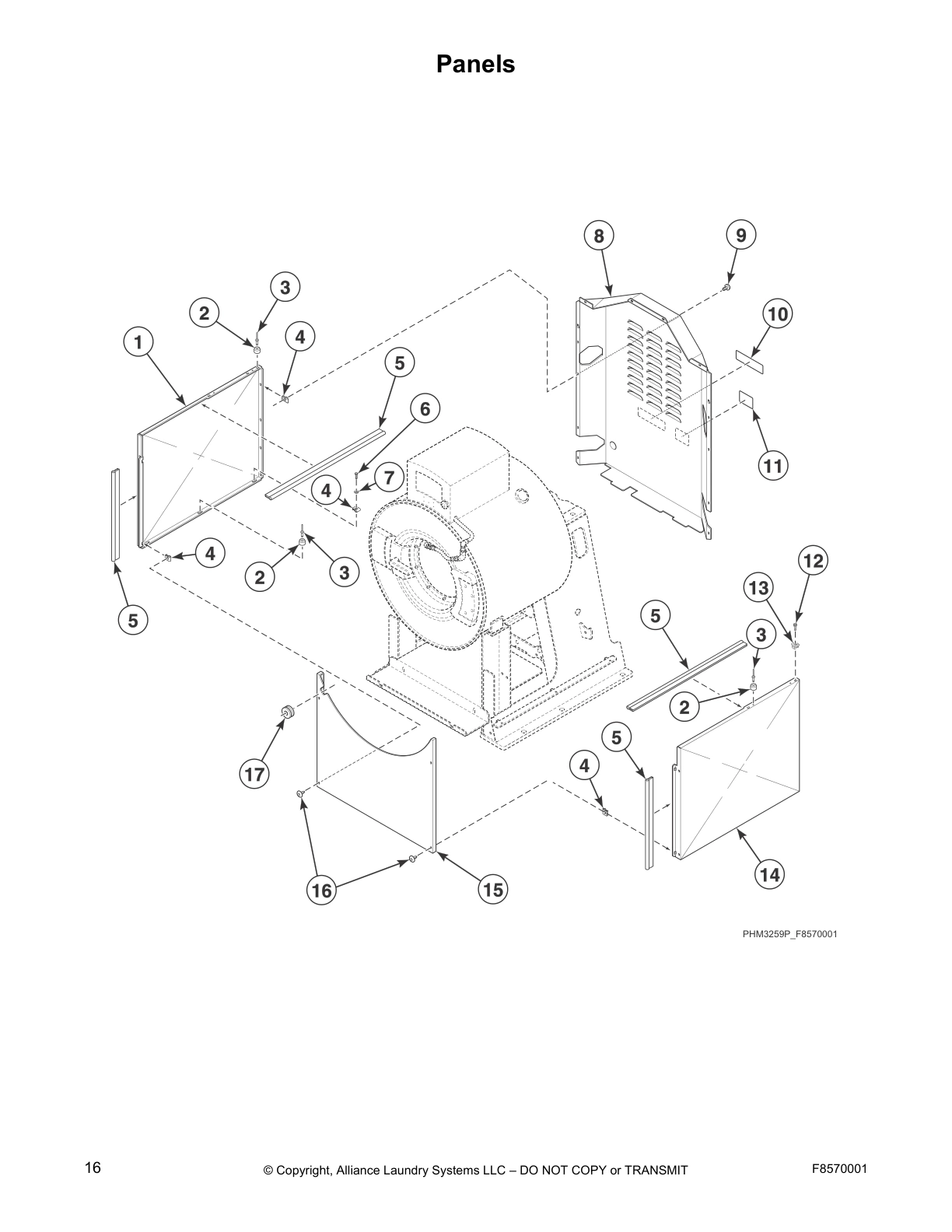

Panels

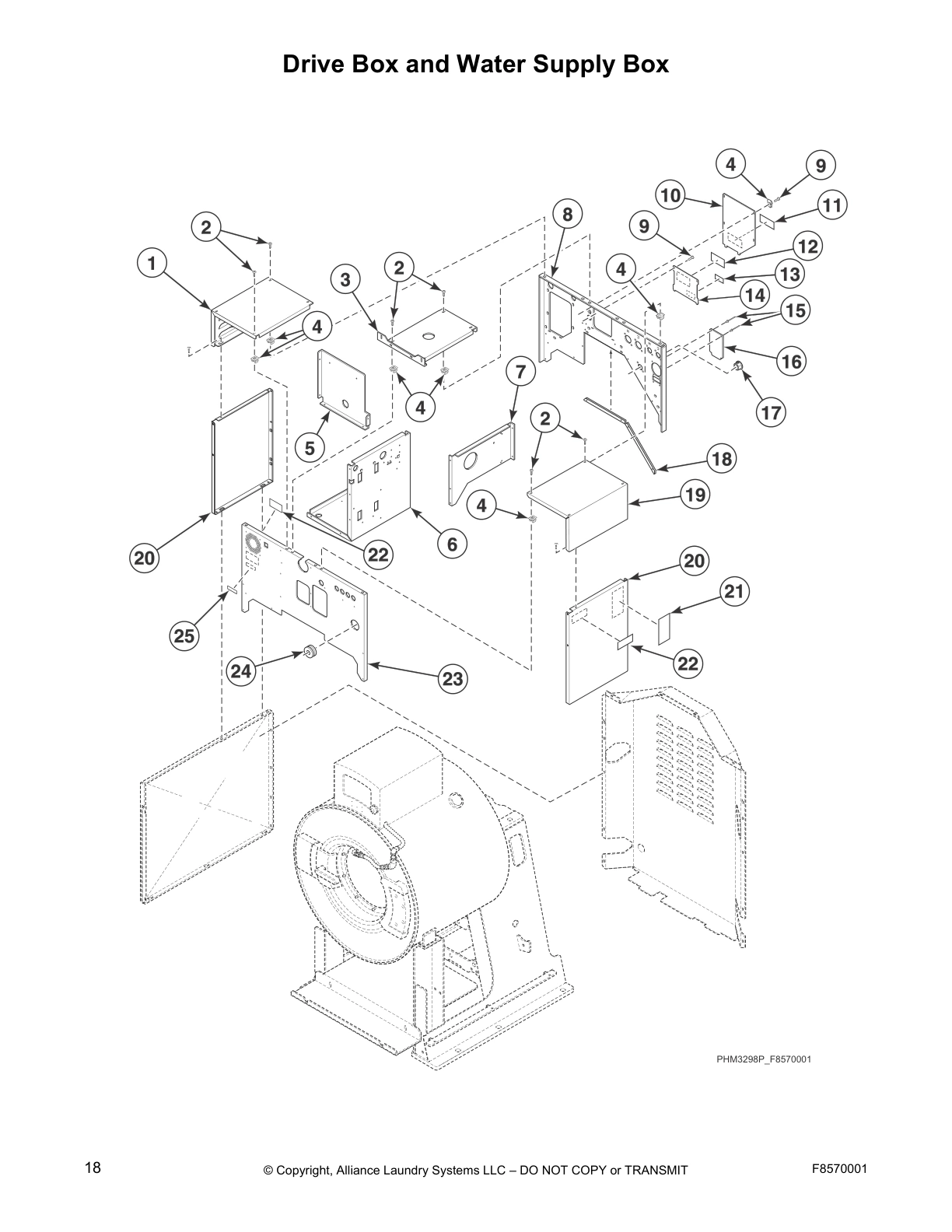

Drive Box and Water Supply Box

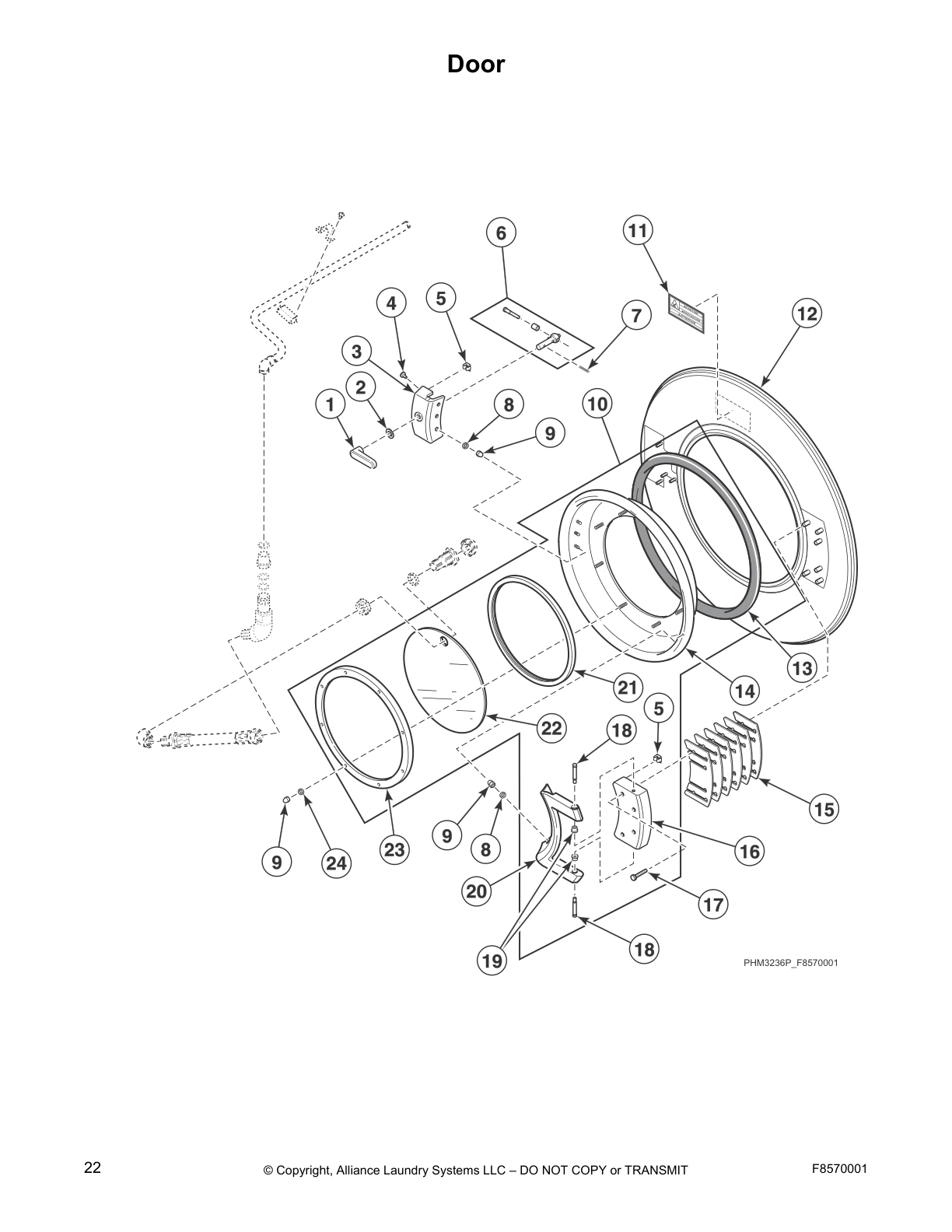

Door

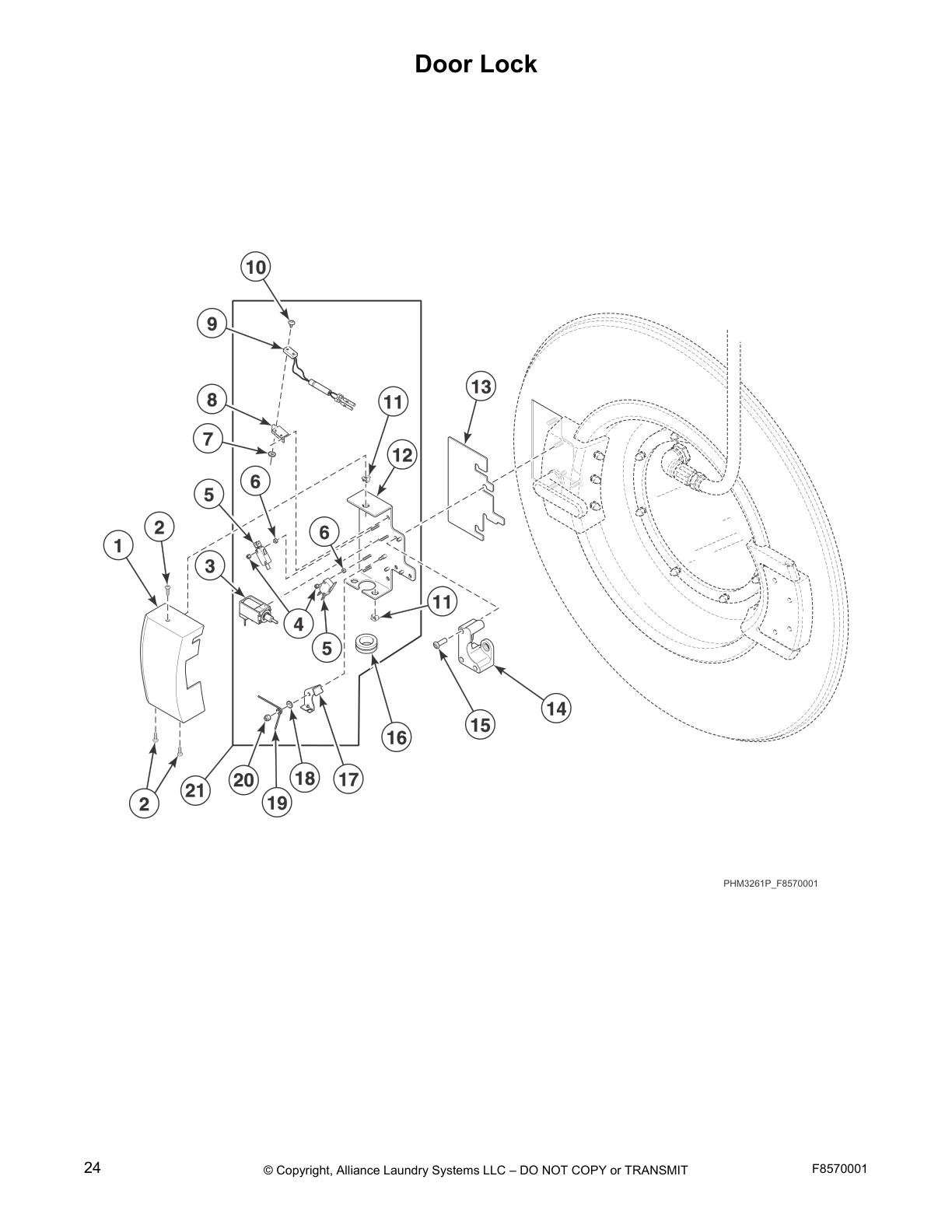

Door Lock

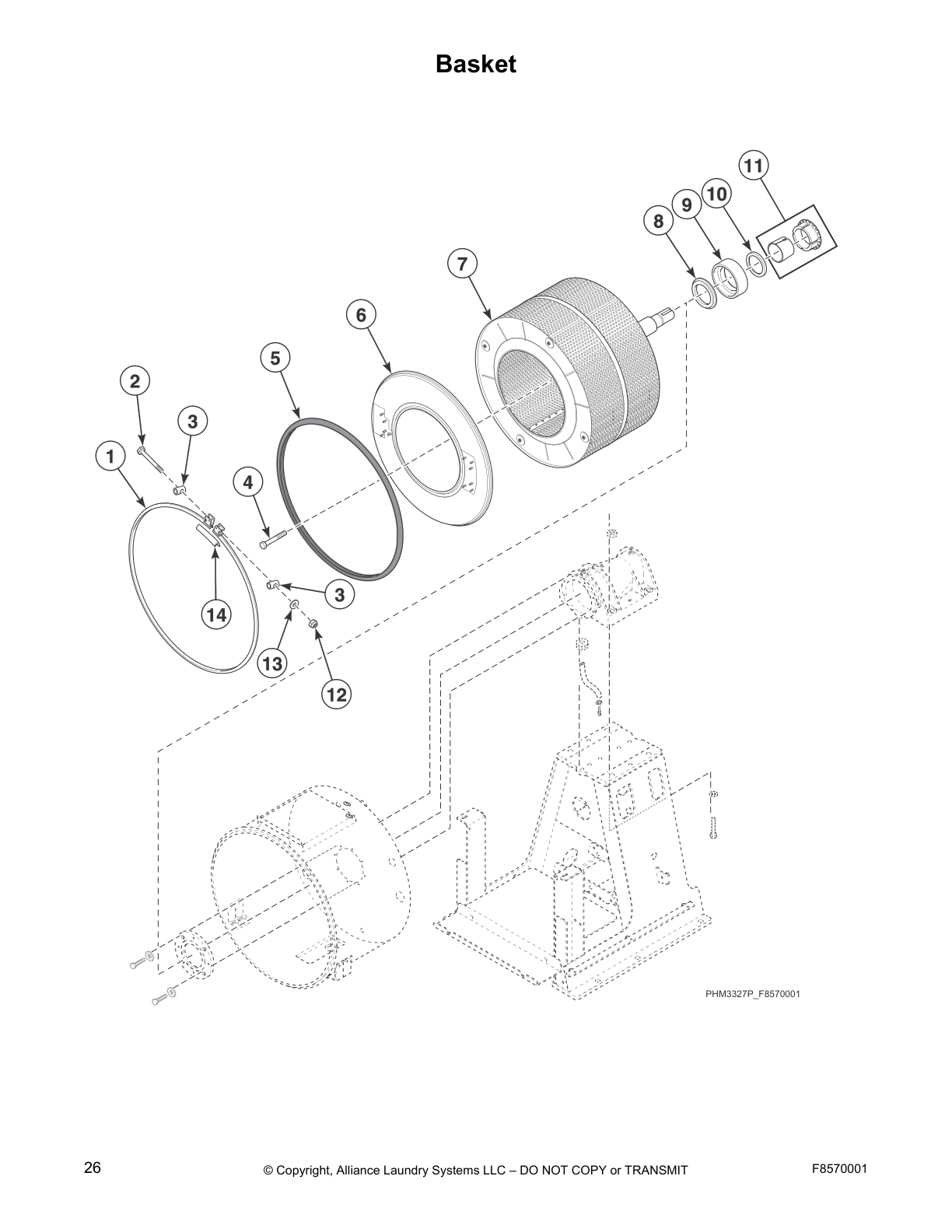

Basket

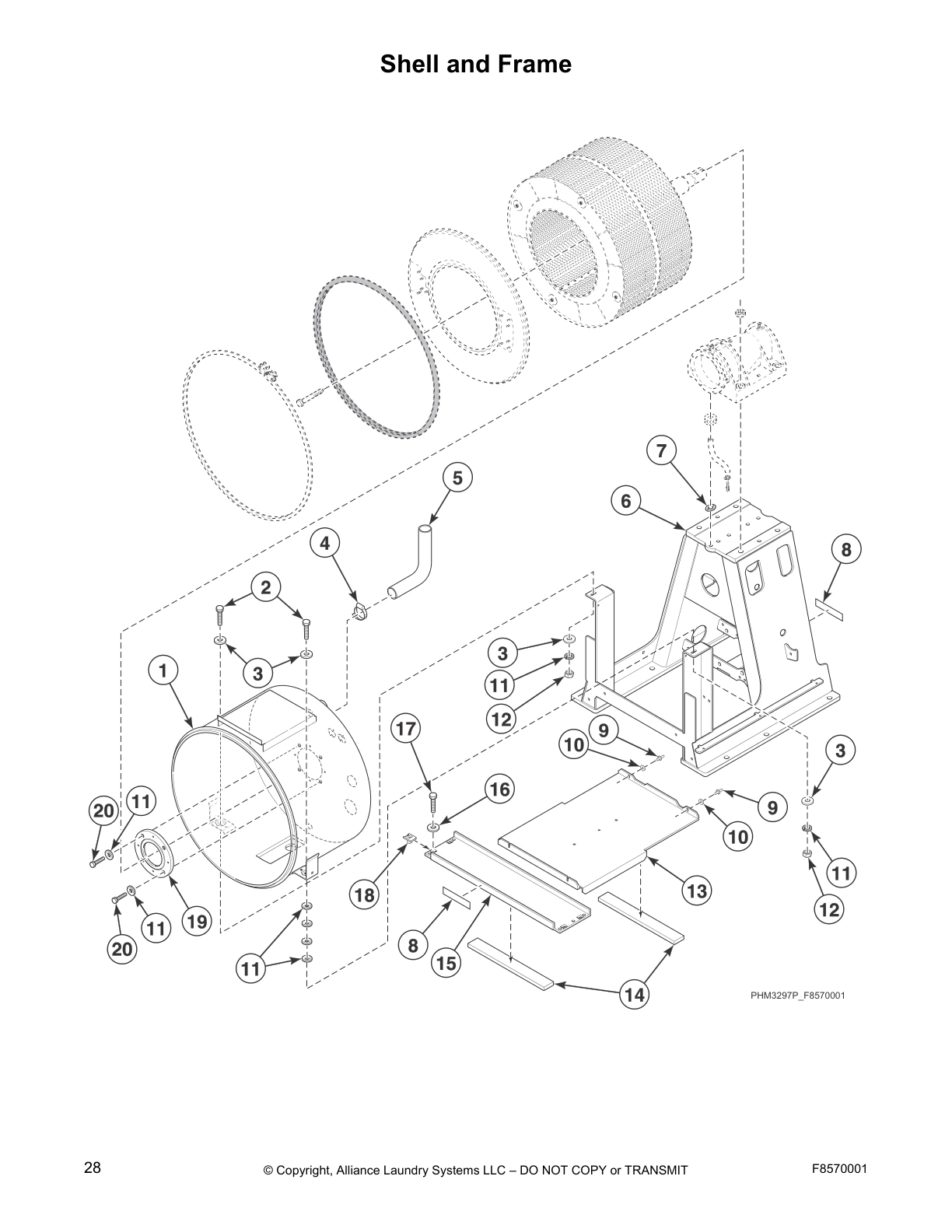

Shell and Frame

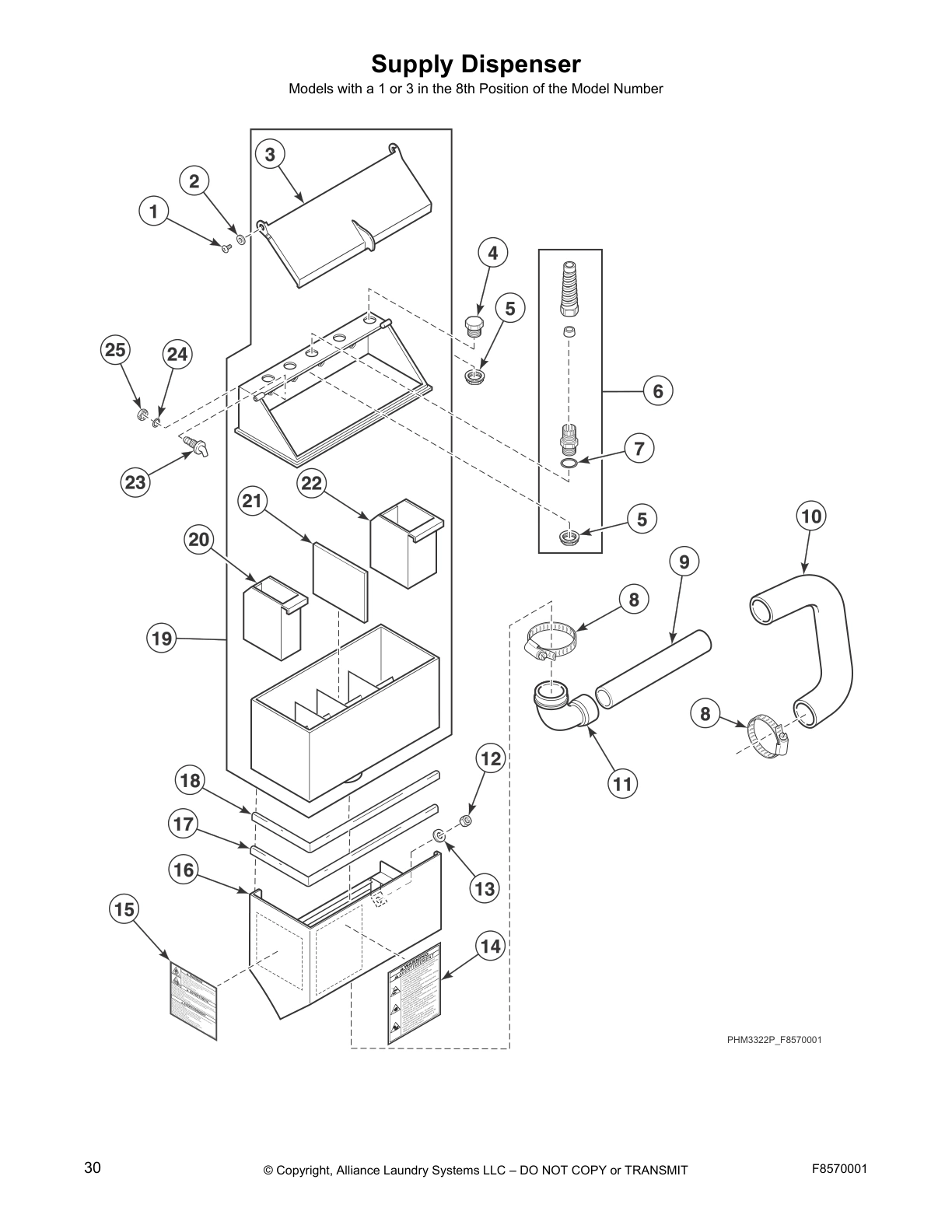

Supply Dispenser

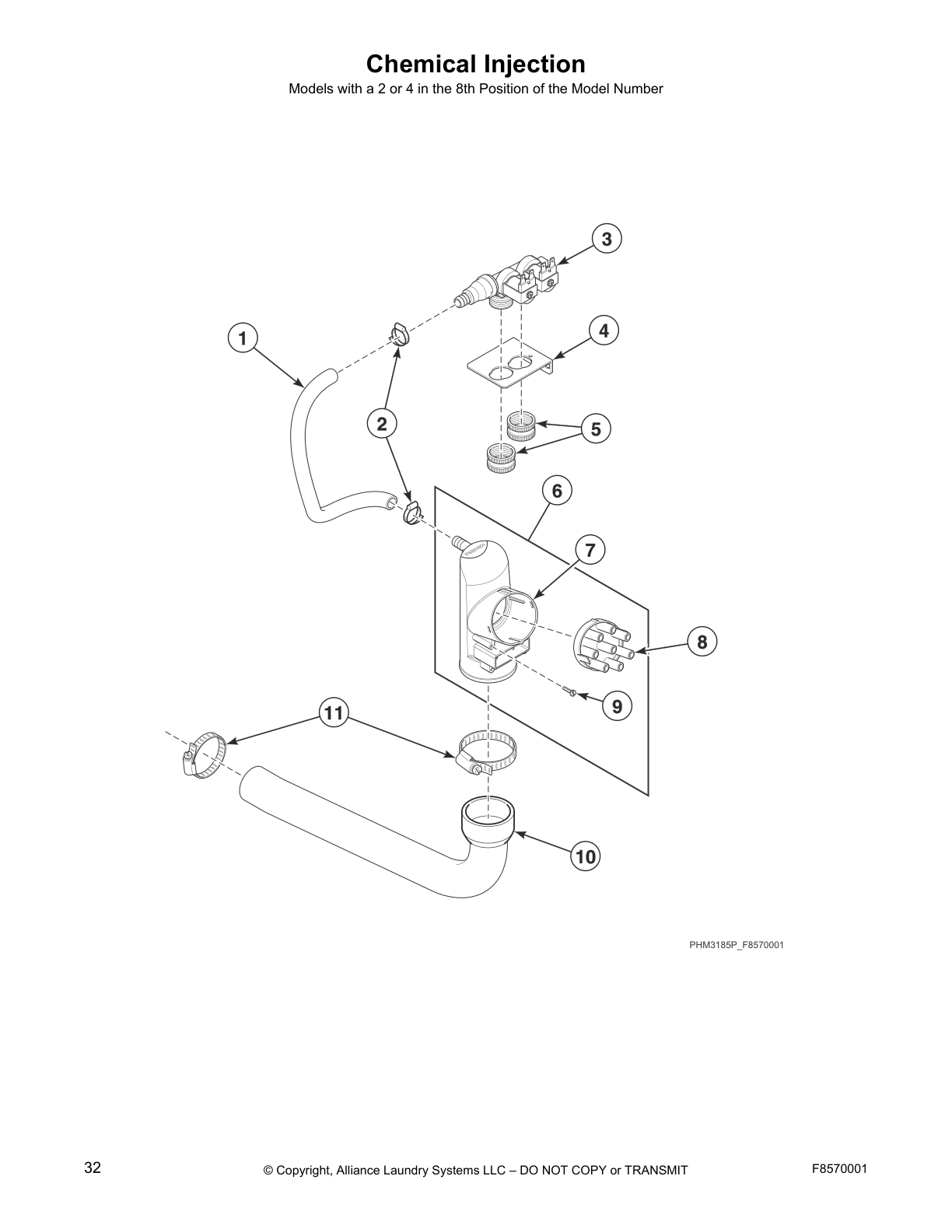

Chemical Injection

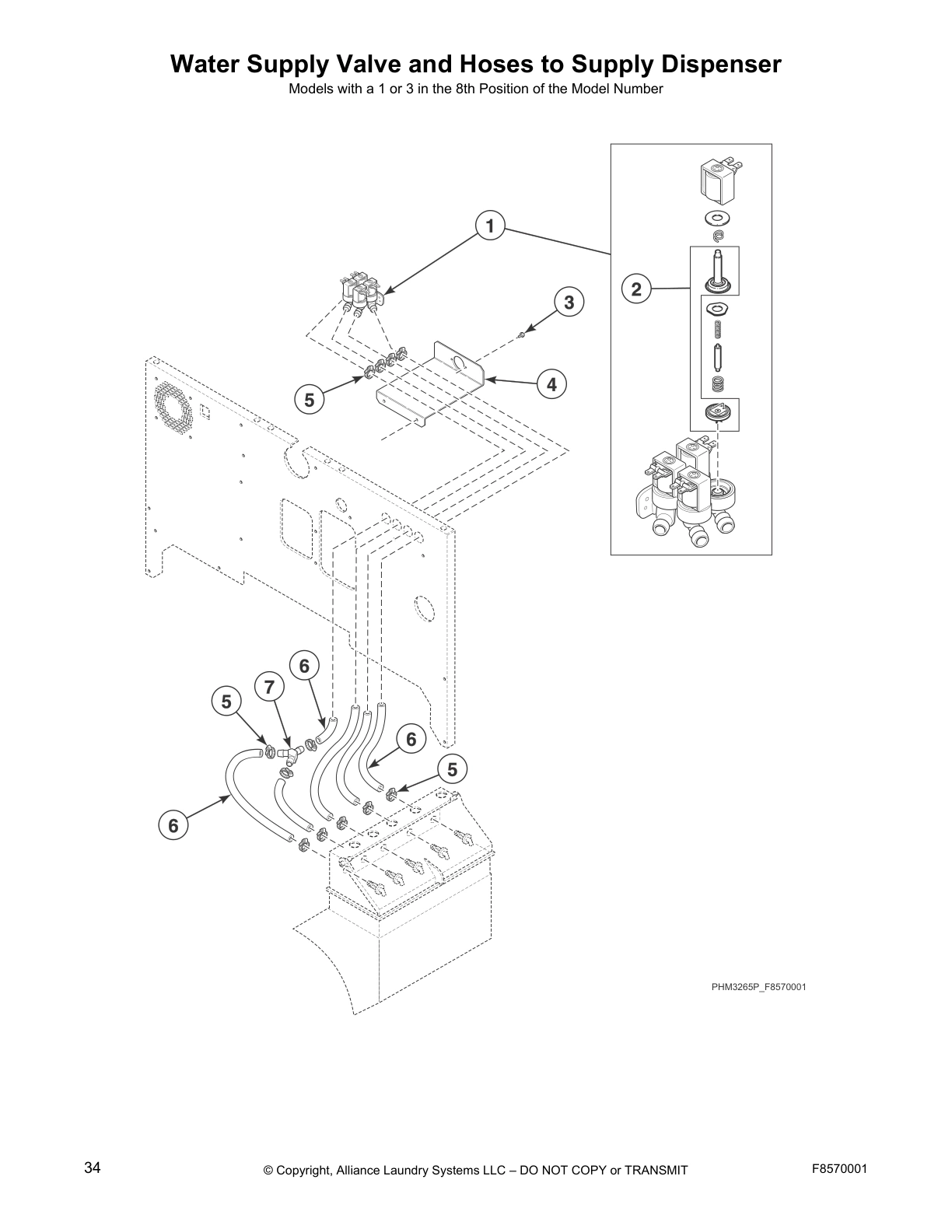

Water Supply Valve and Hoses to Supply Dispenser

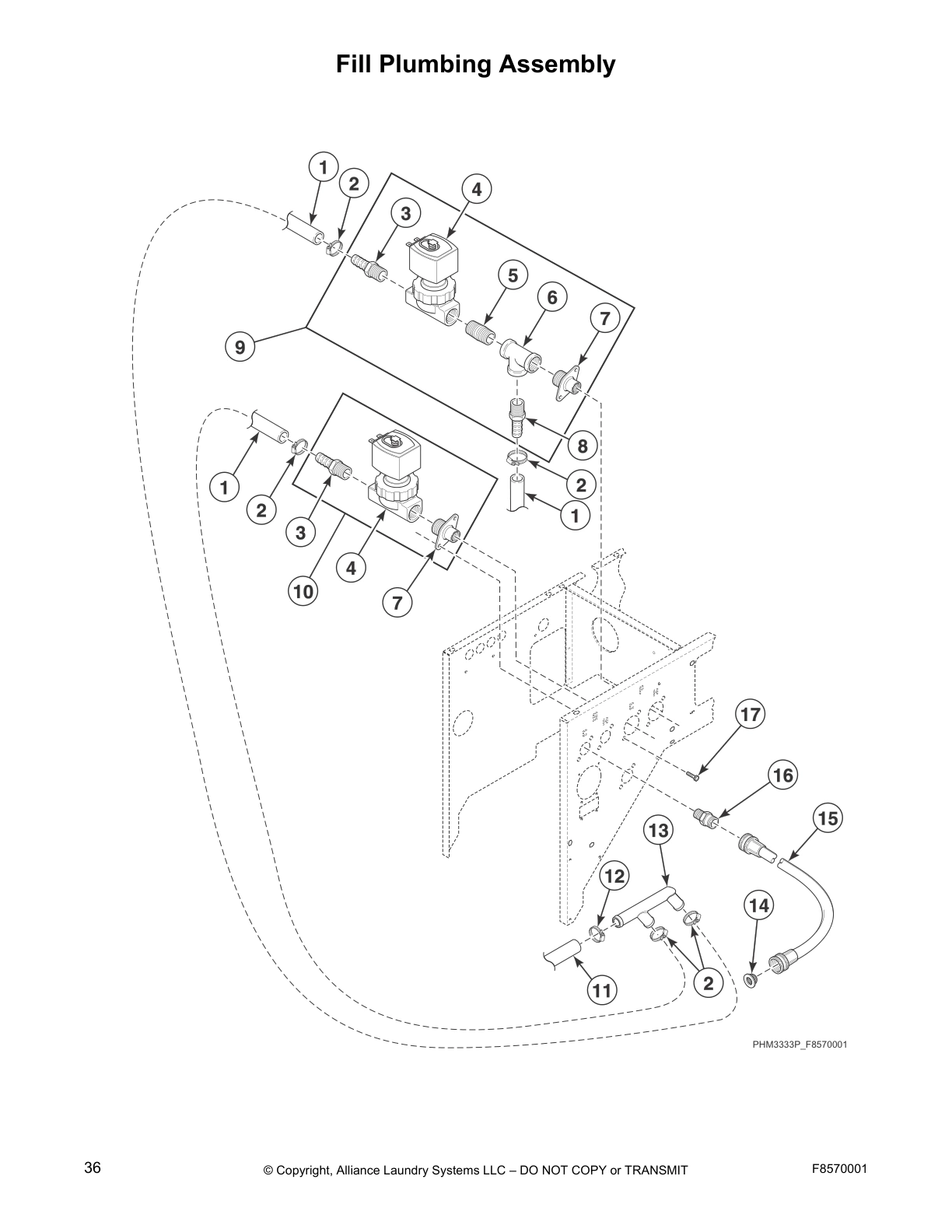

Fill Plumbing Assembly

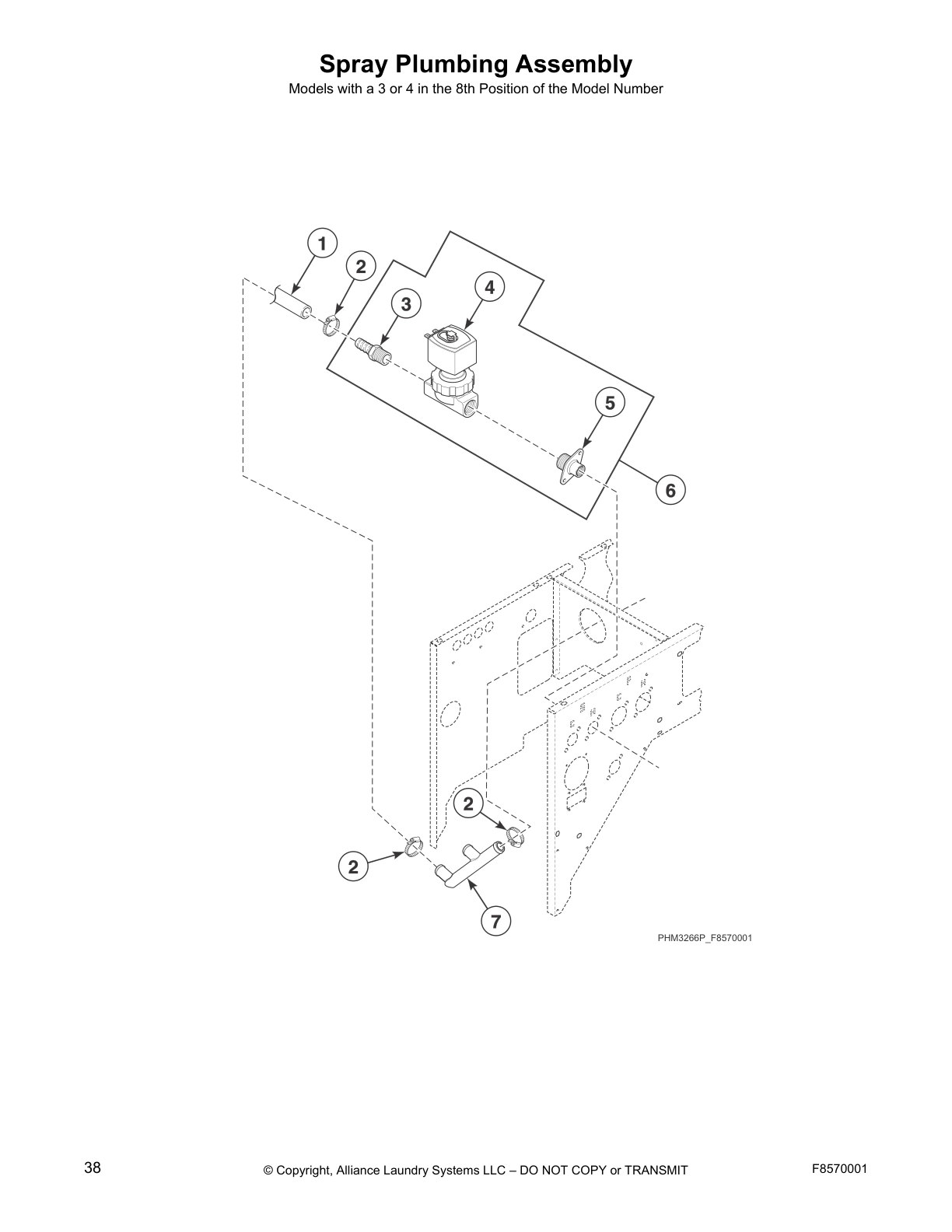

Spray Plumbing Assembly

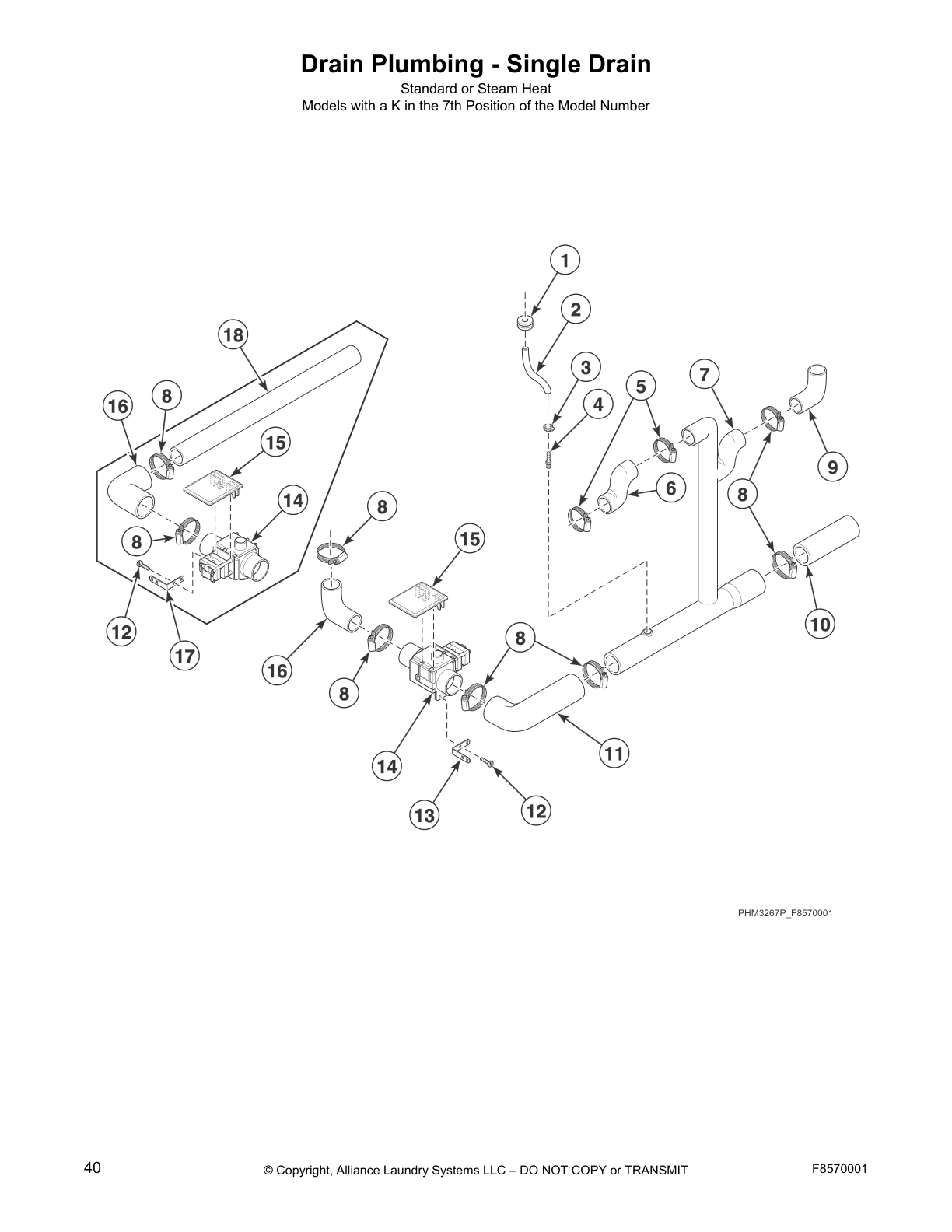

Drain Plumbing - Single Drain

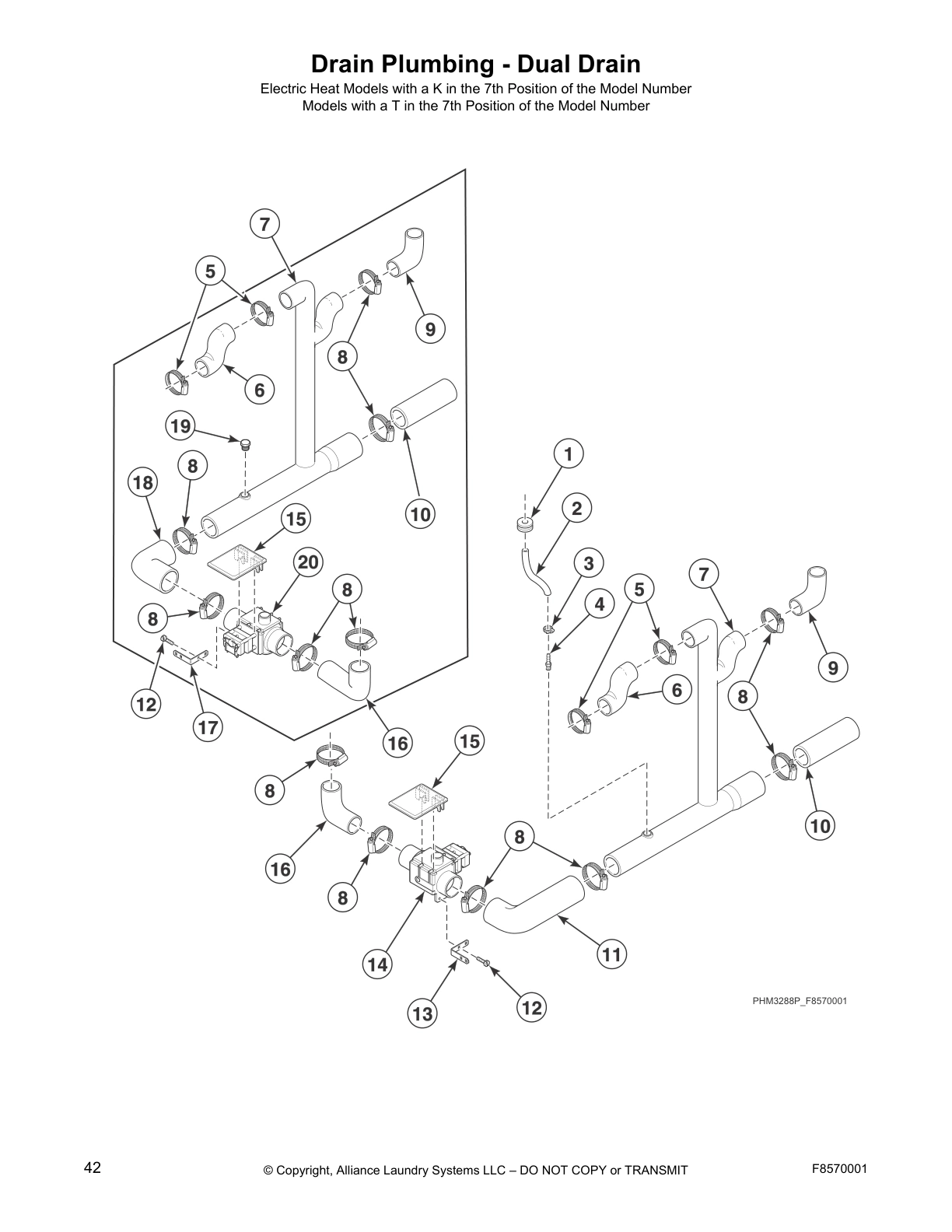

Drain Plumbing - Dual Drain

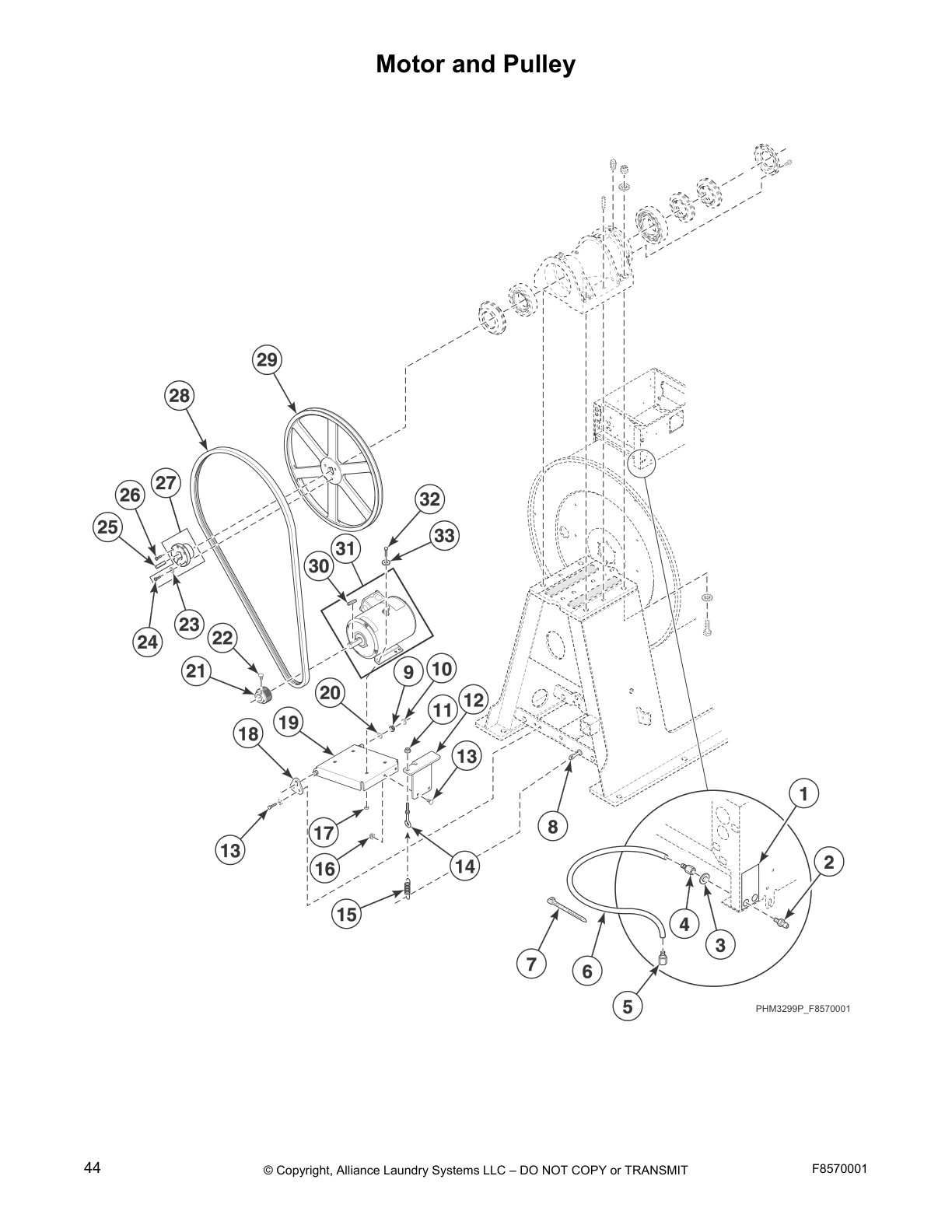

Motor and Pulley

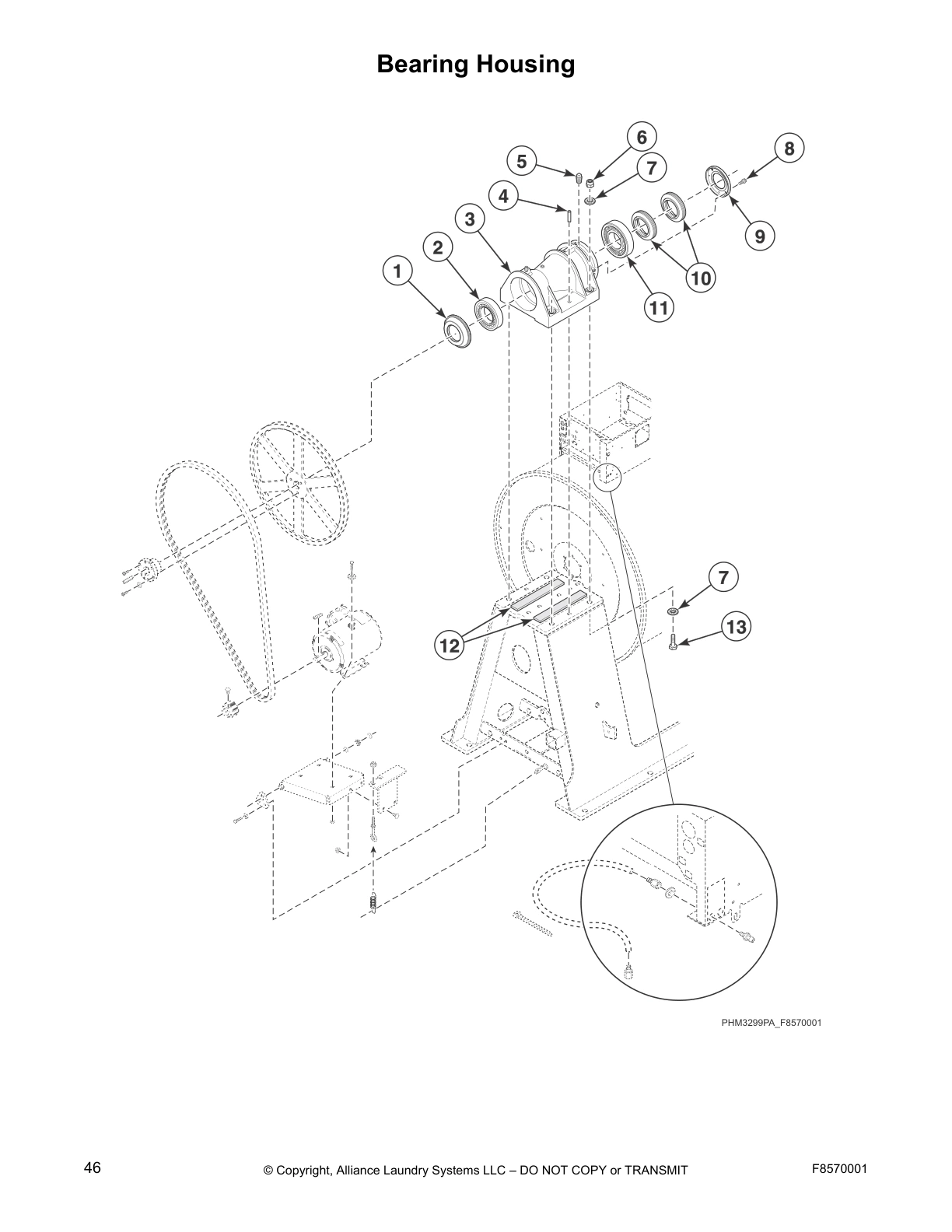

Bearing Housing

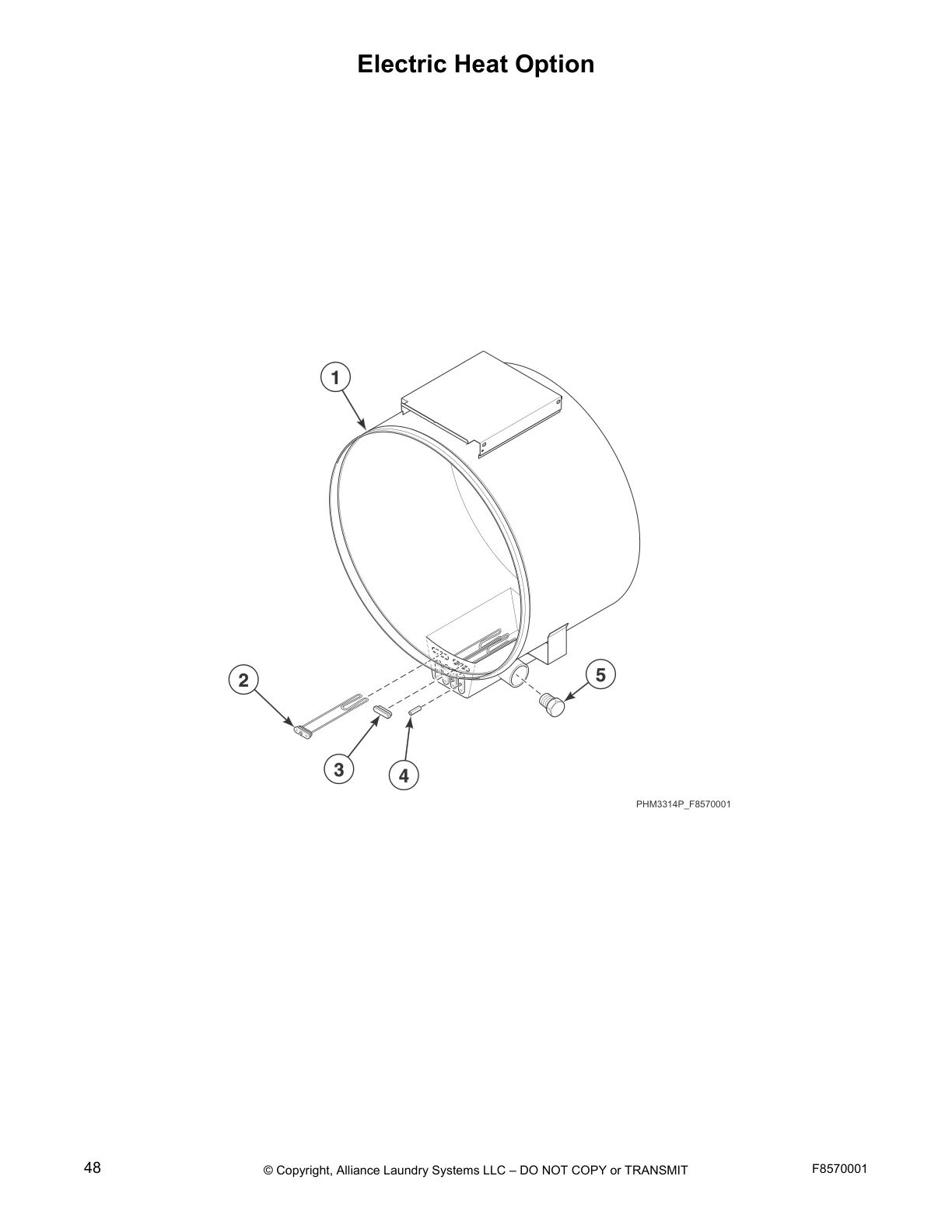

Electric Heat Option

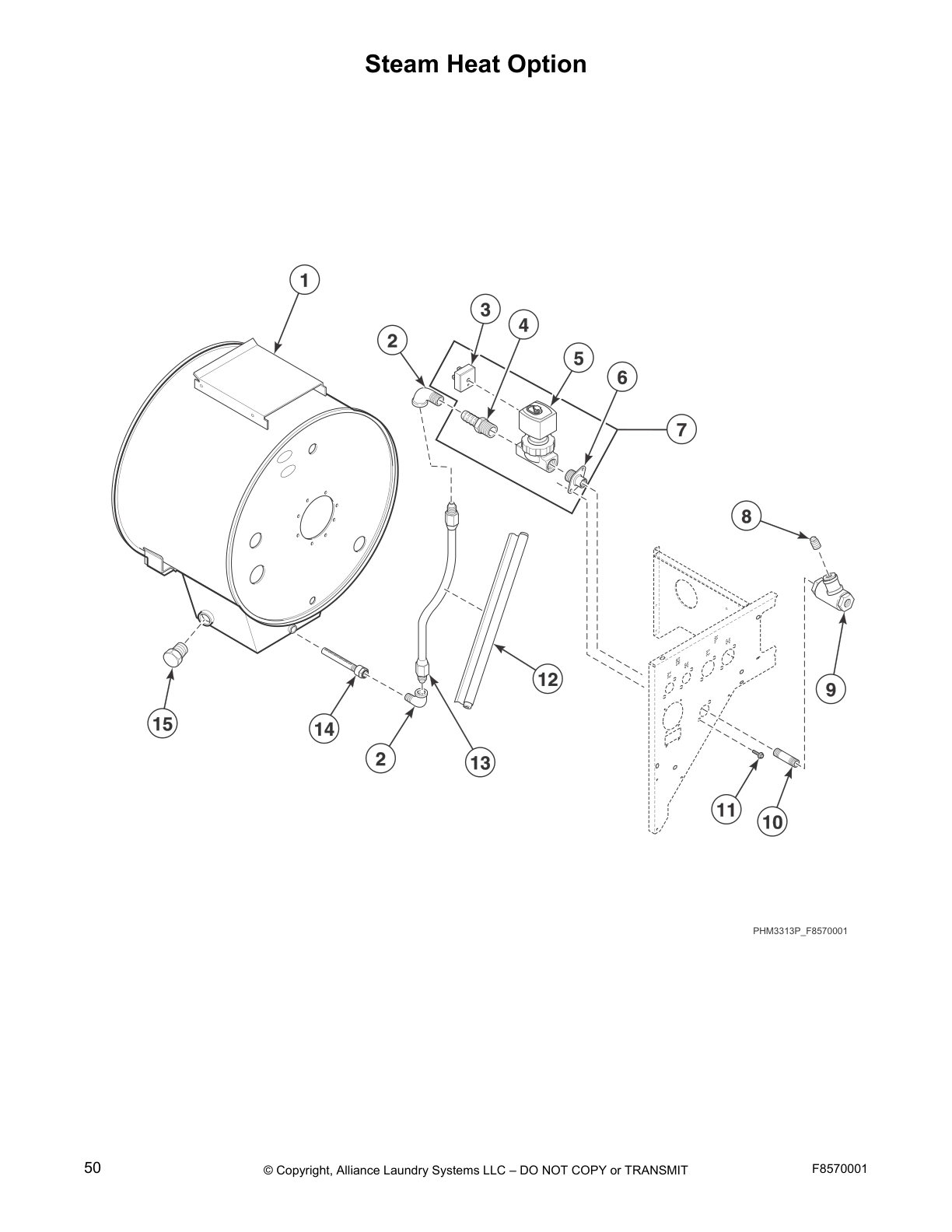

Steam Heat Option

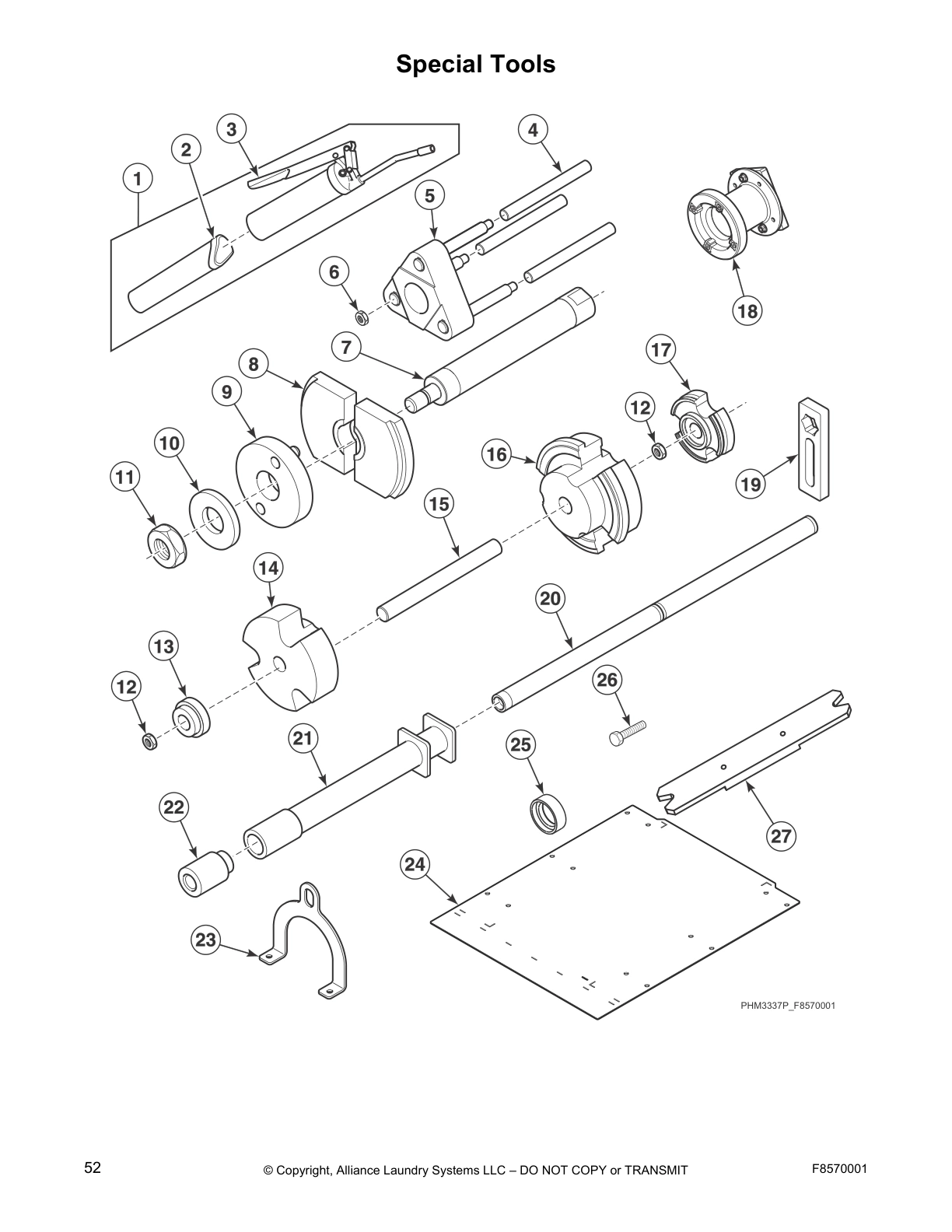

Special Tools
Common parts from model UniMac UWL105K1M Washer
Tray Harness Cover
105 pound models SPQ F8158801P Contact Us For Availability
Trim SPQ F8028109 Contact Us For Availability
Size Configuration Wiring Harness
105 pound m SPQ F8433102 Contact Us For Availability
SPQ F8410412 SPQ F8410412 Contact Us For Availability
Ground Decal SPQ F8242201 Contact Us For Availability
Electric Heat Harness SPQ F8054903 Contact Us For Availability
Control Power Harness SPQ F8054603 Contact Us For Availability
SPQ F8054601 SPQ F8054601 Contact Us For Availability
SPQ F8389801 SPQ F8389801 Contact Us For Availability
SPQ F8134101 SPQ F8134101 Contact Us For Availability
SPQ F8113901 SPQ F8113901 Contact Us For Availability
SPQ C000417 SPQ C000417 Contact Us For Availability
SPQ F8288302 SPQ F8288302 Contact Us For Availability
Valve Kit SPQ F8487202 Contact Us For Availability
SPQ F8257002 SPQ F8257002 Contact Us For Availability
SPQ F8054704P SPQ F8054704P Contact Us For Availability
Reuse Kit SPQ F8599402-1 Contact Us For Availability
SPQ 203346 SPQ 203346 Contact Us For Availability
1
Grease Instruction Label SPQ F8422801 Contact Us For Availability
1
Terminal Block Shield SPQ 70333001 Contact Us For Availability
1
Left Side Panel SPQ F8480904 Contact Us For Availability
1
Top Left Cover SPQ F8480502 Contact Us For Availability
1
Door Handle SPQ F8435501 Contact Us For Availability
1
Door Lock Cover SPQ F8435801 Contact Us For Availability
1
Ring Clamp Weldment SPQ F8388006 Contact Us For Availability
1
Shell Assembly SPQ F8478504 Contact Us For Availability
1
Dispenser Valve Harness SPQ F8347302 Contact Us For Availability
1
Hose SPQ F8232006 Contact Us For Availability
1
Grommet SPQ F8410501 Contact Us For Availability
1
Radial Lip Seal SPQ F8528502 Contact Us For Availability
1
Grease Gun Kit SPQ F798700 Contact Us For Availability
2
Screw SPQ F8206901 Contact Us For Availability
2
Pop Rivet SPQ F8339601 Contact Us For Availability
2
Snap Bushing SPQ F8405101 Contact Us For Availability
2
Thermistor Sensor SPQ F370609 Contact Us For Availability
2
Washer SPQ F431916 Contact Us For Availability
2
Bolt SPQ F8270701 Contact Us For Availability
2
Supply Dispenser Spacer SPQ F8195301 Contact Us For Availability
2
4-Way Valve SPQ F8336601 Contact Us For Availability
2
Hose Adapter SPQ F200193 Contact Us For Availability
2
Overflow Hose SPQ F8486801 Contact Us For Availability
2
Motor Pulley SPQ F190701 Contact Us For Availability
2
Bearing SPQ F8465603 Contact Us For Availability
2
Electric Heat Harness SPQ F8056701 Contact Us For Availability
2
Street Elbow SPQ F421703 Contact Us For Availability
2
Frame Template SPQ F210206P Contact Us For Availability
3
Drive Bracket SPQ F8054001 Contact Us For Availability
3
Temperature Wiring Harness
Standard SPQ F8028224 Contact Us For Availability
3
Nut SPQ M412763 Contact Us For Availability
3
Top Center Cover SPQ F8528401 Contact Us For Availability
3
Magnet SPQ F8468501 Contact Us For Availability
3
Solenoid SPQ F8630601 Contact Us For Availability
3
Pin SPQ F8302701 Contact Us For Availability
3
Hose Clamp SPQ F0150514-00 Contact Us For Availability
3
Diaphragm and Guide Kit SPQ G582P3 Contact Us For Availability
3
Screw SPQ F200185 Contact Us For Availability
3
Hose Barb SPQ F0602365-27 Contact Us For Availability
3
Drain Valve Harness SPQ F8578002 Contact Us For Availability
3
Hose SPQ 70292801 Contact Us For Availability
3
Bearing Housing SPQ F8465101 Contact Us For Availability
3
Heating Element SPQ F360203P Contact Us For Availability
3
DIN Valve Adapter Kit SPQ F8382301 Contact Us For Availability
3
Wet-Clean Kit SPQ F210207P Contact Us For Availability
4
Terminal Block SPQ F8322402 Contact Us For Availability
4
Male Tab Terminal SPQ F330188P Contact Us For Availability
4
Door Lock Microswitch SPQ F430225 Contact Us For Availability
4
Expansion Clip SPQ F8482901 Contact Us For Availability
4
Expansion Clip SPQ F8406201 Contact Us For Availability
4
Shell Band Gasket SPQ 70391101 Contact Us For Availability
4
Chemical Supply Hose SPQ F190304 Contact Us For Availability
4
Screw SPQ F430948 Contact Us For Availability
4
Hose Barb SPQ F8265801 Contact Us For Availability
4
Hose Barb SPQ F421930 Contact Us For Availability
4
Dual Drain Harness SPQ F200166402 Contact Us For Availability
4
SPQ F422114 SPQ F422114 Contact Us For Availability
4
Dowel Pin SPQ F8406502 Contact Us For Availability
4
Heating Element Plug SPQ F360202 Contact Us For Availability
5
Spacer SPQ F200203200 Contact Us For Availability
5
Insulator SPQ 430642 Contact Us For Availability
5
Transformer
Machine control voltage SPQ 802492 Contact Us For Availability
5
Ground Lug Connector SPQ 51783 Contact Us For Availability
5
Washer SPQ F8412802 Contact Us For Availability
5
SPQ F140340P SPQ F140340P Contact Us For Availability
5
Valve Mounting Bracket SPQ F8331902 Contact Us For Availability
5
Coupling SPQ F8362702 Contact Us For Availability
5
Valve SPQ F8265701 Contact Us For Availability
5
Connector SPQ J1408004 Contact Us For Availability
5
Valve SPQ F8322801P Contact Us For Availability
6
Transformer
External supply SPQ F422500 Contact Us For Availability
6
Harness SPQ M413862 Contact Us For Availability
6
Vibration Switch SPQ F8337301 Contact Us For Availability
6
Drive Mounting Panel SPQ F8375902 Contact Us For Availability
6
Basket Assembly Kit SPQ F8479301 Contact Us For Availability
6
Reed Switch Bracket SPQ F431901 Contact Us For Availability
6
SPQ F749802 SPQ F749802 Contact Us For Availability
6
Nipple SPQ F421968 Contact Us For Availability
6
SPQ F8402301 SPQ F8402301 Contact Us For Availability
6
SPQ F8245714 SPQ F8245714 Contact Us For Availability
6
Nut SPQ F430248 Contact Us For Availability
6
Coupling SPQ F8362701 Contact Us For Availability
6
Bearing Seal Insertion and Removal Kit SPQ F8459101 Contact Us For Availability
7
Nut SPQ F431222 Contact Us For Availability
7
Jumper Configuration Assembly
240 Volt SPQ F8433001 Contact Us For Availability
7
DIN Rail SPQ 00177 Contact Us For Availability
7
SPQ F8481701 SPQ F8481701 Contact Us For Availability
7
Bulkhead Brace SPQ F8483201 Contact Us For Availability
7
Excluder Seal SPQ F8576001 Contact Us For Availability
7
SPQ F200215 SPQ F200215 Contact Us For Availability
7
SPQ F8363601 SPQ F8363601 Contact Us For Availability
7
Water Hose SPQ F200110P Contact Us For Availability
7
Tee SPQ F421909 Contact Us For Availability
7
Manifold SPQ F8333201 Contact Us For Availability
7
SPQ F140605 SPQ F140605 Contact Us For Availability
7
Washer SPQ F8171201 Contact Us For Availability
7
Steam Valve Assembly SPQ F8288403 Contact Us For Availability
8
Filter SPQ F8454601 Contact Us For Availability
8
Muffin Fan SPQ M411283 Contact Us For Availability
8
Nut SPQ F8066401 Contact Us For Availability
8
Coupling SPQ 20253 Contact Us For Availability
8
Rear Bulkhead Panel SPQ F8483301 Contact Us For Availability
8
Reed Switch Assembly SPQ F8402601 Contact Us For Availability
8
Shaft Sleeve SPQ F8527702 Contact Us For Availability
8
Seal Wear Plate SPQ F8442802 Contact Us For Availability
8
SPQ F8452701 SPQ F8452701 Contact Us For Availability
8
SPQ F8551903 SPQ F8551903 Contact Us For Availability
8
SPQ F0150488-00 SPQ F0150488-00 Contact Us For Availability
8
Steam Filter SPQ F420409 Contact Us For Availability
9
Drive Fan Harness SPQ F430903 Contact Us For Availability
9
Rotation Sensor Harness SPQ F8474901 Contact Us For Availability
9
SPQ F8481901 SPQ F8481901 Contact Us For Availability
9
Includ 17, 26, F8322601 Nut, F8322701 Spray SPQ F8549401 Contact Us For Availability
9
Door Lock Harness SPQ F8066801P Contact Us For Availability
9
Shell Front Gasket Kit SPQ F8522602 Contact Us For Availability
9
Bearings and Seals Kit SPQ F8550102 Contact Us For Availability
9
SPQ F8386806 SPQ F8386806 Contact Us For Availability
10
Power Distribution Block Cover SPQ 44014901P Contact Us For Availability
10
Bushing SPQ 44239501 Contact Us For Availability
10
Electrical Access Cover SPQ F8323801 Contact Us For Availability
10
Door Assembly
Models with a 1 or 2 in the 8th SPQ F8479901 Contact Us For Availability
10
Blind Rivet SPQ F8245101 Contact Us For Availability
10
Insertion Sleeve SPQ F8464902 Contact Us For Availability
10
Washer SPQ F8478503 Contact Us For Availability
10
Chemical Supply Drain Hose SPQ F8510601 Contact Us For Availability
10
Fill Plumbing Assembly SPQ F8288301 Contact Us For Availability
10
Drain Hose SPQ F200165100 Contact Us For Availability
10
Spacer SPQ F8451601 Contact Us For Availability
10
Radial Seal SPQ F8203810 Contact Us For Availability
10
Pipe Nipple SPQ 901403 Contact Us For Availability
10
Washer SPQ F8456101 Contact Us For Availability
11
Temperature Harness
Electric heat SPQ F8028221P Contact Us For Availability
11
Mount on Concrete Warning Label SPQ F8246401 Contact Us For Availability
11
Conversion Label SPQ F8448801 Contact Us For Availability
11
Adapter Sleeve SPQ F8382502 Contact Us For Availability
11
Hose Clamp SPQ F200213 Contact Us For Availability
11
Elbow SPQ F8514301 Contact Us For Availability
11
Hose Clamp SPQ F0634705-00 Contact Us For Availability
11
Drain Elbow Hose SPQ F8487001 Contact Us For Availability
11
Screw SPQ 70321501 Contact Us For Availability
11
Nut SPQ F8455801 Contact Us For Availability
12
Power Distribution Block SPQ M413865 Contact Us For Availability
12
Plug SPQ F8223901 Contact Us For Availability
12
Door Lock Plate Assembly SPQ F8320401 Contact Us For Availability
12
Shell Band Gasket SPQ F8502306 Contact Us For Availability
12
Frame Shield SPQ F8402701 Contact Us For Availability
12
Nut SPQ F431005 Contact Us For Availability
12
Manifold SPQ F200222 Contact Us For Availability
12
Screw SPQ 202175 Contact Us For Availability
12
Motor Spring Bracket SPQ F8342202 Contact Us For Availability
12
Pipe Insulation SPQ F410300 Contact Us For Availability
12
Bearing Grease SPQ F8457701 Contact Us For Availability
13
External Supply Connection Decal SPQ F8150201 Contact Us For Availability
13
Washer SPQ F431147 Contact Us For Availability
13
Shell Front Assembly
Includes F8233201 Stud, SPQ F8508502 Contact Us For Availability
13
Door Lock Plate Shim SPQ F8398401 Contact Us For Availability
13
Bolt SPQ F8402801 Contact Us For Availability
13
Screw SPQ F8313702 Contact Us For Availability
13
Steam Hose SPQ F200197 Contact Us For Availability
14
Clip SPQ 70346501 Contact Us For Availability
14
Drive Control Harness SPQ F8030201P Contact Us For Availability
14
Right Side Panel SPQ F8480903 Contact Us For Availability
14
Chemical Connection Cover SPQ F8447901 Contact Us For Availability
14
Warning Label SPQ F8428501 Contact Us For Availability
14
Door Gasket SPQ F8479701 Contact Us For Availability
14
Door Lock Catch SPQ F8344501 Contact Us For Availability
14
Shell Extension Band SPQ F8510501 Contact Us For Availability
14
Frame Shield Extension SPQ F8480201 Contact Us For Availability
14
Washer SPQ F8126601 Contact Us For Availability
14
Drain Valve Kit SPQ F8312902 Contact Us For Availability
14
Eye Bolt SPQ F8319503 Contact Us For Availability
14
Steam Injector Tube Assembly SPQ F8368201 Contact Us For Availability
15
Screw SPQ F8117601 Contact Us For Availability
15
Circuit Breaker SPQ F430231 Contact Us For Availability
15
Inverter Drive SPQ F8169693 Contact Us For Availability
15
Front Panel SPQ F8481301 Contact Us For Availability
15
Door Weldment
Studded SPQ F8479501 Contact Us For Availability
15
Screw SPQ 70414101 Contact Us For Availability
15
Supply Weldment SPQ F8428701 Contact Us For Availability
15
Drain Valve Cover SPQ F8577201 Contact Us For Availability
15
Tension Spring SPQ F310148 Contact Us For Availability
15
Plug SPQ F421507 Contact Us For Availability
16
Nut SPQ F8108501P Contact Us For Availability
16
Drive Power Harness SPQ F8169692 Contact Us For Availability
16
Temperature Wiring Harness SPQ F8303001P Contact Us For Availability
16
Grommet SPQ 70182601 Contact Us For Availability
16
Dispenser Cover SPQ F8338601 Contact Us For Availability
16
Door Hinge Shim SPQ F8468301 Contact Us For Availability
16
Grommet SPQ F8457801 Contact Us For Availability
16
Seal Wear Plate SPQ F8480402 Contact Us For Availability
16
Trim SPQ F8549702 Contact Us For Availability
16
Chemical Supply Hose SPQ F200166 Contact Us For Availability
16
Plug SPQ F200133600 Contact Us For Availability
17
Drive Mounting Bracket SPQ F8027804 Contact Us For Availability
17
Size Configuration Wiring Harness SPQ 70256901P Contact Us For Availability
17
Hose Clamp SPQ M405535 Contact Us For Availability
17
Panel Locator SPQ F170604 Contact Us For Availability
17
Plug SPQ 70180001 Contact Us For Availability
17
Door Lock Switch Lever SPQ F8223401 Contact Us For Availability
17
Gasket SPQ F170400RP Contact Us For Availability
17
Adapter SPQ F200164 Contact Us For Availability
17
Tubing SPQ F8340801 Contact Us For Availability
17
Motor Bracket Weldment SPQ F8387601 Contact Us For Availability
18
Tubing SPQ F8079401 Contact Us For Availability
18
Pop Rivet SPQ F8386902 Contact Us For Availability
18
Rear Bulkhead Edging SPQ F8484001 Contact Us For Availability
18
Bolt SPQ F8549301 Contact Us For Availability
18
Washer SPQ F8193101 Contact Us For Availability
18
Dispenser Assembly SPQ F170158P Contact Us For Availability
18
Grease Fitting SPQ F8441101 Contact Us For Availability
19
Contactor SPQ F8028118 Contact Us For Availability
19
Seal Scupper Pad SPQ 70030401 Contact Us For Availability
19
Top Right Cover SPQ F8480501 Contact Us For Availability
19
Bushing SPQ F8378701 Contact Us For Availability
19
Torsion/Door Lock Spring SPQ F8070301 Contact Us For Availability
19
Chemical Supply Cup SPQ F0150512-00P Contact Us For Availability
19
Hose Barb SPQ F8312903 Contact Us For Availability
19
O-Ring SPQ F8441802 Contact Us For Availability
20
Nut SPQ F430232 Contact Us For Availability
20
Bulkhead Panel SPQ F8482301 Contact Us For Availability
20
Door Hinge SPQ F8468101 Contact Us For Availability
20
Stud SPQ H88213996 Contact Us For Availability
20
Injection Nozzle SPQ F150385 Contact Us For Availability
20
Molded Drain SPQ F8531401 Contact Us For Availability
20
Screw SPQ F8441901 Contact Us For Availability
21
Filter
Includes 5 filters SPQ F431210 Contact Us For Availability
21
Door Glass Gasket SPQ F8499902 Contact Us For Availability
21
Door Lock Assembly SPQ F8320501 Contact Us For Availability
21
O-Ring SPQ F0150525-00 Contact Us For Availability
21
Washer SPQ F8466901 Contact Us For Availability
22
Network Board Assembly
Network models SPQ F220900 Contact Us For Availability
22
Door Glass
Models with a 1 or 2 in the 8th po SPQ F8468901 Contact Us For Availability
22
Dispenser Lid SPQ F150386 Contact Us For Availability
22
Key SPQ F8484702 Contact Us For Availability
23
Front Bulkhead Panel SPQ F8482104 Contact Us For Availability
23
Door Glass Retainer SPQ F8475201 Contact Us For Availability
24
Control Assembly Kit SPQ F200318900P Contact Us For Availability
24
Grommet SPQ F8482102 Contact Us For Availability
24
Handle Mount SPQ F431100 Contact Us For Availability
24
Strain Relief Connector SPQ F170215 Contact Us For Availability
24
Excluder Seal Fixture SPQ F8471801 Contact Us For Availability
25
Fuse
2.5 Amp SPQ 203028 Contact Us For Availability
25
Belt SPQ 44049001 Contact Us For Availability
25
Screw SPQ F8537502 Contact Us For Availability
26
Basket Pulley SPQ M400077 Contact Us For Availability
26
Grease Gun SPQ M400063 Contact Us For Availability
27
Connector SPQ F8189401P Contact Us For Availability
27
Motor SPQ F280294P Contact Us For Availability
28
Grommet SPQ F980P3 Contact Us For Availability
28
Air Coupling SPQ F8382809 Contact Us For Availability
29
Connector SPQ F8522201 Contact Us For Availability
30
Cable Tie SPQ F8487101 Contact Us For Availability
31
SPQ F8334701P SPQ F8334701P Contact Us For Availability
33
SPQ F8366601 SPQ F8366601 Contact Us For Availability
NI
SPQ F200233500 SPQ F200233500 Contact Us For Availability
NI
SPQ F8383101 SPQ F8383101 Contact Us For Availability
NI
SPQ F8028701 SPQ F8028701 Contact Us For Availability
NI
SPQ F8508301 SPQ F8508301 Contact Us For Availability
NI
SPQ F110110 SPQ F110110 Contact Us For Availability
NI
SPQ F8151201 SPQ F8151201 Contact Us For Availability
NI
CFG Harness SPQ M400985 Contact Us For Availability
NI
Power Harness
Dual heat SPQ M413506 Contact Us For Availability
NI
Power Harness
Steam, electric and standard he SPQ F8030101P Contact Us For Availability
NI
Module Box Assembly
Models with a K in the 7t SPQ 44088501P Contact Us For Availability
NI
Communication Cable SPQ F8482501 Contact Us For Availability
NI
SPQ F8412810 SPQ F8412810 Contact Us For Availability
NI
SPQ F8385103 SPQ F8385103 Contact Us For Availability
NI
Warning Label SPQ F8454401 Contact Us For Availability
NI
Electric Heat Coils Harness SPQ F230739 Contact Us For Availability
NI
Power Harness SPQ F8054901 Contact Us For Availability
NI
Communication Cable SPQ F8054602 Contact Us For Availability
NI
Rotation Sensor Plate SPQ F8066201 Contact Us For Availability
NI
Rotation Sensor SPQ F8463301 Contact Us For Availability
NI
SPQ F8576401 SPQ F8576401 Contact Us For Availability
NI
SPQ F8436101 SPQ F8436101 Contact Us For Availability
NI
SPQ F8537806 SPQ F8537806 Contact Us For Availability
NI
SPQ 70334702 SPQ 70334702 Contact Us For Availability
NI
Y Connector SPQ F422816 Contact Us For Availability
NI
Fill/Supply Harness SPQ F421951 Contact Us For Availability
NI
SPQ F8322905P SPQ F8322905P Contact Us For Availability
NI
SPQ F422206 SPQ F422206 Contact Us For Availability
NI
SPQ F421964 SPQ F421964 Contact Us For Availability
NI
SPQ F8347501 SPQ F8347501 Contact Us For Availability
NI
Fill/Supply Harness SPQ F8347103 Contact Us For Availability
NI
SPQ F8261303 SPQ F8261303 Contact Us For Availability
NI
SPQ F8487201 SPQ F8487201 Contact Us For Availability
NI
SPQ F200201 SPQ F200201 Contact Us For Availability
NI
SPQ F8257001P SPQ F8257001P Contact Us For Availability
NI
SPQ F8257101 SPQ F8257101 Contact Us For Availability
NI
Bearing Housing Kit SPQ F8579501 Contact Us For Availability
NI
Bearing Housing Assembly SPQ F8575301 Contact Us For Availability
NI
SPQ F8474702 SPQ F8474702 Contact Us For Availability
NI
Standoff SPQ F8515401 Contact Us For Availability
NI
Drain Valve Bracket SPQ F8054705 Contact Us For Availability
NI
Steam Assembly SPQ F943P3 Contact Us For Availability
NI
Drain Valve Bracket SPQ F8394501 Contact Us For Availability
NI
SPQ F8379501P SPQ F8379501P Contact Us For Availability
NI
Concrete Hardware Kit SPQ F923P3 Contact Us For Availability
NI
USB IR Interface Kit SPQ F8599402 Contact Us For Availability
NI
SPQ 1112P SPQ 1112P Contact Us For Availability
NI
SPQ F924P3 SPQ F924P3 Contact Us For Availability
× ![]()
