Model GE UUY60ZGDAB1 – Common Parts & Diagrams

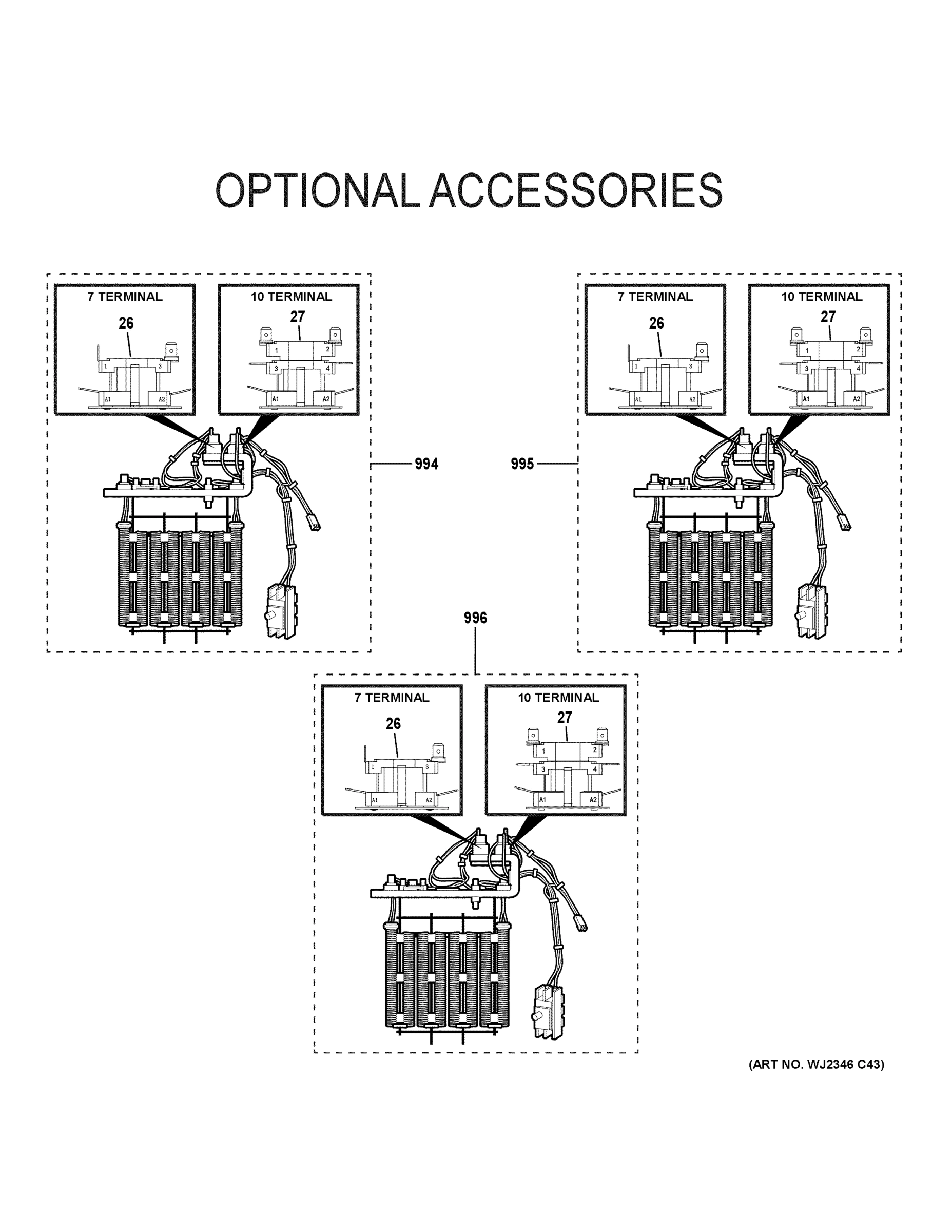

OPTIONAL ACCESSORIES
COMMERCIAL AIR CONDITIONER

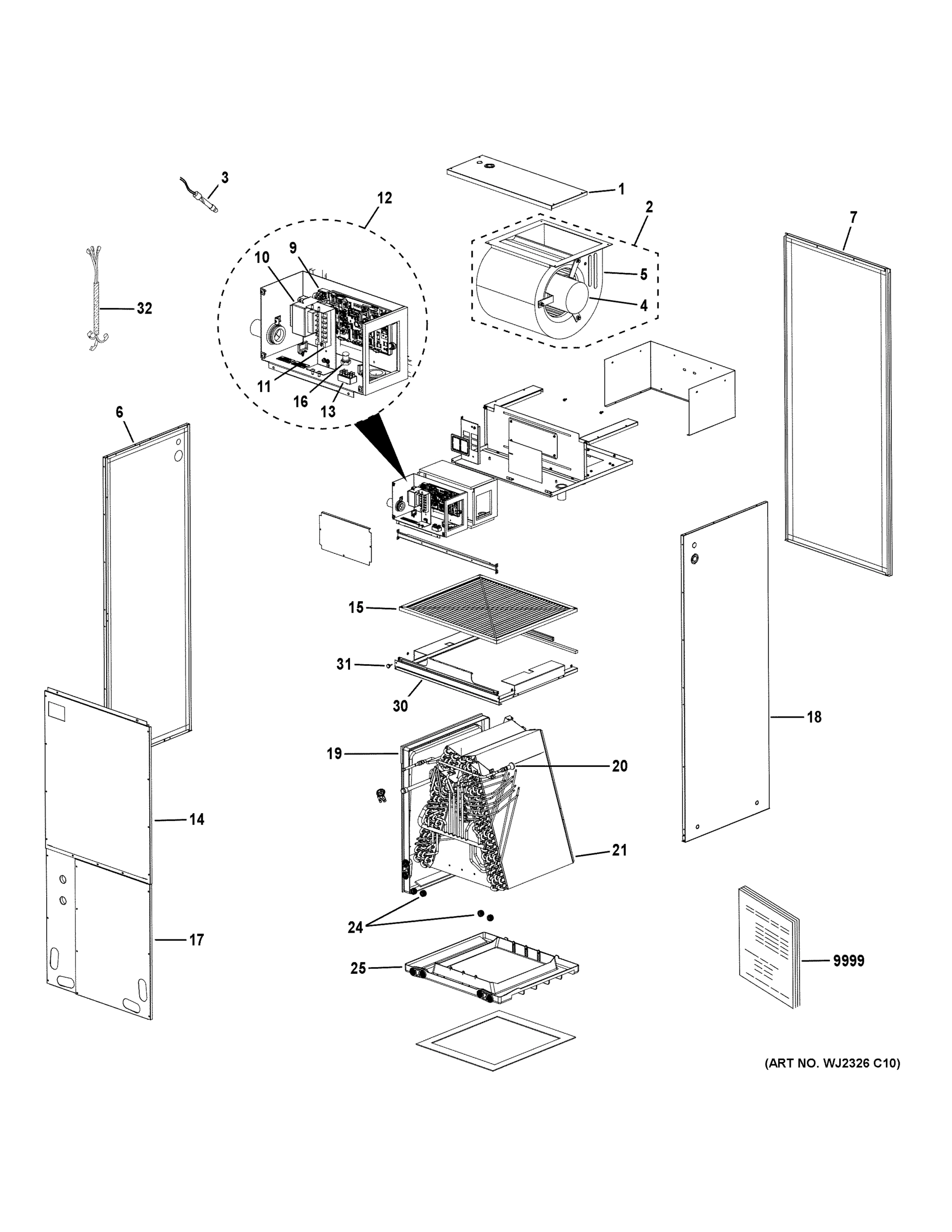

Common parts from model GE UUY60ZGDAB1
1
TOP COVER GEN WP76X28477 Contact Us For Availability
3
TEMPERATURE SENSOR GEN WP26X28473 Contact Us For Availability
6
LEFT SIDE PANEL GEN WP71X27541 Contact Us For Availability
7
REAR PANEL GEN WP71X27542 Contact Us For Availability
9
TERMINAL BOARD GEN WP26X26518 Contact Us For Availability
10
TRANSFORMER GEN WP27X28476 Contact Us For Availability
11
LOW VOLTAGE TERMINAL BLOCK GEN WP26X28475 Contact Us For Availability
12
CONTROLE BOARD GEN WP26X28478 Contact Us For Availability
13
TERMINAL BOARD GEN WJ26X10310 Contact Us For Availability
14
UPPER FRONT PANEL GEN WP71X27540 Contact Us For Availability
15
FILTER GEN WP85X27547 Contact Us For Availability
17
LOWER FRONT PANEL GEN WP71X27528 Contact Us For Availability
18
RIGHT SIDE PANEL GEN WP71X27525 Contact Us For Availability
20
THERMAL EXPANSION VALVE GEN WJ26X30483 Contact Us For Availability
21
EVAPORATOR ASSEMBLY GEN WJ87X30480 Contact Us For Availability
24
CHOKE PLUG GEN WP01X27493 Contact Us For Availability
25
VERTICAL DRAIN PAN GEN WP76X28474 Contact Us For Availability
30
AIR FILTER COVER GEN WP76X34353 Contact Us For Availability
31
COVER SCREWS GEN WP01X34053 Contact Us For Availability
994
Electric Heater for Air Handler - 10kW GEN UAZEH10A Contact Us For Availability
995
Electric Heater for Air Handler - 15kW GEN UAZEH15A Contact Us For Availability
996
Electric Heater for Air Handler - 20kW GEN UAZEH20A Contact Us For Availability
9999
PM INSTALL INSTRUCTIONS GEN 315000486 Contact Us For Availability
× ![]()
