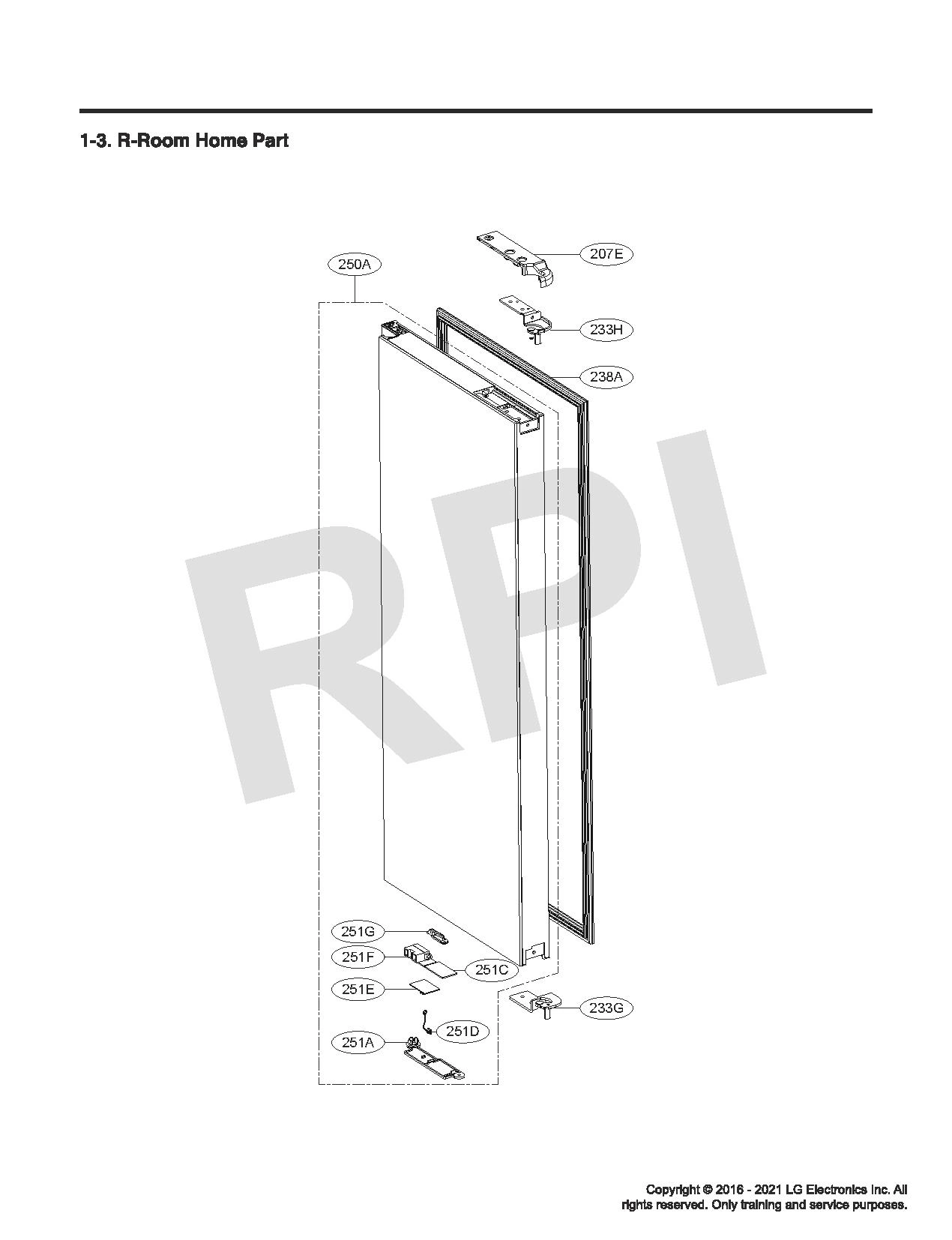

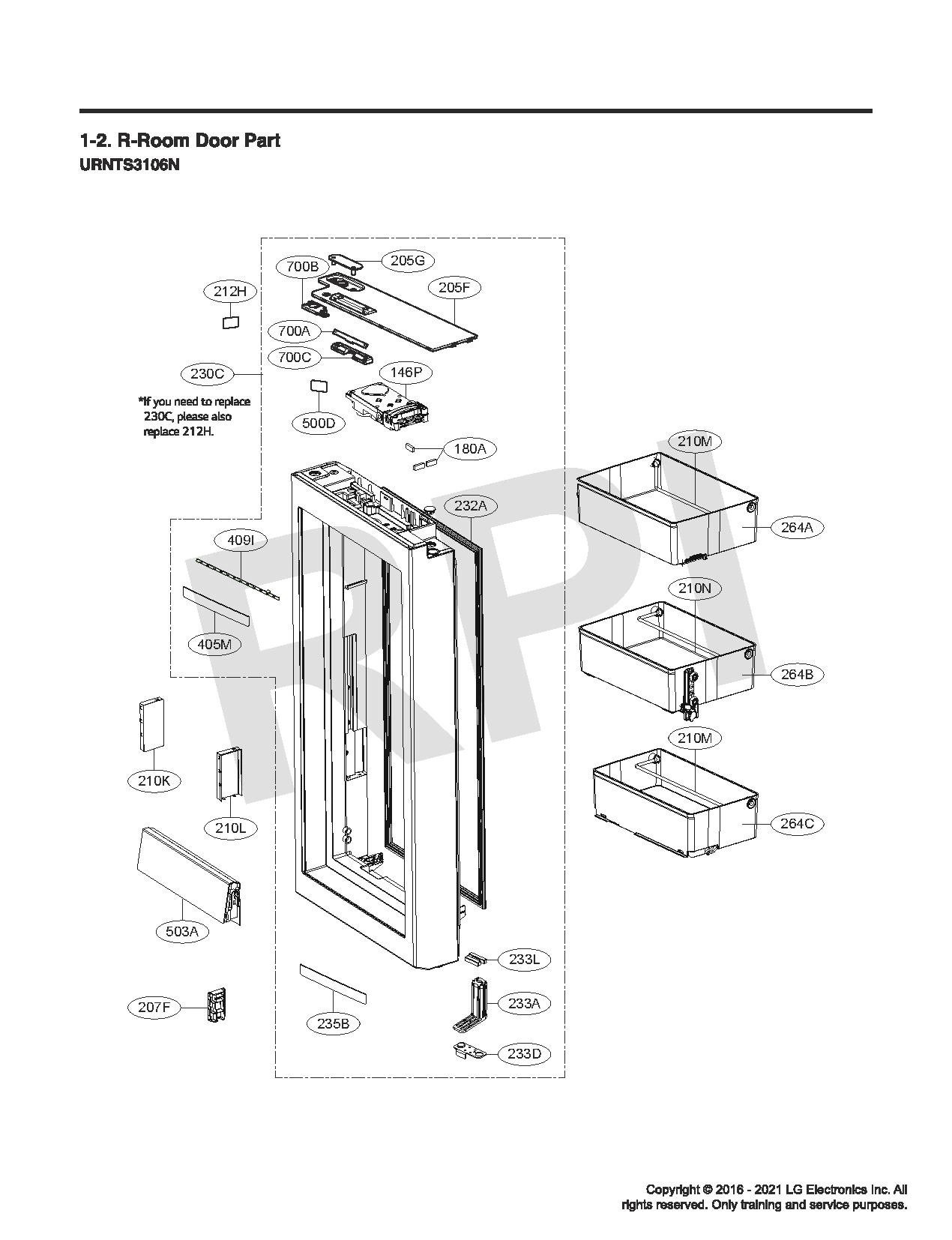

Model LG URNTS3106N – Common Parts & Diagrams
0
1
10
11
2
2
3
4
5
6
7
8
9
Common parts from model LG URNTS3106N
101A
Handle,Rear LGE 3650JA2061W Contact Us For Availability
101B
Handle,Rear LGE 3650JA2061X Contact Us For Availability
105B
Tube Assembly,Drain LGE 5251JA3004E Contact Us For Availability
105D
Skirt,Lower LGE 5070JA3002Y Contact Us For Availability
105G
Skirt,Lower LGE 5070JA3002A Contact Us For Availability
106A
Hinge Assembly,Lower LGE AEH73998409 Contact Us For Availability
106B
Hinge Assembly,Lower LGE AEH73998410 Contact Us For Availability
120A
Duct Assembly,Multi LGE ADJ74512412 Contact Us For Availability
120B
Duct Assembly,Connector LGE ADJ73632224 Contact Us For Availability
120G
Deodorizer Assembly LGE ACX72949206 Contact Us For Availability
120I
Sensor Assembly LGE EBD62726101 Contact Us For Availability
120J
Cover Assembly,PCB LGE ACQ89013003 Contact Us For Availability
120M
Cover Assembly,Display LGE ACQ88683203 Contact Us For Availability
133E
Holder Assembly,Bracket LGE AEJ74899401 Contact Us For Availability
136A
Tray,Drawer LGE MJS63873501 Contact Us For Availability
136B
Cover Assembly,Lower LGE ACQ88926301 Contact Us For Availability
136C
Tray,Drawer LGE MJS63873401 Contact Us For Availability
136D
Cover Assembly,Lower LGE ACQ88926101 Contact Us For Availability
143A
Cover Assembly LGE ACQ88728303 Contact Us For Availability
144A
Shelf Assembly,Refrigerator LGE AHT74394013 Contact Us For Availability
144B
Shelf Assembly,Refrigerator LGE AHT74394014 Contact Us For Availability
144C
Shelf Assembly,Refrigerator LGE AHT74394015 Contact Us For Availability
144D
Shelf Assembly,Refrigerator LGE AHT74394016 Contact Us For Availability
145A
Holder,Shelf LGE MEG63160009 Contact Us For Availability
145B
Holder,Shelf LGE MEG63160010 Contact Us For Availability
145C
Holder,Shelf LGE MEG63160011 Contact Us For Availability
145D
Tray,Drain LGE MJS63852301 Contact Us For Availability
145E
Cover Assembly,Lower LGE ACQ88926001 Contact Us For Availability
145F
Holder,Rail LGE MEG64781402 Contact Us For Availability
145G
Guide Assembly,Rail LGE AEC74637903 Contact Us For Availability
145H
Guide Assembly,Rail LGE AEC74637904 Contact Us For Availability
145I
Guide Assembly,Rail LGE AEC74637901 Contact Us For Availability
145J
Guide Assembly,Rail LGE AEC74637902 Contact Us For Availability
145K
Holder,Rail LGE MEG64781401 Contact Us For Availability
146A
Holder Assembly,Bracket LGE AEJ74839701 Contact Us For Availability
146B
Plate Assembly,Center LGE AGU73972113 Contact Us For Availability
146C
Cover,Front LGE MCK69117101 Contact Us For Availability
146D
Duct,Insulation LGE MCZ64052701 Contact Us For Availability
146E
Cover Assembly,Tray LGE ACQ88687201 Contact Us For Availability
146I
Holder Assembly,Bracket LGE AEJ74899901 Contact Us For Availability
146J
Holder Assembly,Bracket LGE AEJ74899902 Contact Us For Availability
146K
Holder Assembly,Bracket LGE AEJ74900001 Contact Us For Availability
146L
Bar LGE MAK63828001 Contact Us For Availability
146M
Duct,Connector LGE MCZ63192701 Contact Us For Availability
146N
Cover Assembly,Motor LGE ACQ88756202 Contact Us For Availability
146O
Bar LGE MAK63828002 Contact Us For Availability
146P
Cover Assembly,Motor LGE ACQ88716601 Contact Us For Availability
146Q
Cover Assembly,Motor LGE ACQ88756201 Contact Us For Availability
146R
Holder,Rail LGE MEG64762102 Contact Us For Availability
147D
Spring LGE MHY64303801 Contact Us For Availability
147E
Guide,Drawer LGE MEA64550502 Contact Us For Availability
147F
Holder Assembly LGE AEJ74859602 Contact Us For Availability
147G
Cap,Cover LGE MBL66841803 Contact Us For Availability
147H
Guide,Drawer LGE MEA64550501 Contact Us For Availability
147I
Holder Assembly LGE AEJ74859601 Contact Us For Availability
147J
Cap,Cover LGE MBL66841804 Contact Us For Availability
152A
Tray,Vegetable LGE MJS63873201 Contact Us For Availability
152B
Cover Assembly,Lower LGE ACQ88925901 Contact Us For Availability
152C
Holder,Bracket LGE MEG64761502 Contact Us For Availability
154A
Cover Assembly,TV LGE ACQ88779401 Contact Us For Availability
158A
Cover,Lamp LGE MCK69116702 Contact Us For Availability
161A
Guide,Rail LGE MEA64511901 Contact Us For Availability
162A
Guide,Rail LGE MEA64512001 Contact Us For Availability
162B
Guide,Rail LGE MEA64512002 Contact Us For Availability
162C
Guide Assembly,Rail LGE AEC74637801 Contact Us For Availability
162D
Guide Assembly,Rail LGE AEC74637802 Contact Us For Availability
163A
Tray,Fresh Room LGE MJS63873301 Contact Us For Availability
180A
Magnet,Ferrite LGE RAB32775604 Contact Us For Availability
181A
Cover Assembly,Filter LGE ACQ91110902 Contact Us For Availability
182A
Filter Assembly,Air Cleaner LGE ADQ73853822 Contact Us For Availability
201A
Door Foam Assembly,Freezer LGE ADD75135907 Contact Us For Availability
201B
Door Foam Assembly,Freezer LGE ADD75135902 Contact Us For Availability
202A
Gasket Assembly,Door LGE ADX72930464 Contact Us For Availability
205F
Cap,Cover LGE MBL66936903 Contact Us For Availability
205G
Cover LGE MCK70588401 Contact Us For Availability
205I
Cap,Cover LGE MBL66881401 Contact Us For Availability
207A
Cover,Hinge LGE MCK69153402 Contact Us For Availability
207E
Cover,Hinge LGE MCK69133001 Contact Us For Availability
207F
Cover,Frame LGE MCK69077001 Contact Us For Availability
210G
Basket Assembly,Door LGE AAP74611401 Contact Us For Availability
210K
Cover,Frame LGE MCK69078402 Contact Us For Availability
210L
Cover,Frame LGE MCK69078401 Contact Us For Availability
210M
Bar LGE MAK63747802 Contact Us For Availability
210N
Bar LGE MAK63747803 Contact Us For Availability
212H
Name Plate LGE MFT63786202 Contact Us For Availability
230C
Door Assembly,Refrigerator(Right) LGE ADC75506322 Contact Us For Availability
231E
Door Foam Assembly,Refrigerator LGE ADD75195802 Contact Us For Availability
232A
Gasket Assembly,Door LGE ADX72930441 Contact Us For Availability
232B
Gasket Assembly,Door LGE ADX72930442 Contact Us For Availability
233A
Hinge Assembly LGE AEH34570003 Contact Us For Availability
233B
Stopper Assembly,Door LGE AJC68689646 Contact Us For Availability
233C
Hinge Assembly LGE AEH34570004 Contact Us For Availability
233D
Stopper Assembly,Door LGE AJC68689647 Contact Us For Availability
233G
Hinge Assembly,Lower LGE AEH75116901 Contact Us For Availability
233H
Hinge Assembly,Upper LGE AEH75136401 Contact Us For Availability
233J
Stopper,Door LGE MJB64010101 Contact Us For Availability
233K
Stopper,Door LGE MJB64069702 Contact Us For Availability
233L
Stopper,Door LGE MJB63990401 Contact Us For Availability
233Q
Stopper,Door LGE MJB64069701 Contact Us For Availability
235A
Plate Assembly,Front LGE AGU74268156 Contact Us For Availability
235B
Handle,Decor LGE MEB64034201 Contact Us For Availability
238A
Gasket Assembly,Door LGE ADX74730901 Contact Us For Availability
249E
Rail,Slide LGE MGT62524701 Contact Us For Availability
249F
Rail,Slide LGE MGT62524702 Contact Us For Availability
249G
Rail,Slide LGE MGT62544701 Contact Us For Availability
249H
Rail,Slide LGE MGT62544702 Contact Us For Availability
249I
Rail,Slide LGE MGT62544801 Contact Us For Availability
249J
Rail,Slide LGE MGT62544802 Contact Us For Availability
249K
Rack LGE MGR62542002 Contact Us For Availability
249L
Rack LGE MGR62542001 Contact Us For Availability
249M
Rack LGE MGR62542101 Contact Us For Availability
249N
Cap,Cover LGE MBL66841805 Contact Us For Availability
250A
Door Assembly,Home Bar LGE ADC75506203 Contact Us For Availability
251A
Cover,PCB LGE MCK69076901 Contact Us For Availability
251C
PCB Assembly,Sensor LGE EBR30162704 Contact Us For Availability
251D
Harness Assembly LGE EAD63850101 Contact Us For Availability
251E
PCB Assembly,Sub LGE EBR82273501 Contact Us For Availability
251F
Sensor Assembly LGE EBD60661402 Contact Us For Availability
251G
Cover,PCB LGE MCK69076904 Contact Us For Availability
262B
Hinge Assembly,Center LGE AEH75156708 Contact Us For Availability
262C
Stopper Assembly,Door LGE AJC68689649 Contact Us For Availability
262D
Stopper Assembly,Door LGE AJC68689648 Contact Us For Availability
262H
Hinge Assembly,Center LGE AEH75156707 Contact Us For Availability
264A
Basket Assembly,Door LGE AAP74611501 Contact Us For Availability
264B
Basket Assembly,Door LGE AAP74611601 Contact Us For Availability
264C
Basket Assembly,Door LGE AAP74611701 Contact Us For Availability
264E
Basket Assembly,Door LGE AAP74651301 Contact Us For Availability
264F
Basket Assembly,Door LGE AAP74651401 Contact Us For Availability
267A
Spring LGE MHY62644404 Contact Us For Availability
270A
Cover Assembly,Hinge LGE ACQ88710102 Contact Us For Availability
270C
Cover Assembly,Hinge LGE ACQ88774001 Contact Us For Availability
270D
Cover Assembly,Hinge LGE ACQ88774002 Contact Us For Availability
271D
Hinge Assembly,Upper LGE AEH75156501 Contact Us For Availability
271E
Hinge Assembly,Upper LGE AEH75156502 Contact Us For Availability
275A
Cap Assembly,Duct LGE ABN72938909 Contact Us For Availability
276A
Spring,Lever LGE MHY62603707 Contact Us For Availability
276I
Spring,Lever LGE MHY62603708 Contact Us For Availability
278A
Funnel Assembly LGE ADW73349903 Contact Us For Availability
278B
Frame,Funnel LGE MDQ64916601 Contact Us For Availability
278C
Decor,Cover LGE MCR66490801 Contact Us For Availability
279A
Cover Assembly,Display LGE ACQ88074319 Contact Us For Availability
279J
Button Assembly LGE ABH75459802 Contact Us For Availability
281A
Decor,Drain LGE MCR66127002 Contact Us For Availability
282I
Cap,Cover LGE MBL62537303 Contact Us For Availability
301A
Condenser Assembly,Wire LGE ACG73645006 Contact Us For Availability
302B
Evaporat LGE ADL75241104 Contact Us For Availability
302B
LGE ADL75241106 LGE ADL75241106 Contact Us For Availability
302C
LGE ADL75241003 LGE ADL75241003 Contact Us For Availability
302C
LGE ADL75241005 LGE ADL75241005 Contact Us For Availability
303A
LGE EBG63205811 LGE EBG63205811 Contact Us For Availability
303A
LGE EBG63205835 LGE EBG63205835 Contact Us For Availability
303C
LGE 6750C-0002C LGE 6750C-0002C Contact Us For Availability
304A
LGE MCK70052506 LGE MCK70052506 Contact Us For Availability
305C
LGE 1PZZJA3013B LGE 1PZZJA3013B Contact Us For Availability
306A
LGE MCQ66921101 LGE MCQ66921101 Contact Us For Availability
308A
LGE MJS62233503 LGE MJS62233503 Contact Us For Availability
308B
LGE MEA42772905 LGE MEA42772905 Contact Us For Availability
308C
LGE ADP73273401 LGE ADP73273401 Contact Us For Availability
312B
Cover,Front LGE MCK67971001 Contact Us For Availability
314A
LGE 4620JA3015A LGE 4620JA3015A Contact Us For Availability
317A
LGE ADH73590311 LGE ADH73590311 Contact Us For Availability
332C
LGE AEB74944704 LGE AEB74944704 Contact Us For Availability
332E
LGE MHN62962001 LGE MHN62962001 Contact Us For Availability
400A
LGE ACM73919220 LGE ACM73919220 Contact Us For Availability
401A
LGE ACM73919218 LGE ACM73919218 Contact Us For Availability
402B
LGE EBF62234503 LGE EBF62234503 Contact Us For Availability
403B
LGE EAU63103301 LGE EAU63103301 Contact Us For Availability
404C
LGE EAU6482 LGE EAU6482 Contact Us For Availability
404C
LGE EAU64824805 LGE EAU64824805 Contact Us For Availability
404D
LGE ACQ7324 LGE ACQ7324 Contact Us For Availability
405M
Cover,Lamp LGE MCK69132901 Contact Us For Availability
409I
LED Assembly LGE EAV63332108 Contact Us For Availability
500D
PCB Assembly,WiFi LGE EBR85242114 Contact Us For Availability
503A
Case Assembly,Display LGE ABQ75682124 Contact Us For Availability
600A
Ice Maker Assembly,Kit LGE AEQ73130006 Contact Us For Availability
600C
Cover Assembly,Motor LGE ACQ90087901 Contact Us For Availability
600J
Guide,Water LGE MEA63570501 Contact Us For Availability
606A
Motor, AC Indoor LGE EAU60784231 Contact Us For Availability
606A
Motor Assembly,DC,Indoor LGE EAU64063301 Contact Us For Availability
607A
Holder Assembly,Bracket LGE 4931JA3005B Contact Us For Availability
612A
Dispenser Assembly,Ice LGE ACZ73990802 Contact Us For Availability
615A
Tank,Water LGE MJM62864601 Contact Us For Availability
619B
Valve,Water LGE MJX62831301 Contact Us For Availability
619C
Filter Assembly,Water LGE ADQ73913306 Contact Us For Availability
624C
Connector,Tube LGE MCD62887401 Contact Us For Availability
627A
Holder,Pipe LGE 4930JA3054A Contact Us For Availability
627B
Holder,Pipe LGE MEG42758601 Contact Us For Availability
630A
Door Assembly,Freeze Room LGE ADC72987144 Contact Us For Availability
630C
Gasket,Door LGE MDS62111103 Contact Us For Availability
630D
Handle,Home Bar LGE MEB61894003 Contact Us For Availability
630E
Cover,Lever LGE MCK63734907 Contact Us For Availability
630F
Hinge Assembly,Upper LGE AEH72976201 Contact Us For Availability
630G
Hinge Assembly,Lower LGE AEH73577903 Contact Us For Availability
630H
Cover,Home Bar LGE MCK66593601 Contact Us For Availability
630J
Gasket Assembly,Door LGE ADX73250604 Contact Us For Availability
630J
Gasket Assembly,Door LGE ADX73250606 Contact Us For Availability
700A
PCB Assembly,Sub LGE EBR84422504 Contact Us For Availability
700B
Speaker Assembly LGE EAB64928403 Contact Us For Availability
× ![]()
