Model Whirlpool URBC5024PZ00 – Common Parts & Diagrams

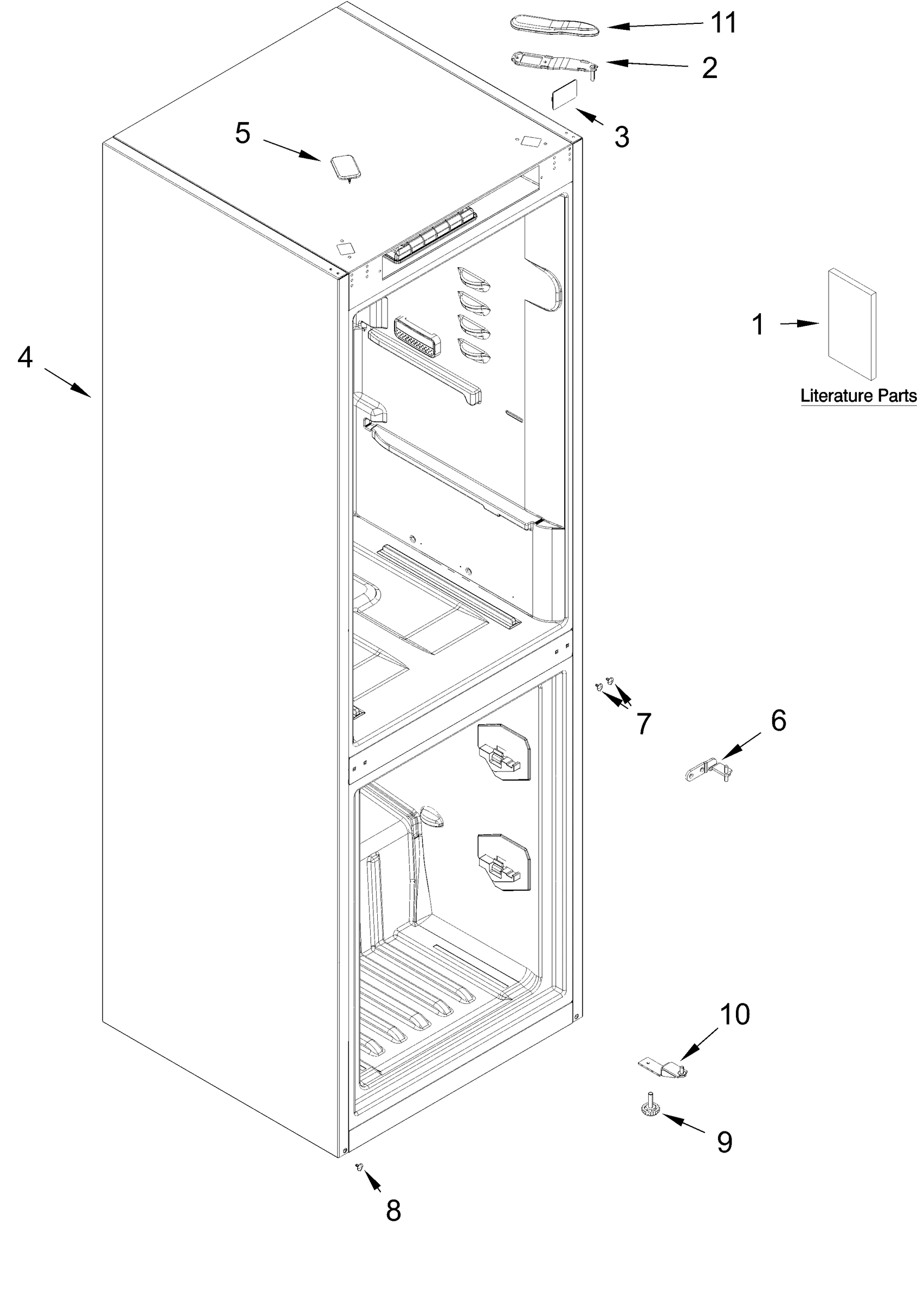

CABINET PARTS

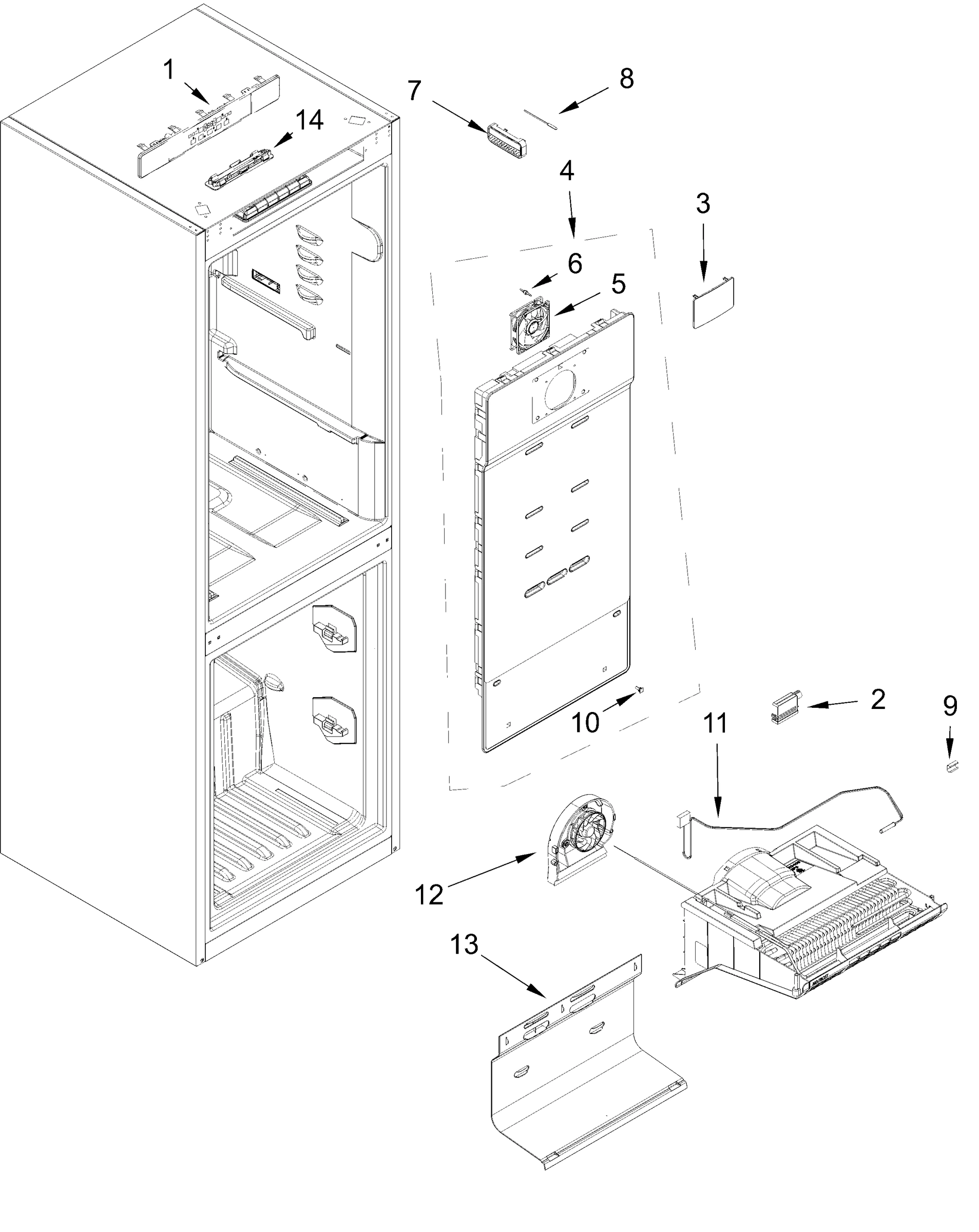

LINER PARTS

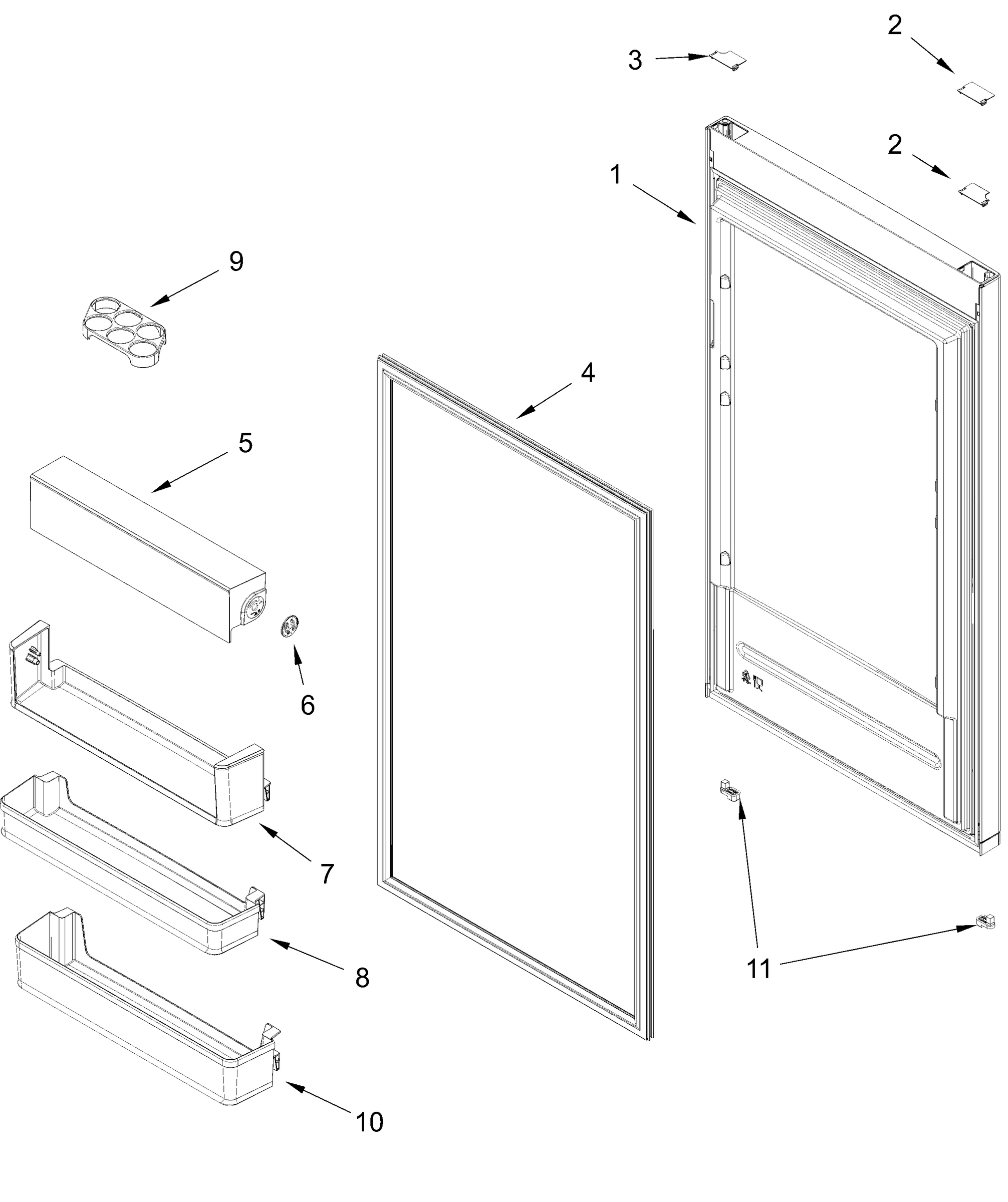

REFRIGERATOR DOOR PARTS

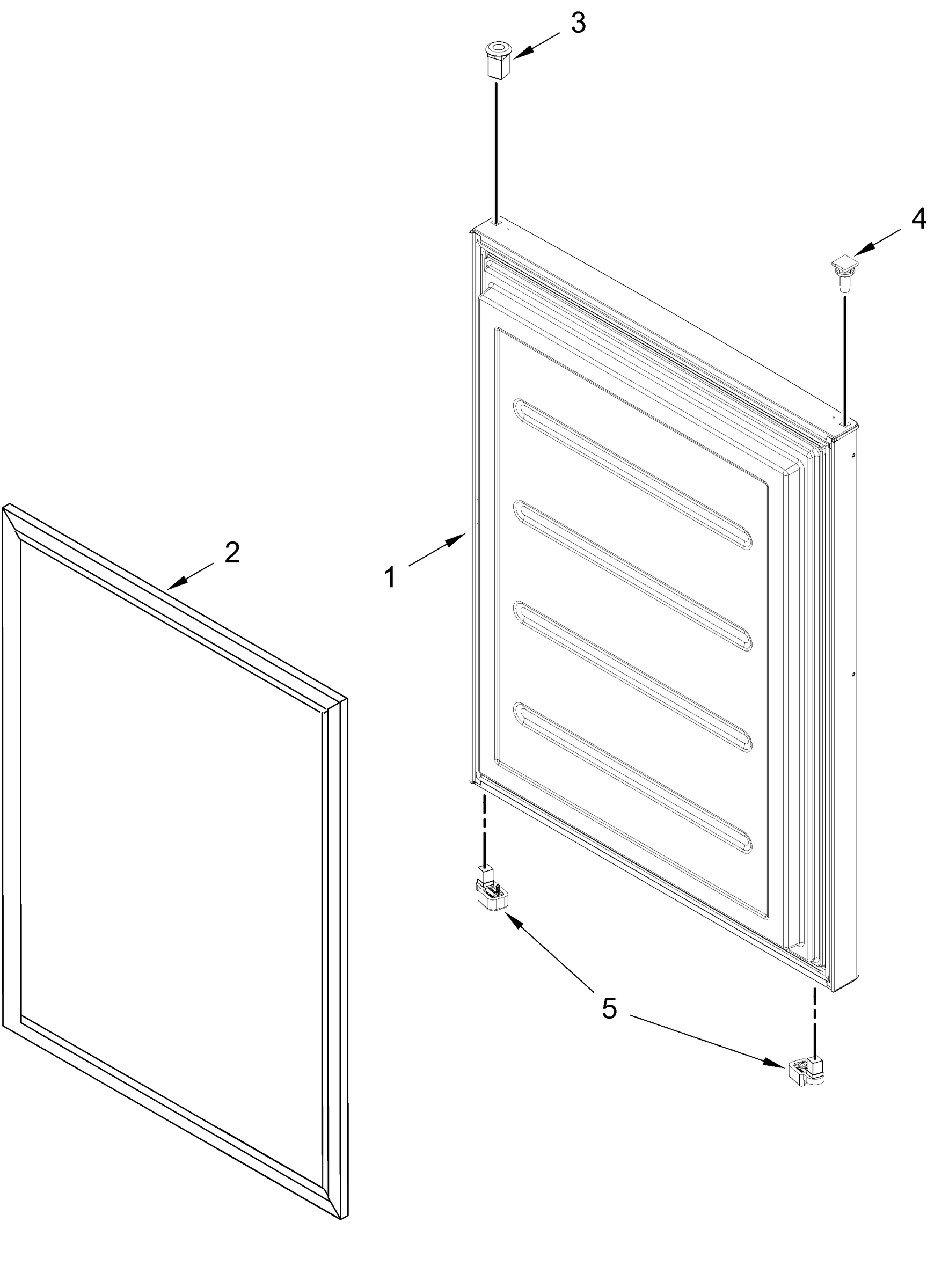

FREEZER DOOR PARTS

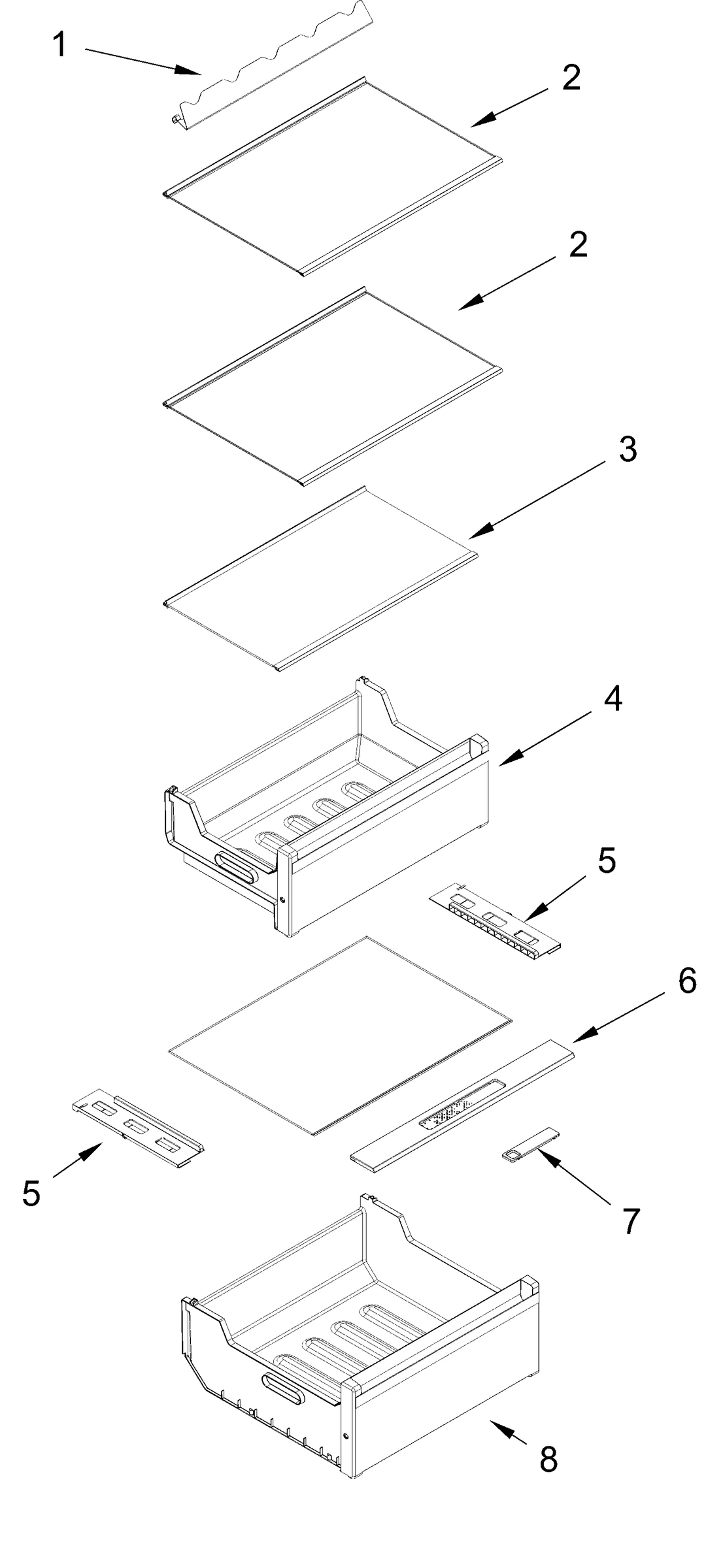

REFRIGERATOR SHELF PARTS

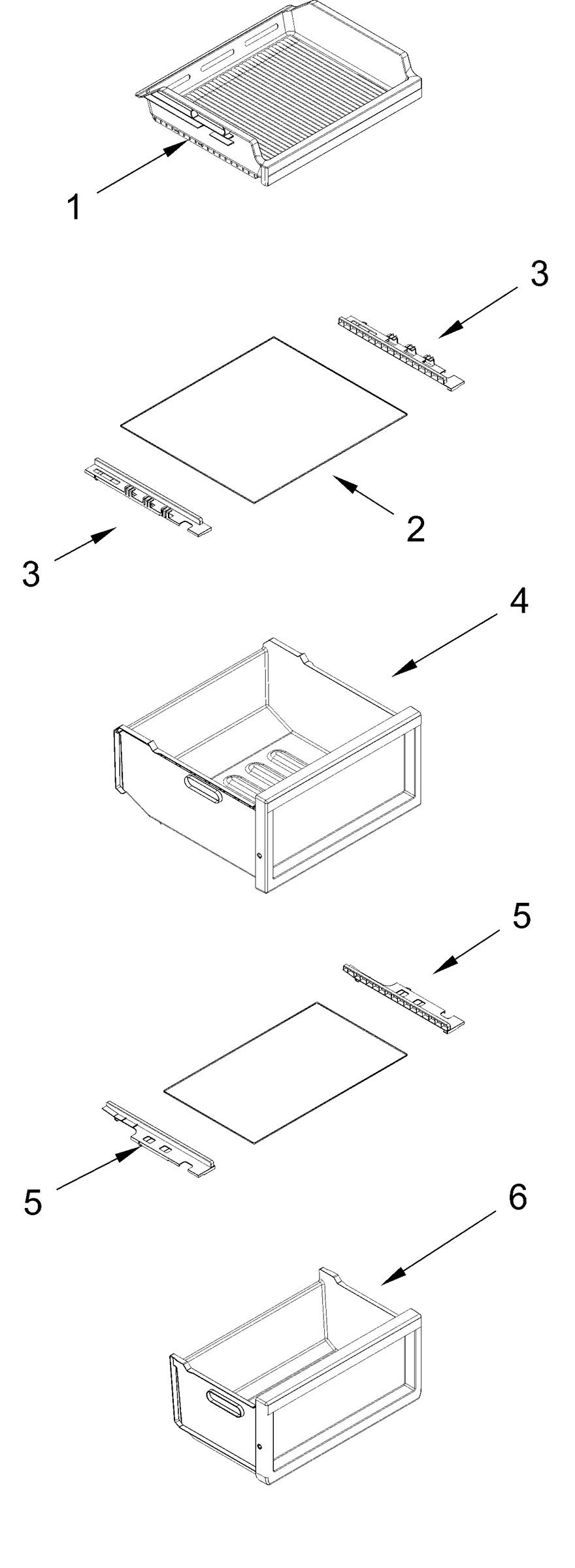

FREEZER SHELF PARTS

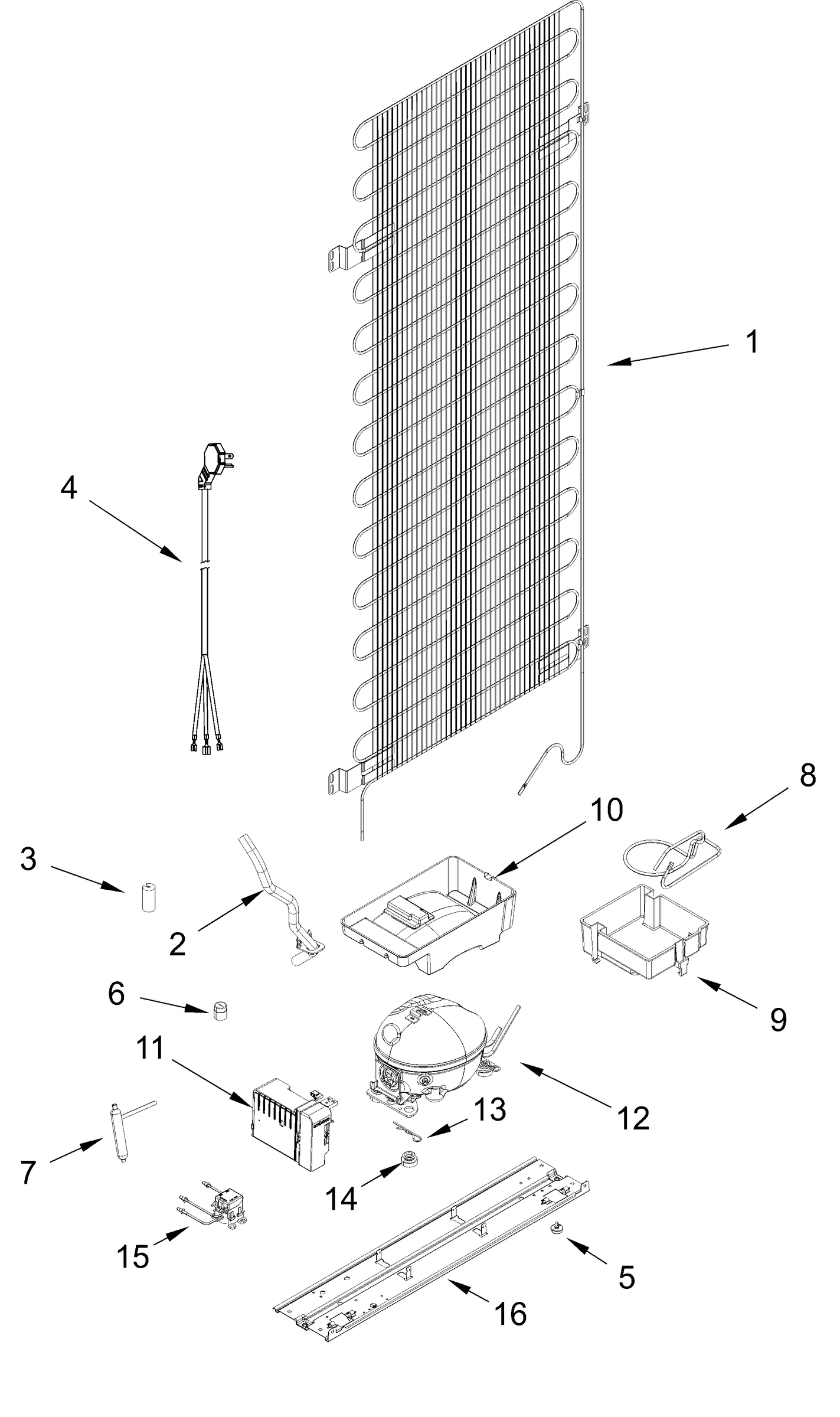

UNIT PARTS
Common parts from model Whirlpool URBC5024PZ00
Energy Guide WPL W11710116 Contact Us For Availability
Filler, Right Corner (Grey) WPL W11354514 Contact Us For Availability
Plug, Left Door (Grey) WPL W11323870 Contact Us For Availability
Slide (Right Hand) WPL W10703803 Contact Us For Availability
REFRIGERANT CHARGE WPL ARIA203FEA88A0C0545C484B4E1C20B771B Contact Us For Availability
40 Grams (R-600A) WPL ARI83968ED1216B21CF054D7139FF2AE4C4 Contact Us For Availability
1
Literature Parts WPL ARI4741983F61CAC445F12C0C1FD1B613C1 Contact Us For Availability
1
Board, Electronic Control WPL W11755999 Contact Us For Availability
1
Door, Refrigerator (Stainless) WPL W11755851 Contact Us For Availability
1
Door, Freezer (Stainless) WPL W11755850 Contact Us For Availability
1
Holder, Bottle WPL W11288004 Contact Us For Availability
1
Condenser WPL W11756010 Contact Us For Availability
2
Cover, Terminal WPL W11756317 Contact Us For Availability
2
Plug, Right Door (Grey) WPL W10740480 Contact Us For Availability
2
Gasket, Door (Grey) WPL W11227267 Contact Us For Availability
2
Assembly, Glass Shelf WPL W10667587 Contact Us For Availability
2
Shelf, Glass WPL W10668655 Contact Us For Availability
2
Tube, Condensate WPL W11756014 Contact Us For Availability
3
Filler, Left Corner (Grey) WPL W10747036 Contact Us For Availability
3
Cover, Fan WPL W11755998 Contact Us For Availability
3
Plug (Grey) WPL W10733967 Contact Us For Availability
3
Sleeve, Hinge (Grey) WPL W10568481 Contact Us For Availability
3
Assembly, Glass Shelf WPL W11393575 Contact Us For Availability
3
Damper, Condenser WPL W11207589 Contact Us For Availability
4
Cabinet (Not A Servicable Part) WPL ARI94342C74144DD1D8059B1C42D7D53A15 Contact Us For Availability
4
Assembly, Multiflow WPL W11756011 Contact Us For Availability
4
Gasket, Door (Grey) WPL W11227268 Contact Us For Availability
4
Plug, Endcap (Grey) WPL W10550057 Contact Us For Availability
4
Assembly, Drawer WPL W11755857 Contact Us For Availability
5
Cover, Connector (Grey) WPL W10747990 Contact Us For Availability
5
Motor, Fan WPL W11222687 Contact Us For Availability
5
Flap, Dairy WPL W11255028 Contact Us For Availability
5
Stop, Door (Left Hand) WPL W11314734 Contact Us For Availability
6
Hinge, Center WPL W10737284 Contact Us For Availability
6
Grommet, Fan WPL W11179695 Contact Us For Availability
6
Frame, Humidity WPL W11367848 Contact Us For Availability
6
Valve, Drain WPL W11755990 Contact Us For Availability
7
Plug, Hinge Hole (White) WPL W11475113 Contact Us For Availability
7
Shelf, Dairy WPL W11330166 Contact Us For Availability
7
Control, Humidity WPL W11342779 Contact Us For Availability
8
Plug, Hinge Hole (Grey) WPL W11469992 Contact Us For Availability
8
Probe, Sensor WPL W11756005 Contact Us For Availability
8
Bin, Door WPL W11643801 Contact Us For Availability
8
Assembly, Crisper WPL W11755855 Contact Us For Availability
8
Pipe, Precondenser WPL W11756328 Contact Us For Availability
9
Support, Freezer Sensor WPL W10843127 Contact Us For Availability
9
Tray, Water WPL W10757321 Contact Us For Availability
10
Hinge, Bottom WPL W10720304 Contact Us For Availability
10
Stopper WPL W11470019 Contact Us For Availability
10
Shelf, Bottle WPL W11756915 Contact Us For Availability
10
Tray WPL W11755874 Contact Us For Availability
11
Cover, Upper Hinge (Grey) WPL W10746882 Contact Us For Availability
11
Fuse, Thermal WPL W11756001 Contact Us For Availability
11
Inverter WPL W11755997 Contact Us For Availability
12
Assembly, Fan WPL W11254745 Contact Us For Availability
12
Compressor WPL W11755868 Contact Us For Availability
14
Assembly, LED WPL W11113966 Contact Us For Availability
14
Grommet WPL W11755994 Contact Us For Availability
15
Valve WPL W11756002 Contact Us For Availability
16
Crossbar, Rear WPL W11757073 Contact Us For Availability
× ![]()
