Model Whirlpool URB551WNGZ0 REFRIGERATOR, BOTTOM MOUNT – Common Parts & Diagrams

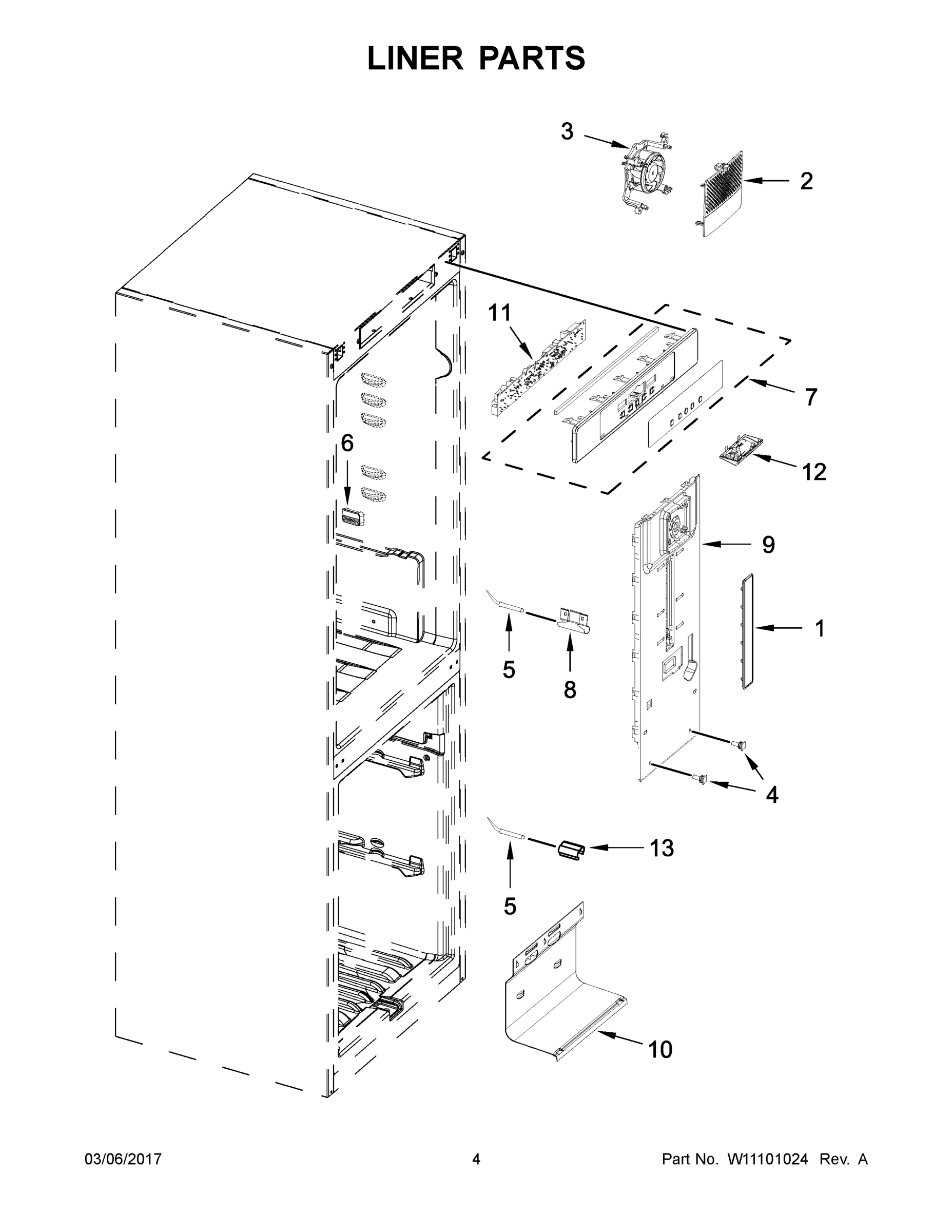

03 - LINER PARTS

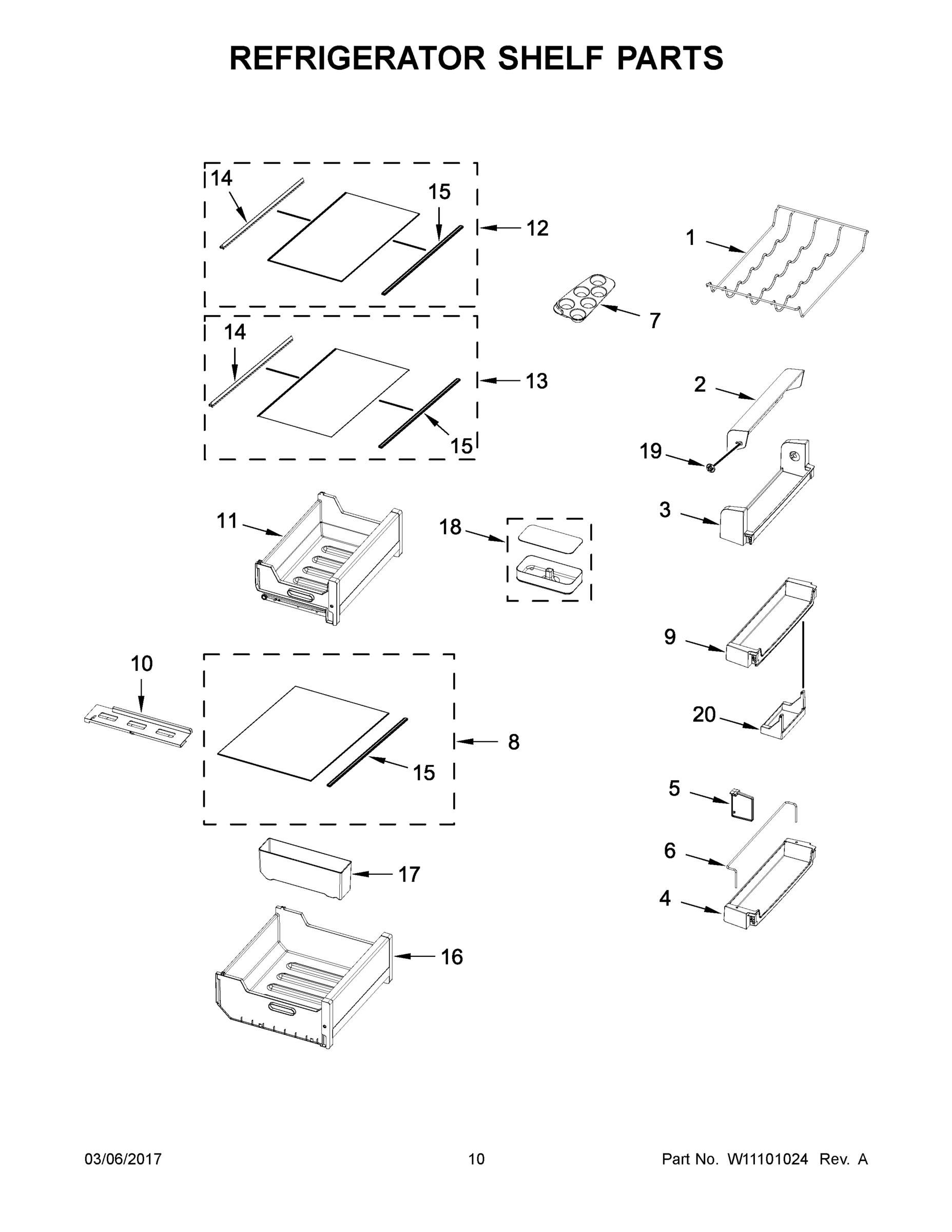

06 - REFRIGERATOR SHELF PARTS

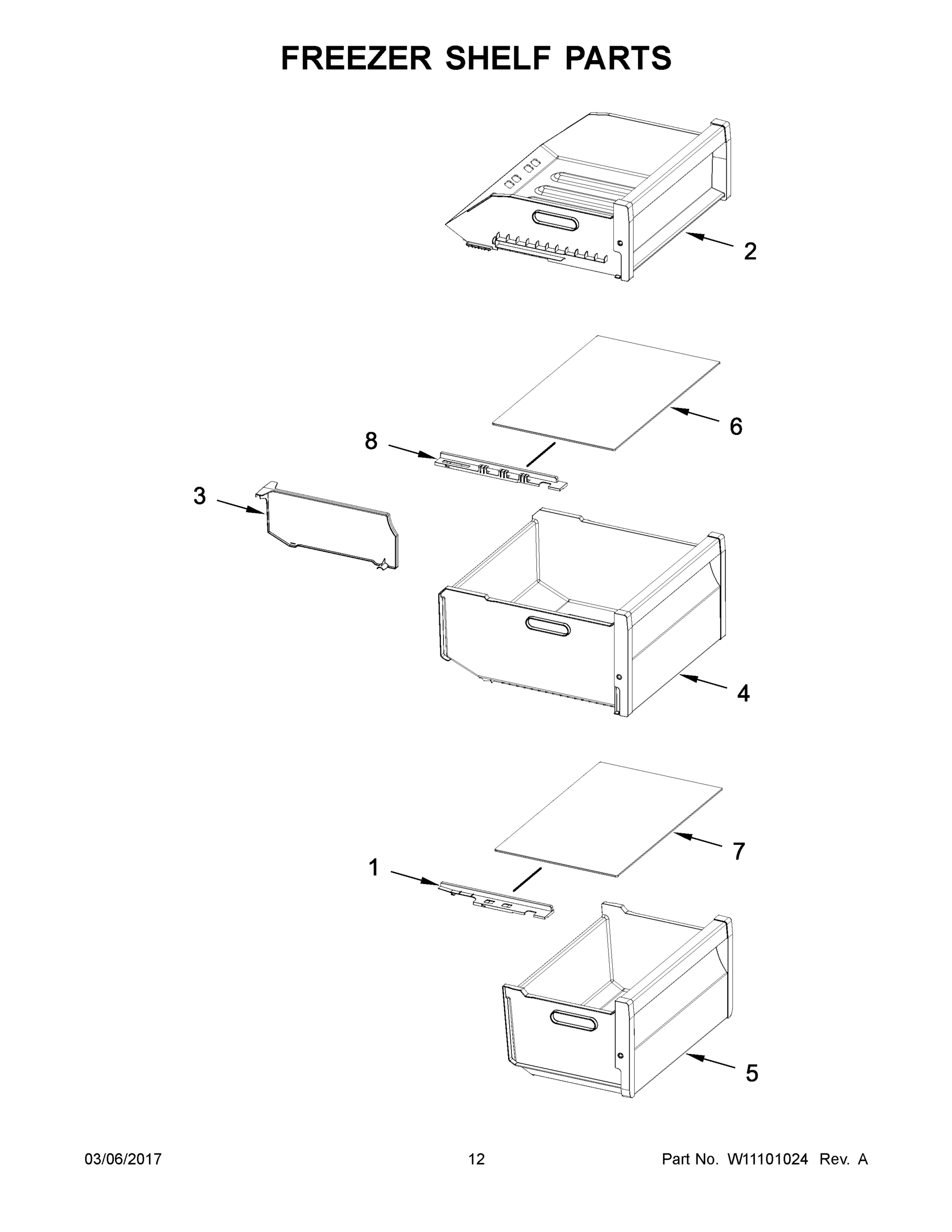

07 - FREEZER SHELF PARTS

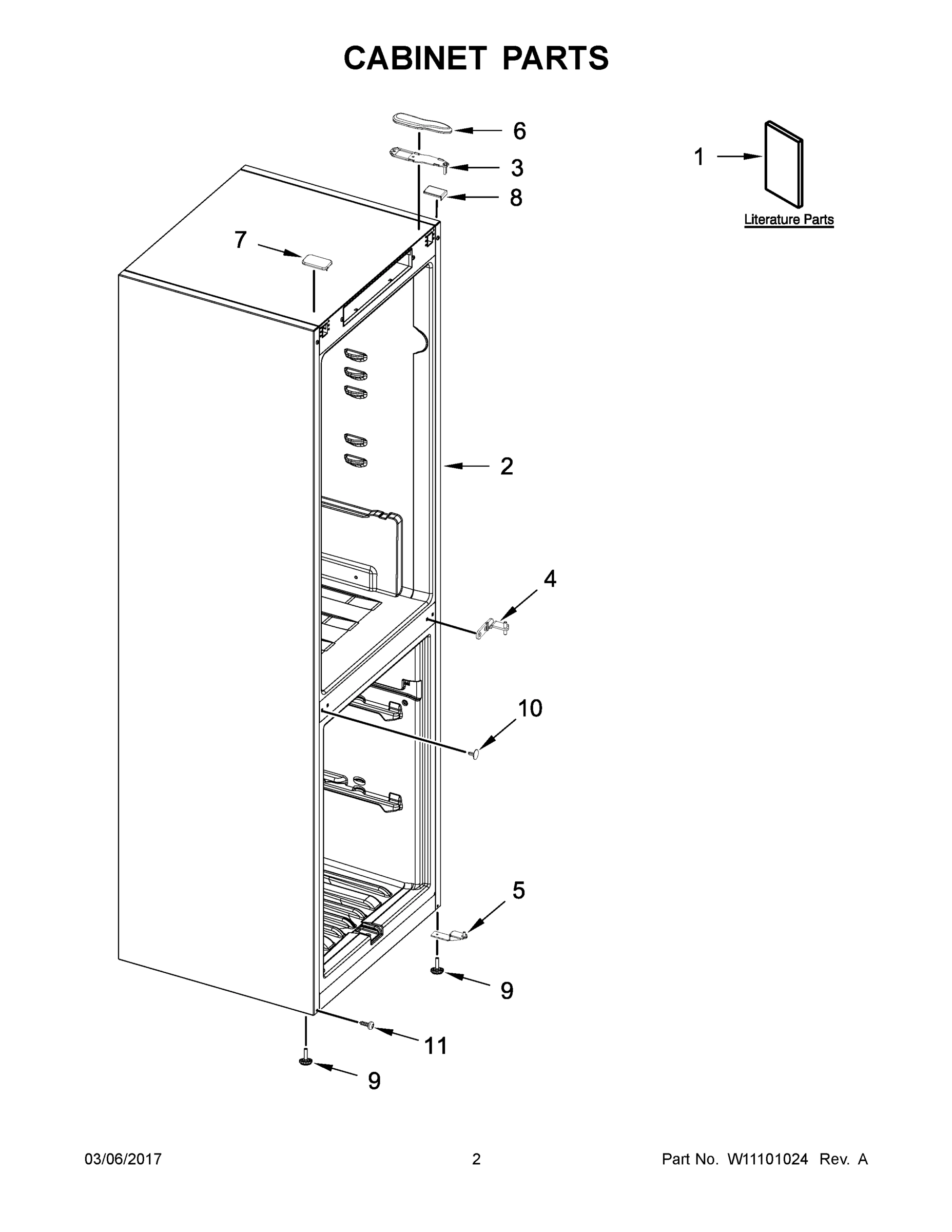

02 - CABINET PARTS

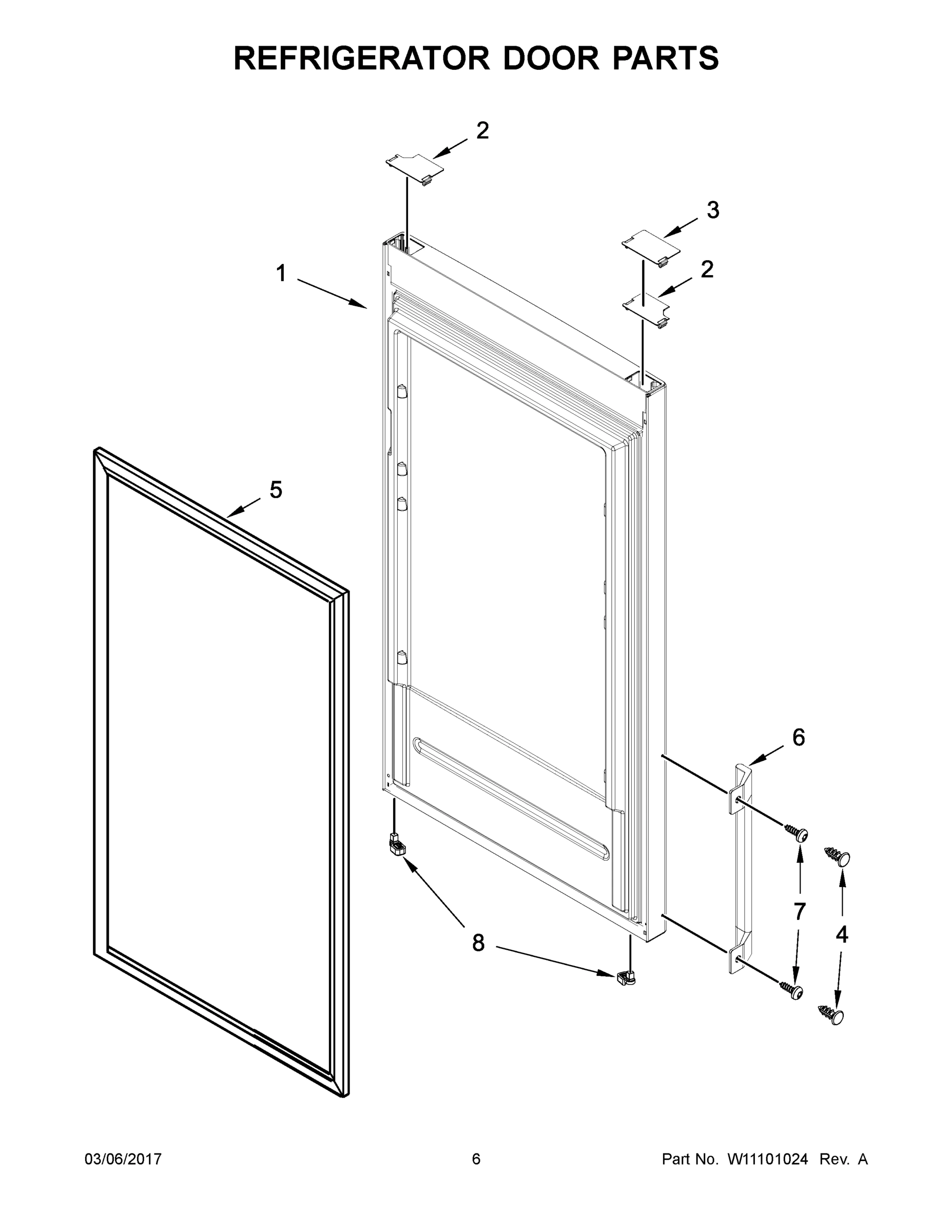

04 - REFRIGERATOR DOOR PARTS

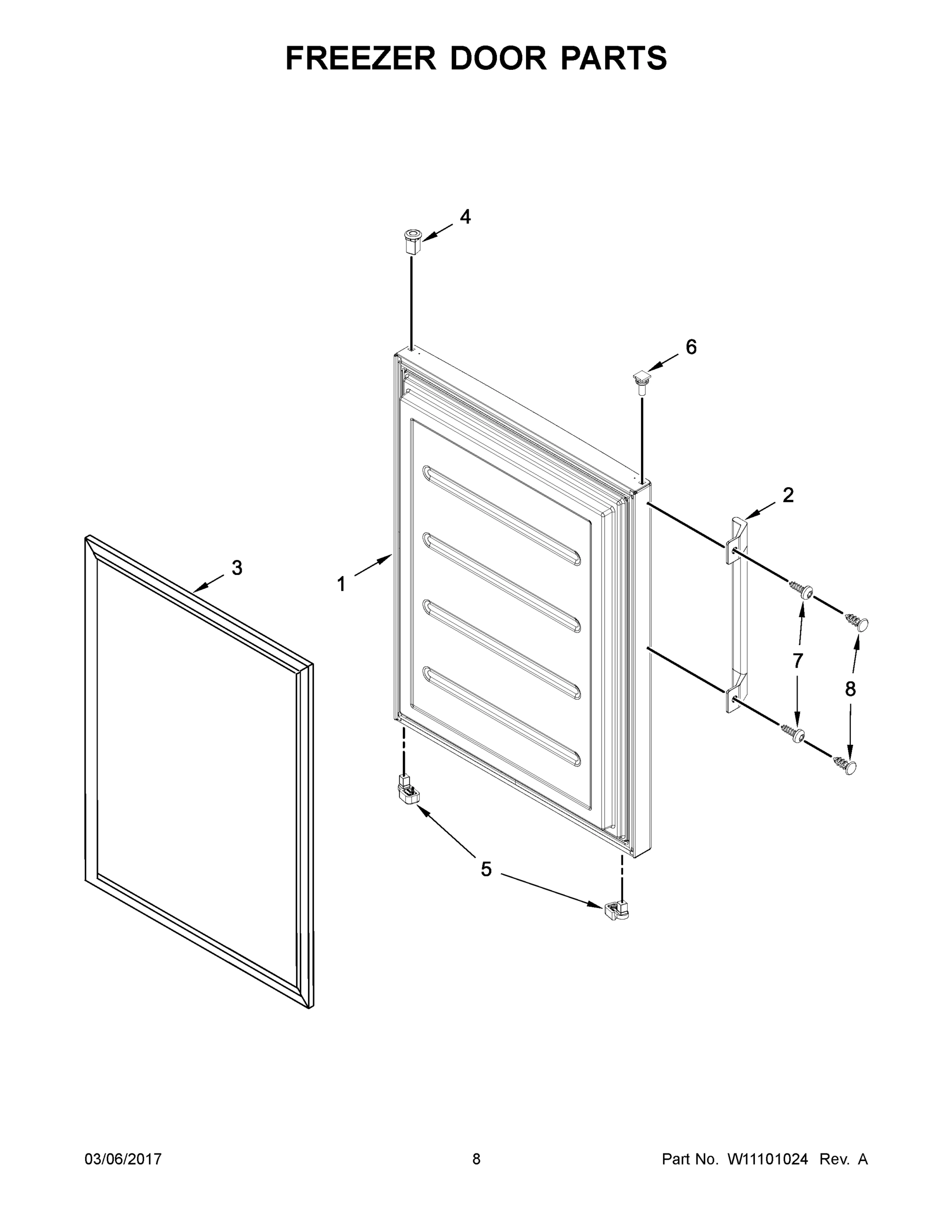

05 - FREEZER DOOR PARTS

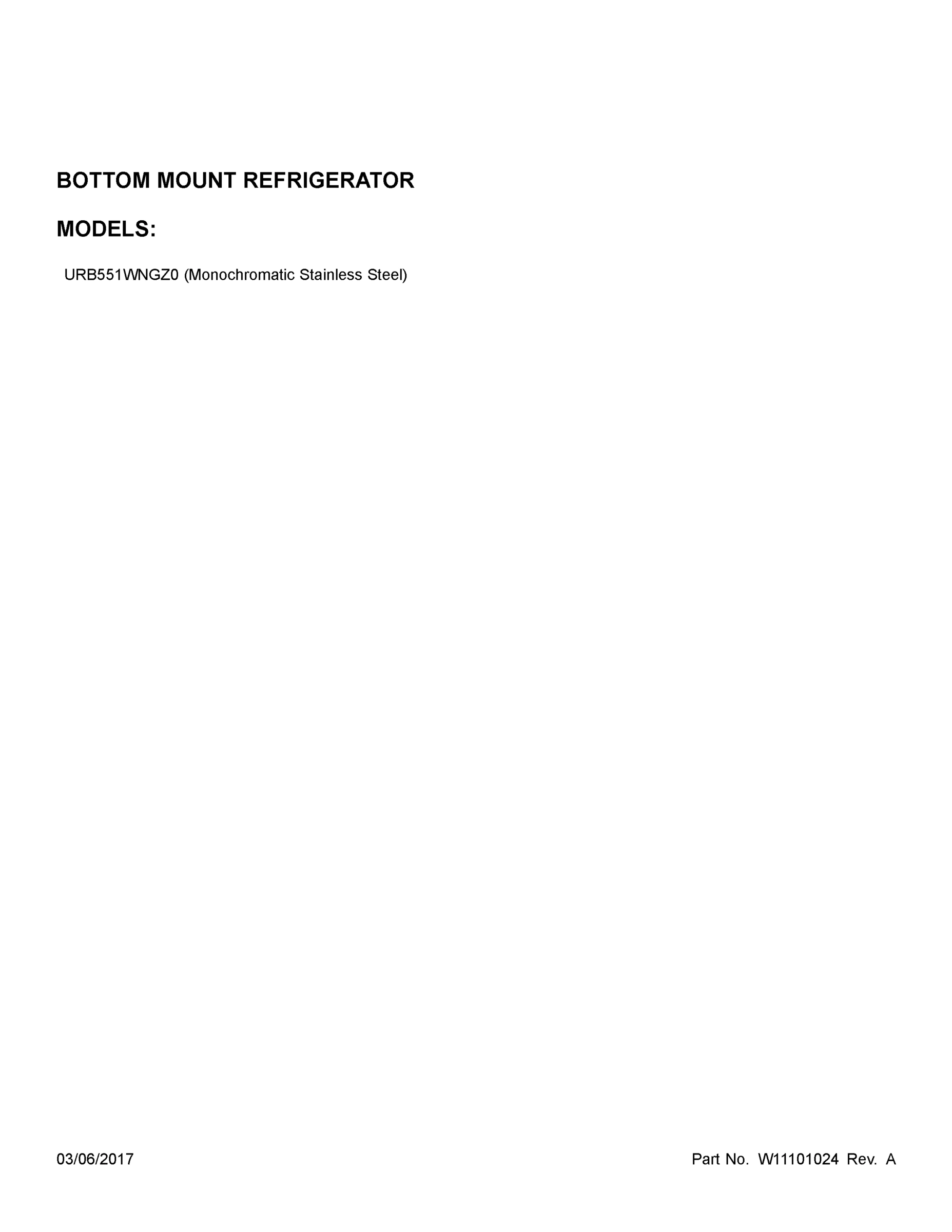

01 - COVER SHEET

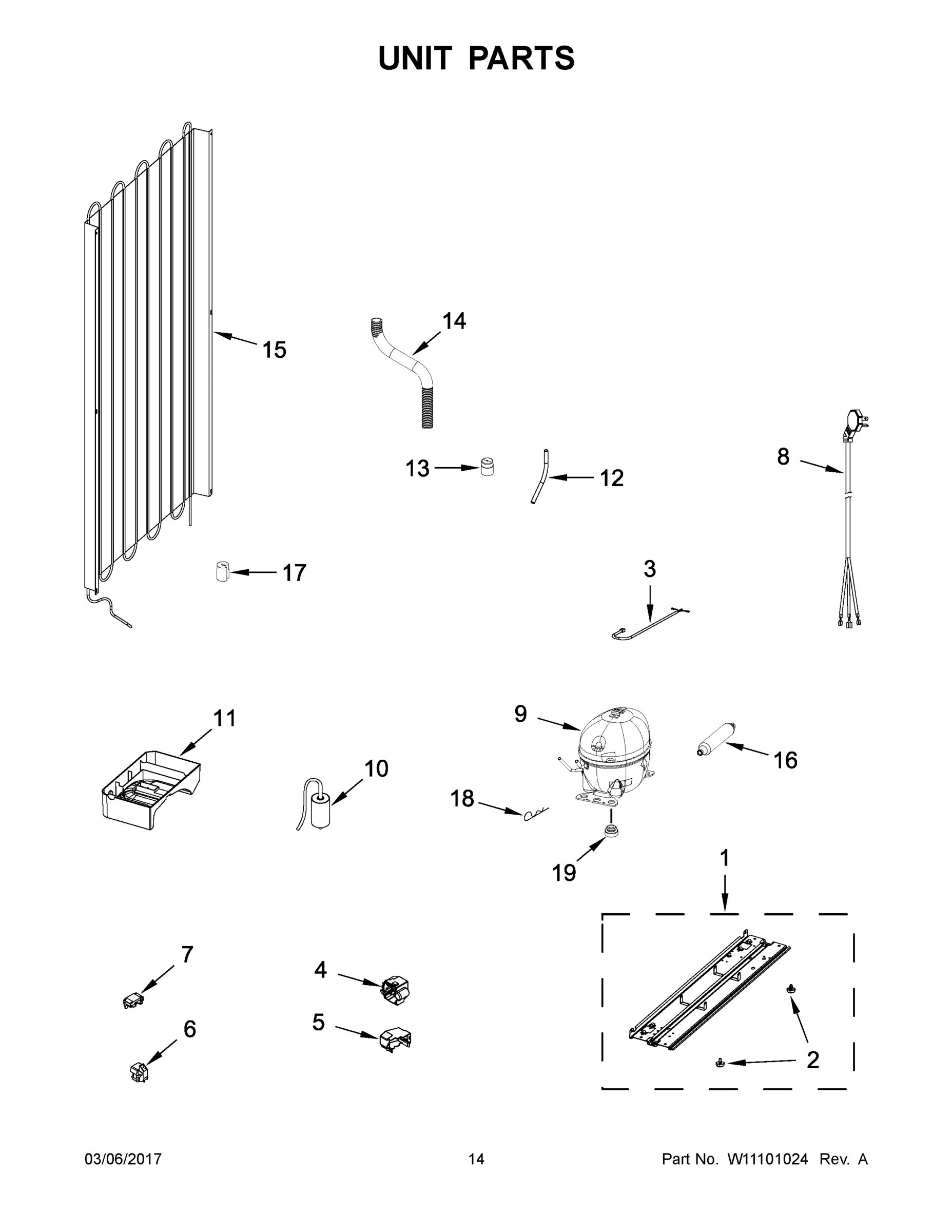

08 - UNIT PARTS
Common parts from model Whirlpool URB551WNGZ0 REFRIGERATOR, BOTTOM MOUNT
1
RACK, BOTTLE WPL W10748360 Contact Us For Availability
1
SLIDE (LEFT HAND) WPL W10703802 Contact Us For Availability
1
USE AND CARE GUIDE WPL W11036835 Contact Us For Availability
1
CROSSBAR, COMPRESSOR WPL W10515903 Contact Us For Availability
1A
SLIDE (RIGHT HAND) WPL W10703803 Contact Us For Availability
1A
TECH SHEET WPL W10813791 Contact Us For Availability
2
LID, DAIRY COMPARTMENT WPL W10545542 Contact Us For Availability
2
PLUG, DOOR HINGE LEFT HAND (GREY) WPL W10740483 Contact Us For Availability
2A
PLUG, DOOR HINGE RIGHT HAND (GREY) WPL W10740480 Contact Us For Availability
3
DIVIDER, DRAWER WPL W10753761 Contact Us For Availability
3
HINGE, UPPER WPL W10731172 Contact Us For Availability
3
PLUG, DOOR HINGE (GREY) WPL W10733967 Contact Us For Availability
3
WIRE, GROUND WPL W10513341 Contact Us For Availability
4
HINGE, CENTER WPL W10737284 Contact Us For Availability
4
SLEEVE, HINGE WPL W10585708 Contact Us For Availability
4
BOARD, TERMINAL WPL W10540525 Contact Us For Availability
5
SEPARATOR, BOTTLE WPL W10545180 Contact Us For Availability
5
ASSEMBLY, SMALL FREEZER DRAWER WPL W10882693 Contact Us For Availability
5
HINGE, BOTTOM WPL W10720304 Contact Us For Availability
5
GASKET, DOOR (GREY) WPL W10777349 Contact Us For Availability
5
COVER, TERMINAL BOARD WPL W10540495 Contact Us For Availability
6
SHELF, GLASS WPL W10668655 Contact Us For Availability
6
COVER, HINGE (GREY) WPL W10746882 Contact Us For Availability
6
PLUG, ENDCAP (GREY) WPL W10550057 Contact Us For Availability
6
RELAY WPL W10540543 Contact Us For Availability
7
SHELF, SMALL GLASS WPL W10667585 Contact Us For Availability
7
COVER, CONNECTOR BOX (GREY) WPL W10747990 Contact Us For Availability
7
PROTECTOR, MOTOR WPL W10540536 Contact Us For Availability
8
SLIDE (LEFT HAND) WPL W10703784 Contact Us For Availability
8
COVER, CORNER LEFT HAND (GREY) WPL W10747036 Contact Us For Availability
8
COVER, DOOR SCREW (GREY) WPL W10783369 Contact Us For Availability
8A
SLIDE (RIGHT HAND) WPL W10703785 Contact Us For Availability
8A
COVER, CORNER RIGHT HAND (GREY) WPL W10747031 Contact Us For Availability
9
COMPRESSOR WPL W10540349 Contact Us For Availability
10
PLUG, HINGE HOLE CENTER (WHITE) WPL W10845805 Contact Us For Availability
10
CAPACITOR WPL W10538494 Contact Us For Availability
10A
PLUG, HINGE HOLE BOTTOM (WHITE) WPL W10568482 Contact Us For Availability
11
SCREW (GREY) WPL W11027629 Contact Us For Availability
13
SUPPORT, FREEZER SENSOR WPL W10843127 Contact Us For Availability
13
VALVE, DRAIN WPL W10585788 Contact Us For Availability
14
TRIM, REAR WPL W10716068 Contact Us For Availability
15
CONDENSER WPL W10515625 Contact Us For Availability
16
ASSEMBLY, CRISPER WPL W10882712 Contact Us For Availability
16
DRIER WPL W10843041 Contact Us For Availability
17
DIVIDER, CRISPER WPL W10882057 Contact Us For Availability
17
DAMPER, CONDENSER WPL W10852641 Contact Us For Availability
18
ASSEMBLY, STORAGE BOX WPL W10778822 Contact Us For Availability
18
PIN, COTTER WPL W11023659 Contact Us For Availability
19
BUMPER, DAIRY COMPARTMENT LID WPL W10538497 Contact Us For Availability
19
GROMMET, COMPRESSOR WPL W10844574 Contact Us For Availability
20
BIN, HALF DOOR WPL W10592791 Contact Us For Availability
NI
REFRIGERANT CHARGE 122G (R-134A) WPL NP Contact Us For Availability
× ![]()
