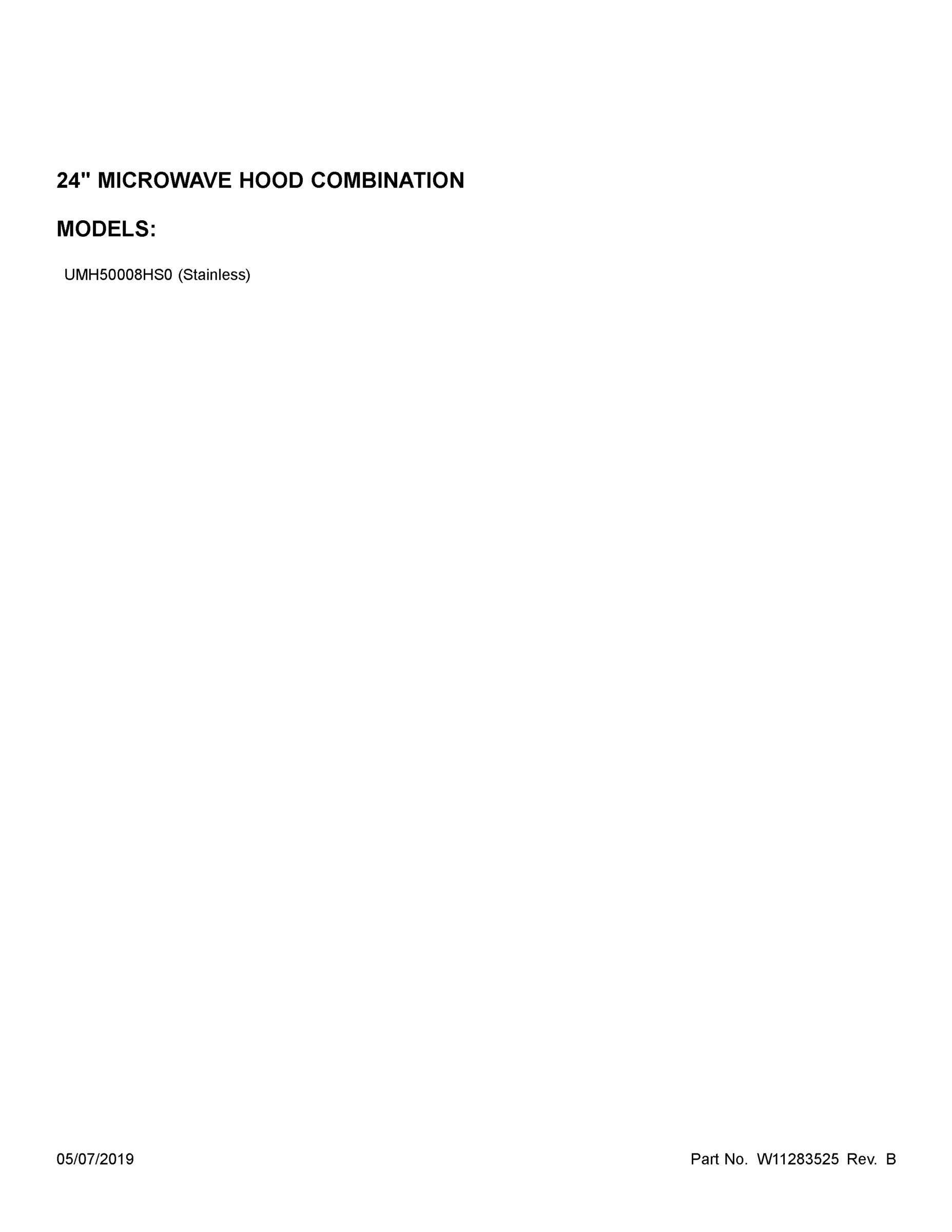

Model Whirlpool UMH50008HS0 MICROWAVE HOOD COMBO – Common Parts & Diagrams

1
INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS WPL W11174207 Contact Us For Availability
View on Model
1
BULB, COOKTOP HALOGEN G9 25 WATT 120 VOLT
BULB, COOKTOP HALOGEN G9 25 WATT 120 VOLT WPL W10618217 Contact Us For Availability
View on Model
1
TURNTABLE, GLASS
TURNTABLE, GLASS WPL W10618210 Contact Us For Availability
View on Model
1A
USE AND CARE GUIDE
USE AND CARE GUIDE WPL W11174206 Contact Us For Availability
View on Model
1B
COOKING GUIDE LABEL
COOKING GUIDE LABEL WPL W11175651 Contact Us For Availability
View on Model
1C
STAINLESS PANEL INSTALLATION INSTRUCTIONS
STAINLESS PANEL INSTALLATION INSTRUCTIONS WPL W11174208 Contact Us For Availability
View on Model
2
COMPLETE DOOR (STAINLESS)
COMPLETE DOOR (STAINLESS) WPL W11360772 Contact Us For Availability
View on Model
2
SOCKET, BULB
SOCKET, BULB WPL W10627450 Contact Us For Availability
View on Model
2
SUPPORT, TURNTABLE WITH ROLLERS
SUPPORT, TURNTABLE WITH ROLLERS WPL W10618211 Contact Us For Availability
View on Model
3
BLOCK, TERMINAL
BLOCK, TERMINAL WPL W10627458 Contact Us For Availability
View on Model
3
BRACKET, LAMP SOCKET
BRACKET, LAMP SOCKET WPL W10627451 Contact Us For Availability
View on Model
3
TURNTABLE, HUB
TURNTABLE, HUB WPL W10618212 Contact Us For Availability
View on Model
4
BOARD, CONTROL HOOD FAN AND LIGHT
BOARD, CONTROL HOOD FAN AND LIGHT WPL W10627457 Contact Us For Availability
View on Model
4
ASSEMBLY, BOTTOM PLATE WITH L-BRACKETS
ASSEMBLY, BOTTOM PLATE WITH L-BRACKETS WPL W10627352 Contact Us For Availability
View on Model
4
MOTOR, TURNTABLE
MOTOR, TURNTABLE WPL W10627452 Contact Us For Availability
View on Model
5
GASKET, TURNTABLE MOTOR SHAFT
GASKET, TURNTABLE MOTOR SHAFT WPL 4375252 Contact Us For Availability
View on Model
5
BRACKET, SUPPORT
BRACKET, SUPPORT WPL W10130909 Contact Us For Availability
View on Model
5
FRAME, LOWER ASSEMBLY
FRAME, LOWER ASSEMBLY WPL W10627404 Contact Us For Availability
View on Model
6
PLATE, MICA INLET COVER
PLATE, MICA INLET COVER WPL W10628171 Contact Us For Availability
View on Model
7
FILTER, GREASE
FILTER, GREASE WPL W10618216 Contact Us For Availability
View on Model
7
PIN, MICA PLATE
PIN, MICA PLATE WPL W10628172 Contact Us For Availability
View on Model
8

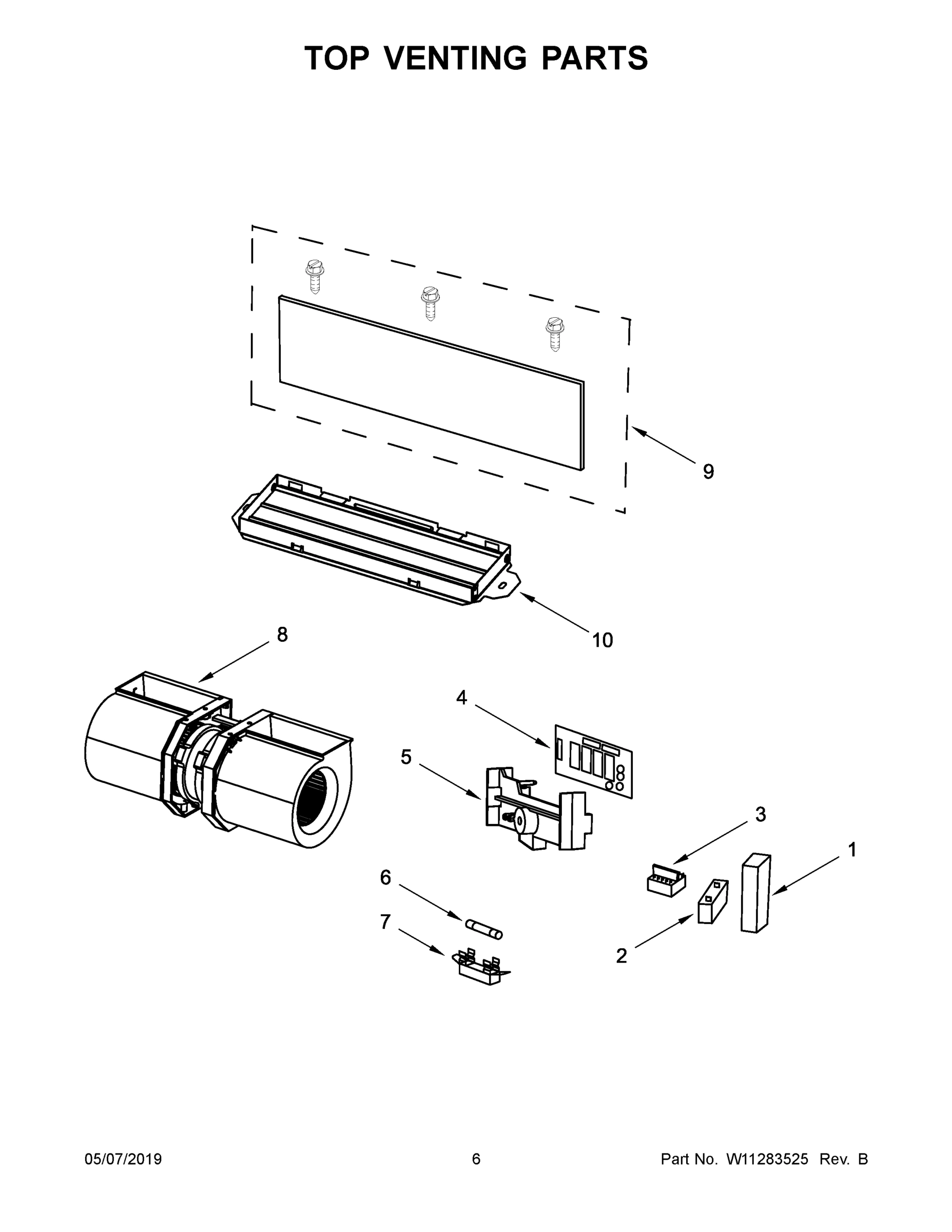

ASSEMBLY, VENTILATION FAN
ASSEMBLY, VENTILATION FAN WPL W10627453 Contact Us For Availability
View on Model
8
VISOR, GLASS
VISOR, GLASS WPL W10618218 Contact Us For Availability
View on Model
8
BULB, CAVITY CC3A 25 WATT
BULB, CAVITY CC3A 25 WATT WPL W10627388 Contact Us For Availability
View on Model
9
TRIM, REAR
TRIM, REAR WPL W10627630 Contact Us For Availability
View on Model
10
DAMPER
DAMPER WPL W10627629 Contact Us For Availability
View on Model
10
L-BRACKET, LEFT
L-BRACKET, LEFT WPL W10627631 Contact Us For Availability
View on Model
11
L-BRACKET, RIGHT
L-BRACKET, RIGHT WPL W10627632 Contact Us For Availability
View on Model
