Model Whirlpool UMC5200BCS10 COUNTERTOP MICROWAVE 2.0 CU. FT. – Common Parts & Diagrams
04 - MICROWAVE LATCH BOARD PARTS
01 - MICROWAVE DOOR PARTS

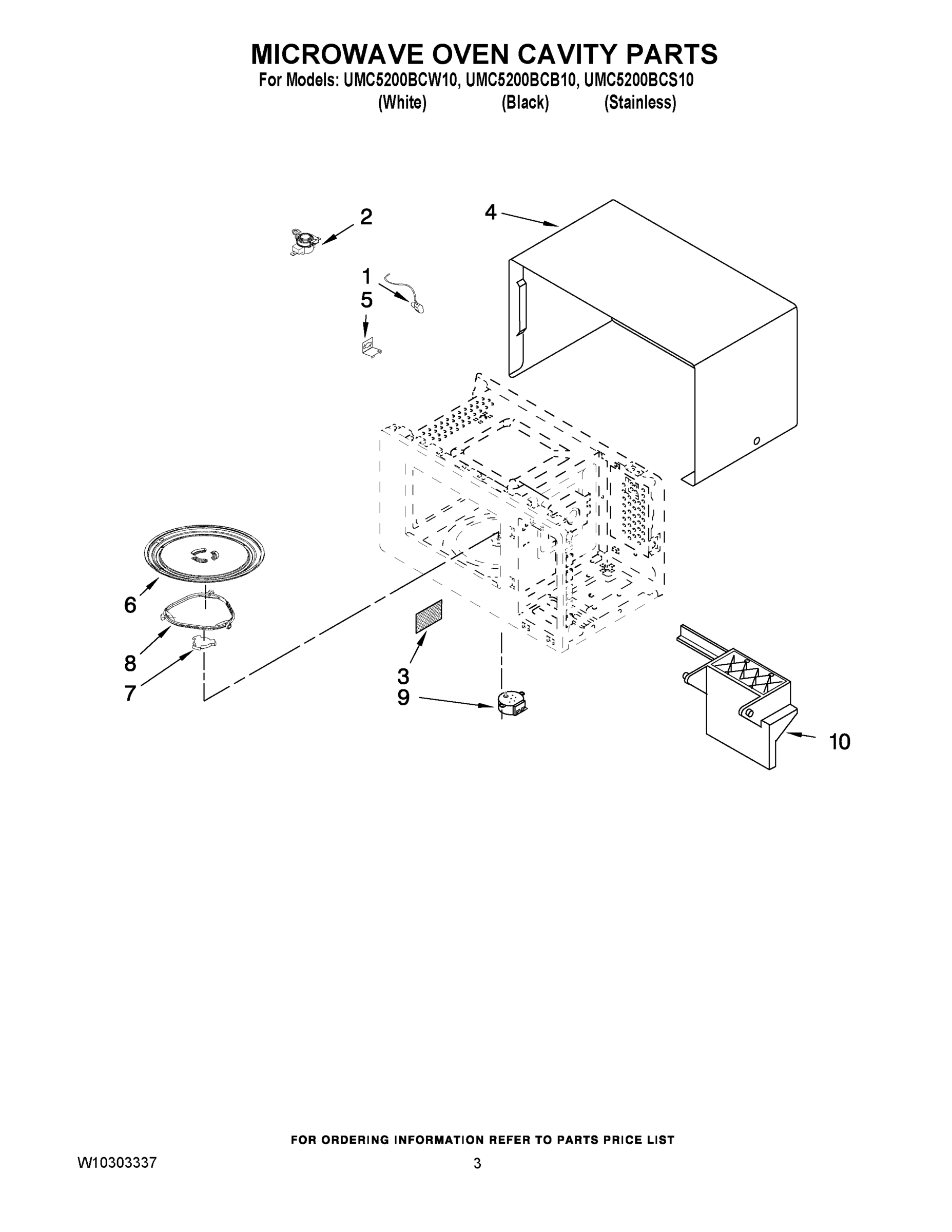

03 - MICROWAVE OVEN CAVITY PARTS

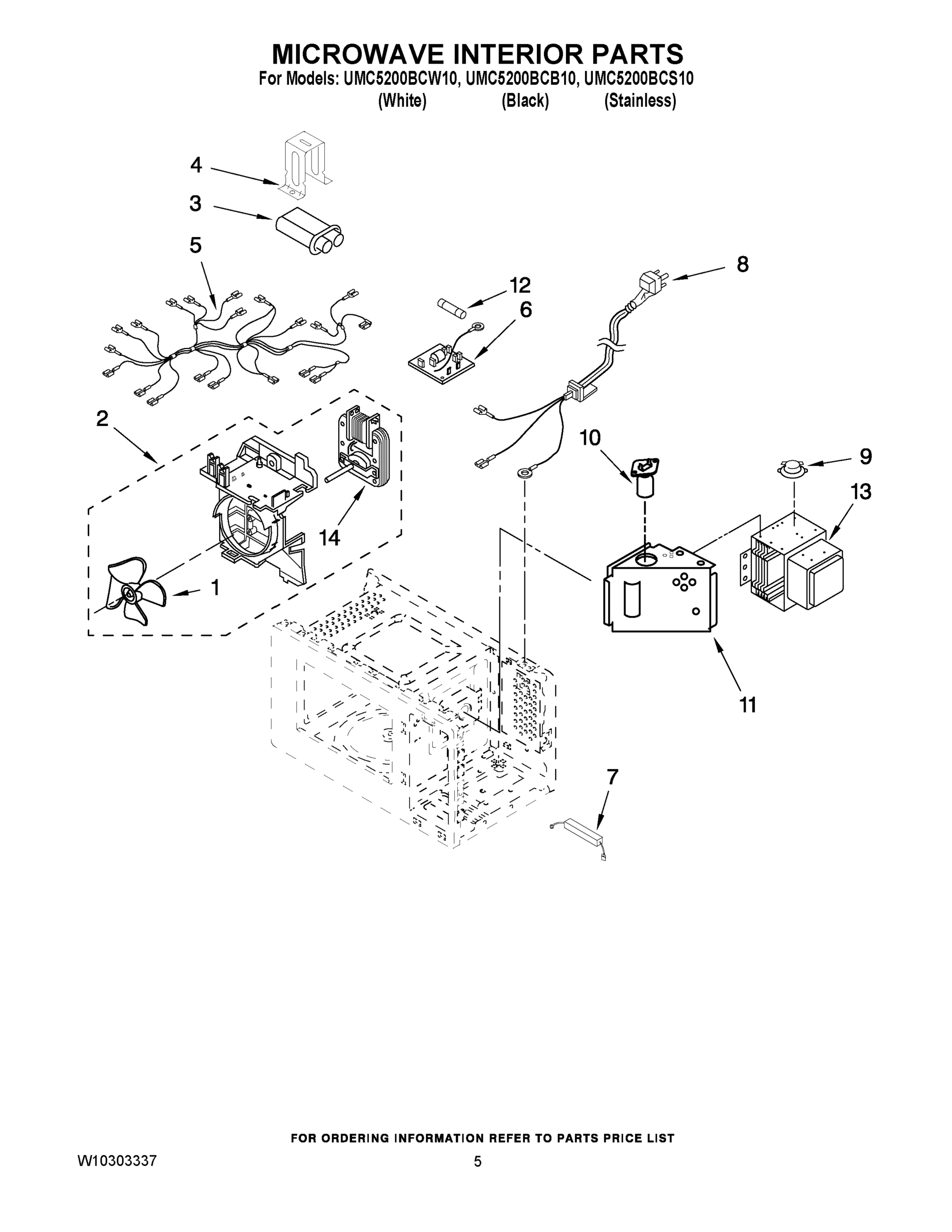

05 - MICROWAVE INTERIOR PARTS

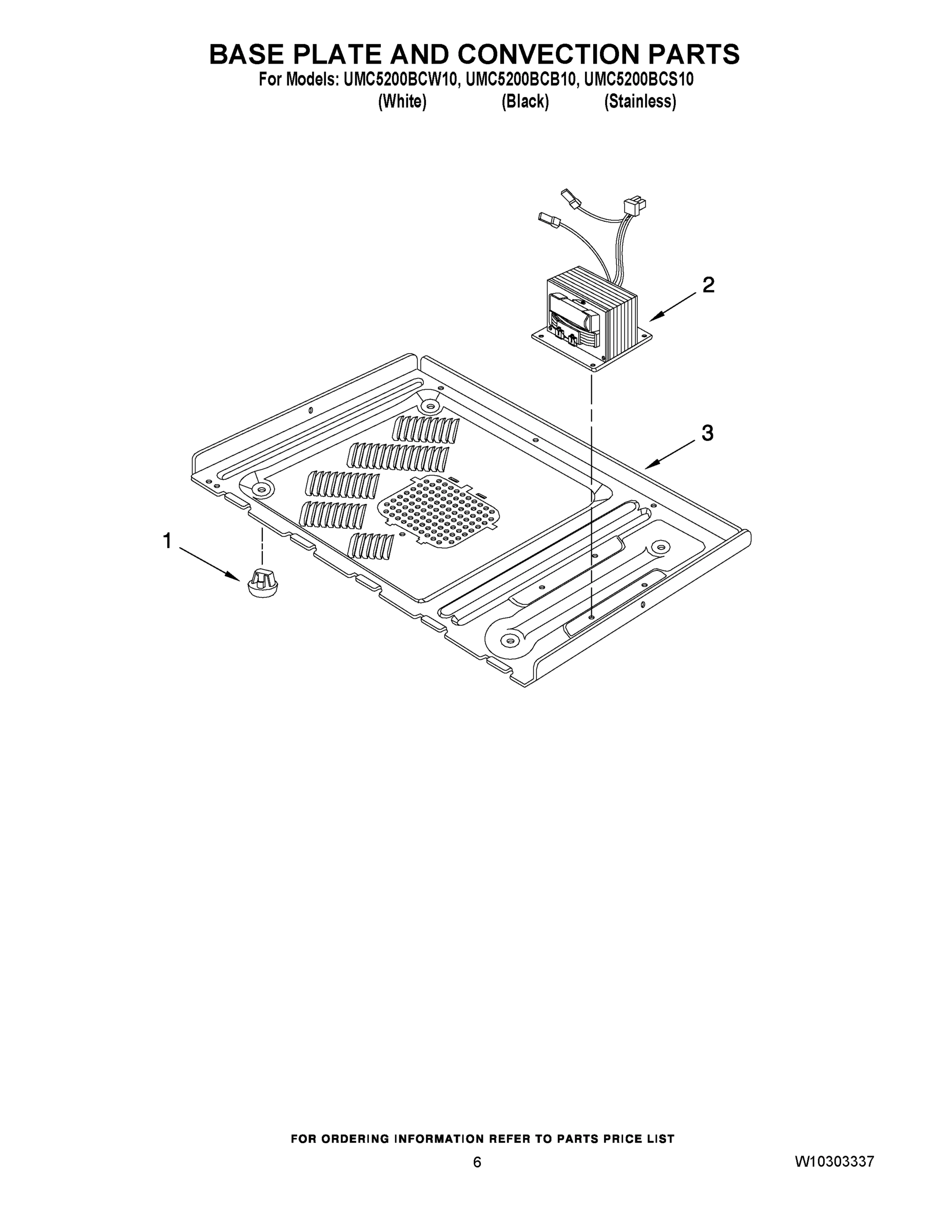

06 - BASE PLATE AND CONVECTION PARTS

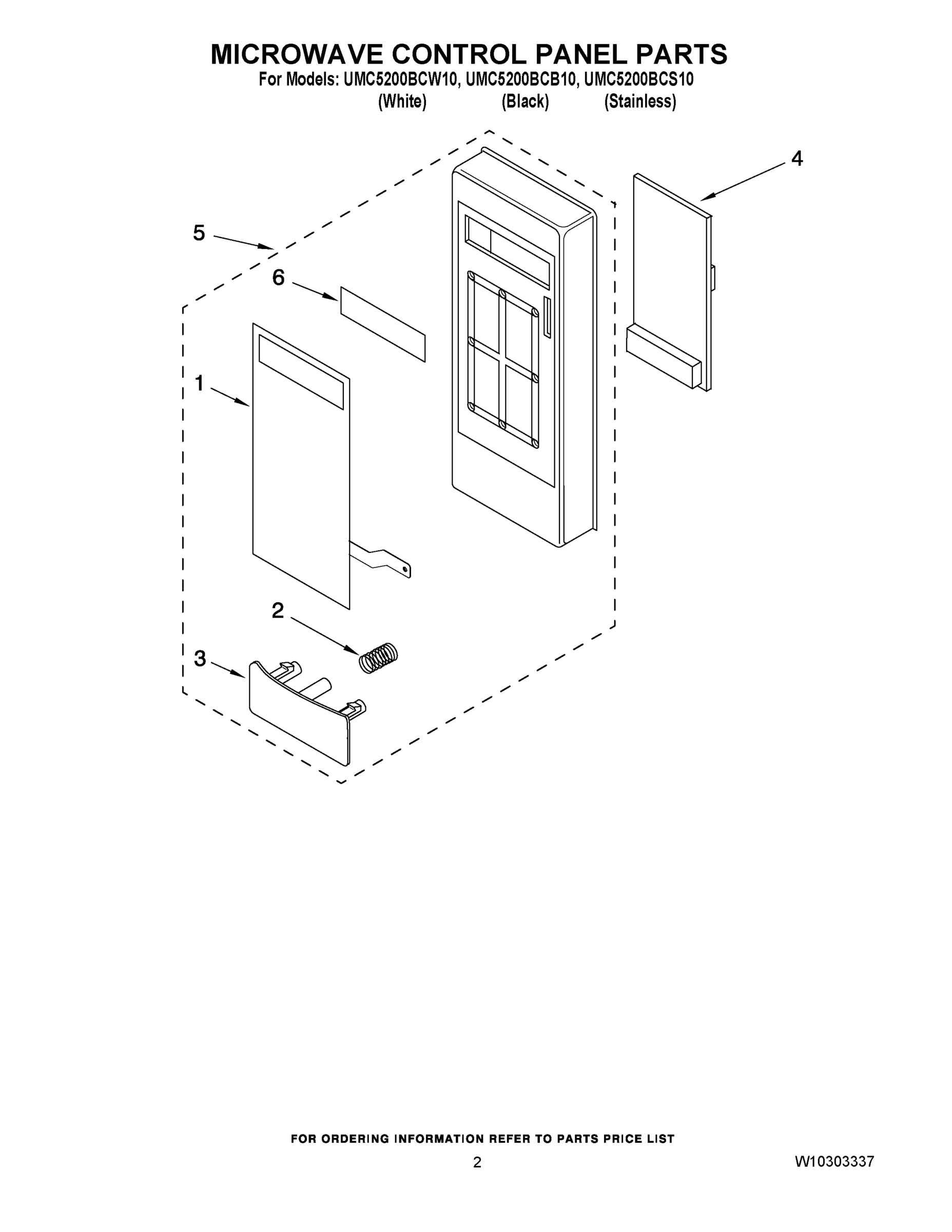

02 - MICROWAVE CONTROL PANEL PARTS
Common parts from model Whirlpool UMC5200BCS10 COUNTERTOP MICROWAVE 2.0 CU. FT.
1
BODY, LATCH WPL DE7200138B Contact Us For Availability
1
U & C GUIDE WPL W10177946 Contact Us For Availability
1
SENSOR, HUMIDITY WPL DE9700585B Contact Us For Availability
1
BLADE, FAN WPL DE3190057A Contact Us For Availability
1
LEG WPL DE6140066A Contact Us For Availability
1
SW., MEMBRANE (BLACK) WPL W10131649 Contact Us For Availability
1
SW., MEMBRANE (WHITE) WPL W10131650 Contact Us For Availability
1
SW., MEMBRANE (STAINLESS) WPL W10131651 Contact Us For Availability
2
SWITCH, MICRO (125/250 VAC) WPL 3405001034 Contact Us For Availability
2
DOOR (WHITE) WPL DE9401342F Contact Us For Availability
2
DOOR (BLACK) WPL DE9401342G Contact Us For Availability
2
DOOR (STAINLESS) WPL DE9401342H Contact Us For Availability
2
THERMOSTAT WPL DE4720173A Contact Us For Availability
2
ASSEMBLY, FAN WPL W10284507 Contact Us For Availability
2
TRANSFORMER WPL W10261243 Contact Us For Availability
2
SPRING, BUTTON WPL DE6170026A Contact Us For Availability
3
SWITCH, MICRO WPL 3405001033 Contact Us For Availability
3
COVER, MGT WPL DE7160449A Contact Us For Availability
3
H.V. CAPACITOR WPL 2501001016 Contact Us For Availability
3
PLATE, BASE WPL W10320548 Contact Us For Availability
3
BUTTON, PUSH (WHITE) WPL DE6401502A Contact Us For Availability
3
BUTTON, PUSH (BLACK, SS MODELS) WPL DE6401502B Contact Us For Availability
4
LEVER, SWITCH WPL DE6600088B Contact Us For Availability
4
OUTER, CASE (WHITE) WPL DE6401341B Contact Us For Availability
4
OUTER, CASE (BLACK/STAINLESS) WPL DE6401341C Contact Us For Availability
4
H.V.C BRACKET WPL DE6150170A Contact Us For Availability
4
PCB WPL W10131653 Contact Us For Availability
5
BRACKET, SENSOR WPL DE6100097A Contact Us For Availability
5
ASSEMBLY, LEADWIRE WPL W10131652 Contact Us For Availability
5
ASSY, CONTROL (BLACK) WPL W10131646 Contact Us For Availability
5
ASSY, CONTROL (WHITE) WPL W10131647 Contact Us For Availability
5
ASSY, CONTROL (STAINLESS) WPL W10131648 Contact Us For Availability
6
TRAY, GLASS WPL DE7420002C Contact Us For Availability
6
FILTER, NOISE WPL DE9600399B Contact Us For Availability
6
WINDOW, DISPLAY WPL DE6740179A Contact Us For Availability
7
SHAFT, TURNTABLE WPL DE6700214A Contact Us For Availability
7
H.V. DIODE CABLE WPL DE5900002A Contact Us For Availability
8
RING, TURNTABLE WPL DE9700401B Contact Us For Availability
8
POWER CORD WPL W10320547 Contact Us For Availability
9
MOTOR, DRIVE WPL W10320546 Contact Us For Availability
9
THERMOSTAT WPL DE4720030A Contact Us For Availability
10
LEVER, DOOR WPL DE6690113A Contact Us For Availability
10
LAMP, BASELESS WPL 4713001012 Contact Us For Availability
11
DUCT, AIR WPL DE7100012A Contact Us For Availability
12
FUSE WPL 3601001198 Contact Us For Availability
14
MOTOR, FAN WPL DE3110155T Contact Us For Availability
× ![]()
