Model Whirlpool UMC5200BAW06 COUNTERTOP MICROWAVE 2.0 CU. FT. – Common Parts & Diagrams

1

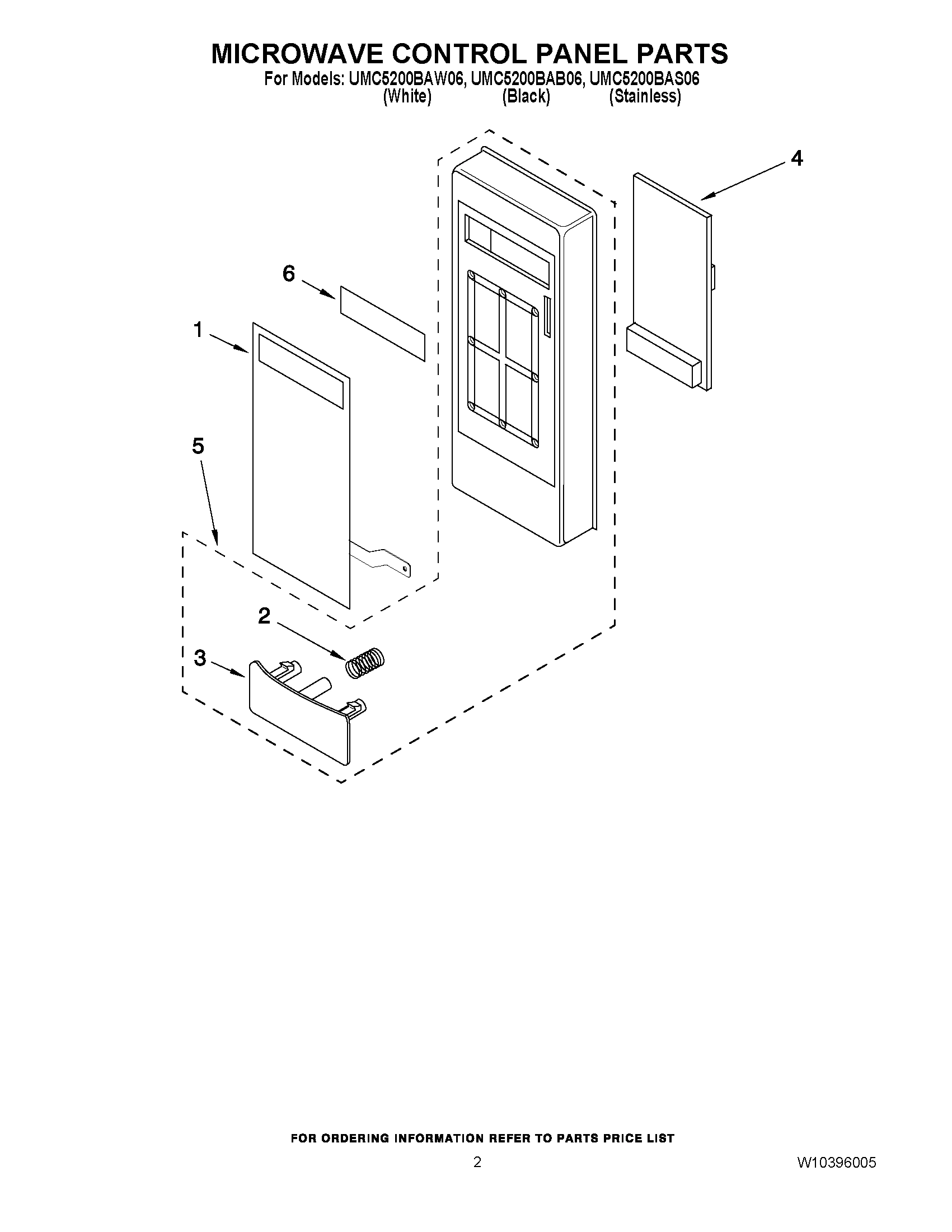

SW., MEMBRANE (BLACK SS MODELS)
SW., MEMBRANE (BLACK SS MODELS) WPL W10261280 Contact Us For Availability
View on Model
1
U & C GUIDE
U & C GUIDE WPL W10177947 Contact Us For Availability
View on Model
1
SW., MEMBRANE (WHITE)
SW., MEMBRANE (WHITE) WPL W10261279 Contact Us For Availability
View on Model
1
SENSOR, HUMIDITY
SENSOR, HUMIDITY WPL DE3260011A Contact Us For Availability
View on Model
1

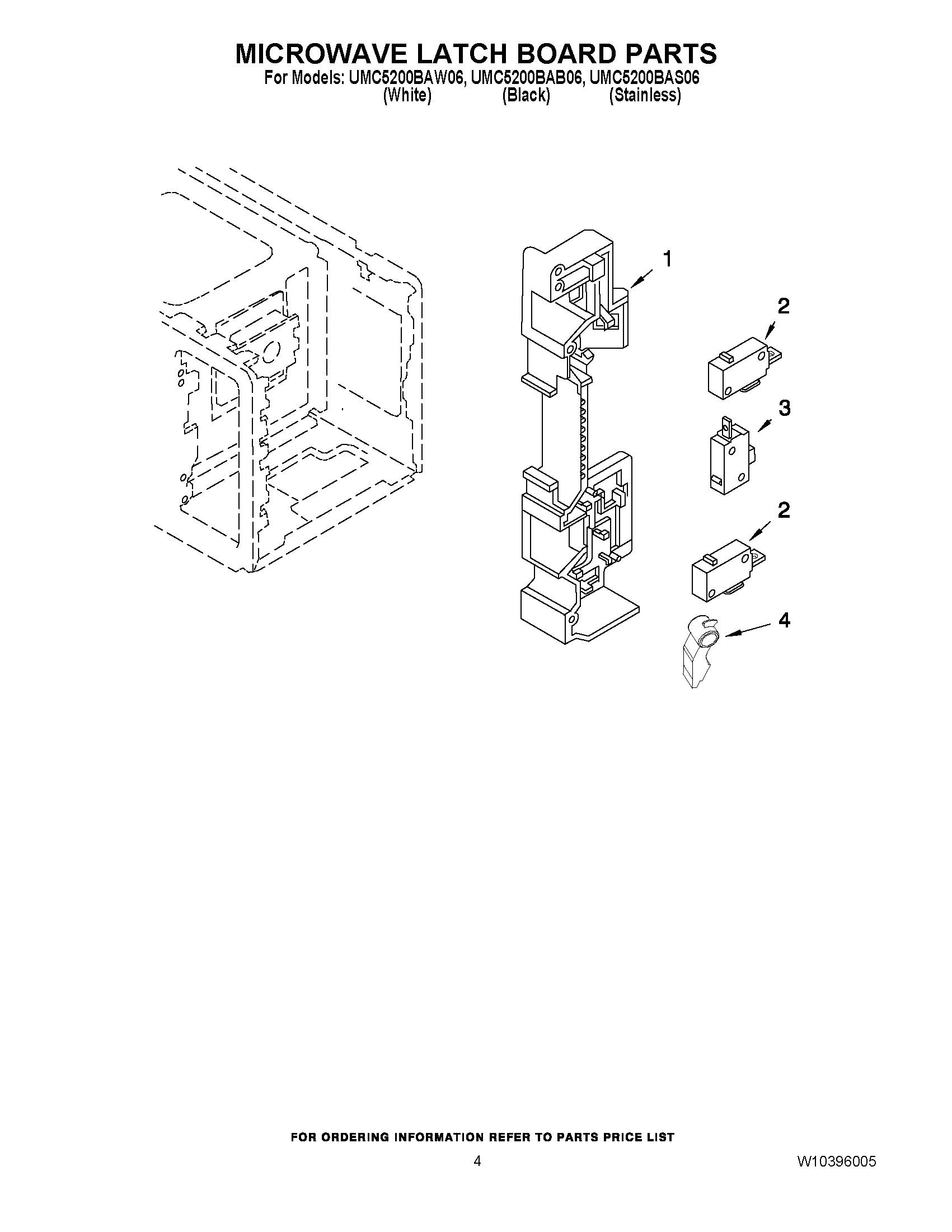

BODY-LATCH
BODY-LATCH WPL DE7200138A Contact Us For Availability
View on Model
1
LEG
LEG WPL DE6140066A Contact Us For Availability
View on Model
2
DOOR (WHITE)
DOOR (WHITE) WPL DE9401342F Contact Us For Availability
View on Model
2
DOOR (BLACK)
DOOR (BLACK) WPL DE9401342G Contact Us For Availability
View on Model
2
DOOR (STAINLESS)
DOOR (STAINLESS) WPL DE9401342H Contact Us For Availability
View on Model
2
SPRING, BUTTON
SPRING, BUTTON WPL DE6170026A Contact Us For Availability
View on Model
2
THERMOSTAT
THERMOSTAT WPL DE4720173A Contact Us For Availability
View on Model
2
SWITCH, MICRO (125/250 VAC)
SWITCH, MICRO (125/250 VAC) WPL 3405001034 Contact Us For Availability
View on Model
2
TRANSFORMER
TRANSFORMER WPL W10258323 Contact Us For Availability
View on Model
3
BUTTON, PUSH (WHITE)
BUTTON, PUSH (WHITE) WPL DE6401502A Contact Us For Availability
View on Model
3
BUTTON, PUSH (BLACK, SS MODELS)
BUTTON, PUSH (BLACK, SS MODELS) WPL DE6401502B Contact Us For Availability
View on Model
3
COVER, MGT
COVER, MGT WPL DE7160449A Contact Us For Availability
View on Model
3
SWITCH, MICRO
SWITCH, MICRO WPL 3405001033 Contact Us For Availability
View on Model
3

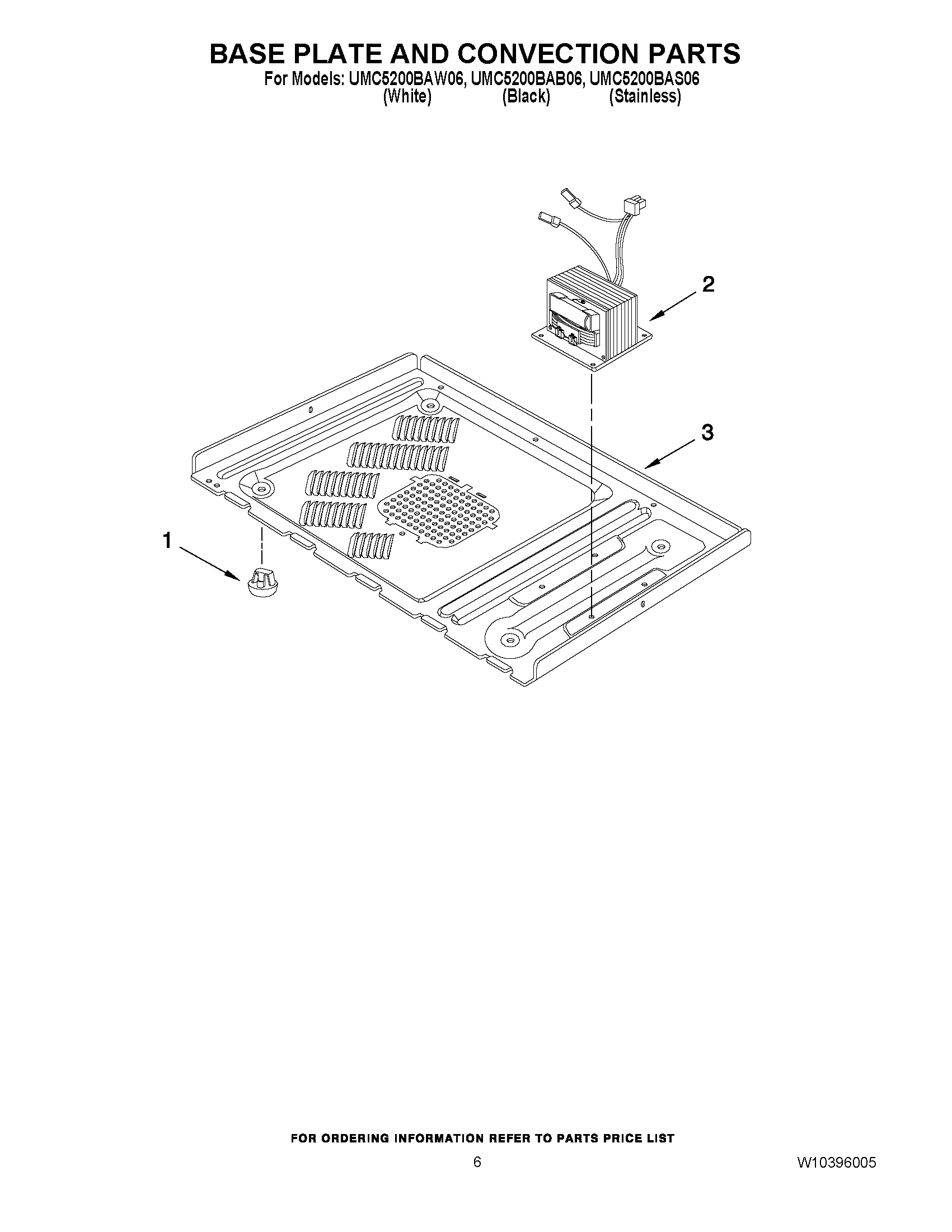

PLATE, BASE
PLATE, BASE WPL DE8010032K Contact Us For Availability
View on Model
4
PCB
PCB WPL W10261245 Contact Us For Availability
View on Model
4
H.V.C BRACKET
H.V.C BRACKET WPL DE6150170A Contact Us For Availability
View on Model
4
OUTER, CASE (WHITE)
OUTER, CASE (WHITE) WPL DE6401341B Contact Us For Availability
View on Model
4
OUTER, CASE (BLACK)
OUTER, CASE (BLACK) WPL DE6401341C Contact Us For Availability
View on Model
4
LEVER, SWITCH
LEVER, SWITCH WPL DE6600088B Contact Us For Availability
View on Model
5
ASSY, CONTROL (STAINLESS)
ASSY, CONTROL (STAINLESS) WPL W10261273 Contact Us For Availability
View on Model
5
ASSEMBLY, LEADWIRE
ASSEMBLY, LEADWIRE WPL DE9600392A Contact Us For Availability
View on Model
5
ASSY, CONTROL (WHITE)
ASSY, CONTROL (WHITE) WPL W10261267 Contact Us For Availability
View on Model
5
ASSY, CONTROL (BLACK)
ASSY, CONTROL (BLACK) WPL W10261272 Contact Us For Availability
View on Model
5
CUSHION, RUBBER
CUSHION, RUBBER WPL DE6390035G Contact Us For Availability
View on Model
6
FILTER, NOISE
FILTER, NOISE WPL DE9600399B Contact Us For Availability
View on Model
6
WINDOW, DISPLAY
WINDOW, DISPLAY WPL DE6740179A Contact Us For Availability
View on Model
6
TRAY, GLASS
TRAY, GLASS WPL DE7420002C Contact Us For Availability
View on Model
7
H.V. DIODE CABLE
H.V. DIODE CABLE WPL DE9170063D Contact Us For Availability
View on Model
7
SHAFT, TURNTABLE
SHAFT, TURNTABLE WPL DE6700214A Contact Us For Availability
View on Model
8
POWER CORD
POWER CORD WPL DE3900040G Contact Us For Availability
View on Model
8
RING, TURNTABLE
RING, TURNTABLE WPL DE9700401B Contact Us For Availability
View on Model
9
THERMOSTAT
THERMOSTAT WPL DE4720030A Contact Us For Availability
View on Model
9
MOTOR, DRIVE
MOTOR, DRIVE WPL DE3110154A Contact Us For Availability
View on Model
10
LAMP, BASELESS
LAMP, BASELESS WPL DE0700005A Contact Us For Availability
View on Model
10
LEVER, DOOR
LEVER, DOOR WPL DE6690113A Contact Us For Availability
View on Model
11

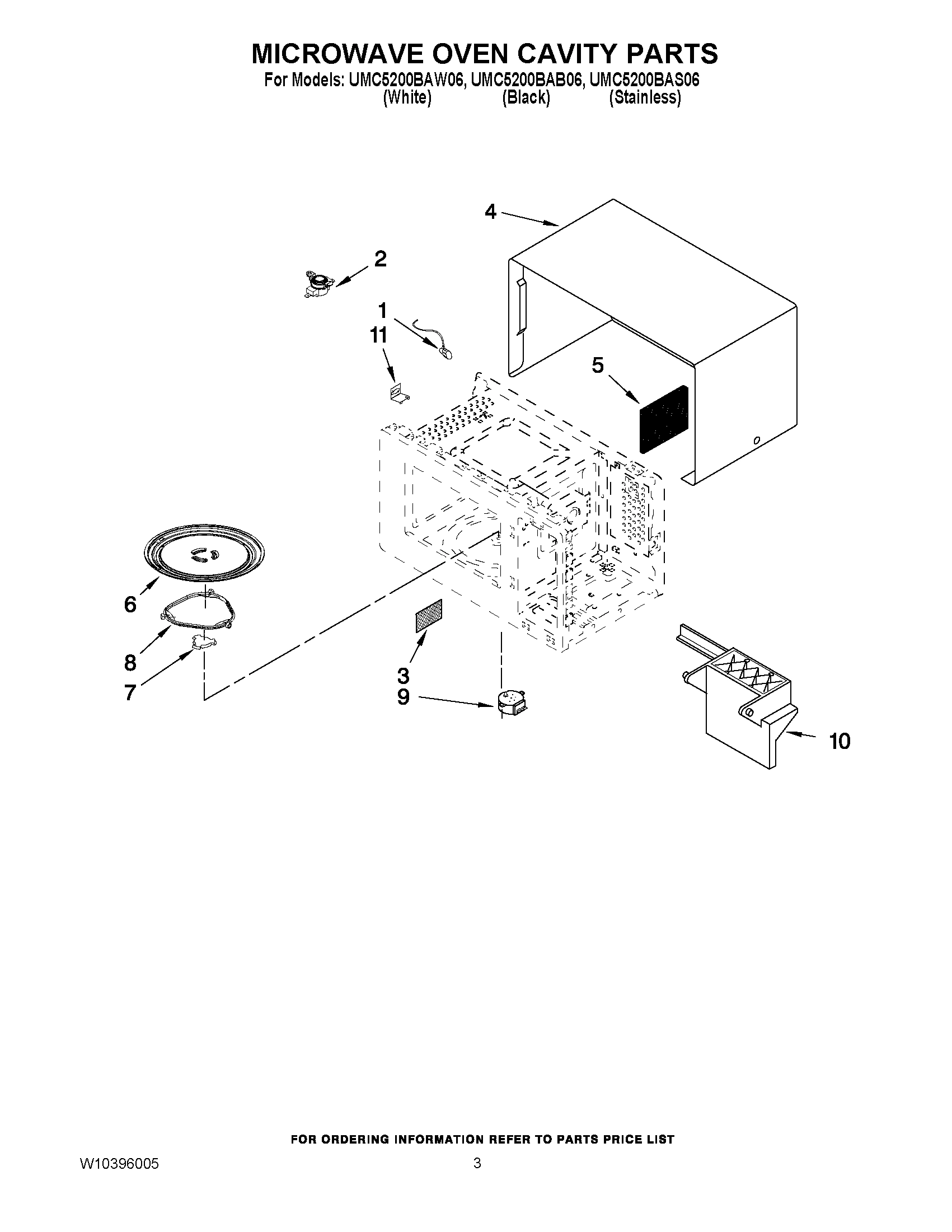

DUCT, AIR
DUCT, AIR WPL DE7100012A Contact Us For Availability
View on Model
11
BRACKET, SENSOR
BRACKET, SENSOR WPL DE6100097A Contact Us For Availability
View on Model
12
FUSE
FUSE WPL 3601001198 Contact Us For Availability
View on Model
14
MOTOR, FAN
MOTOR, FAN WPL DE3110155T Contact Us For Availability
View on Model
