Model Maytag UMC5200AAQ MICROWAVE – Common Parts & Diagrams

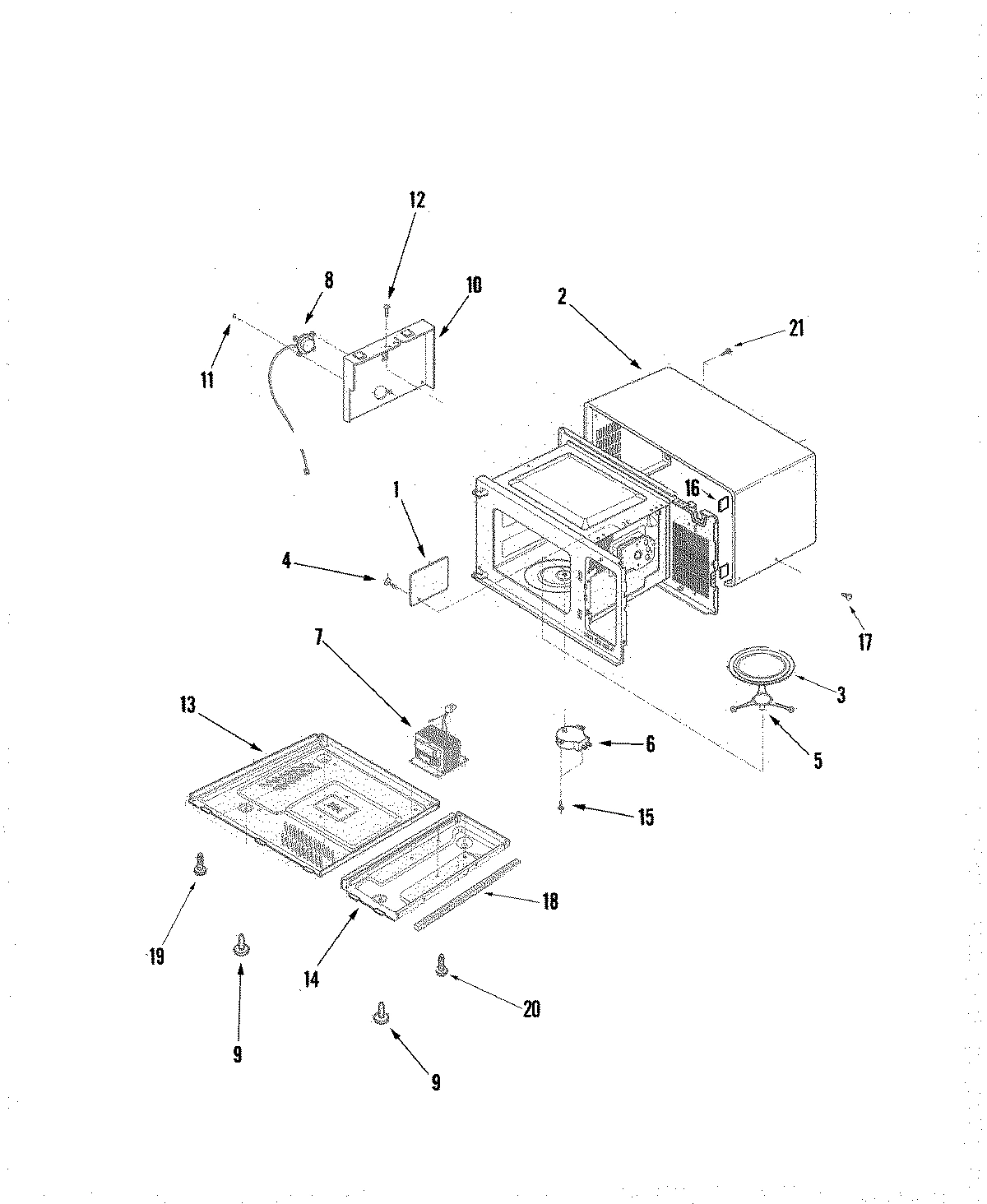

01 - BODY BASE & CAVITY

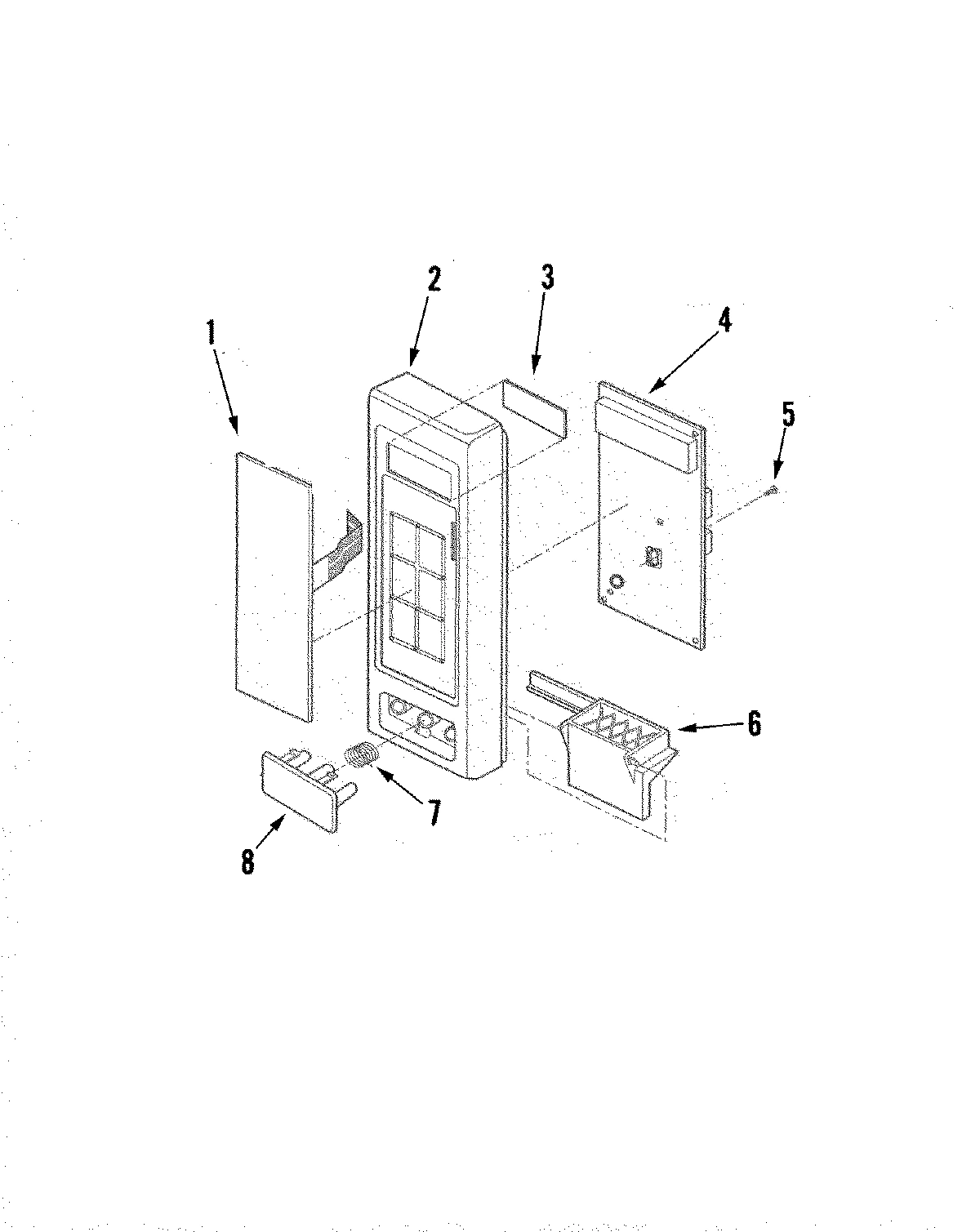

02 - CONTROL PANEL

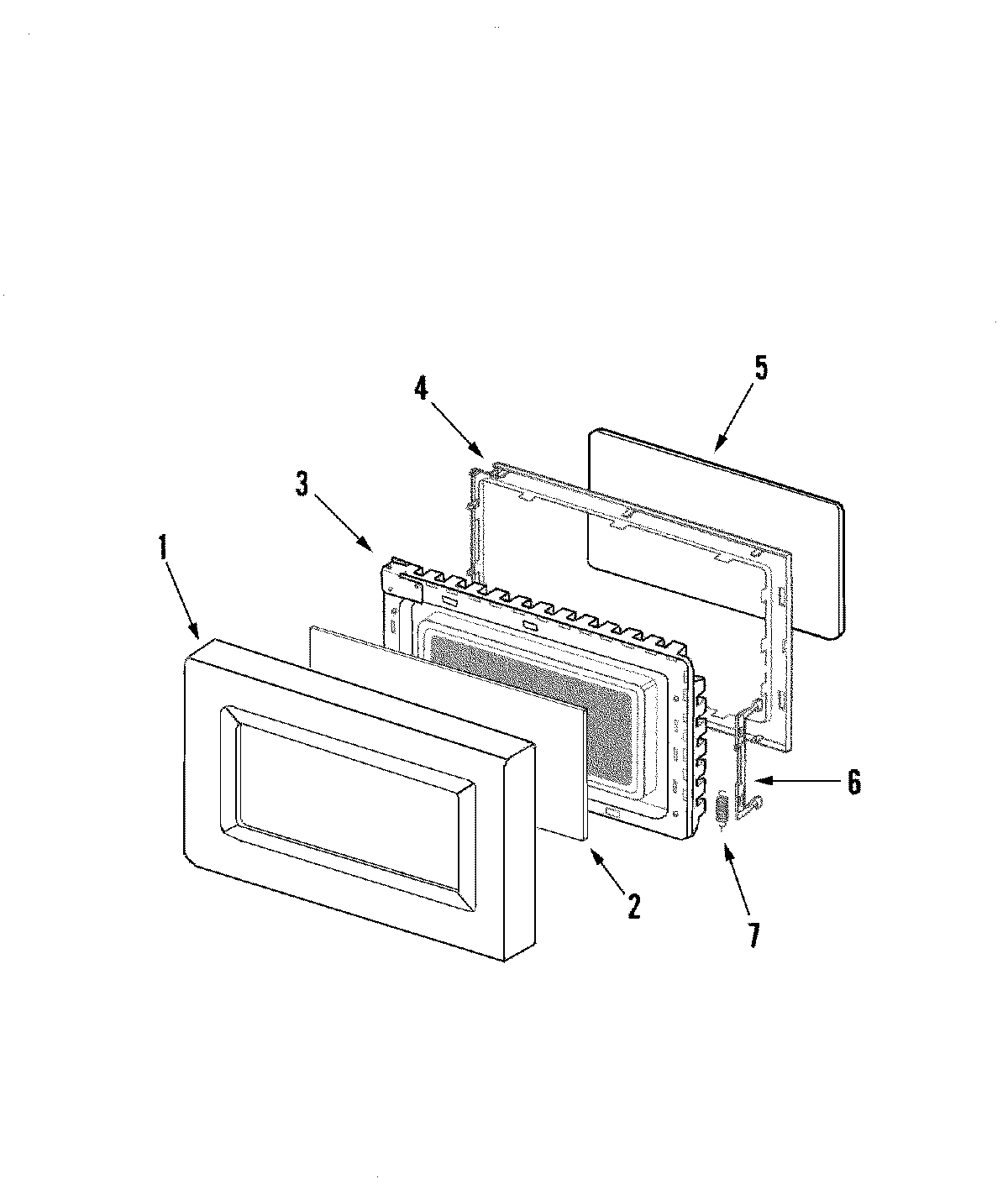

03 - DOOR ASSEMBLY

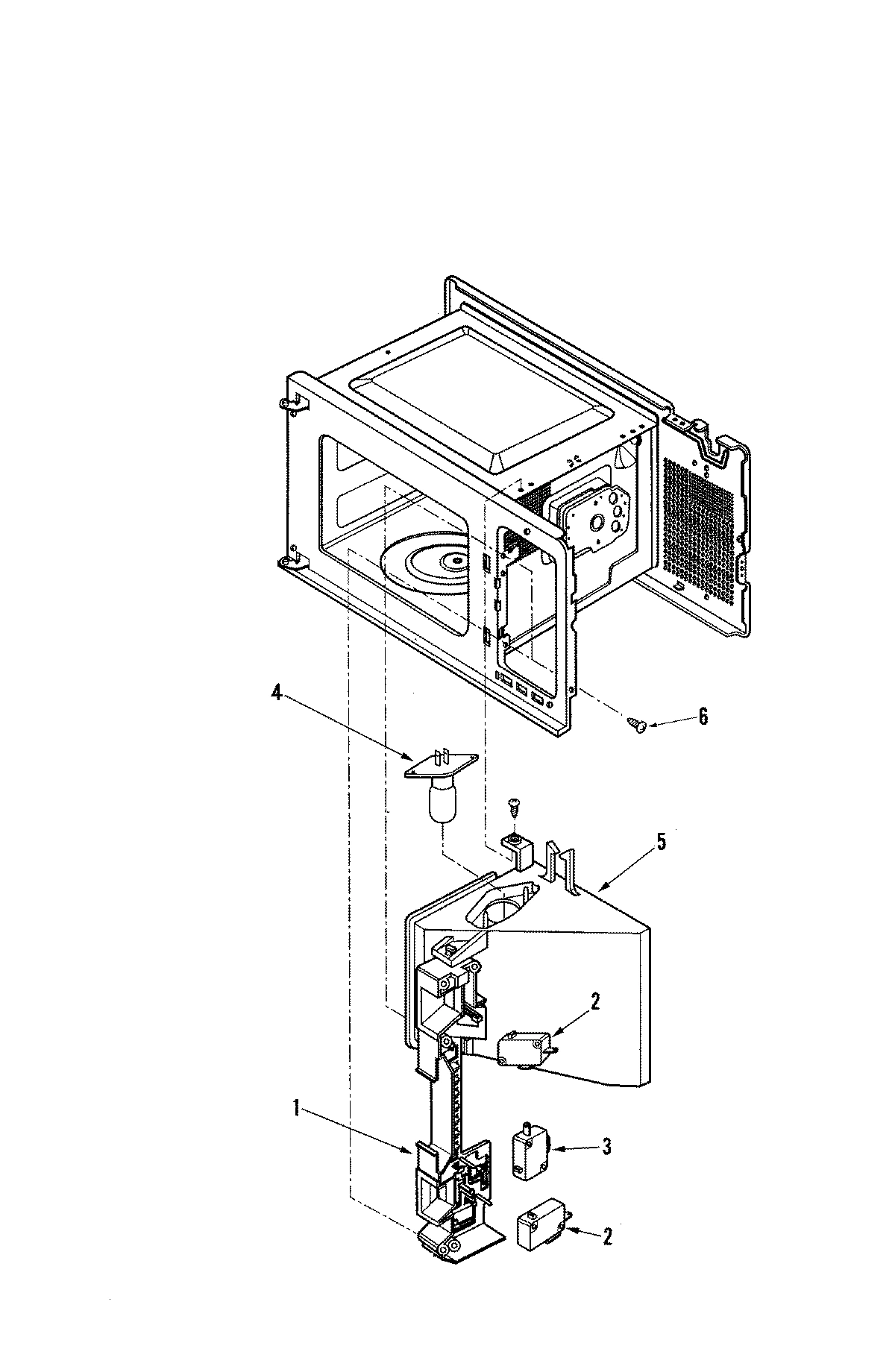

04 - INTERLOCK SWITCHES

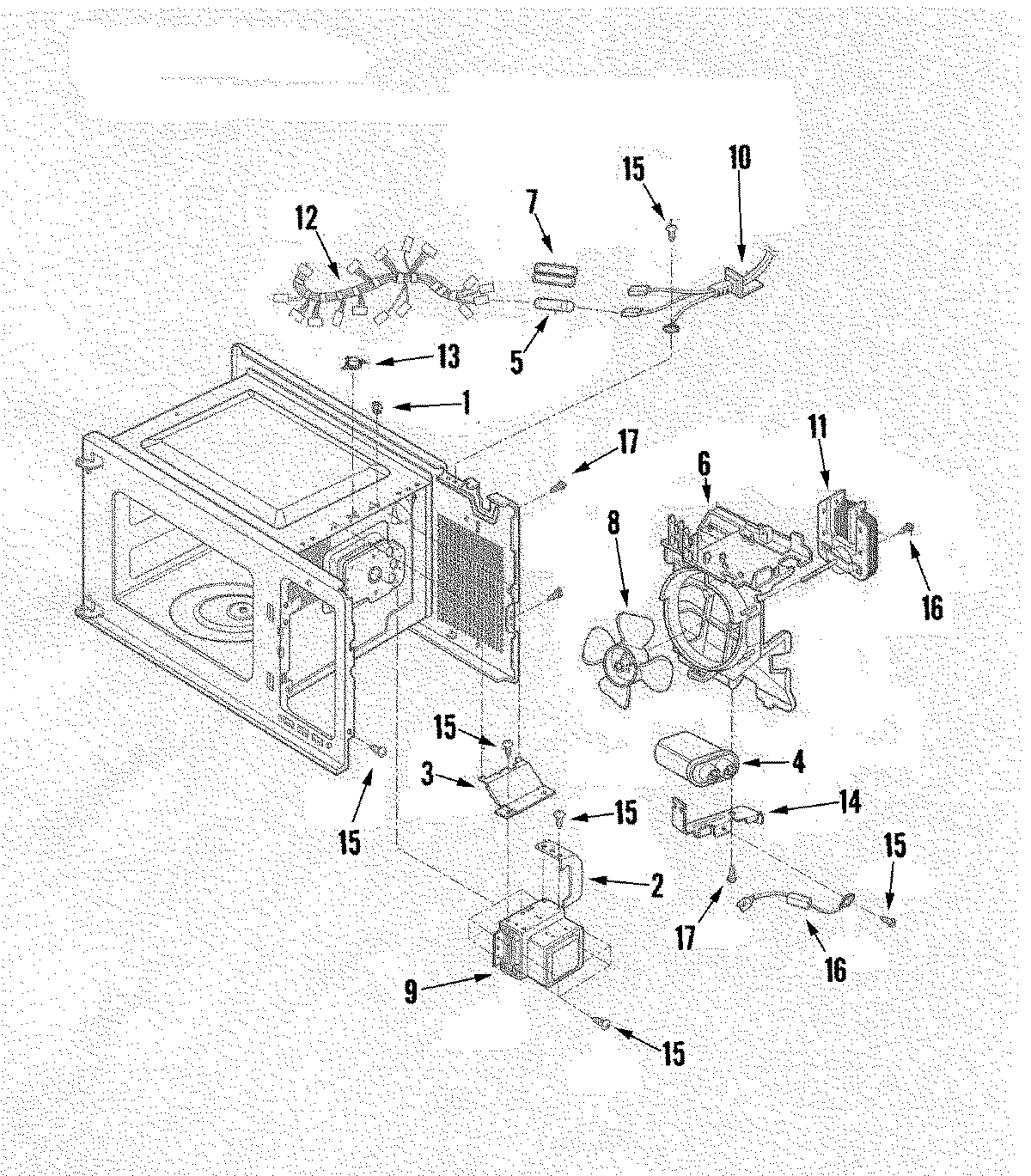

05 - INTERNAL CONTROLS
06 - SUPPLEMENTAL INFORMATION

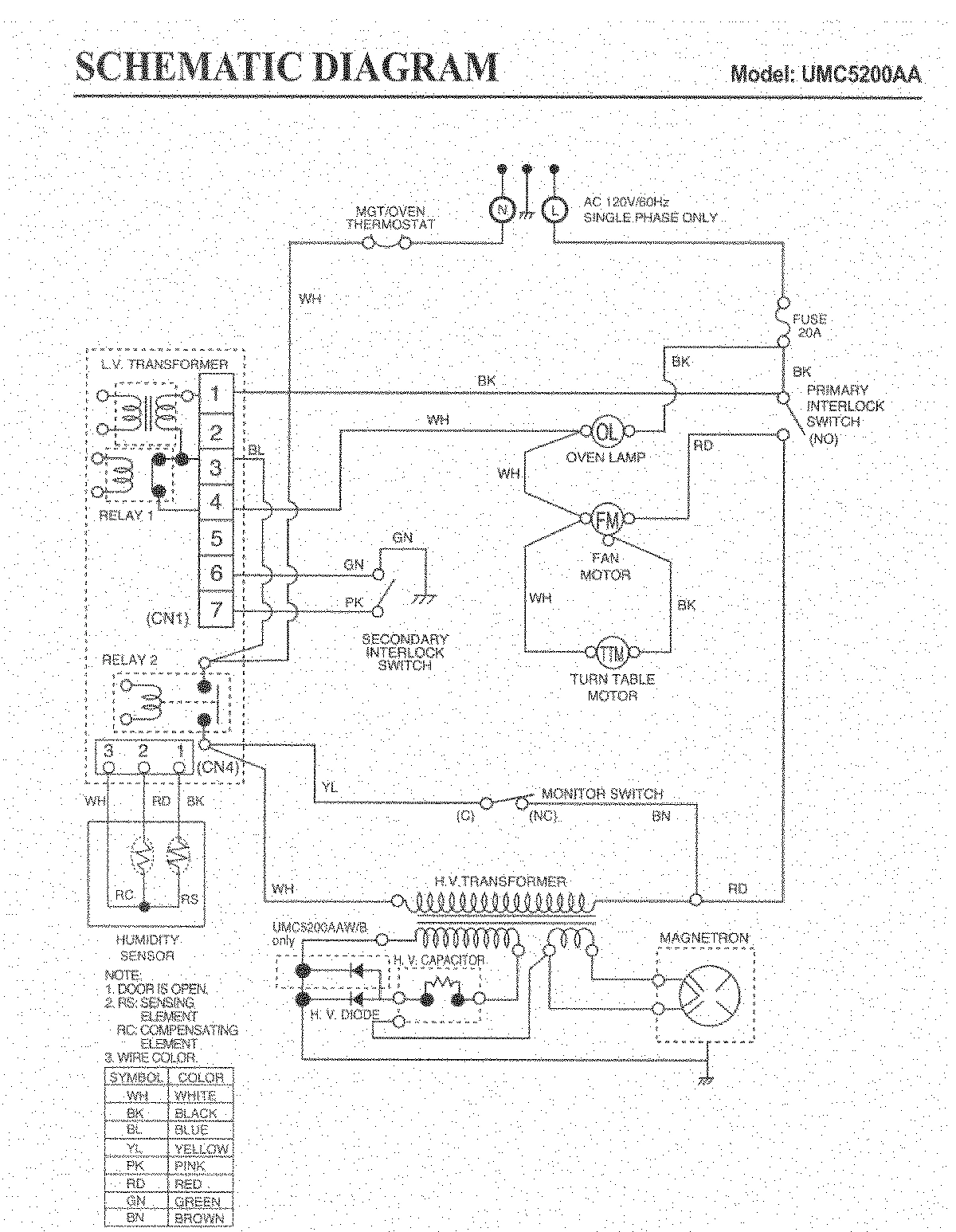

07 - WIRING INFORMATION
Common parts from model Maytag UMC5200AAQ MICROWAVE
1
MAY 53001304 MAY 53001304 Contact Us For Availability
1
MAY 53001302 MAY 53001302 Contact Us For Availability
1
MAY R9900057 MAY R9900057 Contact Us For Availability
1
MAY R9800440 MAY R9800440 Contact Us For Availability
1
MAY 15003477 MAY 15003477 Contact Us For Availability
2
MAY R0131334 MAY R0131334 Contact Us For Availability
2
MAY 53001305 MAY 53001305 Contact Us For Availability
2
MAY R9900359 MAY R9900359 Contact Us For Availability
2
MAY 53001310 MAY 53001310 Contact Us For Availability
3
MAY R9800358 MAY R9800358 Contact Us For Availability
3
MAY R0131330 MAY R0131330 Contact Us For Availability
3
MAY R0131324 MAY R0131324 Contact Us For Availability
4
MAY R9800452 MAY R9800452 Contact Us For Availability
4
MAY 53001311 MAY 53001311 Contact Us For Availability
4
MAY R9900345 MAY R9900345 Contact Us For Availability
4
MAY 53001110 MAY 53001110 Contact Us For Availability
5
MAY R9900400 MAY R9900400 Contact Us For Availability
5
MAY R0131048 MAY R0131048 Contact Us For Availability
5
MAY R9900403 MAY R9900403 Contact Us For Availability
5
MAY 53001313 MAY 53001313 Contact Us For Availability
6
MAY R9800357 MAY R9800357 Contact Us For Availability
6
MAY R9800284 MAY R9800284 Contact Us For Availability
6
SHROUD, FAN MOTOR MAY R9900362 Contact Us For Availability
7
MAY R0131273 MAY R0131273 Contact Us For Availability
7
MAY R9800320 MAY R9800320 Contact Us For Availability
7
MAY R0131319 MAY R0131319 Contact Us For Availability
7
MAY W10124350 MAY W10124350 Contact Us For Availability
7
MAY R9900344 MAY R9900344 Contact Us For Availability
8
MAY 53001097 MAY 53001097 Contact Us For Availability
8
MAY R0131306 MAY R0131306 Contact Us For Availability
8
MAY 53001306 MAY 53001306 Contact Us For Availability
8
MAY R0131272 MAY R0131272 Contact Us For Availability
9
MAY R9900343 MAY R9900343 Contact Us For Availability
9
MAY R9900082 MAY R9900082 Contact Us For Availability
10
MAY 53001312 MAY 53001312 Contact Us For Availability
10
MAY 53001314 MAY 53001314 Contact Us For Availability
10
MAY 53001892 MAY 53001892 Contact Us For Availability
11
MAY R0131307 MAY R0131307 Contact Us For Availability
11
MAY R0131078 MAY R0131078 Contact Us For Availability
13
MAY R9900333 MAY R9900333 Contact Us For Availability
13
MAY R9900404 MAY R9900404 Contact Us For Availability
14
MAY R0131329 MAY R0131329 Contact Us For Availability
14
MAY R9900337 MAY R9900337 Contact Us For Availability
15
MAY R0654180 MAY R0654180 Contact Us For Availability
15
MAY R0654143 MAY R0654143 Contact Us For Availability
16
MAY R9800411 MAY R9800411 Contact Us For Availability
17
MAY R9900539 MAY R9900539 Contact Us For Availability
17
MAY R0654183 MAY R0654183 Contact Us For Availability
18
MAY R9900349 MAY R9900349 Contact Us For Availability
19
MAY 53001898 MAY 53001898 Contact Us For Availability
21
MAY R9900401 MAY R9900401 Contact Us For Availability
NI
MAY R0131327 MAY R0131327 Contact Us For Availability
NI
MAY R9900303 MAY R9900303 Contact Us For Availability
NI
MAY 3828W5A3383 MAY 3828W5A3383 Contact Us For Availability
NI
MAY 53001895 MAY 53001895 Contact Us For Availability
× ![]()
