Model Maytag UMC5100ADB MICROWAVE – Common Parts & Diagrams

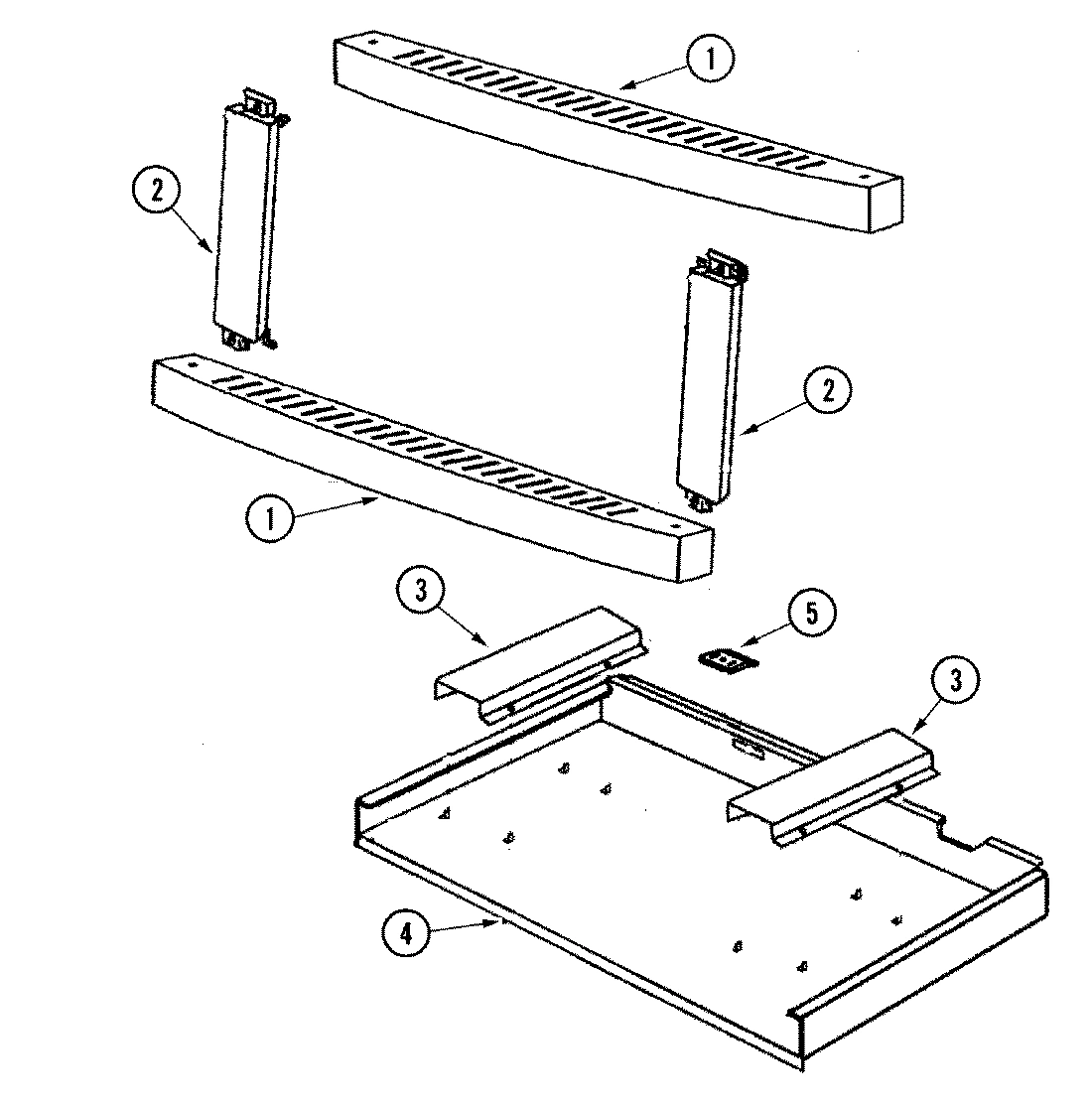

01 - 27`` & 30`` JENN-AIR MICROWAVE TRIM
02 - 27`` BRAND MICROWAVE TRIM

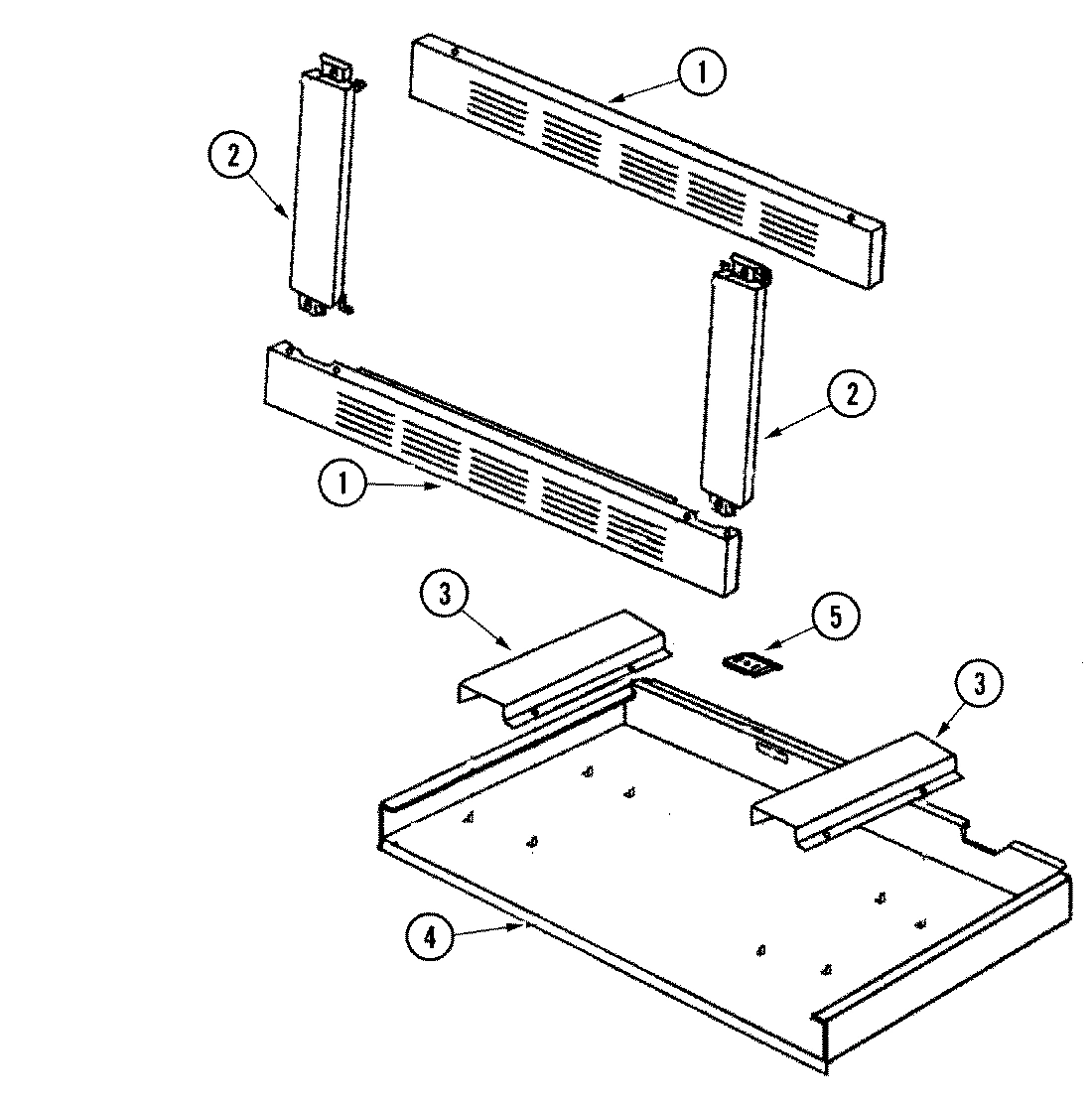

03 - 30`` BRAND MICROWAVE TRIM

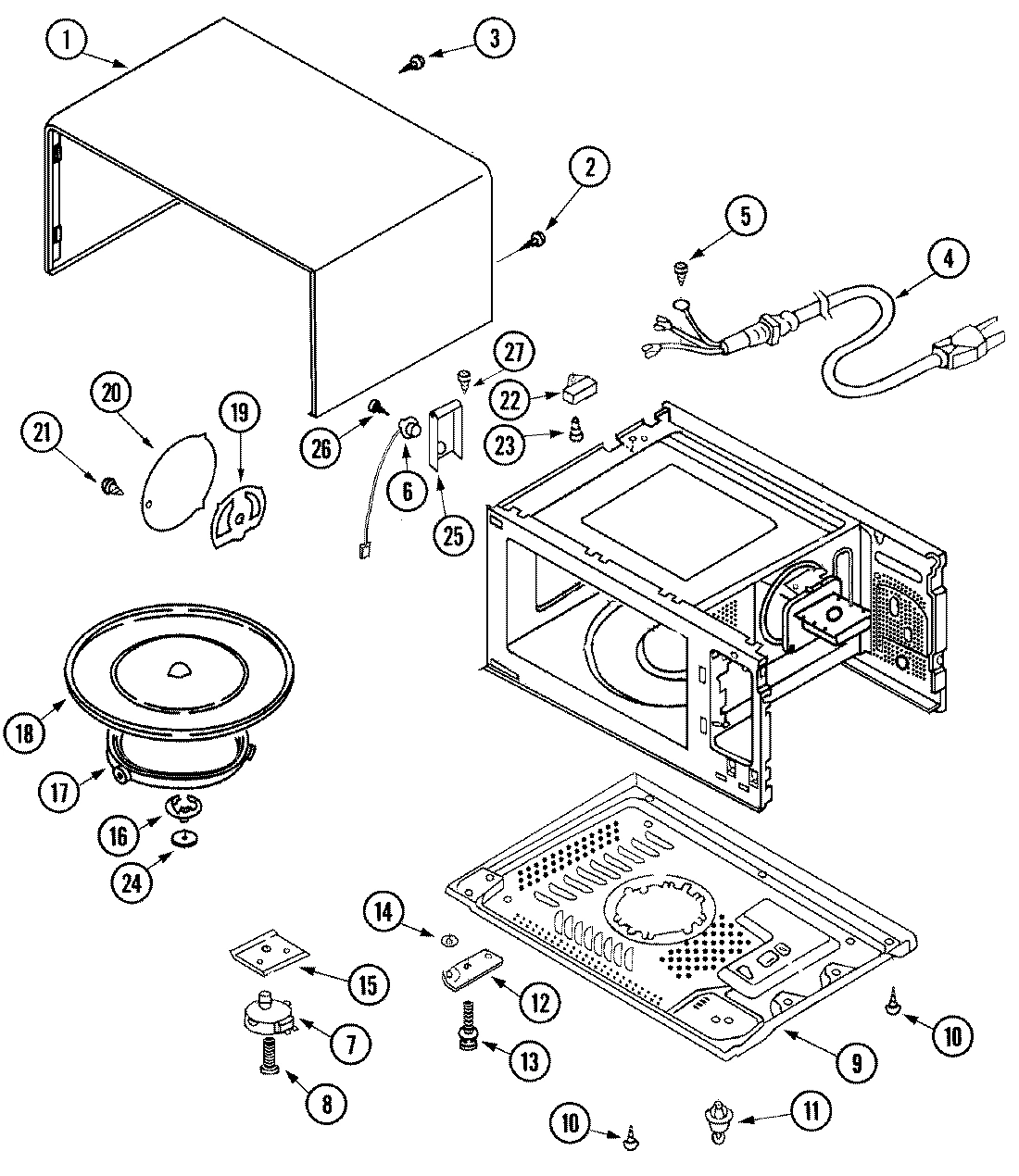

04 - BASE & CAVITY

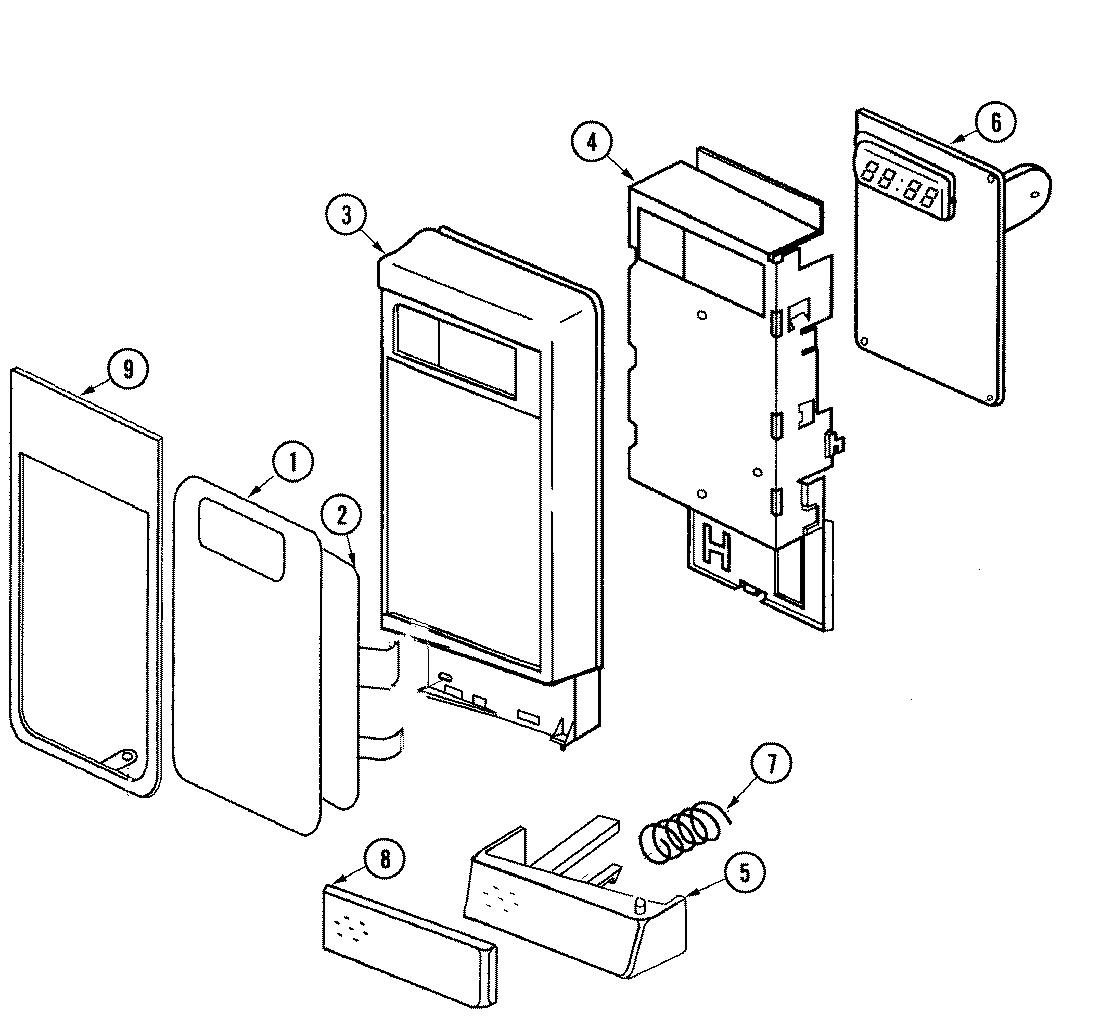

05 - CONTROL PANEL

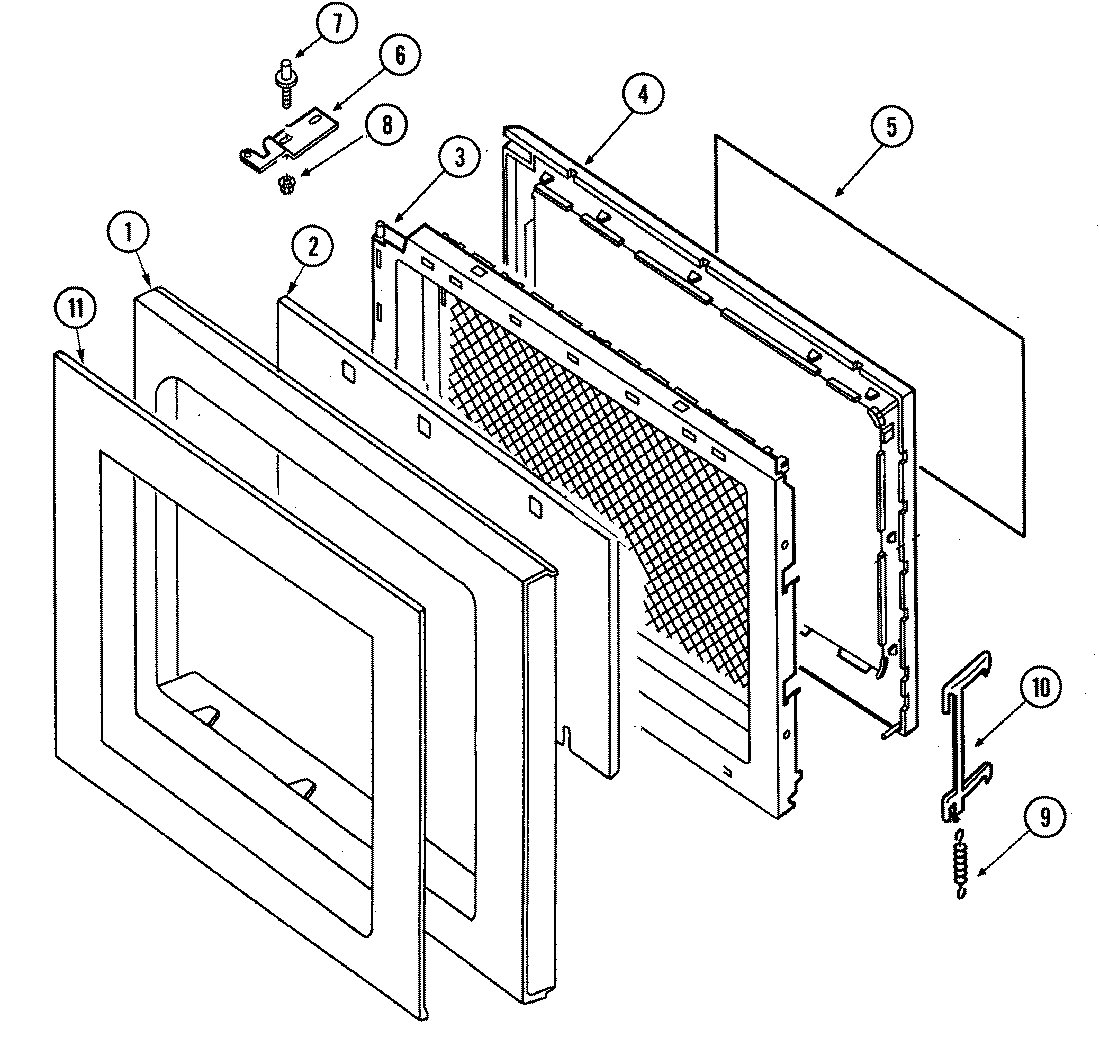

06 - DOOR

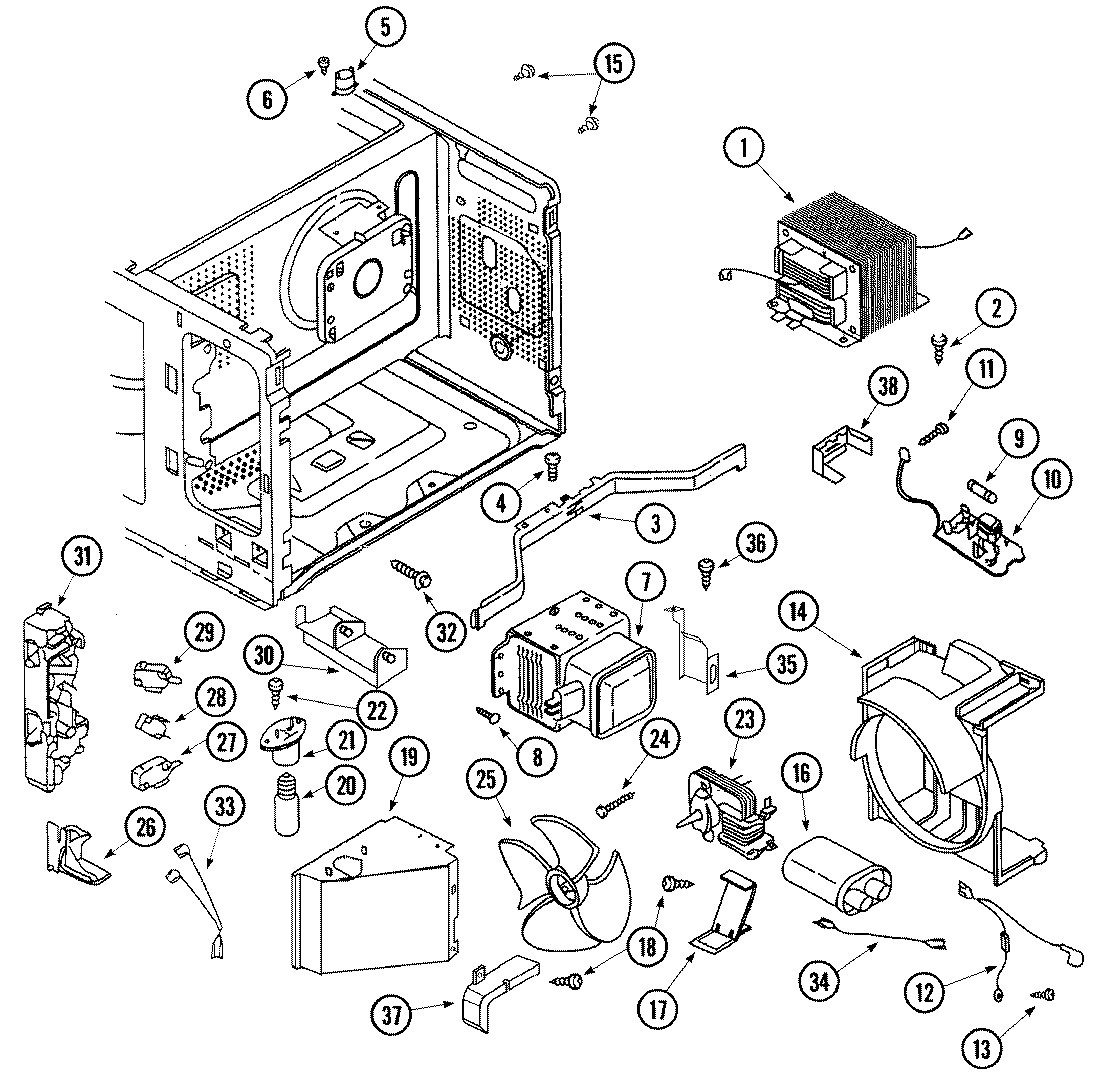

07 - INTERNAL CONTROLS

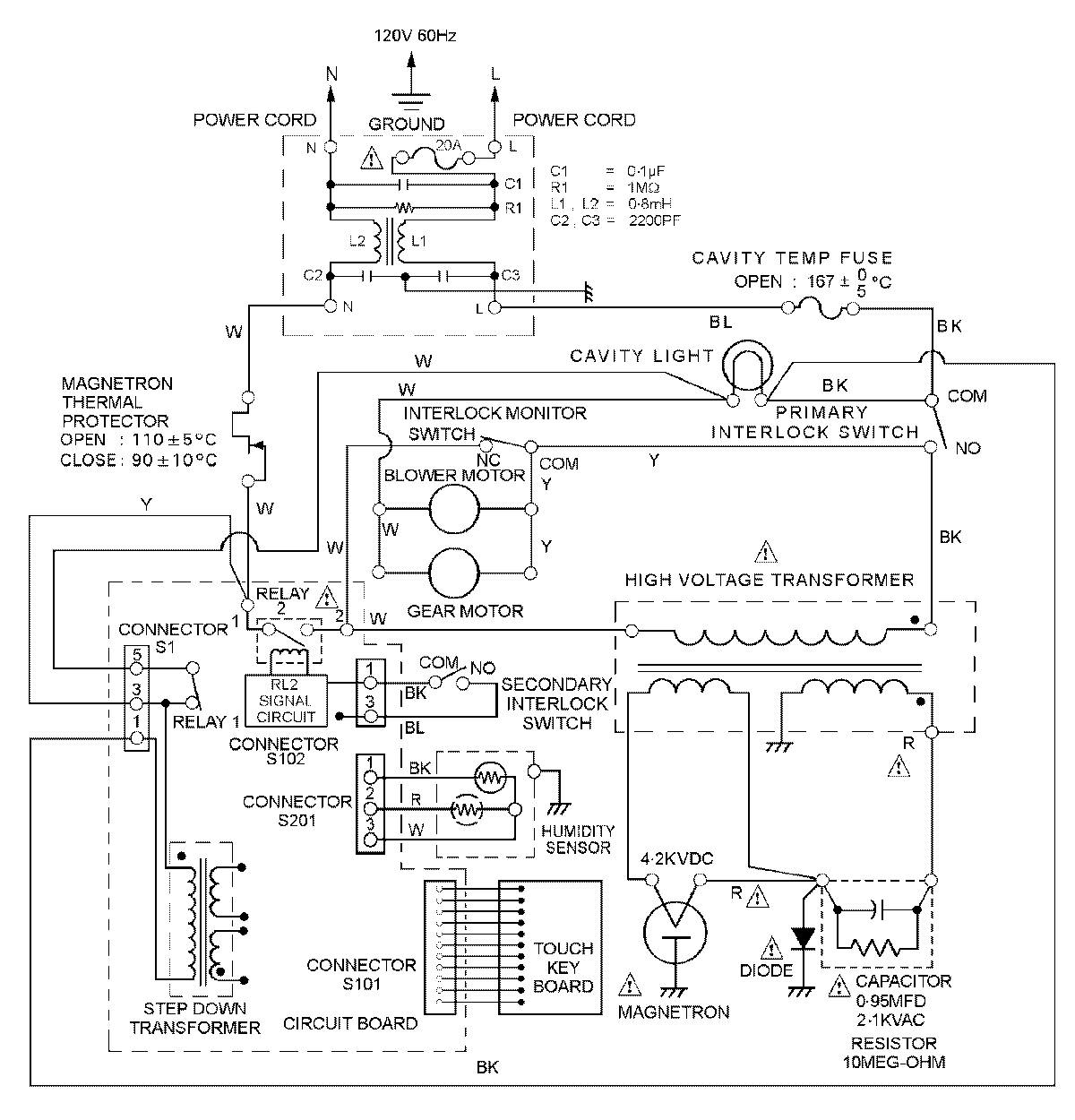

08 - WIRING INFORMATION
Common parts from model Maytag UMC5100ADB MICROWAVE
1
MAY 58001237 MAY 58001237 Contact Us For Availability
1
MAY 58001244 MAY 58001244 Contact Us For Availability
1
MAY 58001262 MAY 58001262 Contact Us For Availability
1
MAY 58001187 MAY 58001187 Contact Us For Availability
1
MAY 58001202 MAY 58001202 Contact Us For Availability
1
MAY 58001178 MAY 58001178 Contact Us For Availability
1
MAY 58001214 MAY 58001214 Contact Us For Availability
2
MAY 58001245 MAY 58001245 Contact Us For Availability
2
MAY 58001263 MAY 58001263 Contact Us For Availability
2
MAY 58001189 MAY 58001189 Contact Us For Availability
2
MAY 58001204 MAY 58001204 Contact Us For Availability
2
MAY 58001180 MAY 58001180 Contact Us For Availability
3
MAY 58001240 MAY 58001240 Contact Us For Availability
3
MAY 58001037 MAY 58001037 Contact Us For Availability
3
MAY 58001206 MAY 58001206 Contact Us For Availability
3
MAY 58001182 MAY 58001182 Contact Us For Availability
3
MAY 58001215 MAY 58001215 Contact Us For Availability
4
MAY 58001241 MAY 58001241 Contact Us For Availability
4
MAY 58001242 MAY 58001242 Contact Us For Availability
4
MAY 58001191 MAY 58001191 Contact Us For Availability
4
MAY 58001208 MAY 58001208 Contact Us For Availability
4
MAY 58001209 MAY 58001209 Contact Us For Availability
4
MAY 58001183 MAY 58001183 Contact Us For Availability
4
MAY 58001216 MAY 58001216 Contact Us For Availability
5
MAY 58001243 MAY 58001243 Contact Us For Availability
5
MAY 58001212 MAY 58001212 Contact Us For Availability
5
MAY 58001184 MAY 58001184 Contact Us For Availability
5
MAY 58001217 MAY 58001217 Contact Us For Availability
6
MAY 58001147 MAY 58001147 Contact Us For Availability
6
MAY 58001009 MAY 58001009 Contact Us For Availability
6
MAY 58001011 MAY 58001011 Contact Us For Availability
6
MAY 58001210 MAY 58001210 Contact Us For Availability
6
MAY 58001185 MAY 58001185 Contact Us For Availability
7
MAY 58001218 MAY 58001218 Contact Us For Availability
7
MAY 58001192 MAY 58001192 Contact Us For Availability
7
MAY 58001025 MAY 58001025 Contact Us For Availability
7
MAY 58001014 MAY 58001014 Contact Us For Availability
8
MAY 58001048 MAY 58001048 Contact Us For Availability
8
MAY 58001026 MAY 58001026 Contact Us For Availability
8
MAY 58001219 MAY 58001219 Contact Us For Availability
9
MAY 58001193 MAY 58001193 Contact Us For Availability
9
MAY 58001029 MAY 58001029 Contact Us For Availability
10
MAY 58001028 MAY 58001028 Contact Us For Availability
10
MAY 58001275 MAY 58001275 Contact Us For Availability
10
MAY 58001221 MAY 58001221 Contact Us For Availability
11
MAY 58001040 MAY 58001040 Contact Us For Availability
11
MAY 58001194 MAY 58001194 Contact Us For Availability
12
MAY 58001195 MAY 58001195 Contact Us For Availability
12
MAY 58001064 MAY 58001064 Contact Us For Availability
14
MAY 58001196 MAY 58001196 Contact Us For Availability
14
MAY 58001222 MAY 58001222 Contact Us For Availability
15
MAY 58001046 MAY 58001046 Contact Us For Availability
16
MAY 58001050 MAY 58001050 Contact Us For Availability
16
MAY 58001062 MAY 58001062 Contact Us For Availability
17
MAY 58001155 MAY 58001155 Contact Us For Availability
17
MAY 58001223 MAY 58001223 Contact Us For Availability
18
MAY 58001156 MAY 58001156 Contact Us For Availability
19
MAY 58001197 MAY 58001197 Contact Us For Availability
19
MAY 58001224 MAY 58001224 Contact Us For Availability
20
MAY 58001198 MAY 58001198 Contact Us For Availability
21
MAY 58001199 MAY 58001199 Contact Us For Availability
21
MAY 58001042 MAY 58001042 Contact Us For Availability
22
MAY 58001010 MAY 58001010 Contact Us For Availability
23
MAY 58001073 MAY 58001073 Contact Us For Availability
24
MAY 58001049 MAY 58001049 Contact Us For Availability
25
MAY 58001200 MAY 58001200 Contact Us For Availability
25
MAY 58001072 MAY 58001072 Contact Us For Availability
26
MAY 58001080 MAY 58001080 Contact Us For Availability
28
MAY 58001078 MAY 58001078 Contact Us For Availability
28
MAY 58001266 MAY 58001266 Contact Us For Availability
29
MAY 58001077 MAY 58001077 Contact Us For Availability
30
MAY 58001225 MAY 58001225 Contact Us For Availability
31
MAY 58001081 MAY 58001081 Contact Us For Availability
31
MAY 58001234 MAY 58001234 Contact Us For Availability
32
MAY 58001067 MAY 58001067 Contact Us For Availability
33
MAY 58001075 MAY 58001075 Contact Us For Availability
34
MAY 58001063 MAY 58001063 Contact Us For Availability
35
MAY 58001226 MAY 58001226 Contact Us For Availability
36
MAY 58001004 MAY 58001004 Contact Us For Availability
37
MAY 58001227 MAY 58001227 Contact Us For Availability
38
MAY 58001228 MAY 58001228 Contact Us For Availability
NI
NOT REQUIRED PART OR SEE NOTE FOR COMPLETE BL MAY W10124350 Contact Us For Availability
NI
MAY 74005589 MAY 74005589 Contact Us For Availability
NI
MAY 15002887 MAY 15002887 Contact Us For Availability
× ![]()
