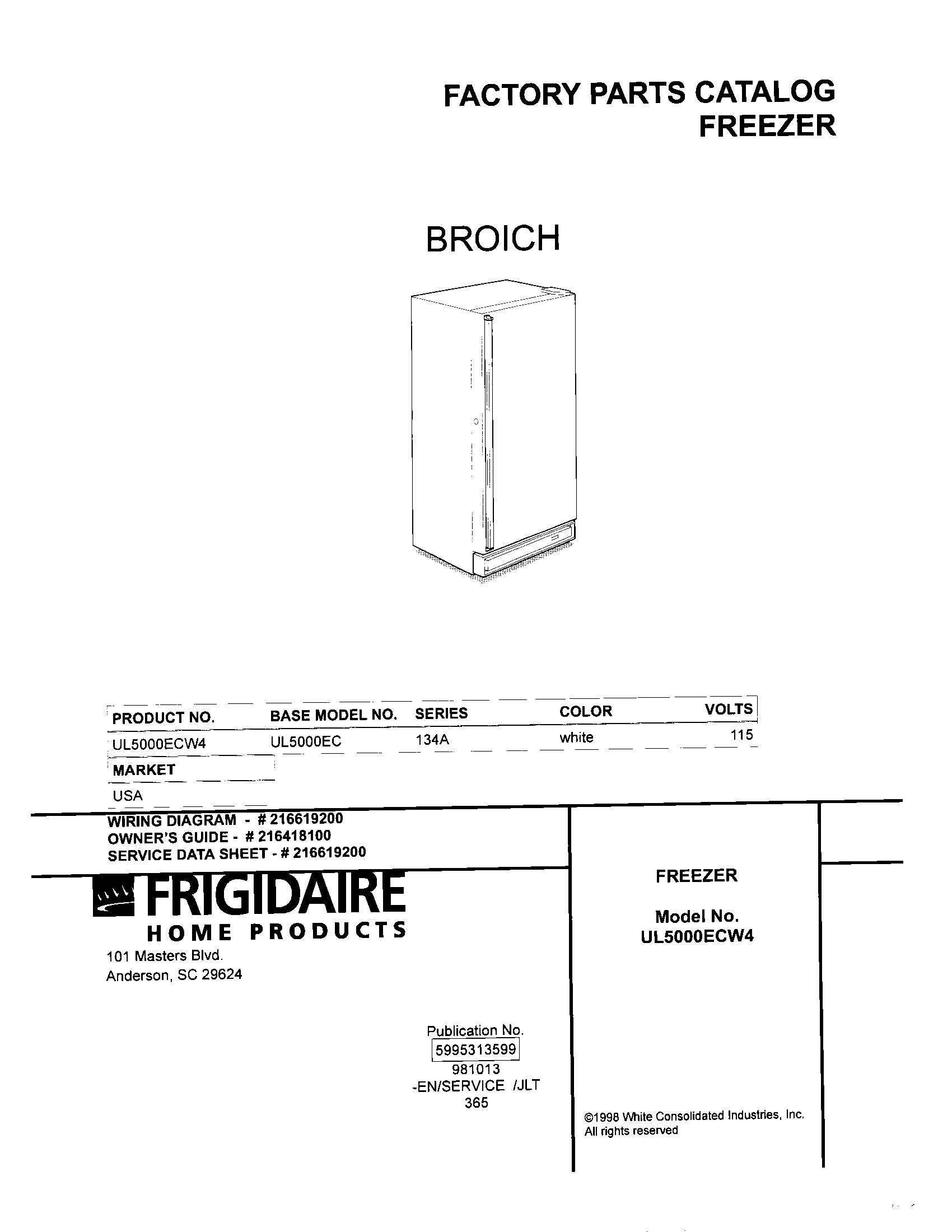

Model Electrolux UL5000ECW4 FREEZER – Common Parts & Diagrams
01 - COVER

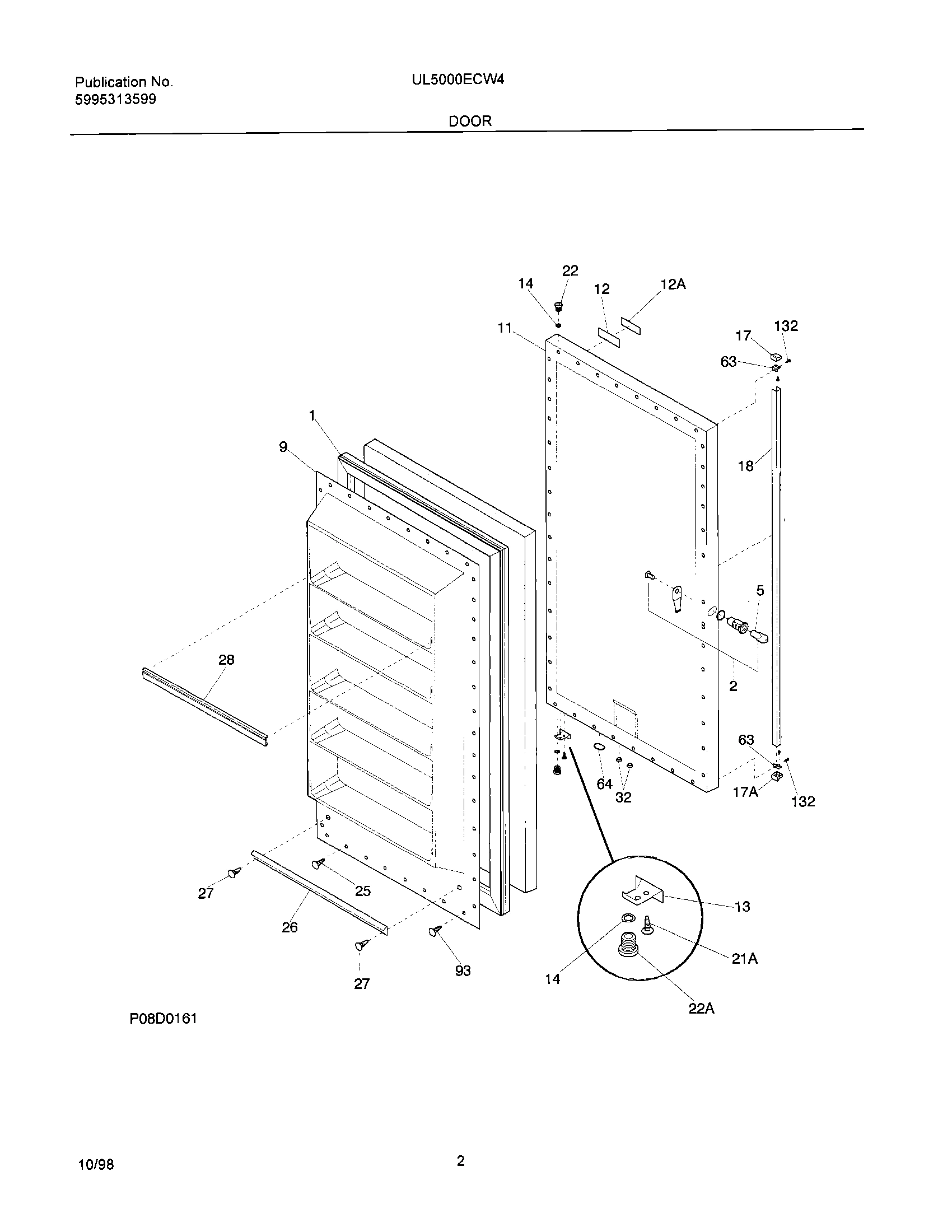

03 - DOOR

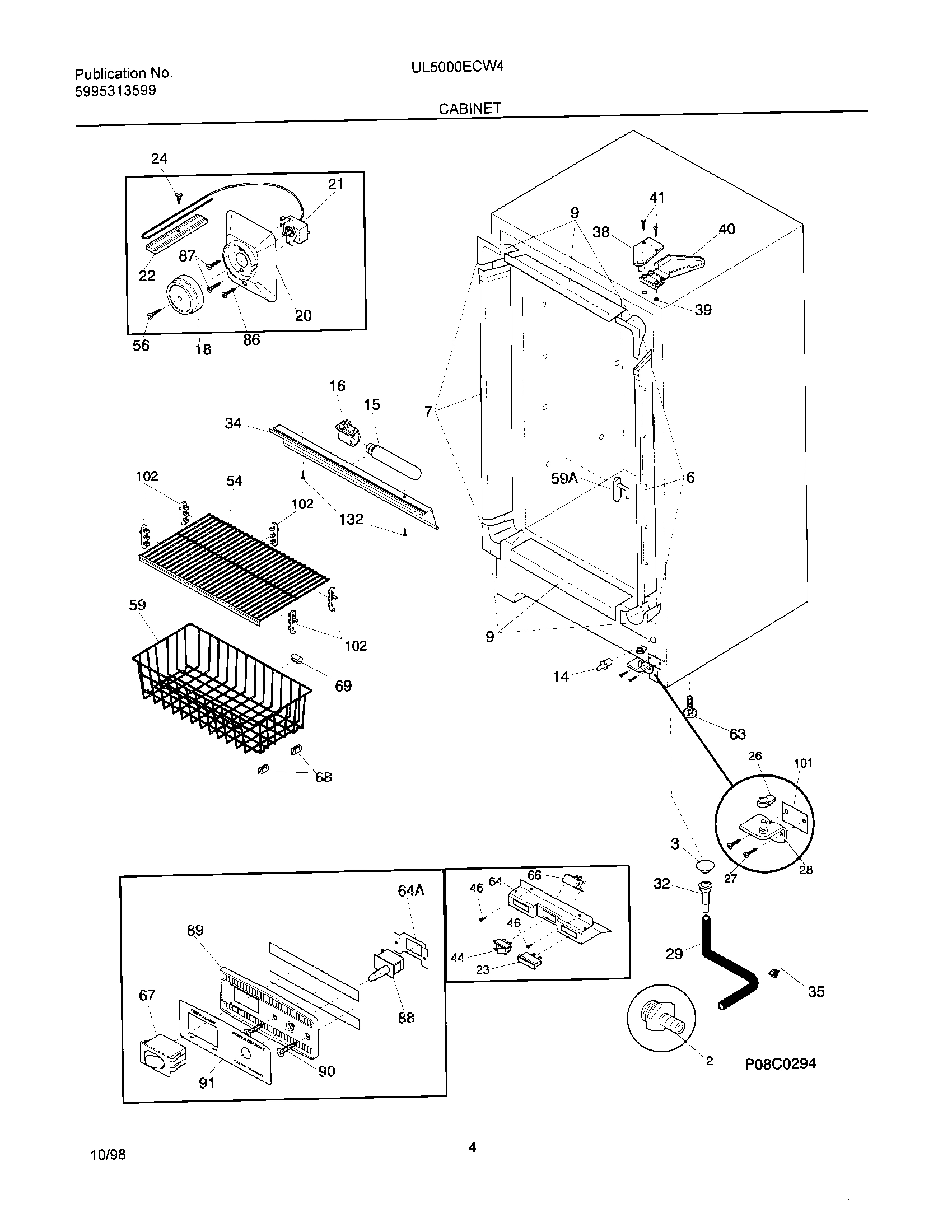

05 - CABINET

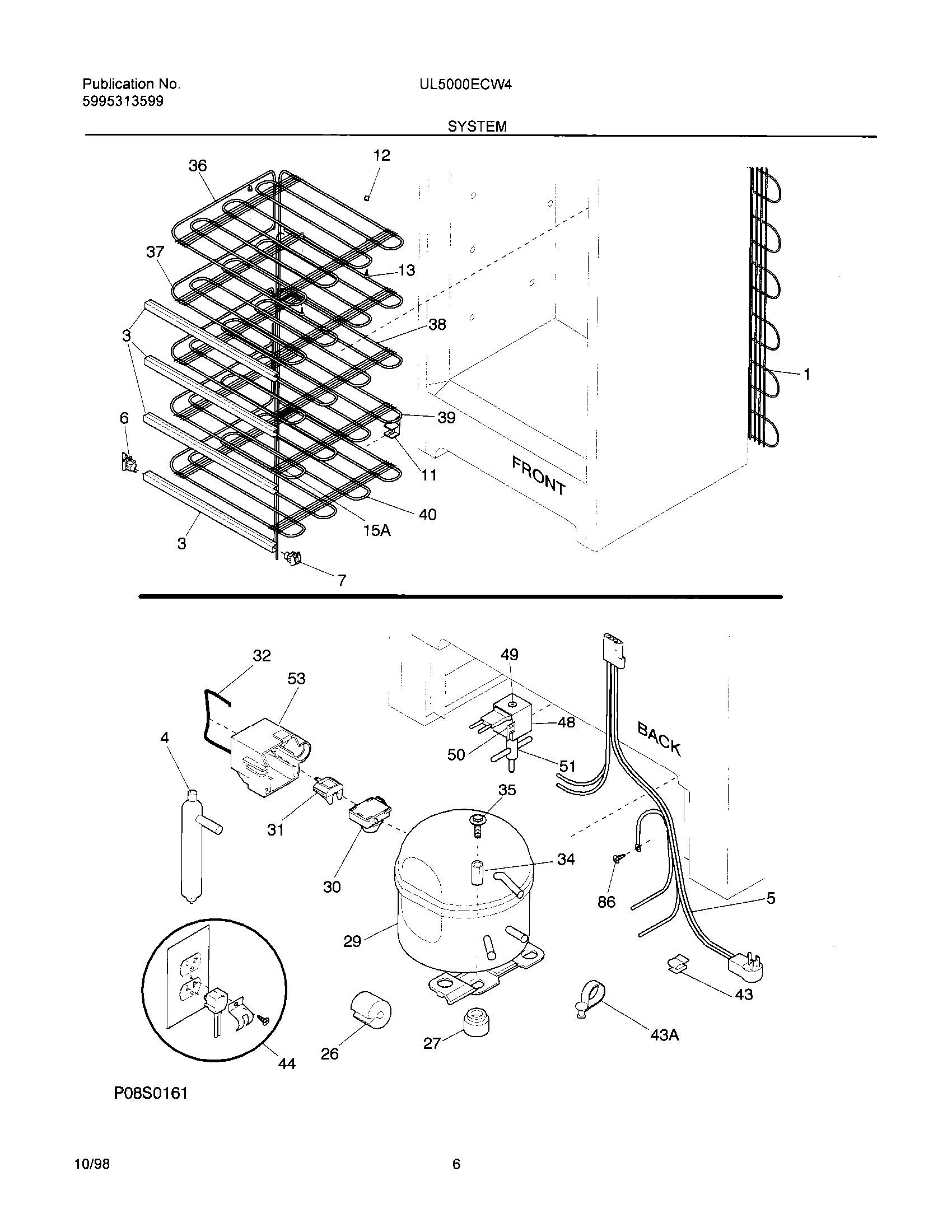

07 - SYSTEM
Common parts from model Electrolux UL5000ECW4 FREEZER
WCI 5303925098 WCI 5303925098 Contact Us For Availability
WCI 09948773 WCI 09948773 Contact Us For Availability
CLIP, COMPRESSOR WIRE WCI 05878556 Contact Us For Availability
WCI 5303208622 WCI 5303208622 Contact Us For Availability
2
ADAPTER, DRAIN WCI 216269500 Contact Us For Availability
3
PLUG-DRAIN,EXTERIOR WCI 216502600 Contact Us For Availability
5
WCI 216610700 WCI 216610700 Contact Us For Availability
11
WCI 216474600 WCI 216474600 Contact Us For Availability
12
WCI 216225700 WCI 216225700 Contact Us For Availability
13
DOOR STOP WCI 08016354 Contact Us For Availability
13
SCREW, HEX SEMS, 8, 18 X 1.00 AB, EVAP WCI 216138900 Contact Us For Availability
15A
WCI 216468300 WCI 216468300 Contact Us For Availability
16
SOCKET, LIGHT/LAMP WCI 5300136117 Contact Us For Availability
20
WCI 5303288184 WCI 5303288184 Contact Us For Availability
21
WCI 216260300 WCI 216260300 Contact Us For Availability
22
CLAMP, CAP TUBE, COLD CONTROL WCI 08037931 Contact Us For Availability
23
WCI 5308002706 WCI 5308002706 Contact Us For Availability
24
SCREW, CLAMP, TRUSS HD CR, CONTROL WCI 5300052943 Contact Us For Availability
26
RAMP, CLOSER DOOR WCI 216503300 Contact Us For Availability
26
SPACER-TUBE WCI 216511900 Contact Us For Availability
27
WCI 216313000 WCI 216313000 Contact Us For Availability
28
WCI 216247400 WCI 216247400 Contact Us For Availability
29
WCI 216581000 WCI 216581000 Contact Us For Availability
31
WCI 216100119 WCI 216100119 Contact Us For Availability
32
WCI 5309950074 WCI 5309950074 Contact Us For Availability
34
SLEEVE-COMPRESSOR WCI 5306594529 Contact Us For Availability
34
WCI 216557603 WCI 216557603 Contact Us For Availability
35
SCREW, IND HEX SEMS, 1/4, 28 UNFX, COMPRESSOR WCI 5303272328 Contact Us For Availability
37
WCI 216160100 WCI 216160100 Contact Us For Availability
38
WCI 5303925086 WCI 5303925086 Contact Us For Availability
38
WCI 216071100 WCI 216071100 Contact Us For Availability
39
WCI 5303294372 WCI 5303294372 Contact Us For Availability
40
COVER, HINGE WCI 5303212912 Contact Us For Availability
41
WCI 5303212937 WCI 5303212937 Contact Us For Availability
44
WCI 5303017178 WCI 5303017178 Contact Us For Availability
44
CLAMP, PWR CORD ASSY WCI 08016777 Contact Us For Availability
46
SCREW, PH TYPE AB, 8, 32 X 1/2, WIRING HARNES WCI 08037851 Contact Us For Availability
48
WCI 3201514 WCI 3201514 Contact Us For Availability
49
WCI 3201513 WCI 3201513 Contact Us For Availability
50
WCI 216533400 WCI 216533400 Contact Us For Availability
51
WCI 5303210219 WCI 5303210219 Contact Us For Availability
53
WCI 08006982 WCI 08006982 Contact Us For Availability
54
WCI 216077201 WCI 216077201 Contact Us For Availability
56
WCI 09950853 WCI 09950853 Contact Us For Availability
59
WCI 216157200 WCI 216157200 Contact Us For Availability
59A
WCI 09948791 No Longer Available
64
PLUG-BOTTOM, BASE DOOR WCI 216403700 Contact Us For Availability
64
BRACKET WCI 08016369 Contact Us For Availability
64A
WCI 216009200 WCI 216009200 Contact Us For Availability
66
BUZZER,ALARM WCI 08016367 Contact Us For Availability
67
WCI 5303212703 WCI 5303212703 Contact Us For Availability
87
SCREW WCI 08037849 Contact Us For Availability
88
WCI 216380500 WCI 216380500 Contact Us For Availability
89
BEZEL-NAMEPLATE,DEFROST WCI 216206200 Contact Us For Availability
90
SCREW, TH, 8-32 X 2-1/2 WCI 5303297123 Contact Us For Availability
91
WCI 216206400 WCI 216206400 Contact Us For Availability
101
WCI 216313300 WCI 216313300 Contact Us For Availability
102
SUPPORT SHELF,ADJUSTABLE WCI 08016352 Contact Us For Availability
132
WCI 5303283898 WCI 5303283898 Contact Us For Availability
× ![]()
