Model Electrolux UL5000ECW0 FREEZER – Common Parts & Diagrams

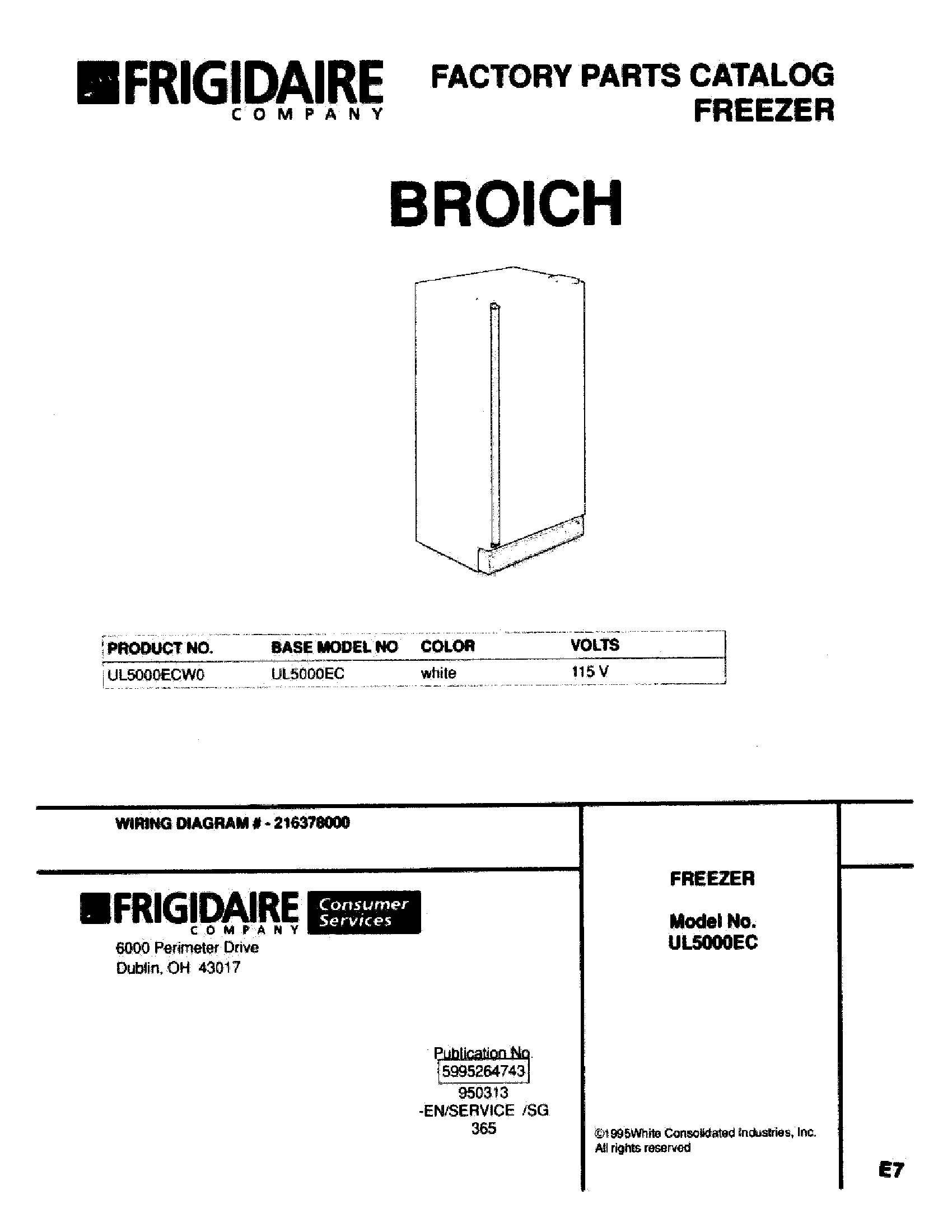

01 - COVER

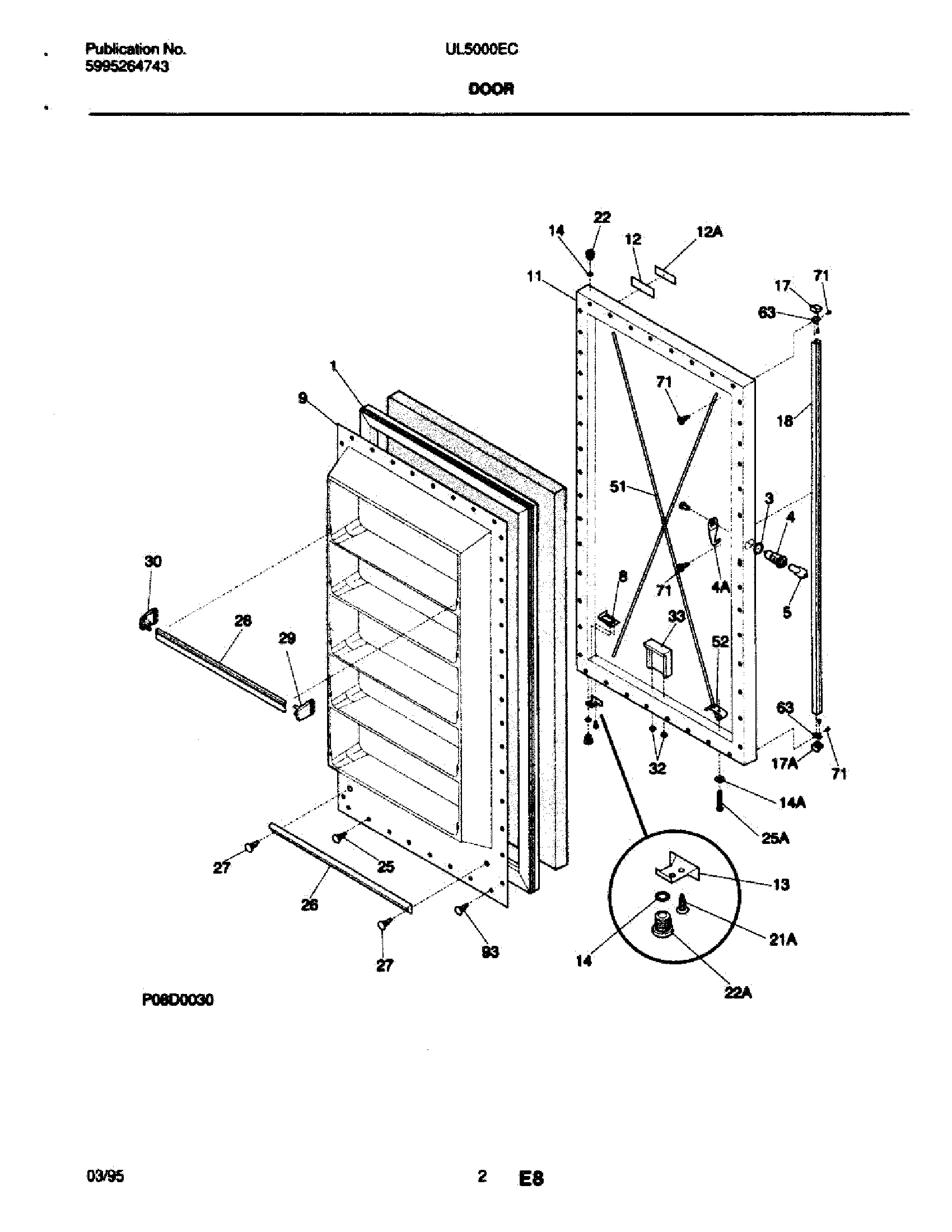

03 - DOOR

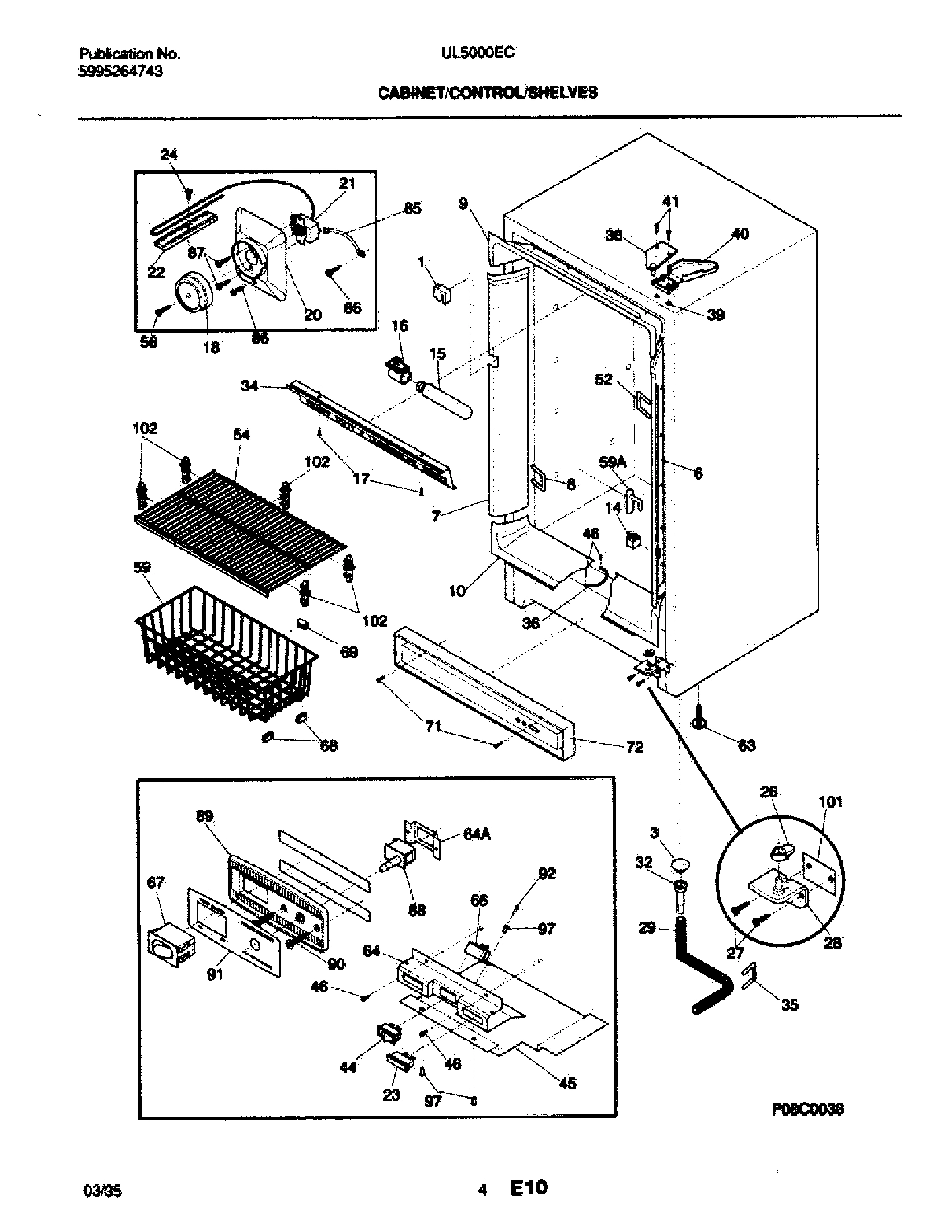

05 - CABINET/CONTROL/SHELVES

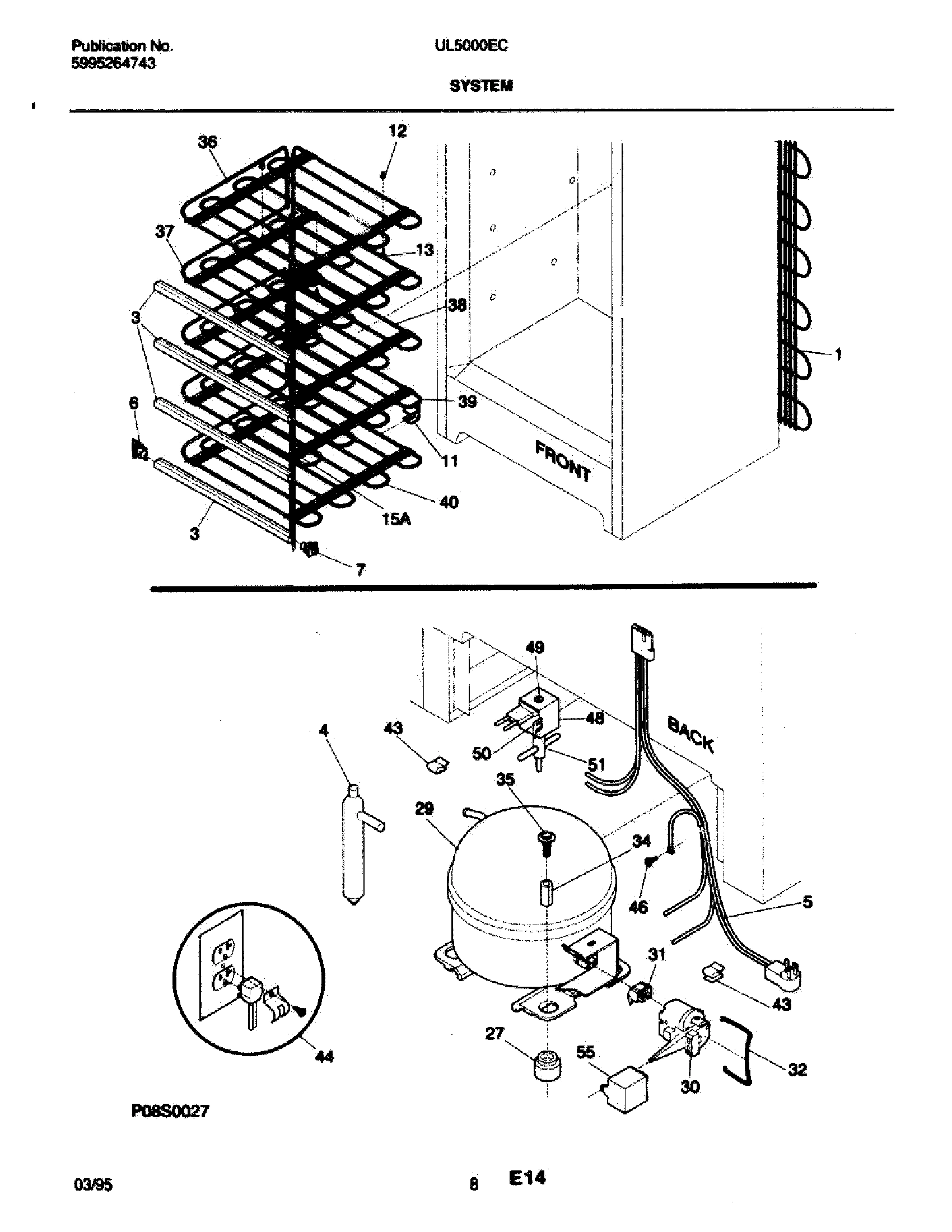

07 - SYSTEM
Common parts from model Electrolux UL5000ECW0 FREEZER
ADAPTER, DRAIN WCI 216269500 Contact Us For Availability
WCI 216206600 WCI 216206600 Contact Us For Availability
WCI 5303207297 WCI 5303207297 Contact Us For Availability
WCI 5303208622 WCI 5303208622 Contact Us For Availability
1
GASKET DOOR WCI 3206261 Contact Us For Availability
1
WCI 216323100 WCI 216323100 Contact Us For Availability
3
PLUG-DRAIN, WHITE WCI 5306593887 Contact Us For Availability
5
WCI 216359700 WCI 216359700 Contact Us For Availability
6
WCI 216107501 WCI 216107501 Contact Us For Availability
7
WCI 216107602 WCI 216107602 Contact Us For Availability
9
WCI 216085900 WCI 216085900 Contact Us For Availability
10
WCI 216085800 WCI 216085800 Contact Us For Availability
11
WCI 216225600 WCI 216225600 Contact Us For Availability
12
WCI 216225700 WCI 216225700 Contact Us For Availability
13
DOOR STOP WCI 08016354 Contact Us For Availability
13
SCREW, HEX SEMS, 8, 18 X 1.00 AB, EVAP WCI 216138900 Contact Us For Availability
15A
HEAT EXCHANGER ASSY WCI 5308010744 Contact Us For Availability
16
SOCKET, LIGHT/LAMP WCI 5300136117 Contact Us For Availability
17
SCREW, TH TYPE AB, 6-20 X 3/8, SHIELD-LIGHT WCI 5303283898 Contact Us For Availability
18
WCI 216008602 WCI 216008602 Contact Us For Availability
20
WCI 5303288184 WCI 5303288184 Contact Us For Availability
21
WCI 216150400 WCI 216150400 Contact Us For Availability
22
CLAMP, CAP TUBE, COLD CONTROL WCI 08037931 Contact Us For Availability
23
SIGNAL LIGHT-AMBER WCI 5308002706 Contact Us For Availability
24
SCREW, CLAMP, TRUSS HD CR, CONTROL WCI 5300052943 Contact Us For Availability
26
RAMP, DOOR WCI 5303210424 Contact Us For Availability
28
WCI 216247400 WCI 216247400 Contact Us For Availability
29
WCI 216340000 WCI 216340000 Contact Us For Availability
29
WCI 216346600 WCI 216346600 Contact Us For Availability
30
WCI 216340100 WCI 216340100 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
31
WCI 5303276514 WCI 5303276514 Contact Us For Availability
32
BREATHER-AIR DUCT, DOOR WCI 5309950074 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
33
AIR DUCT WCI 5303212700 Contact Us For Availability
34
SHIELD-LIGHT WCI 216312202 Contact Us For Availability
34
SPACER, COMPRESSOR WCI 5303298960 Contact Us For Availability
35
SCREW, COMPRESSOR WCI 5303272328 Contact Us For Availability
36
WCI 06594651 WCI 06594651 Contact Us For Availability
37
WCI 216160100 WCI 216160100 Contact Us For Availability
38
WCI 5303925086 WCI 5303925086 Contact Us For Availability
38
WCI 216071100 WCI 216071100 Contact Us For Availability
39
WCI 5303294372 WCI 5303294372 Contact Us For Availability
40
COVER, HINGE WCI 5303212912 Contact Us For Availability
41
WCI 5303212937 WCI 5303212937 Contact Us For Availability
44
WCI 5303017178 WCI 5303017178 Contact Us For Availability
44
CLAMP, PWR CORD ASSY WCI 08016777 Contact Us For Availability
45
SHIELD-WIRE WCI 5303297075 Contact Us For Availability
46
SCREW, PH TYPE AB, 8, 32 X 1/2, WIRING HARNES WCI 08037851 Contact Us For Availability
48
WCI 3201514 WCI 3201514 Contact Us For Availability
49
WCI 3201513 WCI 3201513 Contact Us For Availability
50
WCI 5303297422 WCI 5303297422 Contact Us For Availability
51
WIRE, DOOR ADJUSTMNT WCI 08037986 Contact Us For Availability
51
WCI 5303210219 WCI 5303210219 Contact Us For Availability
52
WCI 05879859 WCI 05879859 Contact Us For Availability
52
RETAINER, WIRE, BREAKER WCI 08037401 Contact Us For Availability
54
SHELF-DRY WCI 216260600 Contact Us For Availability
56
WCI 09950853 WCI 09950853 Contact Us For Availability
59
WCI 216157200 WCI 216157200 Contact Us For Availability
59A
WCI 09948791 No Longer Available
63
WCI 205363701 WCI 205363701 Contact Us For Availability
63
WCI 5300119930 WCI 5300119930 Contact Us For Availability
64
WCI 08016369 WCI 08016369 Contact Us For Availability
64A
WCI 216009200 WCI 216009200 Contact Us For Availability
66
BUZZER,ALARM WCI 08016367 Contact Us For Availability
67
WCI 5303212703 WCI 5303212703 Contact Us For Availability
72
WCI 216294416 WCI 216294416 Contact Us For Availability
85
WIRE-GROUND, TEMP CONTROL WCI 5300125347 Contact Us For Availability
87
SCREW, TIMER WCI 08037849 Contact Us For Availability
88
WCI 216380500 WCI 216380500 Contact Us For Availability
89
BEZEL-NAMEPLATE,DEFROST WCI 216206200 Contact Us For Availability
90
SCREW, TH, 8-32 UNC 2 X 1/2 WCI 5303297123 Contact Us For Availability
92
SCREW WCI 08037852 Contact Us For Availability
97
WCI 5303308288 WCI 5303308288 Contact Us For Availability
101
WCI 216313300 WCI 216313300 Contact Us For Availability
102
SUPPORT SHELF,ADJUSTABLE WCI 08016352 Contact Us For Availability
× ![]()
