Model Electrolux UL2494ECW4 FREEZER – Common Parts & Diagrams

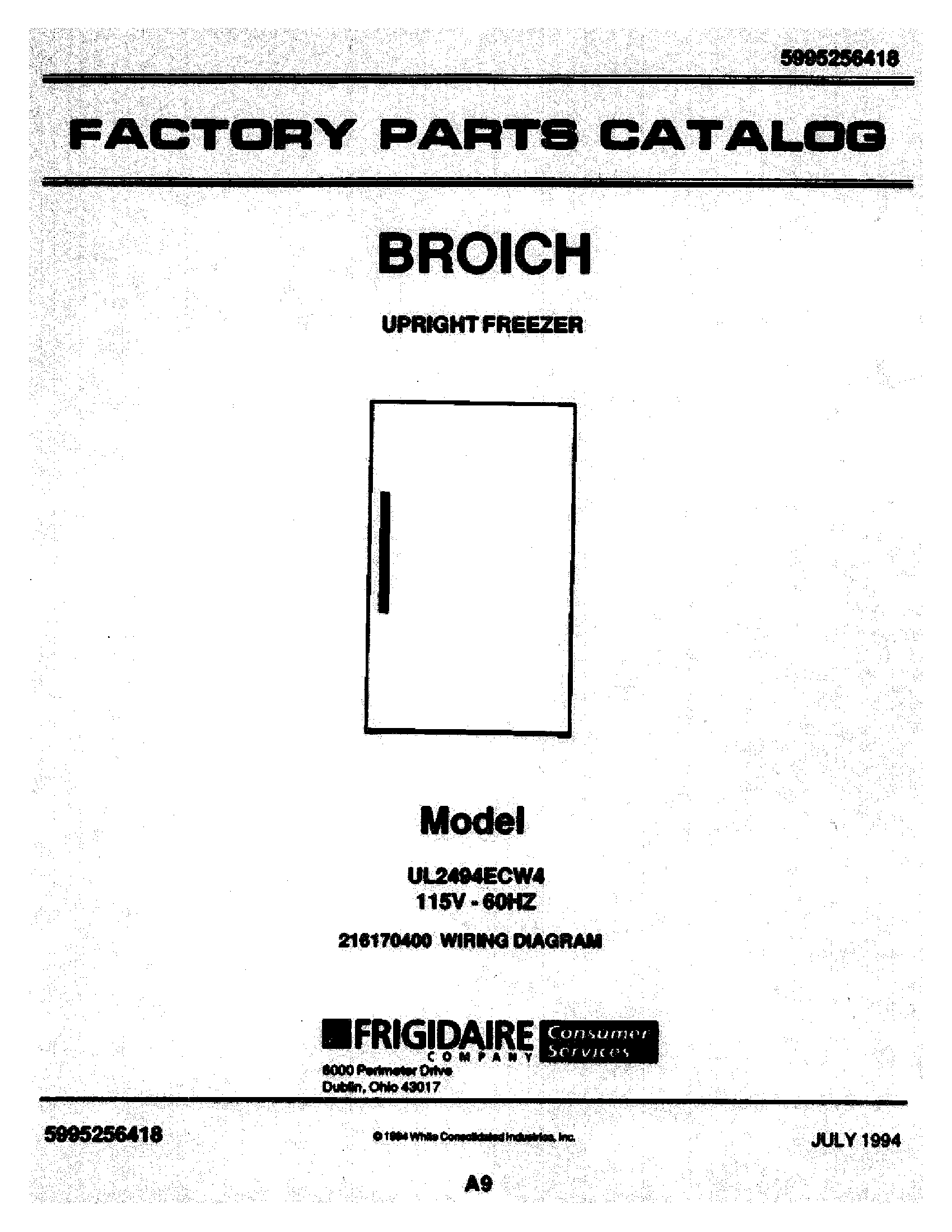

01 - COVER

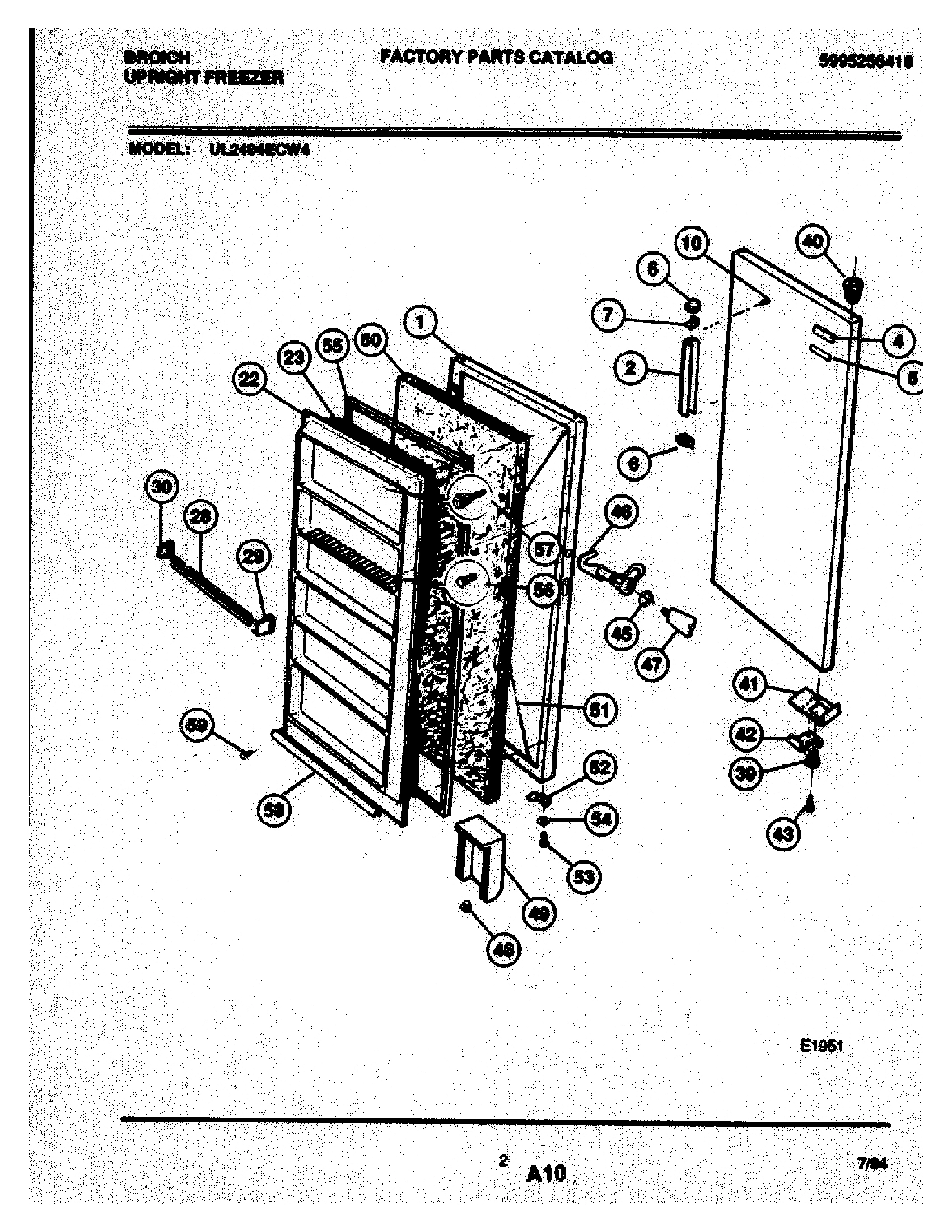

03 - DOOR

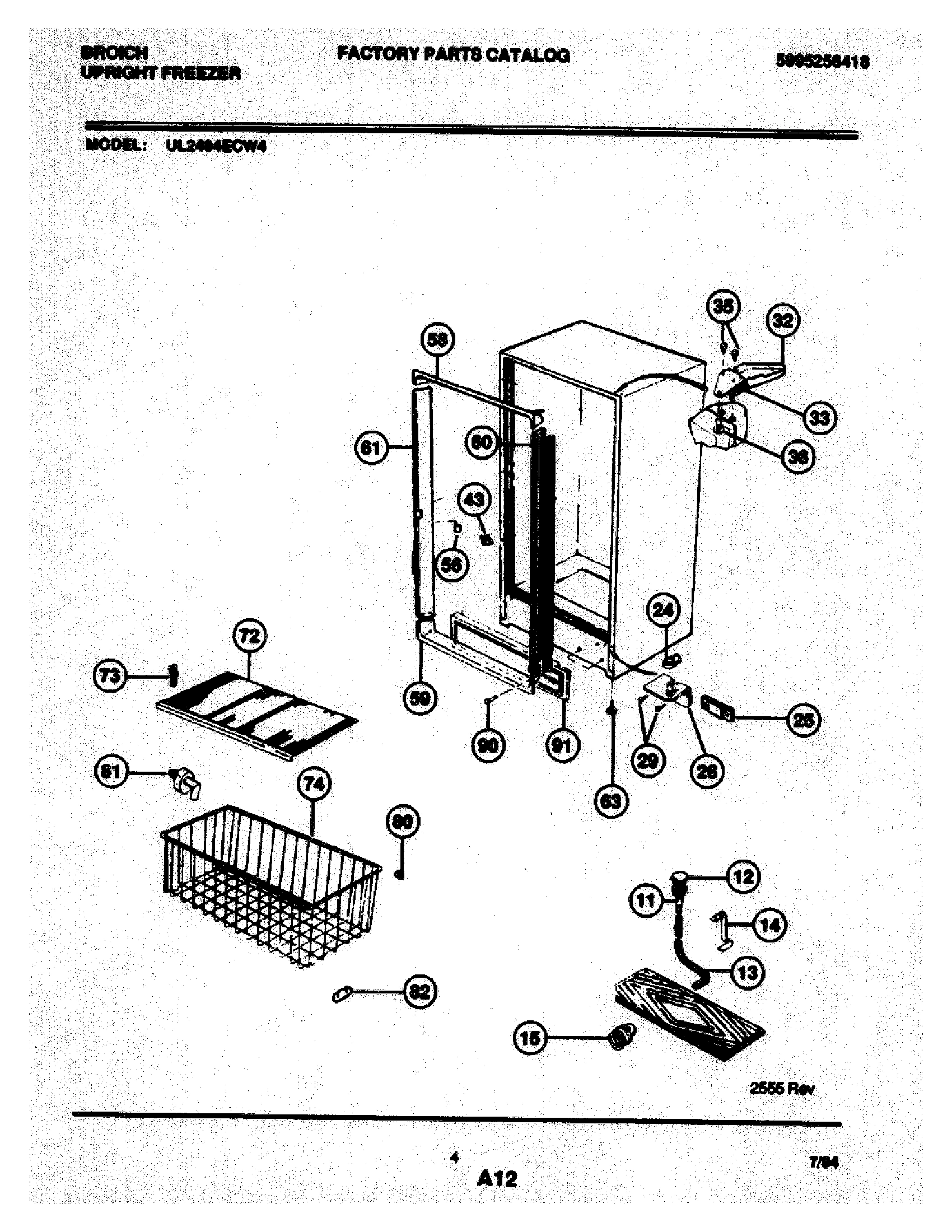

05 - CABINET

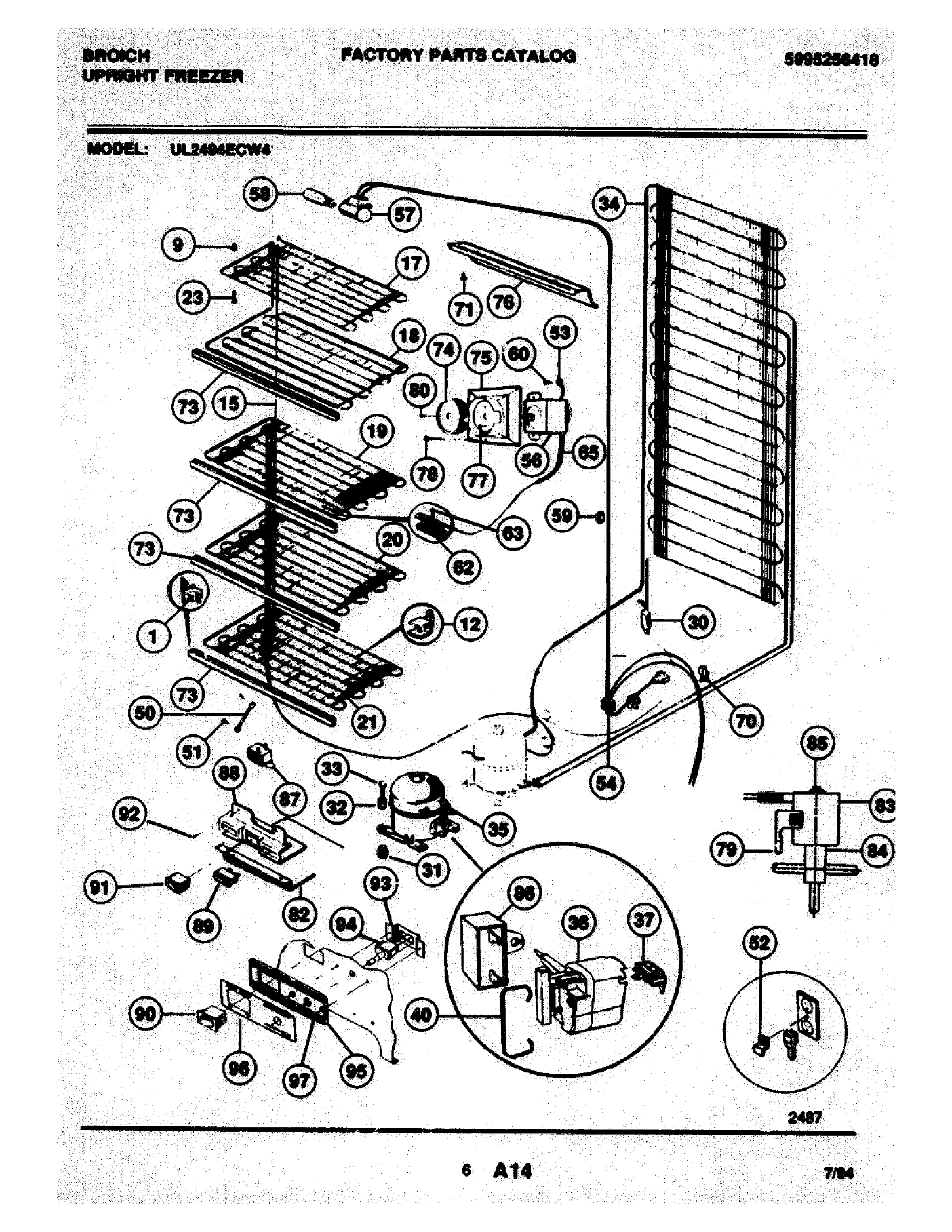

07 - SYSTEM
Common parts from model Electrolux UL2494ECW4 FREEZER
LOCK CATCH WCI 216323100 Contact Us For Availability
HARNESS-ALARM WCI 216206600 Contact Us For Availability
9
GROMMET WCI 216225700 Contact Us For Availability
12
SUPPORT-REAR WCI 216225600 Contact Us For Availability
14
WCI 06593405 WCI 06593405 Contact Us For Availability
15
ADAPTER, DRAIN WCI 216269500 Contact Us For Availability
15
WCI 5308010744 WCI 5308010744 Contact Us For Availability
18
FIRST SHELF WCI 216160100 Contact Us For Availability
19
SECOND SHELF WCI 216071100 Contact Us For Availability
23
SCREW TOP GRID WCI 216138900 Contact Us For Availability
24
WCI 5303210424 WCI 5303210424 Contact Us For Availability
25
TAPPING PLATE-HINGE WCI 216313300 Contact Us For Availability
26
WCI 216247400 WCI 216247400 Contact Us For Availability
32
WCI 5306594529 WCI 5306594529 Contact Us For Availability
32
WCI 5303212912 WCI 5303212912 Contact Us For Availability
33
HINGE, TOP WCI 5303212935 Contact Us For Availability
33
WCI 08002679 WCI 08002679 Contact Us For Availability
35
WCI 5303212937 WCI 5303212937 Contact Us For Availability
35
WCI 216241500 WCI 216241500 Contact Us For Availability
36
NUT INSERT-SCREW WCI 5303294372 Contact Us For Availability
36
RELAY WCI 216008900 Contact Us For Availability
37
WCI 5308037789 WCI 5308037789 Contact Us For Availability
40
CLAMP, COVER WCI 215012000 Contact Us For Availability
42
WCI 08016354 WCI 08016354 Contact Us For Availability
45
WCI 5300114366 WCI 5300114366 Contact Us For Availability
46
LOCK HOOK WCI 216323600 Contact Us For Availability
48
WCI 5309950074 WCI 5309950074 Contact Us For Availability
49
AIR DUCT BREATHER WCI 5303212700 Contact Us For Availability
50
INSULATION, DOOR WCI 5303007739 Contact Us For Availability
50
WCI 06594651 WCI 06594651 Contact Us For Availability
51
WCI 08037986 WCI 08037986 Contact Us For Availability
52
WCI 05879859 WCI 05879859 Contact Us For Availability
53
WCI 5300057906 WCI 5300057906 Contact Us For Availability
53
WCI 5300125347 WCI 5300125347 Contact Us For Availability
54
WCI 09950839 WCI 09950839 Contact Us For Availability
54
HARNESS W/ POWER CORD WCI 216234600 Contact Us For Availability
55
GASKET DOOR WCI 3206261 Contact Us For Availability
56
WCI 06594680 WCI 06594680 Contact Us For Availability
56
WCI 216260300 WCI 216260300 Contact Us For Availability
57
WCI 5300136117 WCI 5300136117 Contact Us For Availability
57
SCREW-PANEL WCI 216022800 Contact Us For Availability
58
GASKET-WHITE WCI 5308016356 Contact Us For Availability
58
WCI 216085900 WCI 216085900 Contact Us For Availability
59
WCI 216085800 WCI 216085800 Contact Us For Availability
59
WCI 08037401 WCI 08037401 Contact Us For Availability
60
BREAKER HINGE WCI 216107501 Contact Us For Availability
61
WCI 216107602 WCI 216107602 Contact Us For Availability
62
WCI 08037931 WCI 08037931 Contact Us For Availability
63
LEVELING LEG ADJ WCI 205363701 Contact Us For Availability
63
WCI 5300052943 WCI 5300052943 Contact Us For Availability
70
WCI 06599553 WCI 06599553 Contact Us For Availability
71
SCREW, SHIELD WCI 5303283898 Contact Us For Availability
72
SHELF WCI 216260600 Contact Us For Availability
73
SUPPORT DRY SHELF WCI 08016352 Contact Us For Availability
74
WCI 216157200 WCI 216157200 Contact Us For Availability
74
KNOB-CONTROL WCI 216008602 Contact Us For Availability
75
HOUSING CONTROL WCI 5303288184 Contact Us For Availability
76
WCI 216312202 WCI 216312202 Contact Us For Availability
77
WCI 08003539 WCI 08003539 Contact Us For Availability
79
WIRE-GROUND WCI 5303297422 Contact Us For Availability
80
WCI 09950853 WCI 09950853 Contact Us For Availability
81
WCI 09948791 No Longer Available
82
SHIELD WCI 5303297075 Contact Us For Availability
83
WCI 3201514 WCI 3201514 Contact Us For Availability
84
VALVE WCI 5303210219 Contact Us For Availability
85
WCI 3201513 WCI 3201513 Contact Us For Availability
87
BUZZER,ALARM WCI 08016367 Contact Us For Availability
88
WCI 08016369 WCI 08016369 Contact Us For Availability
89
WCI 5308002706 WCI 5308002706 Contact Us For Availability
90
SWITCH-SPST WCI 5303212703 Contact Us For Availability
91
TOE GRILLE WCI 216294416 Contact Us For Availability
91
WCI 5303017178 WCI 5303017178 Contact Us For Availability
92
WCI 08037851 WCI 08037851 Contact Us For Availability
93
BRACKET-SWITCH WCI 216009200 Contact Us For Availability
94
SWITCH-DEFROST WCI 5303210215 Contact Us For Availability
95
FRAME WCI 216206200 Contact Us For Availability
96
LABEL WCI 216206400 Contact Us For Availability
97
WCI 5303297123 WCI 5303297123 Contact Us For Availability
× ![]()
