Model Electrolux UL2193ECW7 FREEZER – Common Parts & Diagrams
01 - COVER
03 - DOOR

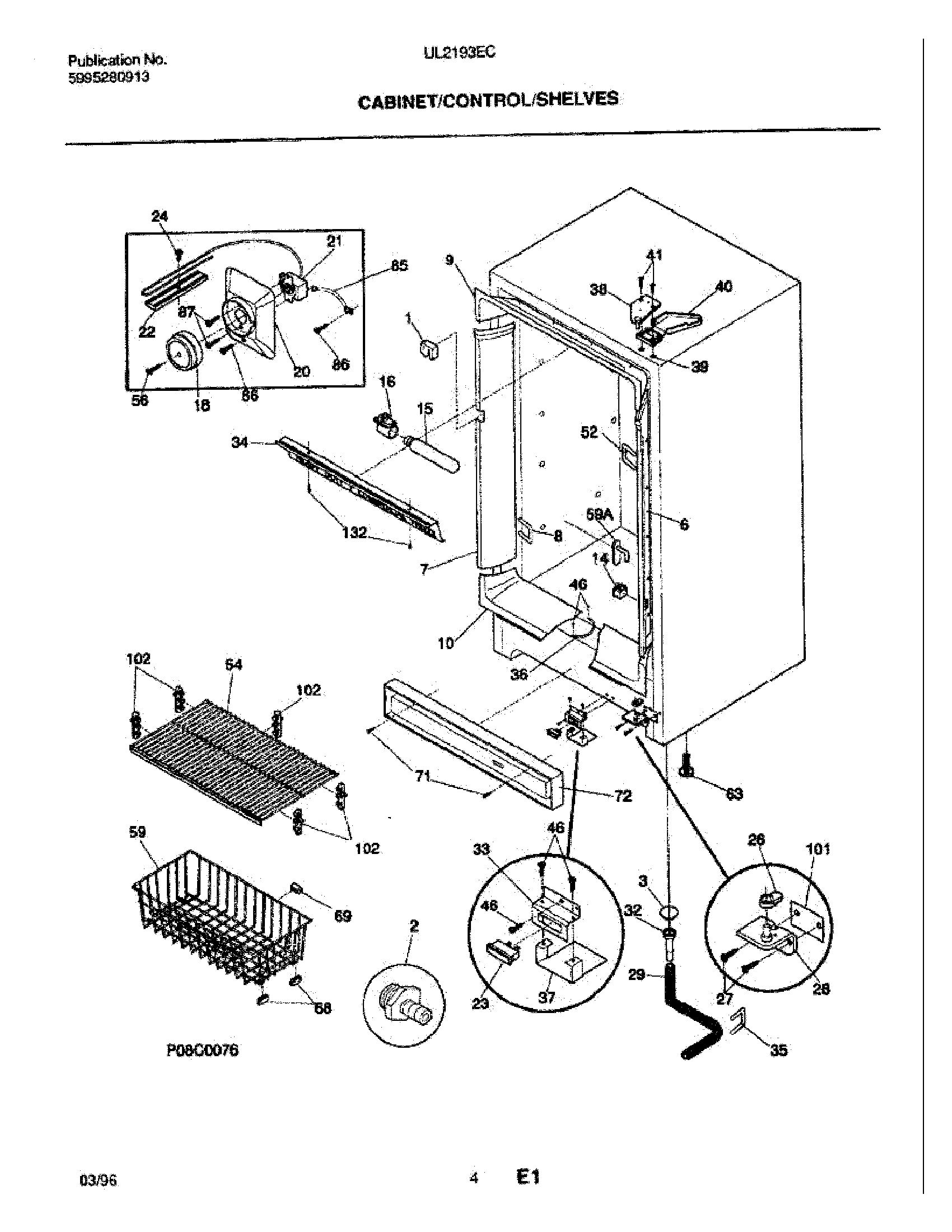

05 - CABINET/CONTROL/SHELVES

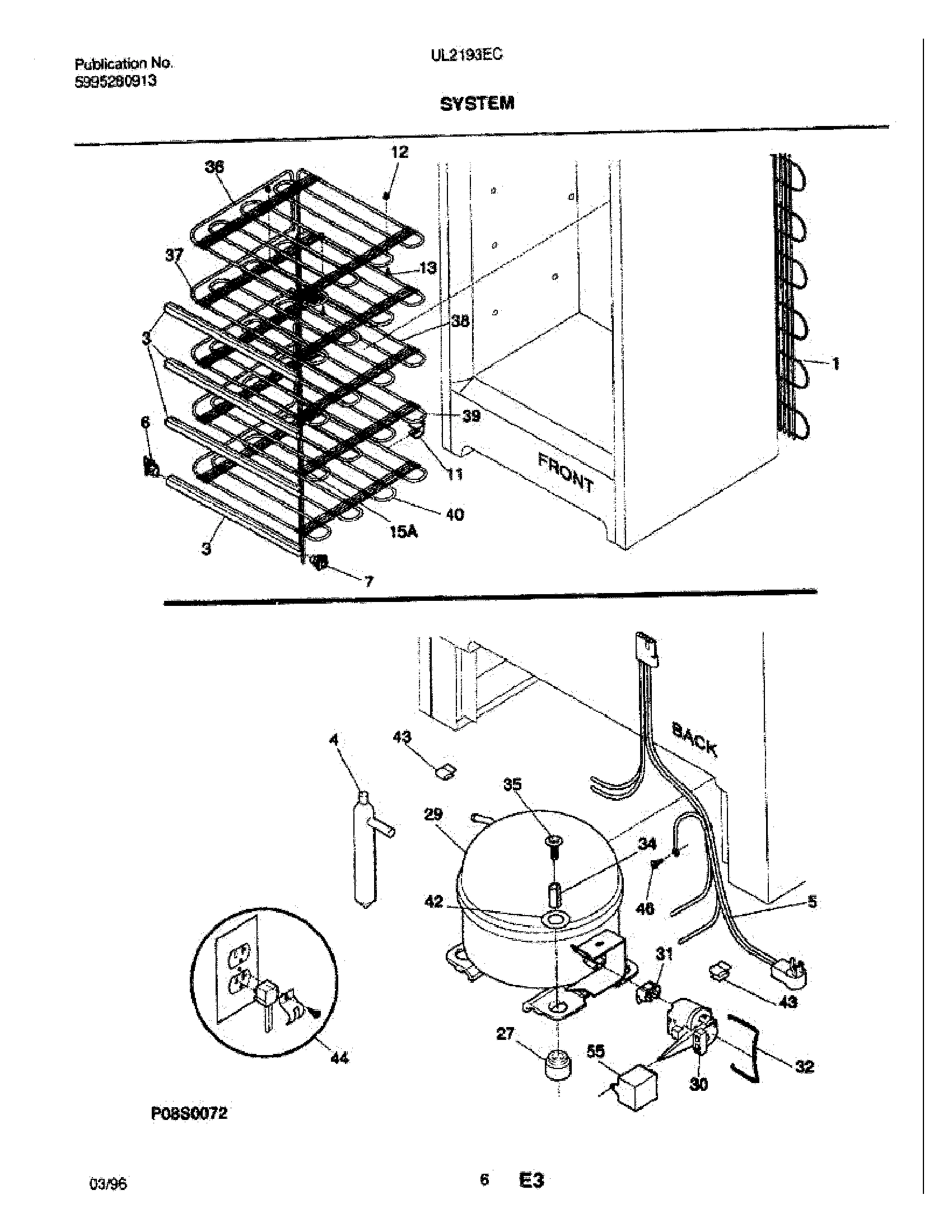

07 - SYSTEM

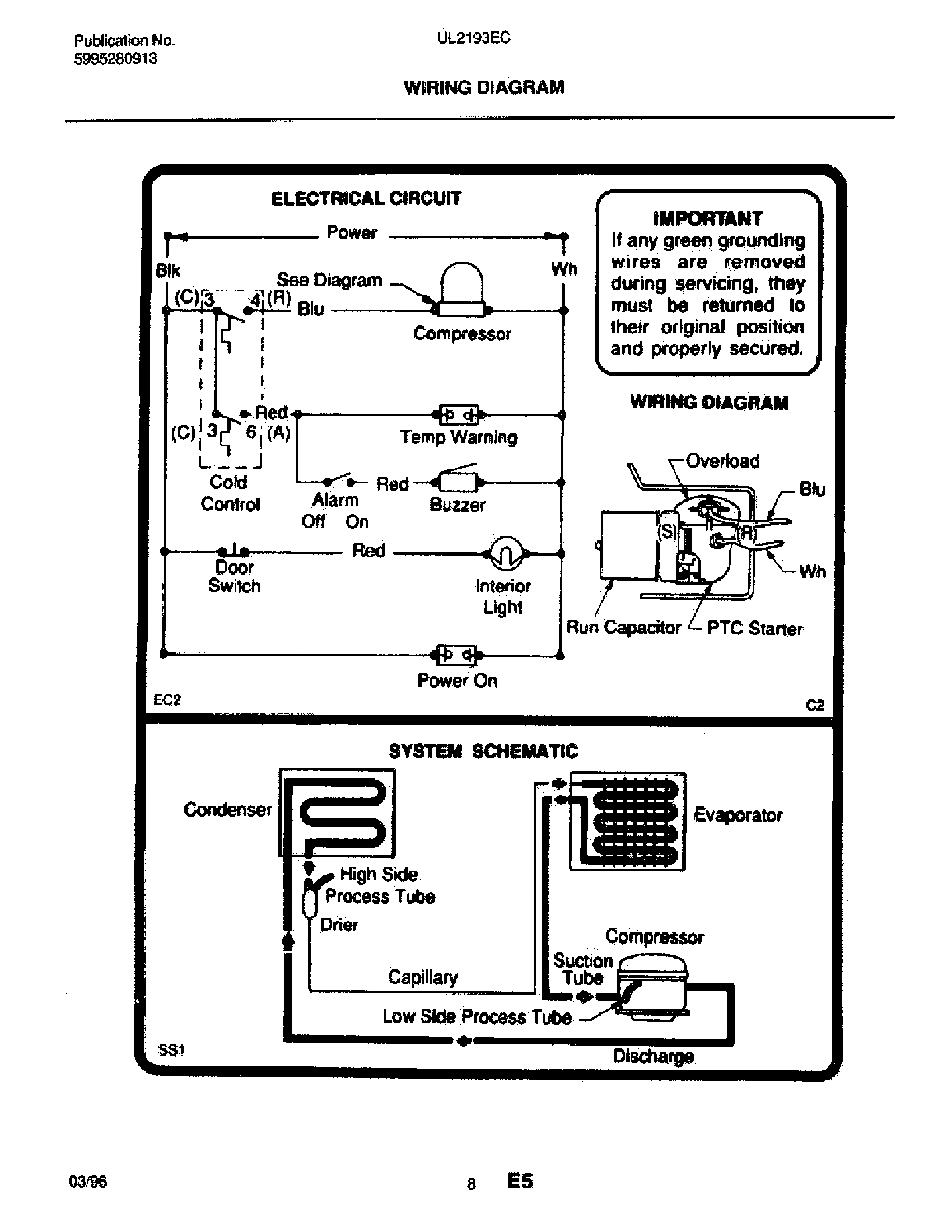

08 - WIRING DIAGRAM
Common parts from model Electrolux UL2193ECW7 FREEZER
WCI 5303925098 WCI 5303925098 Contact Us For Availability
CLIP, COMPRESSOR WIRE WCI 05878556 Contact Us For Availability
1
GASKET DOOR WCI 3206261 Contact Us For Availability
2
WCI 216362700 WCI 216362700 Contact Us For Availability
2
ADAPTER, DRAIN WCI 216269500 Contact Us For Availability
5
WCI 216233800 WCI 216233800 Contact Us For Availability
10
WCI 216085800 WCI 216085800 Contact Us For Availability
11
WCI 216225600 WCI 216225600 Contact Us For Availability
12
WCI 216225700 WCI 216225700 Contact Us For Availability
13
DOOR STOP WCI 08016354 Contact Us For Availability
13
WCI 216138900 WCI 216138900 Contact Us For Availability
15A
WCI 216401500 WCI 216401500 Contact Us For Availability
16
SOCKET, LIGHT/LAMP WCI 5300136117 Contact Us For Availability
18
WCI 216008602 WCI 216008602 Contact Us For Availability
20
WCI 5303288184 WCI 5303288184 Contact Us For Availability
21
WCI 216260400 WCI 216260400 Contact Us For Availability
22
CLAMP, CAP TUBE, COLD CONTROL WCI 08037931 Contact Us For Availability
23
WCI 06594648 WCI 06594648 Contact Us For Availability
24
SCREW, CLAMP, TRUSS HD CR, CONTROL WCI 5300052943 Contact Us For Availability
26
RAMP, DOOR WCI 5303210424 Contact Us For Availability
27
WCI 216313000 WCI 216313000 Contact Us For Availability
28
WCI 216247400 WCI 216247400 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
31
WCI 216100104 WCI 216100104 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
33
WCI 216252001 WCI 216252001 Contact Us For Availability
34
SLEEVE-COMPRESSOR WCI 5306594529 Contact Us For Availability
34
SHIELD-LIGHT WCI 216312202 Contact Us For Availability
35
SCREW, IND HEX SEMS, 1/4, 28 UNFX, COMPRESSOR WCI 5303272328 Contact Us For Availability
36
WCI 06594651 WCI 06594651 Contact Us For Availability
37
WCI 216159800 WCI 216159800 Contact Us For Availability
38
WCI 5303925086 WCI 5303925086 Contact Us For Availability
38
WCI 216071100 WCI 216071100 Contact Us For Availability
39
WCI 5303294372 WCI 5303294372 Contact Us For Availability
40
COVER, HINGE WCI 5303212912 Contact Us For Availability
41
WCI 5303212937 WCI 5303212937 Contact Us For Availability
42
SPACER, COMPRESSOR WCI 5303298960 Contact Us For Availability
43
WCI 09950610 WCI 09950610 Contact Us For Availability
44
CLAMP, PWR CORD ASSY WCI 08016777 Contact Us For Availability
46
SCREW, PH TYPE AB, 8, 32 X 1/2, WIRING HARNES WCI 08037851 Contact Us For Availability
52
RETAINER, WIRE, BREAKER WCI 08037401 Contact Us For Availability
54
WCI 216077200 WCI 216077200 Contact Us For Availability
56
WCI 09950853 WCI 09950853 Contact Us For Availability
59
WCI 216157200 WCI 216157200 Contact Us For Availability
59A
WCI 09948791 No Longer Available
64
PLUG-BUTTOM, BASE DOOR WCI 216403700 Contact Us For Availability
72
GRILLE/KICKPLATE WCI 216294408 Contact Us For Availability
85
WIRE-GROUND, TEMP CONTROL WCI 5300125347 Contact Us For Availability
87
SCREW WCI 08037849 Contact Us For Availability
101
WCI 216313300 WCI 216313300 Contact Us For Availability
102
SUPPORT SHELF,ADJUSTABLE WCI 08016352 Contact Us For Availability
132
WCI 5303283898 WCI 5303283898 Contact Us For Availability
× ![]()
