Model Electrolux UL1647ECW4 FREEZER – Common Parts & Diagrams
01 - COVER
03 - DOOR

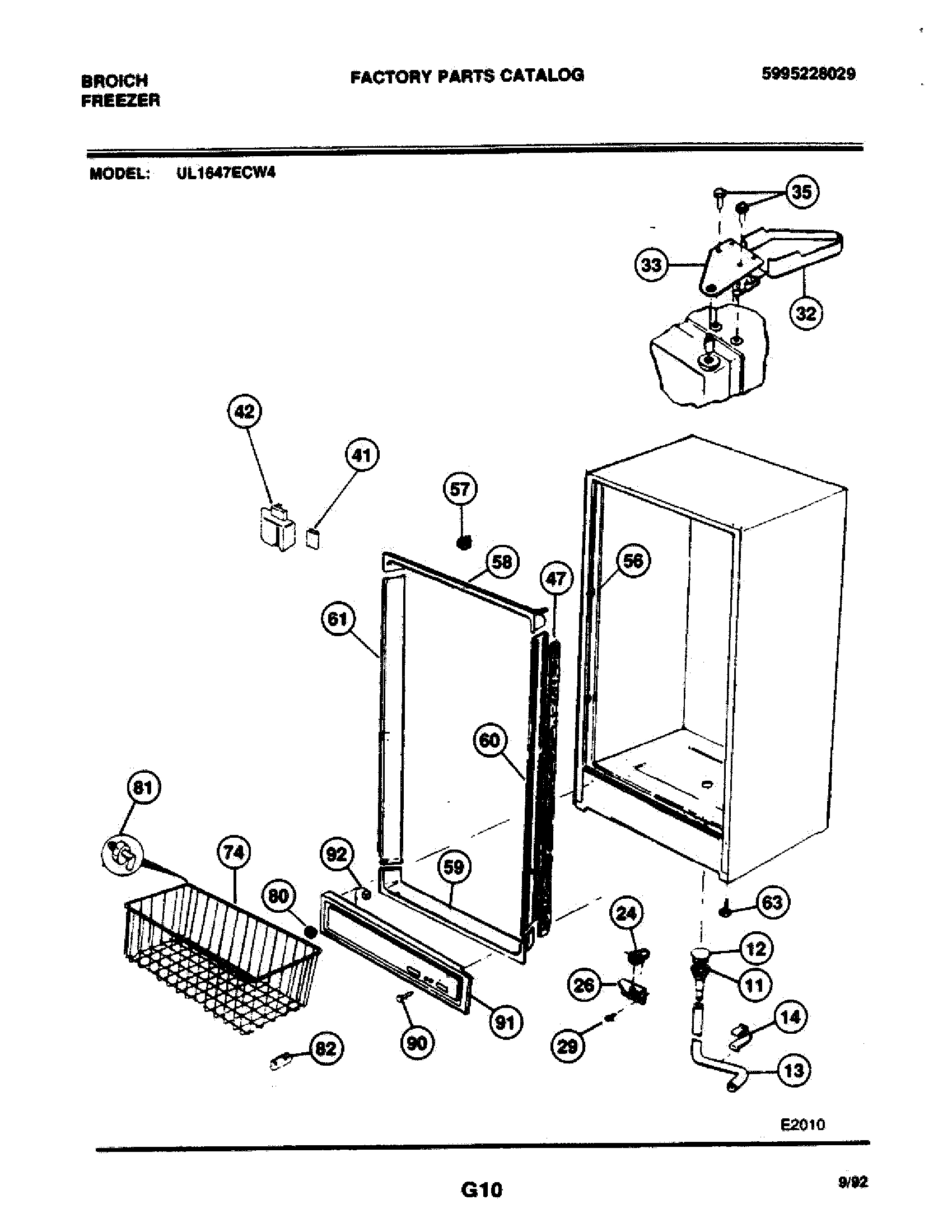

05 - CABINET

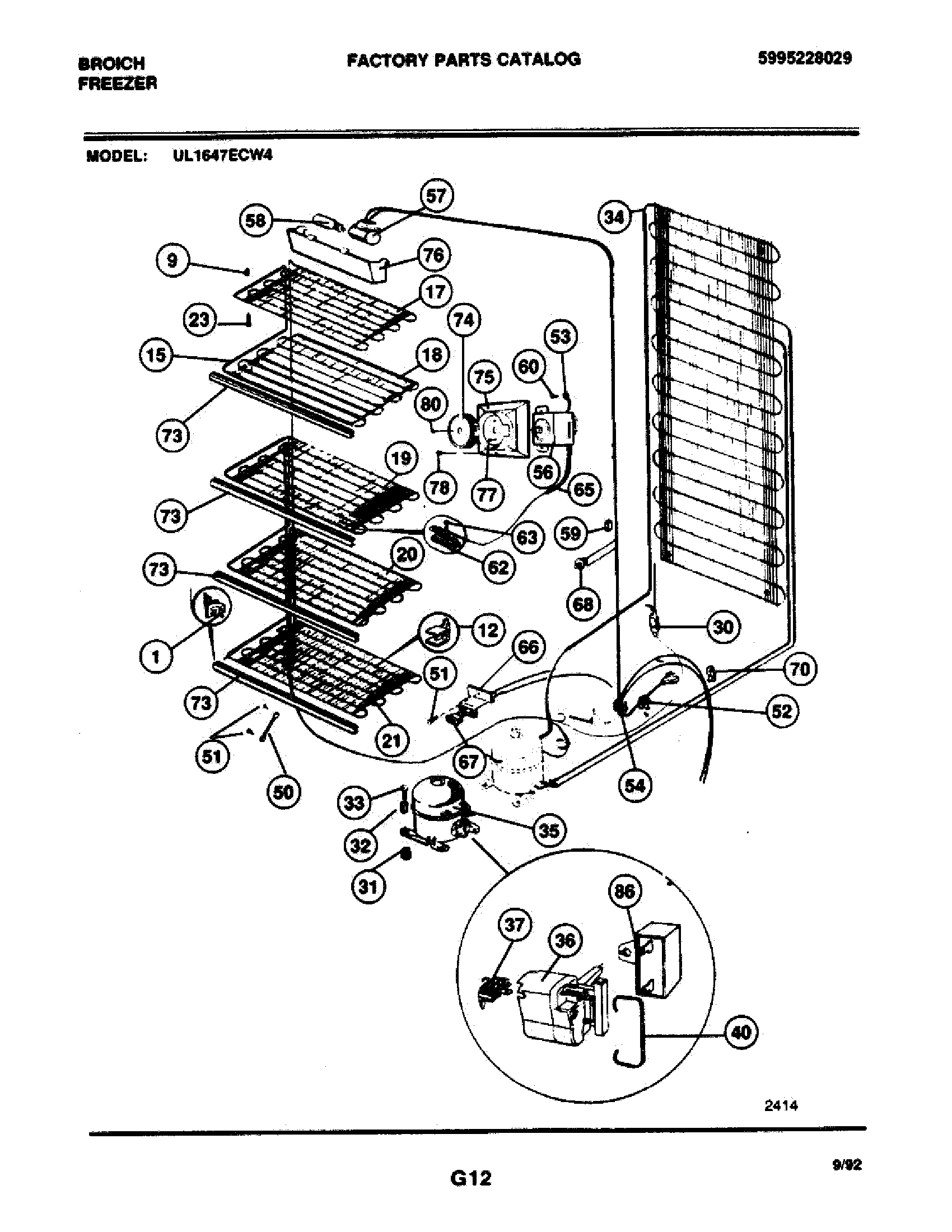

07 - SYSTEM
Common parts from model Electrolux UL1647ECW4 FREEZER
SPACERS BASKET WCI 5303285695 Contact Us For Availability
9
SPACER TOP GRID REAR (NON-ILLUSTRATED) WCI 08037929 Contact Us For Availability
9
SPCR-TOP GRID FRONT WCI 5300081445 Contact Us For Availability
12
WCI 5306593887 WCI 5306593887 Contact Us For Availability
12
WCI 09949960 WCI 09949960 Contact Us For Availability
14
WCI 06593405 WCI 06593405 Contact Us For Availability
15
WCI 08010753 WCI 08010753 Contact Us For Availability
17
WCI 5300121179 WCI 5300121179 Contact Us For Availability
18
WCI 08037939 WCI 08037939 Contact Us For Availability
19
WCI 08010741 WCI 08010741 Contact Us For Availability
20
THIRD SHELF WCI NOT USED Contact Us For Availability
21
BOTTOM SHELF WCI 08037940 Contact Us For Availability
23
WCI 08013446 WCI 08013446 Contact Us For Availability
24
WCI 5303210424 WCI 5303210424 Contact Us For Availability
26
WCI 5303210383 WCI 5303210383 Contact Us For Availability
32
WCI 5306594529 WCI 5306594529 Contact Us For Availability
32
WCI 5303212912 WCI 5303212912 Contact Us For Availability
33
HINGE, TOP WCI 5303212935 Contact Us For Availability
33
WCI 08002679 WCI 08002679 Contact Us For Availability
35
SCREW-HINGE WCI 5303212937 Contact Us For Availability
35
COMPRESSOR WCI 5303917190 Contact Us For Availability
36
RELAY WCI 216008900 Contact Us For Availability
37
WCI 5308037789 WCI 5308037789 Contact Us For Availability
40
WCI 5306593364 WCI 5306593364 Contact Us For Availability
40
CLAMP, COVER WCI 215012000 Contact Us For Availability
41
WCI 5300091170 WCI 5300091170 Contact Us For Availability
41
CLIP LOCK WCI 216013700 Contact Us For Availability
42
WCI 08016354 WCI 08016354 Contact Us For Availability
42
WCI 216013600 WCI 216013600 Contact Us For Availability
43
WCI 08005520 WCI 08005520 Contact Us For Availability
44
LOCK-COMPLETE WCI 5303925107 Contact Us For Availability
45
WCI 5300114366 WCI 5300114366 Contact Us For Availability
46
LOCK HOOK WCI 216013800 Contact Us For Availability
47
WCI 09950831 WCI 09950831 Contact Us For Availability
48
WCI 5309950074 WCI 5309950074 Contact Us For Availability
49
WCI 5300128421 WCI 5300128421 Contact Us For Availability
50
INSULATION, DOOR WCI 5303007739 Contact Us For Availability
50
WCI 06594651 WCI 06594651 Contact Us For Availability
51
WCI 08037953 WCI 08037953 Contact Us For Availability
52
WCI 05879859 WCI 05879859 Contact Us For Availability
53
WCI 5300057906 WCI 5300057906 Contact Us For Availability
53
WCI 5300125347 WCI 5300125347 Contact Us For Availability
54
WCI 09950839 WCI 09950839 Contact Us For Availability
54
WCI 216090200 WCI 216090200 Contact Us For Availability
55
WCI 3206246 WCI 3206246 Contact Us For Availability
56
WCI 06594680 WCI 06594680 Contact Us For Availability
56
WCI 216023000 WCI 216023000 Contact Us For Availability
57
SOCKET-LIGHT WCI 5300136117 Contact Us For Availability
57
SCREW WCI 216022800 Contact Us For Availability
57
SPACER TOP BREAKER WCI 08037937 Contact Us For Availability
58
WCI 06594682 WCI 06594682 Contact Us For Availability
58
WCI 5308005501 WCI 5308005501 Contact Us For Availability
59
WCI 5308005502 WCI 5308005502 Contact Us For Availability
59
WCI 08037401 WCI 08037401 Contact Us For Availability
60
WCI 5300300738 WCI 5300300738 Contact Us For Availability
61
WCI 216014100 WCI 216014100 Contact Us For Availability
62
WCI 08037931 WCI 08037931 Contact Us For Availability
63
LEG, LEVELING (4) WCI 5303205540 Contact Us For Availability
63
WCI 5300052943 WCI 5300052943 Contact Us For Availability
66
BRACKET, SIGNAL LIGHT WCI 216009101 Contact Us For Availability
67
WCI 06594648 WCI 06594648 Contact Us For Availability
70
WCI 06599553 WCI 06599553 Contact Us For Availability
73
SHELF TRIM WCI 3206047 Contact Us For Availability
74
BASKET WCI 5300125250 Contact Us For Availability
74
KNOB-CONTROL WCI 216008602 Contact Us For Availability
75
WCI 08016370 WCI 08016370 Contact Us For Availability
76
WCI 3206046 WCI 3206046 Contact Us For Availability
77
WCI 08003539 WCI 08003539 Contact Us For Availability
80
WCI 09950853 WCI 09950853 Contact Us For Availability
81
WCI 09948791 No Longer Available
86
RUN CAPACITOR WCI 5303916391 Contact Us For Availability
90
WCI 5309950066 WCI 5309950066 Contact Us For Availability
91
WCI 3206062 WCI 3206062 Contact Us For Availability
92
WCI 5300118003 WCI 5300118003 Contact Us For Availability
× ![]()
