Model Electrolux UL1647ECW2 FREEZER – Common Parts & Diagrams

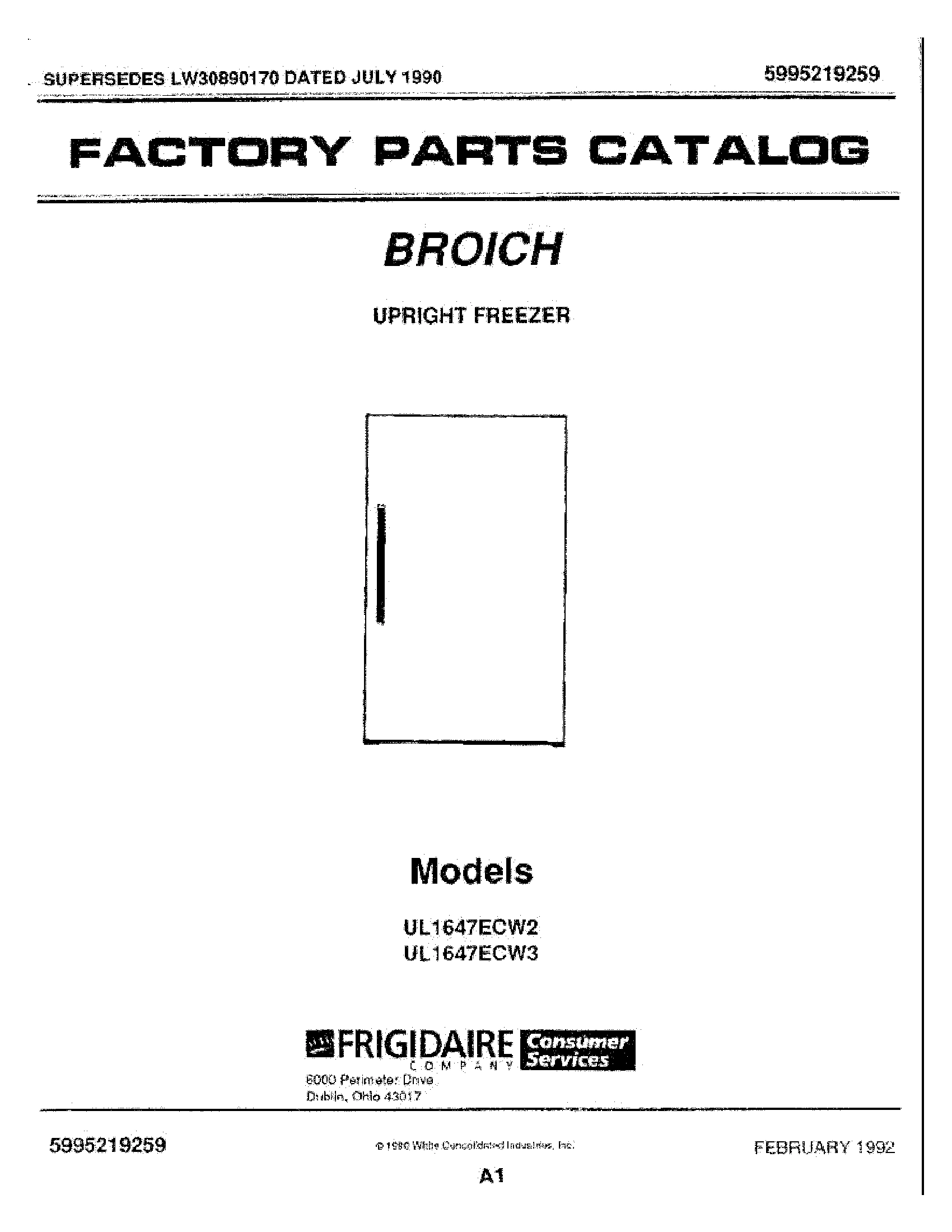

01 - COVER

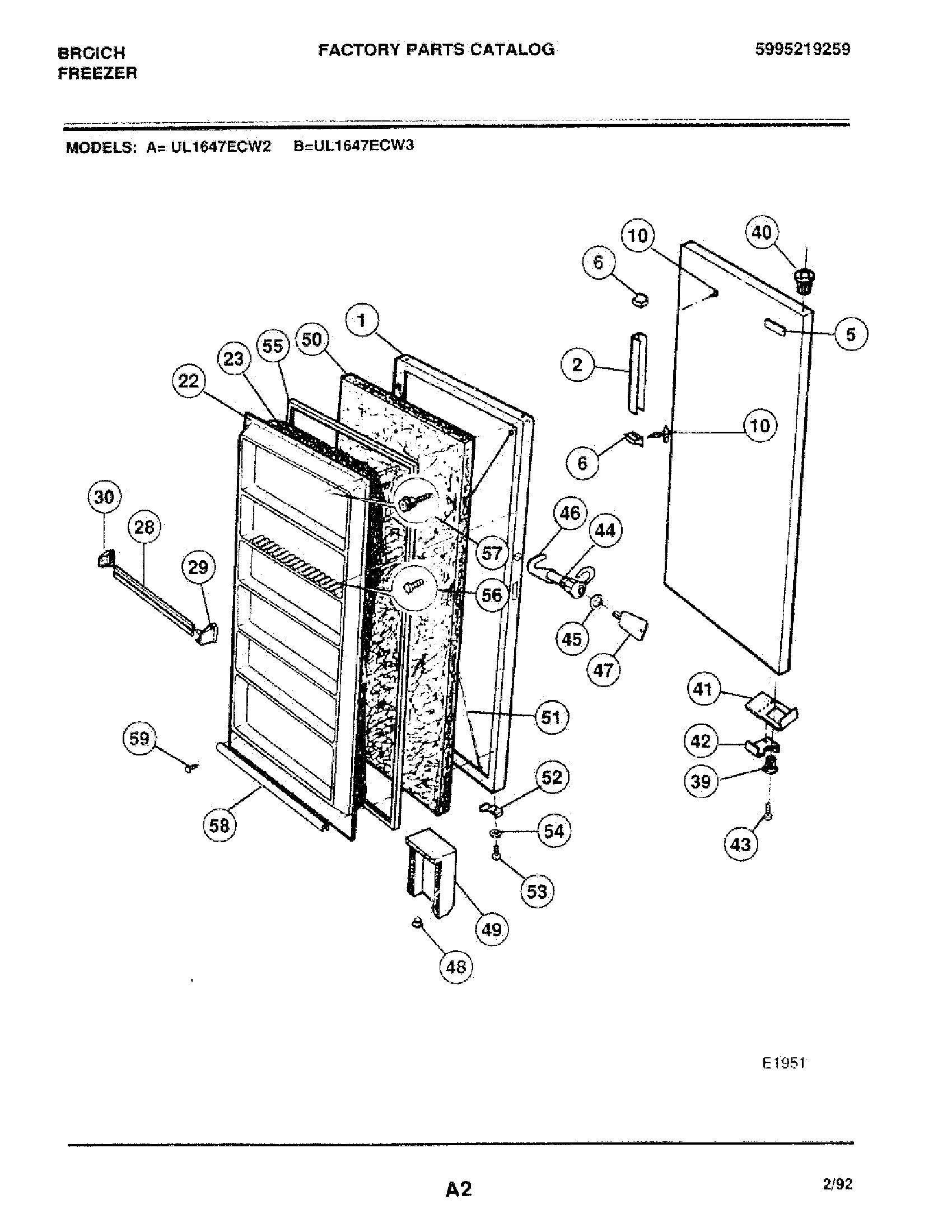

03 - DOOR

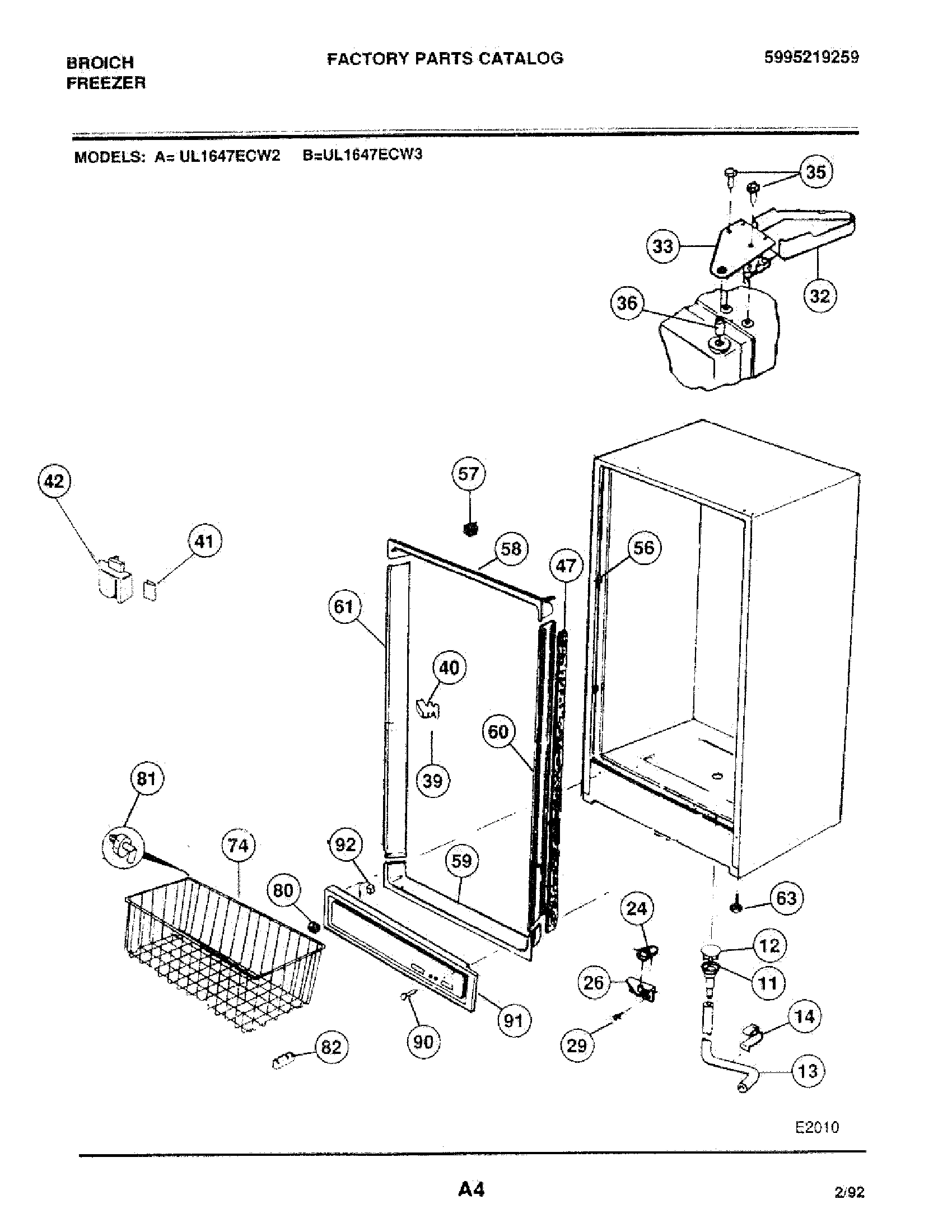

05 - CABINET

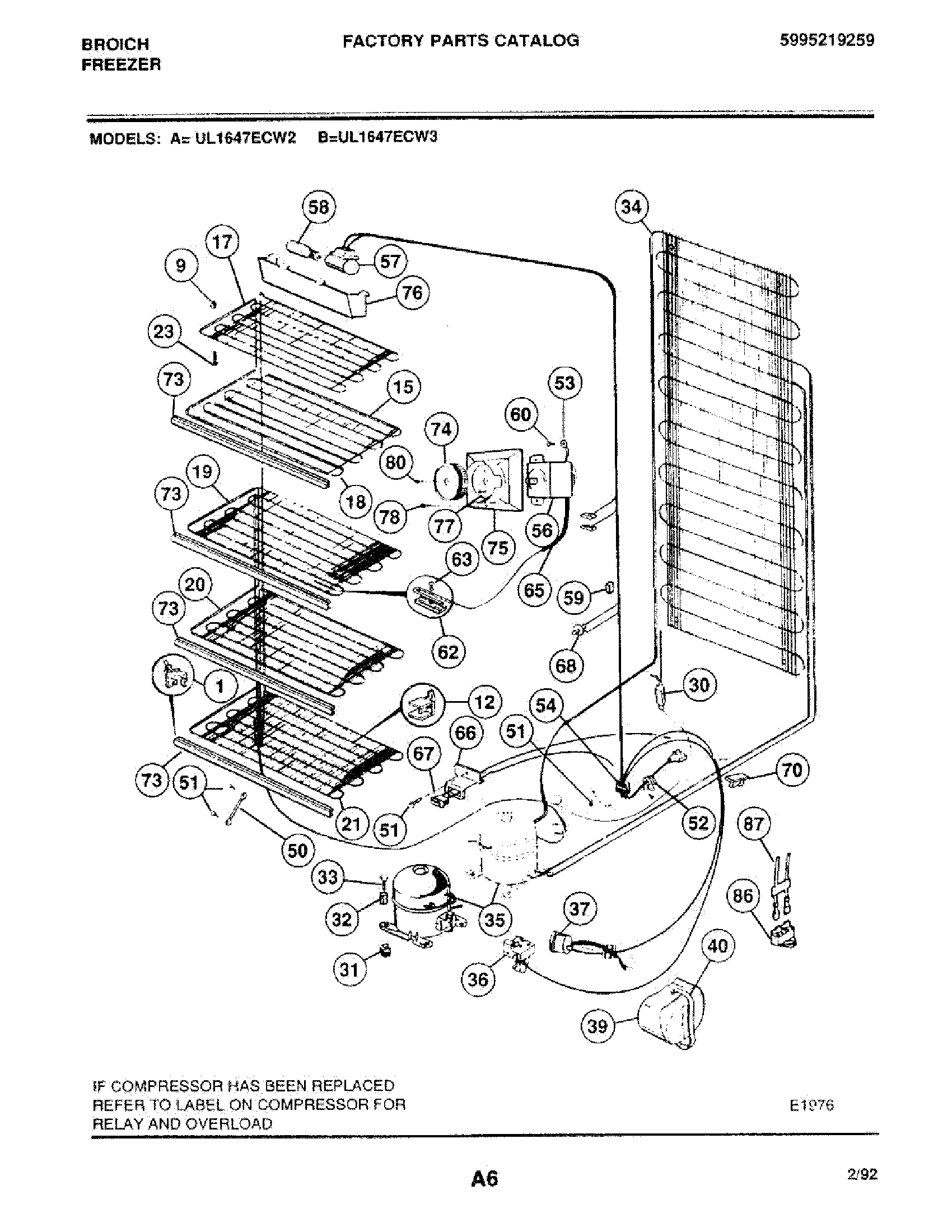

07 - SYSTEM
Common parts from model Electrolux UL1647ECW2 FREEZER
9
SPCR-TOP GRID REAR WCI 08037929 Contact Us For Availability
9
SPACER TOP GRID FRONT WCI 5300081445 Contact Us For Availability
12
WCI 5306593887 WCI 5306593887 Contact Us For Availability
12
WCI 09949960 WCI 09949960 Contact Us For Availability
14
WCI 06593405 WCI 06593405 Contact Us For Availability
15
WCI 08010753 WCI 08010753 Contact Us For Availability
17
WCI 5300121179 WCI 5300121179 Contact Us For Availability
18
WCI 08037939 WCI 08037939 Contact Us For Availability
19
SECOND SHELF WCI 08037941 Contact Us For Availability
20
THIRD SHELF WCI NOT USED Contact Us For Availability
21
BOTTOM SHELF WCI 08037940 Contact Us For Availability
23
WCI 08013446 WCI 08013446 Contact Us For Availability
24
WCI 5303210424 WCI 5303210424 Contact Us For Availability
26
WCI 5303210383 WCI 5303210383 Contact Us For Availability
32
WCI 5306594529 WCI 5306594529 Contact Us For Availability
32
WCI 5303210384 WCI 5303210384 Contact Us For Availability
33
HINGE TOP WCI 5303210385 Contact Us For Availability
33
WCI 08002679 WCI 08002679 Contact Us For Availability
35
SCREW-HINGE WCI 5303210386 Contact Us For Availability
35
COMPRESSOR SERVICE WCI 5303916411 Contact Us For Availability
36
WCI 5303210387 WCI 5303210387 Contact Us For Availability
36
WCI 5303017753 WCI 5303017753 Contact Us For Availability
37
WCI 5308037789 WCI 5308037789 Contact Us For Availability
40
WCI 5309949966 WCI 5309949966 Contact Us For Availability
41
WCI 5300091170 WCI 5300091170 Contact Us For Availability
42
WCI 08016354 WCI 08016354 Contact Us For Availability
43
WCI 08005520 WCI 08005520 Contact Us For Availability
44
LOCK-COMPLETE WCI 5303925107 Contact Us For Availability
45
WCI 5300114366 WCI 5300114366 Contact Us For Availability
46
WCI 3202005 WCI 3202005 Contact Us For Availability
48
WCI 5309950074 WCI 5309950074 Contact Us For Availability
48
WCI 09950831 WCI 09950831 Contact Us For Availability
49
WCI 5300128421 WCI 5300128421 Contact Us For Availability
50
INSULATION, DOOR WCI 5303007739 Contact Us For Availability
50
WCI 06594651 WCI 06594651 Contact Us For Availability
51
WCI 08037953 WCI 08037953 Contact Us For Availability
52
WCI 05879859 WCI 05879859 Contact Us For Availability
53
WCI 5300057906 WCI 5300057906 Contact Us For Availability
53
WCI 5300125347 WCI 5300125347 Contact Us For Availability
54
WCI 09950839 WCI 09950839 Contact Us For Availability
54
WIRING HARNESS WCI 3200932 Contact Us For Availability
55
WCI 3206246 WCI 3206246 Contact Us For Availability
56
CONTROL TEMP WCI 5308016351 Contact Us For Availability
56
WCI 06594680 WCI 06594680 Contact Us For Availability
57
WCI 5300136117 WCI 5300136117 Contact Us For Availability
57
SCREW-PANEL (16) WCI 216022800 Contact Us For Availability
57
WCI 08037937 WCI 08037937 Contact Us For Availability
58
WCI 06594682 WCI 06594682 Contact Us For Availability
58
WCI 5308005501 WCI 5308005501 Contact Us For Availability
59
WCI 5308005502 WCI 5308005502 Contact Us For Availability
59
WCI 08037401 WCI 08037401 Contact Us For Availability
60
WCI 5300300738 WCI 5300300738 Contact Us For Availability
61
WCI 5308005512 WCI 5308005512 Contact Us For Availability
62
WCI 08037931 WCI 08037931 Contact Us For Availability
63
SCREW-LEVELING (4) WCI 5303205540 Contact Us For Availability
63
SCREW-CAPILLARY CLAMP WCI F000052943 Contact Us For Availability
66
BRACKET-SIGNAL LIGHT WCI 09948923 Contact Us For Availability
67
WCI 06594648 WCI 06594648 Contact Us For Availability
70
WCI 06599553 WCI 06599553 Contact Us For Availability
73
SHELF TRIM (3) WCI 3206047 Contact Us For Availability
74
WCI 5300125250 WCI 5300125250 Contact Us For Availability
74
WCI 08016364 WCI 08016364 Contact Us For Availability
75
WCI 08016370 WCI 08016370 Contact Us For Availability
76
WCI 3206046 WCI 3206046 Contact Us For Availability
77
WCI 08003539 WCI 08003539 Contact Us For Availability
80
WCI 09950853 WCI 09950853 Contact Us For Availability
81
WCI 09948791 No Longer Available
82
SPACERS BASKET (4) WCI F129806 Contact Us For Availability
86
RUN CAPACITOR WCI 5303916391 Contact Us For Availability
87
HARNESS-RUN CAPACITOR WCI 5303091425 Contact Us For Availability
90
PIN FASTENER (2) WCI 5309950066 Contact Us For Availability
91
WCI 3206062 WCI 3206062 Contact Us For Availability
92
BUMPER BASE TRIM (2) WCI 5300118003 Contact Us For Availability
× ![]()
