Model Electrolux UL1293ECW5 FREEZER – Common Parts & Diagrams
01 - COVER
03 - DOOR

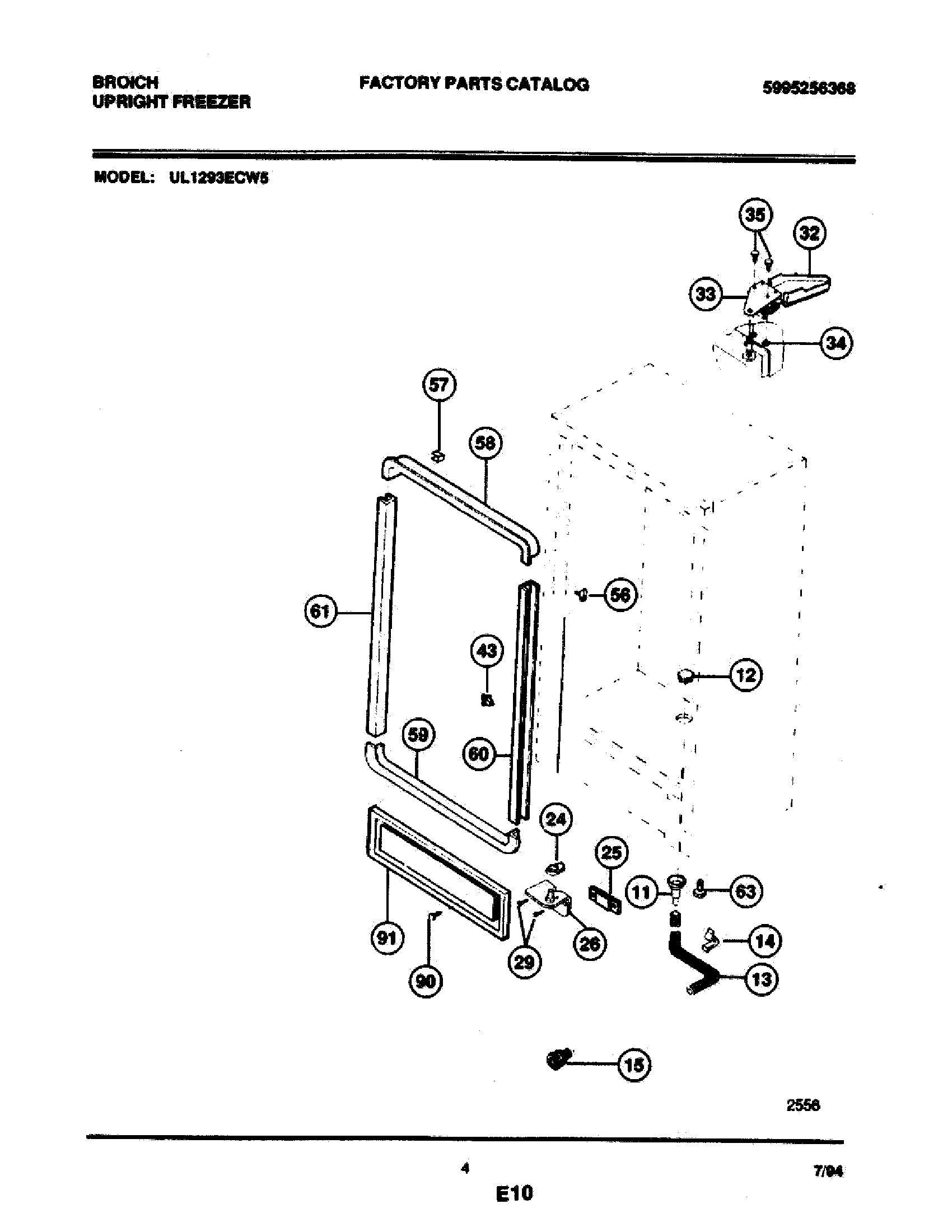

05 - CABINET

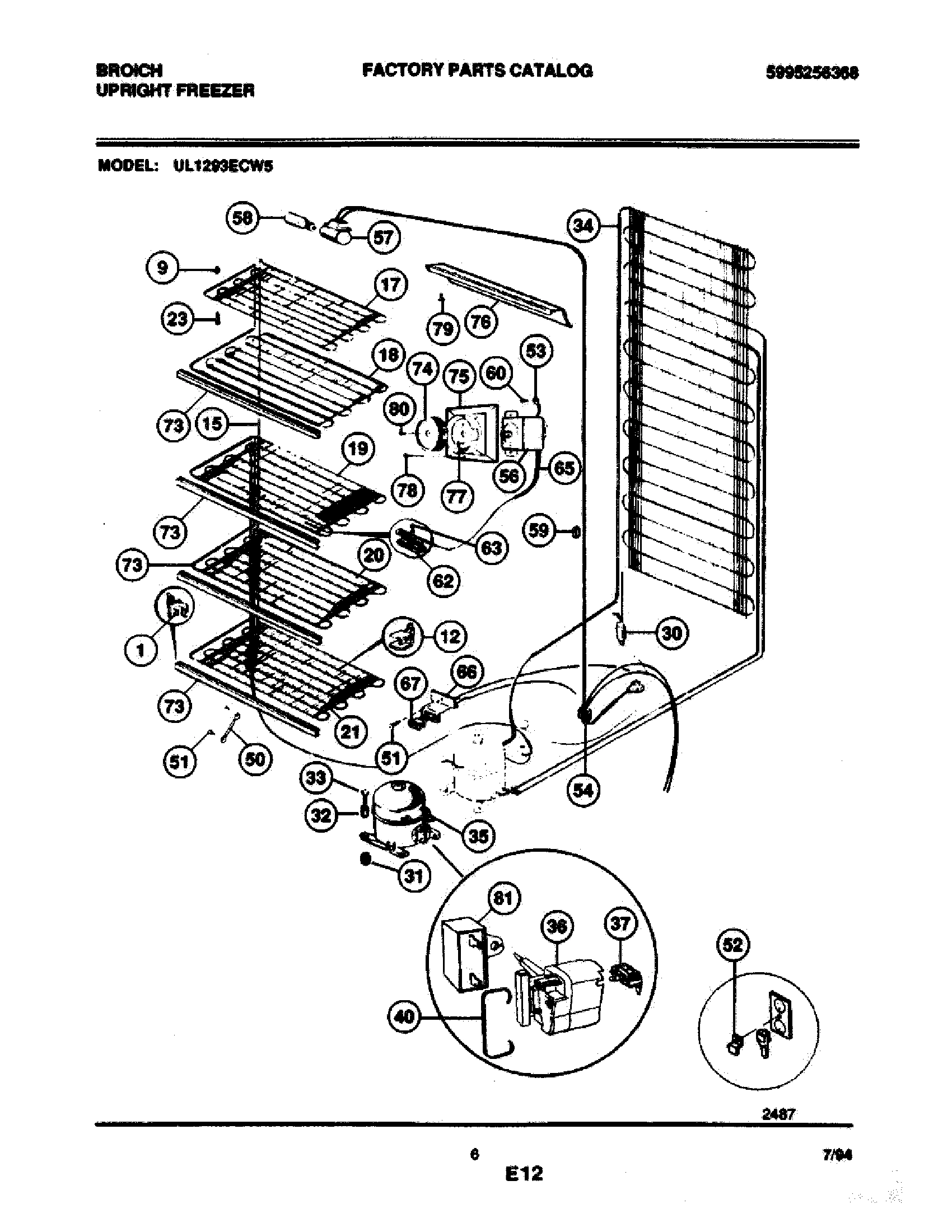

07 - SYSTEM
Common parts from model Electrolux UL1293ECW5 FREEZER
SHIELD-WIRING WCI 216159300 Contact Us For Availability
9
SPCR-TOP GRID-FRONT (3) WCI 216225700 Contact Us For Availability
12
SUPPORT REAR (6) WCI 216225600 Contact Us For Availability
15
WCI 5308010744 WCI 5308010744 Contact Us For Availability
17
TOP GRID WCI 216069700 Contact Us For Availability
18
FIRST SHELF WCI 216069800 Contact Us For Availability
19
SECOND SHELF WCI 216069900 Contact Us For Availability
21
BOTTOM SHELF WCI 216070000 Contact Us For Availability
23
WCI 5303925098 WCI 5303925098 Contact Us For Availability
23
SCREW-TOP GRID (3) WCI 216138900 Contact Us For Availability
24
WCI 5303210424 WCI 5303210424 Contact Us For Availability
25
TAPPING PLATE-HINGE WCI 216313300 Contact Us For Availability
26
WCI 216247400 WCI 216247400 Contact Us For Availability
32
SLEEVE (3) WCI 5306594529 Contact Us For Availability
32
WCI 5303212912 WCI 5303212912 Contact Us For Availability
33
SCREW (3) WCI 5303272328 Contact Us For Availability
33
HINGE, TOP WCI 5303212935 Contact Us For Availability
34
NUT INSERT WCI 5303294372 Contact Us For Availability
35
WCI 5303212937 WCI 5303212937 Contact Us For Availability
35
WCI 216138400 WCI 216138400 Contact Us For Availability
36
RELAY WCI 216008900 Contact Us For Availability
37
WCI 5303206885 WCI 5303206885 Contact Us For Availability
40
CLAMP WCI 216147800 Contact Us For Availability
42
WCI 08016354 WCI 08016354 Contact Us For Availability
48
VALVE BREATHER (2) WCI 5309950074 Contact Us For Availability
50
INSULATION DOOR WCI 5303917276 Contact Us For Availability
50
WCI 06594651 WCI 06594651 Contact Us For Availability
51
WCI 08037851 WCI 08037851 Contact Us For Availability
52
WCI 05879859 WCI 05879859 Contact Us For Availability
52
ASSY CLAMP-SERVICE CORD WCI 08016777 Contact Us For Availability
53
SCREW, BRACKET (2) WCI 5300057906 Contact Us For Availability
53
WCI 5300125347 WCI 5300125347 Contact Us For Availability
54
WASHER, BRACKET (2) WCI 09950839 Contact Us For Availability
54
HARNESS-ELECTRICAL WCI 216233400 Contact Us For Availability
55
GASKET DOOR WCI 3206240 Contact Us For Availability
56
WCI 216260400 WCI 216260400 Contact Us For Availability
56
WCI 06594680 WCI 06594680 Contact Us For Availability
57
WCI 5300136117 WCI 5300136117 Contact Us For Availability
57
SCREW-PANEL (16) WCI 216022800 Contact Us For Availability
58
GASKET-WHITE WCI 5308016356 Contact Us For Availability
58
WCI 216073300 WCI 216073300 Contact Us For Availability
59
WCI 216073200 WCI 216073200 Contact Us For Availability
59
RETAINER HARNESS (5) WCI 08037401 Contact Us For Availability
60
BREAKER, HINGE WCI 216108401 Contact Us For Availability
61
WCI 216108502 WCI 216108502 Contact Us For Availability
61
LOCK CATCH WCI 216323100 Contact Us For Availability
62
WCI 08037931 WCI 08037931 Contact Us For Availability
63
LEG LEVELER-ADJ (4) WCI 205363701 Contact Us For Availability
63
WCI 5300052943 WCI 5300052943 Contact Us For Availability
66
WCI 216252001 WCI 216252001 Contact Us For Availability
67
WCI 06594648 WCI 06594648 Contact Us For Availability
67
COVER-SIGNAL LIGHT WCI 216159800 Contact Us For Availability
73
WCI 216260900 WCI 216260900 Contact Us For Availability
74
KNOB-CONTROL WCI 216008602 Contact Us For Availability
75
HOUSING CONTROL WCI 5303288184 Contact Us For Availability
76
WCI 216312302 WCI 216312302 Contact Us For Availability
77
WCI 08003539 WCI 08003539 Contact Us For Availability
79
SHIELD LIGHT SCREW (2) WCI 5303283898 Contact Us For Availability
80
WCI 09950853 WCI 09950853 Contact Us For Availability
91
GRILLE/KICKPLATE WCI 216294307 Contact Us For Availability
× ![]()
