Model UniMac UK075E Dryer – Common Parts & Diagrams
Control Box
Fire Suppression System Control Box

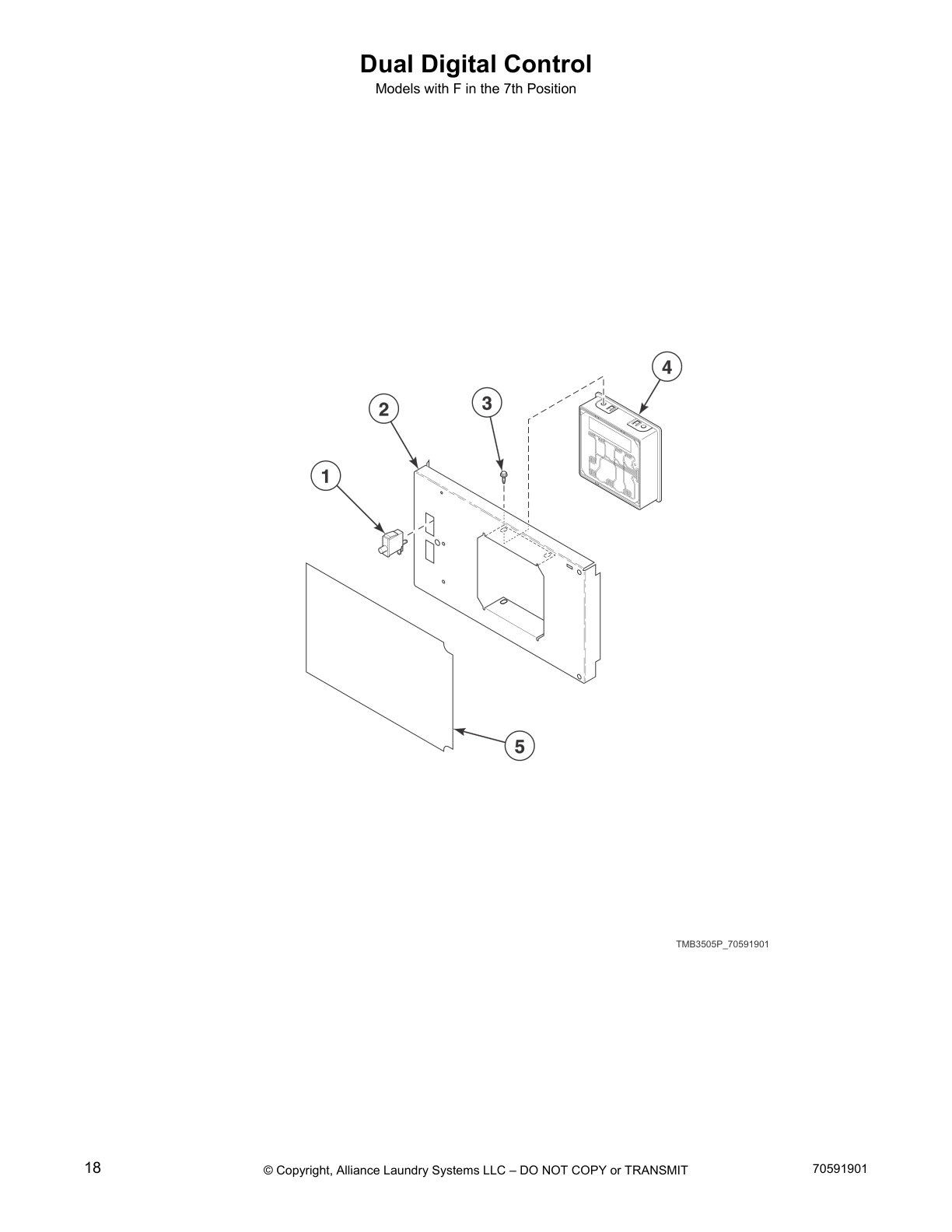

Dual Digital Control

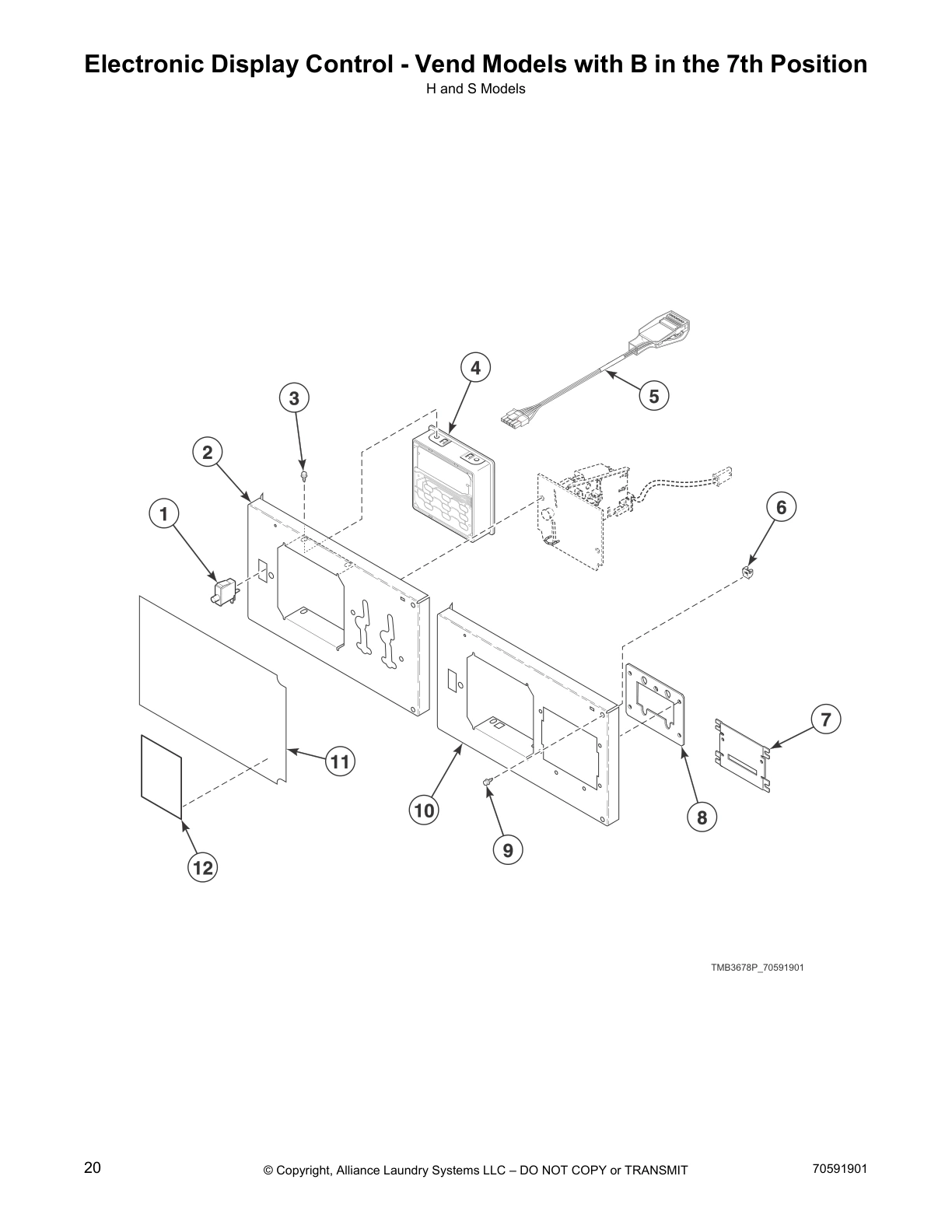

Electronic Display Control - Vend Models with B in the 7th Position

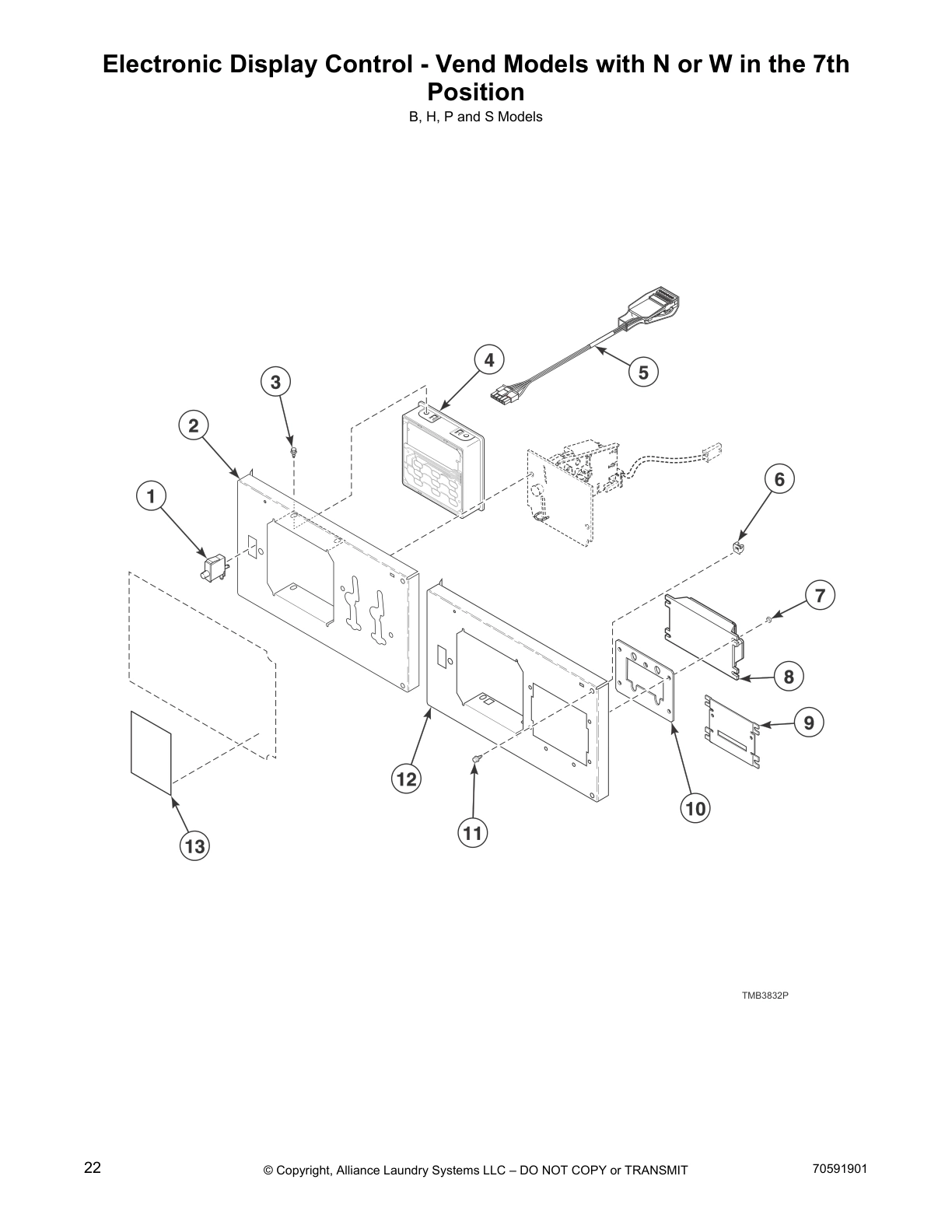

Electronic Display Control - Vend Models with N or W in the 7th
Position
Electronic Display Control - OPL Models with N in the 7th Position

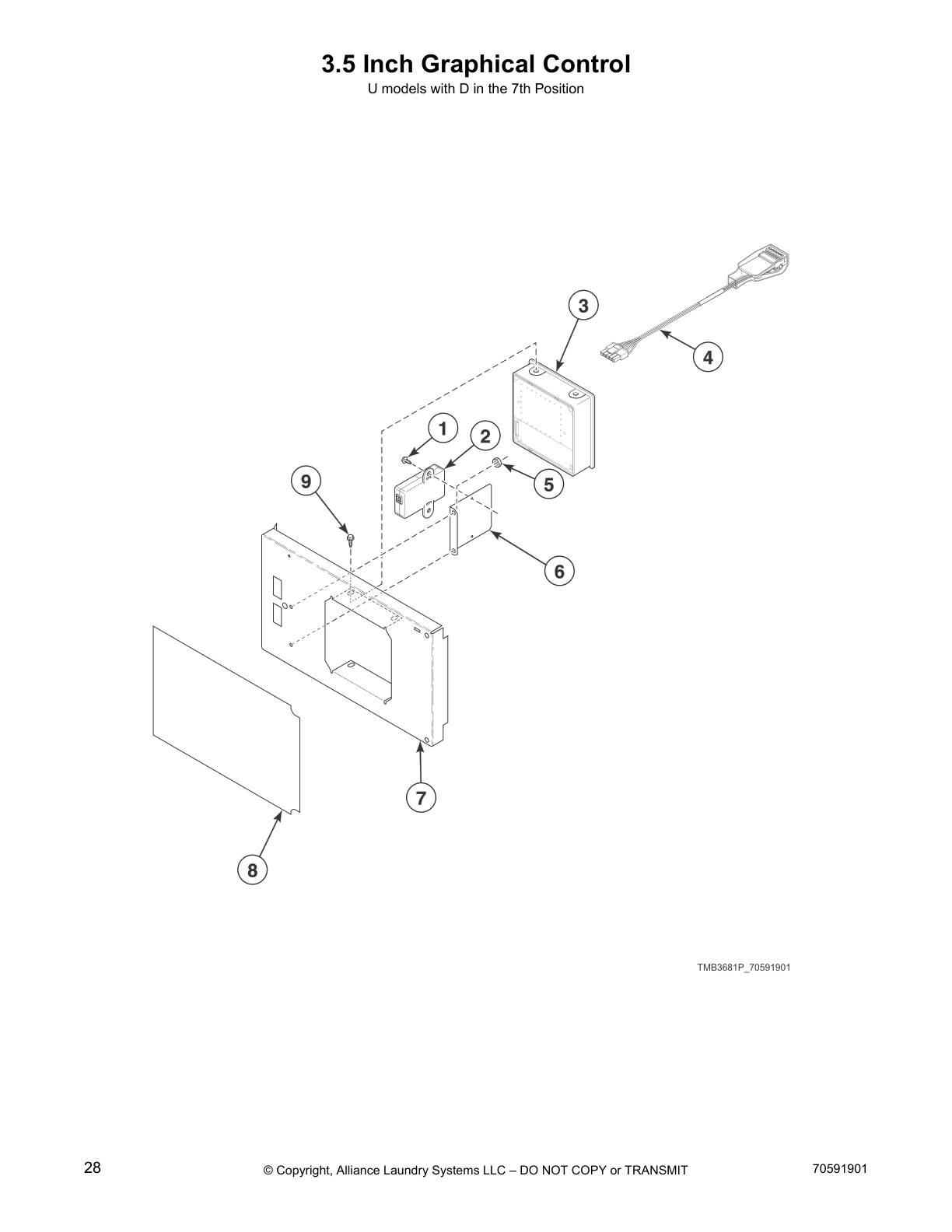

3.5 Inch Graphical Control

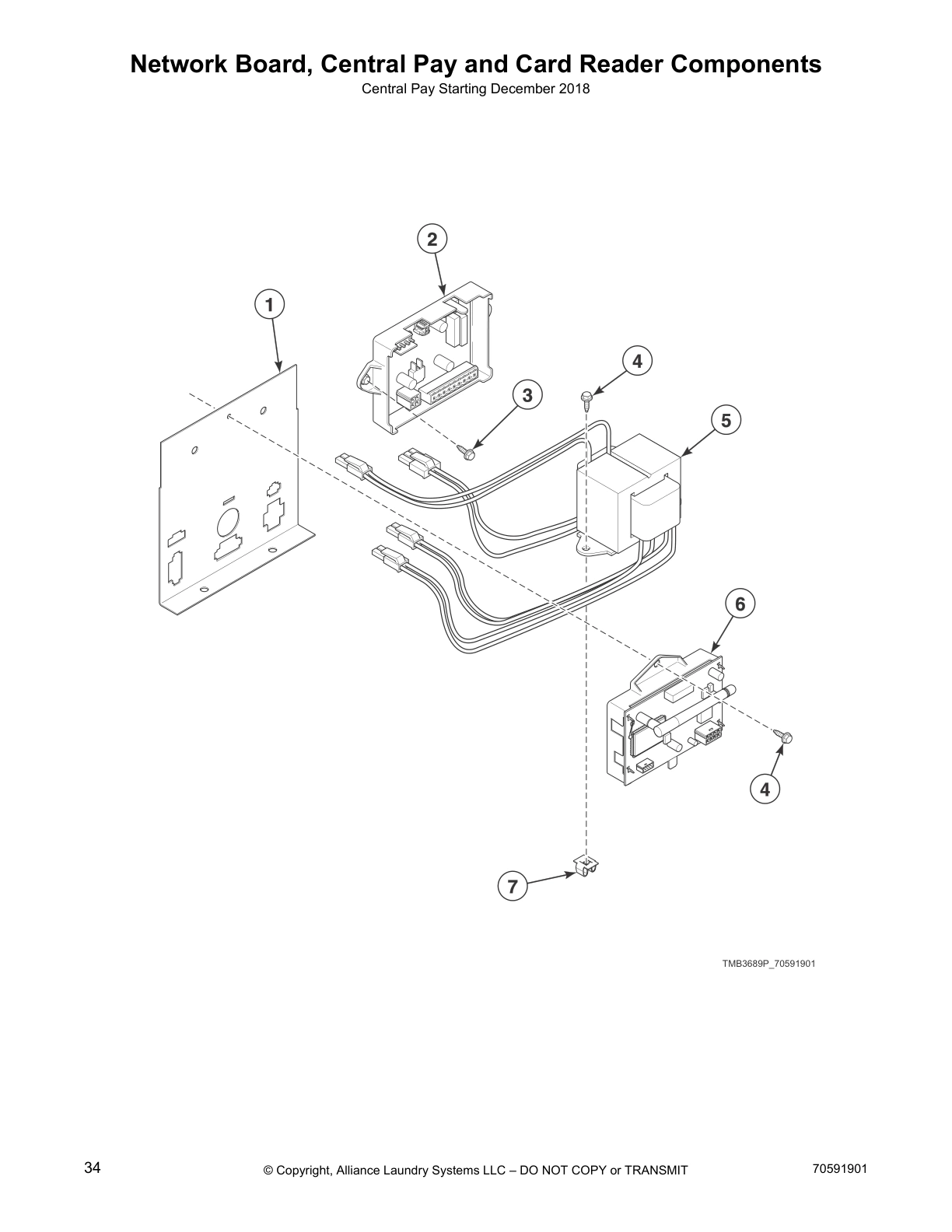

Network Board, Central Pay and Card Reader Components

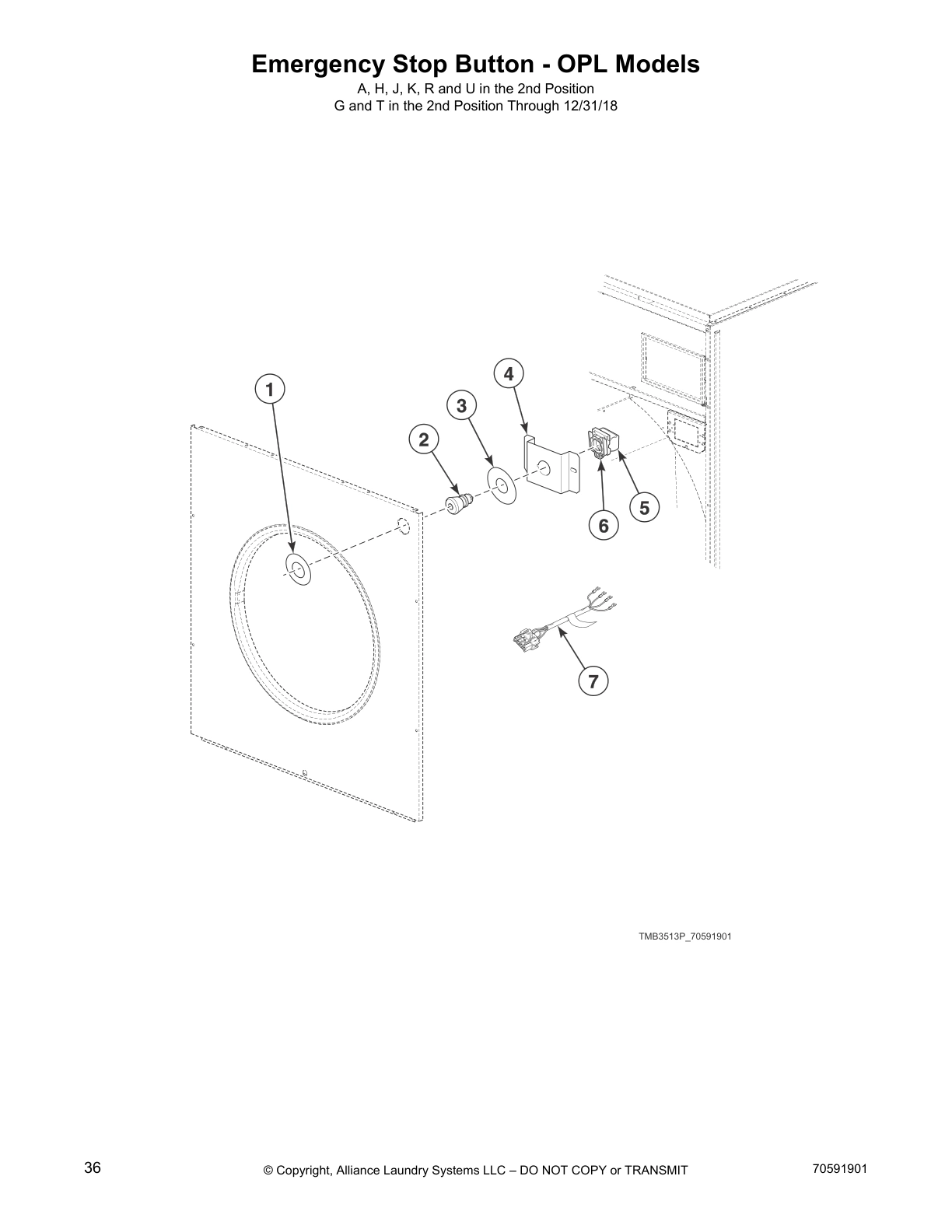

Emergency Stop Button - OPL Models

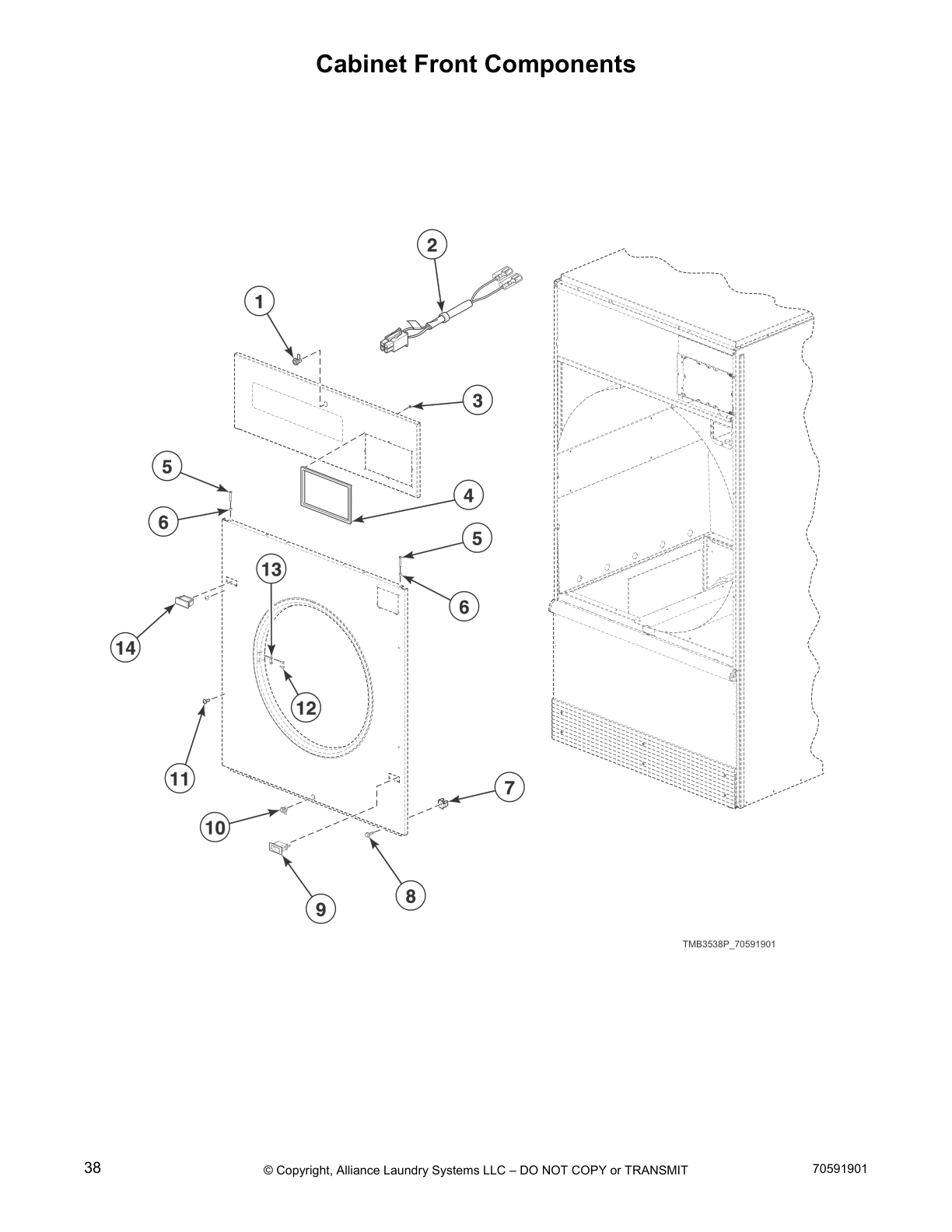

Cabinet Front Components

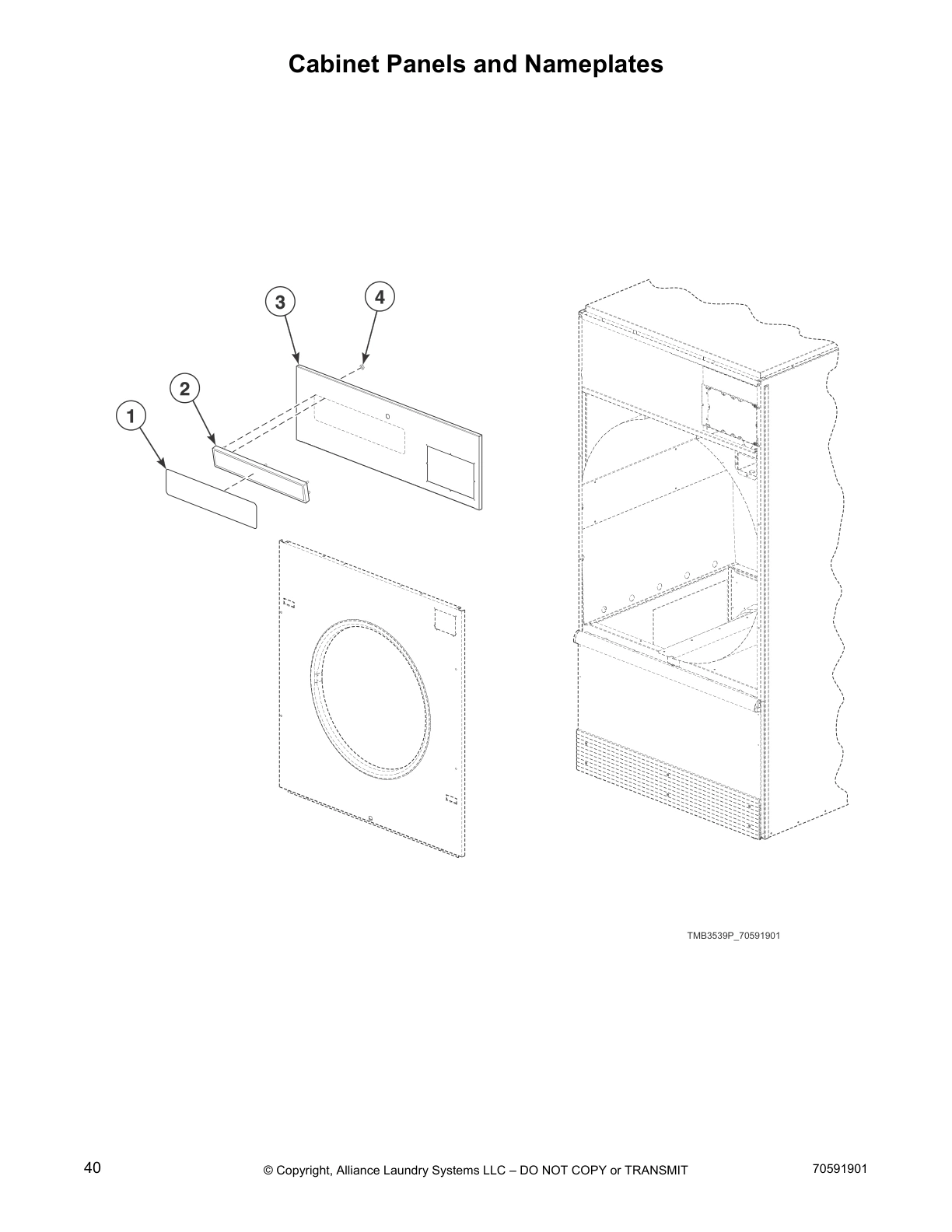

Cabinet Panels and Nameplates

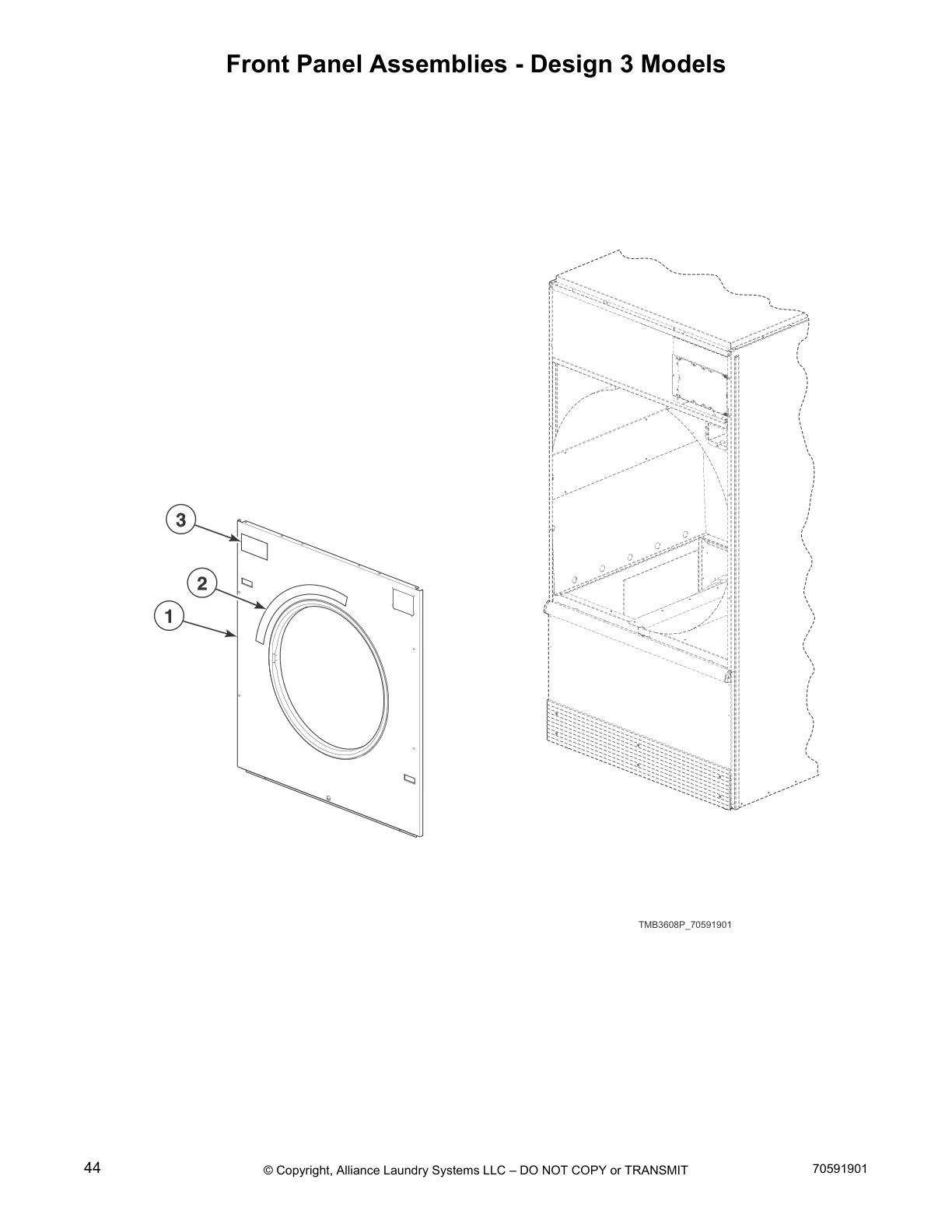

Front Panel Assemblies - Design 3 Models

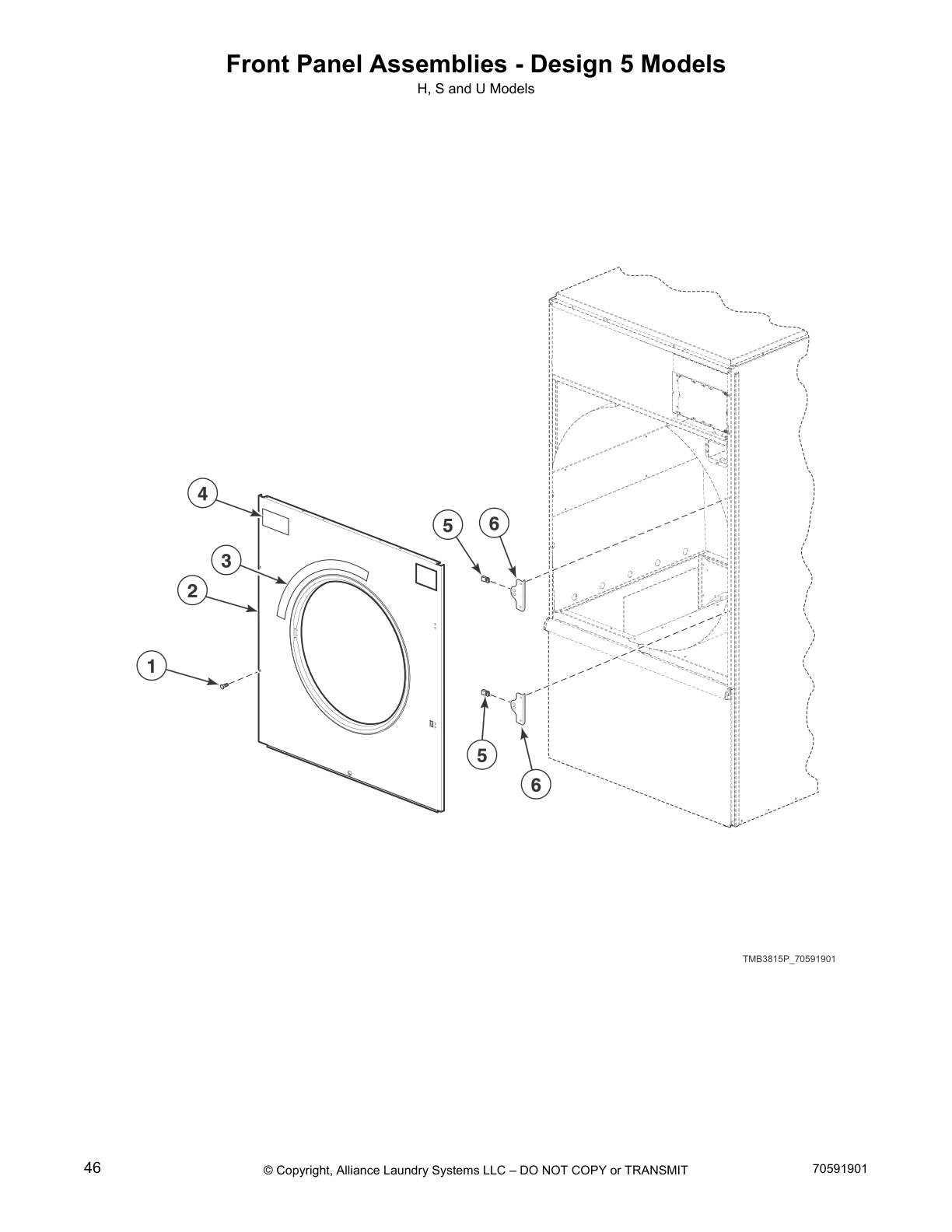

Front Panel Assemblies - Design 5 Models

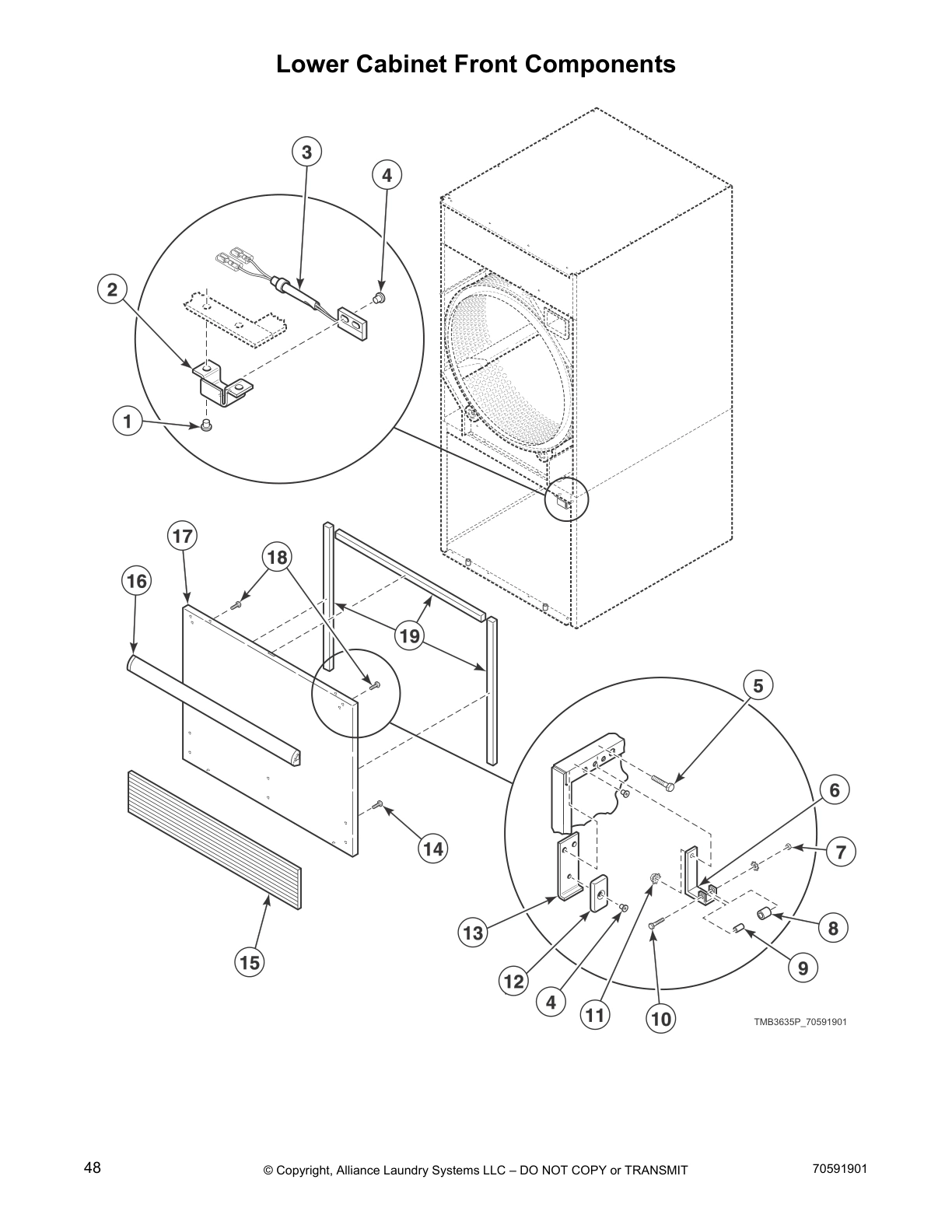

Lower Cabinet Front Components

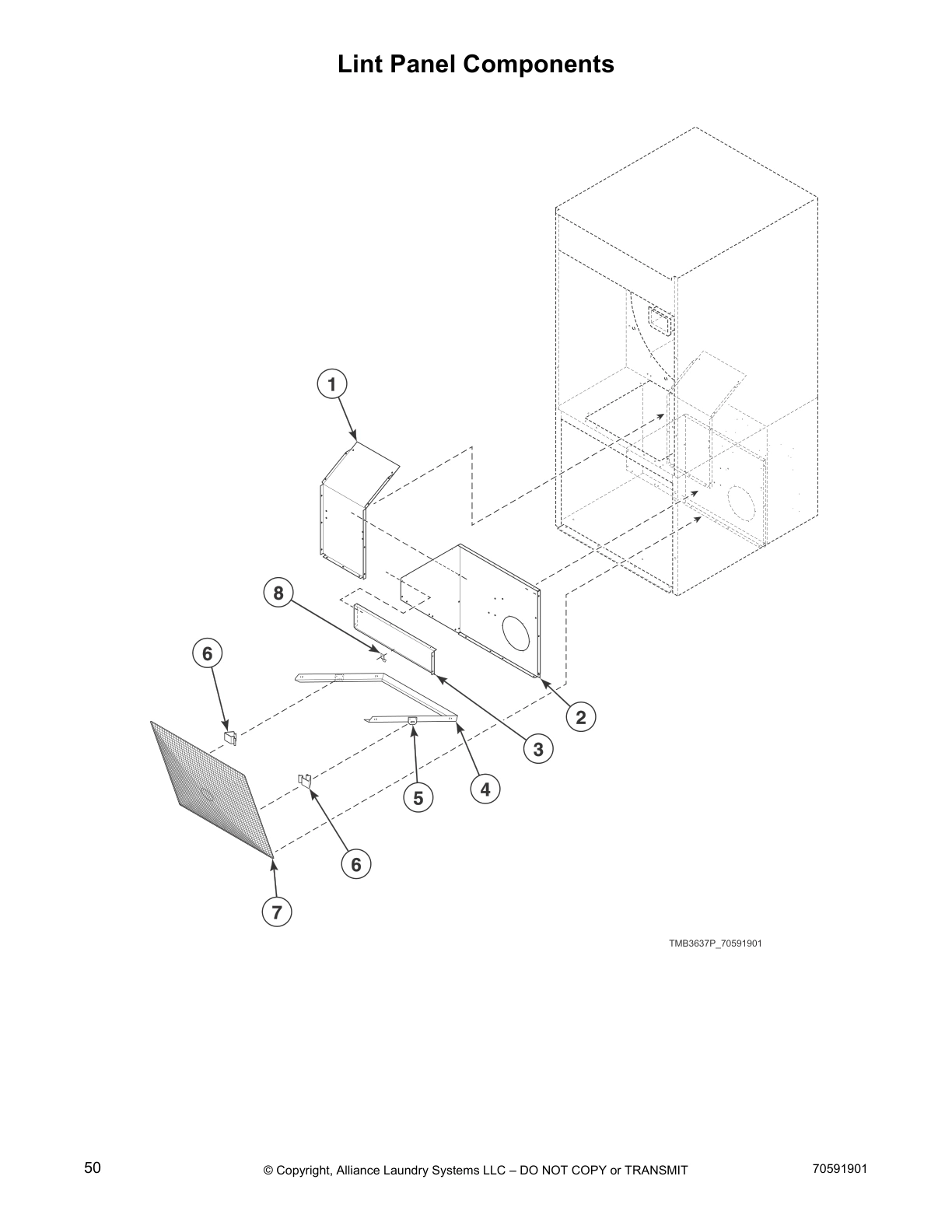

Lint Panel Components

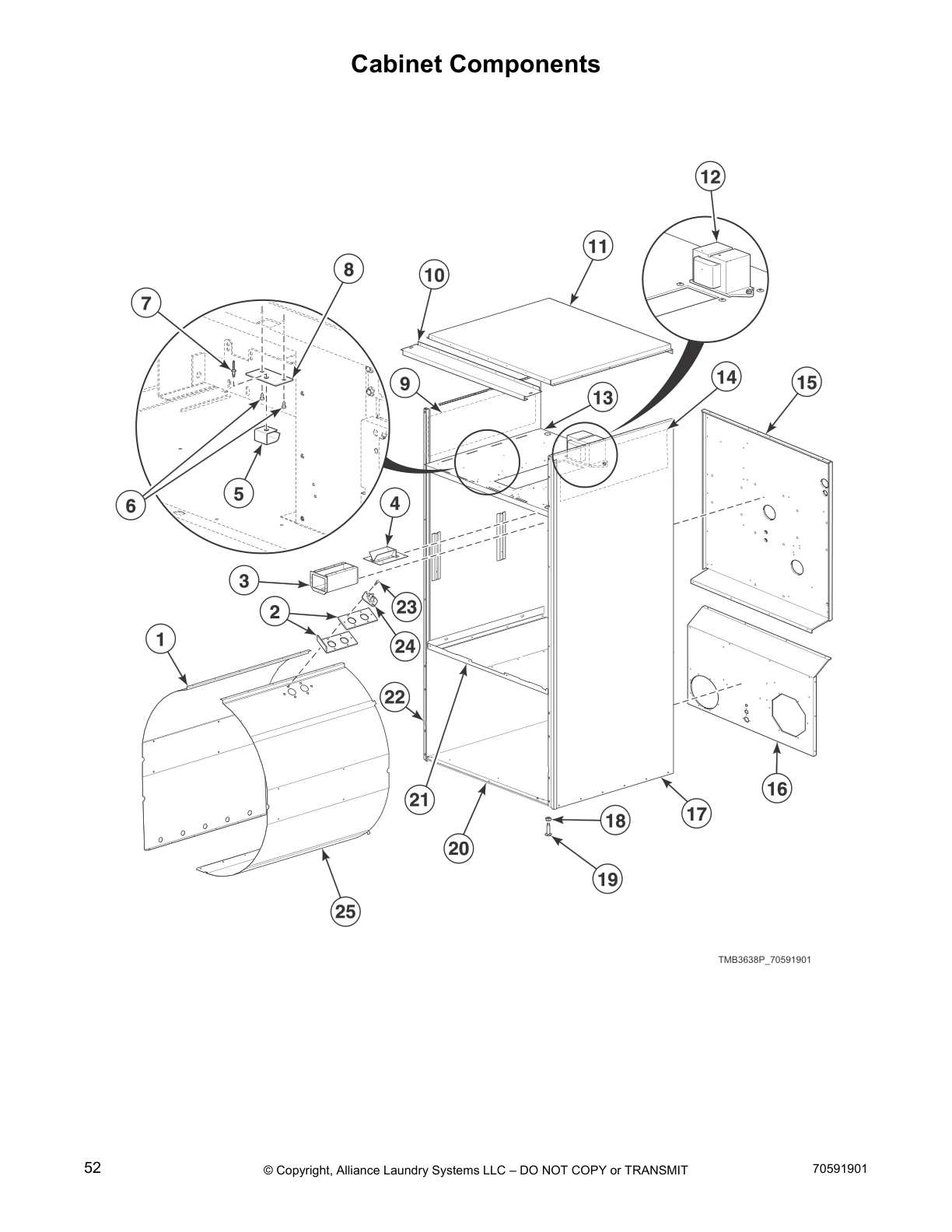

Cabinet Components

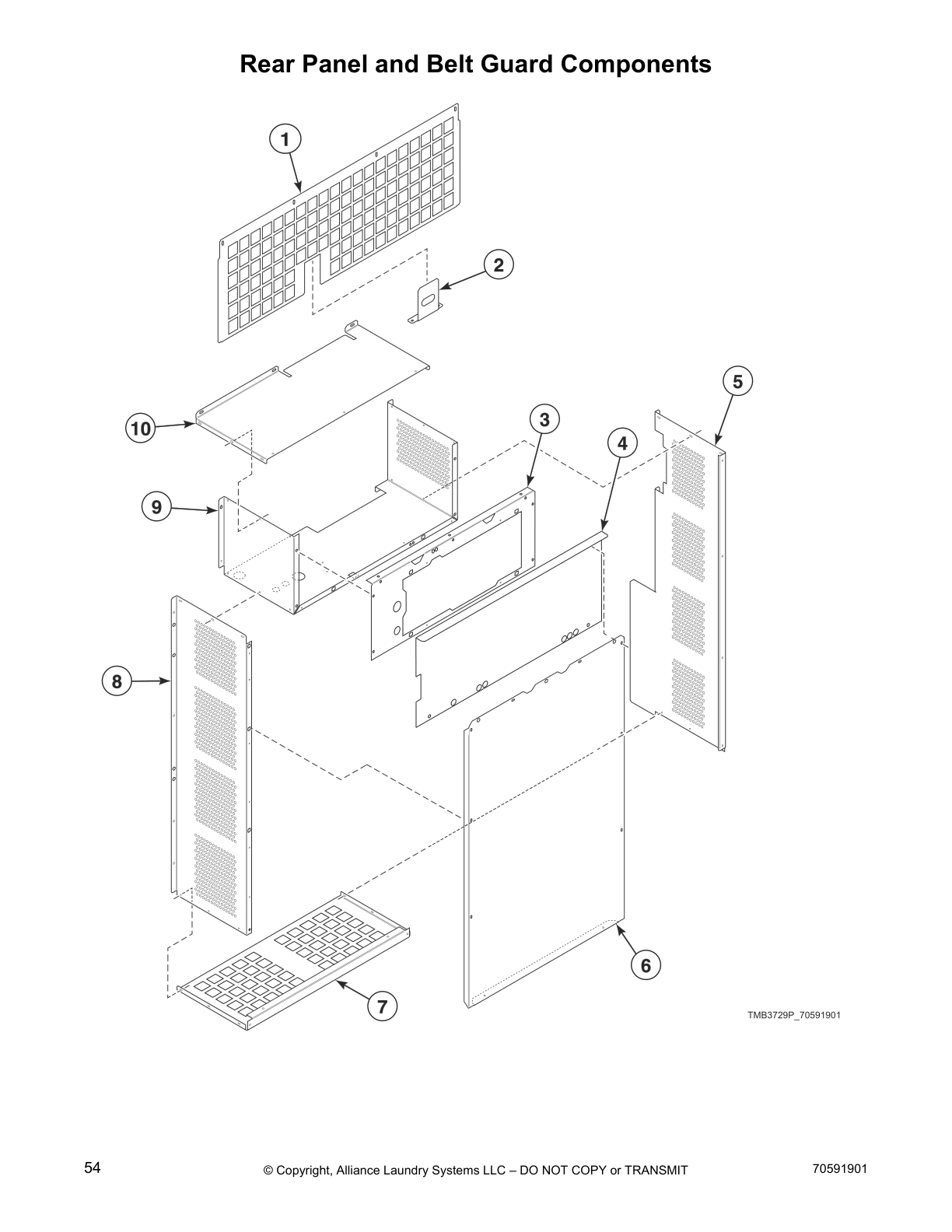

Rear Panel and Belt Guard Components
Door Assemblies

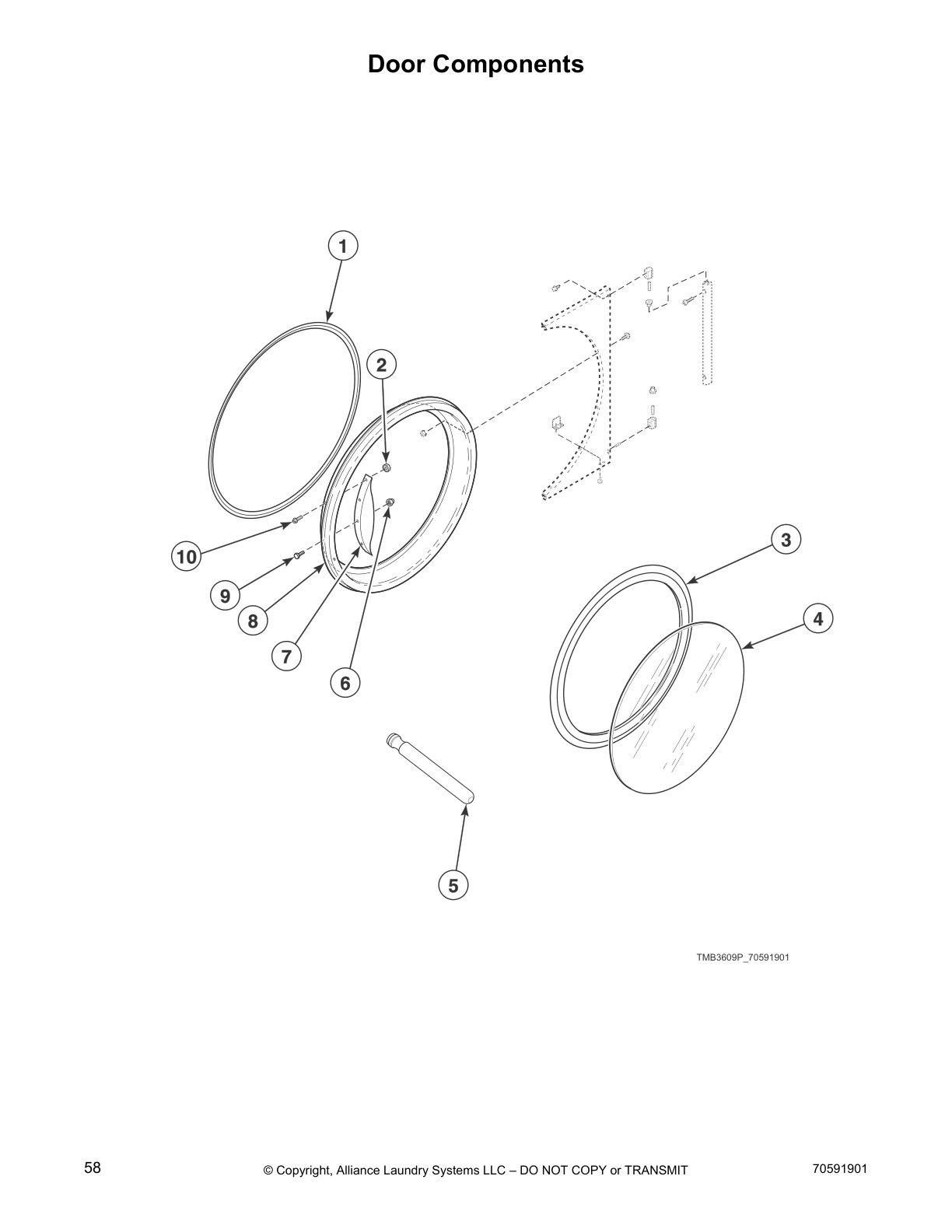

Door Components

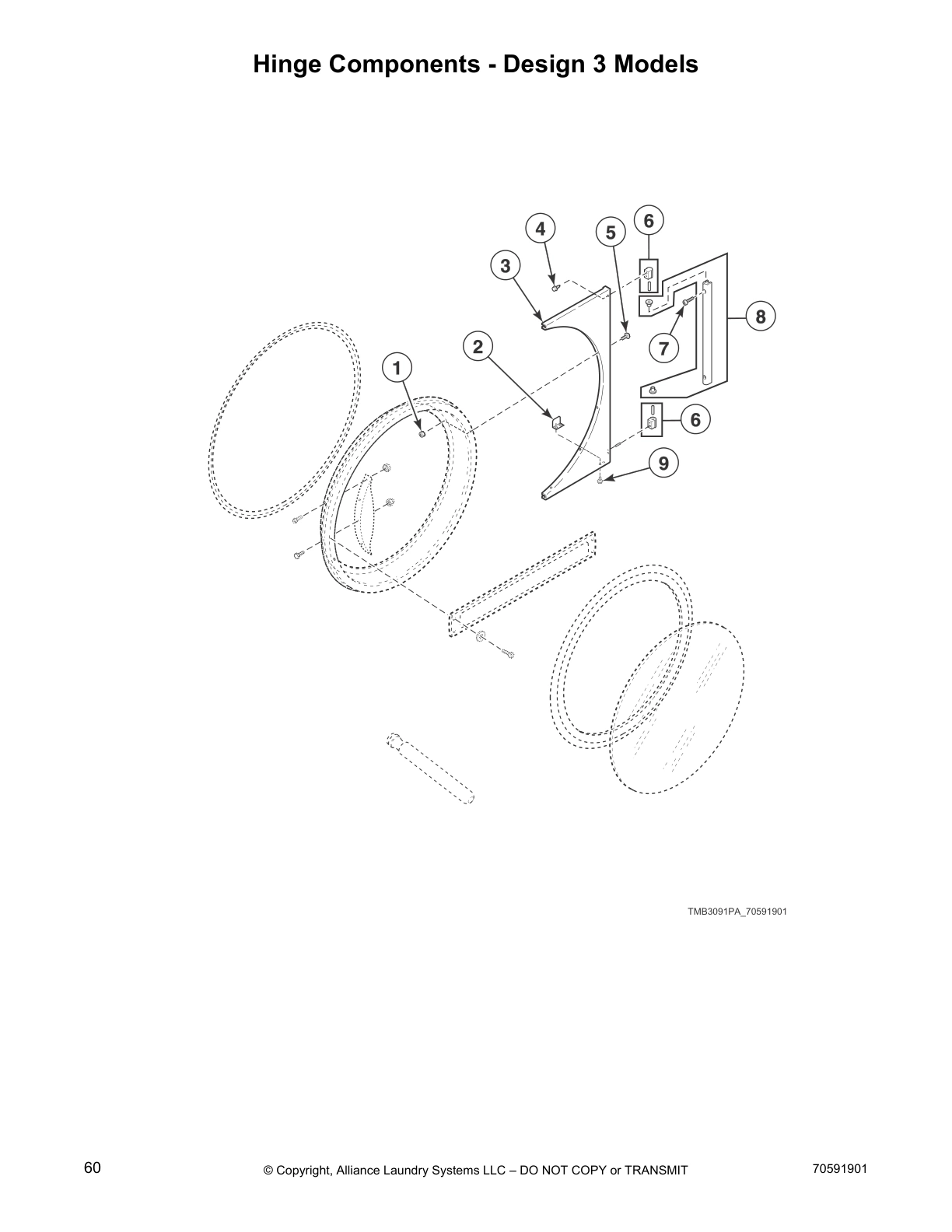

Hinge Components - Design 3 Models

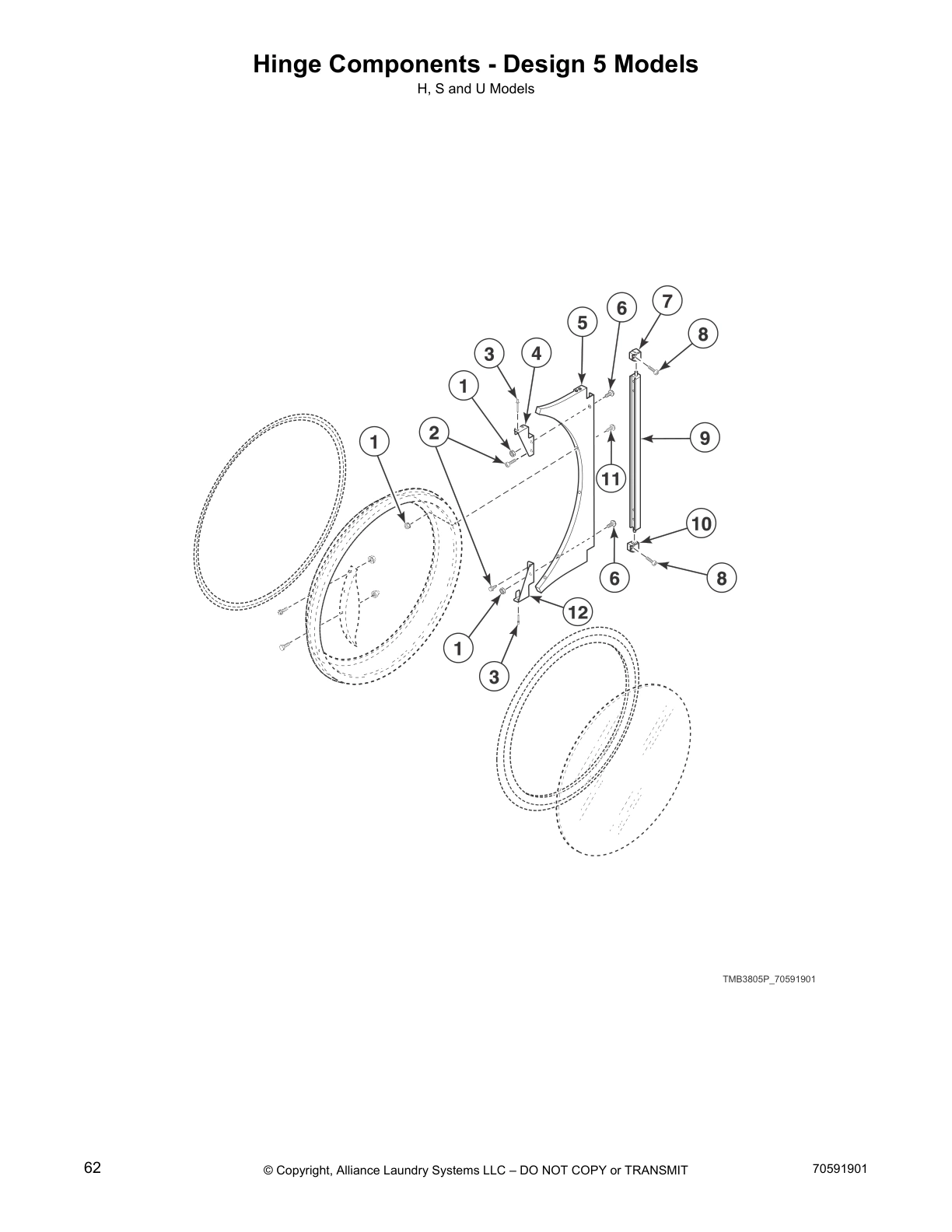

Hinge Components - Design 5 Models

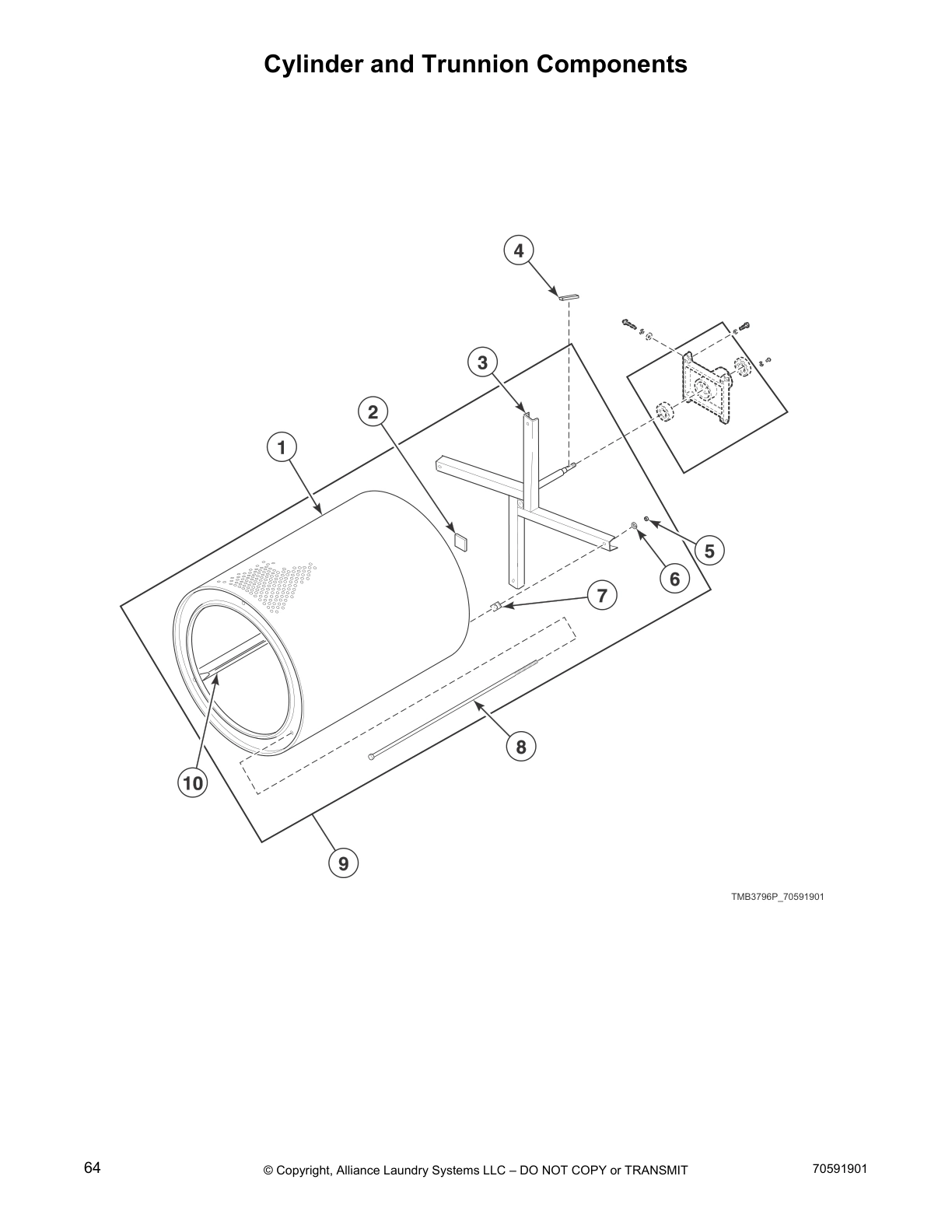

Cylinder and Trunnion Components

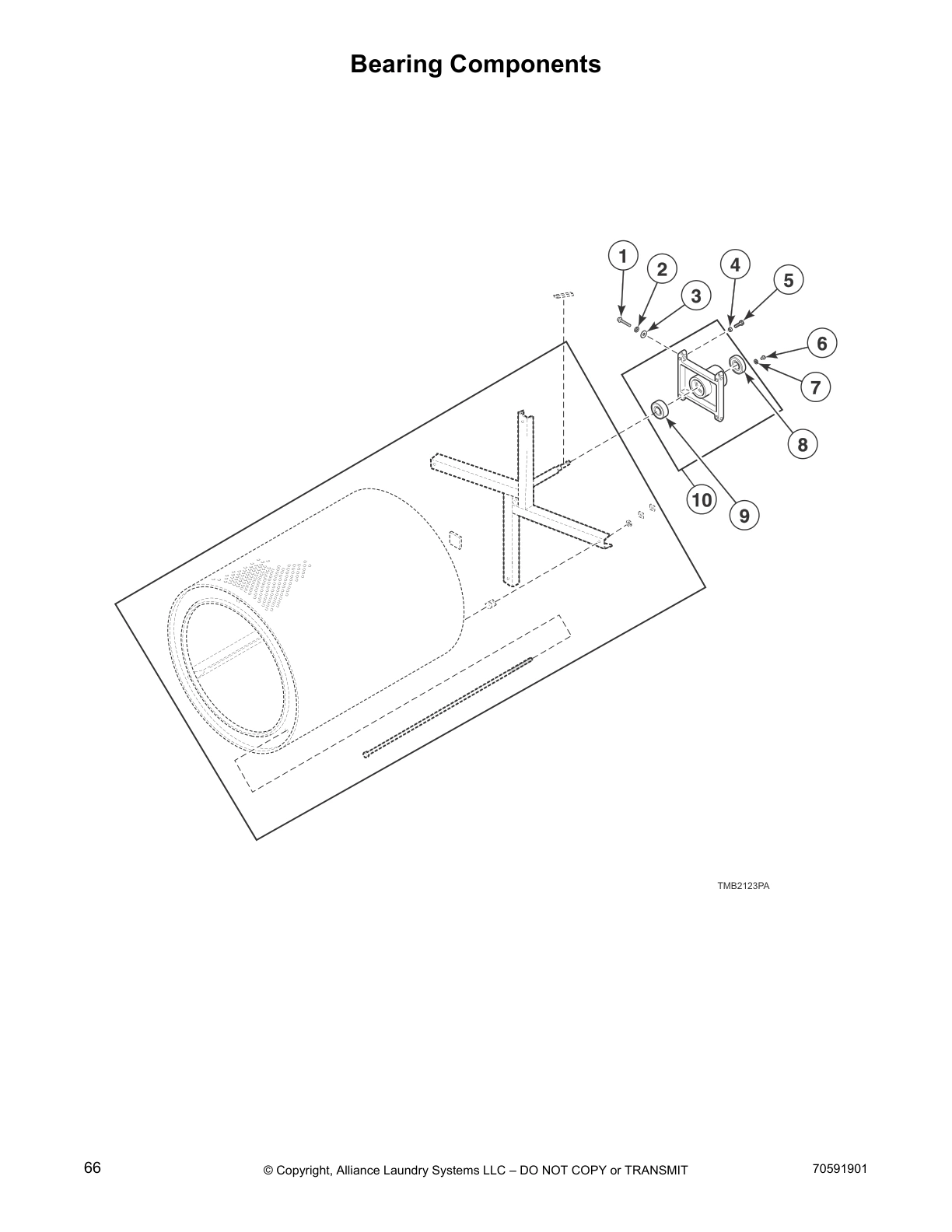

Bearing Components

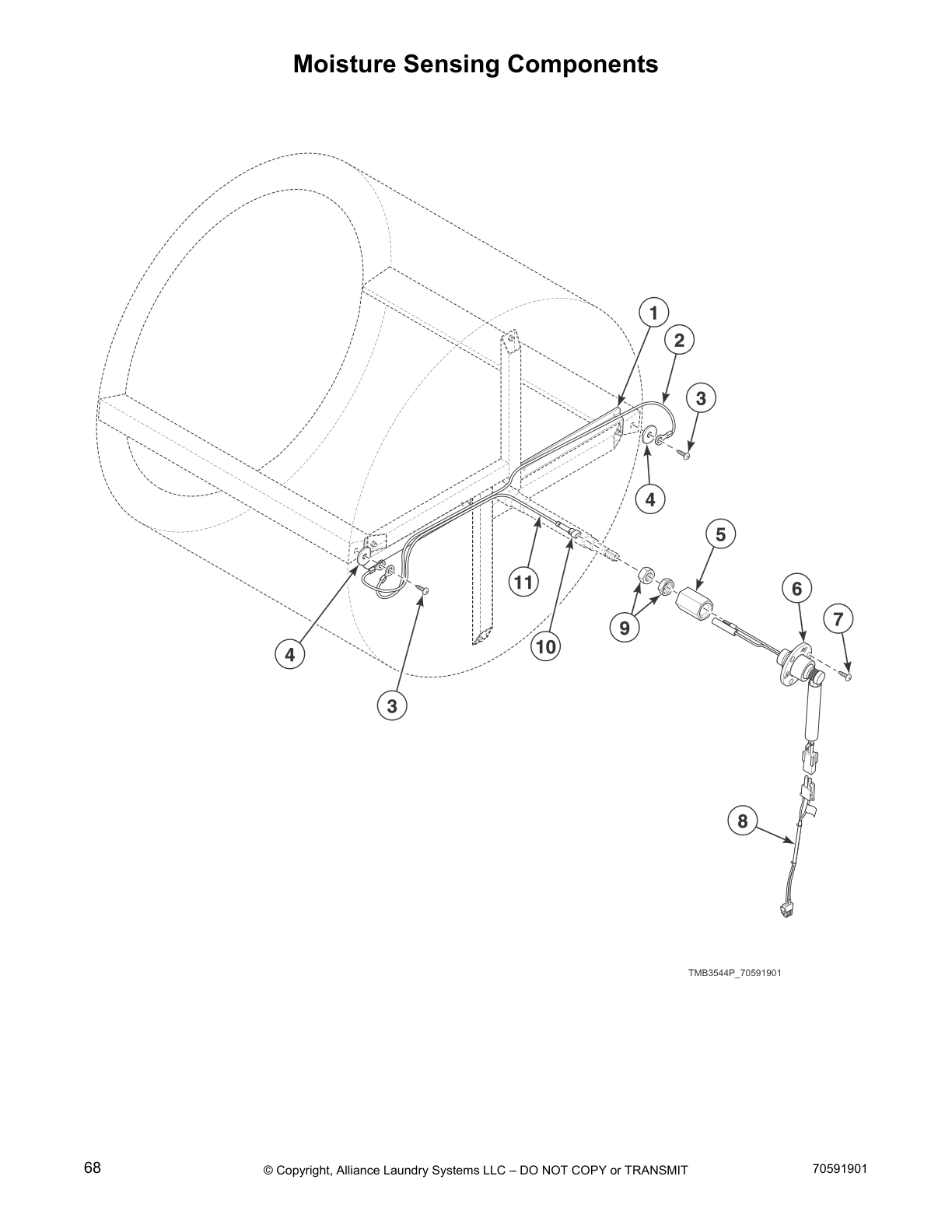

Moisture Sensing Components

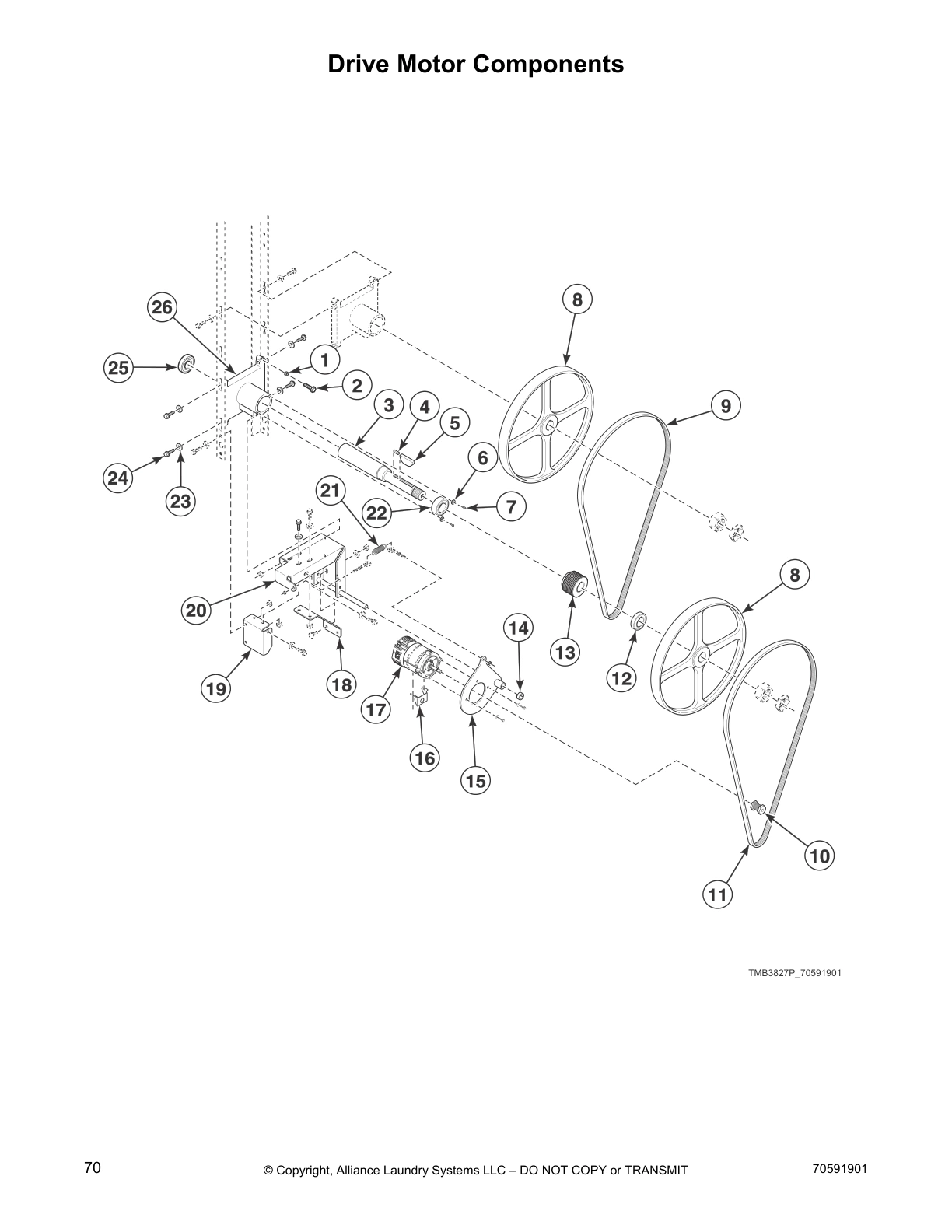

Drive Motor Components

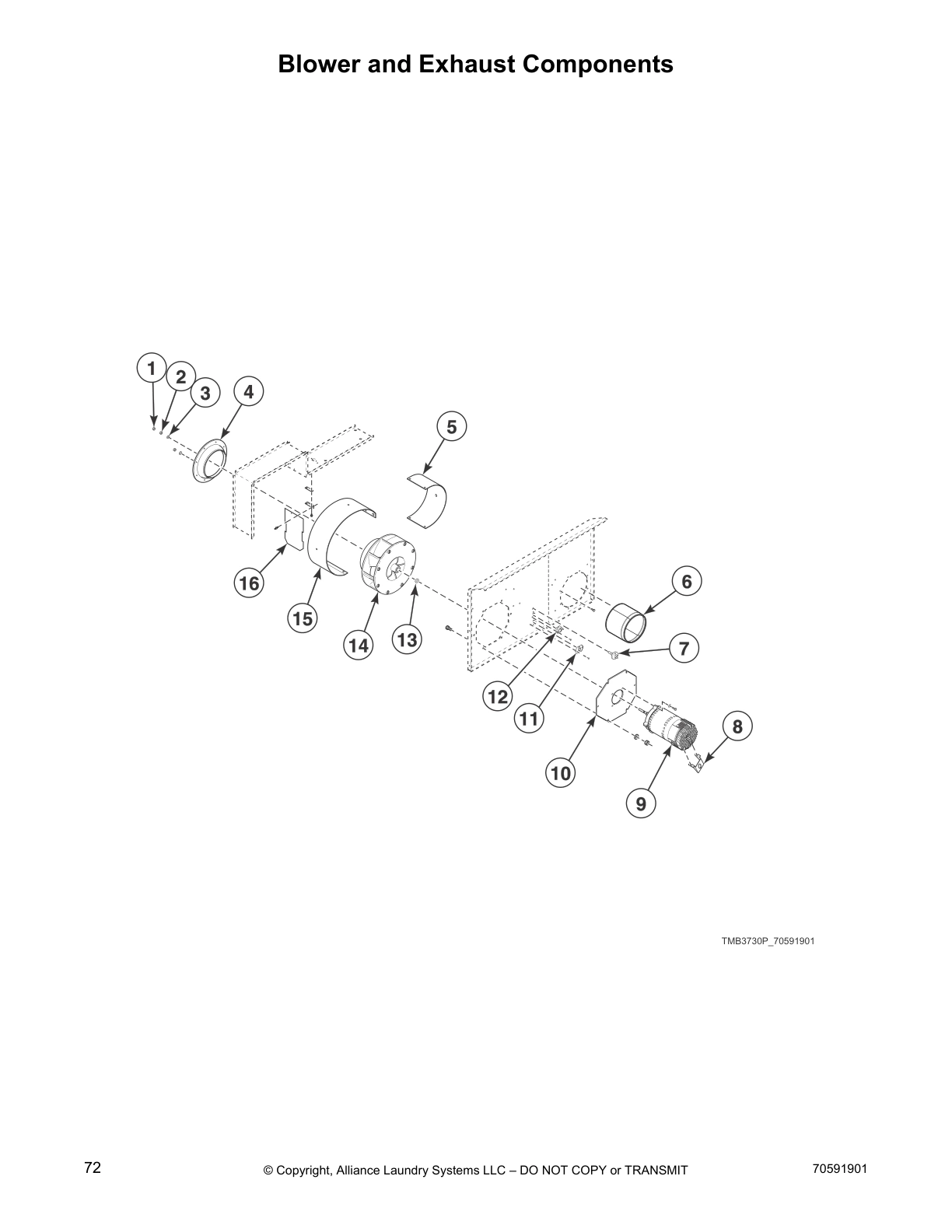

Blower and Exhaust Components

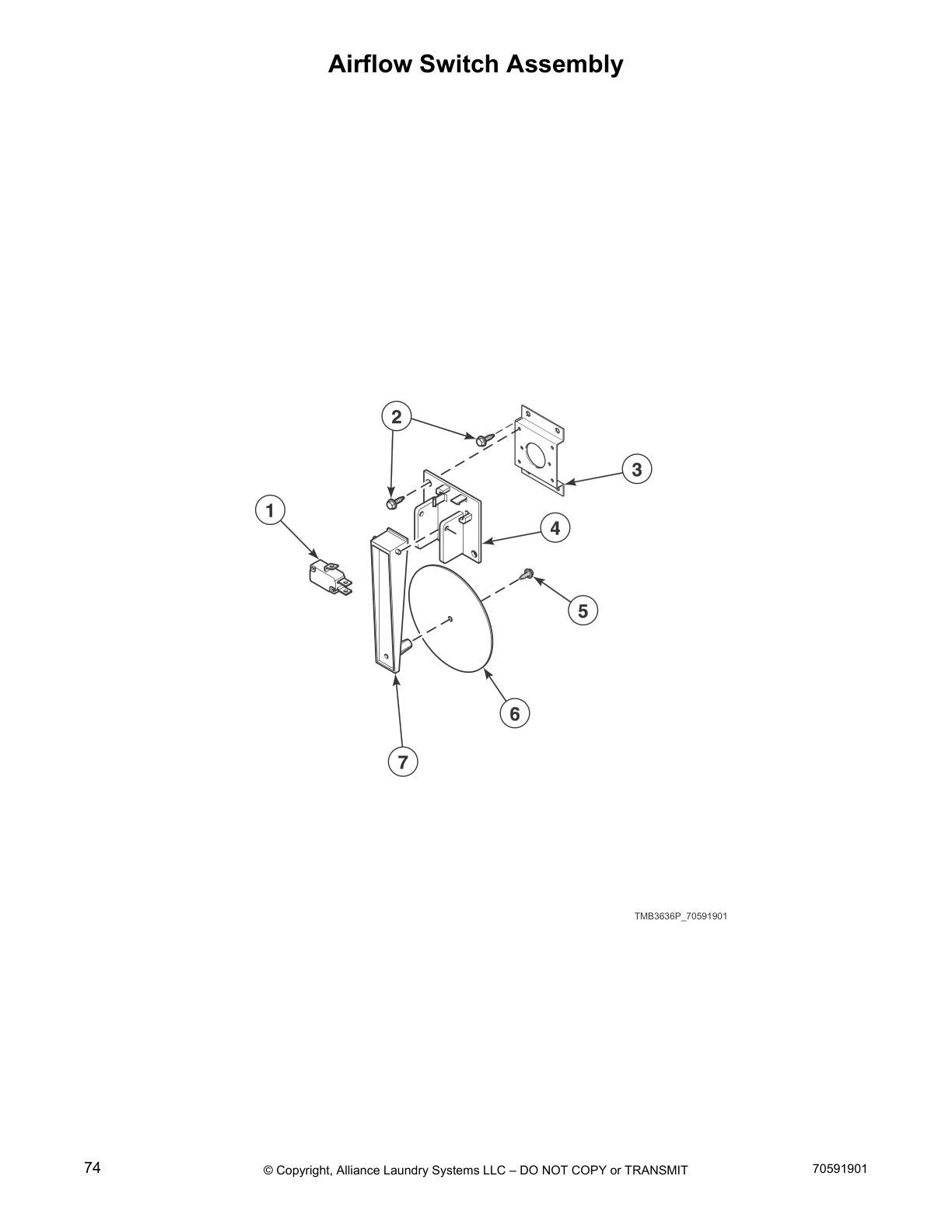

Airflow Switch Assembly

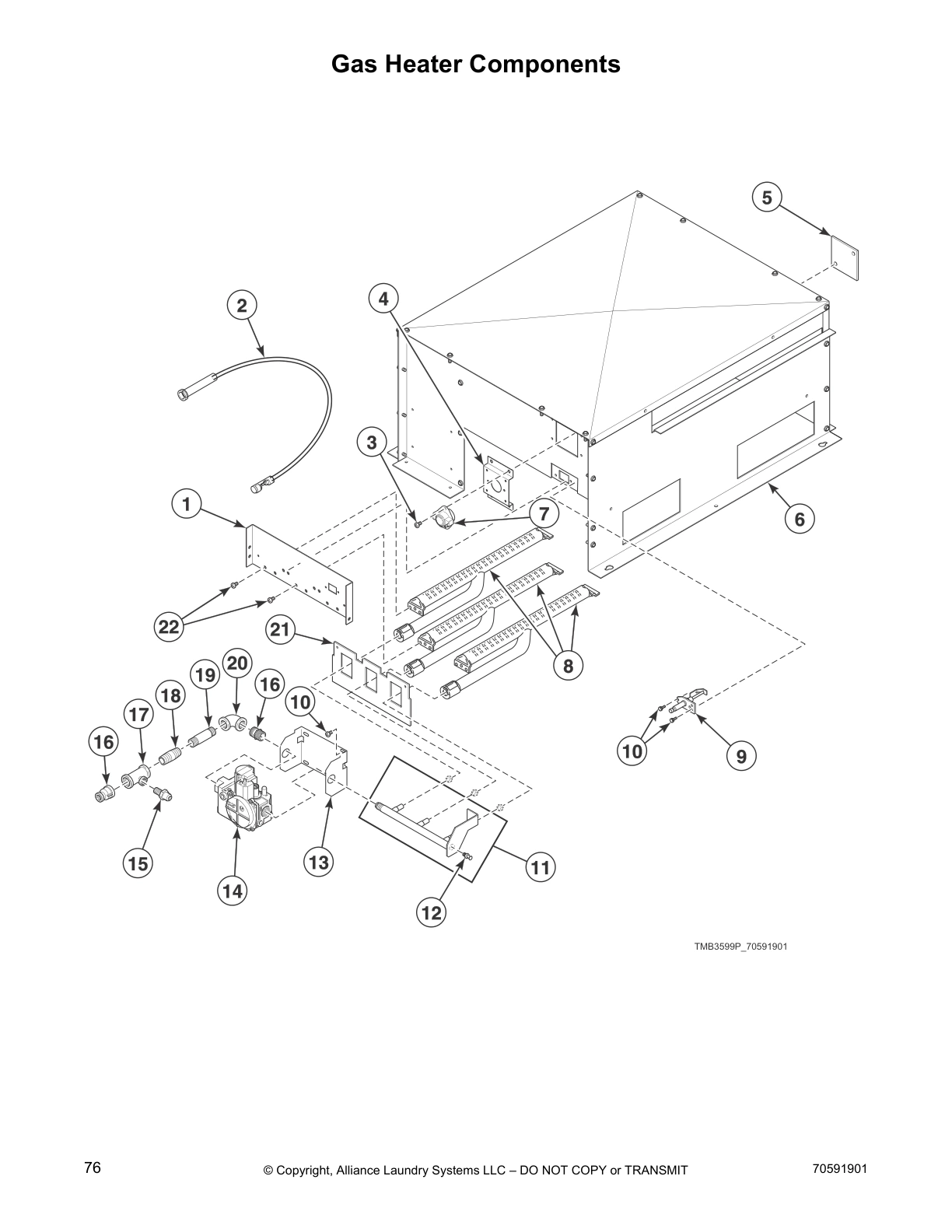

Gas Heater Components

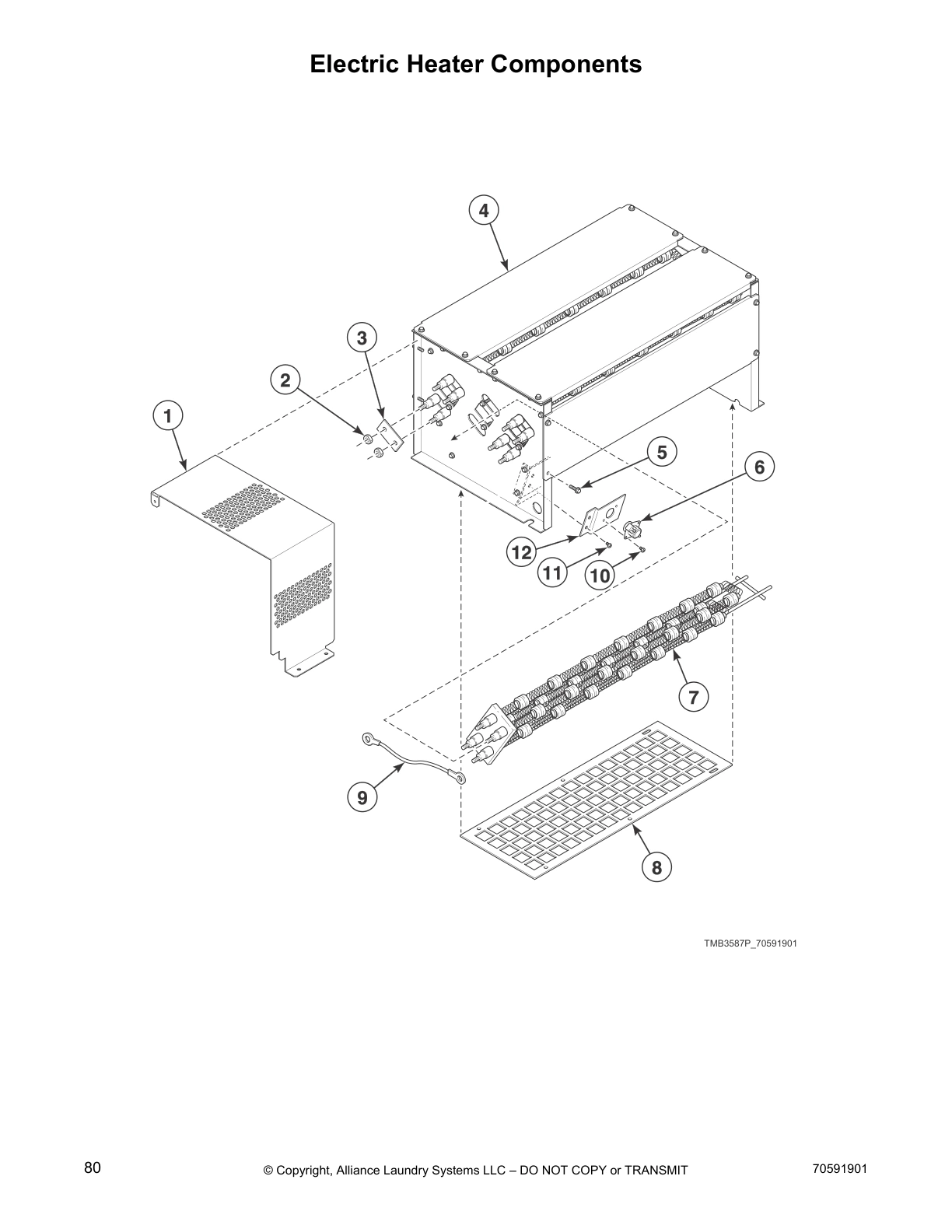

Electric Heater Components
Control Tray

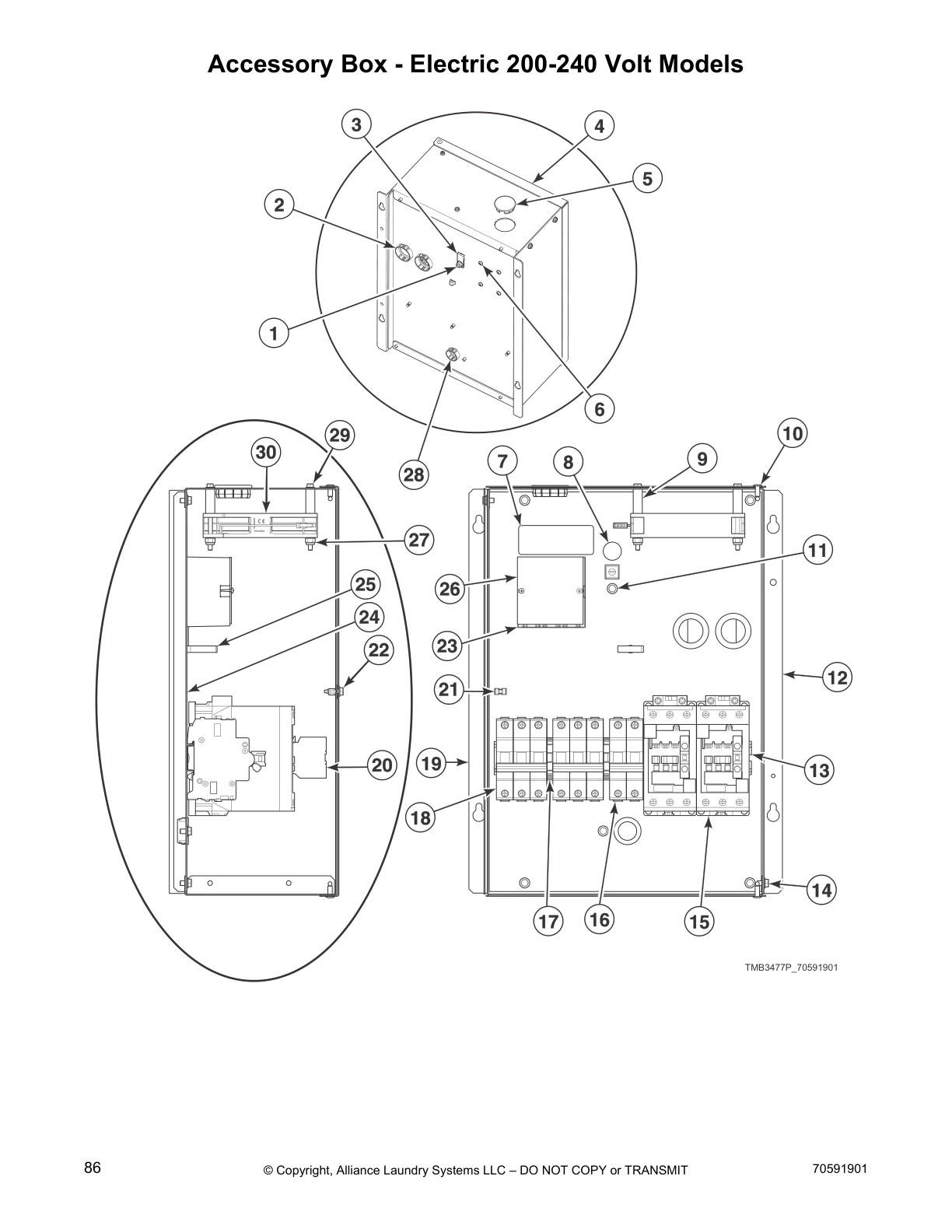

Accessory Box - Electric 200-240 Volt Models

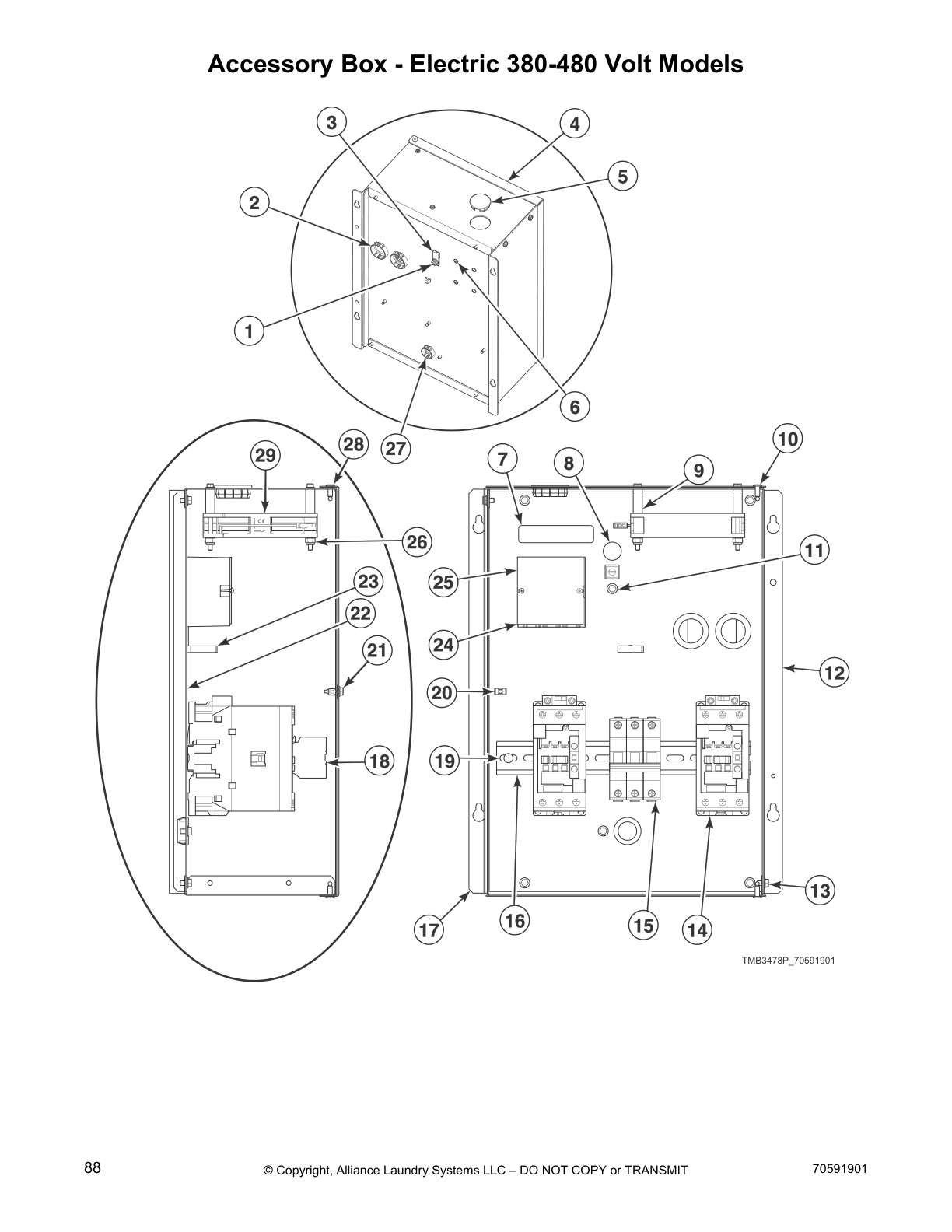

Accessory Box - Electric 380-480 Volt Models
Common parts from model UniMac UK075E Dryer
SPQ 70482901 SPQ 70482901 Contact Us For Availability
Wireless Network Kit SPQ F8674006 Contact Us For Availability
Transformer Harness SPQ F8536002 Contact Us For Availability
USB IR Interface Kit SPQ 44355602 Contact Us For Availability
SPQ 44272302 SPQ 44272302 Contact Us For Availability
SPQ M411072 SPQ M411072 Contact Us For Availability
SPQ 70030301 SPQ 70030301 Contact Us For Availability
SPQ 70297601 SPQ 70297601 Contact Us For Availability
SPQ 298P4P SPQ 298P4P Contact Us For Availability
SPQ M401402 SPQ M401402 Contact Us For Availability
SPQ 44195702P SPQ 44195702P Contact Us For Availability
SPQ 44336302 SPQ 44336302 Contact Us For Availability
SPQ 44281708 SPQ 44281708 Contact Us For Availability
SPQ 44281706 SPQ 44281706 Contact Us For Availability
1
Door Ring Gasket SPQ 44008201P Contact Us For Availability
1
Key SPQ 70155601 Contact Us For Availability
1
Screw SPQ 70182601 Contact Us For Availability
1
Front Panel Assembly SPQ 44077905WP Contact Us For Availability
1
Door Assembly SPQ 44266704 Contact Us For Availability
1
Nut SPQ 44088001 Contact Us For Availability
1
Cylinder Kit SPQ 44057301P Contact Us For Availability
1
Screw SPQ M400063 Contact Us For Availability
1
Nut SPQ M400026 Contact Us For Availability
1
Wireway Channel SPQ 44239101 Contact Us For Availability
1
Switch SPQ 70411901 Contact Us For Availability
2
Central Pay Kit SPQ 44359003 Contact Us For Availability
2
Emergency Stop Pushbutton SPQ F200233500 Contact Us For Availability
2
Thermistor Plate SPQ 70247701 Contact Us For Availability
2
Door Switch Actuator Kit SPQ 70215001P Contact Us For Availability
2
Cylinder Rib Assembly SPQ 44198301P Contact Us For Availability
2
Washer SPQ M400015 Contact Us For Availability
2
Rib Wire SPQ 44208601 Contact Us For Availability
2
Bolt SPQ 44259501P Contact Us For Availability
2
Nut SPQ M400022 Contact Us For Availability
3
Door Seal Kit SPQ 70211902P Contact Us For Availability
3
Screw SPQ 44359001 Contact Us For Availability
3
Emergency Stop Label SPQ 44012901 Contact Us For Availability
3
Control Panel SPQ 44040015LG Contact Us For Availability
3
Reed Switch Assembly SPQ 44293605 Contact Us For Availability
3
Door Hinge Assembly SPQ 44075208LG Contact Us For Availability
3
Felt Pad SPQ 44198302 Contact Us For Availability
3
Screw SPQ 44338901 Contact Us For Availability
3
Washer SPQ F431131 Contact Us For Availability
3
Heater Element SPQ M400869 Contact Us For Availability
3
SPQ M411283 SPQ M411283 Contact Us For Availability
3
Terminal Block Shield SPQ 51783 Contact Us For Availability
4
Cable Tie SPQ 430642 Contact Us For Availability
4
Nut SPQ M400977 Contact Us For Availability
4
Blind Rivet SPQ 44293603W Contact Us For Availability
4
Lint Bracket SPQ 44325301 Contact Us For Availability
4
Control Tray Cover SPQ 70507501 Contact Us For Availability
4
Door Glass SPQ 44008401P Contact Us For Availability
4
Trunnion Assembly SPQ 44191202 Contact Us For Availability
4
Washer SPQ 44238902 Contact Us For Availability
4
Blower Inlet Cone SPQ 70303101 Contact Us For Availability
4
Switch Bracket SPQ 70356301 Contact Us For Availability
4
Airflow Switch and Arm Bracket SPQ 70319602 Contact Us For Availability
5
Contact Switch SPQ F8069501 Contact Us For Availability
5
Screw SPQ M401223 Contact Us For Availability
5
Roller Catch Arm SPQ 44293603LG Contact Us For Availability
5
Lint Clip Bracket SPQ 44140202 Contact Us For Availability
5
Pop Rivet SPQ F160673P Contact Us For Availability
5
Door Glass Installation Tool SPQ M4221P4 Contact Us For Availability
5
Hinge Cam Kit SPQ M400044 Contact Us For Availability
5
Key SPQ M402144 Contact Us For Availability
5
Slip Ring Holder SPQ 44224401 Contact Us For Availability
5
Key SPQ M413826 Contact Us For Availability
5
Bushing SPQ 70333001 Contact Us For Availability
5
SPQ 70180001 SPQ 70180001 Contact Us For Availability
6
Door Hinge Lug Assembly SPQ M4772P3 Contact Us For Availability
6
Contact Base SPQ F8538101 Contact Us For Availability
6
Panel Locator SPQ 44057801W Contact Us For Availability
6
Roller Catch Wheel SPQ 44293602 Contact Us For Availability
6
Latch Mounting Bracket SPQ 70296401 Contact Us For Availability
6
Guard Panel SPQ 44269201 Contact Us For Availability
6
Door Handle SPQ M414215 Contact Us For Availability
6
Nut SPQ 44208001 Contact Us For Availability
6
Trunnion Housing Assembly SPQ M400008 Contact Us For Availability
6
Slip Ring Assembly SPQ 44222702 Contact Us For Availability
6
Exhaust Pipe Assembly SPQ 44327901 Contact Us For Availability
6
Airflow Switch Arm SPQ 70319202 Contact Us For Availability
7
Emergency Stop Harness SPQ 44272401 Contact Us For Availability
7
Expansion Clip SPQ 44057801Q Contact Us For Availability
7
Pop Rivet SPQ 70033502 Contact Us For Availability
7
Spray Paint SPQ 431318 Contact Us For Availability
7
Door Ring Assembly SPQ 44263801 Contact Us For Availability
7
Nut SPQ 70442101 Contact Us For Availability
7
Washer SPQ 44207901 Contact Us For Availability
7
SPQ 70319401 SPQ 70319401 Contact Us For Availability
7
Direct Air Kit SPQ 44232803 Contact Us For Availability
7
Conversion Kit SPQ 70335601 Contact Us For Availability
8
Trunnion and Bearing Assembly SPQ F100136P Contact Us For Availability
8
SPQ 44035001 SPQ 44035001 Contact Us For Availability
8
Overlay SPQ 70595401 Contact Us For Availability
8
Pushbutton Switch SPQ 44057801B Contact Us For Availability
8
Roller Bracket Assembly SPQ 70289101P Contact Us For Availability
8
Lint Screen Clip SPQ H96418413 Contact Us For Availability
8
SPQ 44326006 SPQ 44326006 Contact Us For Availability
8
Nut SPQ 70346501 Contact Us For Availability
9
Door Catch Kit SPQ 44057801LG Contact Us For Availability
9
SPQ 44326002 SPQ 44326002 Contact Us For Availability
9
Harness Strap SPQ M400035 Contact Us For Availability
9
Fan Motor SPQ 70484901P Contact Us For Availability
9
Harness SPQ 44232802 Contact Us For Availability
10
Lock, Key and Nut Kit SPQ 44089301P Contact Us For Availability
10
Screw SPQ 70072801 Contact Us For Availability
10
Top Panel Bracket SPQ 44368201 Contact Us For Availability
10
Cylinder Assembly SPQ 44057201P Contact Us For Availability
10
1 Circuit Plug Housing SPQ 44370401 Contact Us For Availability
10
Motor Pulley SPQ 70559102 Contact Us For Availability
10
Blower Motor Mounting Plate SPQ 70380801 Contact Us For Availability
10
Pop Rivet SPQ 70058502 Contact Us For Availability
11
Screw SPQ 70155602 Contact Us For Availability
11
Top Cover Pan SPQ 44129301P Contact Us For Availability
11
Screw SPQ 44349101 Contact Us For Availability
11
Shaft Wire SPQ 44208702 Contact Us For Availability
11
V-Belt SPQ 44309402 Contact Us For Availability
11
Control Tray SPQ 70492401 Contact Us For Availability
11
Screw SPQ 685837 Contact Us For Availability
12
Pop Rivet SPQ 44089302P Contact Us For Availability
12
Magnet SPQ 70343101 Contact Us For Availability
12
Nut SPQ 44226101 Contact Us For Availability
12
Control Board Control Tray SPQ 70494901 Contact Us For Availability
13
Micro V Pulley SPQ 44270201 Contact Us For Availability
13
DIN Rail SPQ M412690 Contact Us For Availability
14
Kickplate SPQ 70126401 Contact Us For Availability
14
Shaft Collar SPQ 70467001 Contact Us For Availability
14
Blower Assembly SPQ 70302201P Contact Us For Availability
14
Circuit Breaker SPQ 70482801 Contact Us For Availability
15
Handle and Caps Assembly SPQ 70126301 Contact Us For Availability
15
Contactor SPQ 70482601 Contact Us For Availability
15
DIN Rail SPQ 70488101 Contact Us For Availability
16
Handle and Caps Assembly SPQ 70117607 Contact Us For Availability
16
Damper Assembly SPQ 44280301 Contact Us For Availability
16
Insulator SPQ M413862 Contact Us For Availability
16
Auxiliary Contact Block SPQ 44229701 Contact Us For Availability
17
Lint Panel SPQ 70117619 Contact Us For Availability
17
Drive Motor SPQ 44259601P Contact Us For Availability
17
Snap Bushing SPQ 70488102 Contact Us For Availability
18
Nut SPQ 44150105 Contact Us For Availability
18
Lint Panel SPQ 70154415 Contact Us For Availability
18
Wire Clip SPQ F8449501 Contact Us For Availability
18
Snap Bushing SPQ 44313201 Contact Us For Availability
19
Gasket SPQ 70154405P Contact Us For Availability
20
Screw SPQ 70178701 Contact Us For Availability
21
Power Distribution Block Cover SPQ F8206901 Contact Us For Availability
21
Extension Spring SPQ M400650 Contact Us For Availability
22
Bearing SPQ F8440701 Contact Us For Availability
23
Thermistor SPQ 44068102 Contact Us For Availability
23
Washer SPQ M413923P Contact Us For Availability
23
Fan SPQ F8449502 Contact Us For Availability
24
Ground Lug Connector SPQ M413865 Contact Us For Availability
24
Screw SPQ 70261401 Contact Us For Availability
24
Coin Box SPQ 44068101 Contact Us For Availability
25
Ball Bearing SPQ 805213 Contact Us For Availability
25
Plug SPQ 44014901P Contact Us For Availability
26
Trunnion Housing SPQ 44041901P Contact Us For Availability
26
SPQ F430232 SPQ F430232 Contact Us For Availability
27
SPQ F140938 SPQ F140938 Contact Us For Availability
28
Terminal Block SPQ M400003 Contact Us For Availability
29
SPQ F8504301 SPQ F8504301 Contact Us For Availability
NI
SPQ 44272301 SPQ 44272301 Contact Us For Availability
NI
FCC-IC Label SPQ 807211 Contact Us For Availability
NI
Central Pay Harness SPQ F8613201 Contact Us For Availability
NI
Wireless Control Label SPQ 70609701 Contact Us For Availability
NI
SPQ 204692 SPQ 204692 Contact Us For Availability
NI
SPQ 203346 SPQ 203346 Contact Us For Availability
NI
Emergency Stop Bypass Harness SPQ F8519403 Contact Us For Availability
NI
SPQ 70275801 SPQ 70275801 Contact Us For Availability
NI
SPQ 70413301 SPQ 70413301 Contact Us For Availability
NI
SPQ M4379P4 SPQ M4379P4 Contact Us For Availability
NI
Front Panel SPQ 44052517LG Contact Us For Availability
NI
SPQ F8245101 SPQ F8245101 Contact Us For Availability
NI
SPQ 70132301 SPQ 70132301 Contact Us For Availability
NI
SPQ 70030201 SPQ 70030201 Contact Us For Availability
NI
SPQ 70404001 SPQ 70404001 Contact Us For Availability
NI
SPQ 44003201 SPQ 44003201 Contact Us For Availability
NI
SPQ 44150102 SPQ 44150102 Contact Us For Availability
NI
SPQ 44266703 SPQ 44266703 Contact Us For Availability
NI
SPQ M400661 SPQ M400661 Contact Us For Availability
NI
SPQ M404992 SPQ M404992 Contact Us For Availability
NI
SPQ 44195705P SPQ 44195705P Contact Us For Availability
NI
SPQ 44195706 SPQ 44195706 Contact Us For Availability
NI
SPQ M4644P3 SPQ M4644P3 Contact Us For Availability
NI
SPQ M4640P3 SPQ M4640P3 Contact Us For Availability
NI
SPQ 44336301 SPQ 44336301 Contact Us For Availability
NI
SPQ 44344702 SPQ 44344702 Contact Us For Availability
NI
SPQ 44333202 SPQ 44333202 Contact Us For Availability
NI
SPQ 70478701P SPQ 70478701P Contact Us For Availability
NI
SPQ 44355101P SPQ 44355101P Contact Us For Availability
NI
SPQ 44281707 SPQ 44281707 Contact Us For Availability
NI
SPQ 44232801 SPQ 44232801 Contact Us For Availability
NI
SPQ 44281709 SPQ 44281709 Contact Us For Availability
NI
SPQ 70559303 SPQ 70559303 Contact Us For Availability
NI
SPQ 44281703 SPQ 44281703 Contact Us For Availability
NI
SPQ 44281701 SPQ 44281701 Contact Us For Availability
× ![]()
