Model U-Line UHBV524-SG01A Uline UHBV524-SG01A – Common Parts & Diagrams

Common parts from model U-Line UHBV524-SG01A Uline UHBV524-SG01A

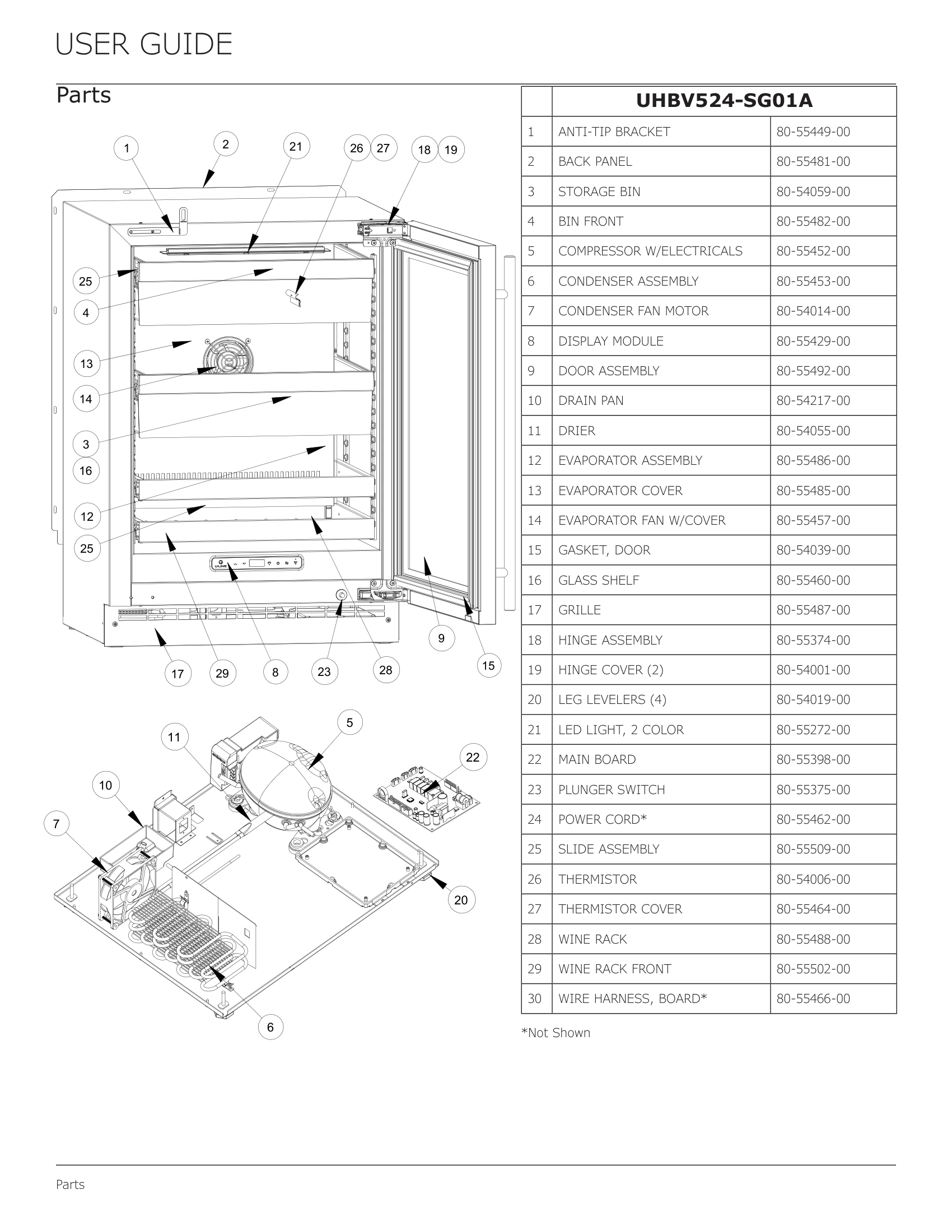

Exploded View

Print

• This Diagram
• All Diagrams

7

80-54014-00 U-Line Motor Backorder ULC 80-54014-00 View Details $114.28

View on Model

9

DOOR ASSEMBLY ULC 80-55492-00 Contact Us For Availability

View on Model

10

80-54217-00 U-Line Drain Pan with Double Side Backorder ULC 80-54217-00 View Details $18.27

View on Model

11

80-54055-00 U-Line Dryer Backorder ULC 80-54055-00 View Details $15.46

View on Model

12

80-55486-00 U-Line Evaporator Assembly 5 Clas Backorder ULC 80-55486-00 View Details $99.76

View on Model

13

EVAPORATOR COVER ULC 80-55485-00 Contact Us For Availability

View on Model

14

80-55457-00 U-Line Evaporator Fan with Cover Backorder ULC 80-55457-00 View Details $135.80

View on Model

15

80-54039-00 U-Line Door Gasket - Molded Backorder ULC 80-54039-00 View Details $75.25

View on Model

16

GLASS SHELF ULC 80-55460-00 Contact Us For Availability

View on Model

17

GRILLE ULC 80-55487-00 Contact Us For Availability

View on Model

18

80-55374-00 U-Line Nugget Hinge Assembly Backorder ULC 80-55374-00 View Details $205.13

View on Model

19

80-54001-00 U-Line Hinge Cover Assembly (2 Pi Backorder ULC 80-54001-00 View Details $15.46

View on Model

20

80-54019-00 U-Line Leveling Legs 4 Pack Backorder ULC 80-54019-00 View Details $23.89

View on Model

21

LED LIGHT, COLOR ULC 80-55272-00 Contact Us For Availability

View on Model

22

80-55398-00 U-Line Main Board In Stock ULC 80-55398-00 View Details $388.02

View on Model

23

80-55375-00 U-Line Nugget Plunger Switch Backorder ULC 80-55375-00 View Details $17.37

View on Model

24

POWER CORD ULC 80-55462-00 Contact Us For Availability

View on Model

25

SLIDE ASSEMBLY ULC 80-55509-00 Contact Us For Availability

View on Model

26

80-54006-00 U-Line White Thermistor In Stock ULC 80-54006-00 View Details $46.34

View on Model

27

THERMISTOR COVER ULC 80-55464-00 Contact Us For Availability

View on Model

28

WINE RACK ULC 80-55488-00 Contact Us For Availability

View on Model

29

WINE RACK FRONT ULC 80-55502-00 Contact Us For Availability

View on Model

30

80-55466-00 U-Line Wire Harness Board 5 Class Backorder ULC 80-55466-00 View Details $130.67

View on Model

×
