Model Electrolux UFS16DL1 FREEZER – Common Parts & Diagrams
03 - CABINET HINGES, APRON, DOOR MOULDIN
08 - INTERIOR CABINET PARTS (CONVENTIONA

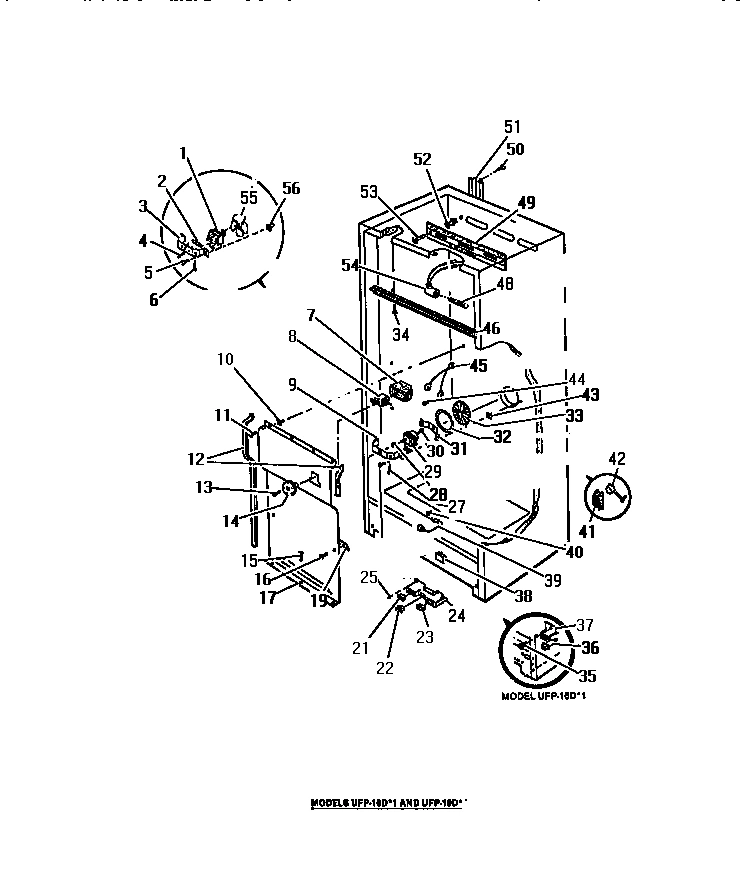

09 - INTERIOR CABINET
10 - FREEZER DOOR PANELS

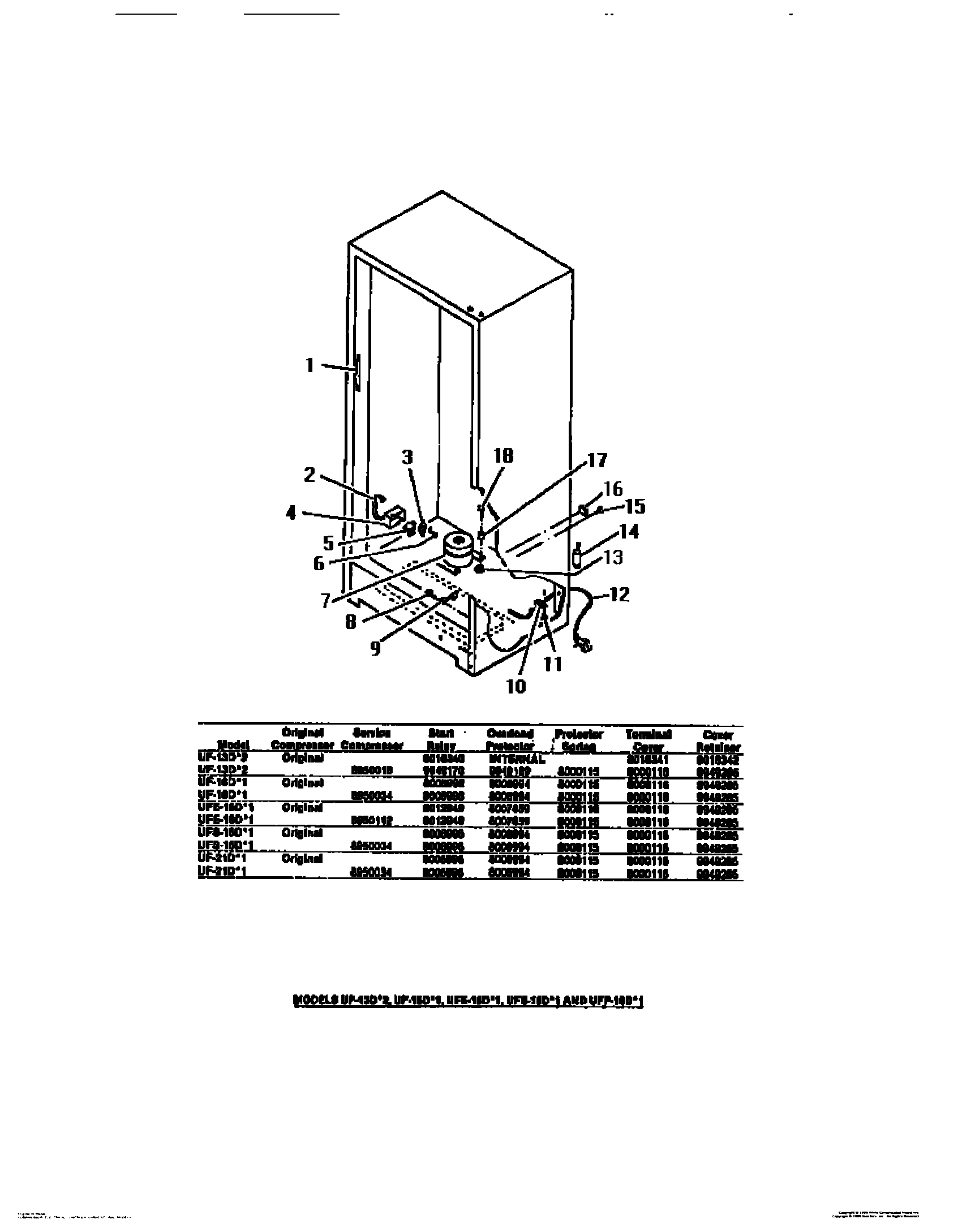

12 - COMPRESSOR, ELECTRICAL CONTROLS (CO
13 - COMPRESSOR, EVAPORATOR, ELECTRICAL
Common parts from model Electrolux UFS16DL1 FREEZER
*21280
WCI 8016375 WCI 8016375 Contact Us For Availability
1
CLIP (4) WCI 6594680 Contact Us For Availability
1
WCI 8950073 WCI 8950073 Contact Us For Availability
1
WCI 6594682 WCI 6594682 Contact Us For Availability
1
WCI 6599538 WCI 6599538 Contact Us For Availability
2
WCI 8005502 WCI 8005502 Contact Us For Availability
2
WCI 9948781 WCI 9948781 Contact Us For Availability
2
WCI 6594609 WCI 6594609 Contact Us For Availability
2
WCI 8016415 WCI 8016415 Contact Us For Availability
2
WCI 6599532 WCI 6599532 Contact Us For Availability
3
WCI 8016351 WCI 8016351 Contact Us For Availability
3
WCI 6594659 WCI 6594659 Contact Us For Availability
3
WCI 8005517 WCI 8005517 Contact Us For Availability
3
WCI 6599535 WCI 6599535 Contact Us For Availability
4
WCI 8016370 WCI 8016370 Contact Us For Availability
4
WCI 8016377 WCI 8016377 Contact Us For Availability
4
WCI 6594740 WCI 6594740 Contact Us For Availability
5
WCI 8016364 WCI 8016364 Contact Us For Availability
5
WCI 6594512 WCI 6594512 Contact Us For Availability
5
WCI 8013198 WCI 8013198 Contact Us For Availability
6
WCI 6594549 WCI 6594549 Contact Us For Availability
7
WCI 8005499 WCI 8005499 Contact Us For Availability
7
SCREW (2) WCI 8003539 Contact Us For Availability
7
WCI 6599543 WCI 6599543 Contact Us For Availability
8
WCI 6593395 WCI 6593395 Contact Us For Availability
8
WCI 9949721 WCI 9949721 Contact Us For Availability
8
WCI 6599985 WCI 6599985 Contact Us For Availability
8
INSERT, SHELF FRONT, NARROW, RH (5) WCI 8015541 Contact Us For Availability
8A
INSERT, SHELF FRONT, NARROW, LH, (5) WCI 8015542 Contact Us For Availability
9
WCI 6594550 WCI 6594550 Contact Us For Availability
9
WCI 8005527 WCI 8005527 Contact Us For Availability
9
BRACKET WCI 8013207 Contact Us For Availability
9
WCI 6594651 WCI 6594651 Contact Us For Availability
9
SHELF, FRONT, NARROW (5) WCI 8005533 Contact Us For Availability
10
WCI 8009395 WCI 8009395 Contact Us For Availability
10
WCI 8005513 WCI 8005513 Contact Us For Availability
10
CLIP (5) WCI 8009409 Contact Us For Availability
11
WCI 5879870 WCI 5879870 Contact Us For Availability
11
WCI 8005520 WCI 8005520 Contact Us For Availability
12
WCI 6593894 WCI 6593894 Contact Us For Availability
12
WCI 6599551 WCI 6599551 Contact Us For Availability
12
WCI 8010199 WCI 8010199 Contact Us For Availability
12
BEARING, HINGE, UPPER WCI 6593364 Contact Us For Availability
12
WCI 8016368 WCI 8016368 Contact Us For Availability
12
GROMMET(4) WCI 8002681 Contact Us For Availability
12A
WCI 8016490 WCI 8016490 Contact Us For Availability
13
WCI 6593893 WCI 6593893 Contact Us For Availability
13
SCREW WCI 9950853 Contact Us For Availability
14
WCI 6593898 WCI 6593898 Contact Us For Availability
14
WCI 8000454 WCI 8000454 Contact Us For Availability
14
WCI 8016354 WCI 8016354 Contact Us For Availability
15
WCI 8009388 WCI 8009388 Contact Us For Availability
15
SCREW (3) WCI 8006547 Contact Us For Availability
15
WCI 6594614 WCI 6594614 Contact Us For Availability
15
WCI 628515 WCI 628515 Contact Us For Availability
16
WCI 9950074 WCI 9950074 Contact Us For Availability
16
CLIP-WIRING RETAINING (2) WCI 6599553 Contact Us For Availability
16
WCI 6599541 WCI 6599541 Contact Us For Availability
17
WCI 8005501 WCI 8005501 Contact Us For Availability
17
WCI 6594662 WCI 6594662 Contact Us For Availability
17
WCI 6599550 WCI 6599550 Contact Us For Availability
17
WCI 6599559 WCI 6599559 Contact Us For Availability
17
SCREW WCI 8000440 Contact Us For Availability
17
WCI 5879860 WCI 5879860 Contact Us For Availability
18
WCI 8009389 WCI 8009389 Contact Us For Availability
18
WCI 9949960 WCI 9949960 Contact Us For Availability
18
WCI 9949961 WCI 9949961 Contact Us For Availability
18
WCI 9949962 WCI 9949962 Contact Us For Availability
18
WCI 9950839 WCI 9950839 Contact Us For Availability
18
CLAMP WCI 9948780 Contact Us For Availability
19
WCI 6599547 WCI 6599547 Contact Us For Availability
19
WCI 6599557 WCI 6599557 Contact Us For Availability
19
BRACKET (2) WCI 5879859 Contact Us For Availability
19
CORD, ELECTRICAL SERVICE (INCL. CABINET WIRIN WCI 8013201 Contact Us For Availability
19
CORD, ELECTRICAL SERVICE (INCL. CABINET WIRIN WCI 8016376 Contact Us For Availability
20
WCI 6594589 WCI 6594589 Contact Us For Availability
20
WCI 6599537 WCI 6599537 Contact Us For Availability
21
WCI 6599540 WCI 6599540 Contact Us For Availability
22
WCI 8016366 WCI 8016366 Contact Us For Availability
22
KEY, POP-OUT WCI 6599905 Contact Us For Availability
22
WCI 8000027 WCI 8000027 Contact Us For Availability
23
WCI 8016374 WCI 8016374 Contact Us For Availability
23
WCI 6594538 WCI 6594538 Contact Us For Availability
23
WCI 9948648 WCI 9948648 Contact Us For Availability
24
WCI 8016369 WCI 8016369 Contact Us For Availability
24
WCI 9948787 WCI 9948787 Contact Us For Availability
24
WCI 5878556 WCI 5878556 Contact Us For Availability
25
WCI 8010754 WCI 8010754 Contact Us For Availability
25
WCI 6594542 WCI 6594542 Contact Us For Availability
25
WCI 9418597 WCI 9418597 Contact Us For Availability
25
SLEEVE (3) WCI 6594529 Contact Us For Availability
26
WCI 8009379 WCI 8009379 Contact Us For Availability
26
WCI 8002679 WCI 8002679 Contact Us For Availability
27
WCI 9950837 WCI 9950837 Contact Us For Availability
27
WCI 7548933 WCI 7548933 Contact Us For Availability
27
WCI 6599536 WCI 6599536 Contact Us For Availability
28
WCI 6594507 WCI 6594507 Contact Us For Availability
28
WCI 8005186 WCI 8005186 Contact Us For Availability
28
WCI 8013200 WCI 8013200 Contact Us For Availability
29
WCI 8013204 WCI 8013204 Contact Us For Availability
29
HANDLE WCI 8009391 Contact Us For Availability
30
WCI 6593408 WCI 6593408 Contact Us For Availability
30
WCI 8013206 WCI 8013206 Contact Us For Availability
30
WCI 8009392 WCI 8009392 Contact Us For Availability
30
WCI 6599531 WCI 6599531 Contact Us For Availability
31
WCI 5878516 WCI 5878516 Contact Us For Availability
31
WCI 8013203 WCI 8013203 Contact Us For Availability
31
WCI 8009843 WCI 8009843 Contact Us For Availability
31
WCI 5878562 WCI 5878562 Contact Us For Availability
32
WCI 8013446 WCI 8013446 Contact Us For Availability
32
WCI 8013205 WCI 8013205 Contact Us For Availability
32
WCI 8000455 WCI 8000455 Contact Us For Availability
33
WCI 8003202 WCI 8003202 Contact Us For Availability
33
WCI 6594653 WCI 6594653 Contact Us For Availability
34
WCI 6594501 WCI 6594501 Contact Us For Availability
34
WCI 6594601 WCI 6594601 Contact Us For Availability
35
WCI 6593417 WCI 6593417 Contact Us For Availability
36
LIGHT, PILOT SIGNAL WCI 8002706 Contact Us For Availability
36
WCI 9948773 WCI 9948773 Contact Us For Availability
37
WCI 9948923 WCI 9948923 Contact Us For Availability
37
SCREW, DOOR PANEL WITH SHOULDER (16) WCI 8009384 Contact Us For Availability
37
WCI 6594629 WCI 6594629 Contact Us For Availability
38
WCI 8016367 WCI 8016367 Contact Us For Availability
38
WCI 8000459 WCI 8000459 Contact Us For Availability
39
WCI 8000446 WCI 8000446 Contact Us For Availability
39
LINE, HEAT EXCHANGER WCI 8000728 Contact Us For Availability
41
HOUSING, SENSOR WCI 8016495 Contact Us For Availability
41
WCI 6599544 WCI 6599544 Contact Us For Availability
42
WCI 8016496 WCI 8016496 Contact Us For Availability
42
WCI 6599546 WCI 6599546 Contact Us For Availability
43
WCI 6594625 WCI 6594625 Contact Us For Availability
44
SCREW WCI 6594684 Contact Us For Availability
46
WCI 6594666 WCI 6594666 Contact Us For Availability
46
WCI 6594665 WCI 6594665 Contact Us For Availability
49
WCI 8000458 WCI 8000458 Contact Us For Availability
50
WCI 6594661 WCI 6594661 Contact Us For Availability
51
WCI 6594624 WCI 6594624 Contact Us For Availability
52
WCI 8000456 WCI 8000456 Contact Us For Availability
54
WCI 9948802 WCI 9948802 Contact Us For Availability
55
WCI 9948800 WCI 9948800 Contact Us For Availability
56
NUT (2) WCI 9948978 Contact Us For Availability
× ![]()
