Model Electrolux UFS160FM1W FREEZER – Common Parts & Diagrams

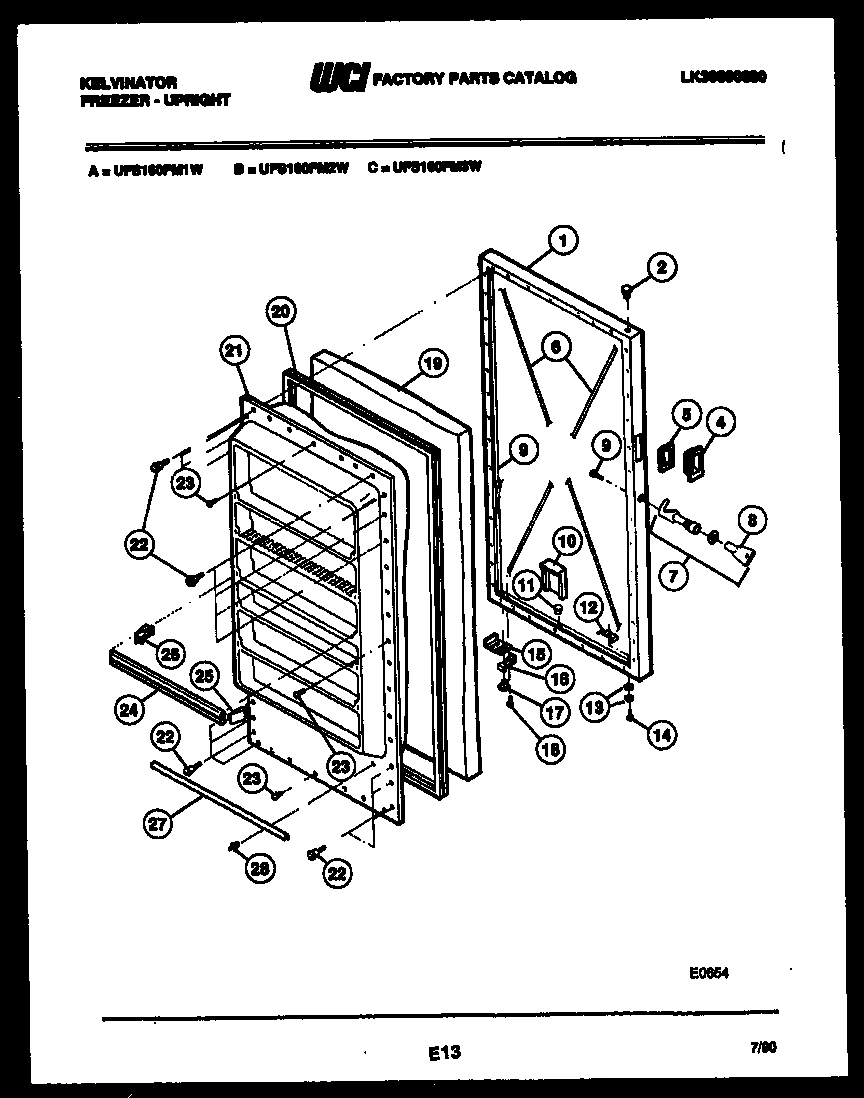

02 - DOOR PARTS

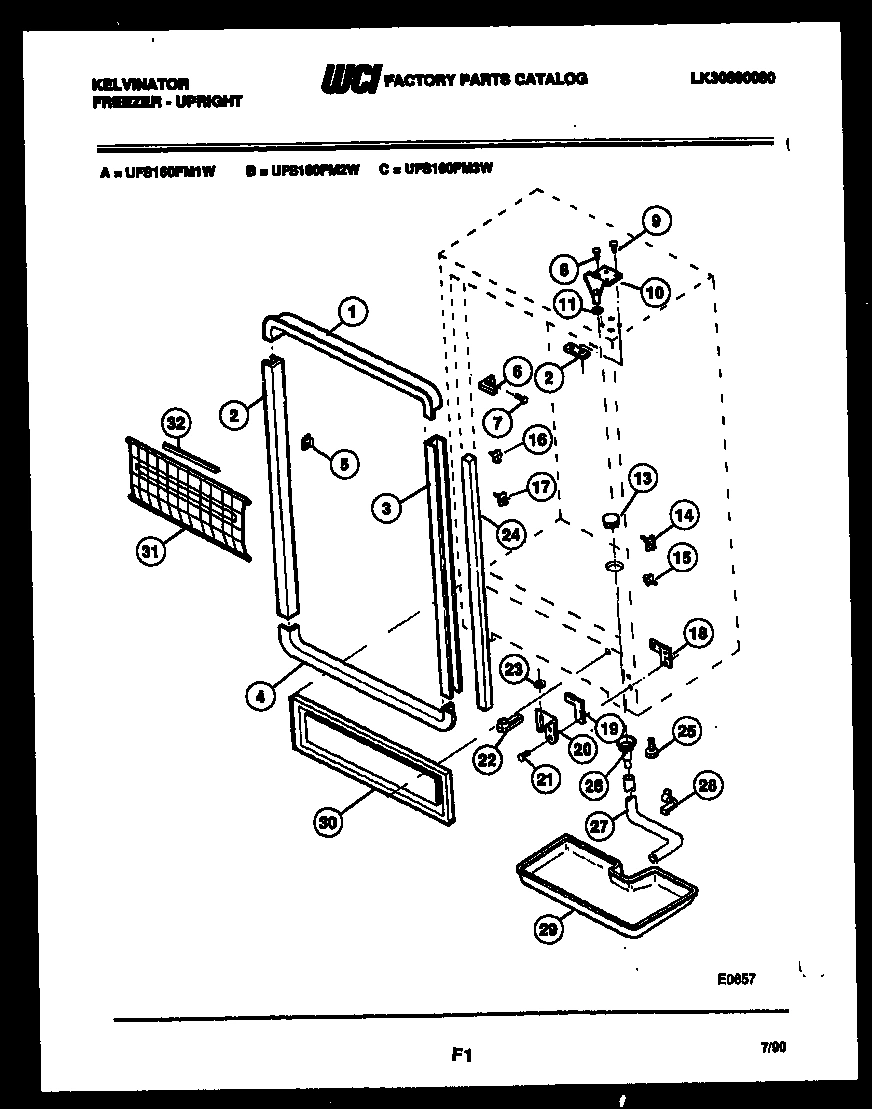

03 - CABINET PARTS

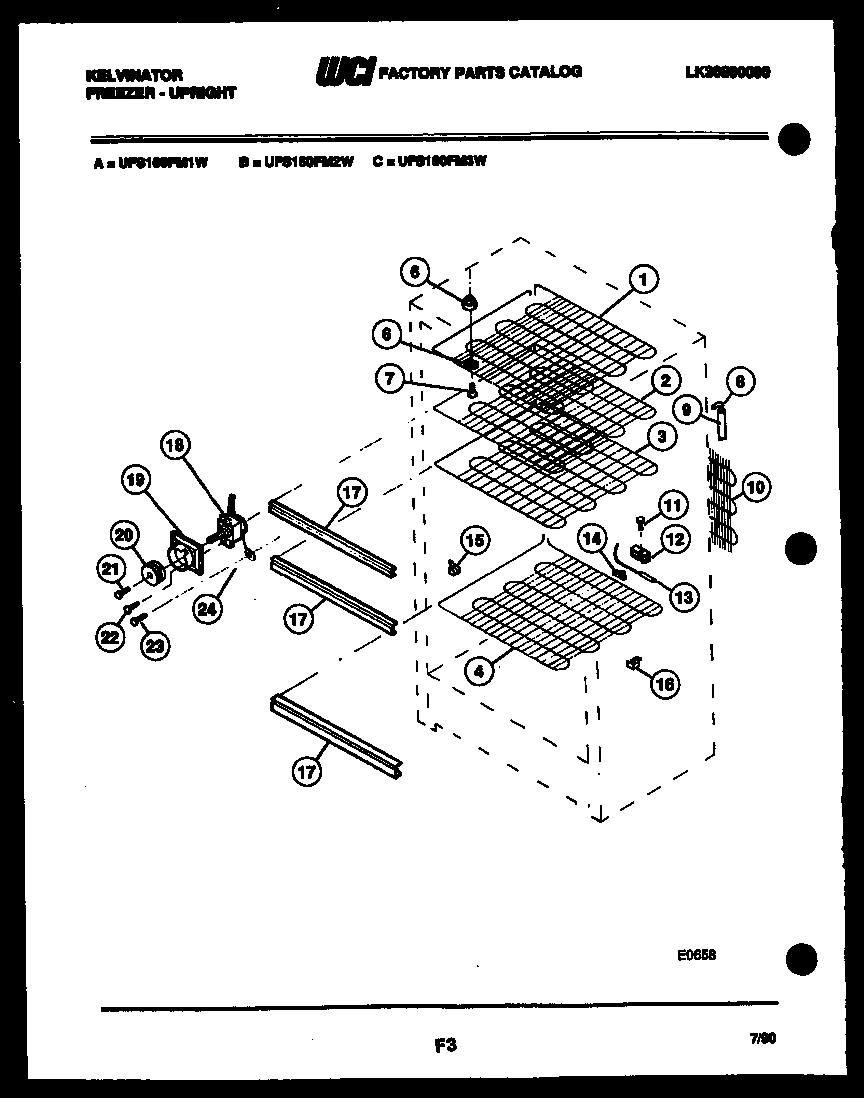

04 - SHELVES AND SUPPORTS

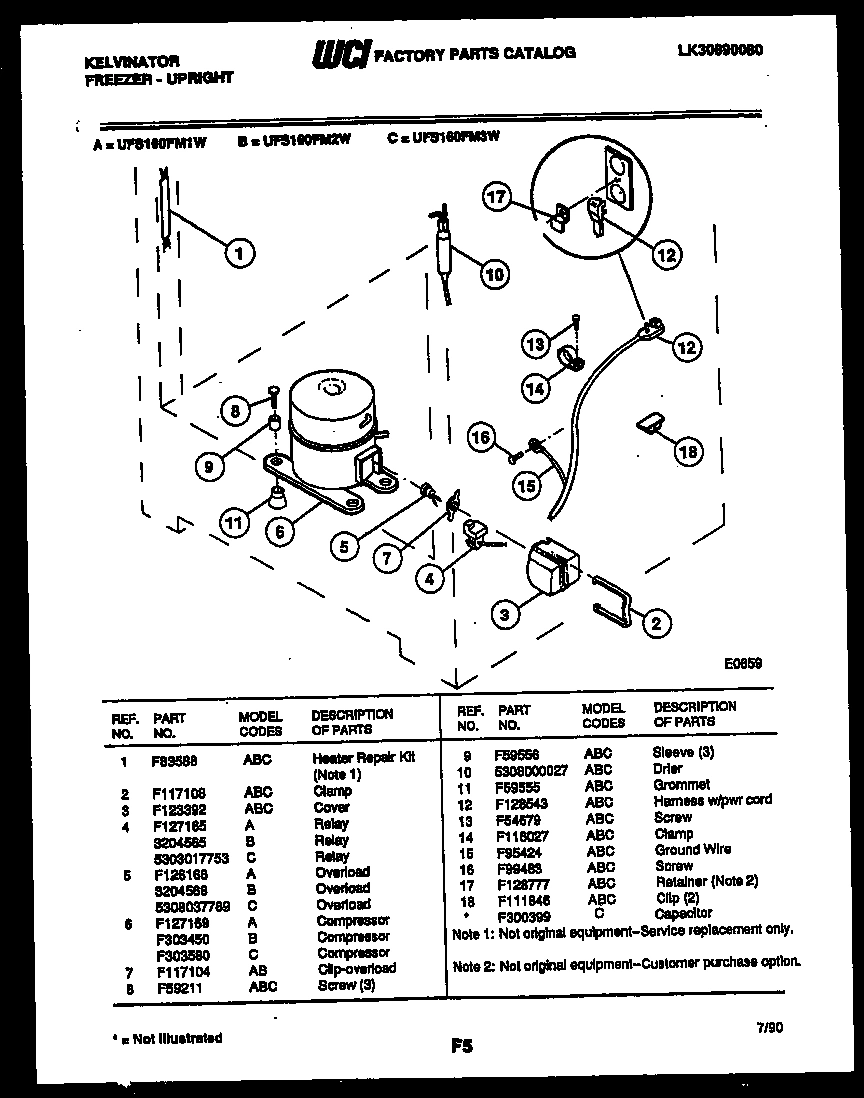

05 - SYSTEM AND ELECTRICAL PARTS
Common parts from model Electrolux UFS160FM1W FREEZER
*15696
WCI F127166 WCI F127166 Contact Us For Availability
1
PANEL OUTER DOOR WCI F128673-S Contact Us For Availability
1
WCI F121239-64 WCI F121239-64 Contact Us For Availability
1
WCI F121179 WCI F121179 Contact Us For Availability
1
HEATER REPAIR KIT (NOT ORIGINAL EQUIPMENT-SER WCI F83588 Contact Us For Availability
2
NAMEPLATE WCI F128855 Contact Us For Availability
2
BREAKER-LH WCI F121320-64 Contact Us For Availability
2
WCI F129785 WCI F129785 Contact Us For Availability
3
BEARING, TOP WCI F84893 Contact Us For Availability
3
BREAKER-RH WCI F121322-64 Contact Us For Availability
3
WCI F129807 WCI F129807 Contact Us For Availability
4
HANDLE RECESSED WCI F112637 Contact Us For Availability
4
WCI F121241-64 WCI F121241-64 Contact Us For Availability
4
WCI F129786 WCI F129786 Contact Us For Availability
4
WCI F127165 WCI F127165 Contact Us For Availability
5
WCI F112639 WCI F112639 Contact Us For Availability
5
CLIP BREAKER (7) WCI F126240 Contact Us For Availability
5
WCI F81445 WCI F81445 Contact Us For Availability
5
WCI 3204568 WCI 3204568 Contact Us For Availability
5
WCI F126166 WCI F126166 Contact Us For Availability
6
ROD ADJUSTING WCI F129667 Contact Us For Availability
6
LATCH WCI F117634 Contact Us For Availability
6
WASHER-FRONT/REAR (3) WCI F55598 Contact Us For Availability
6
WCI F127169 WCI F127169 Contact Us For Availability
7
WCI 5300190358 WCI 5300190358 Contact Us For Availability
7
SCREW-FRONT/REAR (3) WCI F126260 Contact Us For Availability
7
WCI F117104 WCI F117104 Contact Us For Availability
8
SCREW-HINGE-FRONT WCI F94110 Contact Us For Availability
8
WCI F125249 WCI F125249 Contact Us For Availability
8
WCI F59211 WCI F59211 Contact Us For Availability
9
SCREW HOOK WCI F55689 Contact Us For Availability
9
SCREW-HINGE, REAR WCI F300459 Contact Us For Availability
9
WCI F58148-58 WCI F58148-58 Contact Us For Availability
9
WCI F59556 WCI F59556 Contact Us For Availability
10
AIR DUCT WCI F128421 Contact Us For Availability
10
WCI F300271 WCI F300271 Contact Us For Availability
11
BEARING WCI F57523 Contact Us For Availability
11
SCREW WCI F52943 Contact Us For Availability
12
WCI F57880 WCI F57880 Contact Us For Availability
12
PLATE-TOP WCI F93207 Contact Us For Availability
12
CLAMP WCI F96850 Contact Us For Availability
12
HARNESS W/PWR CORD WCI F128543 Contact Us For Availability
13
WASHER WCI F119827 Contact Us For Availability
14
SCREW WCI F57906 Contact Us For Availability
14
WCI F81200 WCI F81200 Contact Us For Availability
14
WCI F117447 WCI F117447 Contact Us For Availability
15
WCI F91170 WCI F91170 Contact Us For Availability
15
SUPPORT BTM-RH WCI F81210 Contact Us For Availability
15
WCI F95424 WCI F95424 Contact Us For Availability
16
DOOR STOP WCI F84896 Contact Us For Availability
16
WCI F81201 WCI F81201 Contact Us For Availability
17
SUPPORT-BTM LH WCI F81211 Contact Us For Availability
17
WCI F300385 WCI F300385 Contact Us For Availability
17
RETAINER (NOT ORIGINAL EQUIPMENT--CUSTOMER PU WCI F128777 Contact Us For Availability
18
SCREW WCI F121387 Contact Us For Availability
18
WCI F84948 WCI F84948 Contact Us For Availability
18
CONTROL TEMPERATURE WCI F126974 Contact Us For Availability
18
CLIP (2) WCI F111846 Contact Us For Availability
19
INSULATION WCI F116277 Contact Us For Availability
19
WCI F120978 WCI F120978 Contact Us For Availability
19
HOUSING WCI F128633 Contact Us For Availability
20
WCI F126003 WCI F126003 Contact Us For Availability
20
WCI F84943 WCI F84943 Contact Us For Availability
20
KNOB WCI F127717 Contact Us For Availability
21
WCI F124572-64 WCI F124572-64 Contact Us For Availability
21
SCREW KNOB WCI F110410 Contact Us For Availability
22
DOOR CLOSER WCI F900253 Contact Us For Availability
23
SCREW-PANEL (16) WCI F124860 Contact Us For Availability
23
SCREW-CONTROL (2) WCI F55160 Contact Us For Availability
24
FRONT-NARROW (5) WCI 3016802 Contact Us For Availability
24
INSULATION WCI F86843-50 Contact Us For Availability
25
LEG (4) WCI F91169 Contact Us For Availability
27
WCI F99439 WCI F99439 Contact Us For Availability
28
CLAMP WCI F122718 Contact Us For Availability
29
DRAIN PAN (NOT ORIGINAL EQUIPMENT--CUSTOMER O WCI F129436 Contact Us For Availability
31
WCI F121419 WCI F121419 Contact Us For Availability
32
WCI F82754 WCI F82754 Contact Us For Availability
× ![]()
