Model Electrolux UFS160DM2W FREEZER – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

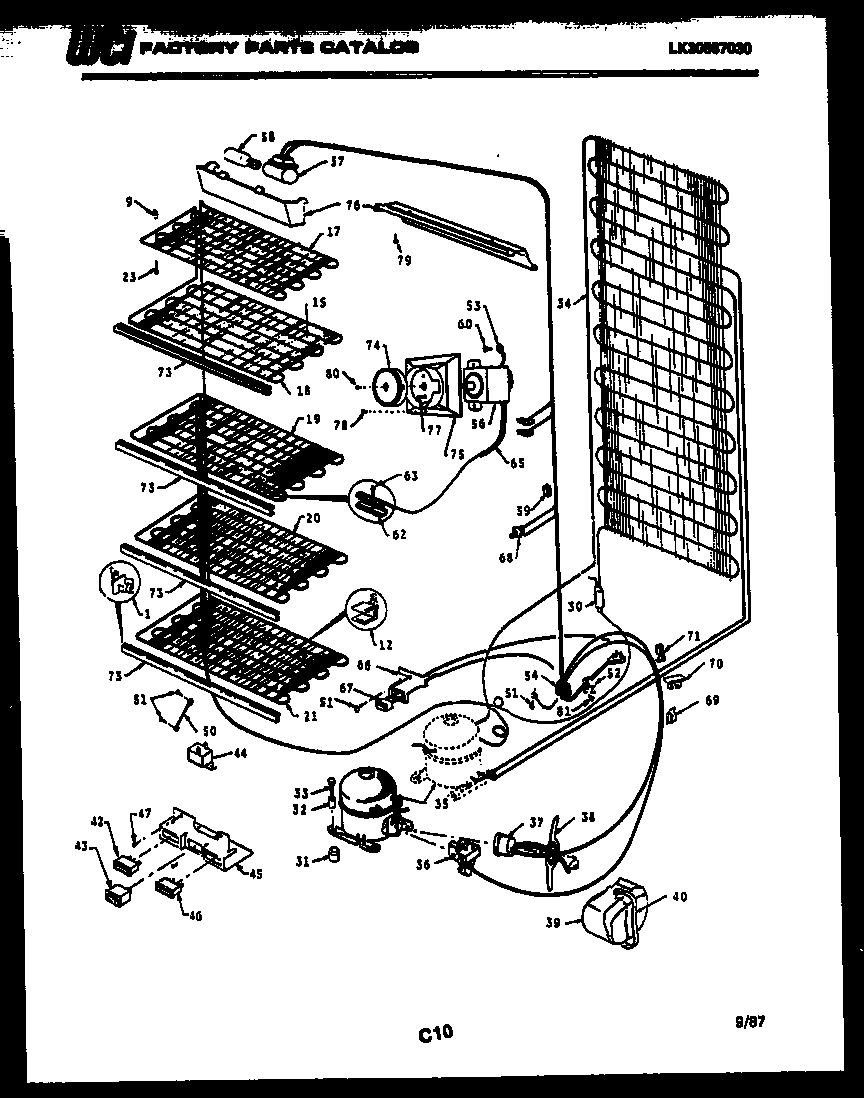

04 - SYSTEM AND ELECTRICAL PARTS
Common parts from model Electrolux UFS160DM2W FREEZER
1
WCI F129295-S WCI F129295-S Contact Us For Availability
2
HANDLE WCI F128857 Contact Us For Availability
8
PLATE WCI F128678 Contact Us For Availability
9
SPACER FRNT WCI F81445 Contact Us For Availability
10
SCREW WCI F110462 Contact Us For Availability
12
SUPPORT REAR WCI F117447 Contact Us For Availability
14
CLAMP WCI F122718 Contact Us For Availability
15
HEAT EXCH. WCI F125249 Contact Us For Availability
16
WCI F128823 WCI F128823 Contact Us For Availability
17
WCI F128824 WCI F128824 Contact Us For Availability
17
WCI F121179 WCI F121179 Contact Us For Availability
18
TAPE (NON-ILLUSTRATED) WCI F129706 Contact Us For Availability
18
SHELF, FIRST WCI F129785 Contact Us For Availability
19
SHELF, SECOND WCI F129807 Contact Us For Availability
21
SHELF BTM WCI F129786 Contact Us For Availability
22
WCI F124572-64 WCI F124572-64 Contact Us For Availability
23
INSULATION WCI F58187 Contact Us For Availability
23
SCREW WCI F126260 Contact Us For Availability
24
CLOSER DOOR WCI F124610 Contact Us For Availability
25
BEARING HNG (3) WCI F57523 Contact Us For Availability
26
HINGE, BTM WCI F84943 Contact Us For Availability
27
WCI F120978 WCI F120978 Contact Us For Availability
28
FRNT SHELF (5) WCI F129681 Contact Us For Availability
28
PLATE BTM WCI F84948 Contact Us For Availability
32
PLATE-TOP WCI F93207 Contact Us For Availability
32
SLEEVE WCI F59556 Contact Us For Availability
33
WCI F300271 WCI F300271 Contact Us For Availability
33
SCREW WCI F59211 Contact Us For Availability
35
SCREW WCI F94110 Contact Us For Availability
35
WCI F127169 WCI F127169 Contact Us For Availability
36
SCREW WCI F300459 Contact Us For Availability
36
WCI F127165 WCI F127165 Contact Us For Availability
37
WCI F127166 WCI F127166 Contact Us For Availability
38
CLIP WCI F117104 Contact Us For Availability
40
BEARING, TOP WCI F84893 Contact Us For Availability
40
CATCH LATCH WCI F117634 Contact Us For Availability
41
PLATE WCI F91170 Contact Us For Availability
42
STOP DOOR WCI F84896 Contact Us For Availability
42
SIGNAL LITE-AMBER WCI F128520 Contact Us For Availability
43
SCREW WCI F121387 Contact Us For Availability
43
WCI F128517 WCI F128517 Contact Us For Availability
44
LOCK WCI F300788 Contact Us For Availability
44
WCI F128518 WCI F128518 Contact Us For Availability
45
WASHER WCI F114366 Contact Us For Availability
45
BRACKET WCI F129965 Contact Us For Availability
46
WCI F124455 WCI F124455 Contact Us For Availability
46
SIGNAL LITE-RED WCI F128519 Contact Us For Availability
47
INSULATION WCI F116171-50 Contact Us For Availability
47
WCI F81693 WCI F81693 Contact Us For Availability
48
HARN. ALARM (NON-ILLUSTRATED) WCI F300210 Contact Us For Availability
49
AIR DUCT WCI F128421 Contact Us For Availability
50
INSULATION WCI F116277 Contact Us For Availability
50
GRND WIRE WCI F95424 Contact Us For Availability
51
WIRE ADJ. WCI F129667 Contact Us For Availability
52
WCI F57880 WCI F57880 Contact Us For Availability
53
SCREW WCI F57906 Contact Us For Availability
53
GRND WIRE WCI F125347 Contact Us For Availability
54
WASHER WCI F119827 Contact Us For Availability
54
WCI F129551 WCI F129551 Contact Us For Availability
55
GASKET WCI F125007 Contact Us For Availability
56
CLIP WCI F126240 Contact Us For Availability
56
CONTROL, TEMP. WCI F126974 Contact Us For Availability
57
SCREW WCI F124860 Contact Us For Availability
57
SPACER WCI F86536 Contact Us For Availability
57
SOCKET WCI F115515 Contact Us For Availability
58
WCI F99439 WCI F99439 Contact Us For Availability
58
WCI F121239-64 WCI F121239-64 Contact Us For Availability
58
BULB WCI F92472 Contact Us For Availability
59
BREAKER BTM WCI F121241-64 Contact Us For Availability
59
RETAINER WCI F112321 Contact Us For Availability
60
WCI F300738 WCI F300738 Contact Us For Availability
61
BREAKER WCI F121320-64 Contact Us For Availability
62
CLAMP WCI F96850 Contact Us For Availability
63
WCI F91169 WCI F91169 Contact Us For Availability
63
SCREW WCI F52943 Contact Us For Availability
65
SUPT RH WCI F81200 Contact Us For Availability
66
SUPT RH WCI F81210 Contact Us For Availability
67
SUPT LH WCI F81201 Contact Us For Availability
68
SUPT LH WCI F81211 Contact Us For Availability
69
WCI F121409 WCI F121409 Contact Us For Availability
69
CLIP WCI F117388 Contact Us For Availability
70
WCI F82572 WCI F82572 Contact Us For Availability
70
CLIP WCI F111846 Contact Us For Availability
71
RACK WCI F128379 Contact Us For Availability
71
CLIP WCI F85415 Contact Us For Availability
73
TRIM WCI F300385 Contact Us For Availability
74
KNOB WCI F127717 Contact Us For Availability
75
HOUSING WCI F128633 Contact Us For Availability
76
SHIELD LIGHT WCI F128861 Contact Us For Availability
77
SCREW WCI F55160 Contact Us For Availability
80
SCREW WCI F110410 Contact Us For Availability
83
HSG SENSOR WCI F129186 Contact Us For Availability
84
WCI F300169 WCI F300169 Contact Us For Availability
90
PIN WCI F118001 Contact Us For Availability
91
WCI F128869 WCI F128869 Contact Us For Availability
92
WCI F118003 WCI F118003 Contact Us For Availability
× ![]()
