Model Electrolux UFPF101LD1 FREEZER – Common Parts & Diagrams

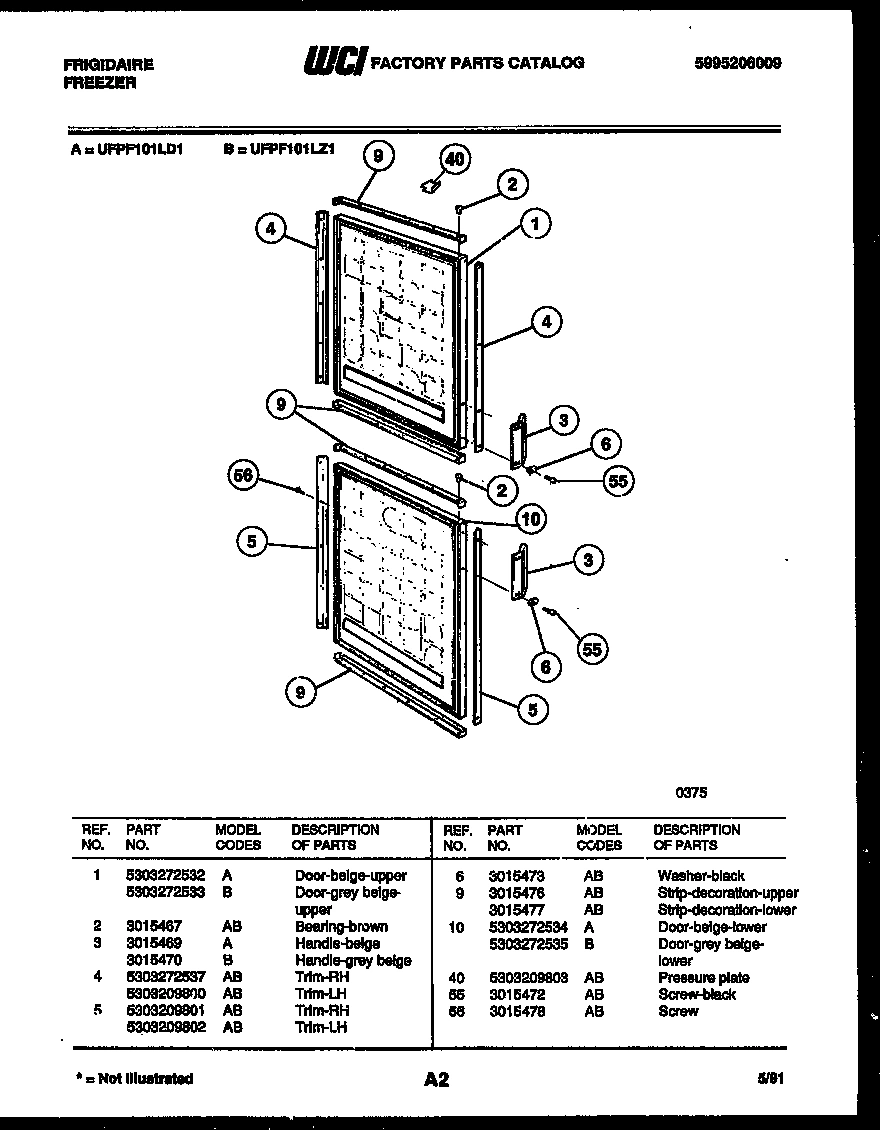

02 - DOOR PARTS

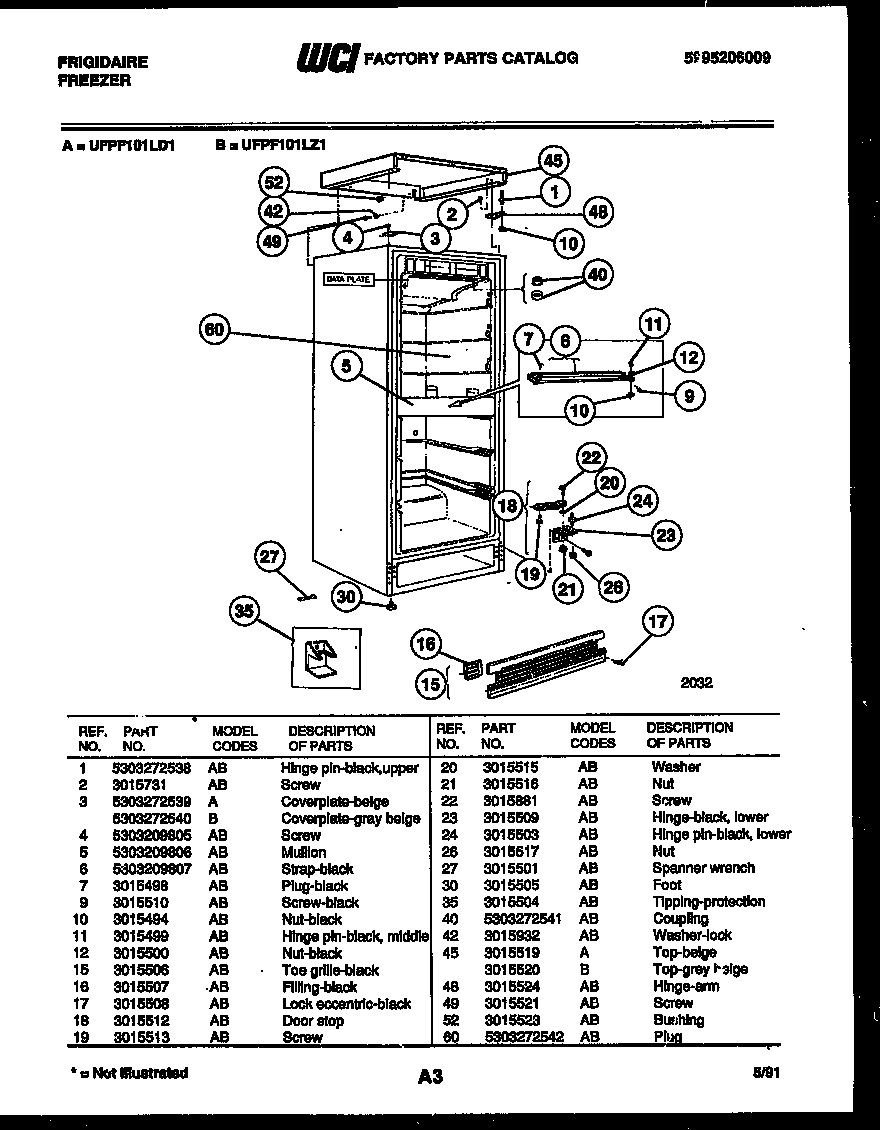

03 - CABINET PARTS

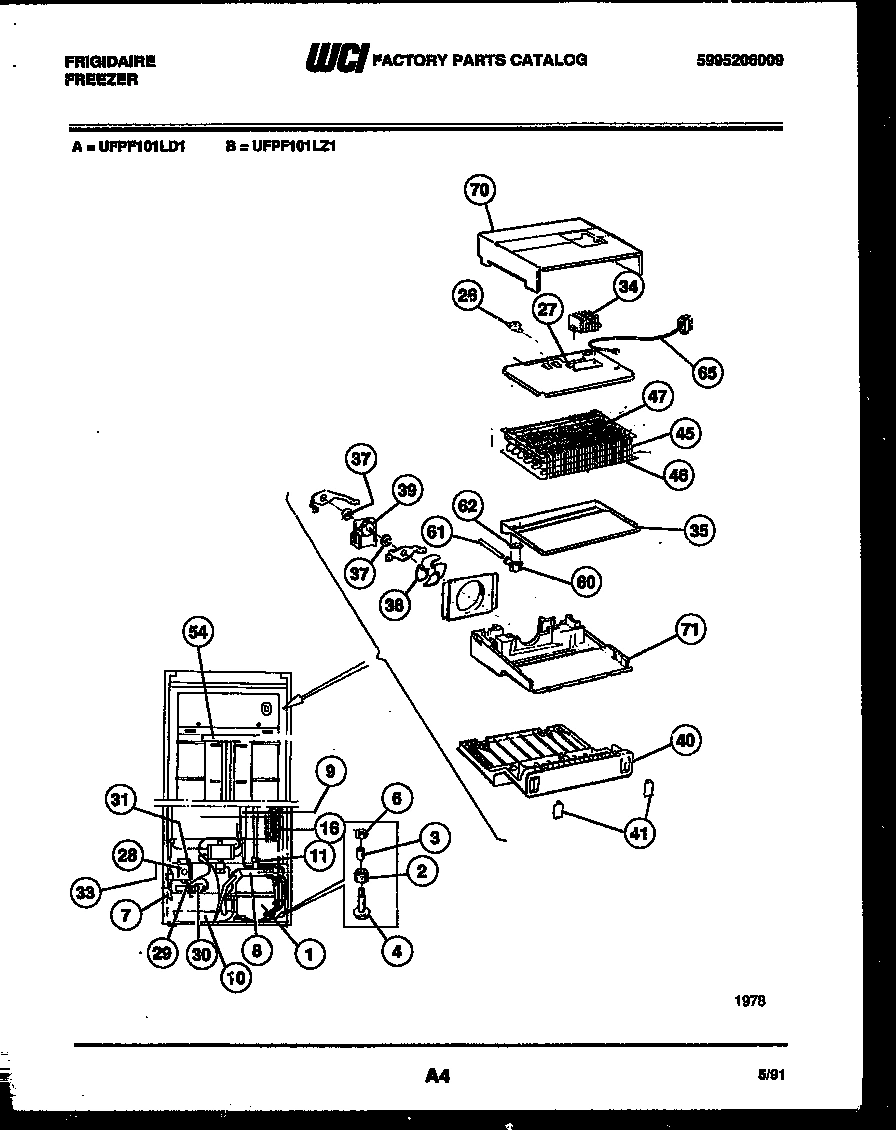

04 - SYSTEM AND AUTOMATIC DEFROST PARTS

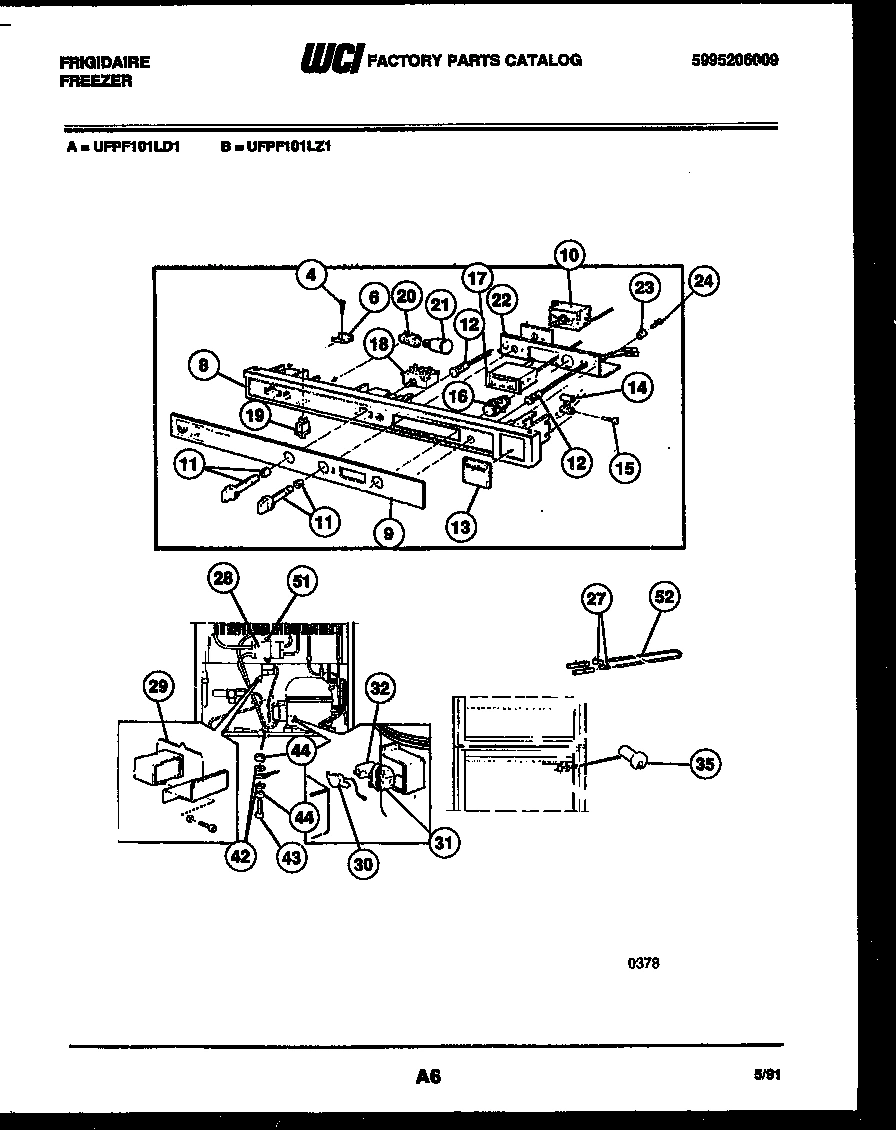

05 - SYSTEM AND CONTROL PARTS

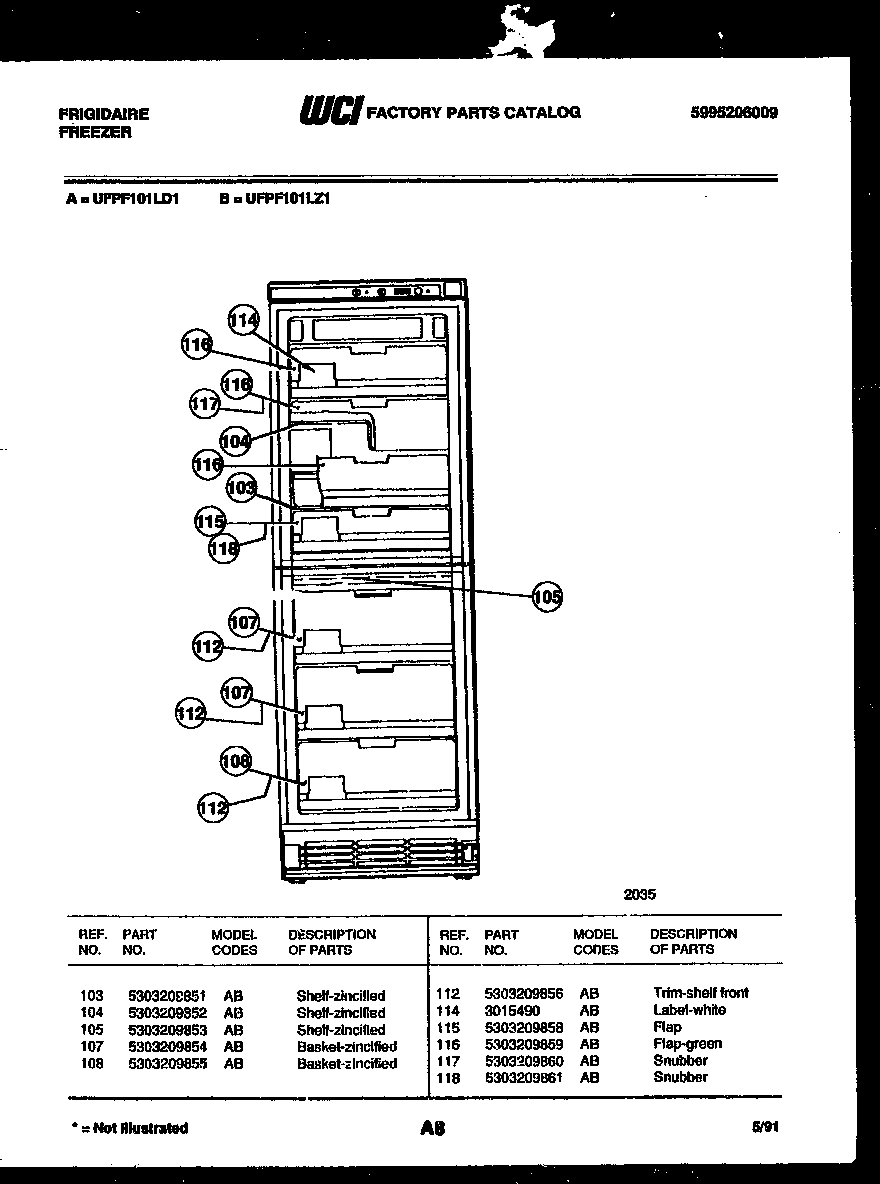

06 - SHELVES AND SUPPORTS

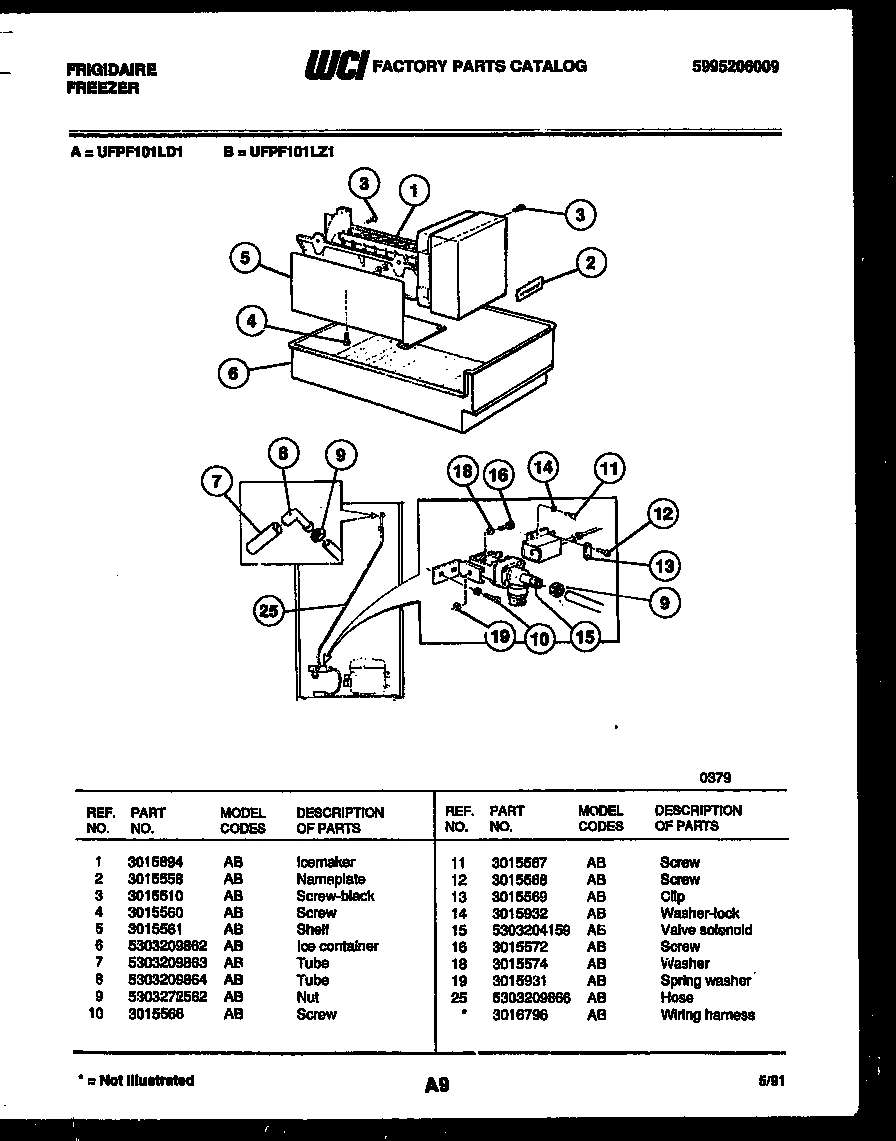

07 - ICE MAKER PARTS
Common parts from model Electrolux UFPF101LD1 FREEZER
*44799
WIRING HARNESS WCI 3016796 Contact Us For Availability
1
HINGE PIN-BLACK, UPPER WCI 5303272538 Contact Us For Availability
1
WCI 5303916012 WCI 5303916012 Contact Us For Availability
1
WCI 3015894 WCI 3015894 Contact Us For Availability
2
BEARING (BROWN) WCI 3015467 Contact Us For Availability
2
SCREW WCI 3015731 Contact Us For Availability
2
NAMEPLATE WCI 3015558 Contact Us For Availability
3
SPACER WCI 5306594529 Contact Us For Availability
3
HANDLE-BEIGE WCI 3015469 Contact Us For Availability
3
WCI 5303272539 WCI 5303272539 Contact Us For Availability
3
SCREW-BLACK WCI 3015510 Contact Us For Availability
4
TRIM-RH WCI 5303272537 Contact Us For Availability
4
SCREW WCI 5303209805 Contact Us For Availability
4
WCI 08002679 WCI 08002679 Contact Us For Availability
4
WCI 5303209845 WCI 5303209845 Contact Us For Availability
4
SCREW WCI 3015560 Contact Us For Availability
4A
TRIM-LH WCI 5303209800 Contact Us For Availability
5
TRIM-RH WCI 5303209801 Contact Us For Availability
5
WCI 5303209806 WCI 5303209806 Contact Us For Availability
5
WCI 3015561 WCI 3015561 Contact Us For Availability
5A
TRIM-LH WCI 5303209802 Contact Us For Availability
6
WASHER-BLACK WCI 3015473 Contact Us For Availability
6
WCI 5303209807 WCI 5303209807 Contact Us For Availability
6
WCI 3015930 WCI 3015930 Contact Us For Availability
6
WCI 3015525 WCI 3015525 Contact Us For Availability
6
WCI 5303209862 WCI 5303209862 Contact Us For Availability
7
WCI 3015498 WCI 3015498 Contact Us For Availability
7
WCI 5303209863 WCI 5303209863 Contact Us For Availability
8
WCI 5303209811 WCI 5303209811 Contact Us For Availability
8
WCI 3015527 WCI 3015527 Contact Us For Availability
8
WCI 5303209864 WCI 5303209864 Contact Us For Availability
9
STRIP-DECORATION-UPPER WCI 3015476 Contact Us For Availability
9
WCI 5303209813 WCI 5303209813 Contact Us For Availability
9
WCI 5303272558 WCI 5303272558 Contact Us For Availability
9
WCI 5303272562 WCI 5303272562 Contact Us For Availability
9A
STRIP-DECORATION-LOWER WCI 3015477 Contact Us For Availability
10
WCI 5303272534 WCI 5303272534 Contact Us For Availability
10
NUT-BLACK WCI 3015494 Contact Us For Availability
10
WCI 5303209816 WCI 5303209816 Contact Us For Availability
10
WCI 3015889 WCI 3015889 Contact Us For Availability
10
SCREW WCI 3015566 Contact Us For Availability
11
HINGE PIN-BLACK MIDDLE WCI 3015499 Contact Us For Availability
11
WCI 5303209817 WCI 5303209817 Contact Us For Availability
11
KNOB-THERMOSTAT-BLACK WCI 5303015530 Contact Us For Availability
11
WCI 3015567 WCI 3015567 Contact Us For Availability
12
NUT-BLACK WCI 3015500 Contact Us For Availability
12
WCI 3015531 WCI 3015531 Contact Us For Availability
12
LAMP-GREEN, 110 V WCI 5303015532 Contact Us For Availability
12
SCREW WCI 3015568 Contact Us For Availability
13
WCI 3015533 WCI 3015533 Contact Us For Availability
13
CLIP WCI 3015569 Contact Us For Availability
14
WCI 3015932 WCI 3015932 Contact Us For Availability
14
WCI 5303272544 WCI 5303272544 Contact Us For Availability
14
ANTI-STRAIN CLIP WCI 3015534 Contact Us For Availability
15
TOE GRILLE-BLACK WCI 3015506 Contact Us For Availability
15
SCREW-STAINLESS WCI 3015535 Contact Us For Availability
15
VALVE SOLENOID WCI 5303204159 Contact Us For Availability
16
WCI 3015507 WCI 3015507 Contact Us For Availability
16
WCI 3015578 WCI 3015578 Contact Us For Availability
16
WCI 3015536 WCI 3015536 Contact Us For Availability
16
SCREW WCI 3015572 Contact Us For Availability
17
WCI 3015508 WCI 3015508 Contact Us For Availability
17
WCI 3015537 WCI 3015537 Contact Us For Availability
18
DOOR STOP WCI 3015512 Contact Us For Availability
18
WCI 3015538 WCI 3015538 Contact Us For Availability
18
WASHER WCI 3015574 Contact Us For Availability
19
WCI 3015513 WCI 3015513 Contact Us For Availability
19
WCI 3015539 WCI 3015539 Contact Us For Availability
19
SPRING WASHER WCI 3015931 Contact Us For Availability
20
WCI 3015515 WCI 3015515 Contact Us For Availability
20
INSTRUCTIONS-ICE MAKER WCI 3015935 Contact Us For Availability
20
SOCKET WCI 3015540 Contact Us For Availability
21
WCI 3015516 WCI 3015516 Contact Us For Availability
21
BULB WCI 3015541 Contact Us For Availability
22
WCI 3015881 WCI 3015881 Contact Us For Availability
22
WCI 3015542 WCI 3015542 Contact Us For Availability
23
HINGE-BLACK LOWER WCI 3015509 Contact Us For Availability
23
WCI 3015543 WCI 3015543 Contact Us For Availability
24
HINGE PIN-BLACK LOWER WCI 3015503 Contact Us For Availability
24
WCI 5303209848 WCI 5303209848 Contact Us For Availability
25
WCI 5303272545 WCI 5303272545 Contact Us For Availability
25
WCI 5303209866 WCI 5303209866 Contact Us For Availability
26
WCI 3015517 WCI 3015517 Contact Us For Availability
26
WCI 5303272546 WCI 5303272546 Contact Us For Availability
27
SPANNER WRENCH WCI 3015501 Contact Us For Availability
27
WCI 5303209819 WCI 5303209819 Contact Us For Availability
27
COUPLING WCI 3015547 Contact Us For Availability
28
WCI 5303209820 WCI 5303209820 Contact Us For Availability
28
WCI 5303272559 WCI 5303272559 Contact Us For Availability
29
WCI 5303209821 WCI 5303209821 Contact Us For Availability
29
WCI 3015549 WCI 3015549 Contact Us For Availability
30
FOOT WCI 3015505 Contact Us For Availability
30
WCI 5303209822 WCI 5303209822 Contact Us For Availability
30
WCI 5308017532 WCI 5308017532 Contact Us For Availability
31
WCI 5303209823 WCI 5303209823 Contact Us For Availability
31
WCI 5303017753 WCI 5303017753 Contact Us For Availability
33
WCI 5303209824 WCI 5303209824 Contact Us For Availability
34
WCI 5303272547 WCI 5303272547 Contact Us For Availability
35
WCI 3015504 WCI 3015504 Contact Us For Availability
35
WCI 5303209826 WCI 5303209826 Contact Us For Availability
35
WCI 3015555 WCI 3015555 Contact Us For Availability
37
WCI 5303209827 WCI 5303209827 Contact Us For Availability
38
WCI 5303209828 WCI 5303209828 Contact Us For Availability
39
WCI 5303209829 WCI 5303209829 Contact Us For Availability
40
WCI 5303209803 WCI 5303209803 Contact Us For Availability
40
WCI 5303272541 WCI 5303272541 Contact Us For Availability
40
WCI 5303209830 WCI 5303209830 Contact Us For Availability
41
WCI 5303209831 WCI 5303209831 Contact Us For Availability
43
WCI 3015553 WCI 3015553 Contact Us For Availability
44
WCI 3015554 WCI 3015554 Contact Us For Availability
45
WCI 3015519 WCI 3015519 Contact Us For Availability
45
WCI 5303209832 WCI 5303209832 Contact Us For Availability
46
WCI 5303272548 WCI 5303272548 Contact Us For Availability
47
WCI 5303272549 WCI 5303272549 Contact Us For Availability
48
WCI 3015524 WCI 3015524 Contact Us For Availability
49
WCI 3015521 WCI 3015521 Contact Us For Availability
51
WCI 5303209850 WCI 5303209850 Contact Us For Availability
52
WCI 3015523 WCI 3015523 Contact Us For Availability
52
WCI 5303272560 WCI 5303272560 Contact Us For Availability
54
WCI 5303209838 WCI 5303209838 Contact Us For Availability
55
WCI 3015472 WCI 3015472 Contact Us For Availability
56
WCI 3015478 WCI 3015478 Contact Us For Availability
60
WCI 5303272542 WCI 5303272542 Contact Us For Availability
60
WCI 5303209839 WCI 5303209839 Contact Us For Availability
61
WCI 5303209840 WCI 5303209840 Contact Us For Availability
62
WCI 5303209841 WCI 5303209841 Contact Us For Availability
65
WCI 5303209842 WCI 5303209842 Contact Us For Availability
70
WCI 5303209843 WCI 5303209843 Contact Us For Availability
71
WCI 5303209844 WCI 5303209844 Contact Us For Availability
103
WCI 5303209851 WCI 5303209851 Contact Us For Availability
104
WCI 5303209852 WCI 5303209852 Contact Us For Availability
105
WCI 5303209853 WCI 5303209853 Contact Us For Availability
107
WCI 5303209854 WCI 5303209854 Contact Us For Availability
108
WCI 5303209855 WCI 5303209855 Contact Us For Availability
112
WCI 5303209856 WCI 5303209856 Contact Us For Availability
114
LABEL-WHITE WCI 3015490 Contact Us For Availability
115
WCI 5303209858 WCI 5303209858 Contact Us For Availability
116
WCI 5303209859 WCI 5303209859 Contact Us For Availability
117
WCI 5303209860 WCI 5303209860 Contact Us For Availability
118
WCI 5303209861 WCI 5303209861 Contact Us For Availability
× ![]()
