Model Electrolux UFP16NL3 FREEZER – Common Parts & Diagrams

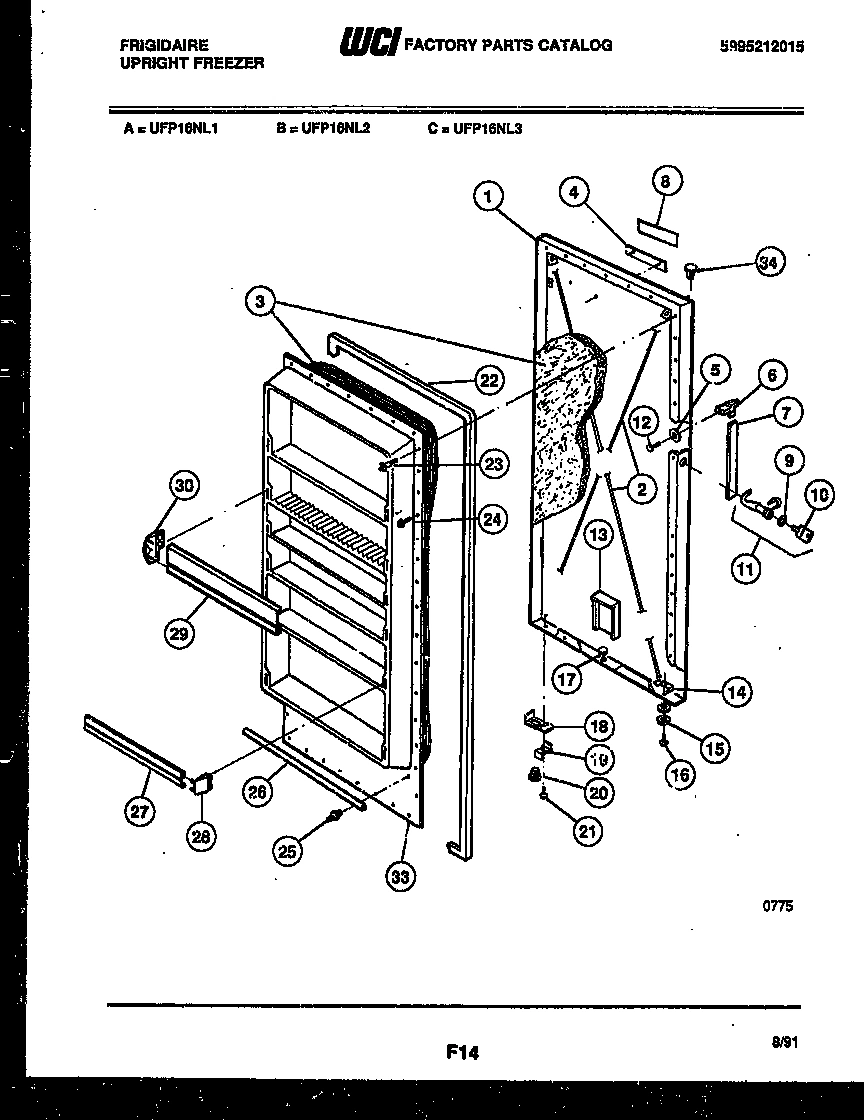

02 - DOOR PARTS

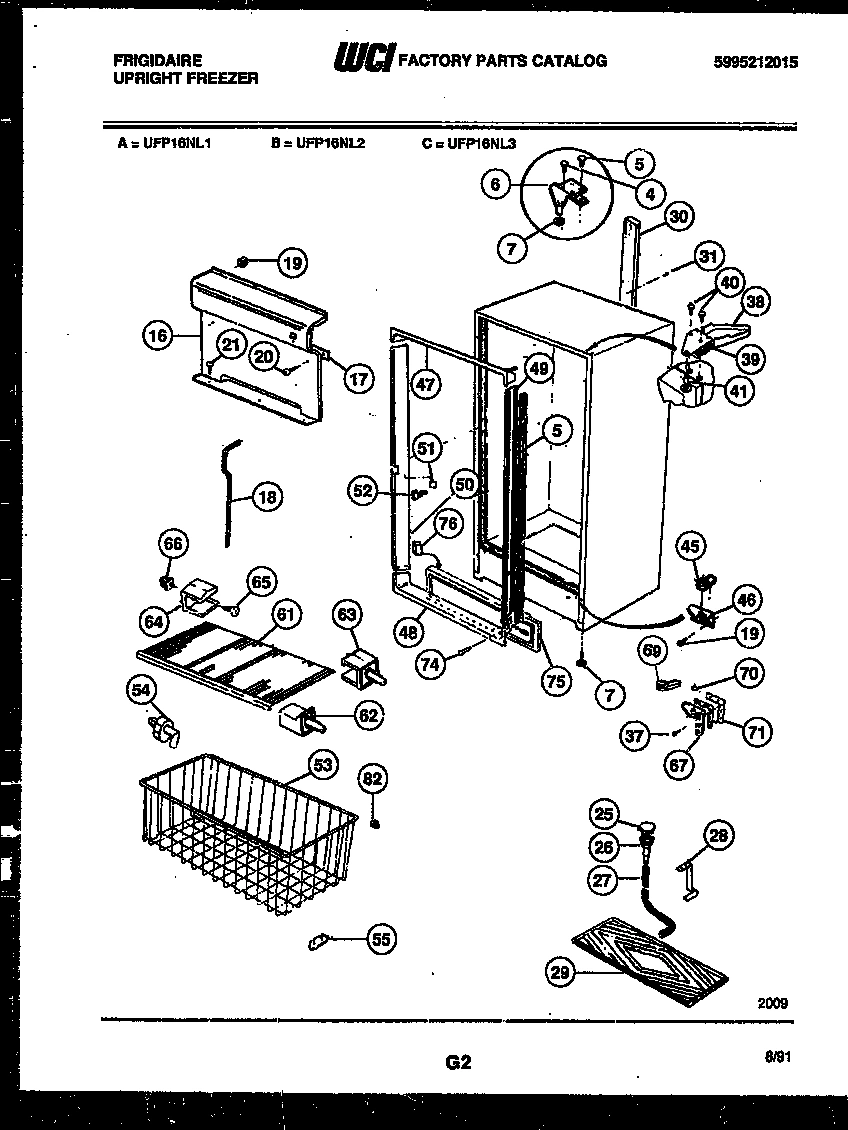

03 - CABINET PARTS

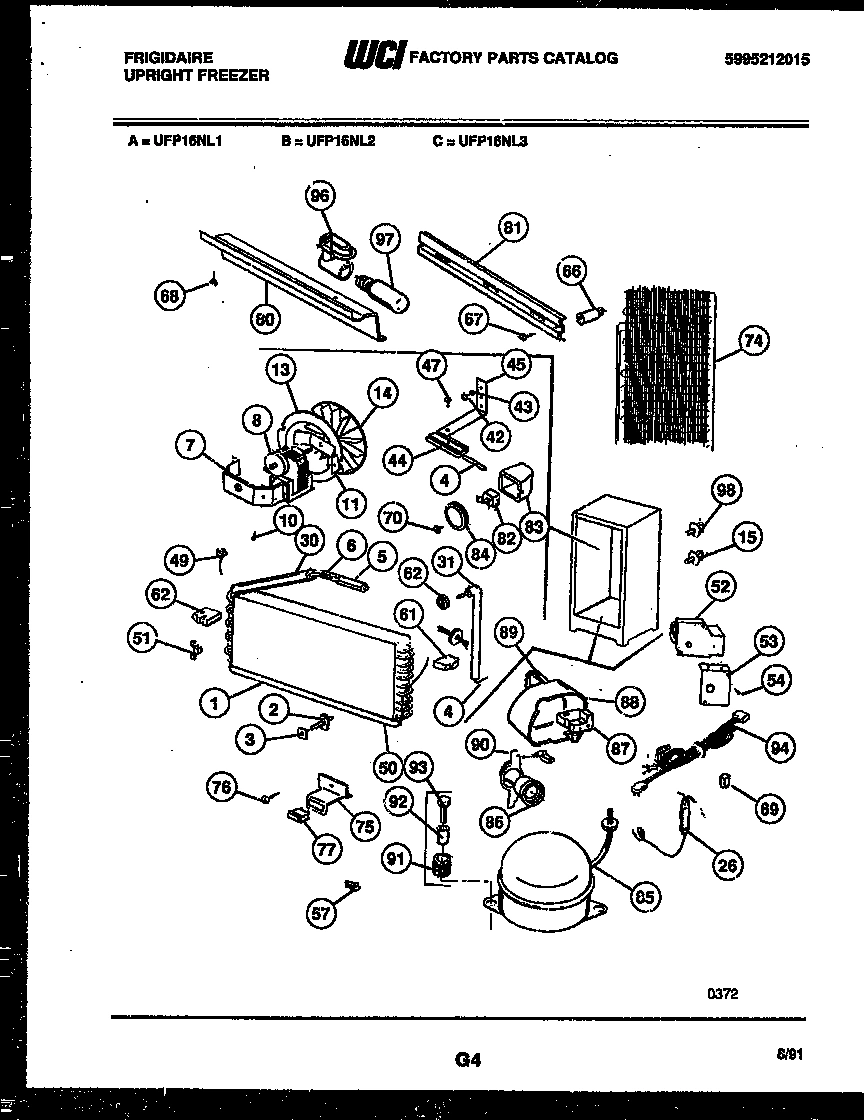

04 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux UFP16NL3 FREEZER
1
WCI 3205656 WCI 3205656 Contact Us For Availability
2
WCI 06599544 WCI 06599544 Contact Us For Availability
3
SPACER EVAPORATOR (2) WCI 08013198 Contact Us For Availability
4
WCI 3017673 WCI 3017673 Contact Us For Availability
5
WCI 09950831 WCI 09950831 Contact Us For Availability
5
SLEEVE-HEAT EXCH WCI F96886-1 Contact Us For Availability
6
WCI 08005176 WCI 08005176 Contact Us For Availability
7
LEG LEVELER WCI 5303205540 Contact Us For Availability
7
WCI 08013207 WCI 08013207 Contact Us For Availability
11
INNER BRACKET FAN WCI 08013203 Contact Us For Availability
13
VENT WCI 5300128421 Contact Us For Availability
14
WCI 05879859 WCI 05879859 Contact Us For Availability
14
FAN BLADE WCI 3205520 Contact Us For Availability
15
WASHER (2) WCI 09950839 Contact Us For Availability
16
WCI 05879860 WCI 05879860 Contact Us For Availability
16
PANEL-EVAPORATOR WCI 06599550 Contact Us For Availability
17
VENT WCI 5309950074 Contact Us For Availability
17
WCI 06599547 WCI 06599547 Contact Us For Availability
18
WCI F91170 WCI F91170 Contact Us For Availability
18
GASKET-PANEL WCI 5306599551 Contact Us For Availability
19
WCI 06593882 WCI 06593882 Contact Us For Availability
19
INSERT NUT (6) WCI 09948978 Contact Us For Availability
22
WCI 3206252 WCI 3206252 Contact Us For Availability
23
SCREW (24) WCI 08009384 Contact Us For Availability
26
GASKET WCI 5308016356 Contact Us For Availability
27
FRONT (4) WCI 3017747 Contact Us For Availability
28
WCI 06594637 WCI 06594637 Contact Us For Availability
29
FRONT (1) WCI 3017744 Contact Us For Availability
29
DEFROST PAN WCI 5308016387 Contact Us For Availability
30
INSERT RH (1) WCI 5308015539 Contact Us For Availability
30
WCI F91583-S WCI F91583-S Contact Us For Availability
30
WCI 06594625 WCI 06594625 Contact Us For Availability
30A
INSERT LH (1) WCI 5308015540 Contact Us For Availability
30B
WCI 5303208463 WCI 5303208463 Contact Us For Availability
31
INSULATION WCI 09948773 Contact Us For Availability
31
WCI 06594661 WCI 06594661 Contact Us For Availability
34
WCI 5306593364 WCI 5306593364 Contact Us For Availability
35
DOOR CLOSER WCI 5303210424 Contact Us For Availability
36
WCI 5303210383 WCI 5303210383 Contact Us For Availability
38
WCI 5303210878 WCI 5303210878 Contact Us For Availability
39
WCI 5303210385 WCI 5303210385 Contact Us For Availability
40
SCREW-HINGE WCI 5303210386 Contact Us For Availability
41
WCI 5303210387 WCI 5303210387 Contact Us For Availability
43
WASHER BRACKET WCI F95480 Contact Us For Availability
44
WCI 05878562 WCI 05878562 Contact Us For Availability
45
WCI 06594601 WCI 06594601 Contact Us For Availability
46
WCI 06594680 WCI 06594680 Contact Us For Availability
47
BREAKER-TOP WCI 06594559 Contact Us For Availability
47
SCREW-CLAMP WCI F52943 Contact Us For Availability
48
BREAKER-BOTTOM WCI 06594560 Contact Us For Availability
49
WCI 5308037994 WCI 5308037994 Contact Us For Availability
50
BREAKER-LOCK SIDE WCI 06599857 Contact Us For Availability
50
WCI 08037422 WCI 08037422 Contact Us For Availability
51
WCI 5309949966 WCI 5309949966 Contact Us For Availability
53
WCI 08016580 WCI 08016580 Contact Us For Availability
54
WCI 09948791 No Longer Available
54
SCREW TIMER TO BRACKET WCI 08037849 Contact Us For Availability
55A
SPACERS-BASKET (4) (NON-ILLUSTRATED) WCI F129805 Contact Us For Availability
57
CLIP, COMPRESSOR WIRE WCI 05878556 Contact Us For Availability
61
WCI 08037963 WCI 08037963 Contact Us For Availability
61
AIR SEAL, RH WCI 06599531 Contact Us For Availability
61A
SHELF-LOWER (1) WCI 08037964 Contact Us For Availability
62
WCI 5306594706 WCI 5306594706 Contact Us For Availability
62
WCI 06599532 WCI 06599532 Contact Us For Availability
62A
WCI 5306594707 WCI 5306594707 Contact Us For Availability
63
SUPPORT, REAR (8) WCI 5306594584 Contact Us For Availability
63
WCI 06594629 WCI 06594629 Contact Us For Availability
64
WCI 5306594585 WCI 5306594585 Contact Us For Availability
65
WCI 08005520 WCI 08005520 Contact Us For Availability
66
WCI 06594537 WCI 06594537 Contact Us For Availability
66
SPACER BAFFLE PLATE (2) WCI 08000456 Contact Us For Availability
68
SCREW SHIELD (2) WCI F000012236 Contact Us For Availability
69
WCI 08037401 WCI 08037401 Contact Us For Availability
70
WCI 09950853 WCI 09950853 Contact Us For Availability
70A
WCI 06594651 WCI 06594651 Contact Us For Availability
74
PIN-TOE GRILLE (2) WCI 5309950066 Contact Us For Availability
75
WCI 08037840 WCI 08037840 Contact Us For Availability
75
BRACKET-SIGNAL LIGHT WCI 09948923 Contact Us For Availability
76
WCI 5300118003 WCI 5300118003 Contact Us For Availability
76
SCREW-BRACKET WCI 08037851 Contact Us For Availability
77
SIGNAL LIGHT-AMBER WCI 08037404 Contact Us For Availability
80
LIGHT SHIELD WCI 5308037987 Contact Us For Availability
81
WCI 5308000458 WCI 5308000458 Contact Us For Availability
82
WCI 5308037961 WCI 5308037961 Contact Us For Availability
83
WCI 5306599543 WCI 5306599543 Contact Us For Availability
84
WCI 08037429 WCI 08037429 Contact Us For Availability
85
COMPRESSOR W/ ELECTRICALS WCI 5303916020 Contact Us For Availability
86
WCI 3204568 WCI 3204568 Contact Us For Availability
92
SLEEVE COMPRESSOR (3) WCI 5306594529 Contact Us For Availability
93
SCREW COMPRESSOR (3) WCI 08002679 Contact Us For Availability
94
WCI 08013201 WCI 08013201 Contact Us For Availability
96
SOCKET WCI 5300136117 Contact Us For Availability
× ![]()
