Model GE UFNE5BJP115TW01 General Electric Model UFNE5BJP115TW01 – Common Parts & Diagrams

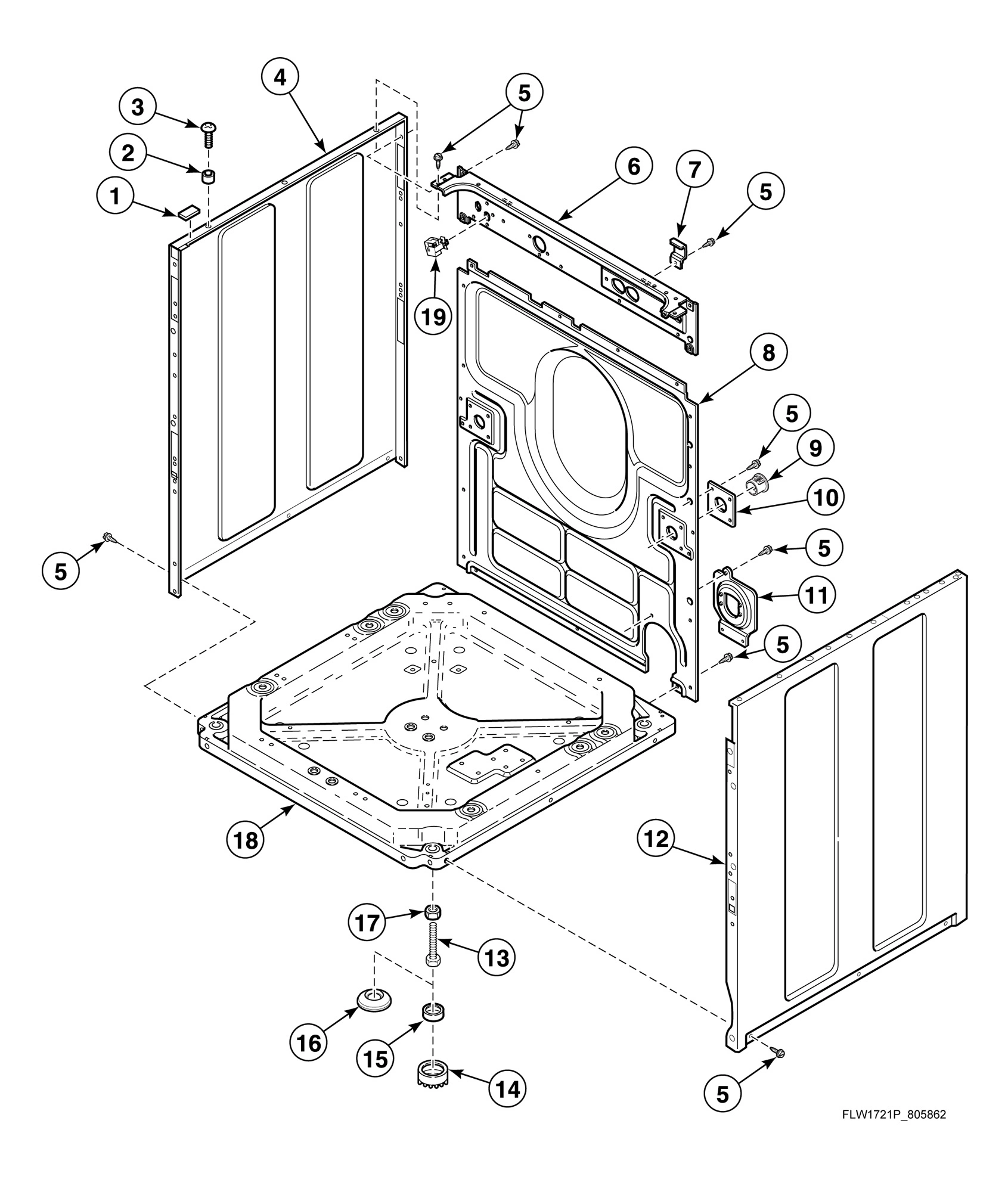

Washer Base, Side Panels and Rear Panel

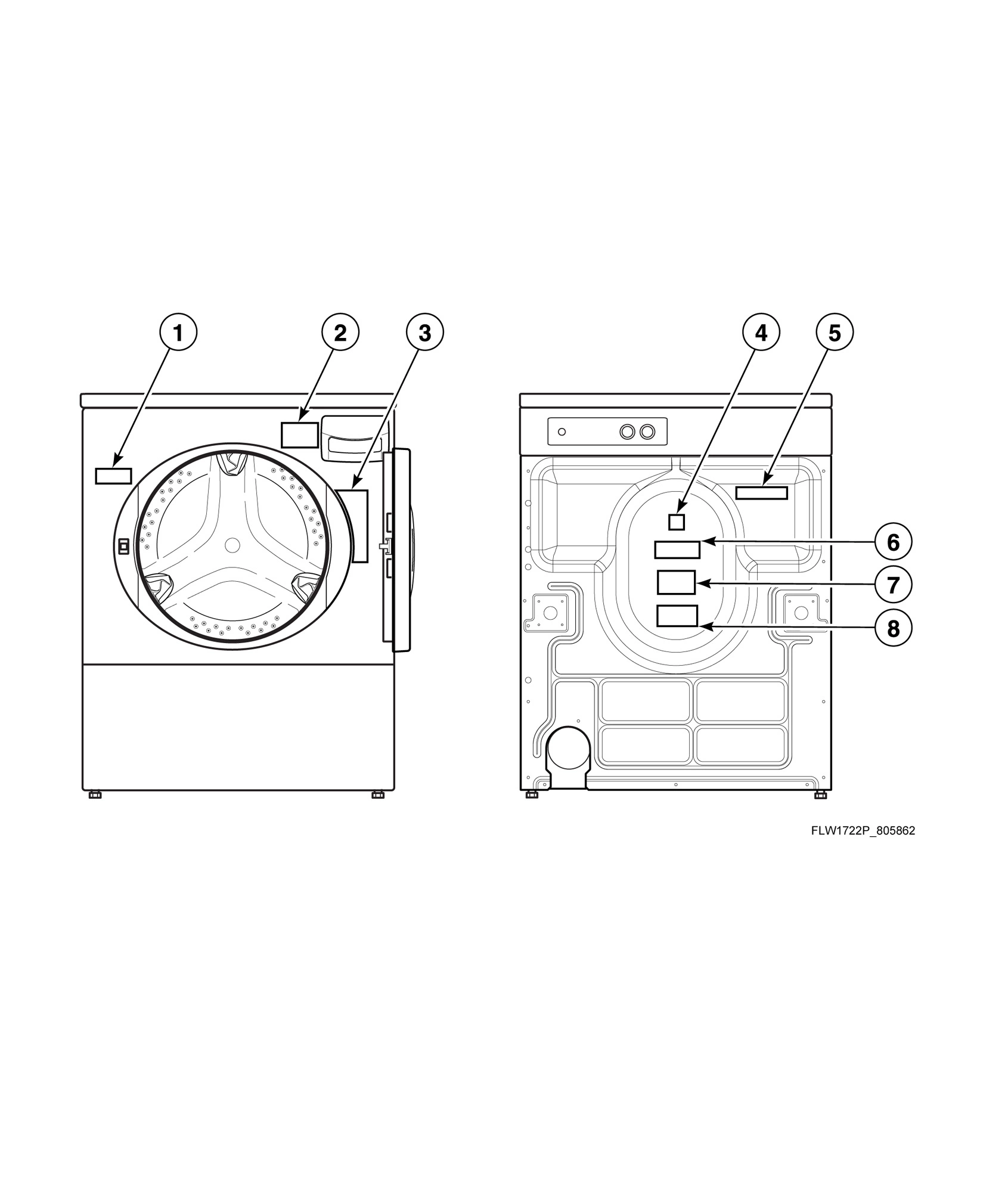

Washer Labels
Wire Harnesses and Wires
Wire Ties, Clips and Lead-In Cord
Common parts from model GE UFNE5BJP115TW01 General Electric Model UFNE5BJP115TW01
1
Notice Label GEN 803011 Contact Us For Availability
1
Front Control Harness GEN 806031 Contact Us For Availability
1
Wire Tie GEN 38663 Contact Us For Availability
2
Panel Locator GEN 56079 Contact Us For Availability
2
Oversudsing Label (Comment: English) GEN 802074 Contact Us For Availability
2
Oversudsing Label (Comment: Spanish) GEN 802838 Contact Us For Availability
2
Pressure Sensor Harness GEN 804433 Contact Us For Availability
2
Harness Strap GEN 55881 Contact Us For Availability
3
Screw (Comment: Use with painted panels) GEN 39733 Contact Us For Availability
3
Screw (Comment: Use with stainless steel pane GEN 806276 Contact Us For Availability
3
Warning Label (Comment: English, Reduce fire GEN 802367 Contact Us For Availability
3
Warning Label (Comment: Brazilian Portuguese, GEN 804500 Contact Us For Availability
3
Warning Label (Comment: Arabic, Reduce fire r GEN 804924 Contact Us For Availability
3
Warning Label (Comment: Japanese, Reduce fire GEN 805962 Contact Us For Availability
3
Warning Label (Comment: Chinese, Reduce fire GEN 805964 Contact Us For Availability
3
Warning Label (Comment: Korean, Reduce fire r GEN 805965 Contact Us For Availability
3
Warning Label (Comment: Thai, Reduce fire ris GEN 805966 Contact Us For Availability
3
Warning Label (Comment: Vietnamese, Reduce fi GEN 806550 Contact Us For Availability
3
Motor Harness GEN 806029 Contact Us For Availability
3
Hose Clip GEN 36985 Contact Us For Availability
4
Cabinet Side Panel (Comment: Left, Gray) GEN 800004DG Contact Us For Availability
4
Cabinet Panel Kit (Comment: Left, White, Incl GEN 800004WP Contact Us For Availability
4
Cabinet Side Panel (Comment: Left, Stainless GEN 802525P Contact Us For Availability
4
Notice Label GEN D516073 Contact Us For Availability
4
Door Lock Harness Assembly GEN 806028 Contact Us For Availability
4
Nut GEN 03673 Contact Us For Availability
5
Screw GEN D503661 Contact Us For Availability
5
Caution Label (Comment: Icon, Ground machine) GEN 801706 Contact Us For Availability
5
Warning Label (Comment: Brazilian Portuguese, GEN 804582 Contact Us For Availability
5
Warning Label (Comment: English/French, Disco GEN D500316 Contact Us For Availability
5
Disconnect Power Warning Label (Comment: Engl GEN D505281 Contact Us For Availability
5
Washer GEN 03815 Contact Us For Availability
6
Rear Panel (Comment: Fixed, Through Serial No GEN 803790 Contact Us For Availability
6
Rear Panel (Comment: Fixed, Starting Serial N GEN 806716 Contact Us For Availability
6
Left Hand Thread Label (Comment: Text, Left h GEN 685928 Contact Us For Availability
6
Left Hand Thread Label (Comment: Icon, Left h GEN 804949 Contact Us For Availability
6
Screw GEN 20530 Contact Us For Availability
7
Warning Label (Comment: Text, Disconnect powe GEN 803260 Contact Us For Availability
7
Electrical Shock Label GEN F8211201 Contact Us For Availability
7
Strain Relief GEN 38384 Contact Us For Availability
8
NOT ON YOUR MODEL GEN - Contact Us For Availability
8
Rear Panel (Comment: Removable) GEN 803789 Contact Us For Availability
8
GEN D500049 GEN D500049 Contact Us For Availability
8
GEN D500314 GEN D500314 Contact Us For Availability
8
GEN F8211301 GEN F8211301 Contact Us For Availability
9
Shipping Plug GEN 803859 Contact Us For Availability
11
Drain Hose Bracket GEN 803828 Contact Us For Availability
12
Cabinet Side Panel (Comment: Right, Gray) GEN 800005DG Contact Us For Availability
12
Cabinet Side Panel (Comment: Right, Stainless GEN 802526P Contact Us For Availability
12
Side Panel Kit (Comment: Right, White) GEN 806492 Contact Us For Availability
13
Leveling Leg GEN 34319 Contact Us For Availability
14
Rubber Foot (Comment: Use to prevent movement GEN D501855 Contact Us For Availability
15
Rubber Foot GEN 34318 Contact Us For Availability
16
Anchor (Comment: Includes 4 rubber discs with GEN 155P3 Contact Us For Availability
16
Anchor Floor Mount Assembly (Comment: Include GEN 802844P Contact Us For Availability
17
Nut GEN 21899 Contact Us For Availability
18
Base Assembly GEN 803876 Contact Us For Availability
19
Pressure Sensor GEN 202470 Contact Us For Availability
NA
Porcelain Touch-Up Paint (Comment: White) GEN 122P4P Contact Us For Availability
NA
Paint (Comment: Gray GEN 806436P Contact Us For Availability
NA
18 Gauge Wire (Comment: Black, Order wire by GEN 45001 Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange, Order wire by GEN 45380 Contact Us For Availability
× ![]()
