Model Unimac UF85PV Washer – Common Parts & Diagrams

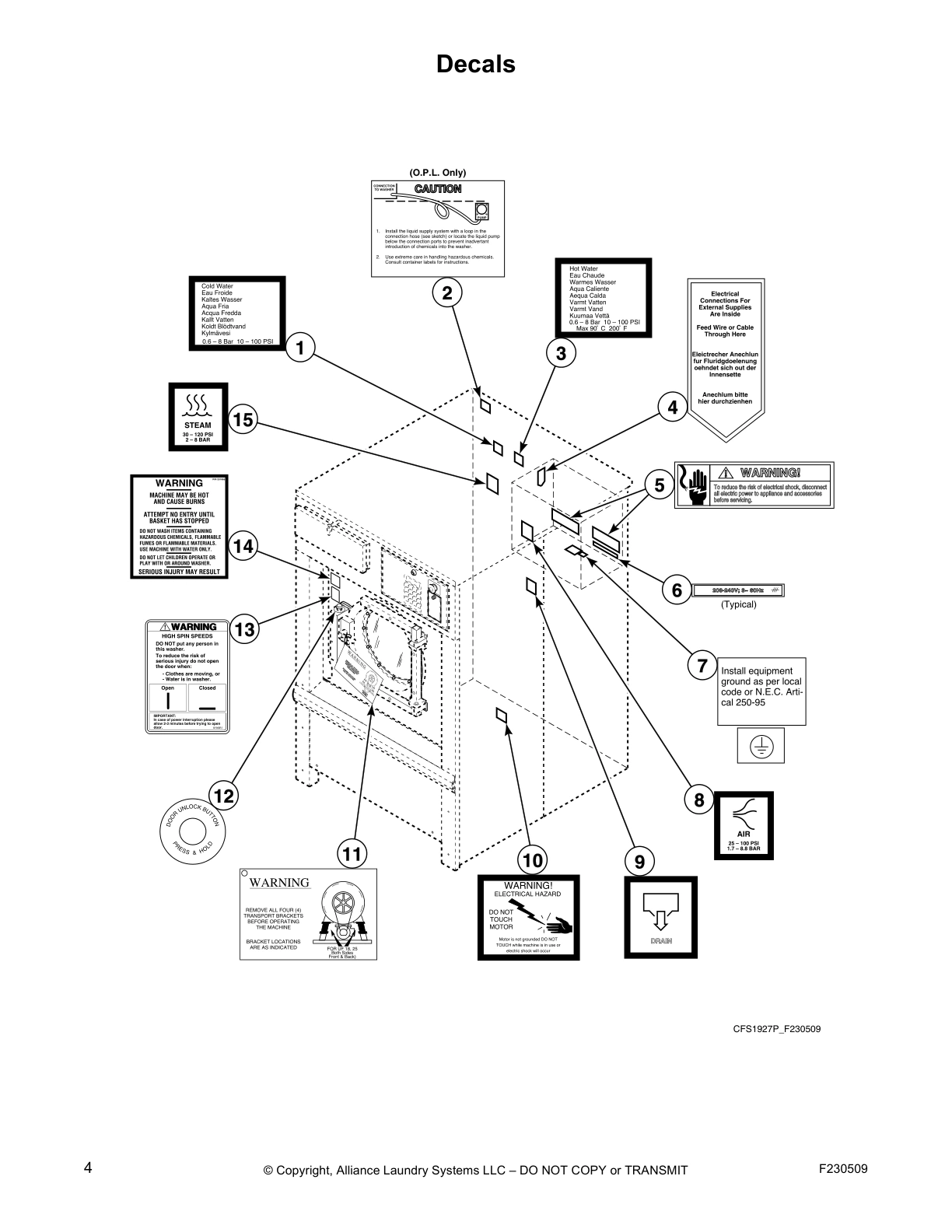

Decals

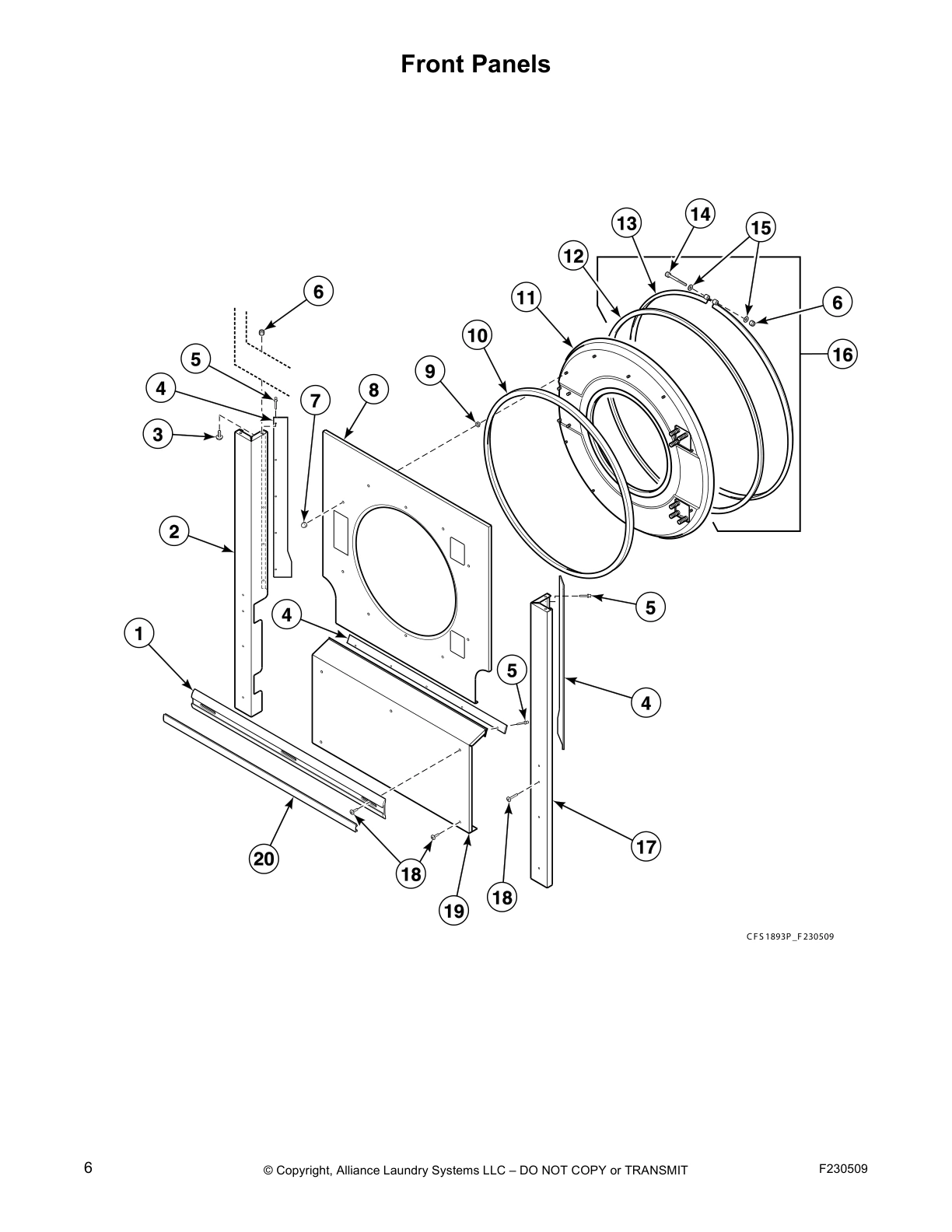

Front Panels
Side, Rear and Top Panels
Basket, Pulley, Belt and Trunnion (Drawing 1 of 2)
Basket, Pulley, Belt and Trunnion (Drawing 2 of 2)
Shell and Motor
Drive Box - Models BF85PV, SF85PV and UF85PV
Drive Box Cover - Models BF35PV, BF50PV, SF35PV, SF50PV,
UF35PV and UF50PV
Drive Box Cover - Models BF85PV, SF85PV and UF85PV
Supply Dispenser
Fill and Supply System - Models BF35PV, BF50PV, SF35PV,
SF50PV, UF35PV and UF50PV
Fill and Supply System - Models BF85PV, SF85PV and UF85PV
Hoses and Drain System
Door Assembly - Models BF35PV, SF35PV and UF35PV
Door Assembly - Models BF50PV, SF50PV and UF50PV
Door Assembly - Models BF85PV, SF85PV and UF85PV
Door Lock
Control Module Front
Control Module
Suspension System - Models BF35PV, SF35PV and UF35PV
Suspension System - Models BF50PV, SF50PV and UF50PV
Suspension System - Models BF85PV, SF85PV and UF85PV
Steam Heat Option
Electric Heat Option
Special Tools
Common parts from model Unimac UF85PV Washer
SPQ F150256 SPQ F150256 Contact Us For Availability
SPQ F280357 SPQ F280357 Contact Us For Availability
SPQ F605985F SPQ F605985F Contact Us For Availability
Shaft Sleeve SPQ F100251 Contact Us For Availability
SPQ F140219P SPQ F140219P Contact Us For Availability
Steam Hose SPQ F200153P Contact Us For Availability
1
Spring Pin SPQ F431222 Contact Us For Availability
1
Water Level Switch SPQ F0340345-10P Contact Us For Availability
1
Bolt SPQ F430952 Contact Us For Availability
1
Nut SPQ F430201 Contact Us For Availability
1
Pulley Bushing SPQ F280260 Contact Us For Availability
1
Supply Dispenser Weldment SPQ F607052-1 Contact Us For Availability
1
Door Handle SPQ F150225 Contact Us For Availability
1
Door Unlock Decal SPQ F230816 Contact Us For Availability
1
Module Face Weldment SPQ F631038 Contact Us For Availability
1
Ribbon Cable SPQ F140223P Contact Us For Availability
1
Street Elbow SPQ H86070034 Contact Us For Availability
1
Contactor SPQ F330187P Contact Us For Availability
1
Pulley Puller Weldment SPQ F608741 Contact Us For Availability
2
Trunnion Kit SPQ F280414P Contact Us For Availability
2
SPQ F430325 SPQ F430325 Contact Us For Availability
2
Strain Relief Connector SPQ F140331 Contact Us For Availability
2
Motor SPQ F220438 Contact Us For Availability
2
External Supply Caution Decal SPQ F330178P Contact Us For Availability
2
Gasket SPQ F170176 Contact Us For Availability
2
Supply Dispenser Cup SPQ F609663 Contact Us For Availability
2
Hose SPQ F140645 Contact Us For Availability
2
Hinge Shim SPQ F140563 Contact Us For Availability
2
Keypad Decal SPQ F430317 Contact Us For Availability
2
Nut SPQ F190217 Contact Us For Availability
2
Pulley Insertion Tool Kit SPQ F798004 Contact Us For Availability
3
Steam Valve Repair Kit SPQ F380984P Contact Us For Availability
3
SPQ F430986 SPQ F430986 Contact Us For Availability
3
SPQ F200213 SPQ F200213 Contact Us For Availability
3
Washer SPQ F730435 Contact Us For Availability
3
Pulley SPQ F280273 Contact Us For Availability
3
SPQ F430939 SPQ F430939 Contact Us For Availability
3
Plug SPQ F141873 Contact Us For Availability
3
Flange Relay SPQ F431113 Contact Us For Availability
3
SPQ F431907 SPQ F431907 Contact Us For Availability
3
Button Kit SPQ F340503P Contact Us For Availability
3
Lock Latch SPQ F200233500 Contact Us For Availability
3
Element SPQ F360205P Contact Us For Availability
4
AC Drive Box Cover SPQ F110106 Contact Us For Availability
4
Nut SPQ F8171201 Contact Us For Availability
4
Nut SPQ F280147 Contact Us For Availability
4
Strain Relief Connector SPQ F037083500 Contact Us For Availability
4
Lid Lock SPQ F606295 Contact Us For Availability
4
Nut SPQ F431024 Contact Us For Availability
4
SPQ F150415 SPQ F150415 Contact Us For Availability
4
Terminal SPQ F8069602 Contact Us For Availability
4
SPQ F630251 SPQ F630251 Contact Us For Availability
4
SPQ F430157 SPQ F430157 Contact Us For Availability
4
DIN Valve Kit SPQ F8521601 Contact Us For Availability
5
SPQ F430174 SPQ F430174 Contact Us For Availability
5
SPQ F430239 SPQ F430239 Contact Us For Availability
5
WE-6 Computer SPQ F190802P Contact Us For Availability
5
SPQ F200199P SPQ F200199P Contact Us For Availability
5
SPQ F602794-1 SPQ F602794-1 Contact Us For Availability
5
SPQ F280253 SPQ F280253 Contact Us For Availability
5
Door Lock Shim SPQ F8069902P Contact Us For Availability
5
SPQ F330227 SPQ F330227 Contact Us For Availability
5
Cable SPQ F140227 Contact Us For Availability
5
Element Plate SPQ F631740 Contact Us For Availability
6
SPQ F730168 SPQ F730168 Contact Us For Availability
6
SPQ F381725P SPQ F381725P Contact Us For Availability
6
SPQ F200172 SPQ F200172 Contact Us For Availability
6
Nut SPQ F370534-20P Contact Us For Availability
6
SPQ F140218P SPQ F140218P Contact Us For Availability
6
SPQ F430979 SPQ F430979 Contact Us For Availability
6
DIN Coil SPQ F380986P Contact Us For Availability
6
Sump Gasket SPQ F170179 Contact Us For Availability
7
Motor Spacer SPQ 70261401 Contact Us For Availability
7
SPQ F430179 SPQ F430179 Contact Us For Availability
7
Belt SPQ F430202 Contact Us For Availability
7
SPQ F607373 SPQ F607373 Contact Us For Availability
7
SPQ F609664 SPQ F609664 Contact Us For Availability
7
SPQ F200175 SPQ F200175 Contact Us For Availability
7
SPQ F633698 SPQ F633698 Contact Us For Availability
7
Switch Magnet SPQ F140766 Contact Us For Availability
7
SPQ F350110 SPQ F350110 Contact Us For Availability
7
Steam Connection Weldment SPQ F606575 Contact Us For Availability
8
Screw SPQ F430925 Contact Us For Availability
8
Pulley Cover Plate SPQ F100250P Contact Us For Availability
8
Screw SPQ F432289 Contact Us For Availability
8
SPQ F360125P SPQ F360125P Contact Us For Availability
8
SPQ F190209P SPQ F190209P Contact Us For Availability
8
SPQ F431105 SPQ F431105 Contact Us For Availability
8
SPQ F606563 SPQ F606563 Contact Us For Availability
8
SPQ F350109 SPQ F350109 Contact Us For Availability
8
SPQ F790503 SPQ F790503 Contact Us For Availability
9
Nut SPQ F430215 Contact Us For Availability
9
Pulley Key SPQ F150280 Contact Us For Availability
9
Screw SPQ F430947 Contact Us For Availability
9
SPQ F140526 SPQ F140526 Contact Us For Availability
9
SPQ F432231 SPQ F432231 Contact Us For Availability
9
SPQ F421964 SPQ F421964 Contact Us For Availability
9
SPQ F422517 SPQ F422517 Contact Us For Availability
9
SPQ F100145 SPQ F100145 Contact Us For Availability
9
SPQ F310133 SPQ F310133 Contact Us For Availability
9
SPQ F191101 SPQ F191101 Contact Us For Availability
9
SPQ F350108 SPQ F350108 Contact Us For Availability
9
SPQ F790502 SPQ F790502 Contact Us For Availability
10
Screw SPQ F430916 Contact Us For Availability
10
Motor Bushing SPQ F280242 Contact Us For Availability
10
Ground Decal SPQ F230630 Contact Us For Availability
10
Tee SPQ F420415 Contact Us For Availability
10
Pivot Lock Weldment SPQ F608536 Contact Us For Availability
10
Door Lock Cam SPQ F0150518-00 Contact Us For Availability
10
Contact Block Switch SPQ F200299500 Contact Us For Availability
10
12 Circuit Connector SPQ F141003 Contact Us For Availability
10
Washer SPQ F430332 Contact Us For Availability
10
Steam Injector Tube Assembly SPQ F8368201 Contact Us For Availability
11
Rear Cover SPQ F607335 Contact Us For Availability
11
Hose Clamp SPQ F200215 Contact Us For Availability
11
Idler Arm SPQ F430183 Contact Us For Availability
11
Ground Terminal Lug SPQ F231434 Contact Us For Availability
11
Washer SPQ F431125 Contact Us For Availability
11
Screw SPQ F432229 Contact Us For Availability
11
Bushing SPQ F280252 Contact Us For Availability
11
Screw SPQ F430921 Contact Us For Availability
11
Connector SPQ F140575P Contact Us For Availability
11
24 Circuit Connector SPQ F140622 Contact Us For Availability
11
Screw SPQ F430146 Contact Us For Availability
12
Side Panel SPQ F607339 Contact Us For Availability
12
Pulley SPQ F280275 Contact Us For Availability
12
Terminal Block SPQ F140734 Contact Us For Availability
12
Vent Hose SPQ F200170 Contact Us For Availability
12
Door Weldment SPQ F633692 Contact Us For Availability
12
Door Lock Bracket Weldment SPQ F8209801 Contact Us For Availability
12
Keymode Run/Program Switch SPQ F140576P Contact Us For Availability
12
Electrical Box Cover SPQ F141002 Contact Us For Availability
12
Shock Absorber SPQ F250500 Contact Us For Availability
12
Heating Element Plug SPQ F360202 Contact Us For Availability
13
Filter Retainer Guard SPQ F220900 Contact Us For Availability
13
External Supply Fuse Decal SPQ M413865 Contact Us For Availability
13
Idler Bushing Kit SPQ F280296P Contact Us For Availability
13
Lift-Off Hinge SPQ F190205P Contact Us For Availability
13
Fill Hose SPQ F200173 Contact Us For Availability
13
Cap Plug SPQ F190308 Contact Us For Availability
13
Spring SPQ F310107 Contact Us For Availability
13
Fuse Holder SPQ F340800P Contact Us For Availability
13
Screw SPQ F140623 Contact Us For Availability
13
Frame Assembly SPQ F250501 Contact Us For Availability
13
Standard Plate SPQ F631742 Contact Us For Availability
14
Filter SPQ F200318900P Contact Us For Availability
14
Fuse Holder SPQ F231271 Contact Us For Availability
14
Rocker Plug SPQ F180485 Contact Us For Availability
14
Supply Dispenser Gasket SPQ F431005 Contact Us For Availability
14
Screw SPQ F200217 Contact Us For Availability
14
Overflow Hose SPQ F150394 Contact Us For Availability
14
Door Gasket SPQ F8434803 Contact Us For Availability
14
Intermittent Duty Solenoid SPQ F300122P Contact Us For Availability
14
Sponge Rubber SPQ F350304P Contact Us For Availability
14
Switch SPQ F430148 Contact Us For Availability
15
End Anchor SPQ F0350312-10 Contact Us For Availability
15
Key SPQ F160562 Contact Us For Availability
15
Drain Support Bracket SPQ F606647 Contact Us For Availability
15
Buzzer SPQ F606543 Contact Us For Availability
15
Switch Extension SPQ F607313 Contact Us For Availability
16
Washer SPQ F431100 Contact Us For Availability
16
Cap Plug SPQ F330530 Contact Us For Availability
16
Terminal SPQ F8535601 Contact Us For Availability
16
Strain Relief Connector SPQ F140329 Contact Us For Availability
16
Door Lock Kit SPQ F730478 Contact Us For Availability
16
Screw SPQ F230785 Contact Us For Availability
17
Plug SPQ F150352 Contact Us For Availability
17
Rocker Plug SPQ F180486 Contact Us For Availability
17
Logo Decal SPQ F607060 Contact Us For Availability
17
Drain Valve SPQ F430103 Contact Us For Availability
17
Shell Front Cover SPQ F607386 Contact Us For Availability
17
Contact Block and Mounting Switch SPQ F340444 Contact Us For Availability
17
Fuse SPQ F430525 Contact Us For Availability
17
Ring-Grip Pin SPQ F300203P Contact Us For Availability
18
Drain Motor Cover SPQ F8406304 Contact Us For Availability
18
Top Cover SPQ F150443 Contact Us For Availability
18
Contactor SPQ F350202P Contact Us For Availability
18
Dispenser Support Bracket SPQ F749801 Contact Us For Availability
18
Vacuum Breaker Weldment SPQ F180507 Contact Us For Availability
18
Screw SPQ F190309 Contact Us For Availability
18
Washer SPQ F431106 Contact Us For Availability
18
Program Key SPQ F350104 Contact Us For Availability
18
Ball Bearing Set Slide SPQ F140779 Contact Us For Availability
18
Spring Kit SPQ F340913 Contact Us For Availability
19
Washer SPQ F370709 Contact Us For Availability
19
Vent Shield Assembly SPQ C000302P Contact Us For Availability
19
Supply Dispenser Latch SPQ F230806 Contact Us For Availability
19
Hose SPQ F430909 Contact Us For Availability
19
Cable Clamp SPQ F380946 Contact Us For Availability
19
Plug SPQ F432285 Contact Us For Availability
19
Nut SPQ F430995 Contact Us For Availability
19
WE-6 Interface CCA Kit SPQ F430407 Contact Us For Availability
20
External Supply Connection Decal SPQ F0636279-00 Contact Us For Availability
20
Siphon Tube SPQ F431000 Contact Us For Availability
20
Nipple Weldment SPQ F180505 Contact Us For Availability
20
Tee SPQ F150395 Contact Us For Availability
20
Upper Hinge Base SPQ F631662 Contact Us For Availability
20
Door Lock Cover Weldment SPQ F170404 Contact Us For Availability
20
Emergency Stop Button Kit SPQ F230724P Contact Us For Availability
20
Strain Relief Connector SPQ F430920 Contact Us For Availability
21
Water Hose SPQ F200168P Contact Us For Availability
21
Mounting Rail SPQ F231345-4 Contact Us For Availability
21
Injection Nozzle SPQ F606612 Contact Us For Availability
21
Nipple SPQ F607489 Contact Us For Availability
21
Tubing SPQ F422806 Contact Us For Availability
21
Shell Front Weldment SPQ F0150285-00 Contact Us For Availability
21
Hall Effect Sensor Switch SPQ F8071203 Contact Us For Availability
21
Emergency Stop Pushbutton SPQ F200233700P Contact Us For Availability
21
Rivet SPQ F0370446-21P Contact Us For Availability
22
Valve SPQ F430232 Contact Us For Availability
22
Injection Nozzle Kit SPQ F606607 Contact Us For Availability
22
Air Trap Hose SPQ F422404P Contact Us For Availability
22
Lower Hinge Base SPQ F431933 Contact Us For Availability
22
Momentary Pushbutton SPQ F430985 Contact Us For Availability
23
Inverter Drive SPQ F230764-6 Contact Us For Availability
23
O-Ring SPQ F150369 Contact Us For Availability
23
Water Hose SPQ F200155P Contact Us For Availability
23
Temperature Probe SPQ F200163 Contact Us For Availability
23
Nut SPQ F431934 Contact Us For Availability
24
SPQ F150390 SPQ F150390 Contact Us For Availability
24
RC Network Filter SPQ F140782 Contact Us For Availability
24
Reducer Bushing SPQ F200222 Contact Us For Availability
24
Hinge Pin SPQ F631650P Contact Us For Availability
24
Sponge Rubber SPQ F140341 Contact Us For Availability
25
Transformer SPQ F610845 Contact Us For Availability
25
Injection Nozzle Kit SPQ F421952 Contact Us For Availability
25
Drain Hose SPQ F370606P Contact Us For Availability
25
Bearing Sleeve SPQ F0150286-00 Contact Us For Availability
26
3-Way Valve SPQ F607532 Contact Us For Availability
26
Plug Hose SPQ F421936 Contact Us For Availability
26
Spring Pin SPQ F431036 Contact Us For Availability
26
Washer SPQ F432222 Contact Us For Availability
27
Door Hinge Weldment SPQ F431001 Contact Us For Availability
27
SPQ F420118 SPQ F420118 Contact Us For Availability
27
Supply Hose SPQ F150411 Contact Us For Availability
27
Door Hinge Weldment SPQ F431047 Contact Us For Availability
27
Light SPQ F170406 Contact Us For Availability
28
SPQ F381727P SPQ F381727P Contact Us For Availability
28
Vent Nipple SPQ F607461 Contact Us For Availability
28
Door Lock Pivot Kit SPQ F432306 Contact Us For Availability
28
Module Face Bracket SPQ F170128 Contact Us For Availability
29
SPQ F200509 SPQ F200509 Contact Us For Availability
29
Door Glass Gasket SPQ F280293 Contact Us For Availability
29
Electrical Panel Weldment SPQ F608399 Contact Us For Availability
30
Fuse SPQ F430928 Contact Us For Availability
30
Door Glass Retainer SPQ F633746 Contact Us For Availability
31
RC Network Filter SPQ F430231 Contact Us For Availability
31
Door Retro Kit SPQ F431142 Contact Us For Availability
32
Door Support Weldment SPQ F431143 Contact Us For Availability
32
Jumper Kit SPQ F350412 Contact Us For Availability
33
Output CCA SPQ F431108 Contact Us For Availability
33
Switch Magnet SPQ F746503 Contact Us For Availability
34
Follower Cam SPQ F170117 Contact Us For Availability
34
SPQ F606309 SPQ F606309 Contact Us For Availability
35
SPQ F290201P SPQ F290201P Contact Us For Availability
35
SPQ F431017 SPQ F431017 Contact Us For Availability
36
SPQ F601239 SPQ F601239 Contact Us For Availability
37
SPQ F746008-02P SPQ F746008-02P Contact Us For Availability
NI
SPQ F150264 SPQ F150264 Contact Us For Availability
NI
SPQ F280361 SPQ F280361 Contact Us For Availability
NI
SPQ F0280378-00 SPQ F0280378-00 Contact Us For Availability
NI
SPQ F430812 SPQ F430812 Contact Us For Availability
NI
Basket Assembly SPQ F320328 Contact Us For Availability
NI
SPQ F607248 SPQ F607248 Contact Us For Availability
NI
Shell Assembly Replacement Kit SPQ F0636274-01 Contact Us For Availability
NI
SPQ F330217P SPQ F330217P Contact Us For Availability
NI
SPQ F140224 SPQ F140224 Contact Us For Availability
NI
SPQ F231437 SPQ F231437 Contact Us For Availability
NI
SPQ F190202P SPQ F190202P Contact Us For Availability
NI
SPQ F340502P SPQ F340502P Contact Us For Availability
NI
SPQ F606682 SPQ F606682 Contact Us For Availability
NI
SPQ F784003P SPQ F784003P Contact Us For Availability
NI
SPQ F0370444-10P SPQ F0370444-10P Contact Us For Availability
NI
SPQ F430228 SPQ F430228 Contact Us For Availability
NI
Pipe Insulation SPQ F410300 Contact Us For Availability
NI
Steam Heat Kit SPQ F730548 Contact Us For Availability
× ![]()
