Model Whirlpool UF22B FREEZER – Common Parts & Diagrams

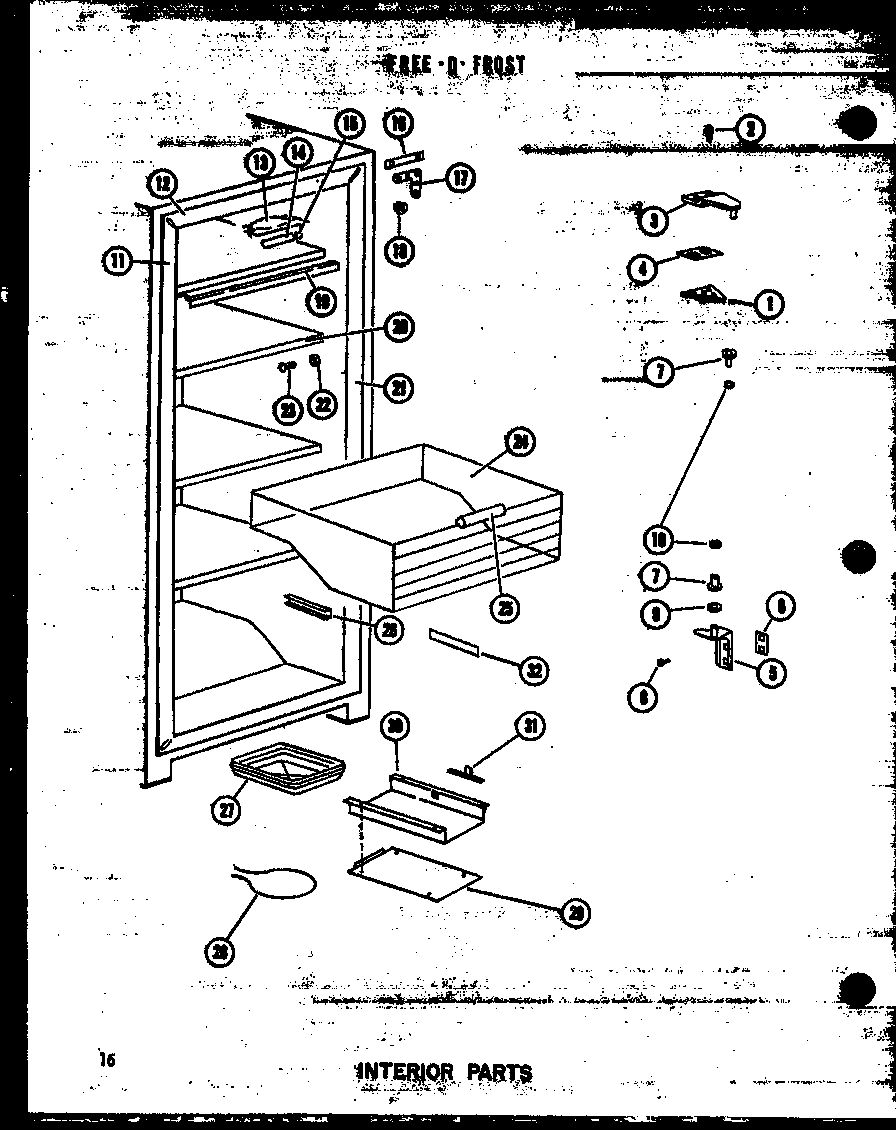

04 - INTERIOR PARTS

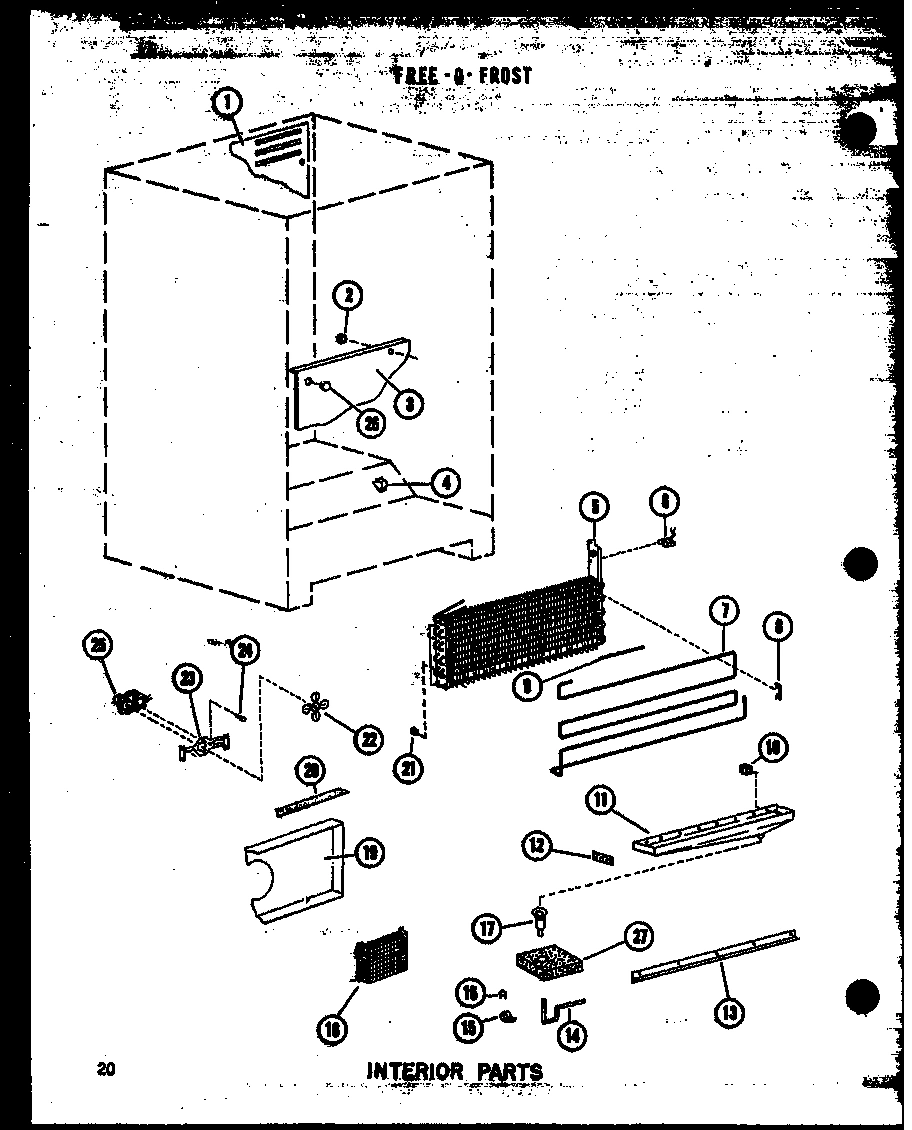

06 - INTERIOR PARTS

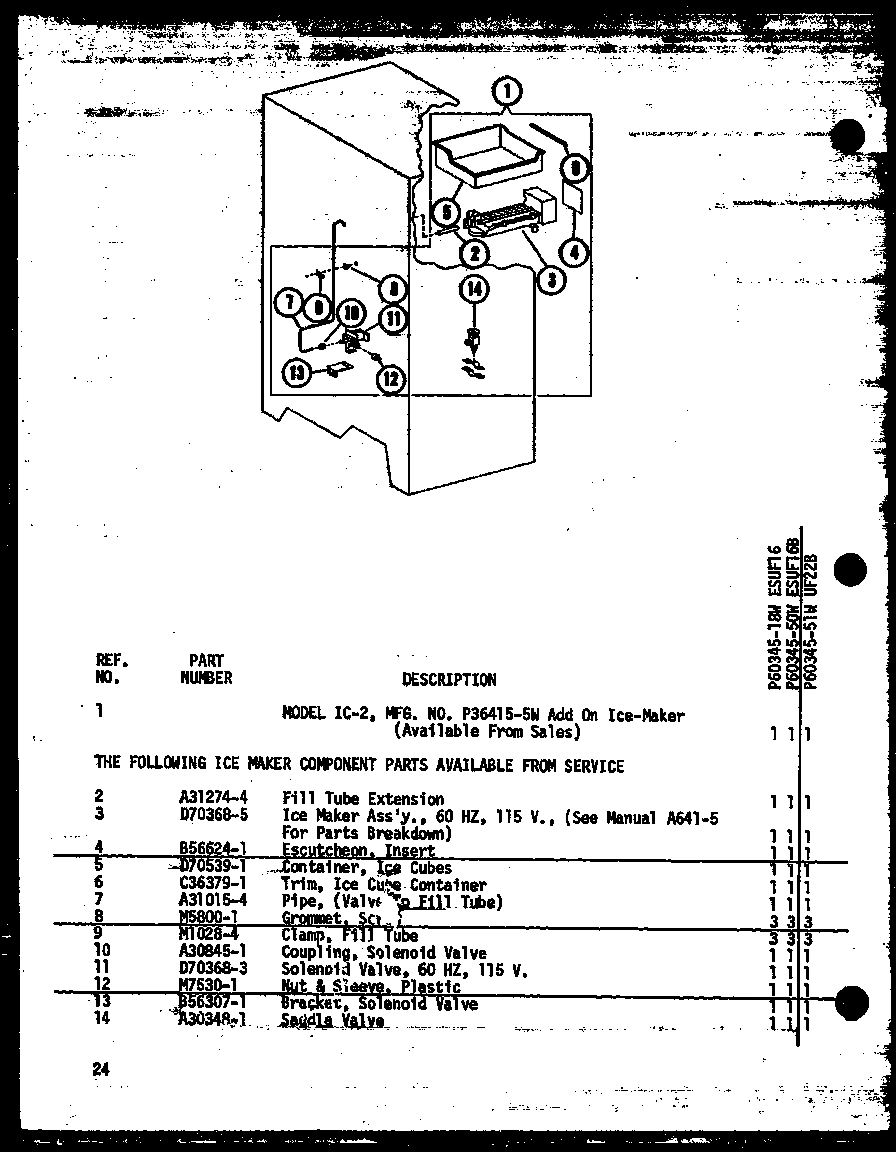

07 - Page 10

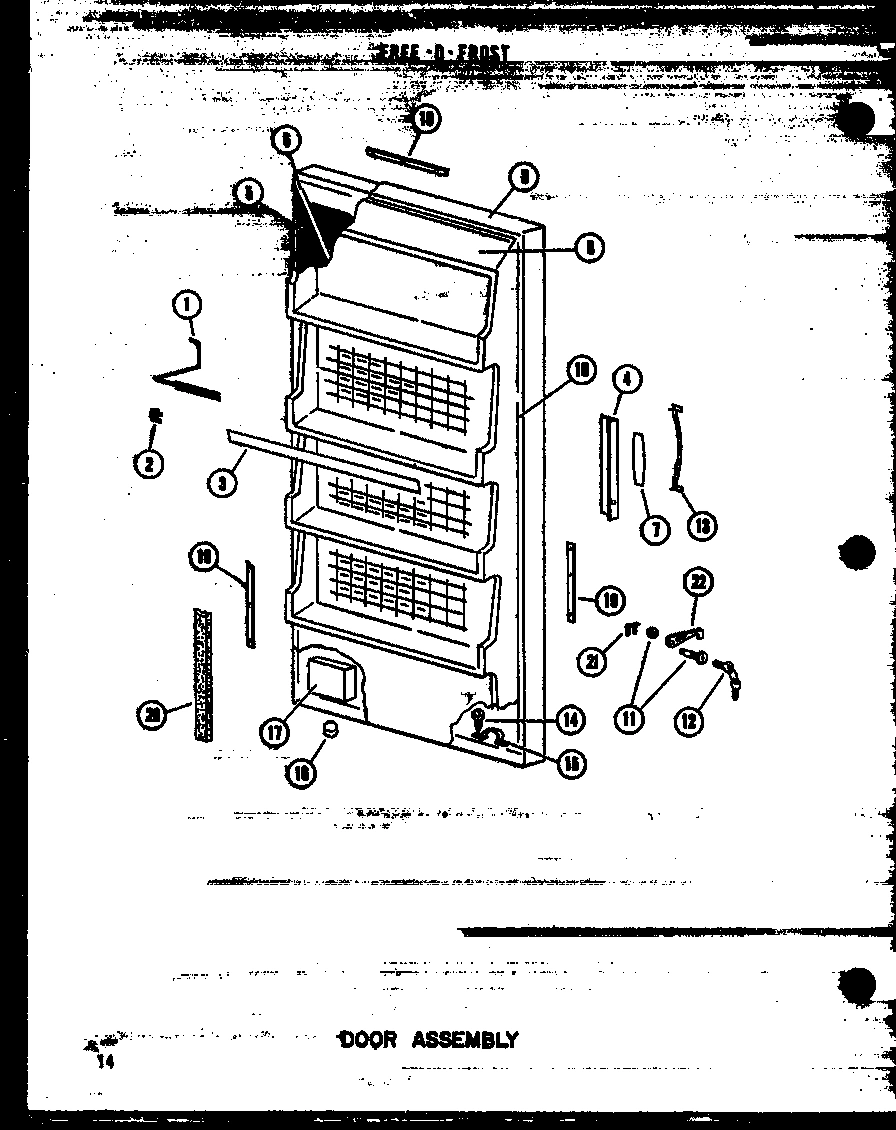

03 - DOOR ASSY

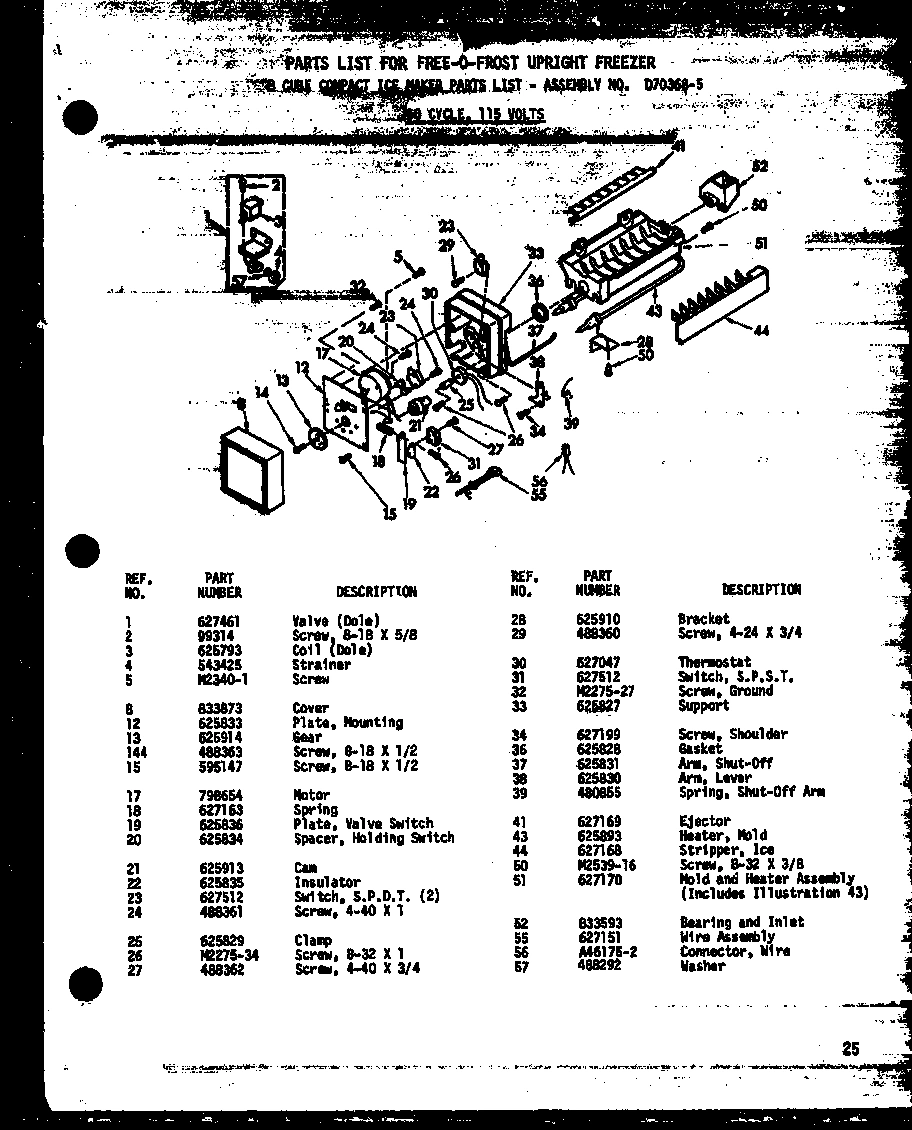

01 - 8 CUBE COMPACT ICE MAKER

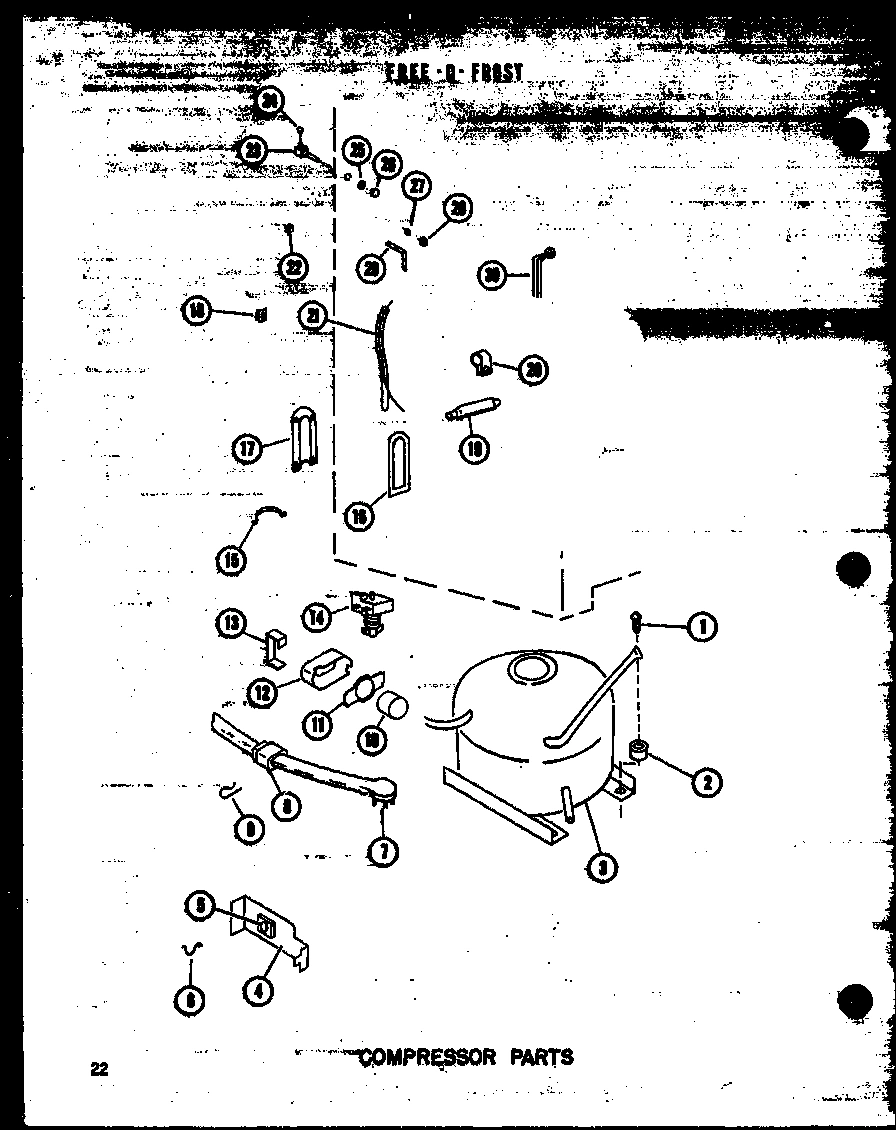

02 - COMPRESSOR PARTS

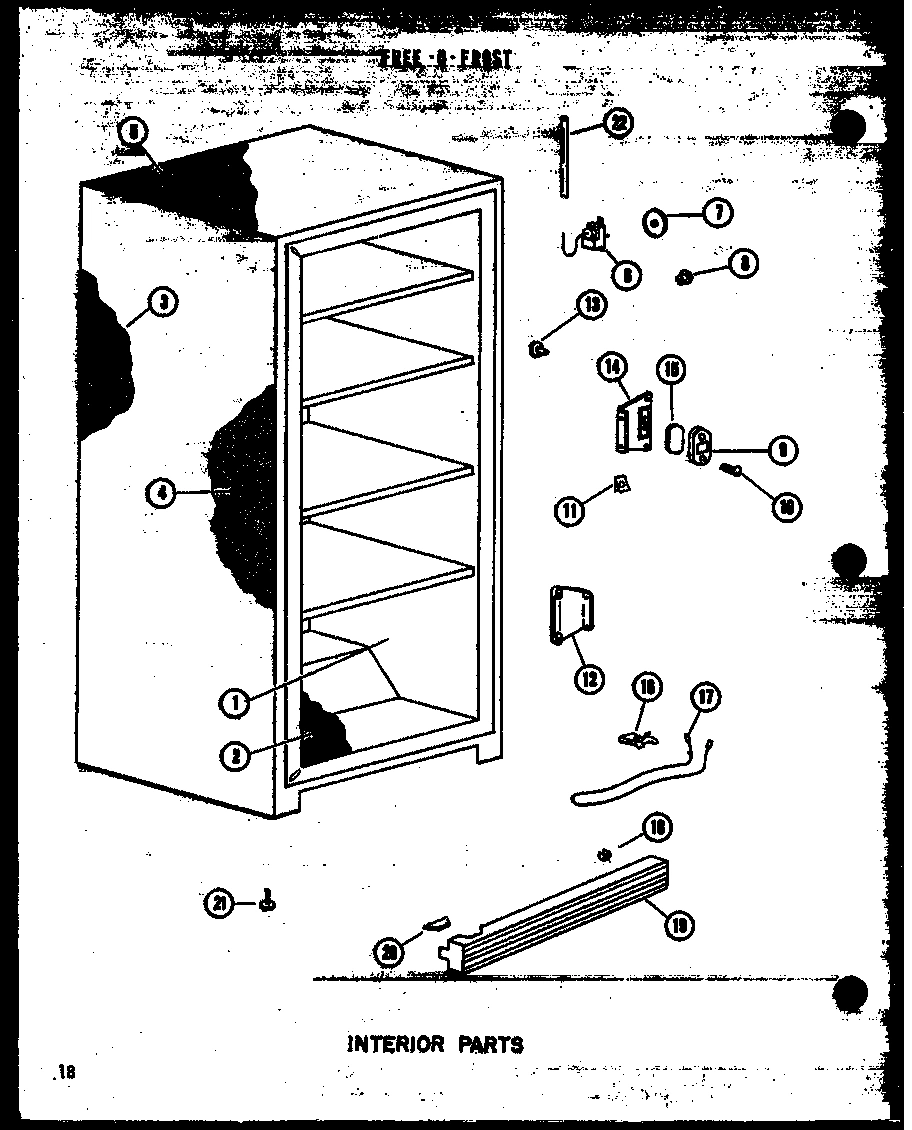

05 - INTERIOR PARTS
Common parts from model Whirlpool UF22B FREEZER
1
PLATE-PLENUM WPL D7171201 Contact Us For Availability
1
SEE NOTE MODEL 1C-2, MFG. NO. P36415-5W ADD O WPL Y00000000 Contact Us For Availability
1
RETAINER WPL C3683101 Contact Us For Availability
1
SCREW WPL M0221461 Contact Us For Availability
1
LINER ASSY WPL D7329009 Contact Us For Availability
2
NUT WPL M0287105 Contact Us For Availability
2
TUBE WPL A3127404 Contact Us For Availability
2
END CAP WPL B5687901 Contact Us For Availability
2
GROMMET K WPL A4002702 Contact Us For Availability
2
INSULATION, BATT, BOTTOM, 3-1/ WPL B0535005 Contact Us For Availability
3
HINGE-TOP WPL B5721501 Contact Us For Availability
3
EVAP COVER WPL D7169405 Contact Us For Availability
3
IC2-(ICE MAKER) WPL D7036805 Contact Us For Availability
3
RETAINER WPL B5632008 Contact Us For Availability
3
COMPRESSOR AE1413A WPL C3667002 Contact Us For Availability
3
INSULATION, BATT, BACK, 3-1/8`` WPL B0534908 Contact Us For Availability
4
SHIM, TOP HINGE WPL A3270301 Contact Us For Availability
4
SHIM-TOP HINGE K WPL A3270302 Contact Us For Availability
4
SHIM KIT WPL A3270303 Contact Us For Availability
4
CLIP WPL M0110801 Contact Us For Availability
4
INSERT-IM WPL B5662401 Contact Us For Availability
4
PAD-HANDLE WPL D7344401 Contact Us For Availability
4
BRACKET, TIMER WPL C3647901 Contact Us For Availability
4
INSULATION, BATT, SIDE, 3-1/8`` WPL B0572902 Contact Us For Availability
5
HINGE, BOTTOM WPL C8728101 Contact Us For Availability
5
EVAPORATOR WPL D7169501 Contact Us For Availability
5
INSULATION WPL B0566711 Contact Us For Availability
5
INSULATION FT. K WPL B0572805 Contact Us For Availability
5
TIMER WPL D7004107 Contact Us For Availability
5
INSULATION, BATT, TOP, 3-1/8` WPL B0535214 Contact Us For Availability
6
SHIM WPL A3061901 Contact Us For Availability
6
SHIM WPL A3061902 Contact Us For Availability
6
THERMOSTAT K WPL C3686604 Contact Us For Availability
6
TRIM K WPL C3637901 Contact Us For Availability
6
TIE ROD WPL B0569803 Contact Us For Availability
6
TIE WPL M0321401 Contact Us For Availability
6
COLD CONTROL WPL B0543814 Contact Us For Availability
7
BEARING FLAT (TOP HINGE) WPL B0539806 Contact Us For Availability
7
HEATER EVAP WPL D7185901 Contact Us For Availability
7
PIPE WPL A3101504 Contact Us For Availability
7
NAMEPLATE WPL B5758806 Contact Us For Availability
7
WIRING HARNESS WPL D7251601 Contact Us For Availability
7
KNOB, CONTROL WPL C3577902 Contact Us For Availability
8
SCREW WPL M0246159 Contact Us For Availability
8
GROMMET, SCREW WPL M0580001 Contact Us For Availability
8
CLIP WPL A3030702 Contact Us For Availability
8
CLIP WPL M0110301 Contact Us For Availability
8
DOOR FR W-P U22B WPL D7288835 Contact Us For Availability
8
OUTER DOOR SHELL, COPPERTONE WPL D7288836 Contact Us For Availability
8
DOOR FR-A-P-U22B WPL D7288837 Contact Us For Availability
8
DOOR FR-G-P-U22B WPL D7288838 Contact Us For Availability
8
DOOR FR-L-P-U22B WPL D7288839 Contact Us For Availability
8
NO LONGER AVAILABLE WPL 833873 Contact Us For Availability
8
STRAIN RELIEF K WPL A0319703 Contact Us For Availability
8
RIVET PLASTIC WPL A3032601 Contact Us For Availability
9
WASHER K WPL M0274013 Contact Us For Availability
9
CONTROL WELL WPL A3205801 Contact Us For Availability
9
CLAMP WPL M0102804 Contact Us For Availability
9
INNER DOOR PANEL WPL D7156401 Contact Us For Availability
9
STRIKE-LOCK WPL B5728001 Contact Us For Availability
10
WASHER WPL M0274027 Contact Us For Availability
10
COUPLING, SOLENOID VALVE AND H WPL A3084501 Contact Us For Availability
10
GASKET WPL D7158703 Contact Us For Availability
10
OVERLOAD WPL C3689104 Contact Us For Availability
10
SCREW WPL M0230834 Contact Us For Availability
11
BREAKER FRAME WPL D3914103 Contact Us For Availability
11
DRIP TRAY WPL D7168902 Contact Us For Availability
11
BARREL LOCK K WPL B5688002 Contact Us For Availability
11
WASHER-PLASTIC WPL M0274033 Contact Us For Availability
11
SPRING K WPL A3043601 Contact Us For Availability
11
SPEED NUT WPL M0288107 Contact Us For Availability
12
BREAKER FRAME WPL D3710305 Contact Us For Availability
12
GASKET WPL A3207001 Contact Us For Availability
12
KEY K WPL A3199101 Contact Us For Availability
12
PLATE, MOUNTING WPL 625833 Contact Us For Availability
12
TERMINAL COVER WPL B0551801 Contact Us For Availability
12
TIE STRIP WPL D3913801 Contact Us For Availability
13
SHIELD, LIGHT WPL C8730101 Contact Us For Availability
13
CLAMP WPL B5686801 Contact Us For Availability
13
BRACKET WPL B5630701 Contact Us For Availability
13
HANDLE WPL C8787101 Contact Us For Availability
13
GEAR WPL Y625914 Contact Us For Availability
13
STRAP K WPL A3041801 Contact Us For Availability
13
SWITCH, LIGHT WPL C3658601 Contact Us For Availability
14
DRAIN TUBE WPL C3687101 Contact Us For Availability
14
SADDLE VALVE WPL A3034801 Contact Us For Availability
14
SEMS FASTNER WPL M0243037 Contact Us For Availability
14
RELAY WPL C3689201 Contact Us For Availability
14
STRIKE PAD WPL D3913901 Contact Us For Availability
15
SOCKET-LIGHT WPL C8708801 Contact Us For Availability
15
CLAMP WPL M0102314 Contact Us For Availability
15
SPRING CLIP WPL B0544001 Contact Us For Availability
15
WALL SPACER WPL A3032901 Contact Us For Availability
15
SHIM WPL A3063201 Contact Us For Availability
15
SHIM WPL A3063202 Contact Us For Availability
16
TAP STRIP WPL A3013201 Contact Us For Availability
16
CLAMP, DRAIN GROMMET WPL M0103001 Contact Us For Availability
16
VENT ASSY WPL A3101901 Contact Us For Availability
16
CLIP WPL M0110502 Contact Us For Availability
16
GASKET WPL A0382801 Contact Us For Availability
17
LINER GUSSET WPL C3523801 Contact Us For Availability
17
CONDENSATE OUT WPL B0527101 Contact Us For Availability
17
BLOCK-AIR VENT WPL C3684701 Contact Us For Availability
17
MOTOR WPL Y798654 Contact Us For Availability
17
COVER PLATE WPL A0382902 Contact Us For Availability
17
COVER PLATE WPL A0382903 Contact Us For Availability
17
COVER PLATE -G WPL A0382904 Contact Us For Availability
17
COVER PLATE-L WPL A0382905 Contact Us For Availability
17
PLATE-AL WPL A0382906 Contact Us For Availability
17
HEATER-L MULLION WPL C3684903 Contact Us For Availability
18
GROMMET WPL A0381801 Contact Us For Availability
18
GROMMET WPL A0381802 Contact Us For Availability
18
GRILLE WPL C3561101 Contact Us For Availability
18
RETAINER-GASKET WPL D7158601 Contact Us For Availability
18
SPRING WPL 627163 Contact Us For Availability
18
CLIP WPL M0113402 Contact Us For Availability
18
CLIP, GRILLE WPL M0117301 Contact Us For Availability
19
TRIM WPL B5688802 Contact Us For Availability
19
PLATE-AIR INLET WPL D7169101 Contact Us For Availability
19
RETAINER-GASKET WPL D7158606 Contact Us For Availability
19
PLATE, VALVE SWITCH WPL 625836 Contact Us For Availability
19
GRILLE-TOE WPL D7070207 Contact Us For Availability
20
SPACER, HOLDING SWITCH WPL 625834 Contact Us For Availability
20
SHELF WPL D7169301 Contact Us For Availability
20
SHELF WPL D7169302 Contact Us For Availability
20
GASKET-PER FT WPL A3030329 Contact Us For Availability
20
CLAMP, DRIER WPL M0102316 Contact Us For Availability
20
GRILLE-TOE WPL B5641301 Contact Us For Availability
21
BREAKER FRAME WPL D3914101 Contact Us For Availability
21
GROMMET WPL M0580003 Contact Us For Availability
21
CLIP K WPL A3199001 Contact Us For Availability
21
CAM WPL Y625913 Contact Us For Availability
21
HEAT EXCHANGER WPL D7196001 Contact Us For Availability
21
GLIDER BOLT WPL M0266510 Contact Us For Availability
22
NUT A WPL M0281204 Contact Us For Availability
22
FAN BLADE WPL B5622101 Contact Us For Availability
22
BOLT K WPL C8715301 Contact Us For Availability
22
INSULATOR WPL 625835 Contact Us For Availability
22
PLUG WPL M0310314 Contact Us For Availability
22
TUBE-CONTROL GUIDE WPL A0322807 Contact Us For Availability
23
SCREW WPL M0207943 Contact Us For Availability
23
BRACKET WPL C3681602 Contact Us For Availability
23
FILL TUBE ASSY WPL B5630506 Contact Us For Availability
24
BASKET WPL D7171001 Contact Us For Availability
24
SCREW WPL M0202642 Contact Us For Availability
24
WASHER WPL M0272605 Contact Us For Availability
24
SCREW WPL 488361 Contact Us For Availability
24
PLUG WPL M0310309 Contact Us For Availability
25
HANDLE BASKET WPL B0571806 Contact Us For Availability
25
MTR EVAP FAN, 3050 RPM, 115 V. WPL C3690103 Contact Us For Availability
25
CLAMP WPL 625829 Contact Us For Availability
25
PLUG BUTTON WPL A3091301 Contact Us For Availability
26
TRACK SHELF K WPL D7117102 Contact Us For Availability
26
TRACK SHELF K WPL D7122102 Contact Us For Availability
26
PLUG WPL A3026301 Contact Us For Availability
26
PLUG BUTTON WPL A3205101 Contact Us For Availability
26
SCREW WPL M0227534 Contact Us For Availability
26
CAP FILL TUBE WPL B5631801 Contact Us For Availability
27
DRAIN PAN WPL C3523101 Contact Us For Availability
27
SUPPORT BLOCK WPL C3524701 Contact Us For Availability
27
SCREW, 4-40 X 3/4 WPL 488362 Contact Us For Availability
27
PLUG, BUTTON (WHT) WPL M0310701 Contact Us For Availability
28
HEATER WPL D7173901 Contact Us For Availability
28
CAP WPL B5636301 Contact Us For Availability
29
HEATER SHIELD WPL C3686801 Contact Us For Availability
29
SCREW WPL 488360 Contact Us For Availability
29
TAP PLATE,I.M. WPL B5639801 Contact Us For Availability
30
SUPPORT WPL D7170701 Contact Us For Availability
30
THERMOSTAT WPL 627047 Contact Us For Availability
30
WIRING HARNESS WPL D7238201 Contact Us For Availability
31
CLIP WPL C3687201 Contact Us For Availability
31
SWITCH, S.P.S.T. WPL Y627512 Contact Us For Availability
32
TAP STRIP-GLIDE WPL B5695201 Contact Us For Availability
32
SCREW WPL M0227527 Contact Us For Availability
33
SUPPORT WPL 625827 Contact Us For Availability
34
SCREW, SHOULDER WPL 627199 Contact Us For Availability
36
GASKET WPL 625828 Contact Us For Availability
37
ARM, SHUT-OFF WPL 625831 Contact Us For Availability
38
LEVER ARM WPL 625830 Contact Us For Availability
39
SPRING WPL Y480855 Contact Us For Availability
43
KIT WPL Y625893 Contact Us For Availability
44
STRIPPER, ICE WPL 627168 Contact Us For Availability
50
SCREW WPL M0253916 Contact Us For Availability
51
MOLD & HEATER ASSY WPL Y627170 Contact Us For Availability
52
INLET KIT WPL 833593 Contact Us For Availability
55
WIRE ASSY WPL 627151 Contact Us For Availability
56
WIRE NUT K WPL A4617502 Contact Us For Availability
NI
SCREW, 8-18 X 1/2 WPL 488363 Contact Us For Availability
× ![]()
Login and Registration Form
