Model Electrolux UF16NL2 FREEZER – Common Parts & Diagrams

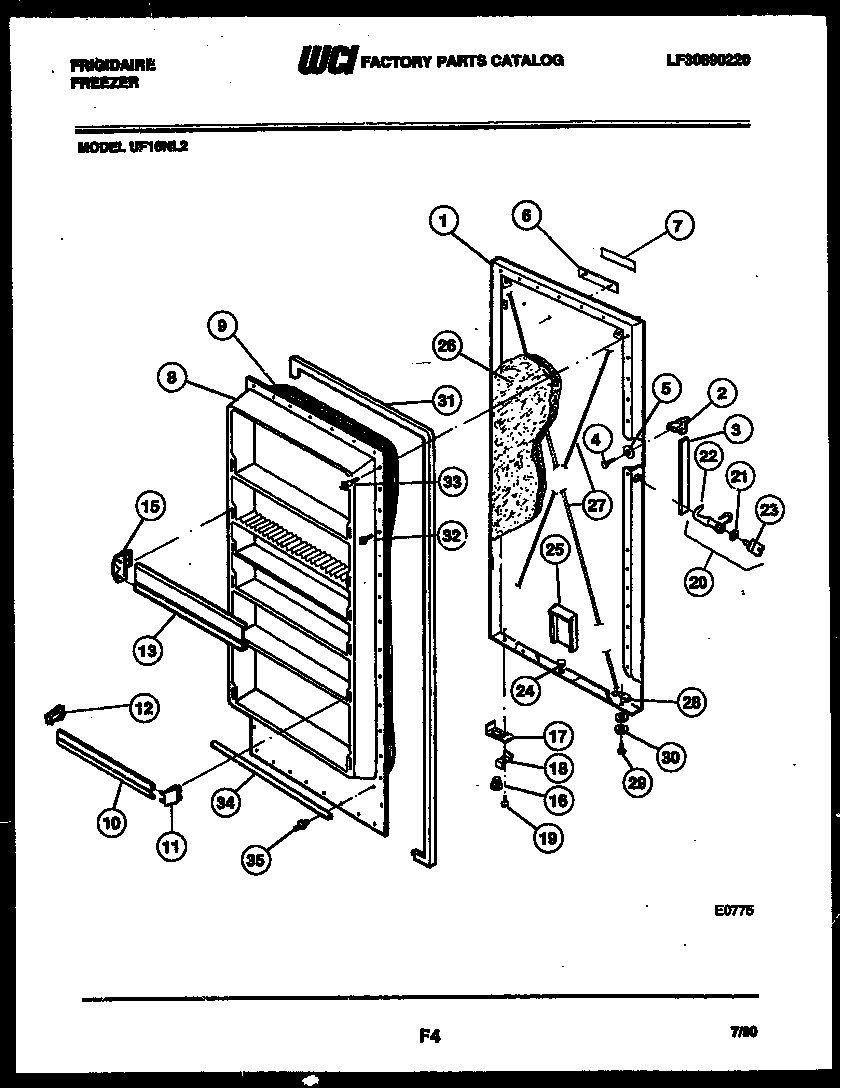

02 - DOOR PARTS

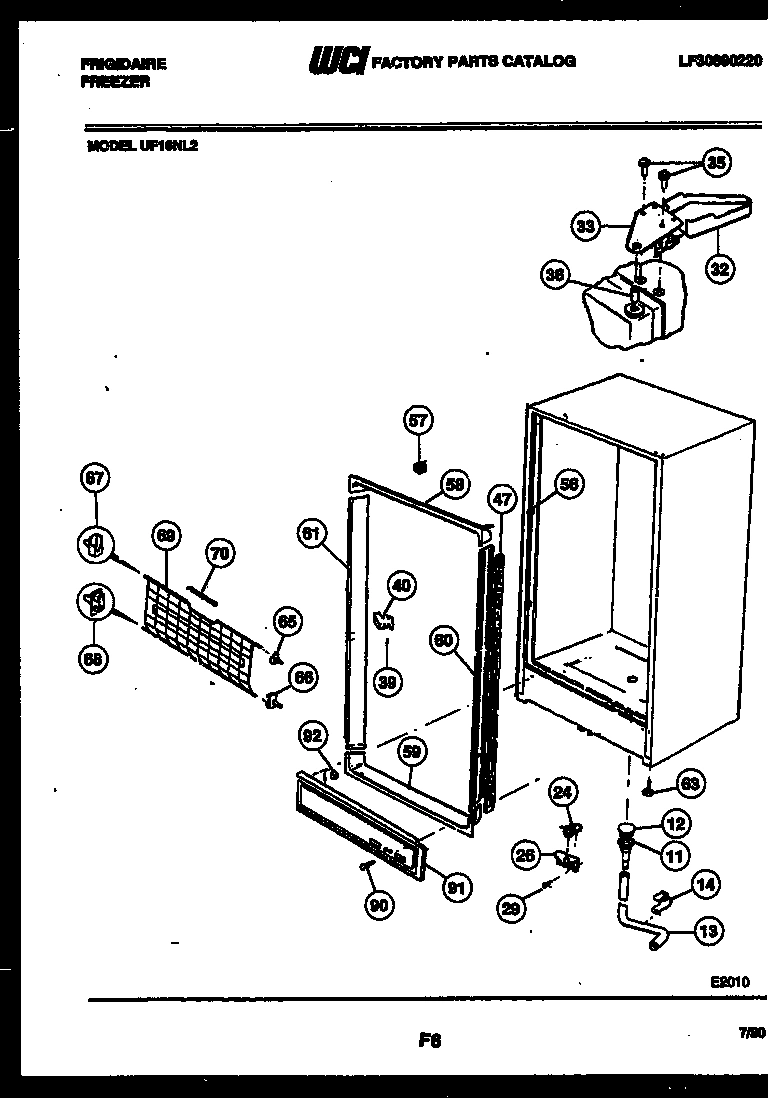

03 - CABINET PARTS

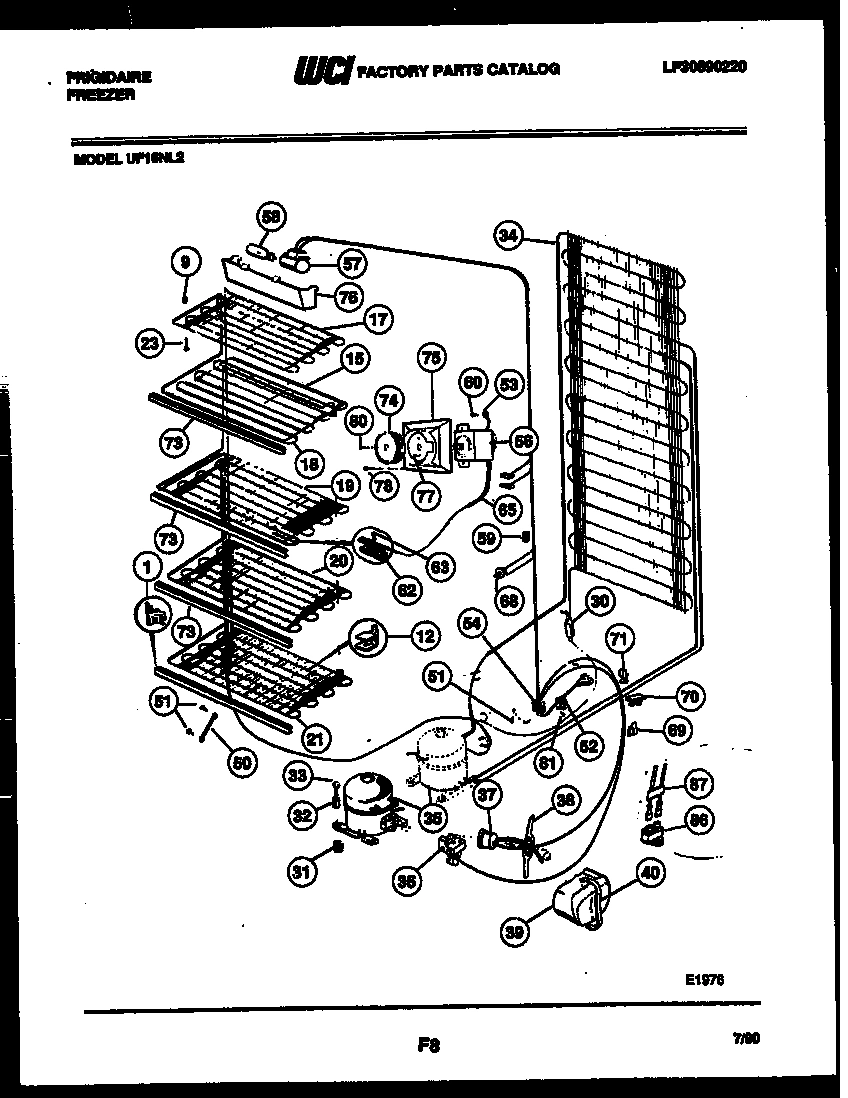

04 - SYSTEM AND ELECTRICAL PARTS
Common parts from model Electrolux UF16NL2 FREEZER
8
PANEL-INNER (WHITE) WCI 08037948 Contact Us For Availability
9
SPCR-TOPGRID FRONT (2) WCI F81445 Contact Us For Availability
9A
SPCR-TOP GRID REAR (NON-ILLUSTRATED) WCI 08037929 Contact Us For Availability
10
WCI 3017749 WCI 3017749 Contact Us For Availability
12
WCI 5306593887 WCI 5306593887 Contact Us For Availability
12
WCI 09949960 WCI 09949960 Contact Us For Availability
13
WCI 5303209259 WCI 5303209259 Contact Us For Availability
13A
END CAP RH WIDE (NON-ILLUSTRATED) WCI 5308015539 Contact Us For Availability
14
WCI 06593405 WCI 06593405 Contact Us For Availability
15
END CAP LH WIDE WCI 5308015540 Contact Us For Availability
15
WCI 08010753 WCI 08010753 Contact Us For Availability
16
WCI 5306593364 WCI 5306593364 Contact Us For Availability
17
REINFORCEMENT, DOOR STOP WCI F91170 Contact Us For Availability
17
WCI F121179 WCI F121179 Contact Us For Availability
18
WCI 06593882 WCI 06593882 Contact Us For Availability
18
WCI 08037939 WCI 08037939 Contact Us For Availability
19
WCI 08005520 WCI 08005520 Contact Us For Availability
19
WCI 08037940 WCI 08037940 Contact Us For Availability
20
WCI 5300190358 WCI 5300190358 Contact Us For Availability
21
WCI 5300114366 WCI 5300114366 Contact Us For Availability
21
WCI 08037941 WCI 08037941 Contact Us For Availability
22
WCI 3202005 WCI 3202005 Contact Us For Availability
23
SCREW-TOP GRID (3) WCI 08013446 Contact Us For Availability
24
WCI 5309950074 WCI 5309950074 Contact Us For Availability
24
WCI 5303210424 WCI 5303210424 Contact Us For Availability
25
WCI 5300128421 WCI 5300128421 Contact Us For Availability
26
INSULATION, DOOR WCI 5303007739 Contact Us For Availability
27
WIRE ADJUSTING (2) WCI 08037953 Contact Us For Availability
28
WCI 05879859 WCI 05879859 Contact Us For Availability
29
WCI F57906 WCI F57906 Contact Us For Availability
30
WCI 09950839 WCI 09950839 Contact Us For Availability
31
WCI 3206247 WCI 3206247 Contact Us For Availability
32
SLEEVE (3) WCI 5306594529 Contact Us For Availability
32
COVER-HINGE (ALMOND) WCI 5303210384 Contact Us For Availability
33
SCREW-PANEL (16) WCI 08009384 Contact Us For Availability
33
HINGE TOP WCI 5303210385 Contact Us For Availability
33
SCREW (3) WCI 08002679 Contact Us For Availability
34
WCI 5308016355 WCI 5308016355 Contact Us For Availability
35
WCI 5303210386 WCI 5303210386 Contact Us For Availability
35
COMPRESSOR WCI 5303916020 Contact Us For Availability
36
WCI 5303210387 WCI 5303210387 Contact Us For Availability
36
WCI 5303017753 WCI 5303017753 Contact Us For Availability
37
WCI 5308037789 WCI 5308037789 Contact Us For Availability
40
WCI 5309949966 WCI 5309949966 Contact Us For Availability
47
WCI 06594525 WCI 06594525 Contact Us For Availability
50
WCI 06594651 WCI 06594651 Contact Us For Availability
53
WCI F125347 WCI F125347 Contact Us For Availability
54
WCI 08011943 WCI 08011943 Contact Us For Availability
56
WCI 5308016351 WCI 5308016351 Contact Us For Availability
56
WCI 06594680 WCI 06594680 Contact Us For Availability
57
WCI 5300136117 WCI 5300136117 Contact Us For Availability
57
WCI 08037937 WCI 08037937 Contact Us For Availability
58
WCI 5308005501 WCI 5308005501 Contact Us For Availability
59
WCI 5308005502 WCI 5308005502 Contact Us For Availability
59
RETAINER HARNESS (6) WCI 08037401 Contact Us For Availability
60
WCI F300738 WCI F300738 Contact Us For Availability
61
WCI 5308005512 WCI 5308005512 Contact Us For Availability
62
WCI 08037931 WCI 08037931 Contact Us For Availability
63
LEVELING LEG (4) WCI F91169 Contact Us For Availability
63
SCREW-CLAMP WCI F52943 Contact Us For Availability
65
WCI 06599973 WCI 06599973 Contact Us For Availability
66
WCI 06599975 WCI 06599975 Contact Us For Availability
67
WCI 06599974 WCI 06599974 Contact Us For Availability
68
WCI 06599976 WCI 06599976 Contact Us For Availability
69
WCI 08005507 WCI 08005507 Contact Us For Availability
69
WCI 09950610 WCI 09950610 Contact Us For Availability
70
WCI 06599971 WCI 06599971 Contact Us For Availability
70
WCI 06599553 WCI 06599553 Contact Us For Availability
71
WCI 09950591 WCI 09950591 Contact Us For Availability
71
CLIP COMP WIRE WCI F85415 Contact Us For Availability
72
BUMPER (3) WCI 5300118003 Contact Us For Availability
73
PIN FASTENER (2) WCI 5309950066 Contact Us For Availability
73
SHELF TRIM (3) WCI 08037933 Contact Us For Availability
74
WCI 08016364 WCI 08016364 Contact Us For Availability
75
WCI 08016370 WCI 08016370 Contact Us For Availability
76
WCI 02601025 WCI 02601025 Contact Us For Availability
77
WCI 08003539 WCI 08003539 Contact Us For Availability
80
WCI 09950853 WCI 09950853 Contact Us For Availability
86
RUN CAPACITOR WCI 5303916391 Contact Us For Availability
87
HARNESS-RUN CAPACITOR WCI 5303091425 Contact Us For Availability
× ![]()
