Model Whirlpool UF16C FREEZER – Common Parts & Diagrams

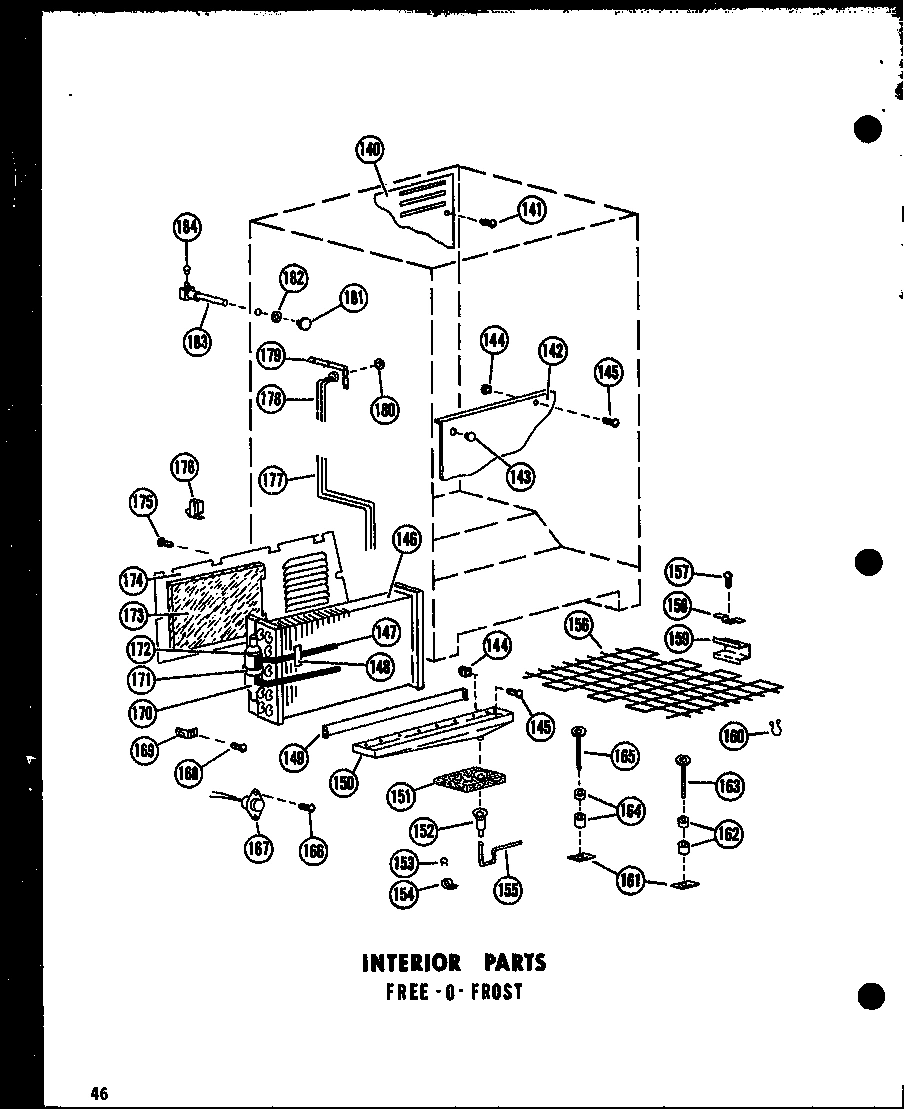

02 - INTERIOR PARTS

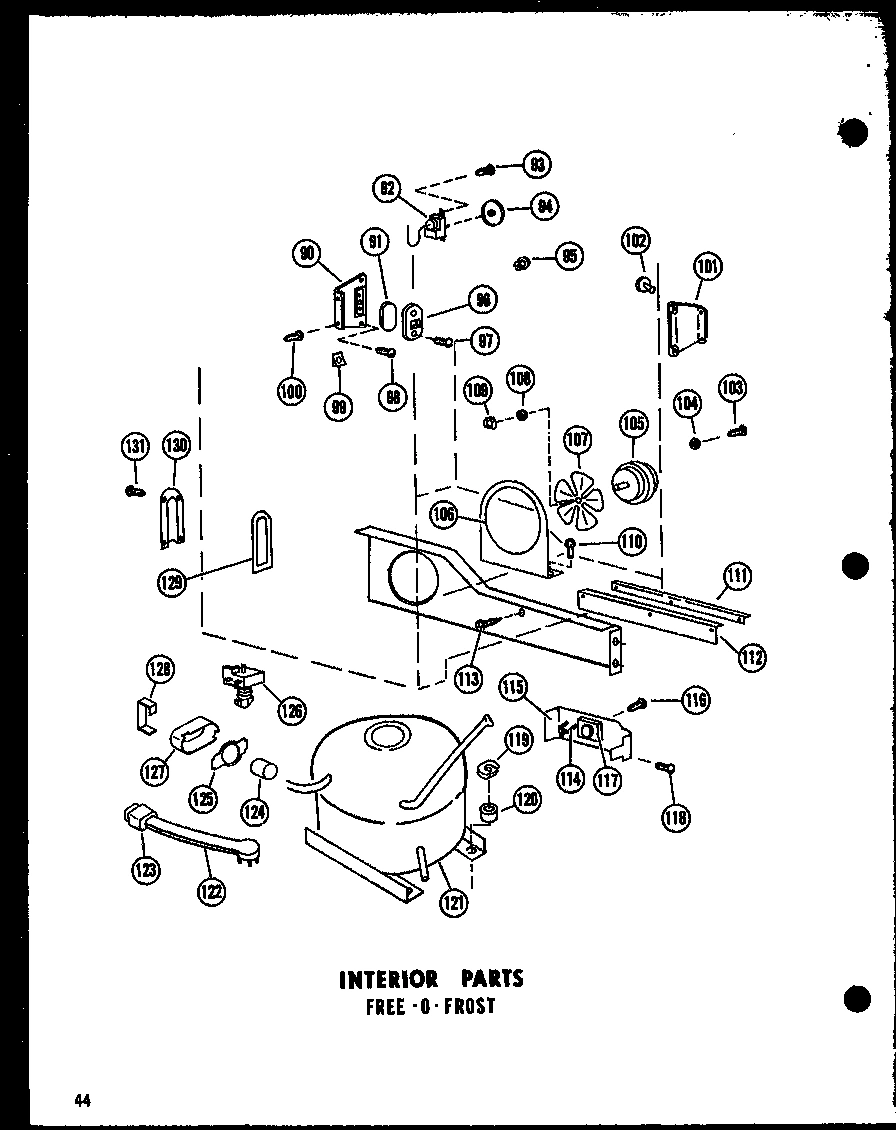

03 - INTERIOR PARTS

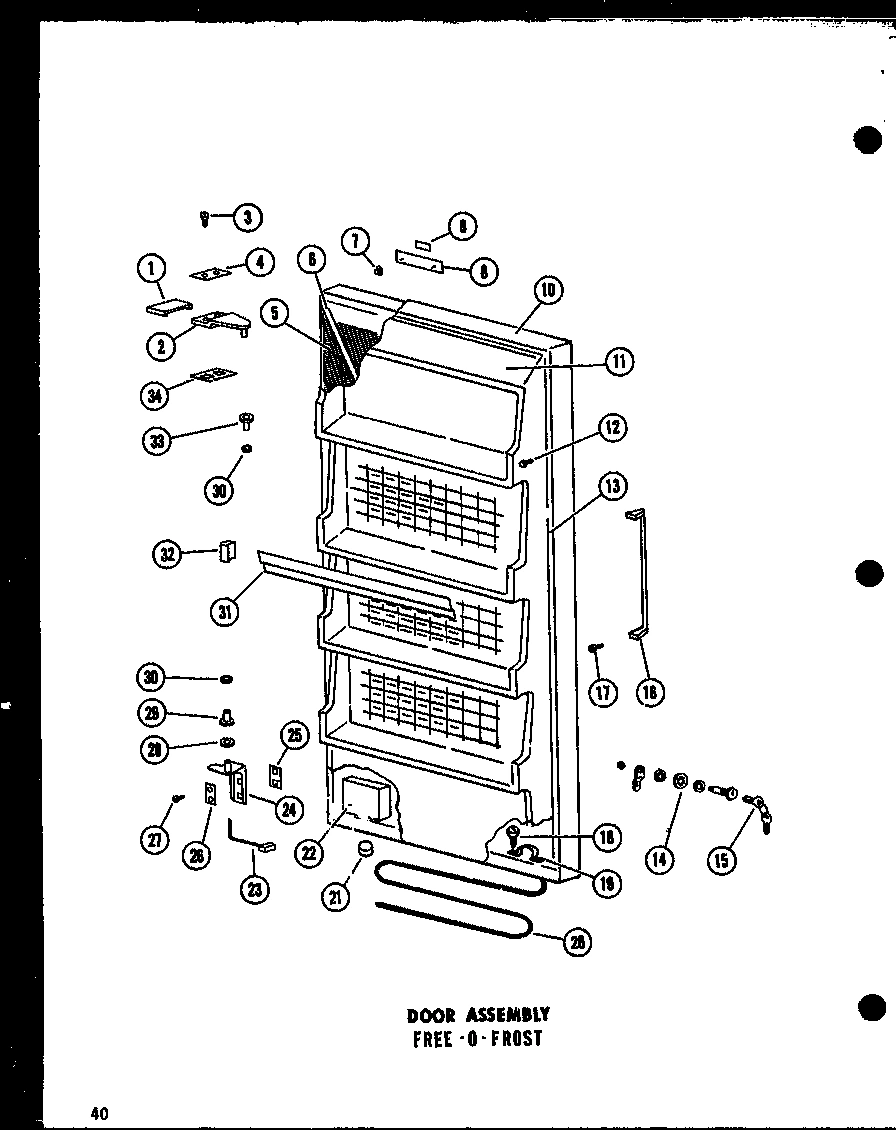

01 - DOOR ASSY

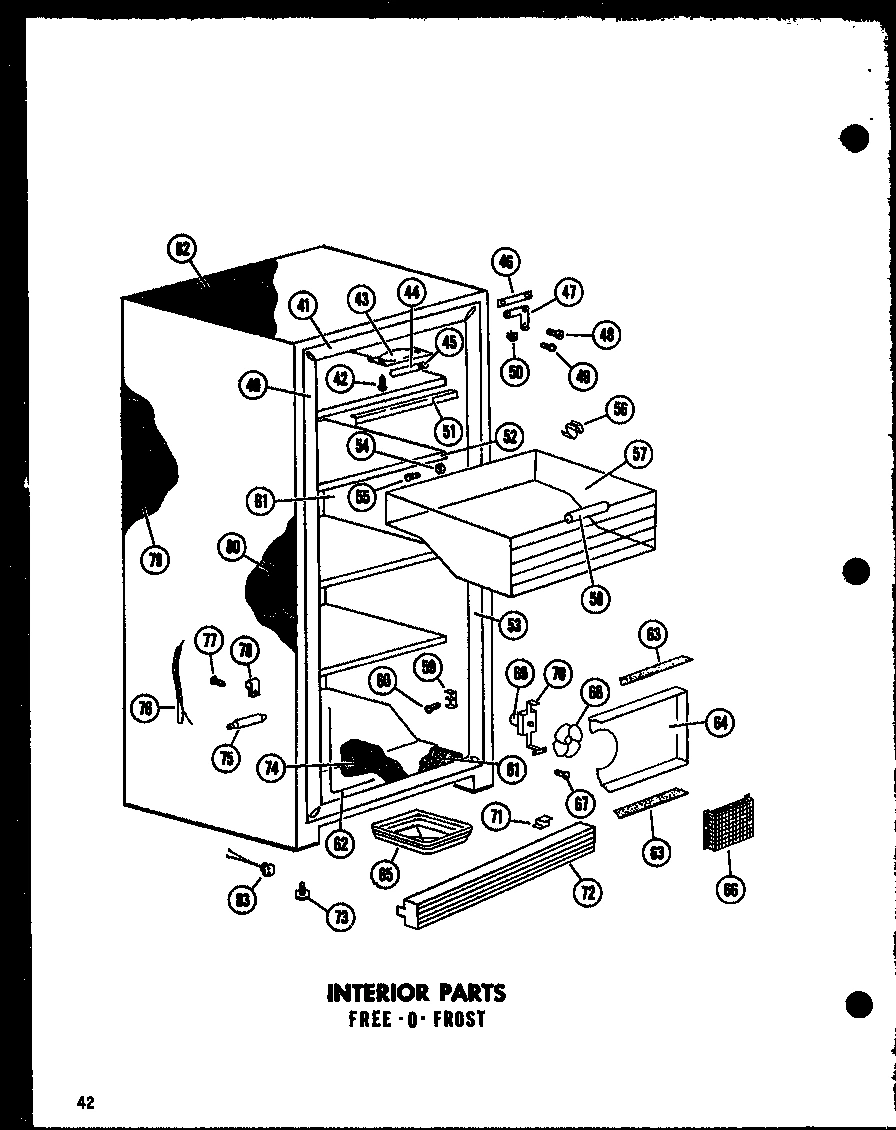

04 - INTERIOR PARTS
Common parts from model Whirlpool UF16C FREEZER
1
COVER WPL B0526601 Contact Us For Availability
1
COVER WPL B0526607 Contact Us For Availability
1
HINGE COVER,AVOCADO WPL B0526608 Contact Us For Availability
1
HINGE COVER-GOLD WPL B0526609 Contact Us For Availability
2
TOP HINGE ASSY WPL C3524001 Contact Us For Availability
3
SCREW WPL M0247058 Contact Us For Availability
4
TOP HINGE PLATE WPL B0525801 Contact Us For Availability
5
INSULATION WPL B0566703 Contact Us For Availability
5
INSULATION WPL B0566706 Contact Us For Availability
5
INSULATION WPL B0573901 Contact Us For Availability
6
TIE ROD WPL B0569802 Contact Us For Availability
7
STUD WPL M0550001 Contact Us For Availability
8
ESCUTCHEON WPL C3577601 Contact Us For Availability
9
NAMEPLATE WPL C3578004 Contact Us For Availability
10
DOOR W-AU15-1 WPL D7017001 Contact Us For Availability
10
DOOR C-AUF16-1 WPL D7017002 Contact Us For Availability
10
DOOR A-AUF16-1 WPL D7017003 Contact Us For Availability
10
DOOR G-UF16 WPL D7017024 Contact Us For Availability
11
INNER DR PANEL WPL D3913404 Contact Us For Availability
12
SEMS FASTNER WPL M0241018 Contact Us For Availability
12
SCREW-SM WPL M0241118 Contact Us For Availability
13
GASKET, DOOR WPL D3880402 Contact Us For Availability
14
CAM-LOCK WPL A3188301 Contact Us For Availability
14
INSULATION, LOCK WPL B0576001 Contact Us For Availability
14
LOCK ASSY WPL C3671703 Contact Us For Availability
14
WASHER-LOCK WPL M0272512 Contact Us For Availability
14
WASHER-PLASTIC WPL M0274033 Contact Us For Availability
14
NUT WPL M0281402 Contact Us For Availability
14
NUT WPL M0282017 Contact Us For Availability
15
KEY WPL A3188601 Contact Us For Availability
16
HANDLE, DOOR WPL D3890301 Contact Us For Availability
17
SCREW WPL M0248231 Contact Us For Availability
18
SEMS FASTNER WPL M0243037 Contact Us For Availability
19
SPRING CLIP WPL B0544001 Contact Us For Availability
20
WIRING HARNESS WPL C3643801 Contact Us For Availability
21
VENT ASSY WPL A3101901 Contact Us For Availability
22
INSULATION WPL A3126701 Contact Us For Availability
22
BLOCK, AIR VENT WPL C3576001 Contact Us For Availability
23
WIRE, BOTTOM HINGE WPL B5646005 Contact Us For Availability
24
HINGE, BOTTOM WPL C3566701 Contact Us For Availability
25
SHIM WPL A3015201 Contact Us For Availability
25
SHIM WPL A3015202 Contact Us For Availability
26
HINGE PLATE, BOTTOM WPL B0528101 Contact Us For Availability
27
SCREW WPL M0246159 Contact Us For Availability
28
WASHER K WPL M0274013 Contact Us For Availability
29
FLAT BEARING (BOTTOM HINGE) WPL B0539807 Contact Us For Availability
30
WASHER WPL M0274027 Contact Us For Availability
31
PACKAGE RETAINER WPL D3976703 Contact Us For Availability
32
SUPPORT WPL D3976805 Contact Us For Availability
32
SUPPORT WPL D3976806 Contact Us For Availability
33
BEARING FLAT (TOP HINGE) WPL B0539806 Contact Us For Availability
34
TOP HINGE SHIM WPL A3009801 Contact Us For Availability
40
BREAKER FRAME WPL D3914002 Contact Us For Availability
41
BREAKER FRAME WPL D3710305 Contact Us For Availability
42
SCREW WPL M0217516 Contact Us For Availability
43
LIGHT HOUSING WPL C3540301 Contact Us For Availability
44
LIGHT BULB WPL A0318001 Contact Us For Availability
45
SOCKET WPL B0542702 Contact Us For Availability
46
TAP STRIP WPL A3013201 Contact Us For Availability
47
LINER GUSSET WPL C3523801 Contact Us For Availability
48
SCREW WPL M0250531 Contact Us For Availability
49
SEMS FASTNER WPL M0252047 Contact Us For Availability
50
GROMMET WPL A0381801 Contact Us For Availability
51
TRIM, SHELF WPL B0560001 Contact Us For Availability
52
x$x SHELF WPL C3554801 Contact Us For Availability
52
SHELF, BOTTOM WPL D3777801 Contact Us For Availability
53
BREAKER FRAME, HINGE SIDE WPL D3914001 Contact Us For Availability
54
NUT A WPL M0281204 Contact Us For Availability
55
SCREW WPL M0207943 Contact Us For Availability
56
CLIP WPL M0112601 Contact Us For Availability
57
BASKET WPL D3853307 Contact Us For Availability
58
HANDLE WPL B0571801 Contact Us For Availability
59
GLIDE BASKET WPL B0543101 Contact Us For Availability
61
INSULATION,SOUND WPL B0488801 Contact Us For Availability
61
INSULATION,SOUND WPL B0488902 Contact Us For Availability
61
INSULATION,SOUND WPL B0489001 Contact Us For Availability
62
HEATER WPL B0562209 Contact Us For Availability
63
GASKET (PER FOOT) WPL A3030313 Contact Us For Availability
64
INLET PLATE, AIR WPL D3786702 Contact Us For Availability
65
DRAIN PAN WPL C3523101 Contact Us For Availability
66
GRILLE WPL C3561101 Contact Us For Availability
68
FAN BLADE WPL B0535401 Contact Us For Availability
69
MOTOR KIT WPL C3565601 Contact Us For Availability
69
SCREW WPL M0202642 Contact Us For Availability
69
WASHER WPL M0272605 Contact Us For Availability
70
BRACKET, MOTOR WPL C3536201 Contact Us For Availability
71
CLIP WPL M0111901 Contact Us For Availability
72
GRILLE WPL C3563507 Contact Us For Availability
73
GLIDER BOLT WPL M0266510 Contact Us For Availability
74
INSULATION BATT, BOTTOM WPL B0535003 Contact Us For Availability
76
HEAT EXCHANGER WPL C3570601 Contact Us For Availability
78
CLAMP WPL M0102315 Contact Us For Availability
79
INSULATION BATT, BACK WPL B0534906 Contact Us For Availability
80
INSULATION BATT, SIDES WPL B0572903 Contact Us For Availability
81
LINER ASSY WPL D7051072 Contact Us For Availability
82
INSULATION BATT, TOP WPL B0535213 Contact Us For Availability
82
INSULATION FT. K WPL B0572828 Contact Us For Availability
83
DOOR LEAD WPL B0561306 Contact Us For Availability
90
STRIKE PAD WPL D3913901 Contact Us For Availability
91
SHIM WPL A3063201 Contact Us For Availability
91
SHIM WPL A3063202 Contact Us For Availability
92
CONTROL WPL B0543811 Contact Us For Availability
94
KNOB, CONTROL WPL C3577902 Contact Us For Availability
95
RIVET PLASTIC WPL A3032601 Contact Us For Availability
96
STRIKE LOCK WPL B0570101 Contact Us For Availability
97
SCREW WPL M0230834 Contact Us For Availability
99
SPEED NUT WPL M0288107 Contact Us For Availability
101
TIE STRIP WPL D3913801 Contact Us For Availability
102
SWITCH, LIGHT WPL C3658601 Contact Us For Availability
103
SEMS FASTNER WPL M0255116 Contact Us For Availability
104
CLIP, WATERLINE WPL YA0381501 Contact Us For Availability
106
BRACKET WPL C3505801 Contact Us For Availability
107
FAN BLADE WPL B0487801 Contact Us For Availability
108
WASHER WPL M0274018 Contact Us For Availability
110
SCREW WPL M0221132 Contact Us For Availability
111
SEAL WPL C3523605 Contact Us For Availability
112
SEAL, FAN SHROUD WPL C3523506 Contact Us For Availability
114
RETAINING CLAMP TINER WPL A3108701 Contact Us For Availability
115
BRACKET WPL C3565001 Contact Us For Availability
116
SCREW, No.8-32 X 5/16 PPH (BLK) WPL M0230028 Contact Us For Availability
117
TIMER WPL C3565502 Contact Us For Availability
119
CLIP WPL M0111001 Contact Us For Availability
120
GROMMET K WPL A3026101 Contact Us For Availability
121
COMPRESSSOR WPL D3871701 Contact Us For Availability
121
COMPRESSOR-AE1410A-1/4 WPL D3871901 Contact Us For Availability
122
WIRING HARNESS,CAB WPL D7121201 Contact Us For Availability
123
STRAIN RELIEF K WPL A0319703 Contact Us For Availability
124
OVERLOAD WPL C3552901 Contact Us For Availability
125
SPRING K WPL A3043601 Contact Us For Availability
126
RELAY WPL C3553401 Contact Us For Availability
127
TERMINAL COVER WPL B0551801 Contact Us For Availability
128
STRAP K WPL A3041801 Contact Us For Availability
129
GASKET WPL A0382801 Contact Us For Availability
130
COVER PLATE WPL A0382902 Contact Us For Availability
130
COVER PLATE WPL A0382903 Contact Us For Availability
130
COVER PLATE -G WPL A0382904 Contact Us For Availability
130
COVER PLATE-L WPL A0382905 Contact Us For Availability
140
x$x LINER BACK WPL D7020002 Contact Us For Availability
142
x$x LINER BACK-LOWER WPL D3859703 Contact Us For Availability
143
PLUG BUTTON WPL A3054601 Contact Us For Availability
144
GROMMET WPL A0288701 Contact Us For Availability
144
GROMMET WPL A0384901 Contact Us For Availability
146
COIL WPL D3897301 Contact Us For Availability
147
HEATER WPL C3566401 Contact Us For Availability
148
SPACER BLOCK WPL A3030701 Contact Us For Availability
149
DRAIN BAFFLE, EVAPORATOR WPL B0540501 Contact Us For Availability
150
DRIP TRAY WPL D3789705 Contact Us For Availability
151
SUPPORT BLOCK WPL C3524701 Contact Us For Availability
152
CONDENSATE OUT WPL B0527101 Contact Us For Availability
153
CLAMP, DRAIN GROMMET WPL M0103001 Contact Us For Availability
154
CLAMP WPL M0102314 Contact Us For Availability
155
WATER TRAP WPL D3775201 Contact Us For Availability
156
CONDENSER WPL D3878001 Contact Us For Availability
158
CLIP-COND WPL A3054501 Contact Us For Availability
159
SPACER WPL B0544101 Contact Us For Availability
160
TIE, WIRE WPL M0585203 Contact Us For Availability
161
NUT A WPL M0286003 Contact Us For Availability
162
SPACER, 2-5/16`` X 1-1/2`` WPL A3013908 Contact Us For Availability
163
SEMS FASTNER WPL M0257039 Contact Us For Availability
164
SPACER WPL A3013909 Contact Us For Availability
165
SEMS FASTNER WPL M0257037 Contact Us For Availability
167
THERMOSTAT WPL B0556907 Contact Us For Availability
169
NUT WPL M0285501 Contact Us For Availability
170
ACCUMULATOR WPL B0553001 Contact Us For Availability
171
CLAMP WPL M0103101 Contact Us For Availability
171
SCREW WPL M0211532 Contact Us For Availability
172
SCREW WPL M0211530 Contact Us For Availability
172
CLAMP WPL M0102307 Contact Us For Availability
173
INSULATION, COMPARTMENT BACK WPL B0570301 Contact Us For Availability
174
BACK-W WPL C3574401 Contact Us For Availability
174
BACK-COPPER WPL C3574402 Contact Us For Availability
174
BACK-AVOCADO WPL C3574403 Contact Us For Availability
174
BACK-GOLD WPL C3574404 Contact Us For Availability
176
CLIP WPL M0110502 Contact Us For Availability
177
WIRING HARNESS,LINER WPL D7111401 Contact Us For Availability
178
WIRING HARNESS WPL D7117301 Contact Us For Availability
179
TAP PLATE,I.M. WPL B5639801 Contact Us For Availability
180
CAP FILL TUBE WPL B5631801 Contact Us For Availability
181
CAP WPL B5636301 Contact Us For Availability
182
GROMMET WPL A3138301 Contact Us For Availability
183
FILL TUBE ASSY WPL B5630506 Contact Us For Availability
184
PLUG WPL M0310309 Contact Us For Availability
× ![]()
