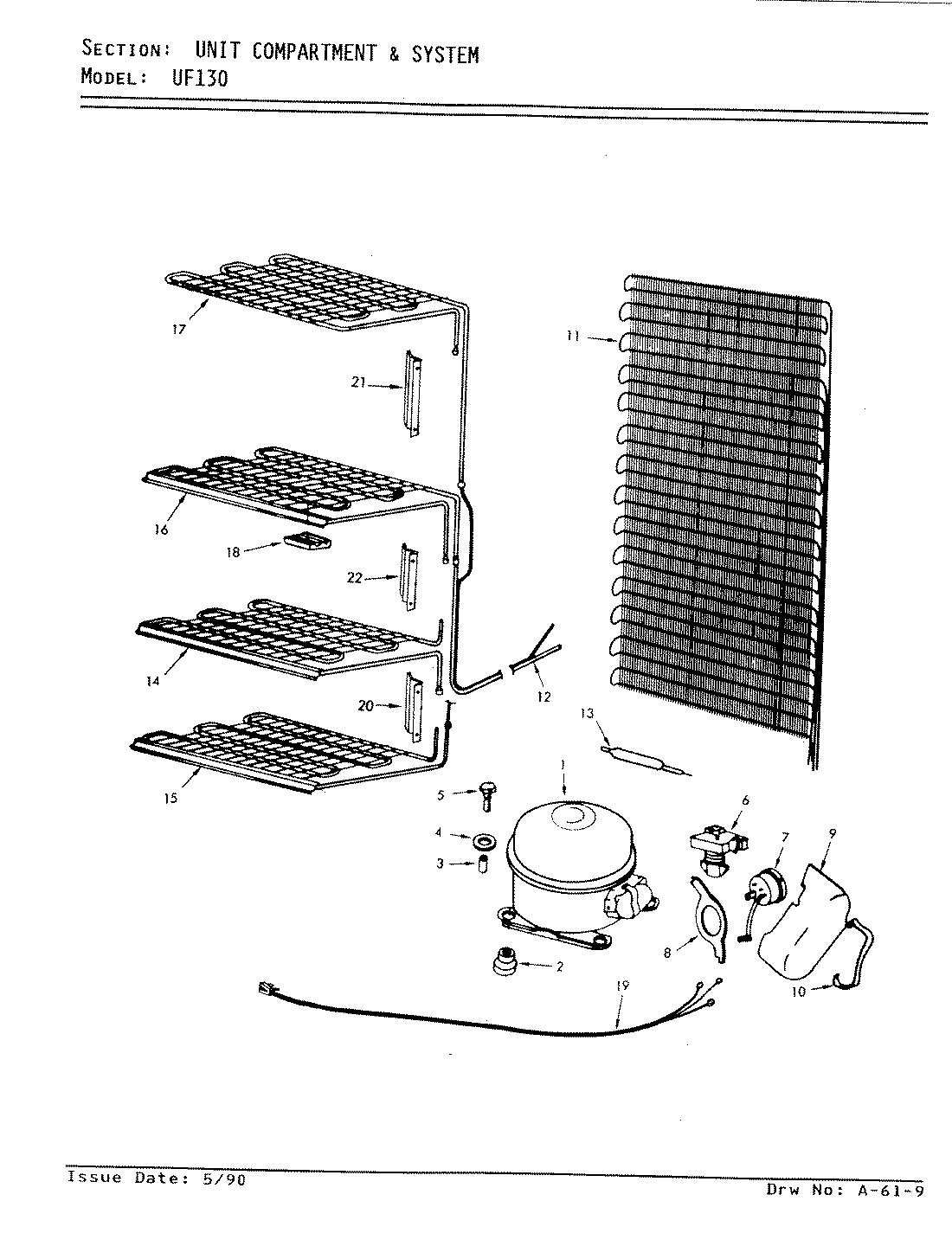

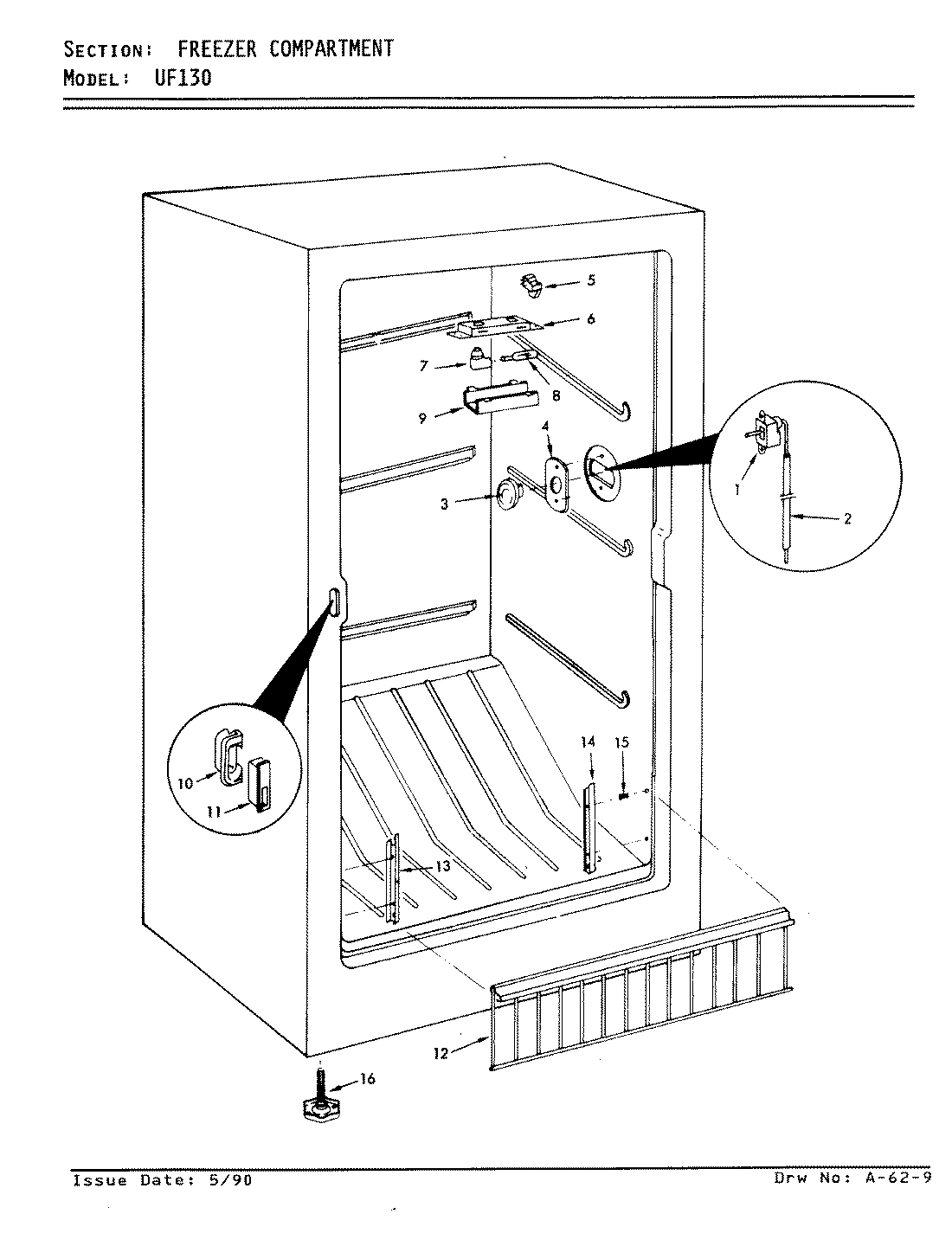

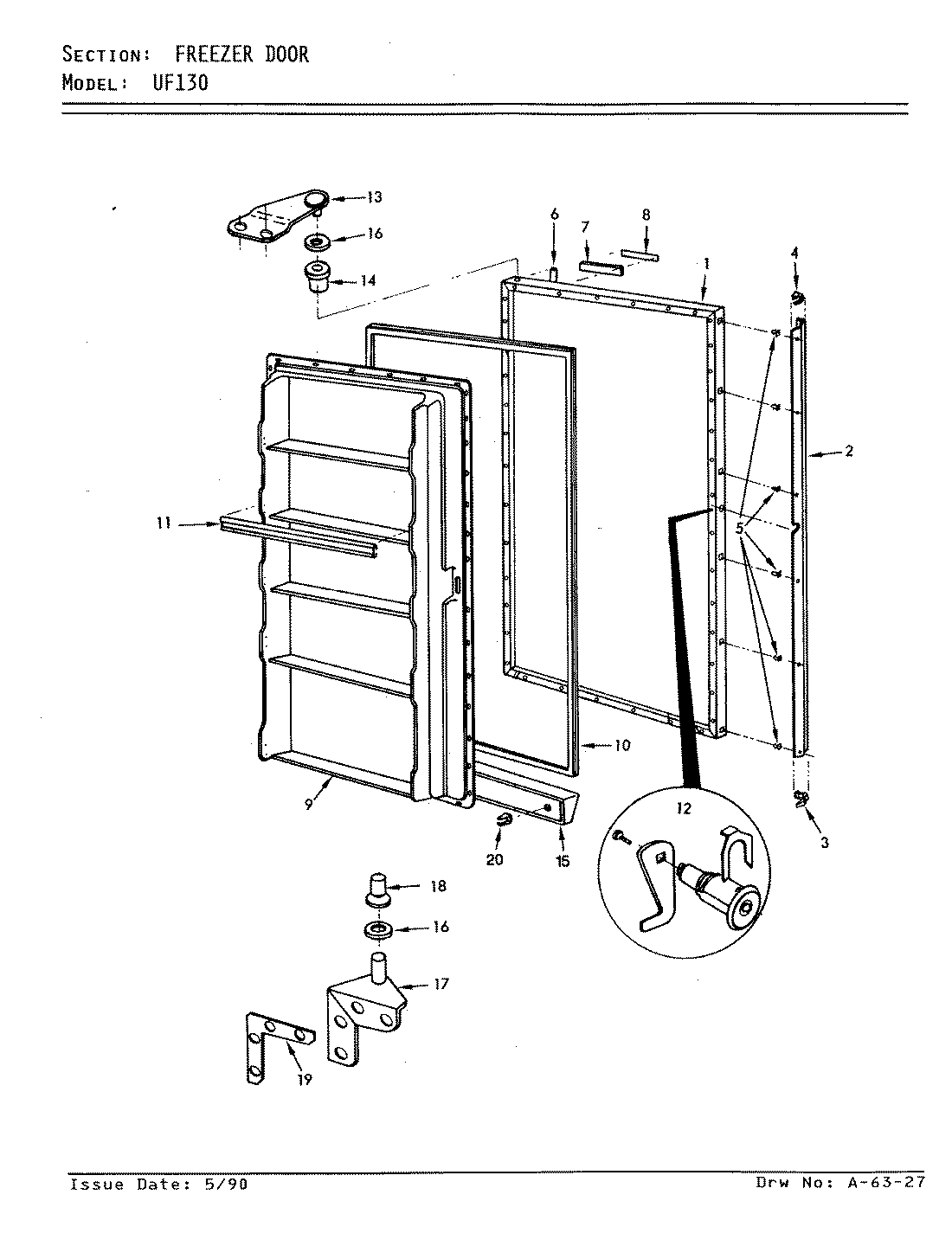

Model Whirlpool UF130 FREEZER – Common Parts &amp; Diagrams

1

W10439652 Whirlpool Refrigerator Compressor Backorder WPL W10439652 $301.93

1

WPW10068250 Whirlpool Dishwasher Screw Backorder WPL WPW10068250 $3.02

1

FOAM BLOCK WPL 04697501 Contact Us For Availability

1

INSULATION WPL 04697705 Contact Us For Availability

1

OUTER PANEL WPL 04941907WW Contact Us For Availability

1

CLIP WPL 04585501 Contact Us For Availability

1

TEMP CONTROL WPL Y04667503 Contact Us For Availability

2

HANDLE, 12` WPL 04714206 Contact Us For Availability

2

SCREW WPL 04830501 Contact Us For Availability

2

PLASTIC TUBING WPL 40081 Contact Us For Availability

2

GROMMET WPL 00469102 Contact Us For Availability

3

END CAP HANDLE WPL 04714301 Contact Us For Availability

3

CONTROL KNOB WPL Y00530815 Contact Us For Availability

3

SLEEVE WPL 00469401 Contact Us For Availability

4

END CAP HANDLE WPL 04714401 Contact Us For Availability

4

PLATE CONTROL WPL 04667301 Contact Us For Availability

4

WASHER WPL 00541703 Contact Us For Availability

5

GROMMET WPL Y04664301 Contact Us For Availability

5

SWITCH, LIGHT WPL 557321 Contact Us For Availability

5

SCREW COMP MTG WPL Y04703209 Contact Us For Availability

6

DOOR TRIM WPL 04691305 Contact Us For Availability

6

U NUT WPL 04684101 Contact Us For Availability

6

BRACKET, LIGHT MOUNT WPL Y04855101 Contact Us For Availability

6

RELAY WPL Y09100112 Contact Us For Availability

7

BEZEL NAMEPLATE WPL 09100119 Contact Us For Availability

7

RECEPTACLE, BULB WPL Y04553701 Contact Us For Availability

7

PROTECTOR WPL Y09100047 Contact Us For Availability

8

INSERT, BEZEL NAMEPLATE WPL 7719P06560 Contact Us For Availability

8

15T7N LAMP WPL 201745 Contact Us For Availability

8

CLIP, OVERLOAD WPL Y09100114 Contact Us For Availability

9

INNER PANEL WPL 04828402 Contact Us For Availability

9

SCREW WPL 652755 Contact Us For Availability

9

SHIELD, LIGHT WPL Y04855201 Contact Us For Availability

9

COVER, TERMINAL WPL Y09100115 Contact Us For Availability

10

DOOR GASKET WPL 04777401 Contact Us For Availability

10

RETAINER WPL 04295102 Contact Us For Availability

10

CLIP, TERM COVER WPL Y09100116 Contact Us For Availability

TRIM DOOR SHELF WPL 04686208 Contact Us For Availability

CLIP WPL 04529001 Contact Us For Availability

DRAIN PLUG WPL 04602801 Contact Us For Availability

SCREW WPL 04637502 Contact Us For Availability

STRIKE WPL 04938602 Contact Us For Availability

CONDENSER KIT WPL RA438801 Contact Us For Availability

3-35284-001 Whirlpool Freezer Door Lock Backorder WPL 3-35284-001 $14.90

WP4159193 Whirlpool Screw Backorder WPL WP4159193 $3.02

WASHER, LOCK WPL 04841704 Contact Us For Availability

LOCK BODY WPL Y04689701 Contact Us For Availability

CLIP WPL Y04689703 Contact Us For Availability

KEY WPL Y04689704 Contact Us For Availability

GATE WPL 04944601 Contact Us For Availability

HEAT EXCHANGER WPL 04846501 Contact Us For Availability

13

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $15.24

13

TOP HINGE WPL 04771603 Contact Us For Availability

13

SUPPORT, BRACKET WPL 655872 Contact Us For Availability

14

SCREW WPL 4000371 Contact Us For Availability

14

SUPPORT, GATE (RT) WPL 655871 Contact Us For Availability

14

EVAPORATOR SHELF WPL Y04944303 Contact Us For Availability

15

KICKPLATE WPL 04553201 Contact Us For Availability

15

NYLON NUT WPL 04758701 Contact Us For Availability

15

EVAPORATOR SHELF WPL 04945603 Contact Us For Availability

WASHER WPL 521851 Contact Us For Availability

WIRING HARNESS WPL 04898701 Contact Us For Availability

LEG, LEVELING WPL 60128 Contact Us For Availability

EVAPORATOR SHELF WPL 04944503 Contact Us For Availability

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.60

WP8204624 Whirlpool Bolt Backorder WPL WP8204624 $9.16

BOTTOM HINGE WPL 04771704 Contact Us For Availability

SCREW WPL 40001512 Contact Us For Availability

SCREW WPL 40011101 Contact Us For Availability

WASHER WPL 00541733 Contact Us For Availability

EVAP SHELF,TOP WPL 04813603 Contact Us For Availability

18

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.60

18

UPPER BUSHING WPL 660363 Contact Us For Availability

SHIM WPL Y04529702 Contact Us For Availability

SCREW WPL 04303701 Contact Us For Availability

CLAMP WPL 04317101 Contact Us For Availability

TUNNEL SUCTION LINE WPL 04701401 Contact Us For Availability

RET TUNNEL WPL 04701501 Contact Us For Availability

JUMPER TUBE WPL 04826402 Contact Us For Availability

LINE CORD WPL Y00075401 Contact Us For Availability

20

1-80247-101 Whirlpool Refrigerator Clip Backorder WPL 1-80247-101 $4.81

20

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.60

20

COVER, EVAPORATOR TUBES WPL 04808604 Contact Us For Availability

21

COVER, EVAPORATOR TUBE WPL 04808711 Contact Us For Availability

COVER, EVAPORATOR TUBE WPL 04808712 Contact Us For Availability

WIRING DIAGRAM WPL 04861602 Contact Us For Availability

FREEZER BOOK WPL 632922 Contact Us For Availability

MANUAL, USE & CARE WPL Y04933101 Contact Us For Availability
