Model Whirlpool UDT555SAHP0 DISHWASHER – Common Parts & Diagrams
01 - COVER SHEET
02 - CONTROL PANEL AND OUTER DOOR PARTS

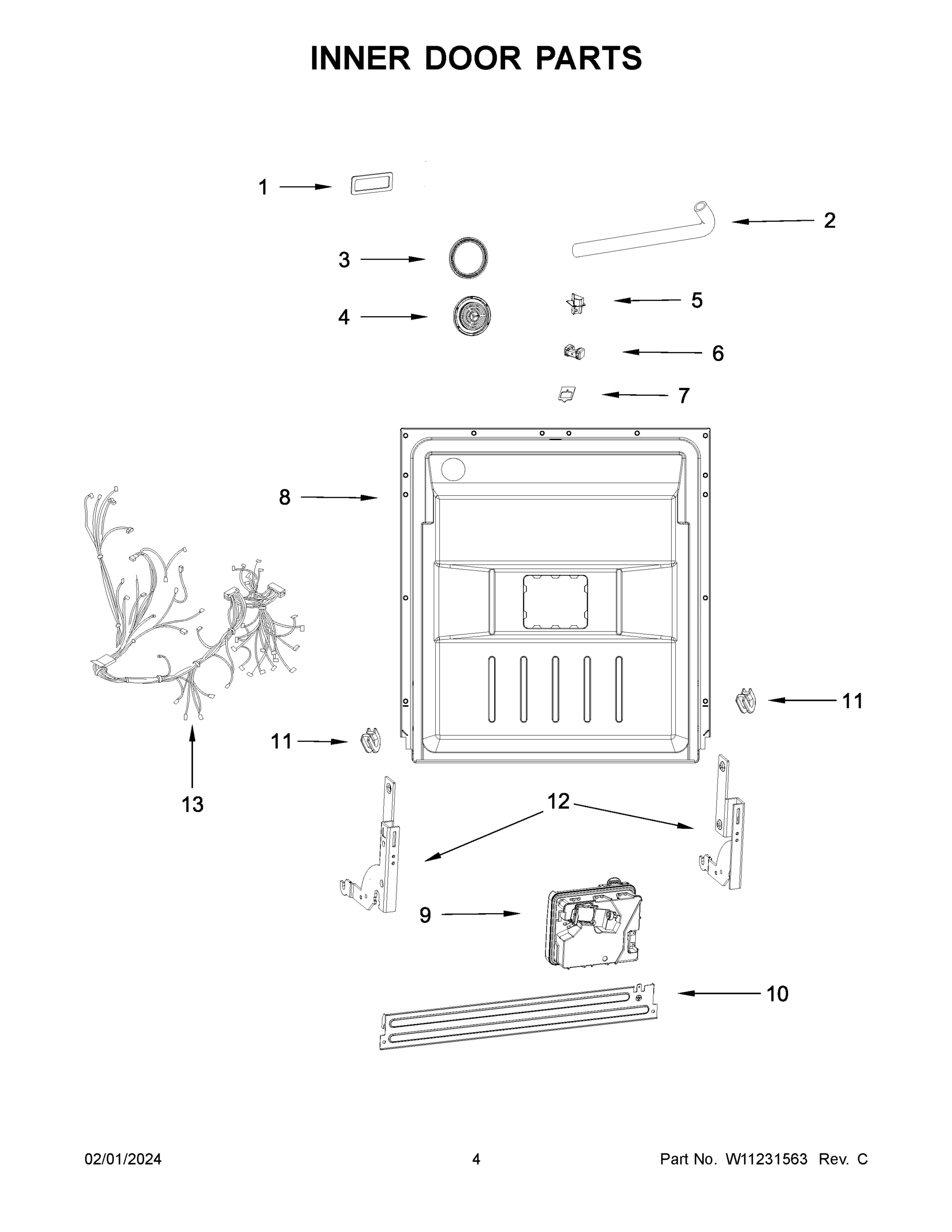

03 - INNER DOOR PARTS

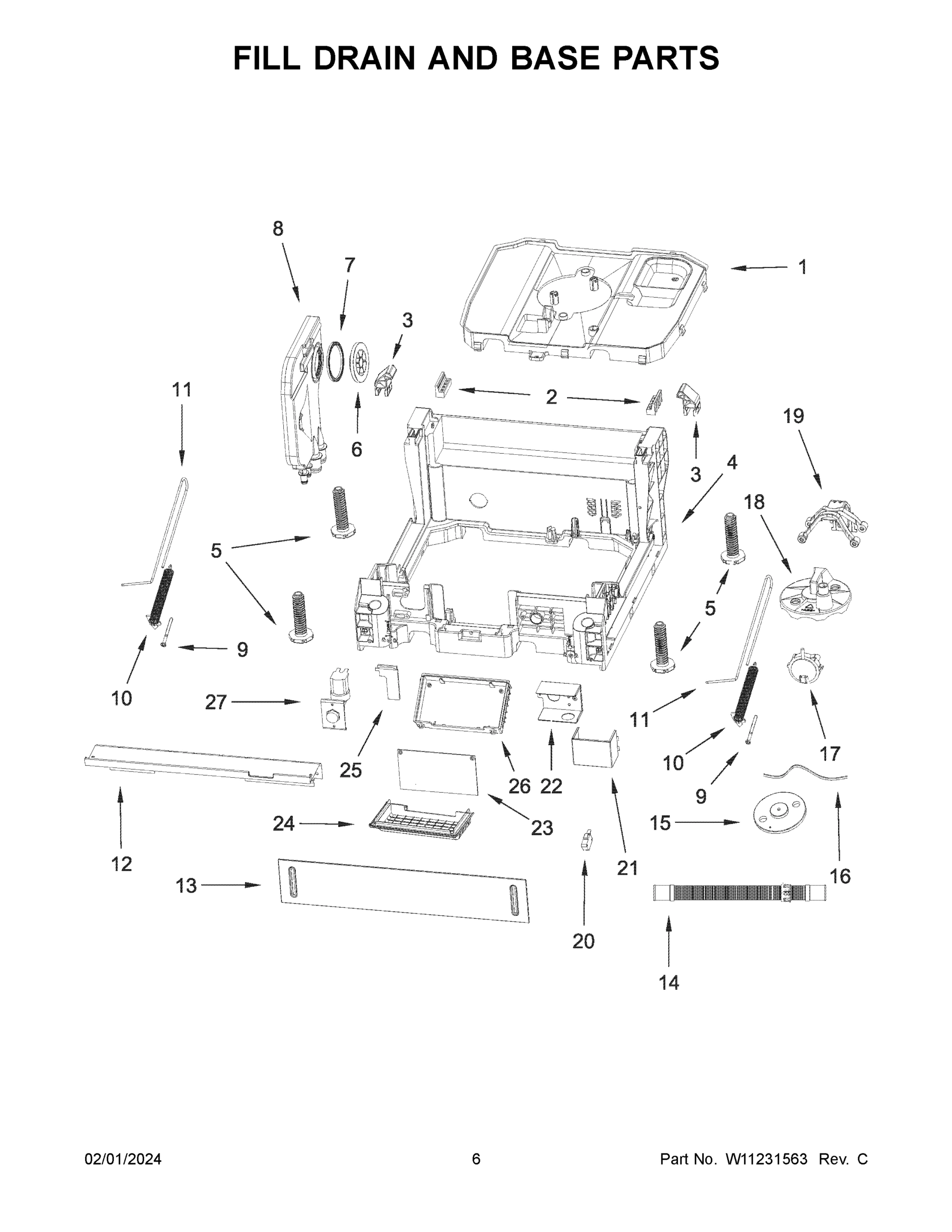

04 - FILL DRAIN AND BASE PARTS

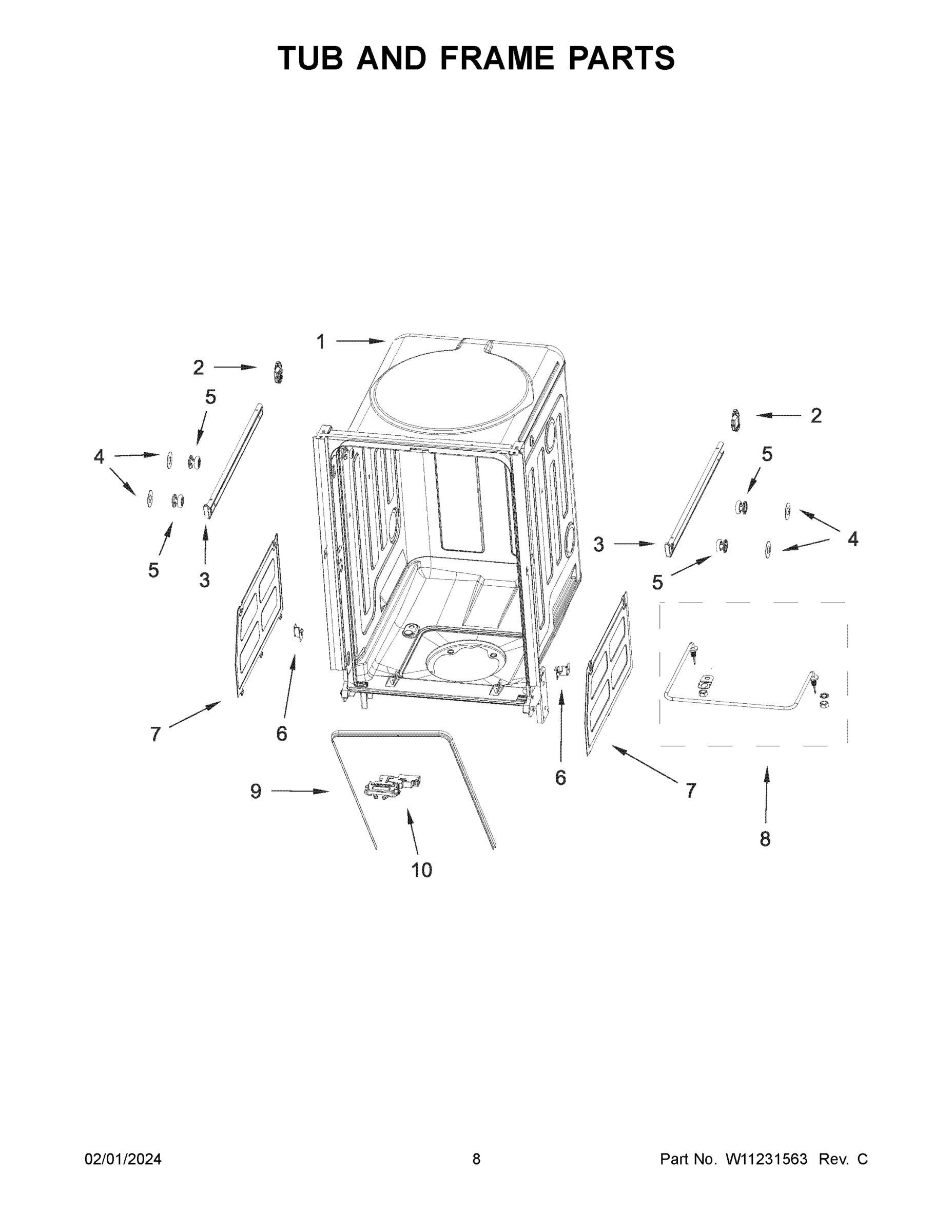

05 - TUB AND FRAME PARTS

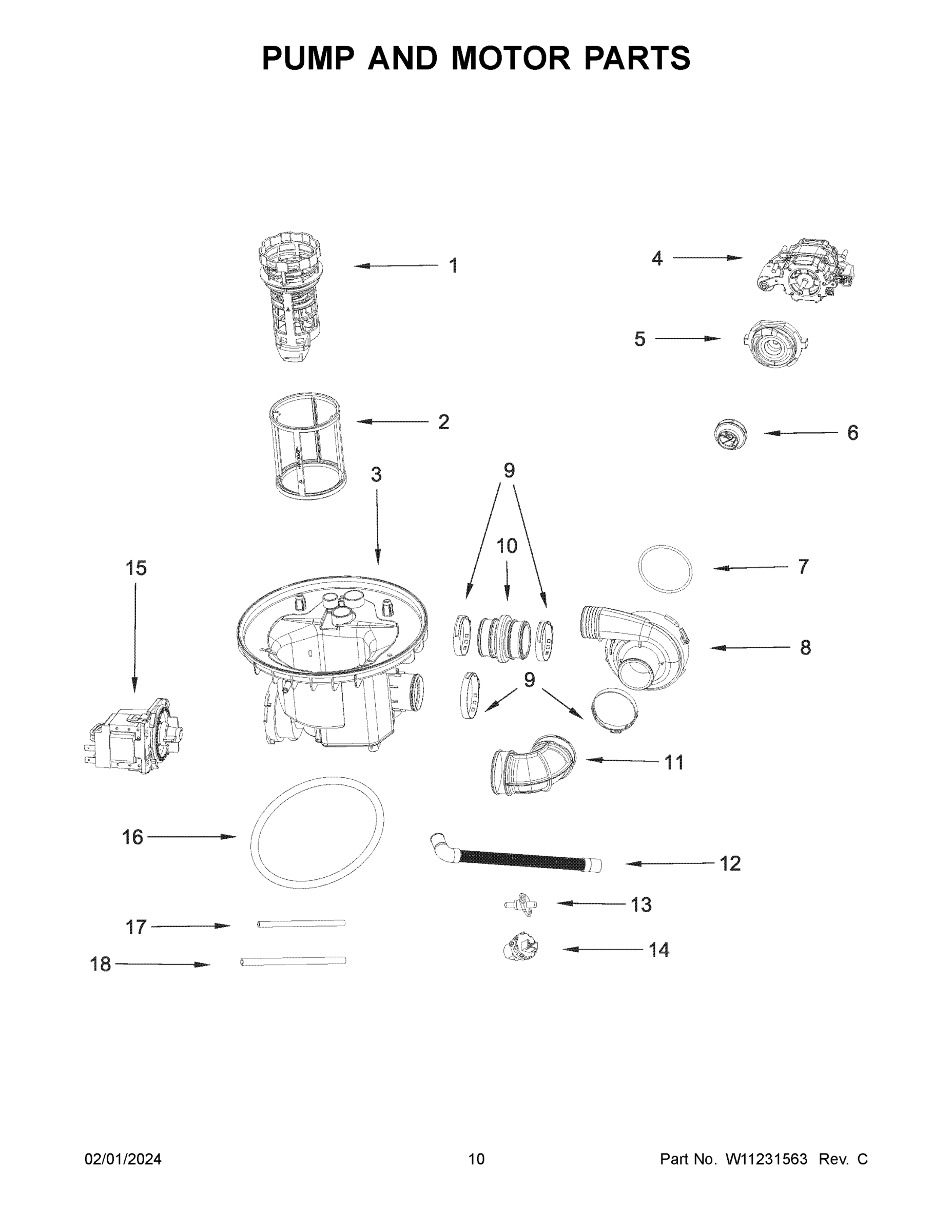

06 - PUMP AND MOTOR PARTS

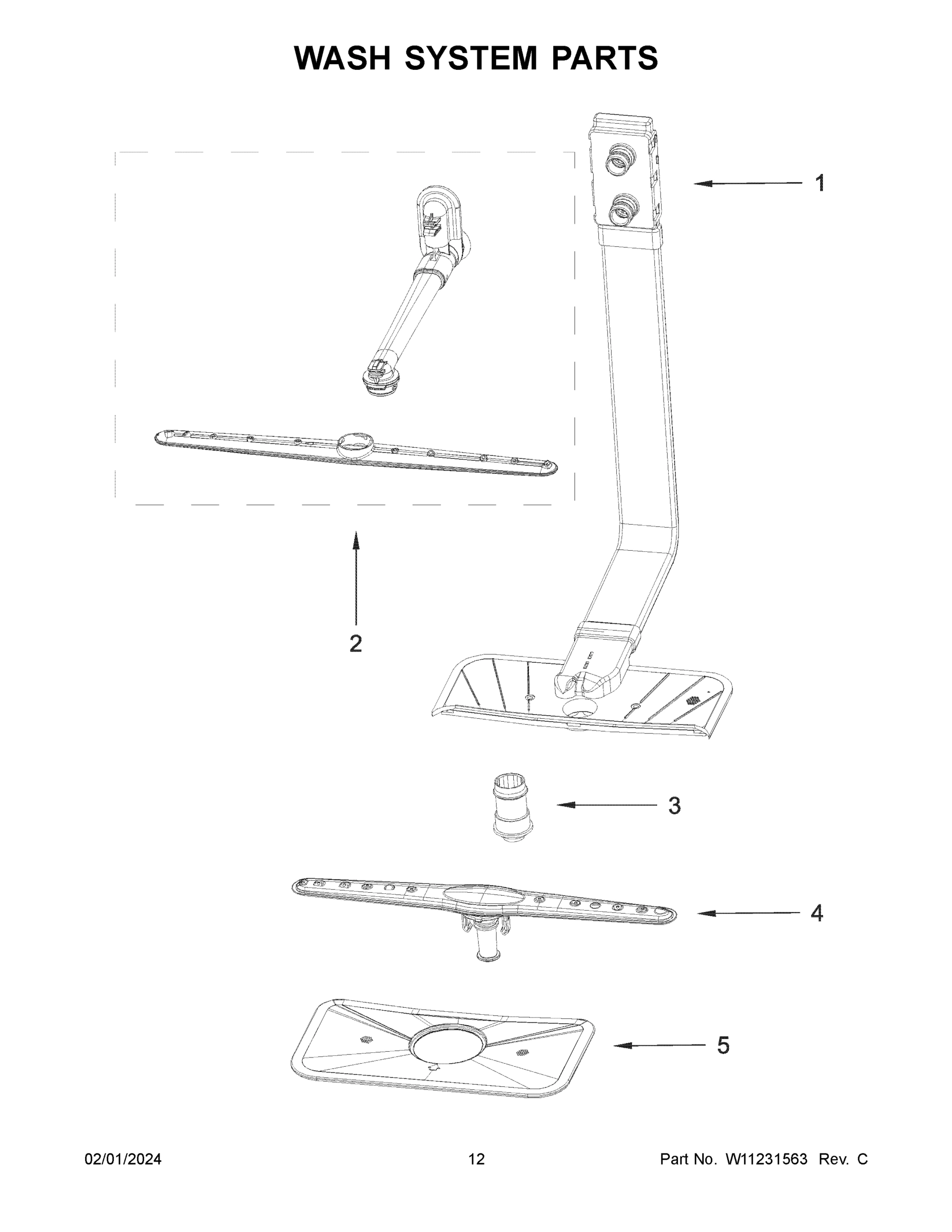

07 - WASH SYSTEM PARTS

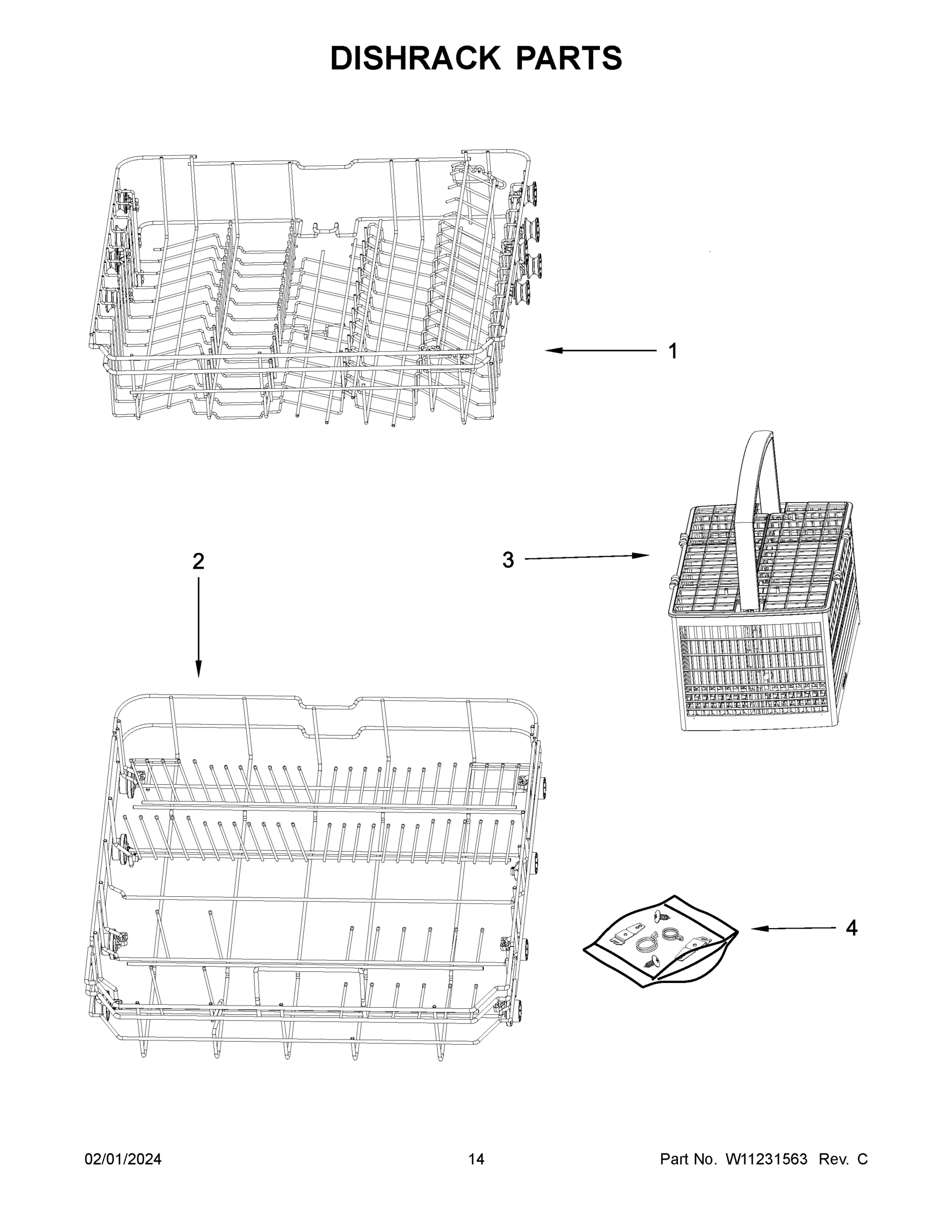

08 - DISHRACK PARTS
Common parts from model Whirlpool UDT555SAHP0 DISHWASHER
1
TUB ASSEMBLY (NOT SERVICED) WPL ARI50E76A76B5CE3B16D944CF4FD5BFB863 Contact Us For Availability
1
FILTER HANDLE WPL W11226875 Contact Us For Availability
1
FEED TUBE ASSEMBLY WPL W11226868 Contact Us For Availability
2
STOP, TRACK WPL W11226273 Contact Us For Availability
2
FILTER WPL W11226876 Contact Us For Availability
2
UPPER SPRAYARM ASSEMBLY WPL W11226869 Contact Us For Availability
2
LOWER RACK ASSEMBLY WPL W11226904 Contact Us For Availability
3
SUMP WPL W11226878 Contact Us For Availability
3
TRACK ASSEMBLY (LEFT HAND) WPL W11226276 Contact Us For Availability
3
EXTENSION, LOWER SPRAYARM WPL W11226870 Contact Us For Availability
3A
TRACK ASSEMBLY (RIGHT HAND) WPL W11226277 Contact Us For Availability
4
LOWER SPRAYARM WPL W11226872 Contact Us For Availability
4
SUPPORTING HOLDER, BASKET GUIDER WPL W11226286 Contact Us For Availability
5
HOOK, DOOR LATCH WPL W11226146 Contact Us For Availability
5
HOUSING, LOWER PUMP WPL W11226885 Contact Us For Availability
5
WHEEL WPL W11226280 Contact Us For Availability
5
FILTER SCREEN WPL W11226873 Contact Us For Availability
6
IMPELLER WPL W11226886 Contact Us For Availability
7
GASKET, PUMP WPL W11226887 Contact Us For Availability
7
CONNECTING PANEL (LEFT HAND) WPL W11226289 Contact Us For Availability
7A
CONNECTING PANEL (RIGHT HAND) WPL W11226291 Contact Us For Availability
8
AIR BREATHER WPL W11226325 Contact Us For Availability
8
HEATING ELEMENT ASSEMBLY WPL W11226295 Contact Us For Availability
8
INNER DOOR ASSEMBLY WPL W11226196 Contact Us For Availability
8
HOUSING, UPPER PUMP WPL W11226889 Contact Us For Availability
10
DOOR SWITCH ASSEMBLY WPL W11226294 Contact Us For Availability
10
HOSE WPL W11226893 Contact Us For Availability
11
INLET HOSE WPL W11226894 Contact Us For Availability
11
DOOR ROPE WPL W11226865 Contact Us For Availability
13
ACCESS PANEL (BLACK) WPL W11243362 Contact Us For Availability
13
WIRING HARNESS WPL W11334448 Contact Us For Availability
14
TRUBIDITY SENSOR WPL W11226898 Contact Us For Availability
15
FLOAT WPL W11226858 Contact Us For Availability
16
PIPE WPL W11226857 Contact Us For Availability
16
SEALING GASKET WPL W11226899 Contact Us For Availability
17
PRESSURE SWITCH WPL W11226502 Contact Us For Availability
17
INLET HOSE WPL W11226900 Contact Us For Availability
18
SEAT, FLOAT WPL W11226494 Contact Us For Availability
18
HOSE WPL W11226901 Contact Us For Availability
19
ASSEMBLY, PUMP SUPPORT WPL W11226339 Contact Us For Availability
21
COVER, JUNCTION BOX WPL W11226540 Contact Us For Availability
22
BASE, JUNCTION BOX WPL W11226537 Contact Us For Availability
24
COVER, PCB BOX WPL W11226535 Contact Us For Availability
25
BLOCK WPL W11226514 Contact Us For Availability
26
PCB BOX WPL W11226520 Contact Us For Availability
× ![]()
