Model Maytag UD158-1 DISHWASHER – Common Parts & Diagrams

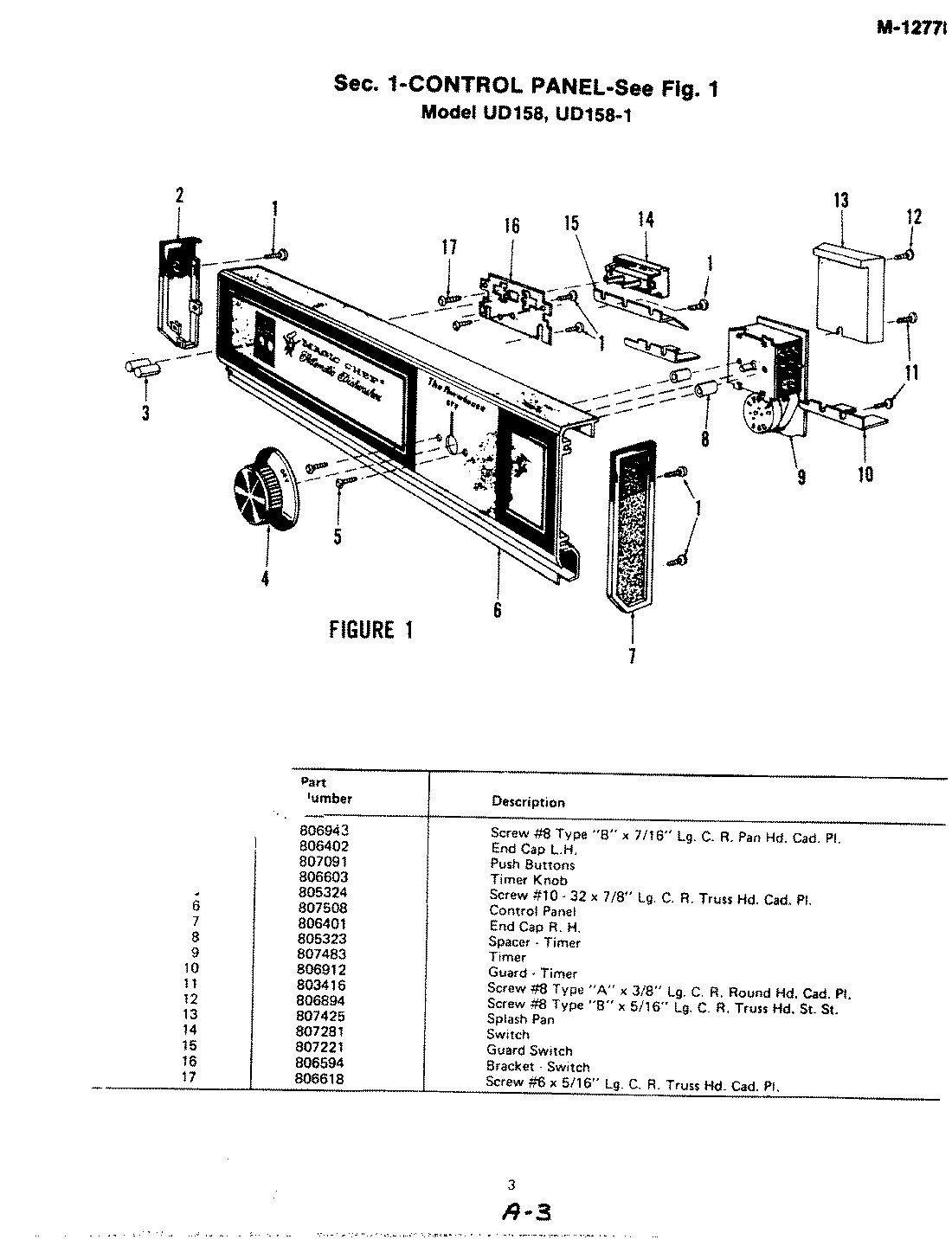

01 - CONTROL PANEL (UD158)

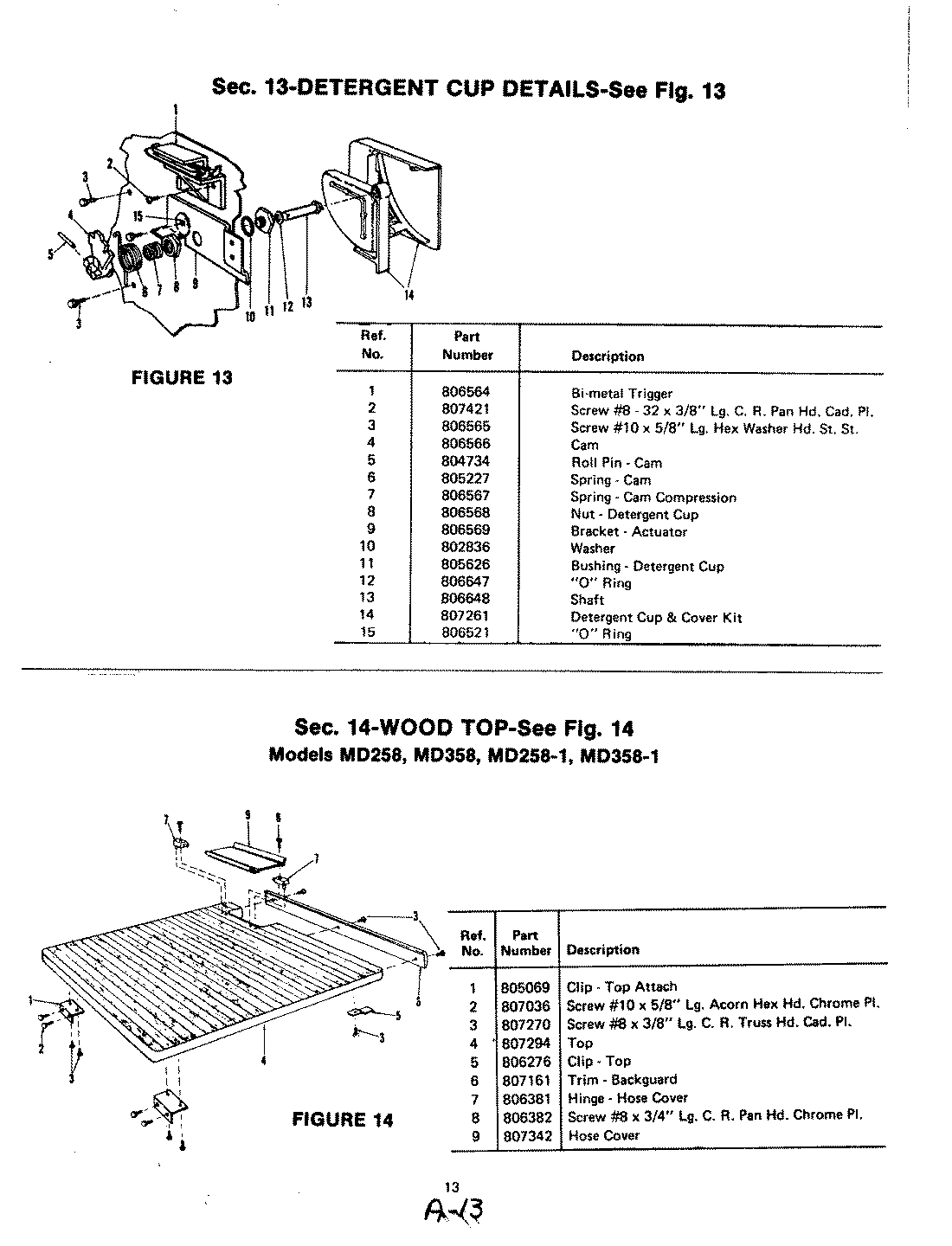

02 - DETERGENT CUP

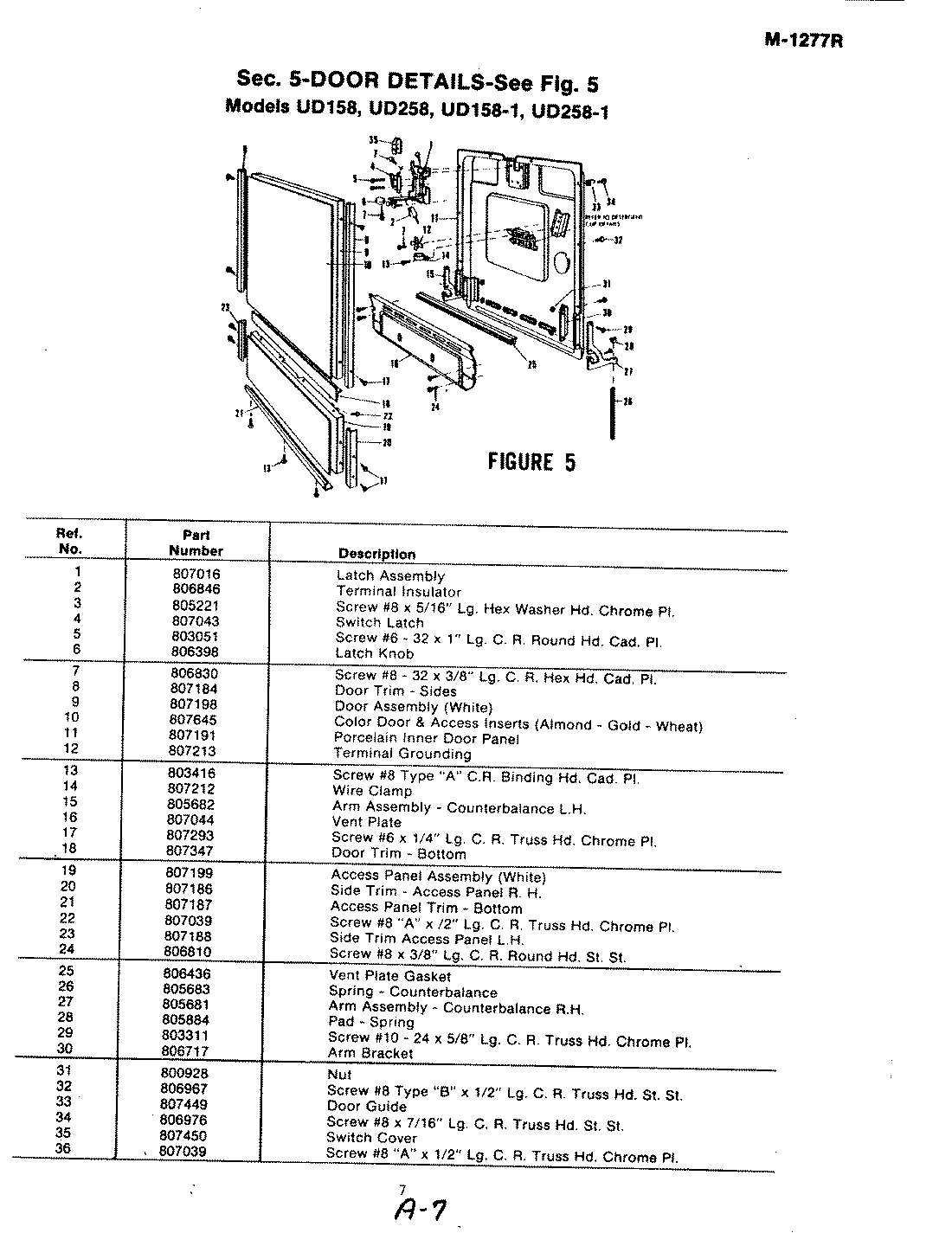

03 - DOOR DETAILS

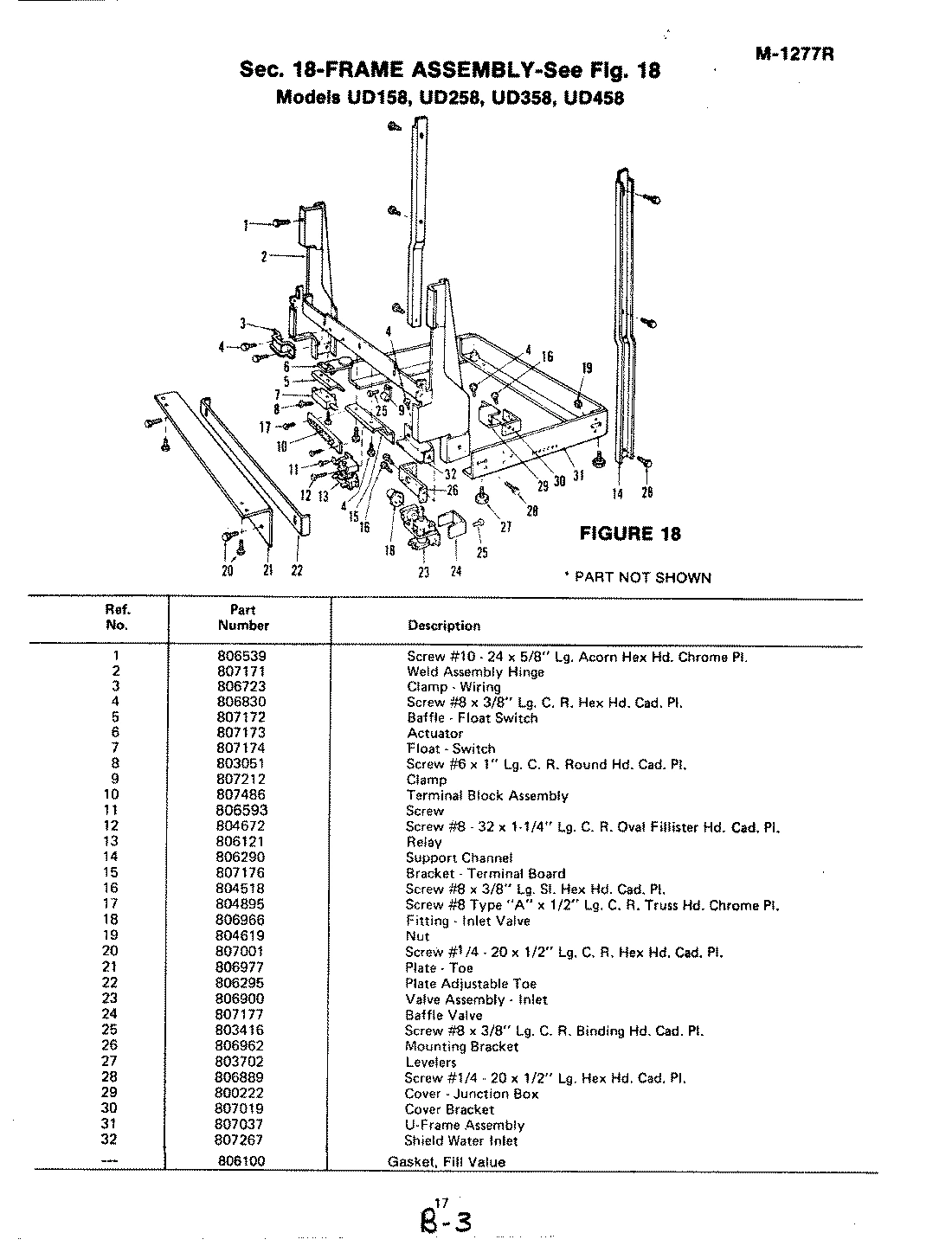

04 - FRAME ASSEMBLY (UD158, UD258)

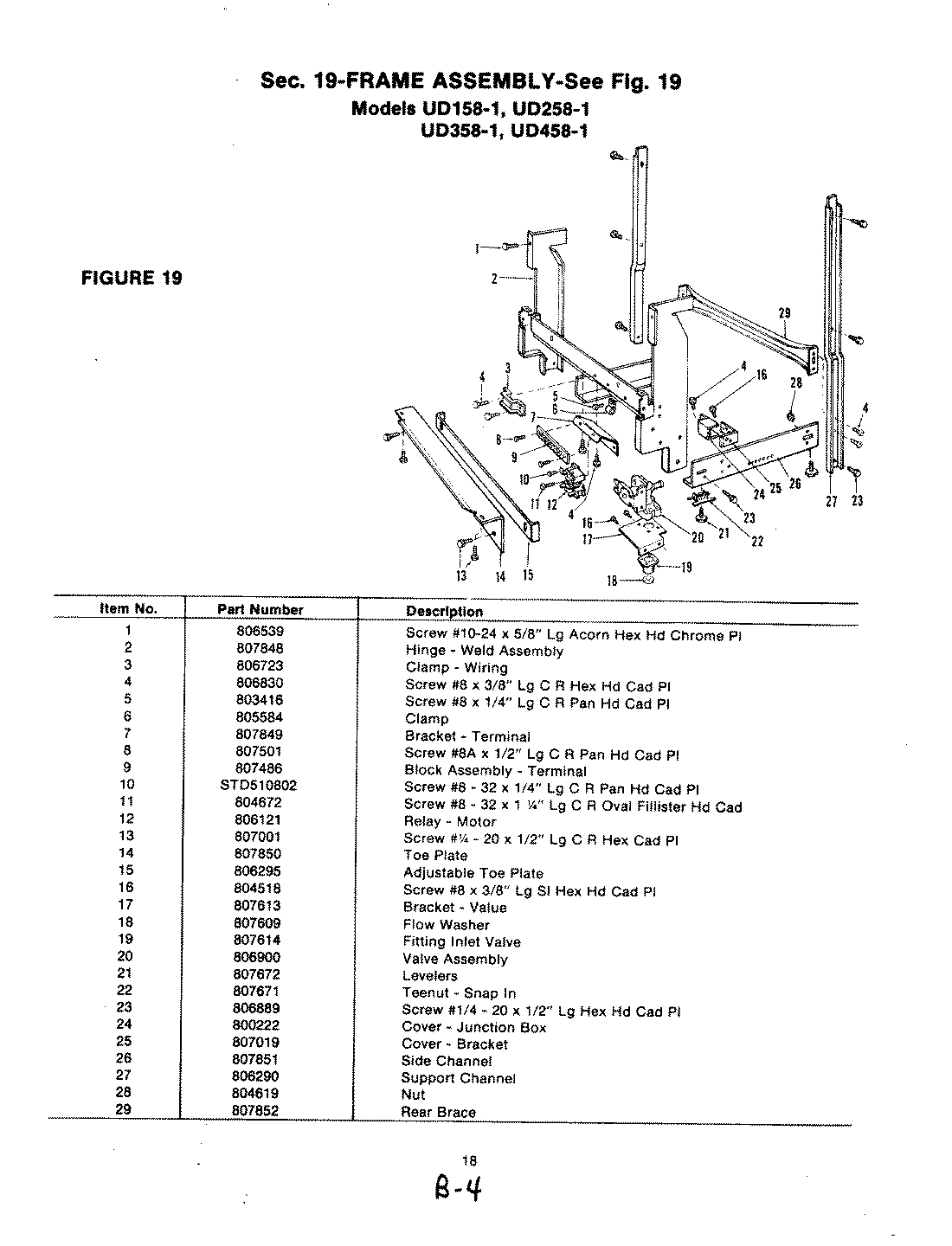

05 - FRAME ASSEMBLY (UD158-1,UD258-1)

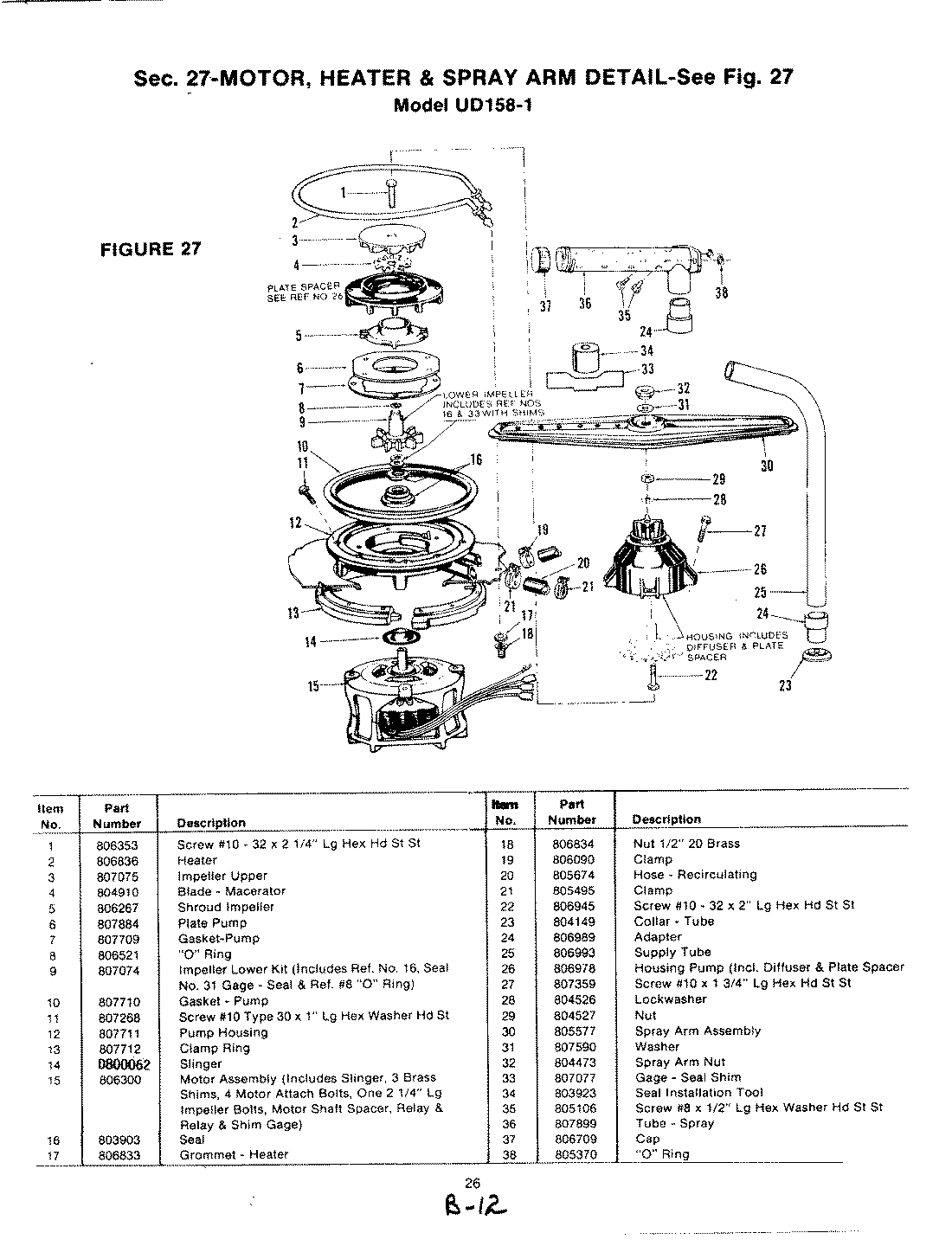

06 - HEATER & SPRAY ARM DETAIL (UD158-1)

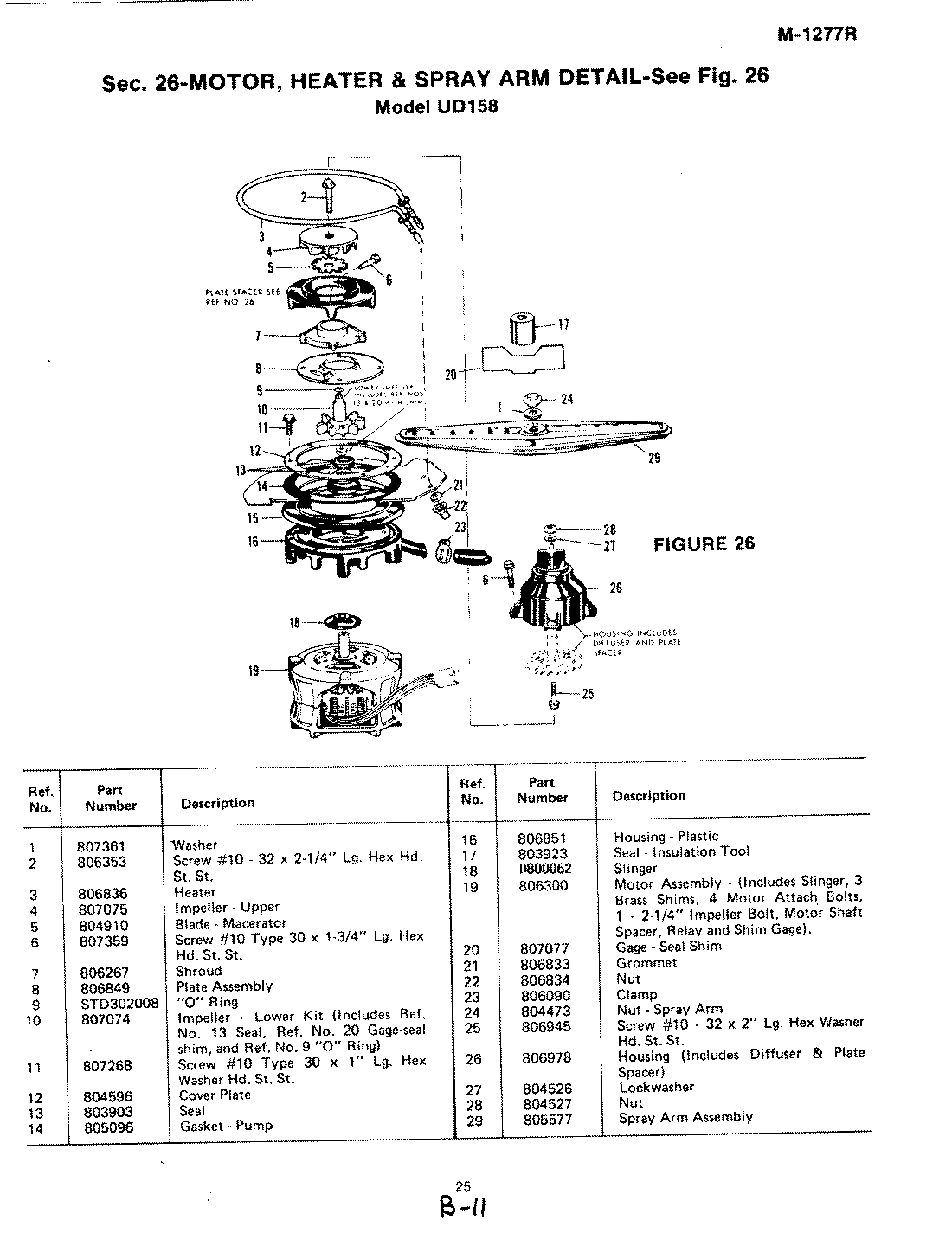

07 - MOTOR, HEATER & SPRAY ARM

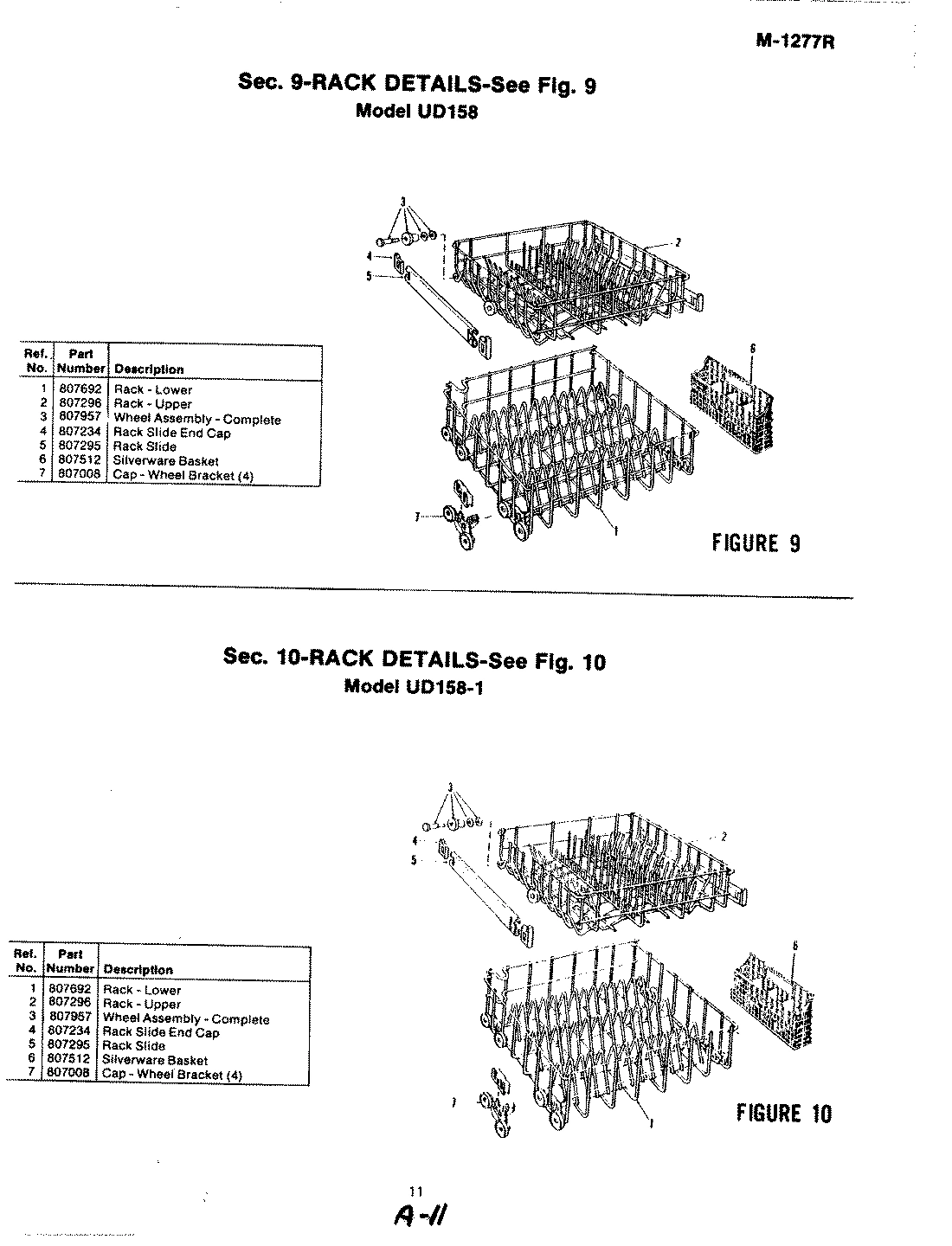

08 - RACK (UD158)

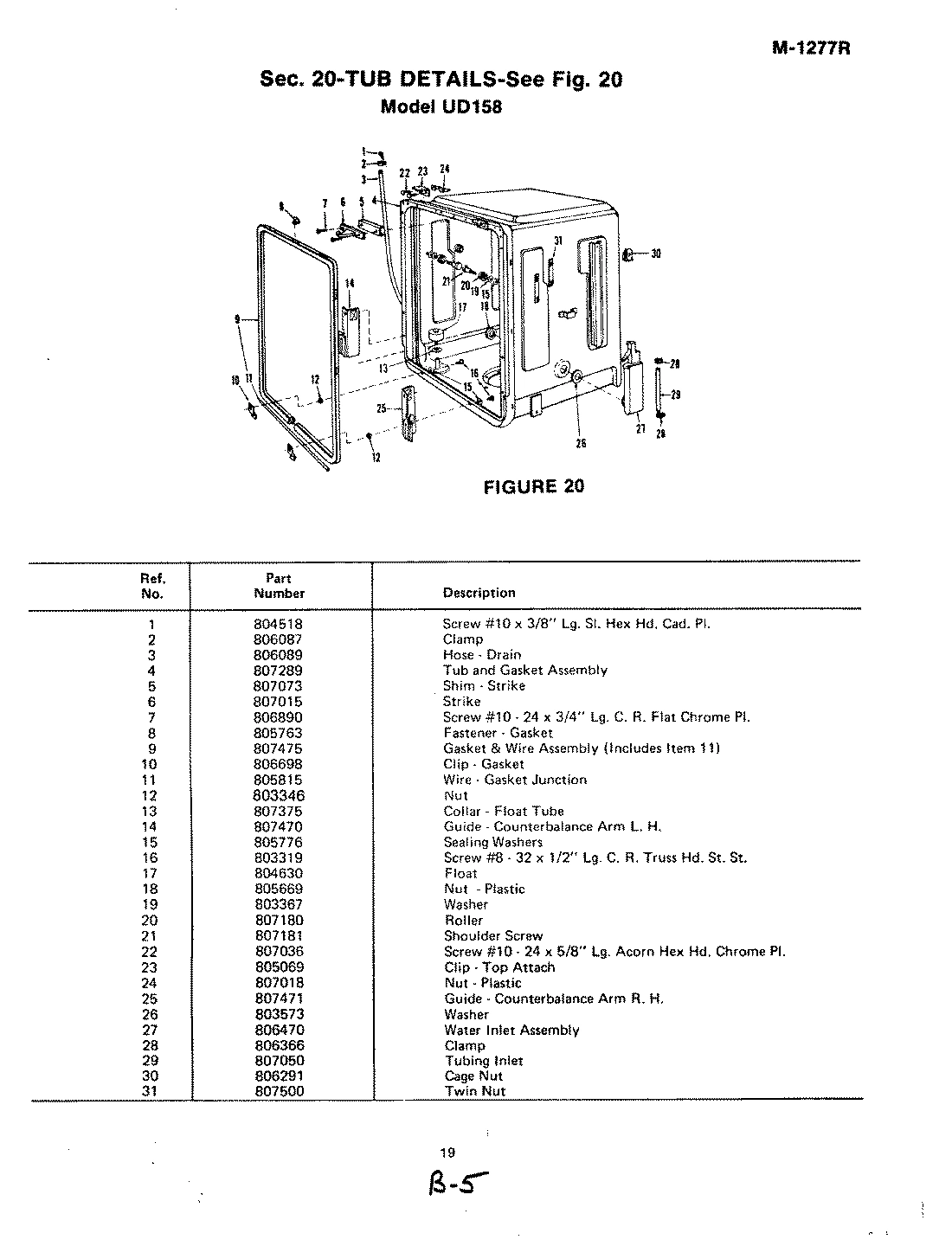

09 - TUB

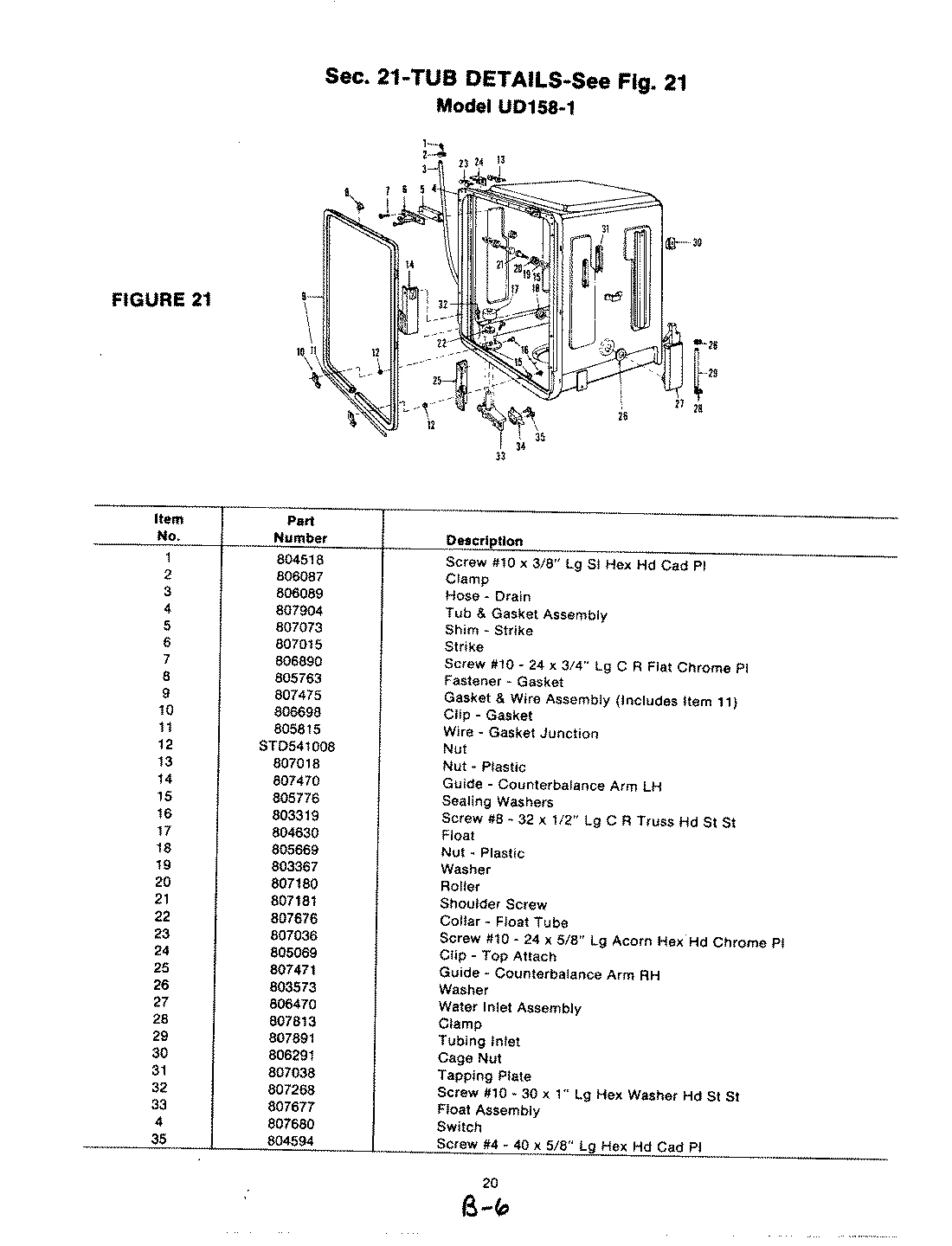

10 - TUB (UD158-1)
Common parts from model Maytag UD158-1 DISHWASHER
1
SCREW MAY 806943 Contact Us For Availability
1
MAY 806564 MAY 806564 Contact Us For Availability
1
LATCH ASM MAY 807016 Contact Us For Availability
1
SCREW MAY 804518 Contact Us For Availability
1
MAY 806539 MAY 806539 Contact Us For Availability
1
MAY 807692 MAY 807692 Contact Us For Availability
2
MAY 806402 MAY 806402 Contact Us For Availability
2
MAY 807421 MAY 807421 Contact Us For Availability
2
INSULATOR MAY 806846 Contact Us For Availability
2
MAY 807171 MAY 807171 Contact Us For Availability
2
MAY 807848 MAY 807848 Contact Us For Availability
2
MAY 806353 MAY 806353 Contact Us For Availability
2
MAY 807296 MAY 807296 Contact Us For Availability
2
MAY 806087 MAY 806087 Contact Us For Availability
3
PUSH BUTTON MAY 807091 Contact Us For Availability
3
SCREW MAY 806565 Contact Us For Availability
3
MAY 805221 MAY 805221 Contact Us For Availability
3
CLAMP MAY 806723 Contact Us For Availability
3
HEATER KIT MAY 806836 Contact Us For Availability
3
WHEEL ASM MAY 807957 Contact Us For Availability
3
MAY 806089 MAY 806089 Contact Us For Availability
4
MAY 806603 MAY 806603 Contact Us For Availability
4
MAY 806566 MAY 806566 Contact Us For Availability
4
MAY 807043 MAY 807043 Contact Us For Availability
4
SCREW MAY 806830 Contact Us For Availability
4
MAY 807075 MAY 807075 Contact Us For Availability
4
END CAP MAY 807234 Contact Us For Availability
4
MAY 807289 MAY 807289 Contact Us For Availability
4
MAY 807904 MAY 807904 Contact Us For Availability
5
MAY 805324 MAY 805324 Contact Us For Availability
5
SCREW MAY 803416 Contact Us For Availability
5
ROLLPIN MAY 804734 Contact Us For Availability
5
MAY 807172 MAY 807172 Contact Us For Availability
5
MAY 804910 MAY 804910 Contact Us For Availability
5
MAY 807295 MAY 807295 Contact Us For Availability
5
STRIKE SHIM MAY 807073 Contact Us For Availability
6
MAY 807508 MAY 807508 Contact Us For Availability
6
SPRING MAY 805227 Contact Us For Availability
6
MAY 806398 MAY 806398 Contact Us For Availability
6
MAY 807173 MAY 807173 Contact Us For Availability
6
MAY 805584 MAY 805584 Contact Us For Availability
6
PUMP PLATE MAY 807884 Contact Us For Availability
6
SCREW MAY 807359 Contact Us For Availability
6
SILVRWR BASKET MAY 807512 Contact Us For Availability
6
STRIKE MAY 807015 Contact Us For Availability
7
MAY 806401 MAY 806401 Contact Us For Availability
7
SPRING MAY 806567 Contact Us For Availability
7
MAY 807174 MAY 807174 Contact Us For Availability
7
MAY 807849 MAY 807849 Contact Us For Availability
7
SHROUD MAY 806267 Contact Us For Availability
7
GASKET MAY 807709 Contact Us For Availability
7
WHEEL ASM MAY 807008 Contact Us For Availability
7
MAY 806890 MAY 806890 Contact Us For Availability
8
MAY 805323 MAY 805323 Contact Us For Availability
8
NUT MAY 806568 Contact Us For Availability
8
O RING MAY 806521 Contact Us For Availability
8
MAY 803051 MAY 803051 Contact Us For Availability
8
MAY 807184 MAY 807184 Contact Us For Availability
8
MAY 807501 MAY 807501 Contact Us For Availability
8
MAY 806849 MAY 806849 Contact Us For Availability
8
CLIP KIT (TUB GASKET) MAY 805763 Contact Us For Availability
9
MAY 807483 MAY 807483 Contact Us For Availability
9
MAY 806569 MAY 806569 Contact Us For Availability
9
MAY 807198 MAY 807198 Contact Us For Availability
9
MAY 807212 MAY 807212 Contact Us For Availability
9
MAY 807486 MAY 807486 Contact Us For Availability
9
MAY 807074 MAY 807074 Contact Us For Availability
9
MAY 807475 MAY 807475 Contact Us For Availability
10
MAY 806912 MAY 806912 Contact Us For Availability
10
GASKET MAY 802836 Contact Us For Availability
10
INSERT, DOOR PANEL MAY 807645 Contact Us For Availability
10
MAY 804672 MAY 804672 Contact Us For Availability
10
MAY 807710 MAY 807710 Contact Us For Availability
10
MAY 806698 MAY 806698 Contact Us For Availability
11
MAY 805626 MAY 805626 Contact Us For Availability
11
INNER PANEL MAY 807191 Contact Us For Availability
11
MAY 806593 MAY 806593 Contact Us For Availability
11
SUB 805255 MAY 806121 Contact Us For Availability
11
MAY 804596 MAY 804596 Contact Us For Availability
11
MAY 805815 MAY 805815 Contact Us For Availability
12
SCREW MAY 806894 Contact Us For Availability
12
O RING MAY 806647 Contact Us For Availability
12
GROUND TERMINAL MAY 807213 Contact Us For Availability
12
SCREW MAY 807001 Contact Us For Availability
12
PUMP HOUSING MAY 807711 Contact Us For Availability
12
MAY 806906 MAY 806906 Contact Us For Availability
12
MAY 803346 MAY 803346 Contact Us For Availability
12
MAY 807018 MAY 807018 Contact Us For Availability
13
MAY 807425 MAY 807425 Contact Us For Availability
13
MAY 806648 MAY 806648 Contact Us For Availability
13
TOE PLATE MAY 807850 Contact Us For Availability
13
CLAMP RING MAY 807712 Contact Us For Availability
13
MAY 805096 MAY 805096 Contact Us For Availability
13
MAY 807375 MAY 807375 Contact Us For Availability
13
LH GUIDE MAY 807470 Contact Us For Availability
14
MAY 807281 MAY 807281 Contact Us For Availability
14
DETRG CUP KIT MAY 807261 Contact Us For Availability
14
TOE PLATE MAY 806295 Contact Us For Availability
14
MAY 806851 MAY 806851 Contact Us For Availability
14
SEALER MAY 805776 Contact Us For Availability
15
MAY 807221 MAY 807221 Contact Us For Availability
15
LH ARM MAY 805682 Contact Us For Availability
15
MAY 807176 MAY 807176 Contact Us For Availability
15
SEAL TOOL MAY 803923 Contact Us For Availability
15
MAY 803319 MAY 803319 Contact Us For Availability
16
MAY 806594 MAY 806594 Contact Us For Availability
16
MAY 807044 MAY 807044 Contact Us For Availability
16
VALVE BRACKET MAY 807613 Contact Us For Availability
16
MAY D800062 MAY D800062 Contact Us For Availability
16
GASKET MAY 803903 Contact Us For Availability
16
MAY 804630 MAY 804630 Contact Us For Availability
17
MAY 806618 MAY 806618 Contact Us For Availability
17
MAY 807293 MAY 807293 Contact Us For Availability
17
MAY 804895 MAY 804895 Contact Us For Availability
17
MAY 807609 MAY 807609 Contact Us For Availability
17
MOTOR MAY 806300 Contact Us For Availability
17
MAY 805669 MAY 805669 Contact Us For Availability
18
DOOR TRIM MAY 807347 Contact Us For Availability
18
MAY 806966 MAY 806966 Contact Us For Availability
18
MAY 807614 MAY 807614 Contact Us For Availability
18
SHIM GAUGE MAY 807077 Contact Us For Availability
18
MAY 803367 MAY 803367 Contact Us For Availability
19
MAY 807199 MAY 807199 Contact Us For Availability
19
MAY 806900 MAY 806900 Contact Us For Availability
19
GROMMET MAY 806833 Contact Us For Availability
19
ROLLER MAY 807180 Contact Us For Availability
20
MAY 807186 MAY 807186 Contact Us For Availability
20
MAY 807672 MAY 807672 Contact Us For Availability
20
NUT MAY 806834 Contact Us For Availability
20
MAY 805674 MAY 805674 Contact Us For Availability
20
SCREW MAY 807181 Contact Us For Availability
21
MAY 807187 MAY 807187 Contact Us For Availability
21
MAY 806977 MAY 806977 Contact Us For Availability
21
TEENUT MAY 807671 Contact Us For Availability
21
CLAMP MAY 806090 Contact Us For Availability
21
CLAMP MAY 805495 Contact Us For Availability
21
MAY 807676 MAY 807676 Contact Us For Availability
22
MAY 806889 MAY 806889 Contact Us For Availability
22
MAY 804473 MAY 804473 Contact Us For Availability
22
SCREW MAY 807036 Contact Us For Availability
23
MAY 807088 MAY 807088 Contact Us For Availability
23
TERMINAL COVER MAY 800222 Contact Us For Availability
23
MAY 806945 MAY 806945 Contact Us For Availability
23
MAY 804149 MAY 804149 Contact Us For Availability
23
CLIP MAY 805069 Contact Us For Availability
24
SCREW MAY 806810 Contact Us For Availability
24
MAY 807188 MAY 807188 Contact Us For Availability
24
BRACKET MAY 807019 Contact Us For Availability
24
MAY 806989 MAY 806989 Contact Us For Availability
24
PUMPHOUSING KIT MAY 806978 Contact Us For Availability
24
RH GUIDE MAY 807471 Contact Us For Availability
25
MAY 806436 MAY 806436 Contact Us For Availability
25
SIDE CHANNEL MAY 807851 Contact Us For Availability
25
MAY 806993 MAY 806993 Contact Us For Availability
25
MAY 804526 MAY 804526 Contact Us For Availability
25
WASHER MAY 803573 Contact Us For Availability
26
DOOR SPRING MAY 805683 Contact Us For Availability
26
CHANNEL MAY 806290 Contact Us For Availability
26
MAY 806962 MAY 806962 Contact Us For Availability
26
MAY 804527 MAY 804527 Contact Us For Availability
26
MAY 806470 MAY 806470 Contact Us For Availability
27
RH ARM MAY 805681 Contact Us For Availability
27
MAY 804619 MAY 804619 Contact Us For Availability
27
MAY 803802 MAY 803802 Contact Us For Availability
27
LWR SPRAY ARM MAY 805577 Contact Us For Availability
27
MAY 807813 MAY 807813 Contact Us For Availability
28
SPRING PAD MAY 805884 Contact Us For Availability
28
MAY 807852 MAY 807852 Contact Us For Availability
28
MAY 806366 MAY 806366 Contact Us For Availability
28
INLET TUBE MAY 807891 Contact Us For Availability
29
MAY 803311 MAY 803311 Contact Us For Availability
29
MAY 807050 MAY 807050 Contact Us For Availability
29
MAY 806291 MAY 806291 Contact Us For Availability
30
ARM BRACKET MAY 806717 Contact Us For Availability
30
TAPPING PLATE MAY 807038 Contact Us For Availability
31
MAY 800928 MAY 800928 Contact Us For Availability
31
MAY 807037 MAY 807037 Contact Us For Availability
31
MAY 807268 MAY 807268 Contact Us For Availability
31
WASHER MAY 807590 Contact Us For Availability
31
MAY 807500 MAY 807500 Contact Us For Availability
32
SCREW MAY 806967 Contact Us For Availability
32
MAY 806100 MAY 806100 Contact Us For Availability
32
MAY 807267 MAY 807267 Contact Us For Availability
32
FLOAT ASM MAY 807677 Contact Us For Availability
33
DOOR GUIDE MAY 807449 Contact Us For Availability
33
FLOAT SWITCH MAY 807680 Contact Us For Availability
34
MAY 806976 MAY 806976 Contact Us For Availability
34
BOLT MAY 804594 Contact Us For Availability
35
SWITCH COVER MAY 807450 Contact Us For Availability
35
SCREW MAY 805106 Contact Us For Availability
36
MAY 807899 MAY 807899 Contact Us For Availability
37
MAY 806709 MAY 806709 Contact Us For Availability
38
MAY 805370 MAY 805370 Contact Us For Availability
NI
MAY 807039 MAY 807039 Contact Us For Availability
× ![]()
