Model Unimac UCL125KNV Washer – Common Parts & Diagrams
Decals
Control Module

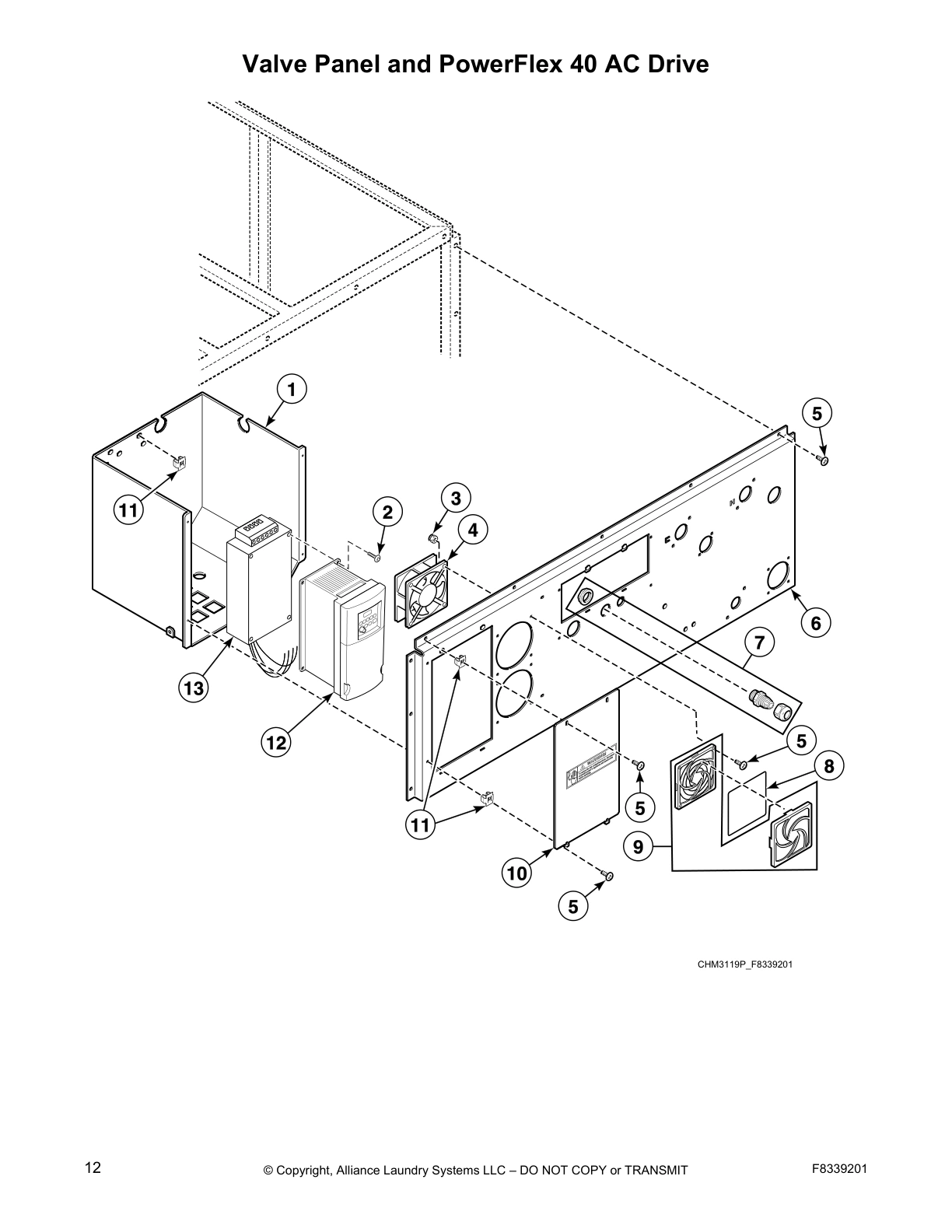

Valve Panel and PowerFlex 40 AC Drive

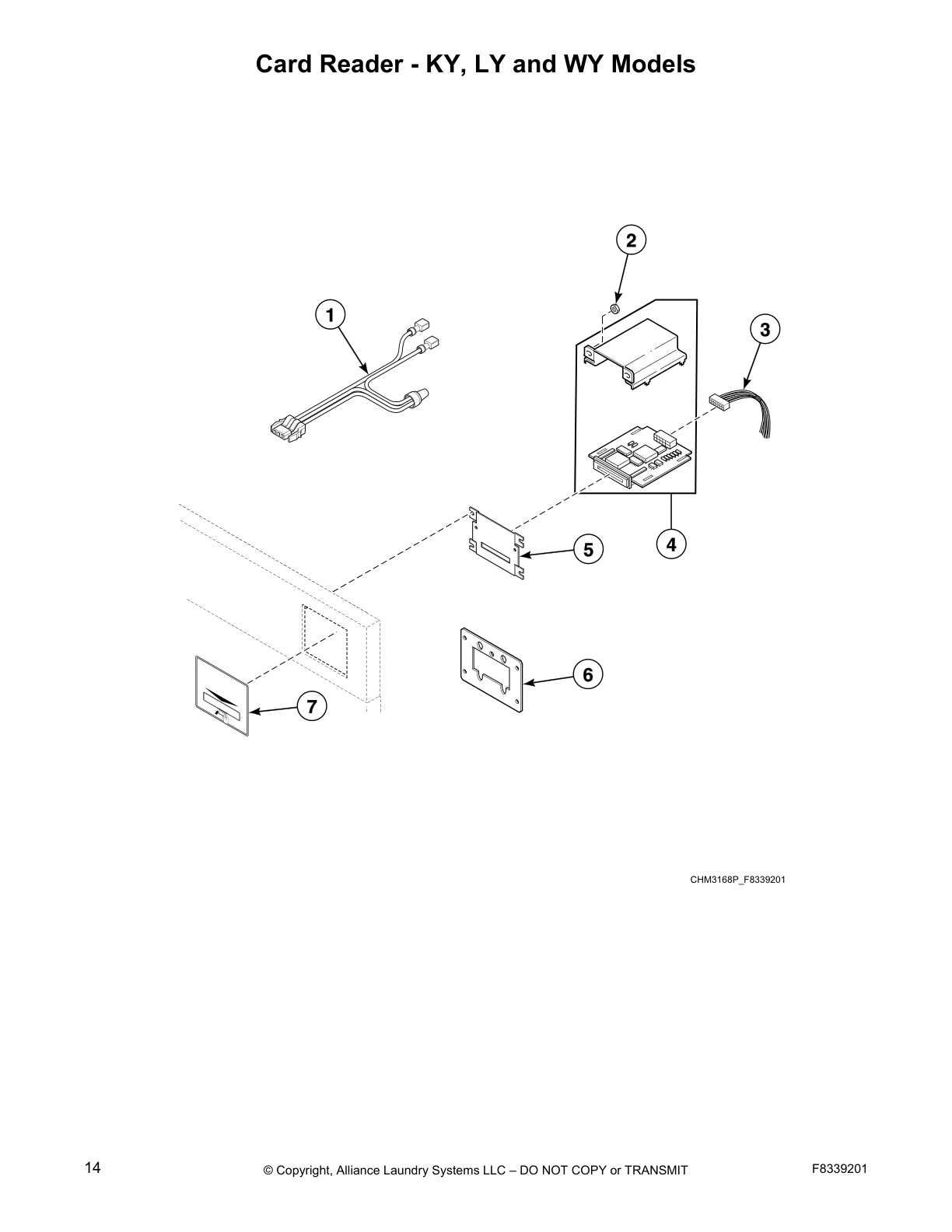

Card Reader - KY, LY and WY Models

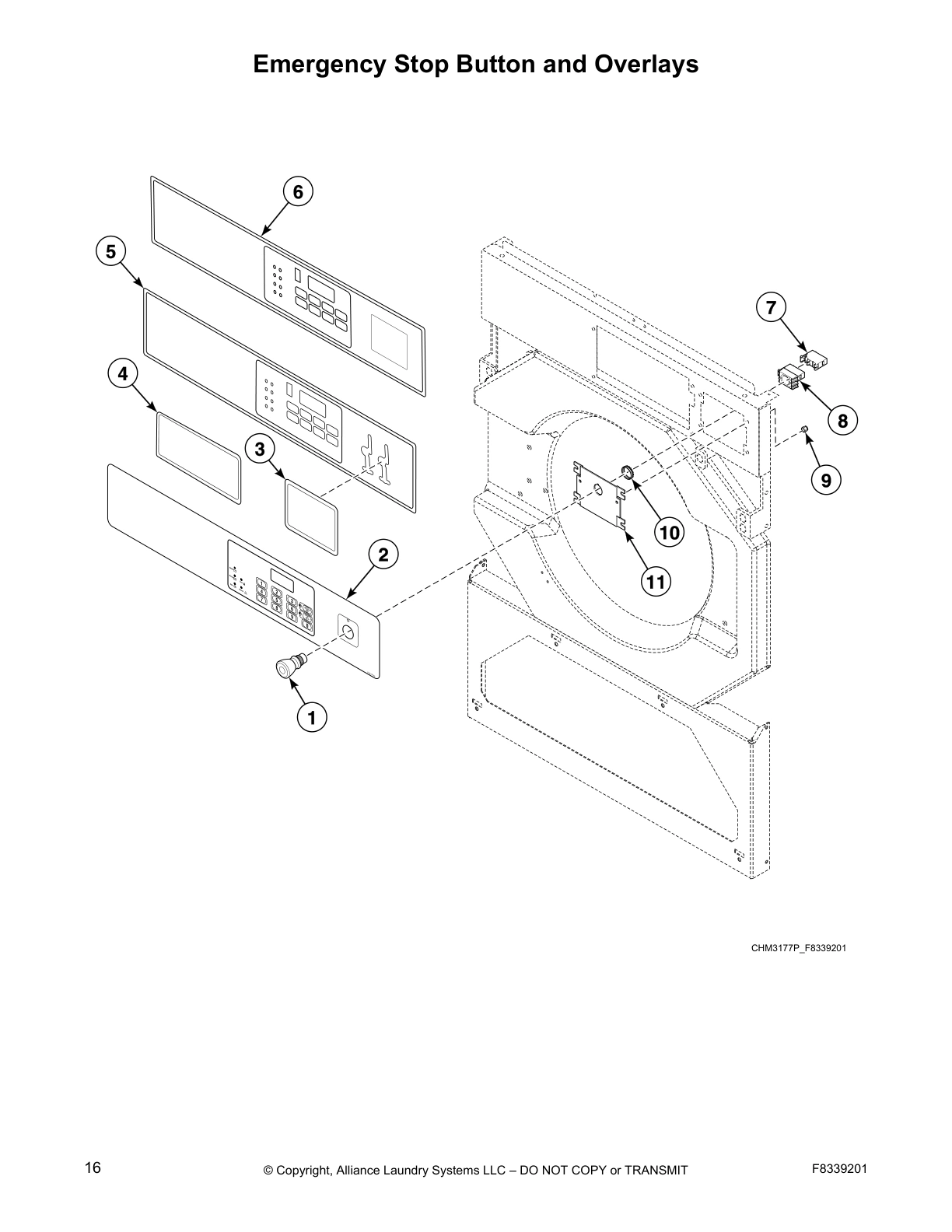

Emergency Stop Button and Overlays

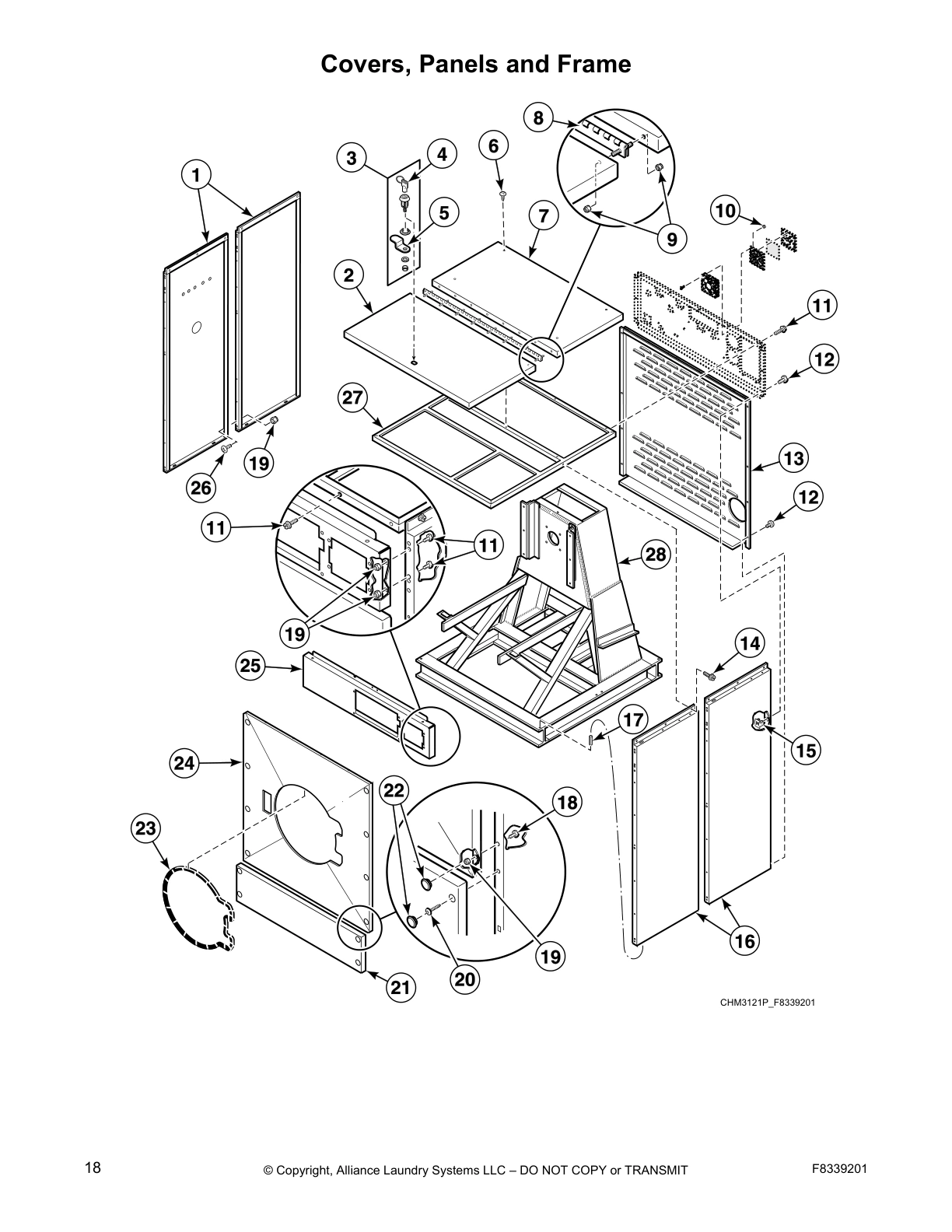

Covers, Panels and Frame

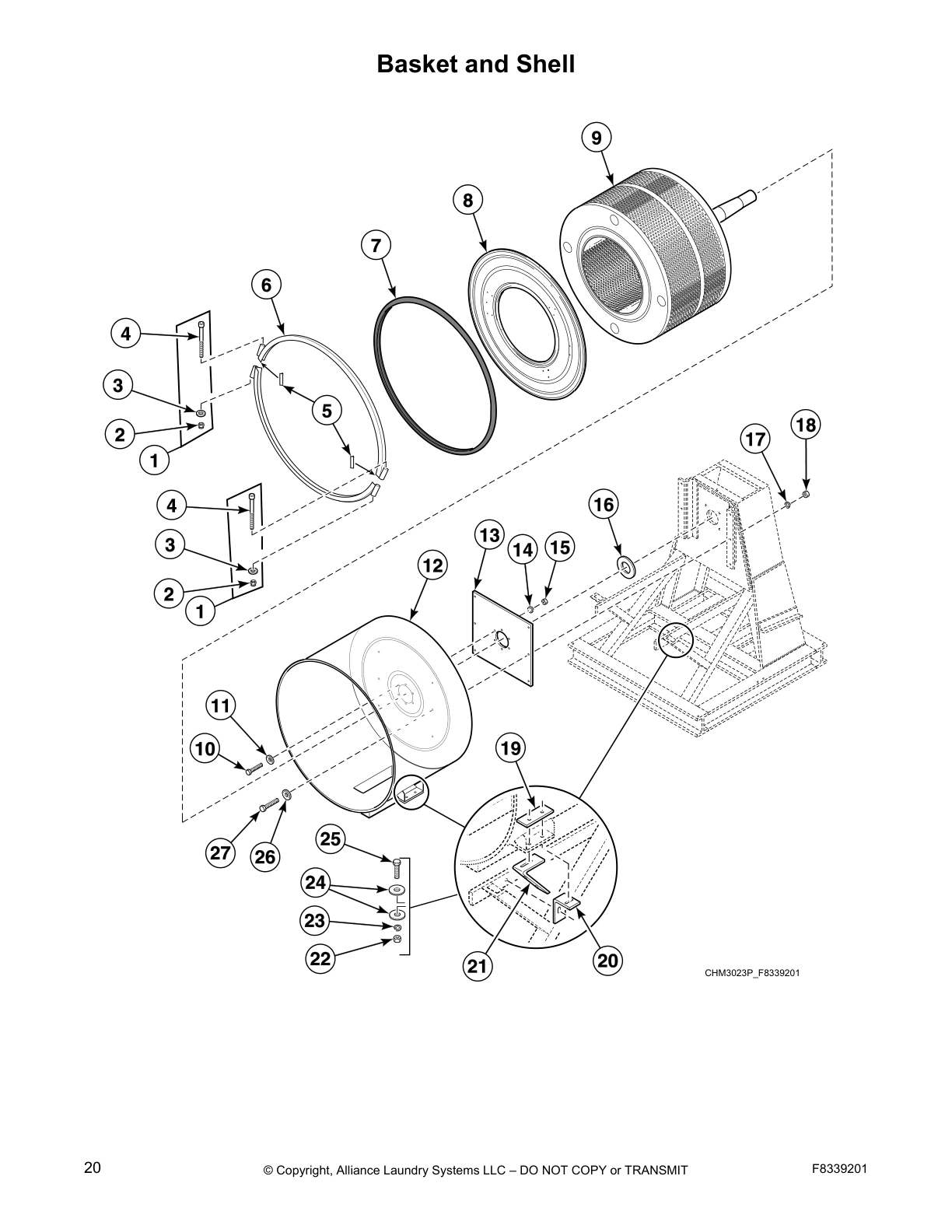

Basket and Shell

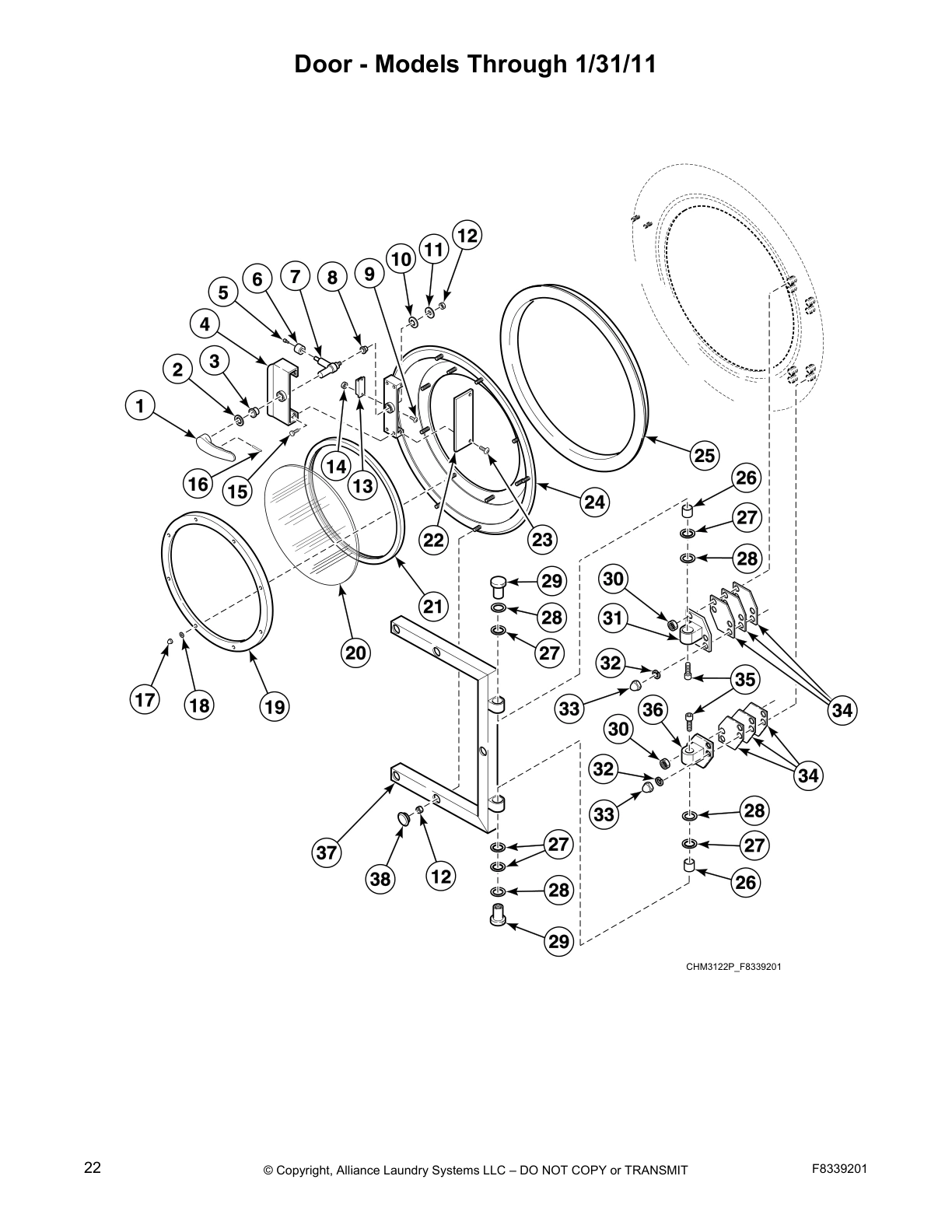

Door - Models Through 1/31/11

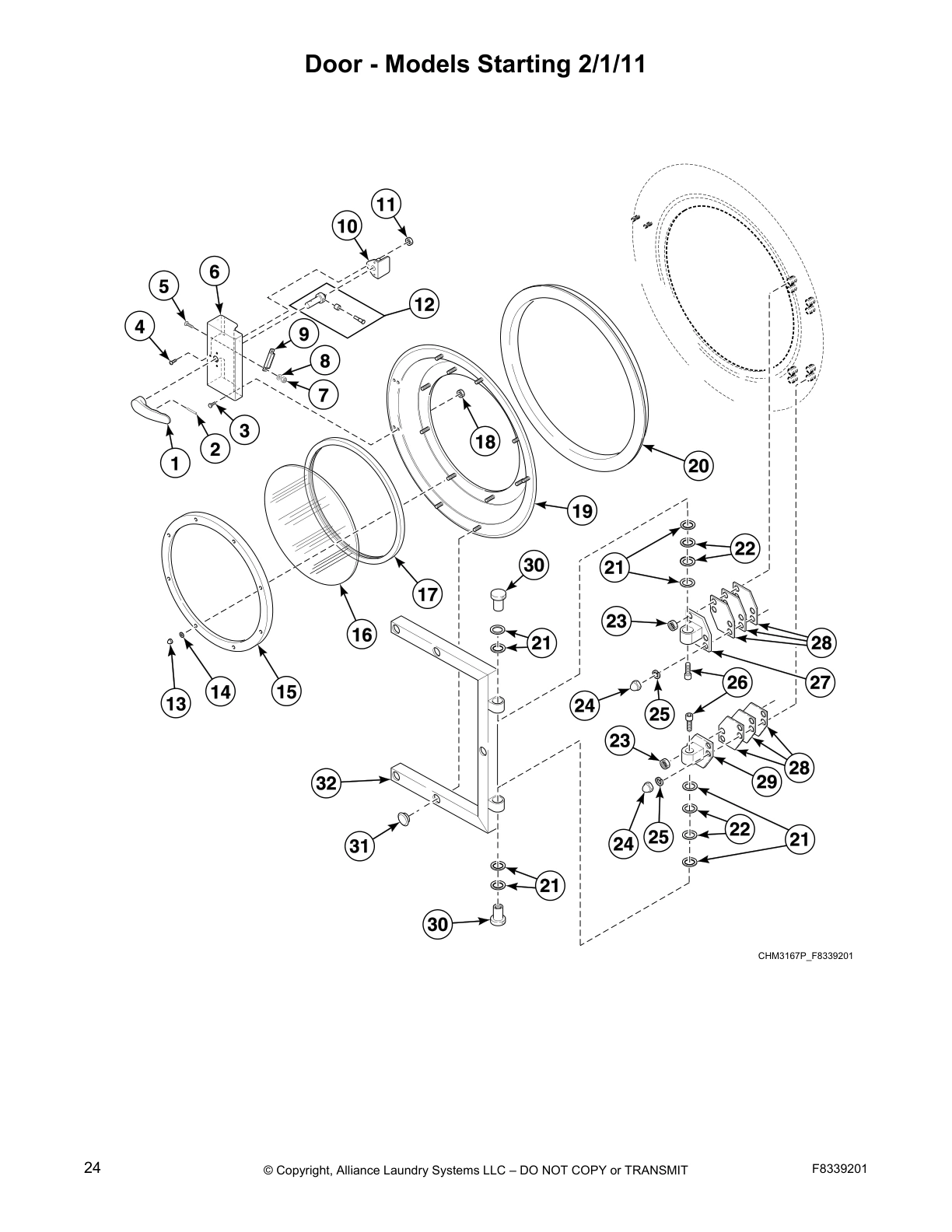

Door - Models Starting 2/1/11

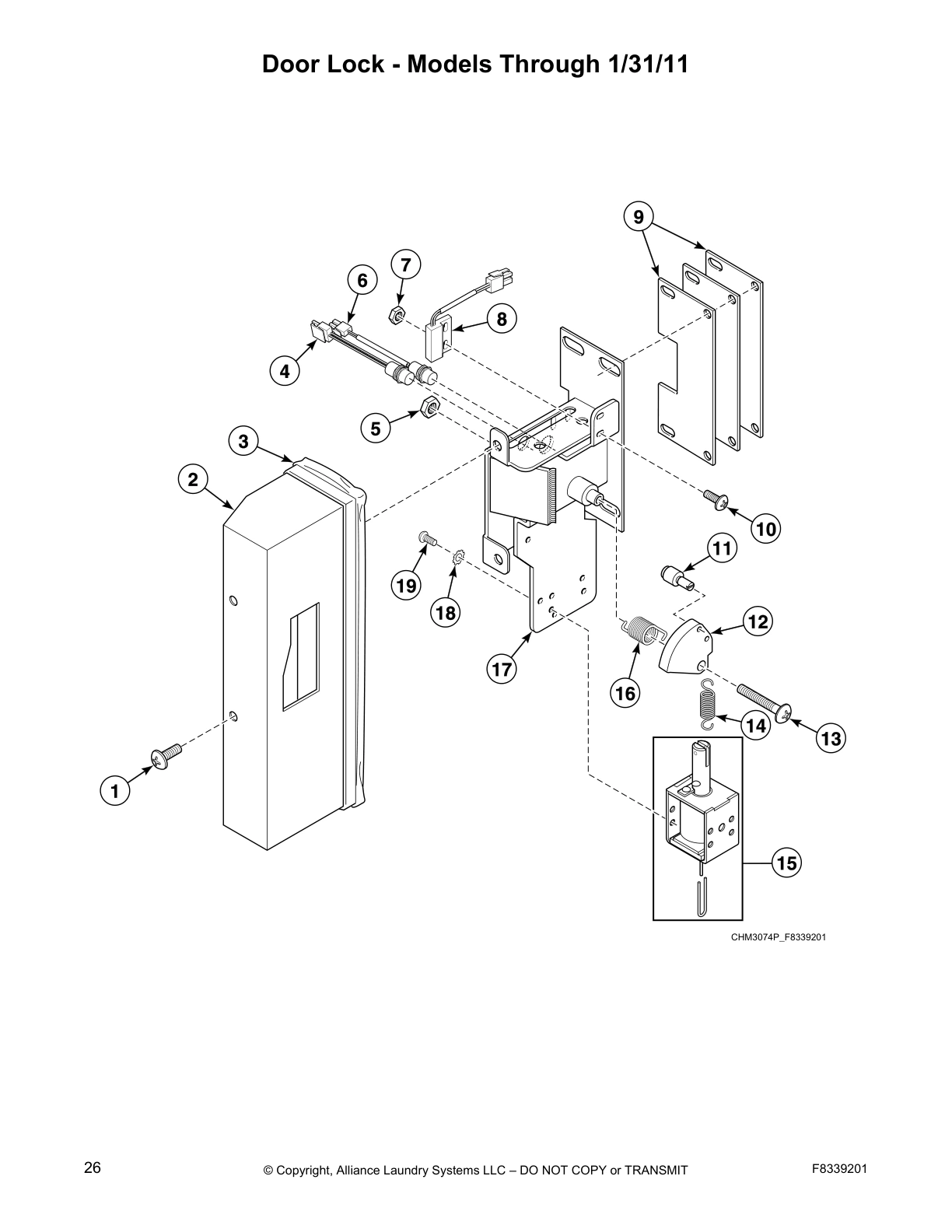

Door Lock - Models Through 1/31/11

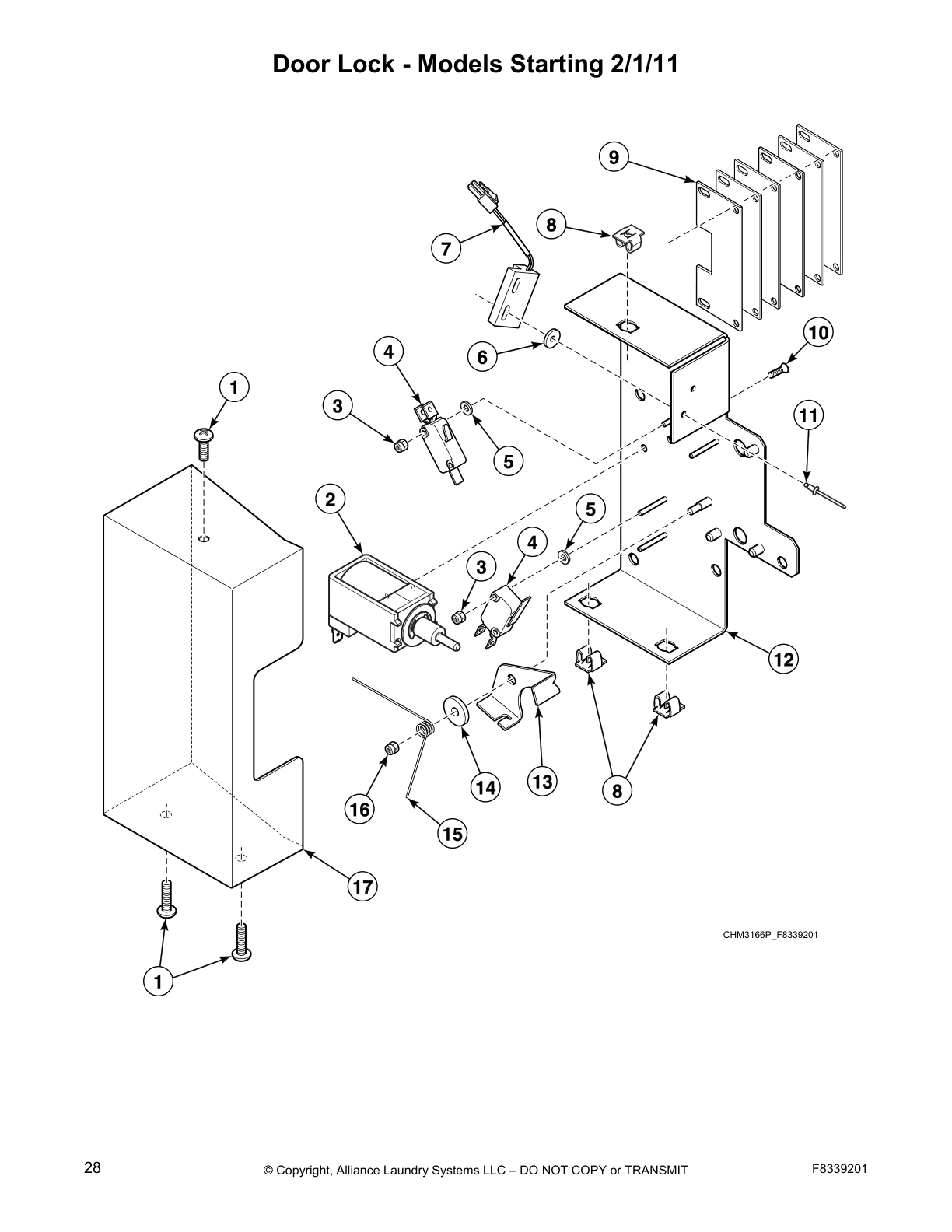

Door Lock - Models Starting 2/1/11

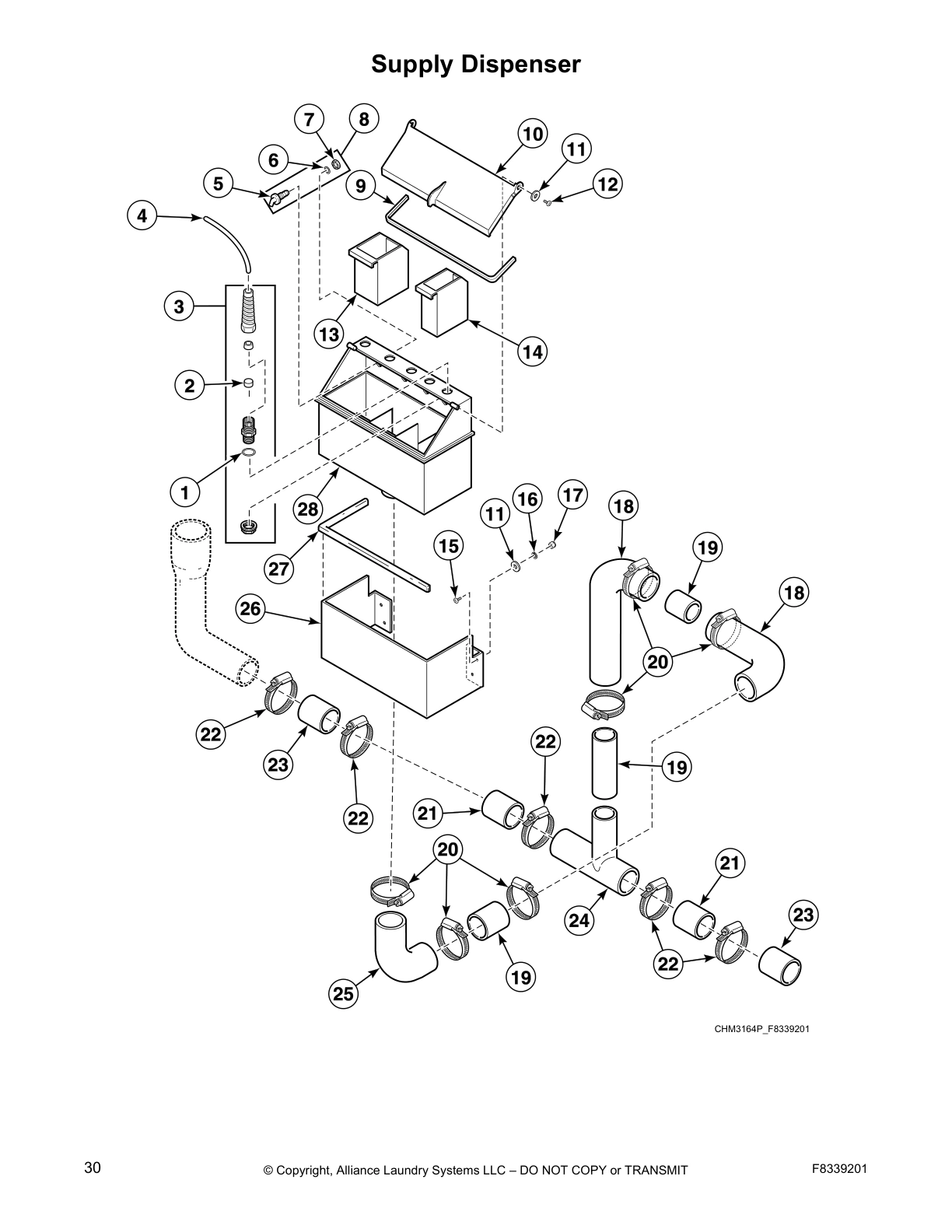

Supply Dispenser

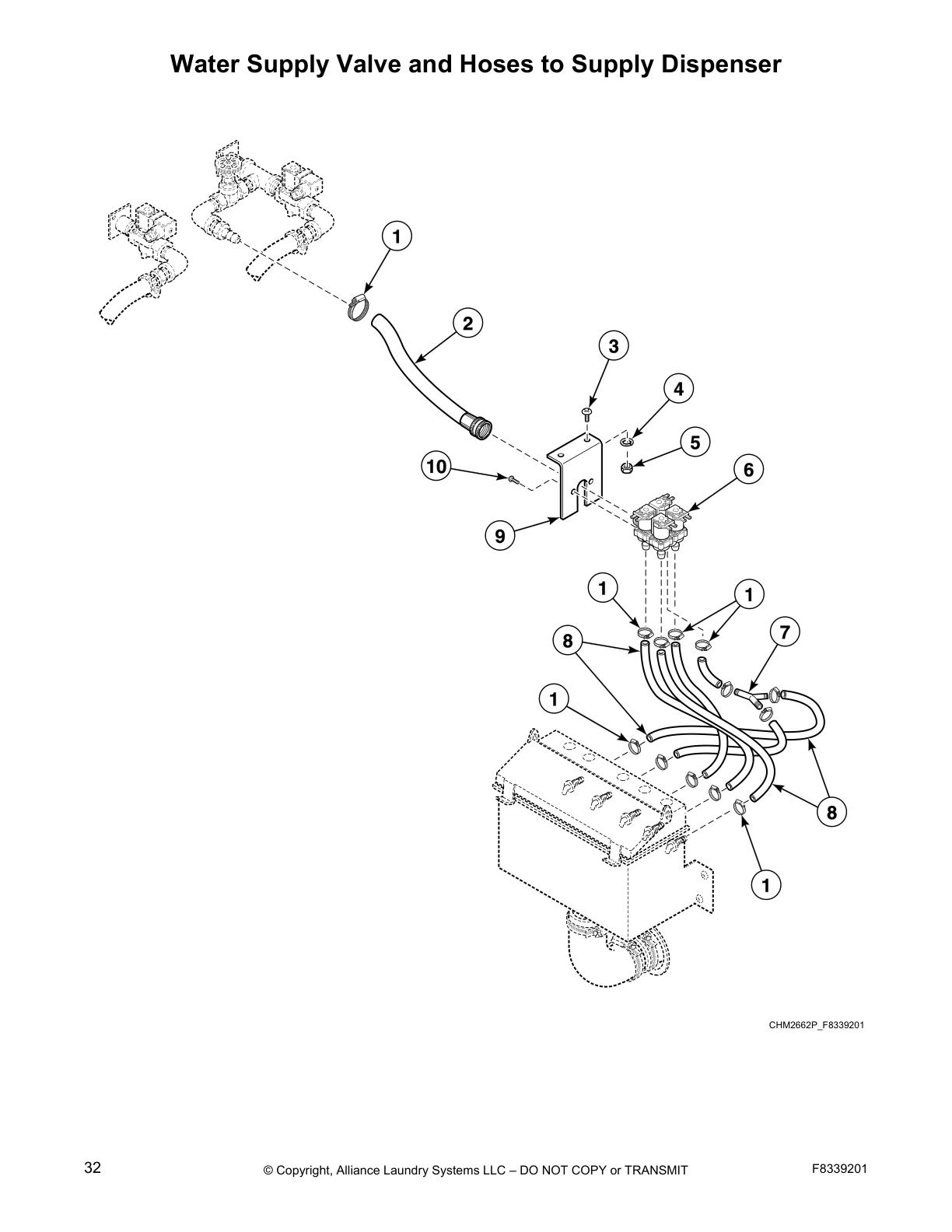

Water Supply Valve and Hoses to Supply Dispenser

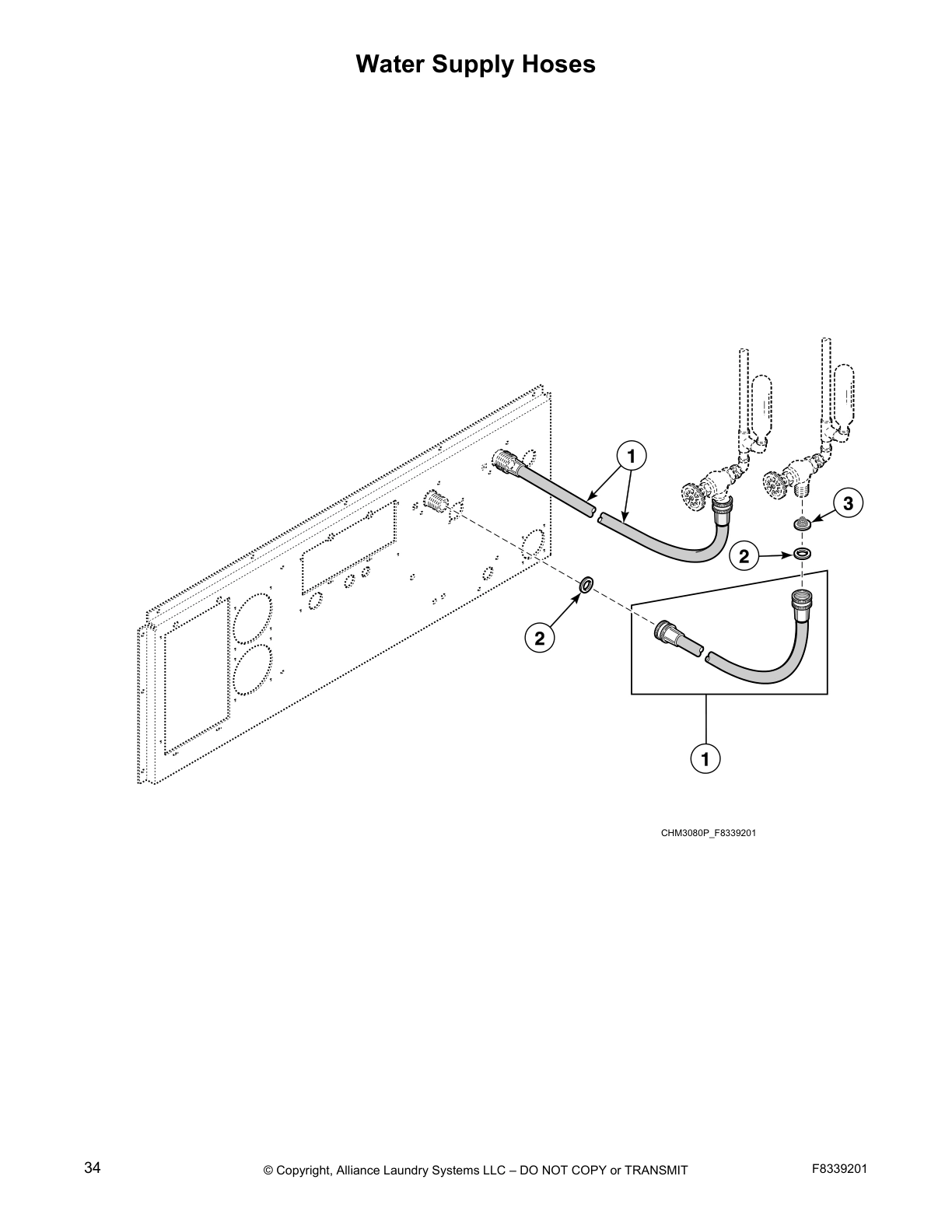

Water Supply Hoses

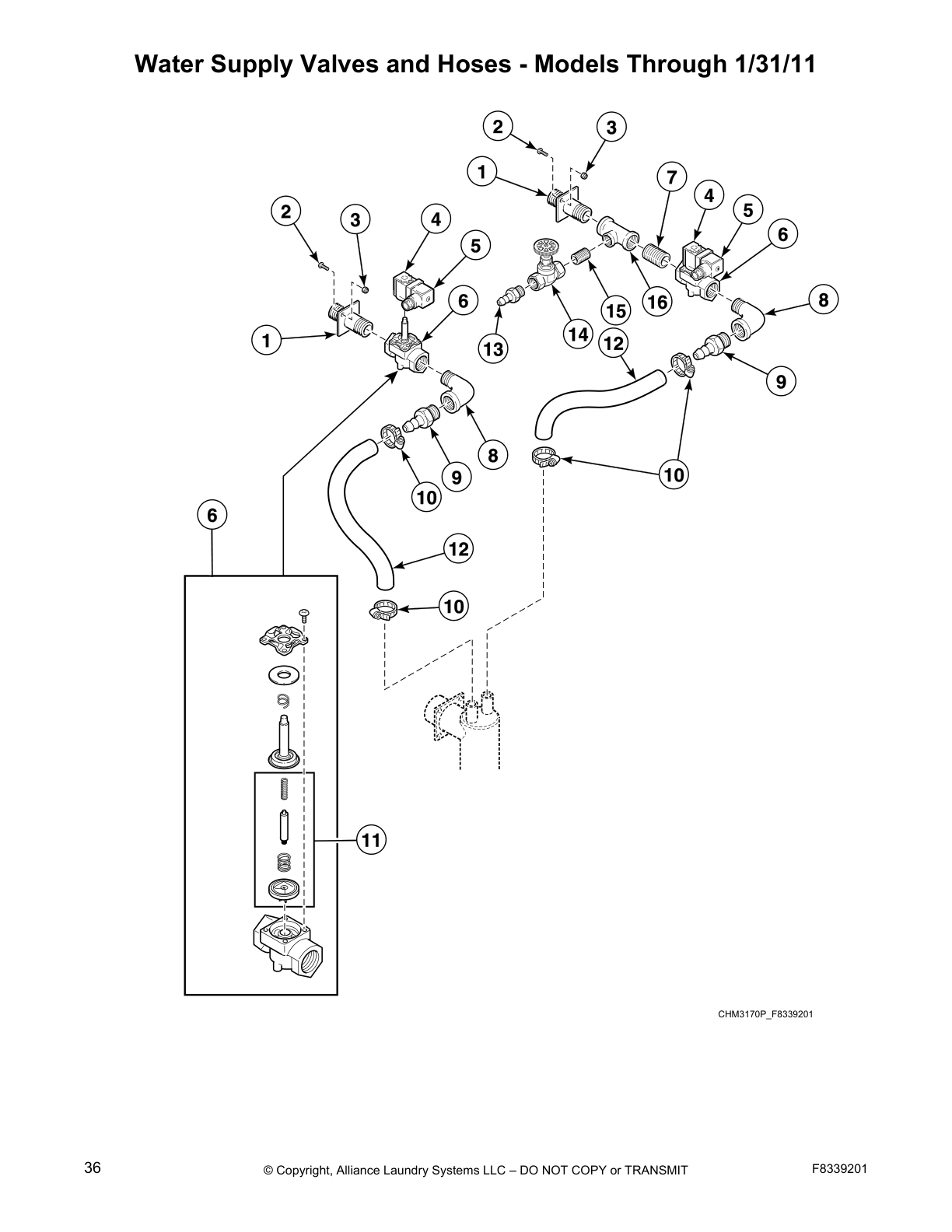

Water Supply Valves and Hoses - Models Through 1/31/11

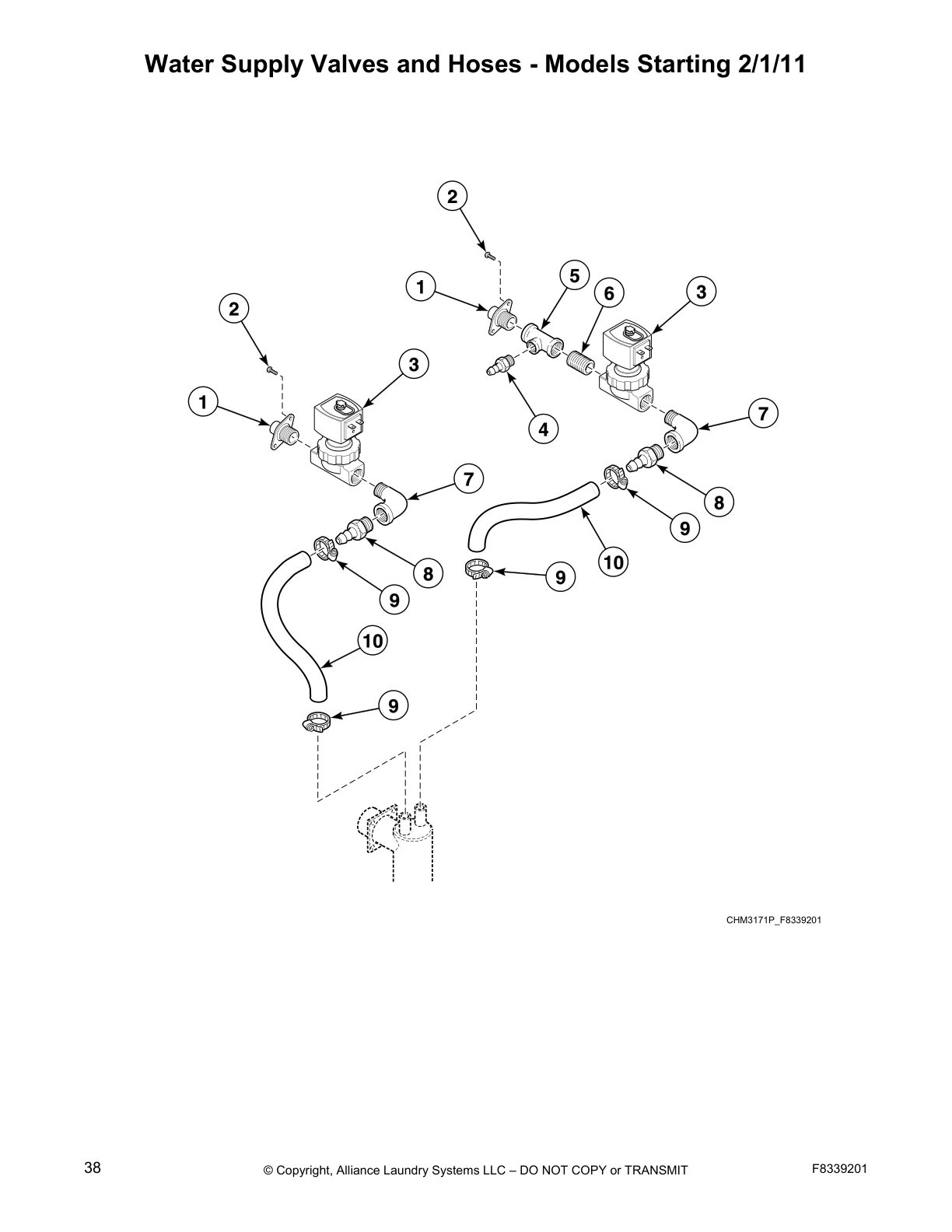

Water Supply Valves and Hoses - Models Starting 2/1/11

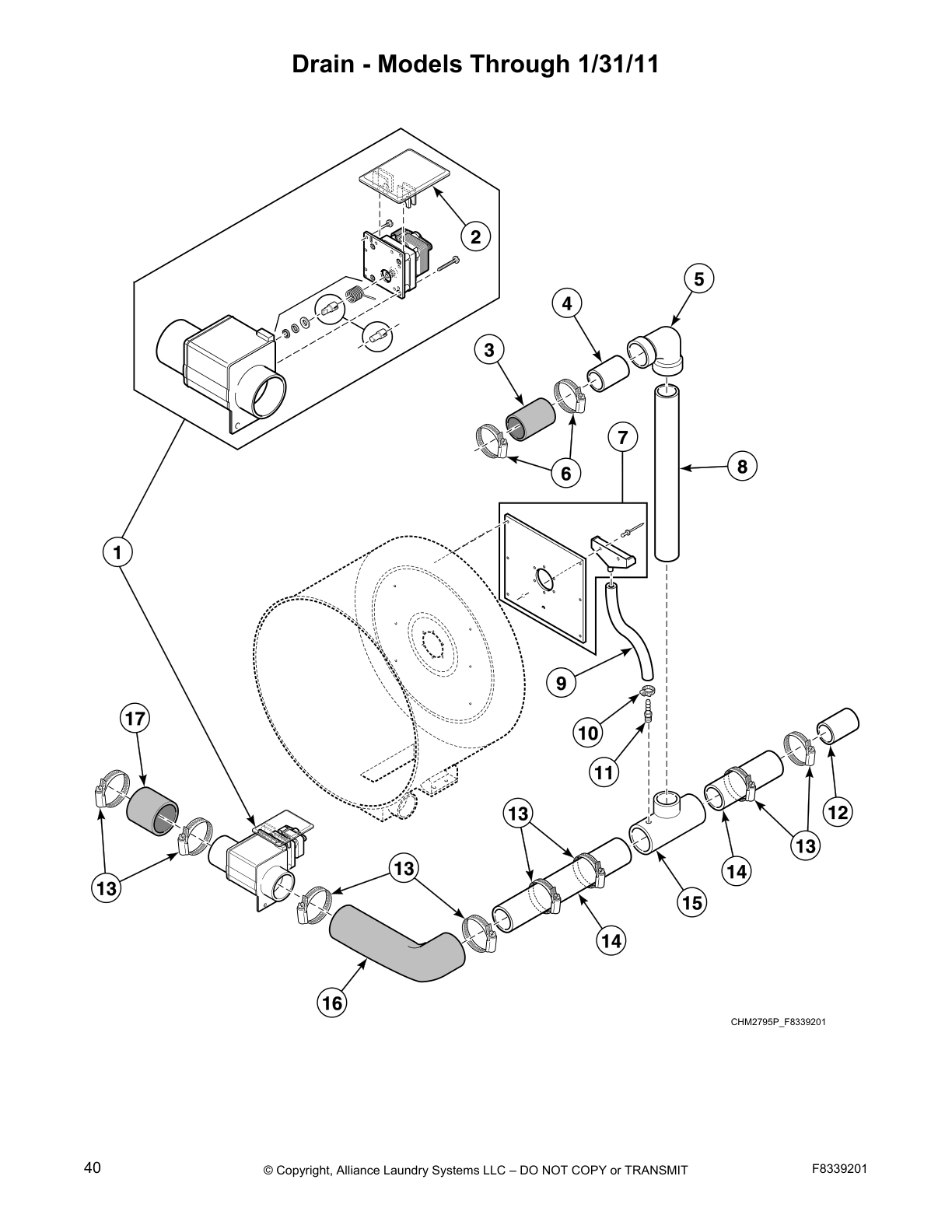

Drain - Models Through 1/31/11

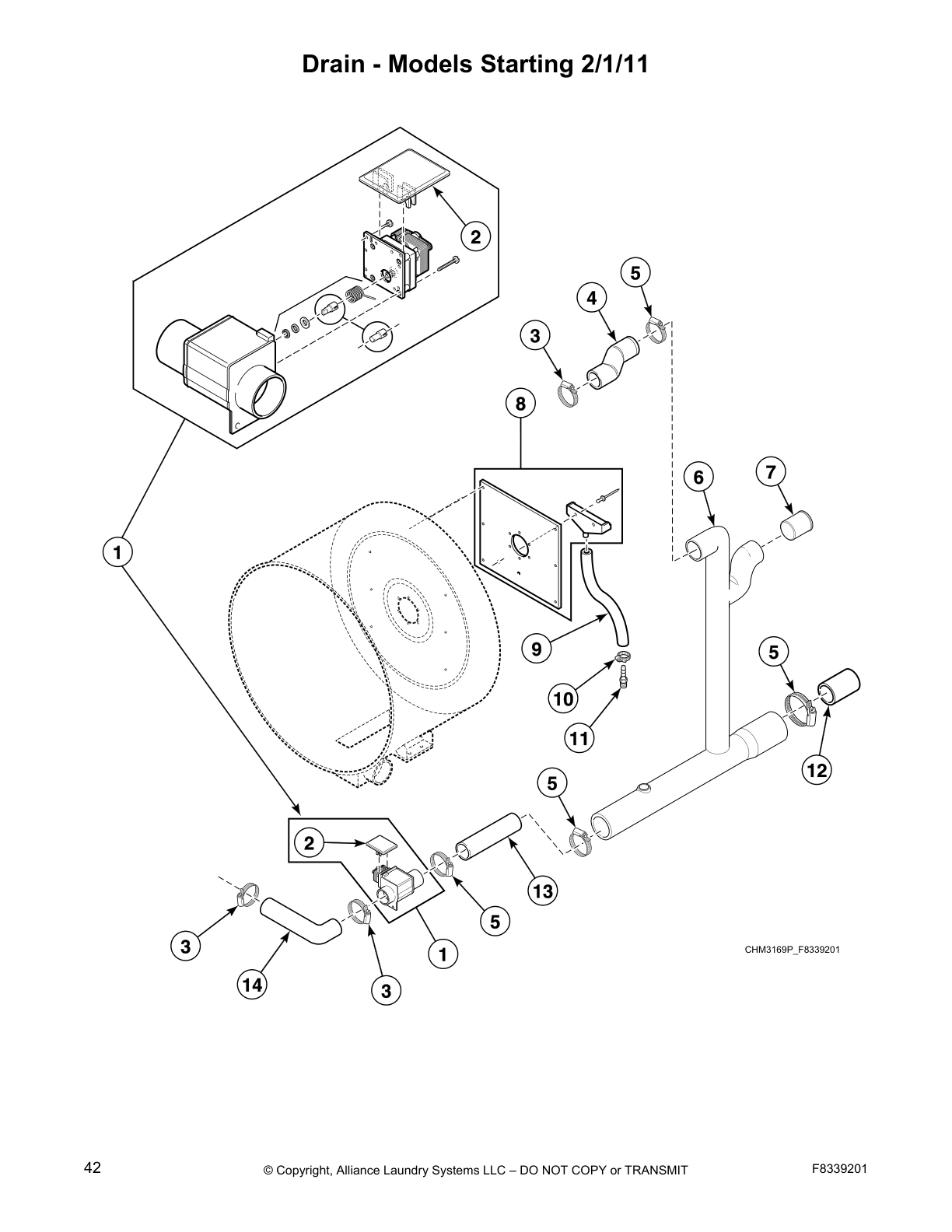

Drain - Models Starting 2/1/11

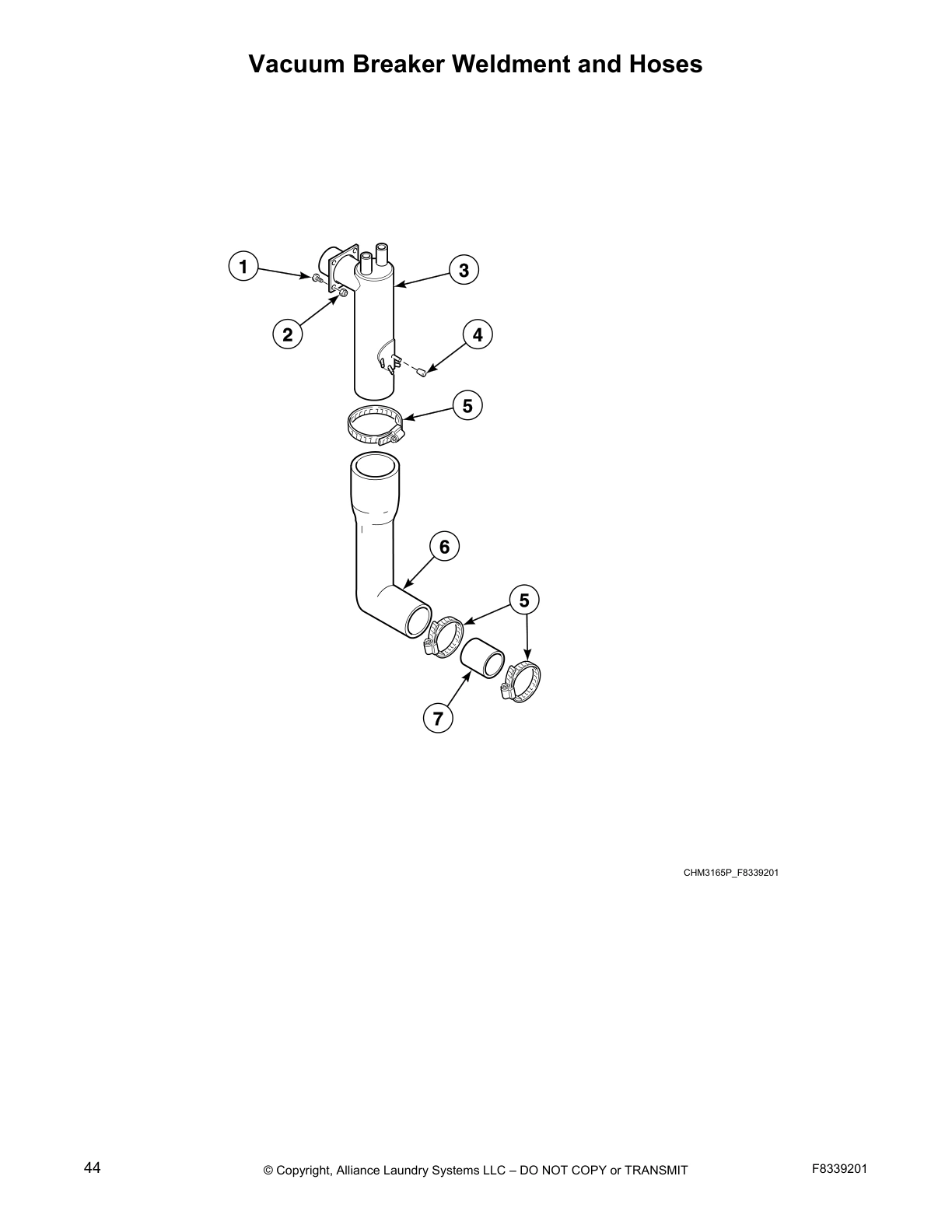

Vacuum Breaker Weldment and Hoses

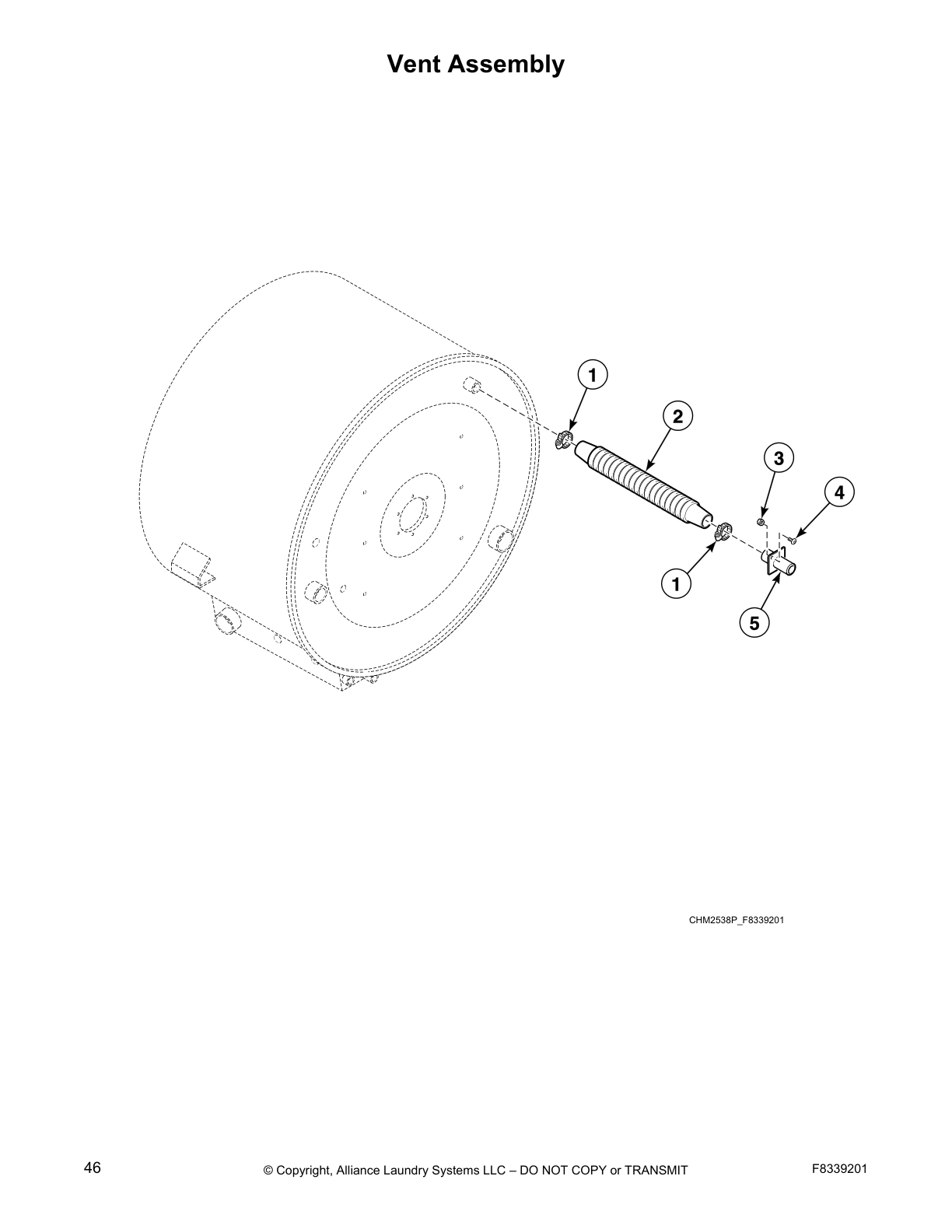

Vent Assembly

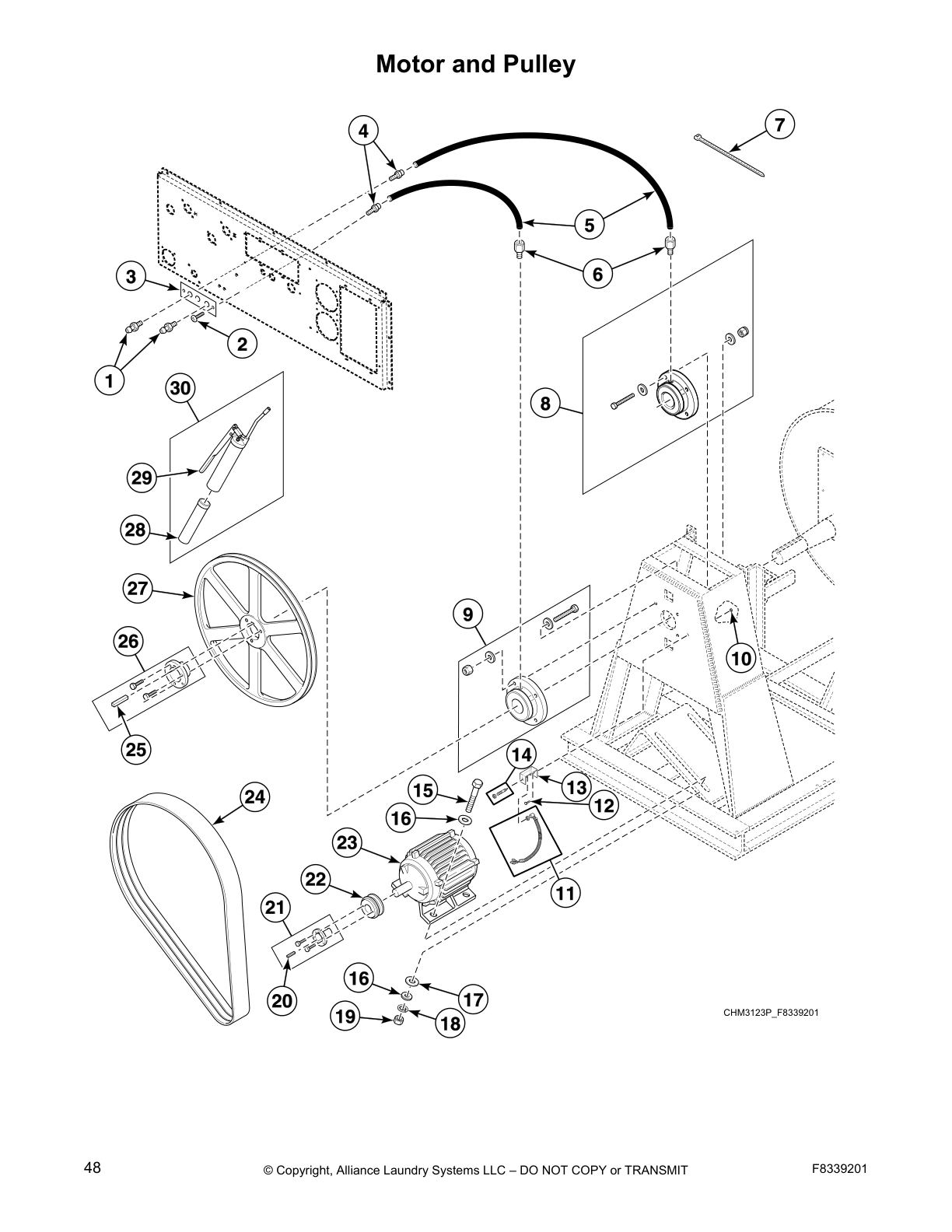

Motor and Pulley

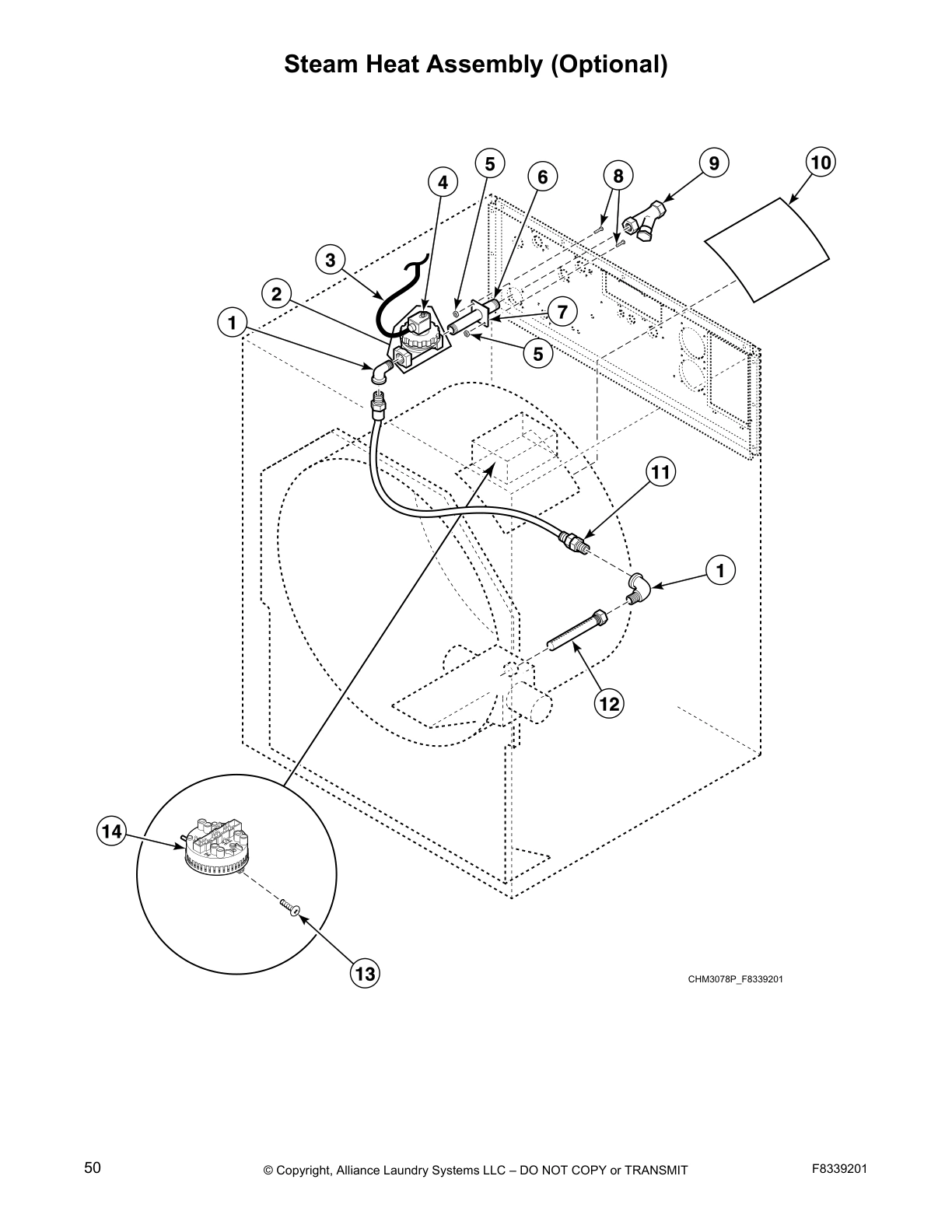

Steam Heat Assembly (Optional)

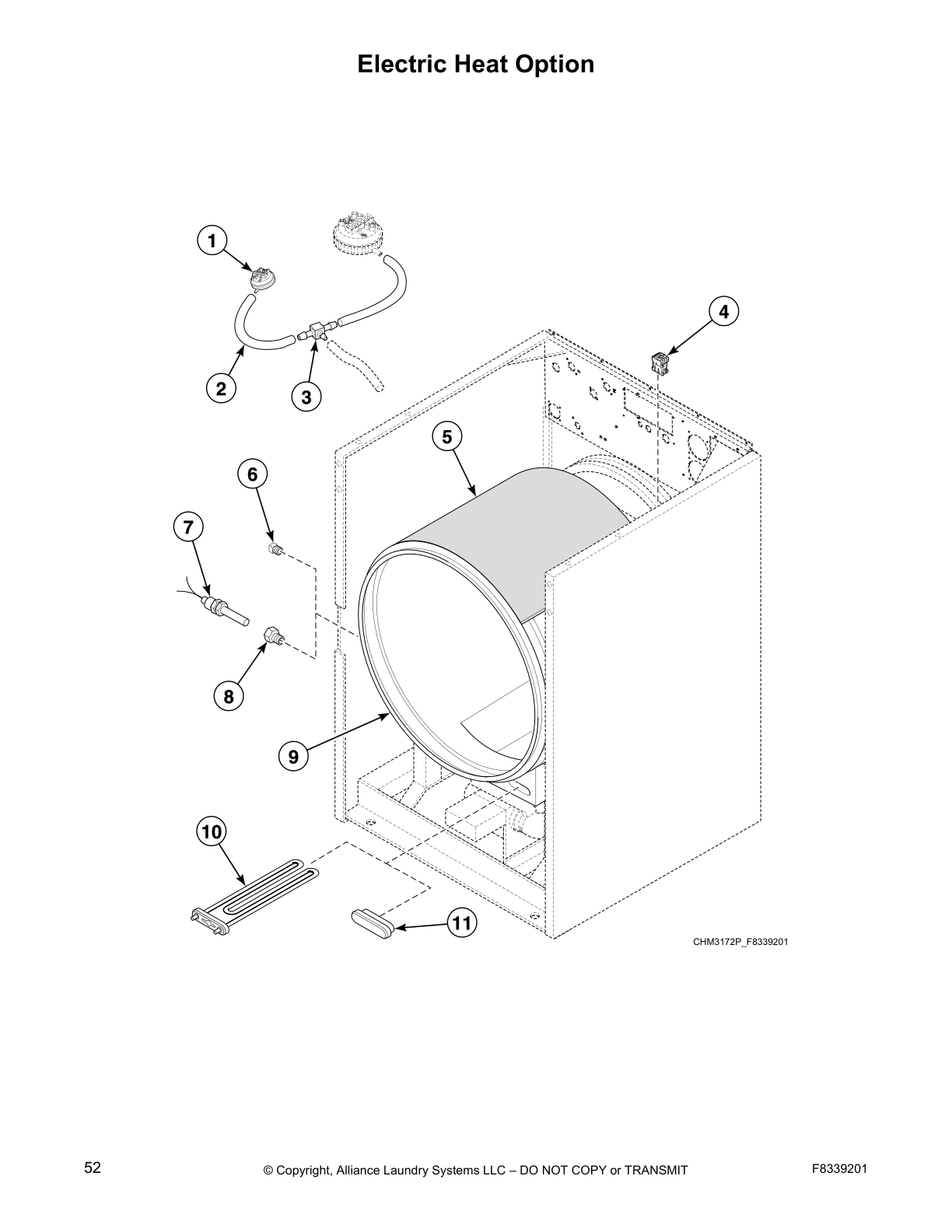

Electric Heat Option
Common parts from model Unimac UCL125KNV Washer
SPQ F8206802P SPQ F8206802P Contact Us For Availability
SPQ F010030901P SPQ F010030901P Contact Us For Availability
1
Water Pressure Switch SPQ F8223001P Contact Us For Availability
1
VFD Bracket Assembly SPQ F8212701 Contact Us For Availability
1
Emergency Stop Pushbutton SPQ F200233500 Contact Us For Availability
1
Left Side Panel SPQ F8183702 Contact Us For Availability
1
Shell Band Fastener Kit SPQ F791001 Contact Us For Availability
1
Door Handle SPQ F8199401P Contact Us For Availability
1
Screw SPQ F430985 Contact Us For Availability
1
Bolt SPQ F8270701 Contact Us For Availability
1
O-Ring SPQ F170215 Contact Us For Availability
1
Water Hose SPQ F200164 Contact Us For Availability
1
Nipple Weldment SPQ F063721200 Contact Us For Availability
1
Coupling SPQ F8362702 Contact Us For Availability
1
Street Elbow SPQ F421707 Contact Us For Availability
1
Drain Valve Kit SPQ F200166402 Contact Us For Availability
1
Screw SPQ F430909 Contact Us For Availability
1
Grease Fitting SPQ F190701 Contact Us For Availability
2
Tubing SPQ F8153901 Contact Us For Availability
2
Screw SPQ F8054002 Contact Us For Availability
2
Front Panel SPQ F430174 Contact Us For Availability
2
Overlay SPQ F8226801 Contact Us For Availability
2
Shell Band Gasket SPQ F601950 Contact Us For Availability
2
Door Weldment SPQ F431907 Contact Us For Availability
2
Motor Retrofit Kit
Use with machines manufact SPQ F430916 Contact Us For Availability
2
Nut SPQ F430232 Contact Us For Availability
2
Nut SPQ F8071202 Contact Us For Availability
2
Solenoid SPQ F8630601 Contact Us For Availability
2
Tee SPQ F170165 Contact Us For Availability
2
Supply Dispenser Hose SPQ F150493 Contact Us For Availability
2
Washer SPQ F200185 Contact Us For Availability
2
Screw SPQ F420419 Contact Us For Availability
2
Screw SPQ 70321501 Contact Us For Availability
2
Plug SPQ F200133600 Contact Us For Availability
2
Vent Hose SPQ F200170 Contact Us For Availability
2
DIN Valve Kit SPQ F8522001 Contact Us For Availability
3
Tee SPQ F8246601 Contact Us For Availability
3
Nut SPQ F8054001 Contact Us For Availability
3
Contact Switch SPQ 210131 Contact Us For Availability
3
SPQ F160562 SPQ F160562 Contact Us For Availability
3
SPQ F431116 SPQ F431116 Contact Us For Availability
3
Pivot Lock Weldment SPQ F280253 Contact Us For Availability
3
Nut SPQ F430928 Contact Us For Availability
3
SPQ J0220908-02 SPQ J0220908-02 Contact Us For Availability
3
Reed Switch Assembly SPQ F170404 Contact Us For Availability
3
Door Lock Microswitch SPQ F430225 Contact Us For Availability
3
SPQ F749802 SPQ F749802 Contact Us For Availability
3
Shell Reinforcement Plate Assembly SPQ F200213 Contact Us For Availability
3
Washer SPQ F430939 Contact Us For Availability
3
Strainer SPQ F200503 Contact Us For Availability
3
Valve SPQ F8322901P Contact Us For Availability
3
Water Hose SPQ F609401 Contact Us For Availability
3
Vacuum Breaker Weldment SPQ F633606 Contact Us For Availability
3
Connector SPQ F210206P Contact Us For Availability
4
Spacer SPQ F200203200 Contact Us For Availability
4
SPQ F150390 SPQ F150390 Contact Us For Availability
4
Solenoid SPQ F430231 Contact Us For Availability
4
Screw SPQ F430929 Contact Us For Availability
4
SPQ F633713 SPQ F633713 Contact Us For Availability
4
SPQ F430924 SPQ F430924 Contact Us For Availability
4
SPQ F8535601 SPQ F8535601 Contact Us For Availability
4
Door Lock Shim SPQ F8080401P Contact Us For Availability
4
Nut SPQ F431147 Contact Us For Availability
4
Hose Barb SPQ F421964 Contact Us For Availability
4
SPQ F0602364-13 SPQ F0602364-13 Contact Us For Availability
4
Water Hose SPQ F8403701 Contact Us For Availability
4
Cap SPQ F190303 Contact Us For Availability
4
Air Coupling SPQ F8229901 Contact Us For Availability
4
Drain Valve Harness SPQ F8257002 Contact Us For Availability
4
Contactor SPQ F330188P Contact Us For Availability
5
Contact Switch SPQ F8296605P Contact Us For Availability
5
SPQ F430317 SPQ F430317 Contact Us For Availability
5
SPQ F100145 SPQ F100145 Contact Us For Availability
5
4-Way Valve SPQ F431024 Contact Us For Availability
5
DIN Connector SPQ F0300130-00P Contact Us For Availability
5
Reed Switch Assembly SPQ F431901 Contact Us For Availability
5
Hose Clamp SPQ F200201 Contact Us For Availability
5
Tee SPQ F422206 Contact Us For Availability
5
SPQ F422900 SPQ F422900 Contact Us For Availability
5
Vent Nipple SPQ F422517 Contact Us For Availability
5
Cable Tie SPQ F798700 Contact Us For Availability
5
Cord Din Set Assembly SPQ F8115601 Contact Us For Availability
6
Strain Relief Connector SPQ F110110 Contact Us For Availability
6
SPQ F633592 SPQ F633592 Contact Us For Availability
6
Nut SPQ F430215 Contact Us For Availability
6
SPQ F430500 SPQ F430500 Contact Us For Availability
6
SPQ F608536 SPQ F608536 Contact Us For Availability
6
SPQ F8394901 SPQ F8394901 Contact Us For Availability
6
Expansion Clip SPQ F431125 Contact Us For Availability
6
SPQ F8080402P SPQ F8080402P Contact Us For Availability
6
Rear Drain Hose SPQ F0150399-00 Contact Us For Availability
6
Diaphragm and Guide Kit SPQ F8336601 Contact Us For Availability
6
Valve SPQ F140609P Contact Us For Availability
6
Nipple SPQ C000417 Contact Us For Availability
6
Front Bearing Kit
Includes seal and attaching SPQ J1408004 Contact Us For Availability
6
Plug SPQ F421506 Contact Us For Availability
7
Control Assembly Kit SPQ F430903 Contact Us For Availability
7
Contact Block Switch SPQ F8295505P Contact Us For Availability
7
SPQ F633958 SPQ F633958 Contact Us For Availability
7
SPQ F601216 SPQ F601216 Contact Us For Availability
7
SPQ F280252 SPQ F280252 Contact Us For Availability
7
Door Lock Assembly SPQ F8066801P Contact Us For Availability
7
Pipe SPQ F0602365-15 Contact Us For Availability
7
Y Connector SPQ G582P3 Contact Us For Availability
7
Street Elbow SPQ F381733P Contact Us For Availability
7
SPQ F0150502-00 SPQ F0150502-00 Contact Us For Availability
7
Face Seal SPQ C000628P Contact Us For Availability
7
Nipple SPQ F421323 Contact Us For Availability
7
Thermistor Sensor SPQ F370609 Contact Us For Availability
8
SPQ F730168 SPQ F730168 Contact Us For Availability
8
Water Hose SPQ F381723P Contact Us For Availability
8
Fuse SPQ F8189401P Contact Us For Availability
8
Filter Retainer Guard SPQ F8183801 Contact Us For Availability
8
Emergency Stop Bypass Harness SPQ F8069501 Contact Us For Availability
8
SPQ F431000 SPQ F431000 Contact Us For Availability
8
SPQ F603630 SPQ F603630 Contact Us For Availability
8
SPQ F420118 SPQ F420118 Contact Us For Availability
8
Hose Clamp SPQ F8374501 Contact Us For Availability
8
SPQ F8084301 SPQ F8084301 Contact Us For Availability
8
Rear Bearing Kit
Includes seal and attaching SPQ F422114 Contact Us For Availability
8
Steam Inlet Pipe Flange SPQ F607659 Contact Us For Availability
8
Reducer Bushing SPQ F421936 Contact Us For Availability
9
Jumper Configuration Assembly SPQ F980P3 Contact Us For Availability
9
Power Drive Harness SPQ F140329 Contact Us For Availability
9
SPQ F200233401P SPQ F200233401P Contact Us For Availability
9
SPQ F170120RP SPQ F170120RP Contact Us For Availability
9
Shell Weldment SPQ F8399801 Contact Us For Availability
9
SPQ F606563 SPQ F606563 Contact Us For Availability
9
SPQ F170158P SPQ F170158P Contact Us For Availability
9
Steam Filter SPQ F430925 Contact Us For Availability
9
Valve Bracket SPQ F422816 Contact Us For Availability
9
SPQ F421706 SPQ F421706 Contact Us For Availability
9
SPQ F200107P SPQ F200107P Contact Us For Availability
9
SPQ F140605 SPQ F140605 Contact Us For Availability
10
Door Handle Spacer Kit SPQ F8567501 Contact Us For Availability
10
VFD Cover SPQ F8210801 Contact Us For Availability
10
Screw SPQ F430913 Contact Us For Availability
10
Washer SPQ F431143 Contact Us For Availability
10
Screw SPQ F430977 Contact Us For Availability
10
Dispenser Lid SPQ F0150514-00 Contact Us For Availability
10
Screw SPQ F430948 Contact Us For Availability
10
Hose Clamp SPQ F607515 Contact Us For Availability
10
Hose SPQ F200155P Contact Us For Availability
10
Pipe Insulation SPQ F410300 Contact Us For Availability
10
Heating Element SPQ F360203P Contact Us For Availability
11
Emergency Stop Plate SPQ F8201301 Contact Us For Availability
11
Washer SPQ F431112 Contact Us For Availability
11
Door Lock Cam SPQ F340502P Contact Us For Availability
11
Nut SPQ F431142 Contact Us For Availability
11
Blind Rivet SPQ F8245101 Contact Us For Availability
11
Water Valve Repair Kit SPQ F200222 Contact Us For Availability
11
Hose Barb SPQ F421929 Contact Us For Availability
11
Rotation Sensor Assembly Harness SPQ F200290700 Contact Us For Availability
11
Steam Hose SPQ F200183 Contact Us For Availability
11
Heating Element Plug SPQ F360202 Contact Us For Availability
12
PowerFlex 40 Drive SPQ F8169443 Contact Us For Availability
12
Rear Panel SPQ F8177801 Contact Us For Availability
12
Door Latch Arm Assembly SPQ F8221403 Contact Us For Availability
12
Spring SPQ F0150518-00 Contact Us For Availability
12
Door Lock Plate Assembly SPQ F8397201 Contact Us For Availability
12
Hose SPQ F0381007P Contact Us For Availability
12
Drain Hose SPQ F200165100 Contact Us For Availability
12
Screw SPQ F430927 Contact Us For Availability
13
Screw SPQ F8390801 Contact Us For Availability
13
Air Trap Hose SPQ F200163 Contact Us For Availability
13
Screw SPQ F8206901 Contact Us For Availability
13
EMI Filter SPQ F8169442 Contact Us For Availability
13
Solenoid SPQ F430995 Contact Us For Availability
13
Expansion Clip SPQ F430179 Contact Us For Availability
13
Shell Reinforcement Plate SPQ F634647 Contact Us For Availability
13
Door Lock Switch Lever SPQ F8223401 Contact Us For Availability
13
Chemical Supply Cup SPQ F150386 Contact Us For Availability
13
Drain Valve Cover SPQ F0150399-01 Contact Us For Availability
13
Rotation Sensor Bracket SPQ F200122500 Contact Us For Availability
14
Hose Clamp SPQ F200215 Contact Us For Availability
14
Nut SPQ F8083901 Contact Us For Availability
14
Door Cam Torsion Spring SPQ F310107 Contact Us For Availability
14
Washer SPQ F8193101 Contact Us For Availability
14
Nut SPQ F150385 Contact Us For Availability
14
Tee SPQ F0602365-20 Contact Us For Availability
14
Overflow Hose SPQ F0150399-02 Contact Us For Availability
14
Rotation Sensor Assembly SPQ F200126200P Contact Us For Availability
15
Stud SPQ F8183701 Contact Us For Availability
15
Door Glass Retainer SPQ F430923 Contact Us For Availability
15
Door Glass Retainer SPQ F8504901 Contact Us For Availability
15
Torsion/Door Lock Spring SPQ F8070301 Contact Us For Availability
15
Drain Valve Cover SPQ F422803 Contact Us For Availability
15
Nipple SPQ F380500 Contact Us For Availability
15
Washer SPQ F430993 Contact Us For Availability
16
Glass SPQ F431222 Contact Us For Availability
16
Top Front Panel SPQ F8231001 Contact Us For Availability
16
Pipe SPQ F431100 Contact Us For Availability
16
Shell Bracket Support SPQ F431005 Contact Us For Availability
16
Glass SPQ F290210P Contact Us For Availability
16
Washer SPQ F310133 Contact Us For Availability
16
Tee SPQ F420101 Contact Us For Availability
17
Control Tray Assembly SPQ F8205904 Contact Us For Availability
17
Shell Adjusting Bracket Assembly SPQ F100205 Contact Us For Availability
17
Door Glass Gasket SPQ F170115 Contact Us For Availability
17
Door Lock Cover SPQ F8209801 Contact Us For Availability
17
Door Lock Cover SPQ F8395001 Contact Us For Availability
17
Motor Bushing
Includes screws and item 20 SPQ F430300 Contact Us For Availability
18
Front End Control Kit SPQ F988P3 Contact Us For Availability
18
Shell Gasket Shield SPQ M400013 Contact Us For Availability
18
Trim SPQ F431106 Contact Us For Availability
18
Hose Clamp SPQ F150308 Contact Us For Availability
19
Trim SPQ F633602 Contact Us For Availability
19
Shell Band Assembly SPQ 70142 Contact Us For Availability
19
Spring Pin SPQ F8397101 Contact Us For Availability
19
Magnetic Proximity Sensor Harness SPQ F430921 Contact Us For Availability
19
Rear Drain Hose SPQ F0602364-06 Contact Us For Availability
20
Control Panel Assembly SPQ F8181501 Contact Us For Availability
20
Screw SPQ F8434801 Contact Us For Availability
20
Motor
Order F8356402 Motor Retrofit Kit SPQ F430802 Contact Us For Availability
21
Top Frame Weldment SPQ F140563 Contact Us For Availability
21
Basket Assembly SPQ F601951 Contact Us For Availability
21
Base Weldment SPQ F431934 Contact Us For Availability
21
AC dri must be compatible with the motor and SPQ F280242 Contact Us For Availability
22
Frame Weldment SPQ F170400RP Contact Us For Availability
22
Seal Kit SPQ F603615 Contact Us For Availability
22
Hinge Pin SPQ F8209701 Contact Us For Availability
22
Shim Base Plate SPQ F431933 Contact Us For Availability
22
Belt SPQ F280289P Contact Us For Availability
23
Lid Lock SPQ F8181401 Contact Us For Availability
23
SPQ F603592 SPQ F603592 Contact Us For Availability
23
Bushing SPQ F430986 Contact Us For Availability
23
Hinge Pin SPQ F431036 Contact Us For Availability
23
Basket Pulley Bushing
Includes screws and ite SPQ F8334701P Contact Us For Availability
24
Key SPQ F8039001 Contact Us For Availability
24
Base Weldment SPQ F8203901 Contact Us For Availability
24
Cap Plug SPQ F431047 Contact Us For Availability
24
Basket Pulley SPQ F8356402 Contact Us For Availability
25
Latch SPQ F430935 Contact Us For Availability
25
Hinge Weldment SPQ F431139 Contact Us For Availability
25
Siphon Tube SPQ F150391 Contact Us For Availability
26
Top Rear Cover SPQ F063356201 Contact Us For Availability
26
Hinge Weldment SPQ F280293 Contact Us For Availability
26
Handle Mount SPQ F432285 Contact Us For Availability
26
Injection Nozzle SPQ F634189 Contact Us For Availability
26
Bearing Grease SPQ F8054201P Contact Us For Availability
27
Top Cover Hinge Weldment SPQ F8208201 Contact Us For Availability
27
Magnet SPQ F633751 Contact Us For Availability
27
Injection Nozzle Kit SPQ F170401P Contact Us For Availability
27
Grease Gun SPQ F200140400P Contact Us For Availability
28
SPQ F190802P SPQ F190802P Contact Us For Availability
28
SPQ F633666 SPQ F633666 Contact Us For Availability
28
SPQ F0150512-00P SPQ F0150512-00P Contact Us For Availability
28
Grease Instruction Label SPQ F280294P Contact Us For Availability
29
SPQ F633753 SPQ F633753 Contact Us For Availability
29
Grease Gun Kit
Includes items 28 and 29 SPQ F150268 Contact Us For Availability
30
SPQ F432306 SPQ F432306 Contact Us For Availability
30
Tubing SPQ F210207P Contact Us For Availability
31
SPQ F190309 SPQ F190309 Contact Us For Availability
32
SPQ F633663 SPQ F633663 Contact Us For Availability
38
SPQ F8210001 SPQ F8210001 Contact Us For Availability
NI
Motor Harness SPQ F200318900P Contact Us For Availability
NI
Drive Signal Harness SPQ F220900 Contact Us For Availability
NI
Output/Logic Harness SPQ F8191201P Contact Us For Availability
NI
Machine Size Configuration Harness SPQ F8028701 Contact Us For Availability
NI
SPQ F8028107P SPQ F8028107P Contact Us For Availability
NI
SPQ F8049204P SPQ F8049204P Contact Us For Availability
NI
SPQ F8037301P SPQ F8037301P Contact Us For Availability
NI
SPQ F431017 SPQ F431017 Contact Us For Availability
NI
SPQ F8161801P SPQ F8161801P Contact Us For Availability
NI
SPQ F8220901 SPQ F8220901 Contact Us For Availability
NI
SPQ F633619 SPQ F633619 Contact Us For Availability
NI
SPQ F798833-00 SPQ F798833-00 Contact Us For Availability
NI
SPQ F8210402 SPQ F8210402 Contact Us For Availability
NI
SPQ F8395601 SPQ F8395601 Contact Us For Availability
NI
SPQ F200110P SPQ F200110P Contact Us For Availability
NI
SPQ F634261 SPQ F634261 Contact Us For Availability
NI
SPQ F8126601 SPQ F8126601 Contact Us For Availability
NI
SPQ F421952 SPQ F421952 Contact Us For Availability
NI
SPQ F8288307 SPQ F8288307 Contact Us For Availability
NI
SPQ F8288306 SPQ F8288306 Contact Us For Availability
NI
Vent Assembly SPQ F634256 Contact Us For Availability
NI
SPQ F798835-00 SPQ F798835-00 Contact Us For Availability
NI
SPQ F745010 SPQ F745010 Contact Us For Availability
NI
SPQ F270308 SPQ F270308 Contact Us For Availability
NI
Drain Valve Harness SPQ F8257001P Contact Us For Availability
NI
Electric Heat Harness SPQ F8056703P Contact Us For Availability
× ![]()
