Model Unimac UCL020HNV Washer – Common Parts & Diagrams
Control Module - Design 2 and 3 OPL Models (Drawing 1 of 2)
Control Module - Design 2 and 3 OPL Models (Drawing 2 of 2)

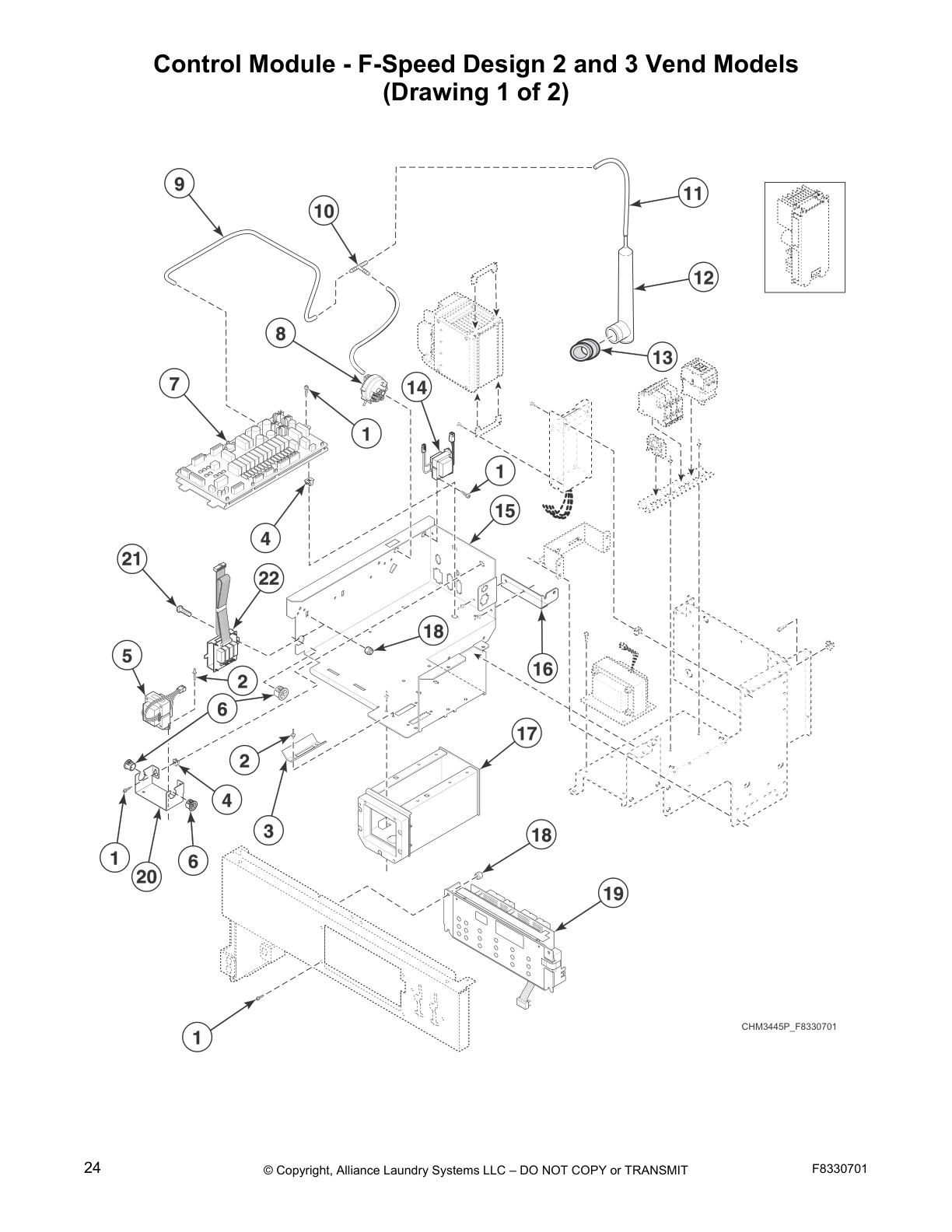

Control Module - F-Speed Design 2 and 3 Vend Models
(Drawing 1 of 2)

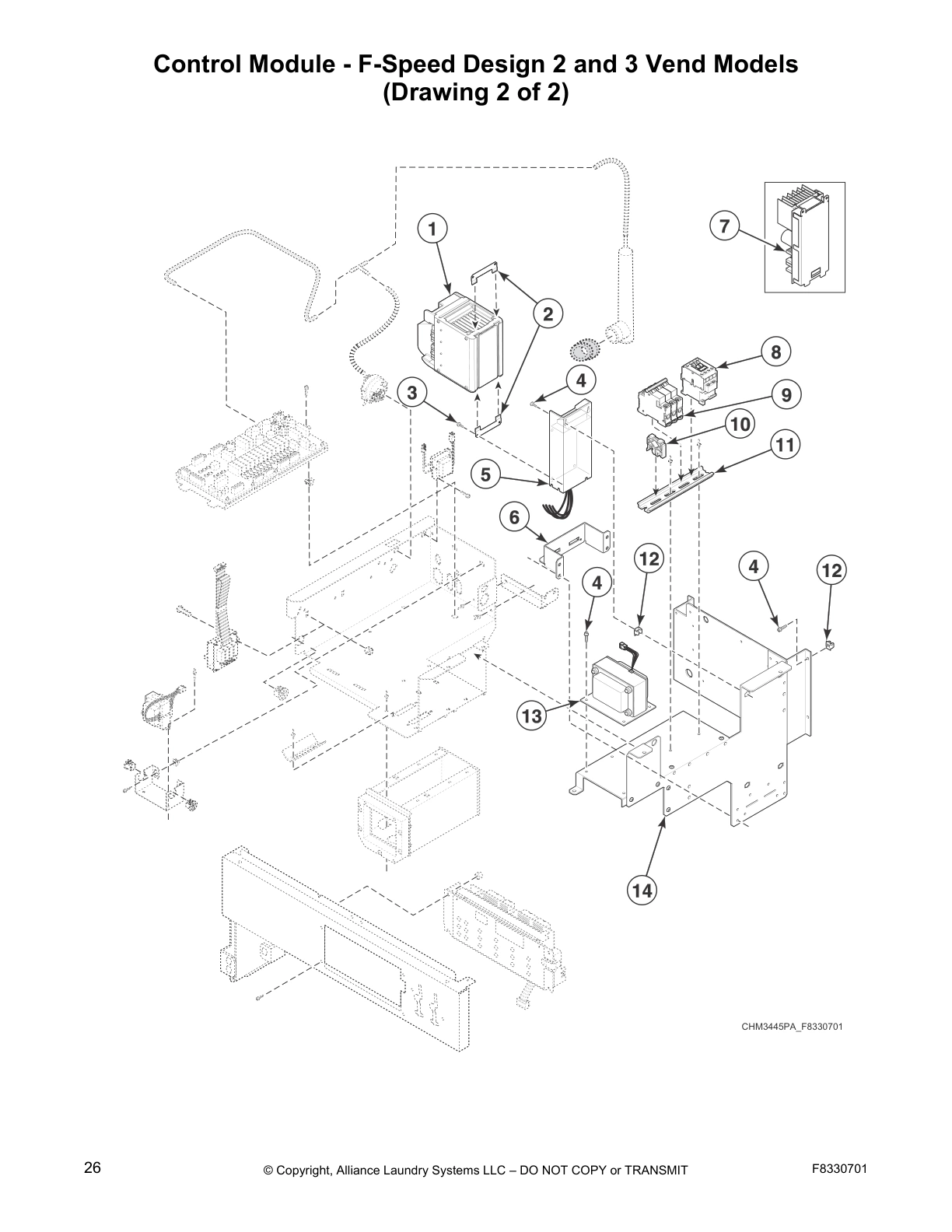

Control Module - F-Speed Design 2 and 3 Vend Models
(Drawing 2 of 2)

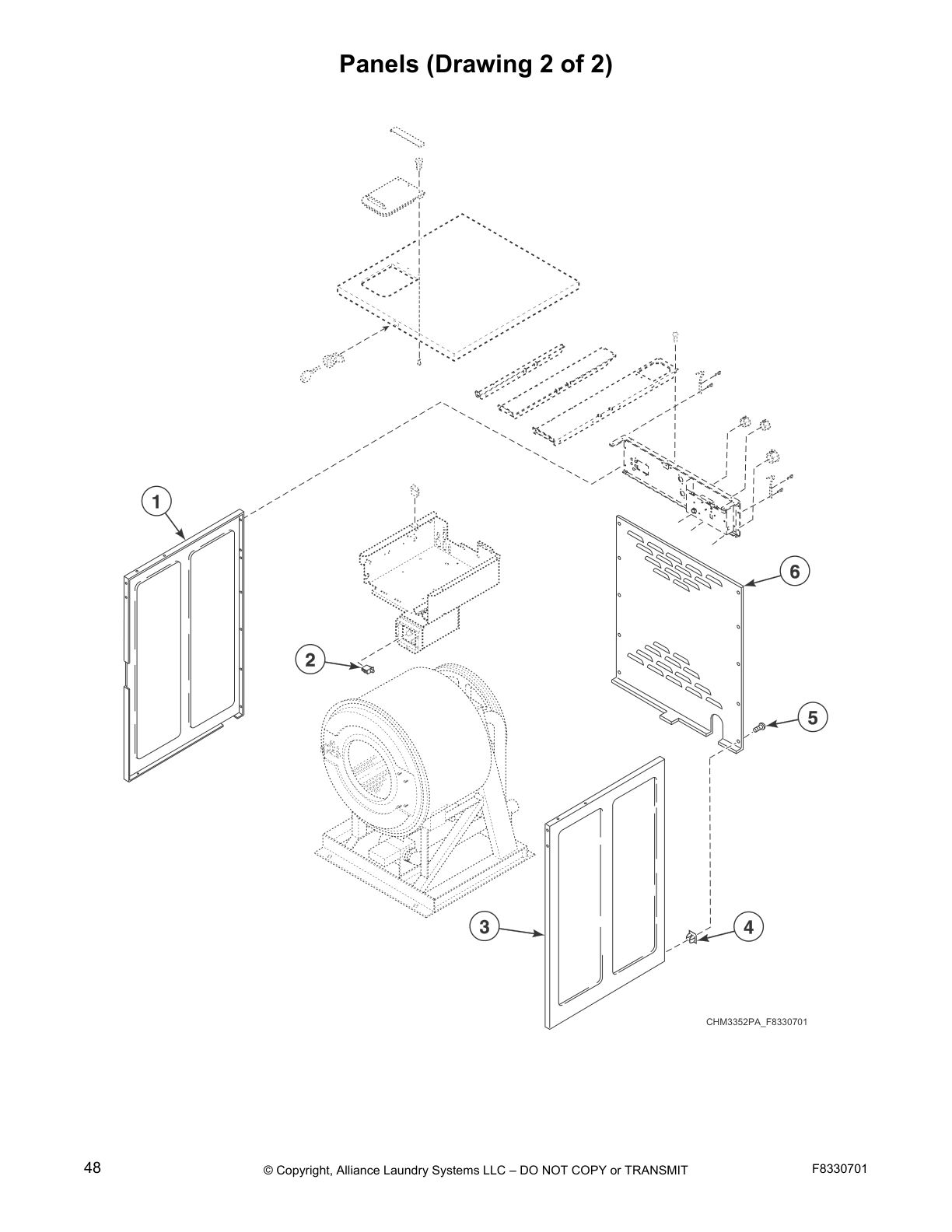

Panels (Drawing 2 of 2)

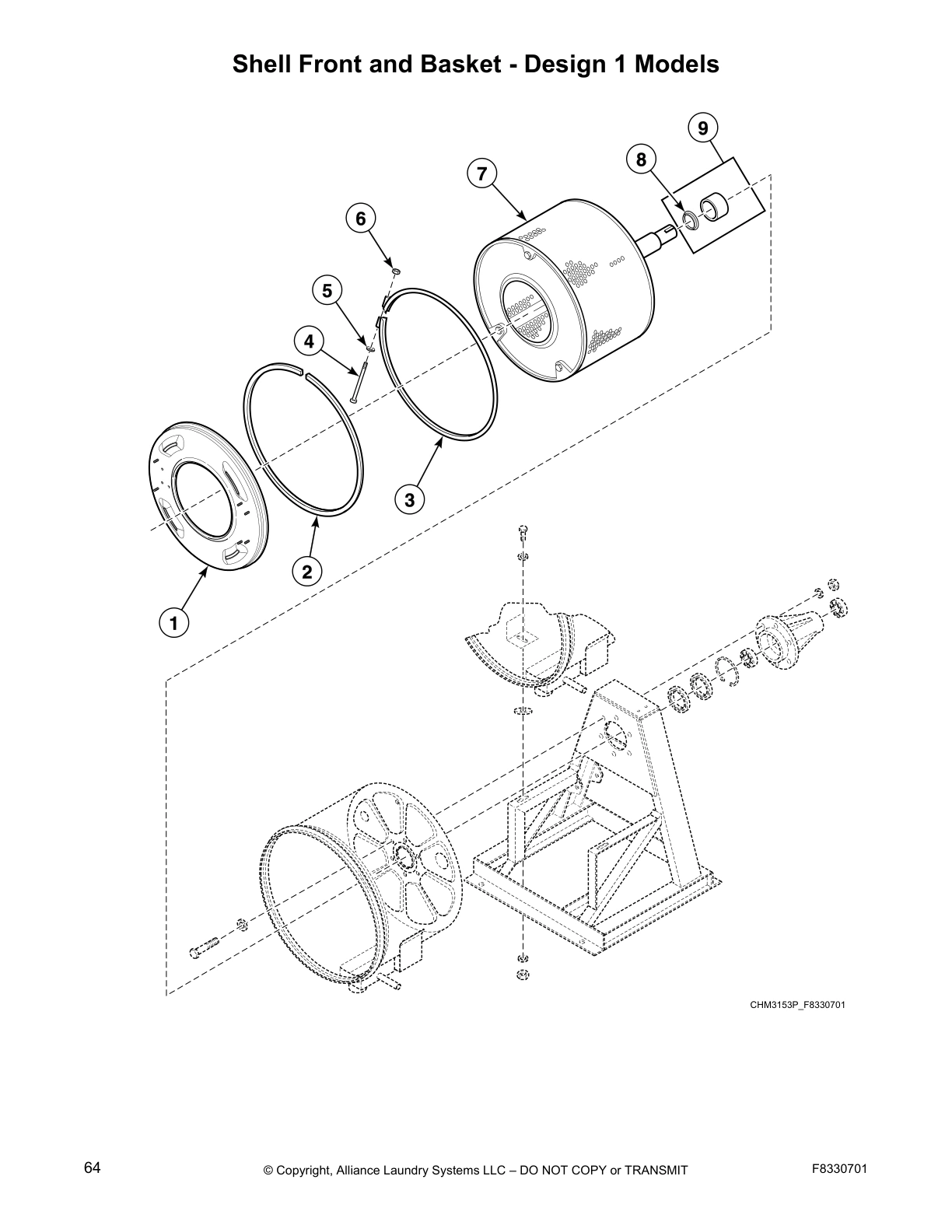

Shell Front and Basket - Design 1 Models

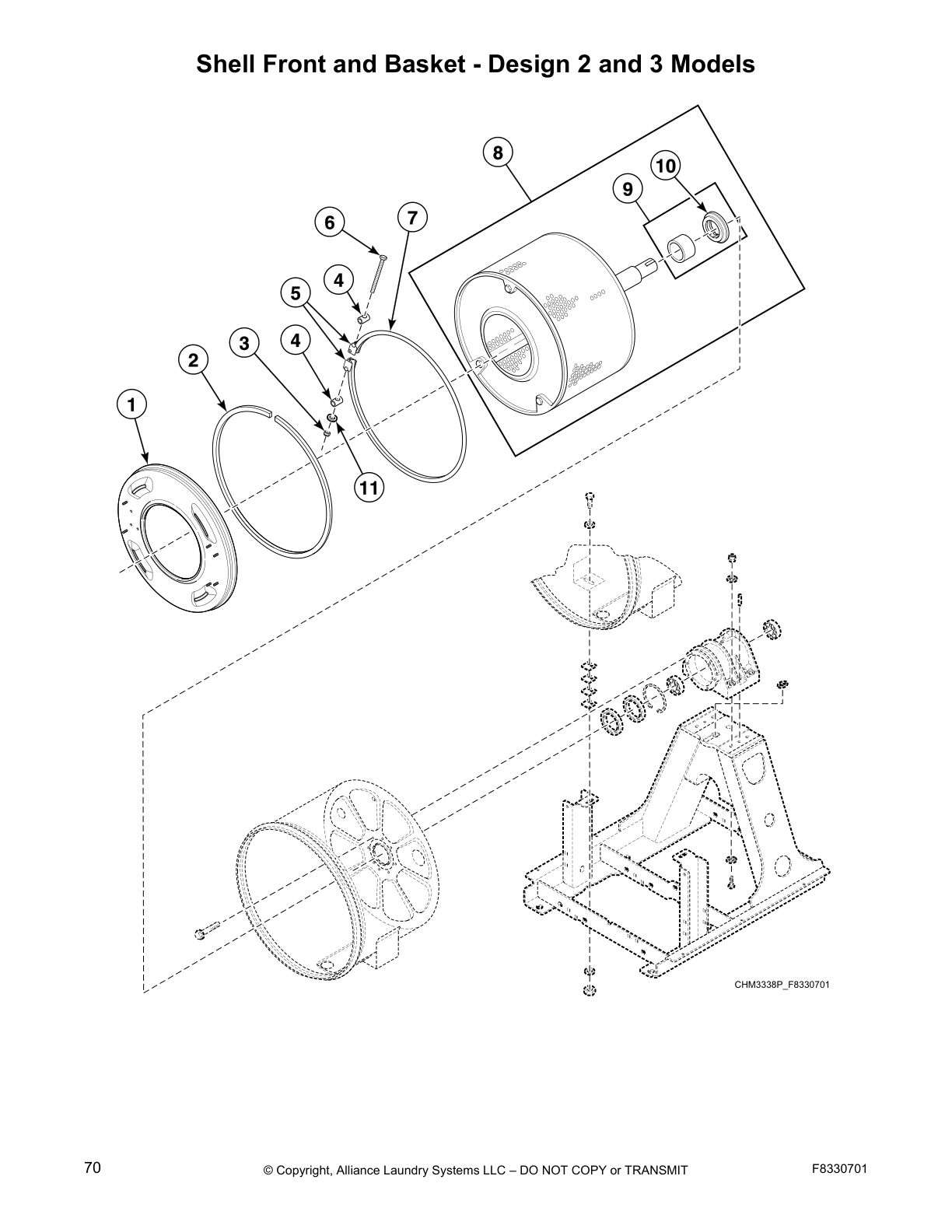

Shell Front and Basket - Design 2 and 3 Models

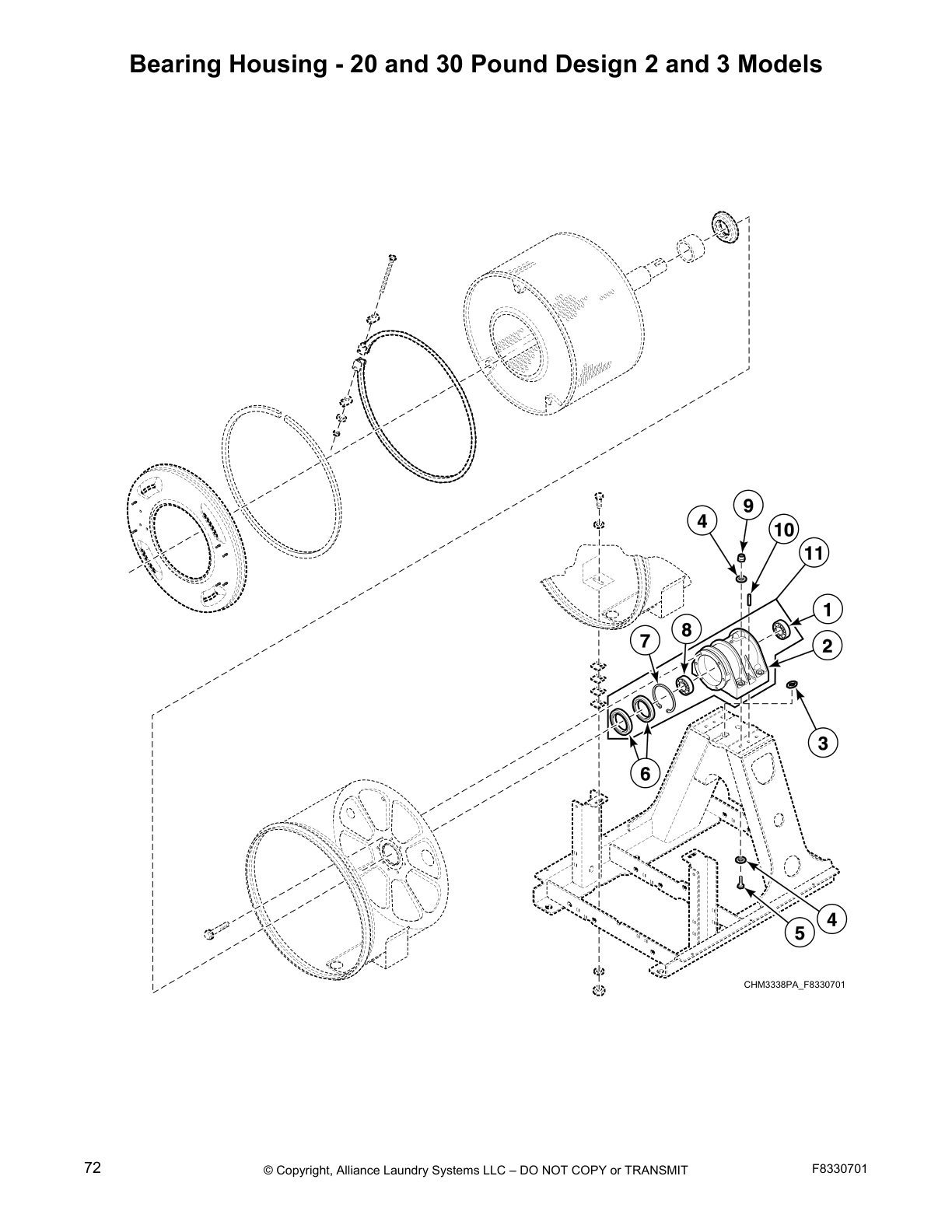

Bearing Housing - 20 and 30 Pound Design 2 and 3 Models

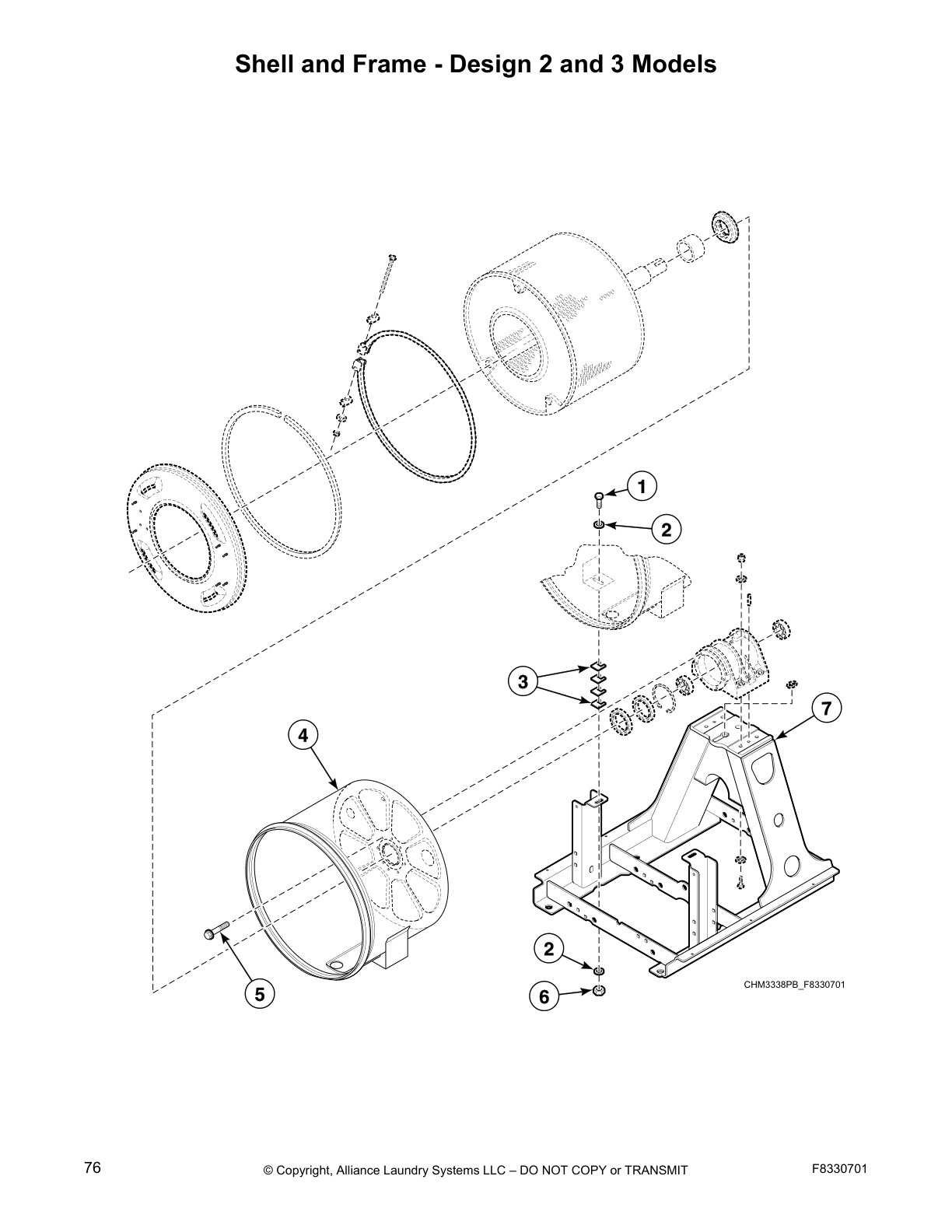

Shell and Frame - Design 2 and 3 Models

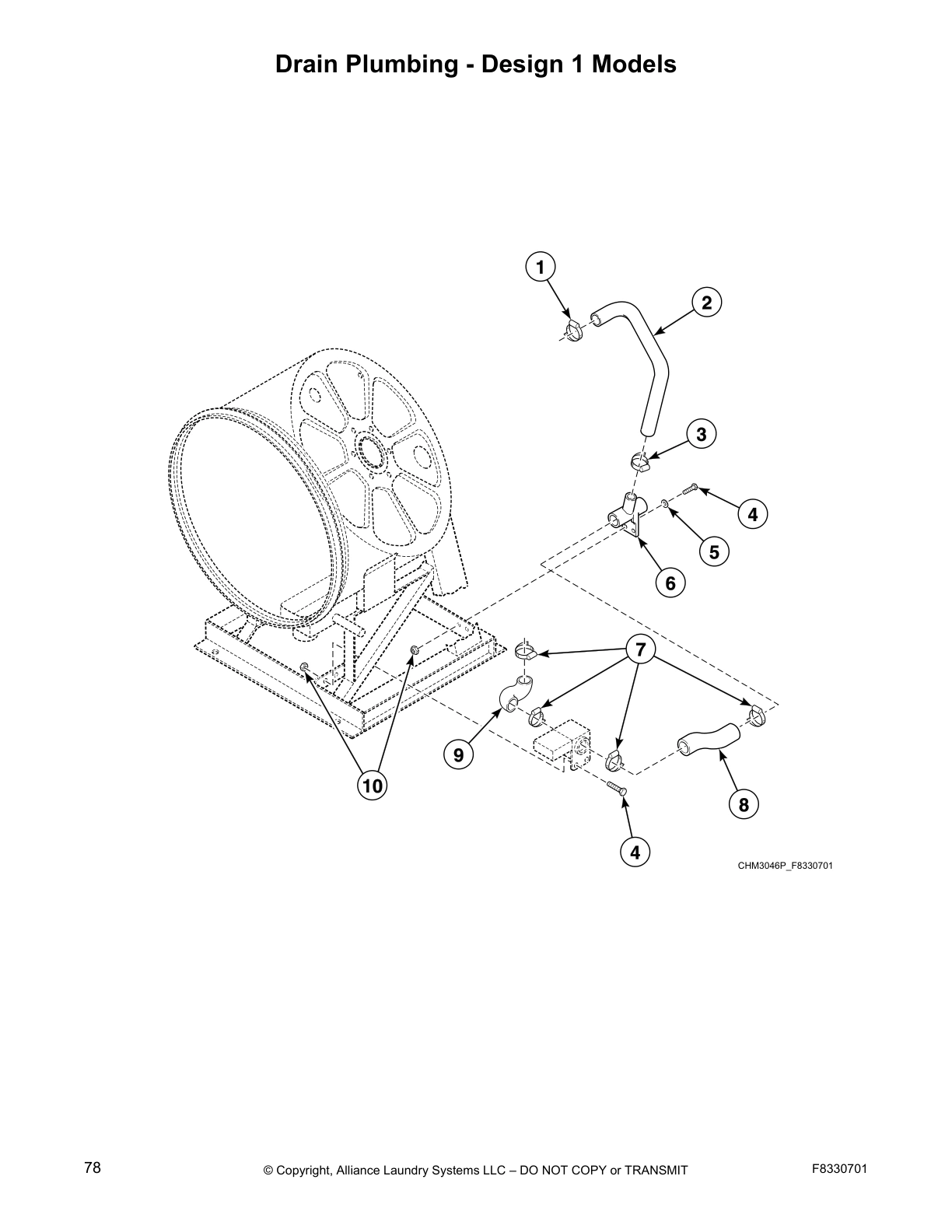

Drain Plumbing - Design 1 Models

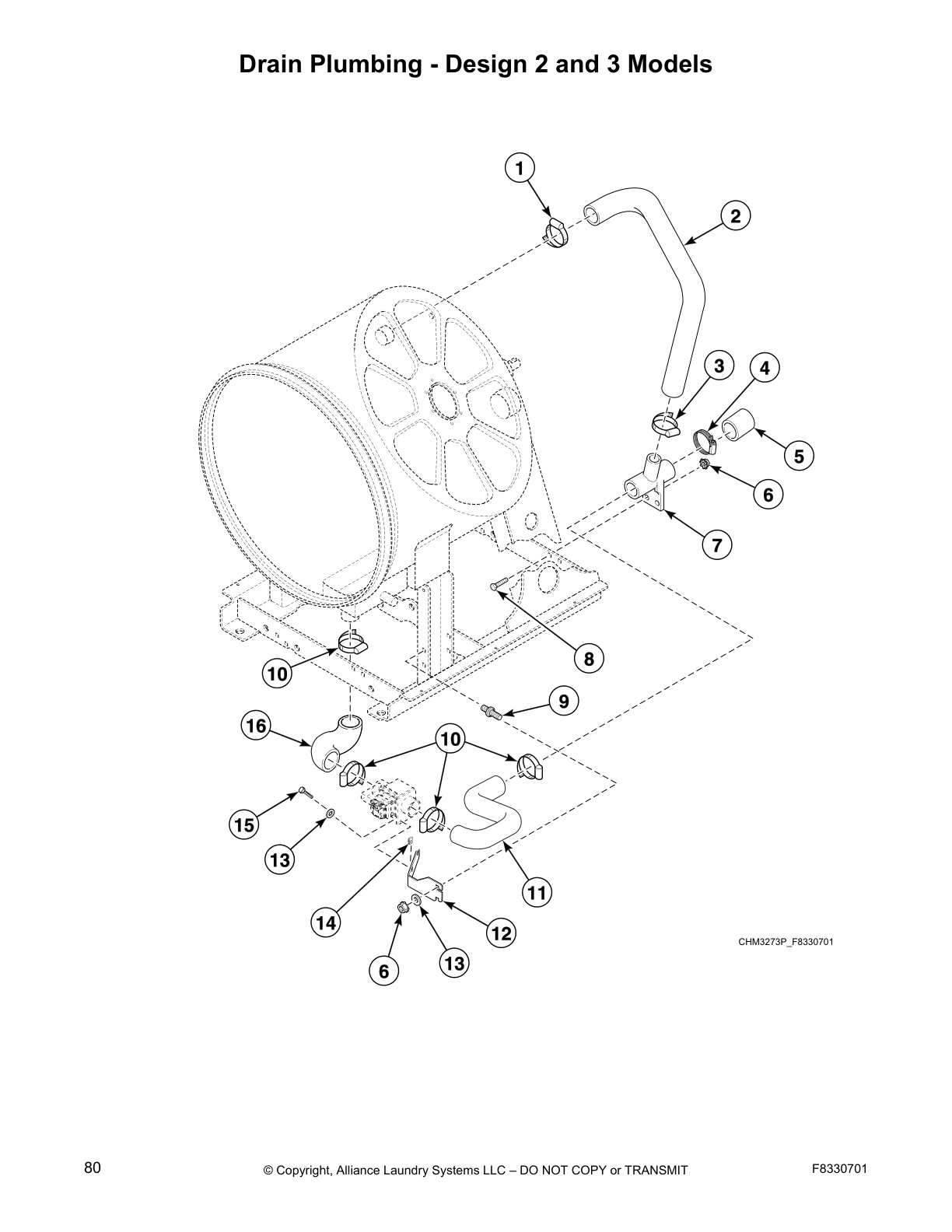

Drain Plumbing - Design 2 and 3 Models

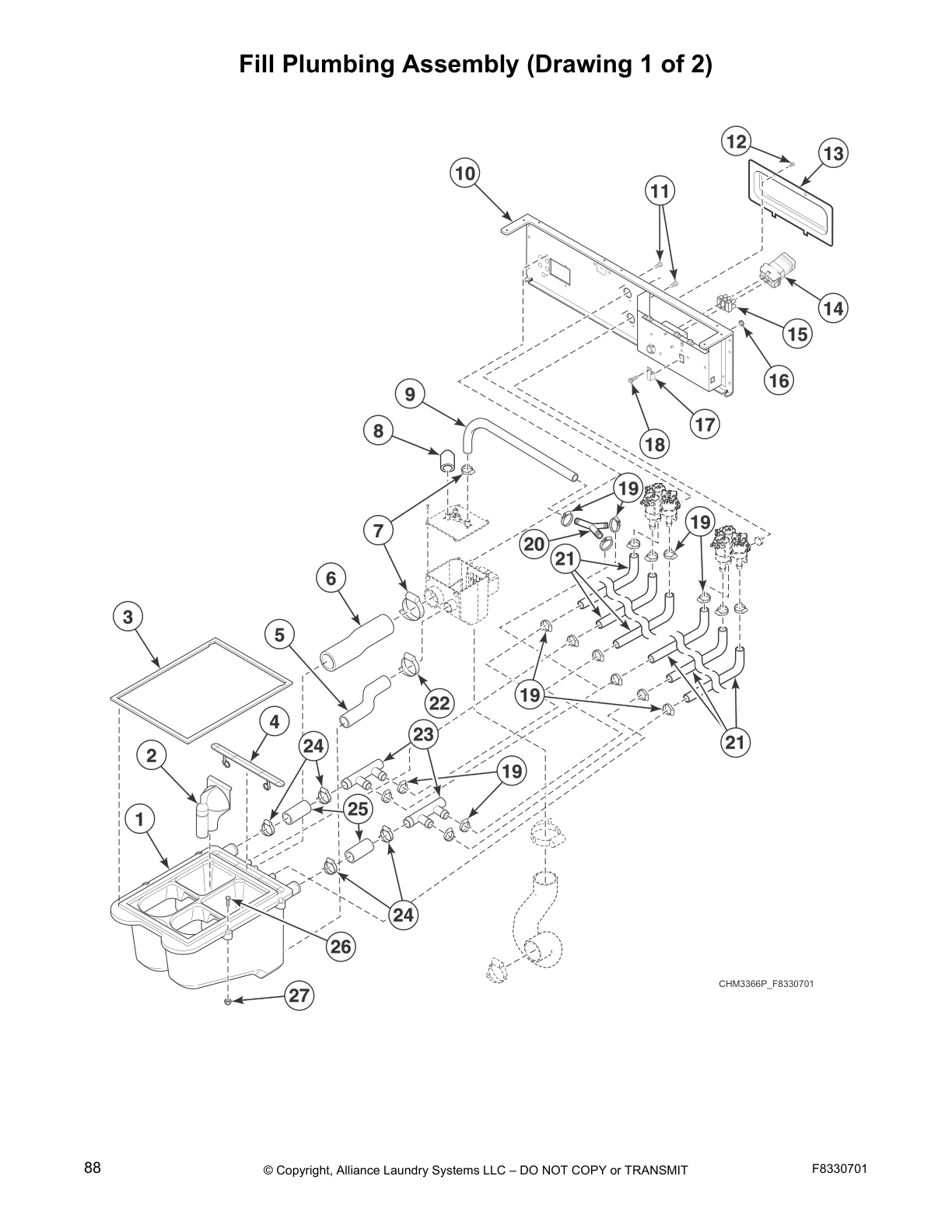

Fill Plumbing Assembly (Drawing 1 of 2)

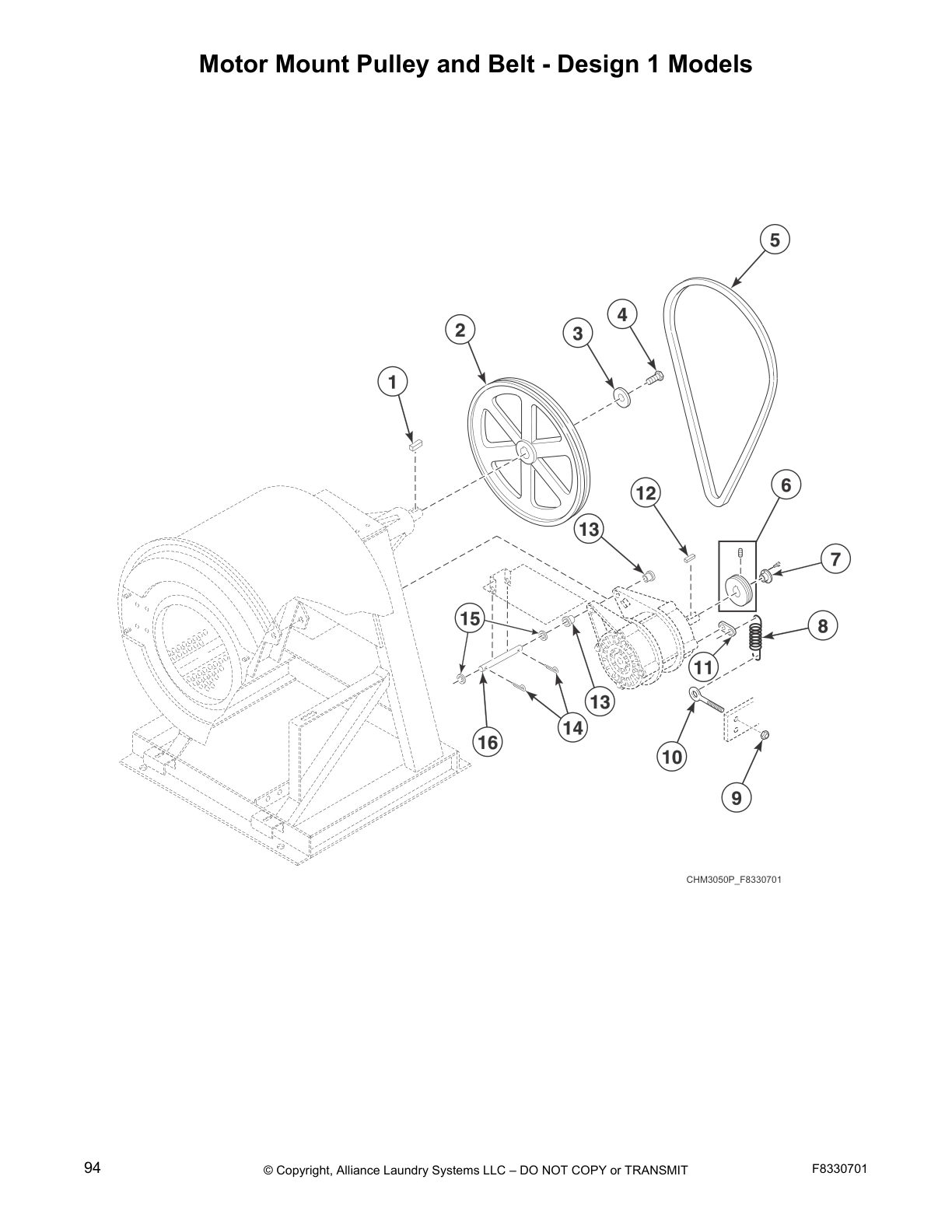

Motor Mount Pulley and Belt - Design 1 Models
Motor, Pulley and Belt (Drawing 1 of 2)

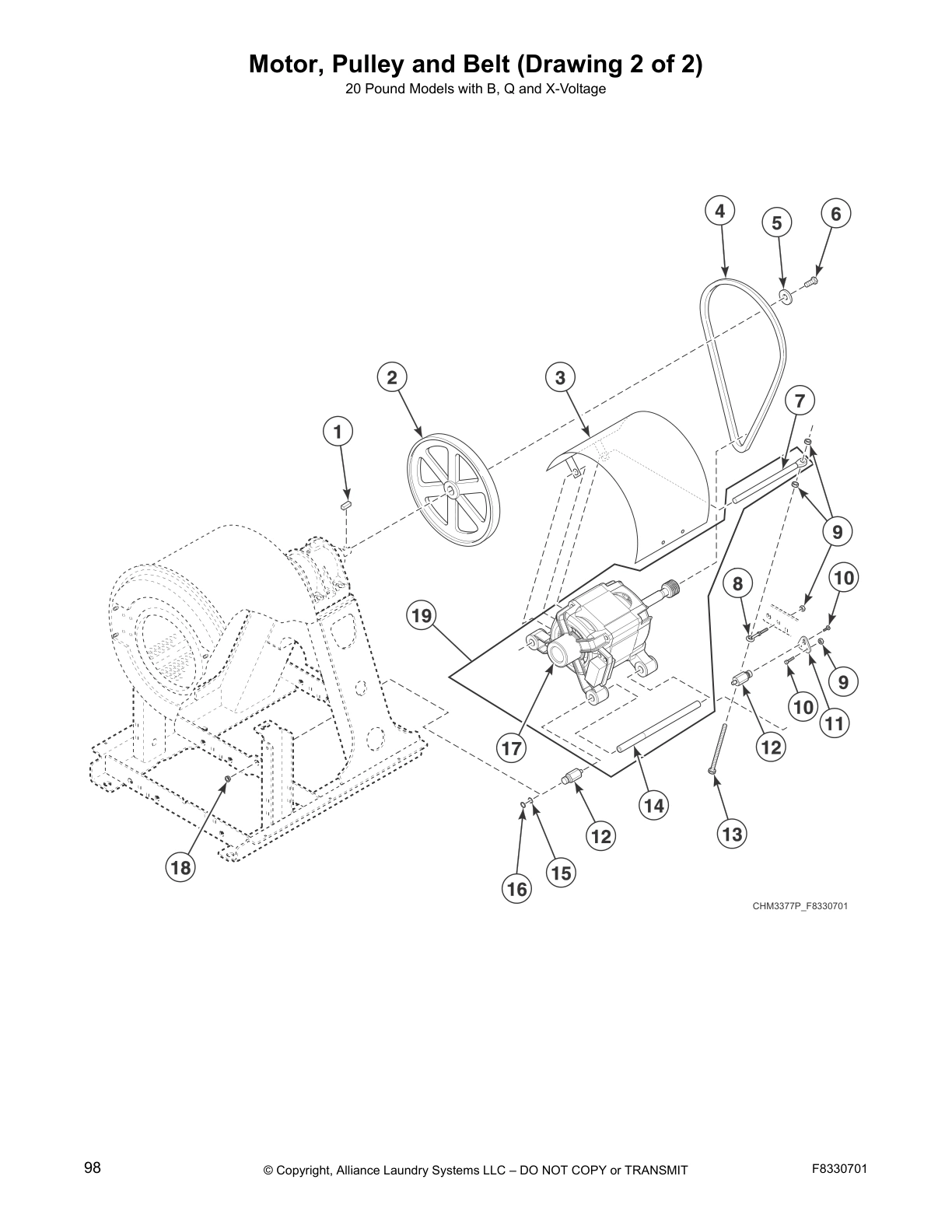

Motor, Pulley and Belt (Drawing 2 of 2)

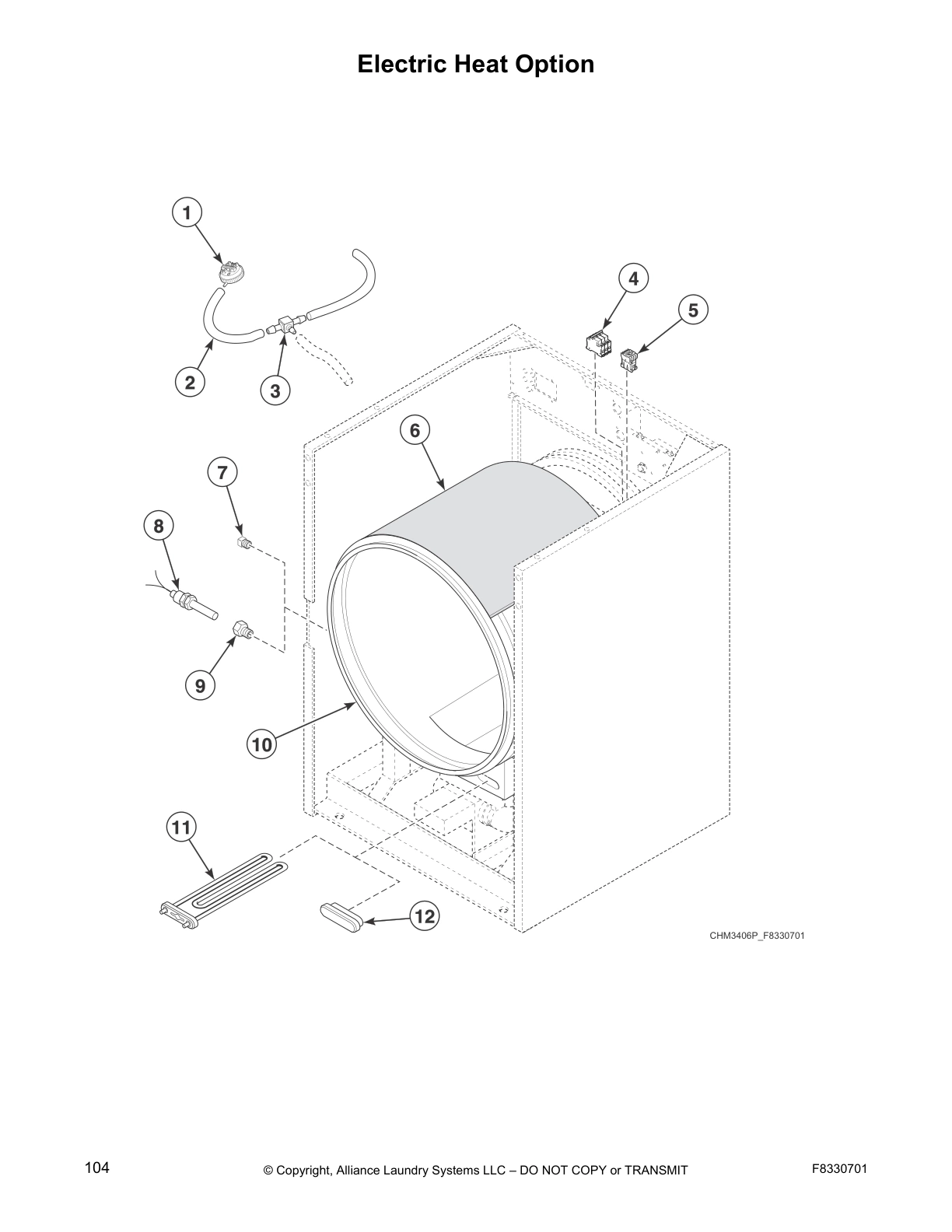

Electric Heat Option

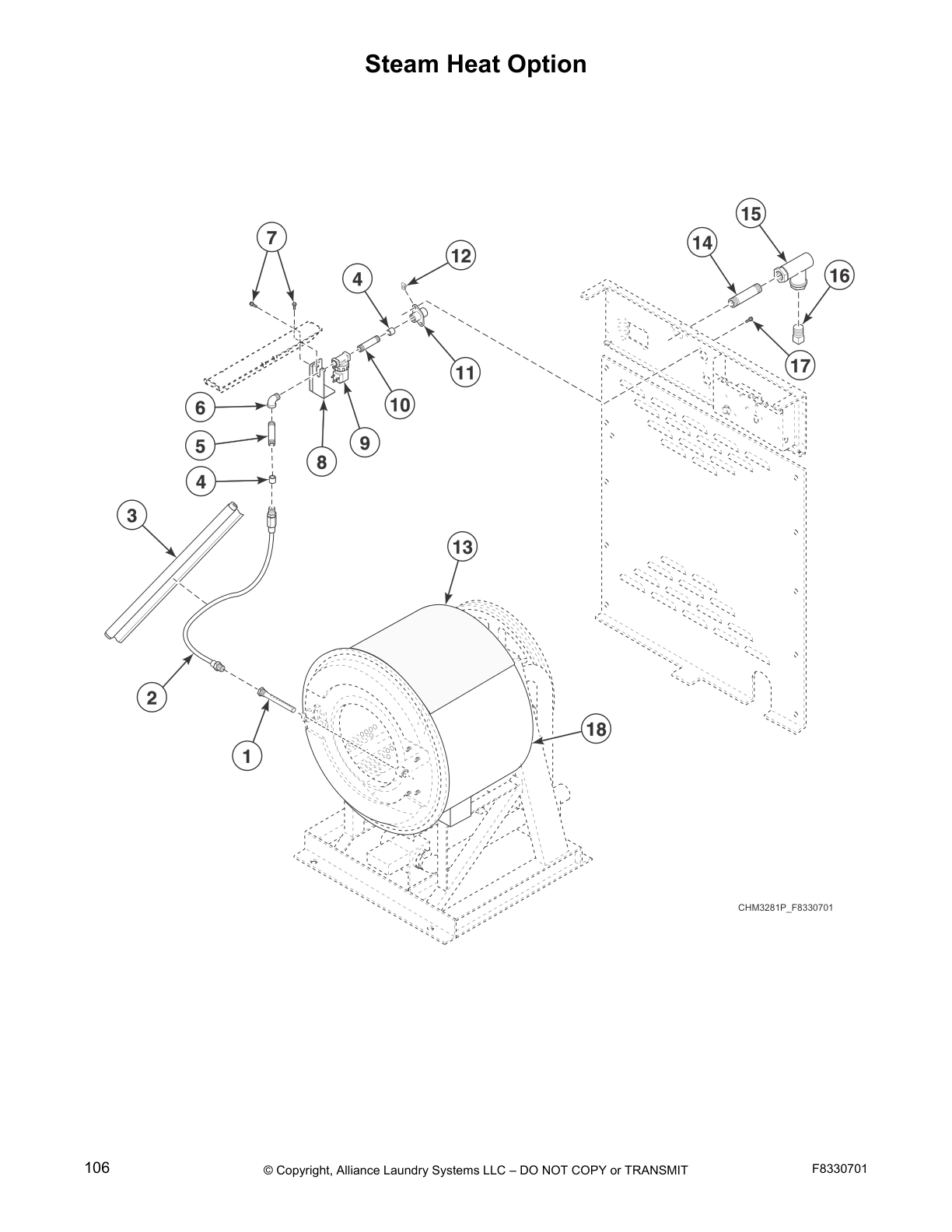

Steam Heat Option
Common parts from model Unimac UCL020HNV Washer
1
Drive Assembly SPQ F8303601P Contact Us For Availability
1
Left Side Panel SPQ F8399204 Contact Us For Availability
2
Drive Mounting Bracket SPQ F8322401 Contact Us For Availability
2
Overflow Hose SPQ F8261302 Contact Us For Availability
3
Right Side Panel SPQ F8399202 Contact Us For Availability
3
Seal Scupper Pad SPQ F8350301 Contact Us For Availability
3
Washer SPQ F8402701 Contact Us For Availability
4
Washer SPQ F8366601 Contact Us For Availability
4
Shell Weldment SPQ F8360603 Contact Us For Availability
4
Screw SPQ F430107 Contact Us For Availability
5
Screw SPQ F8368701 Contact Us For Availability
6
Rear Panel SPQ F8399203 Contact Us For Availability
7
Communication Harness SPQ F8327301P Contact Us For Availability
7
B, Q and X-voltage SPQ F200201700P Contact Us For Availability
7
Spring Mount Rod SPQ F8361301 Contact Us For Availability
8
Basket Assembly SPQ F8391301P Contact Us For Availability
8
Bolt SPQ F8367901 Contact Us For Availability
8
Eye Bolt SPQ F8404501 Contact Us For Availability
10
Hose Barb Connector SPQ F8431001 Contact Us For Availability
10
Bolt SPQ F8402801 Contact Us For Availability
10
Valve Panel SPQ F8398701 Contact Us For Availability
10
Motor
20, 30 and 40 pound models SPQ F8335001P Contact Us For Availability
11
DIN Rail SPQ F8385301 Contact Us For Availability
11
Bearing Housing Assembly SPQ F8271601P Contact Us For Availability
11
Rear Drain Hose SPQ F8365601 Contact Us For Availability
12
Bracket SPQ F8365401 Contact Us For Availability
13
Screw SPQ F8406601 Contact Us For Availability
14
Drive Tray Assembly SPQ F8359801 Contact Us For Availability
15
Grommet SPQ F8433001 Contact Us For Availability
15
O-Ring SPQ F8441901 Contact Us For Availability
16
Drain Hose SPQ F8261303 Contact Us For Availability
16
Spring Plate SPQ F8363901 Contact Us For Availability
17
Induction Motor
Includes pulley SPQ 801194P Contact Us For Availability
18
Shell Weldment SPQ F8360602 Contact Us For Availability
18
Spacer SPQ F8451601 Contact Us For Availability
19
Nut SPQ F8387601 Contact Us For Availability
NI
SPQ F8385102 SPQ F8385102 Contact Us For Availability
NI
SPQ F8399201 SPQ F8399201 Contact Us For Availability
NI
SPQ F8362401 SPQ F8362401 Contact Us For Availability
NI
SPQ F8360601 SPQ F8360601 Contact Us For Availability
NI
SPQ F8247002 SPQ F8247002 Contact Us For Availability
NI
SPQ 70334702 SPQ 70334702 Contact Us For Availability
NI
Belt
20 pound models SPQ F8362501 Contact Us For Availability
NI
N and P-voltage SPQ F8396601 Contact Us For Availability
NI
Motor Harness SPQ F8384801 Contact Us For Availability
× ![]()
