Model U-Line UCDE215HSS03A Uline UCDE215HSS03A – Common Parts & Diagrams

Common parts from model U-Line UCDE215HSS03A Uline UCDE215HSS03A

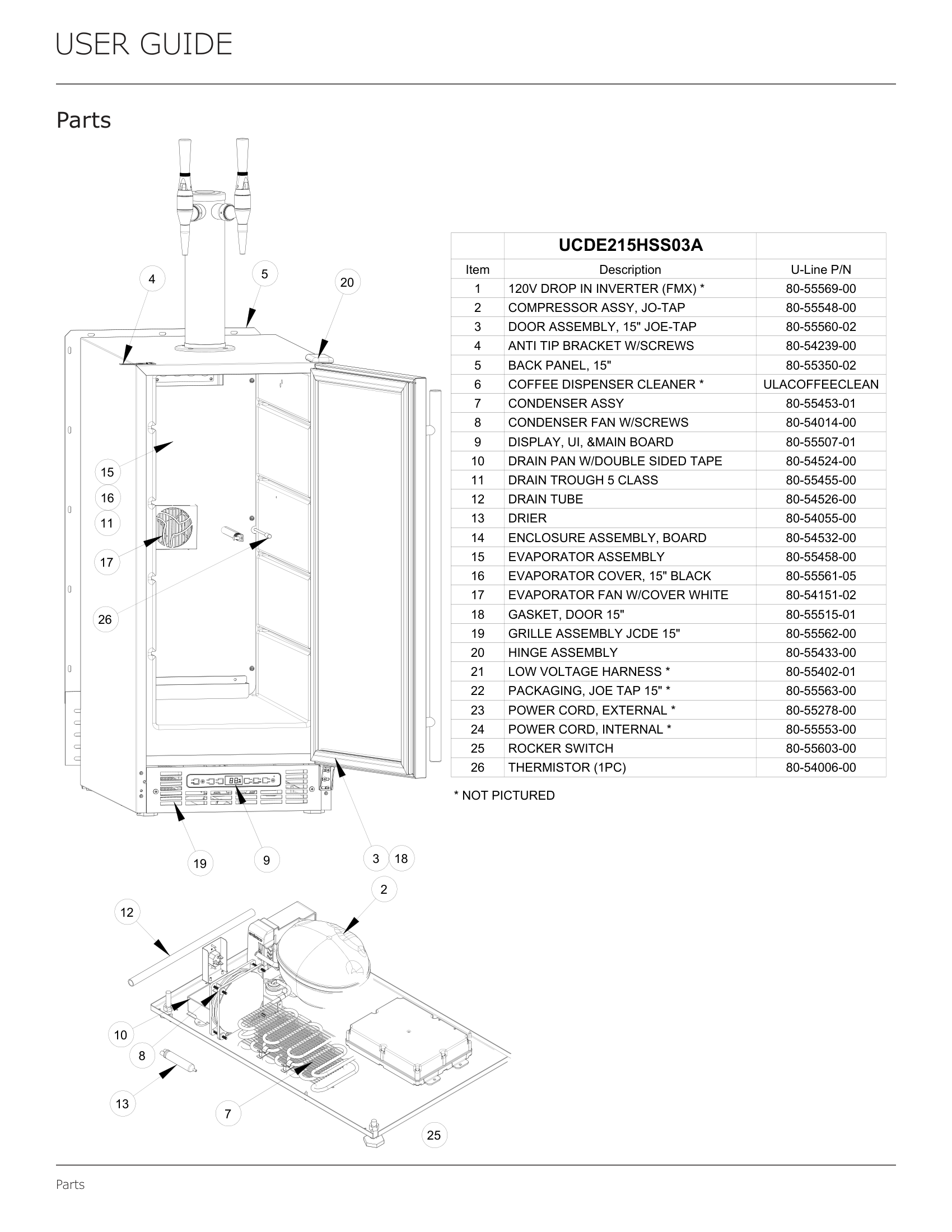

Exploded View

Print

• This Diagram
• All Diagrams

4

80-54239-00 U-Line Anti-Tip Bracket with Scre In Stock ULC 80-54239-00 View Details $46.23

View on Model

7

80-54014-00 U-Line Motor Backorder ULC 80-54014-00 View Details $105.38

View on Model

8

DISPLAY, UI, &MAIN BOARD ULC 80-55507-01 Contact Us For Availability

View on Model

9

DRAIN PAN W/DOUBLE SIDED TAPE ULC 80-54524-00 Contact Us For Availability

View on Model

10

DRAIN TROUGH CLASS ULC 80-55455-00 Contact Us For Availability

View on Model

11

80-54526-00 U-Line Drain Tube Backorder ULC 80-54526-00 View Details $15.46

View on Model

12

80-54055-00 U-Line Dryer Backorder ULC 80-54055-00 View Details $15.46

View on Model

13

80-54532-00 U-Line Enclosure Assembly Board Backorder ULC 80-54532-00 View Details $28.94

View on Model

14

EVAPORATOR ASSEMBLY ULC 80-55458-00 Contact Us For Availability

View on Model

15

EVAPORATOR COVER, " BLACK ULC 80-55561-05 Contact Us For Availability

View on Model

16

EVAPORATOR FAN W/COVER WHITE ULC 80-54151-02 Contact Us For Availability

View on Model

17

GASKET, DOOR ULC 80-55515-01 Contact Us For Availability

View on Model

18

GRILLE ASSEMBLY JCDE ULC 80-55562-00 Contact Us For Availability

View on Model

19

HINGE ASSEMBLY ULC 80-55433-00 Contact Us For Availability

View on Model

20

LOW VOLTAGE ULC 80-55402-01 Contact Us For Availability

View on Model

21

PACKAGING, JOE TAP " ULC 80-55563-00 Contact Us For Availability

View on Model

22

POWER CORD, EXTERNAL ULC 80-55278-00 Contact Us For Availability

View on Model

23

POWER CORD, INTERNAL ULC 80-55553-00 Contact Us For Availability

View on Model

24

ROCKER SWITCH ULC 80-55603-00 Contact Us For Availability

View on Model

25

80-54006-00 U-Line White Thermistor In Stock ULC 80-54006-00 View Details $35.13

View on Model

×
