Model Unimac UC125VNV Washer – Common Parts & Diagrams

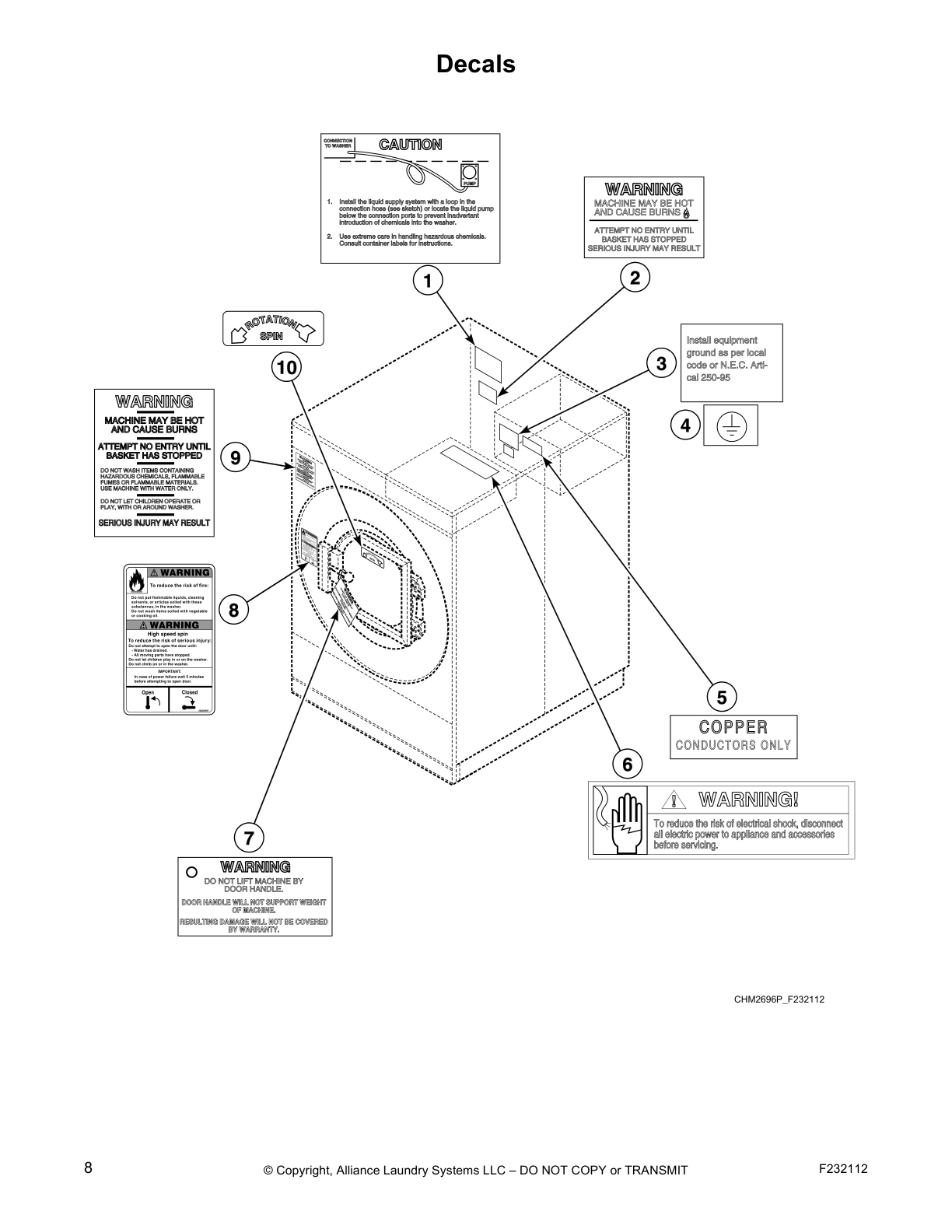

Decals

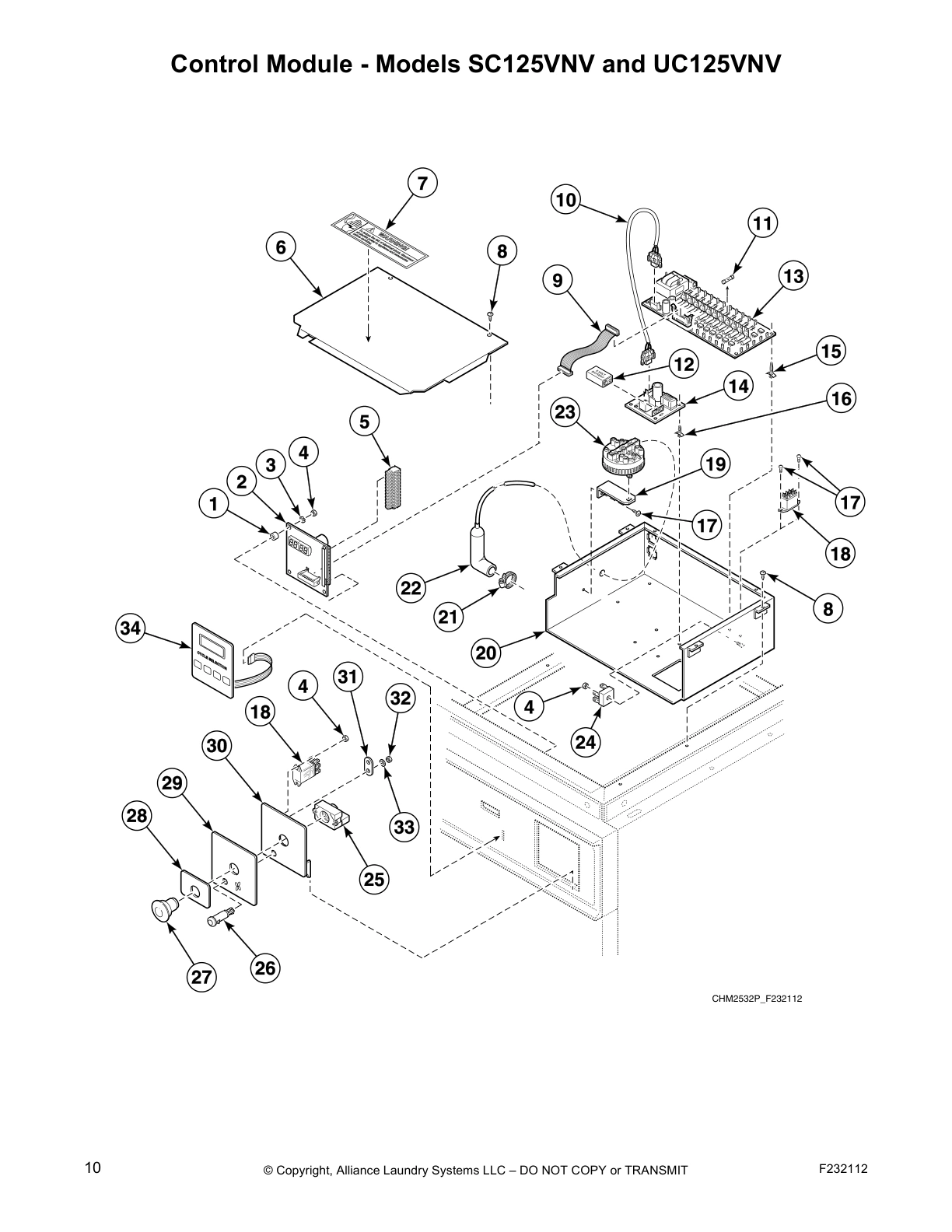

Control Module - Models SC125VNV and UC125VNV

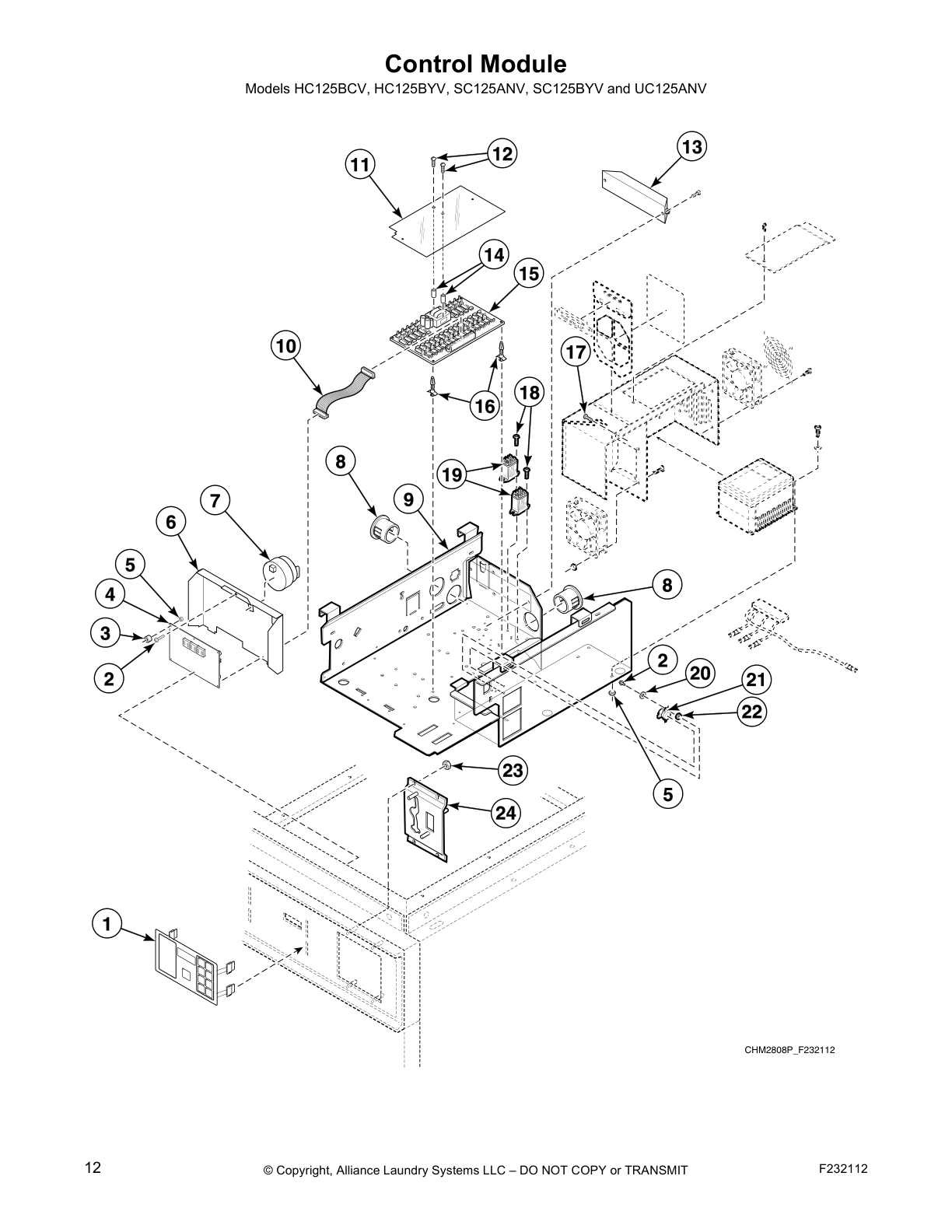

Control Module

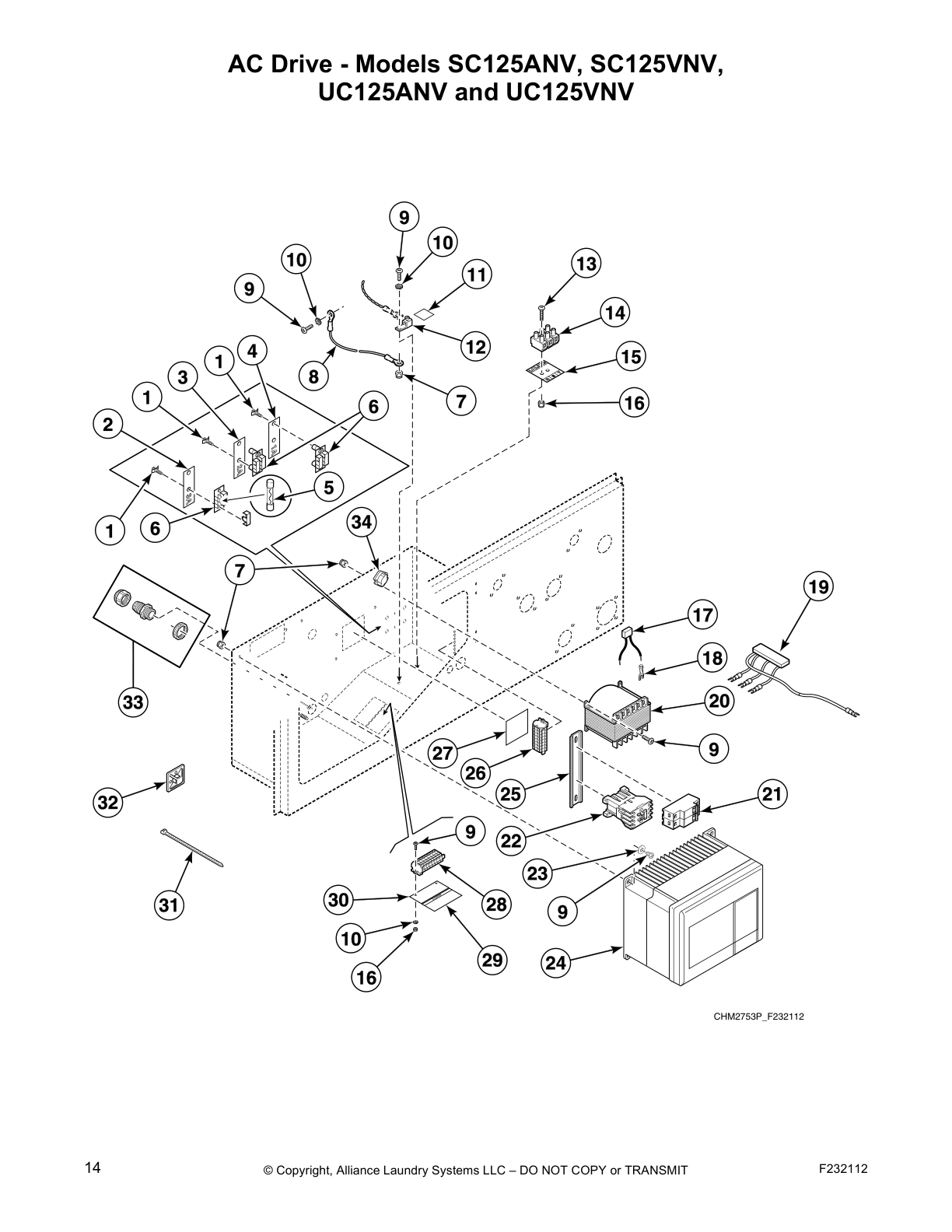

AC Drive - Models SC125ANV, SC125VNV,
UC125ANV and UC125VNV

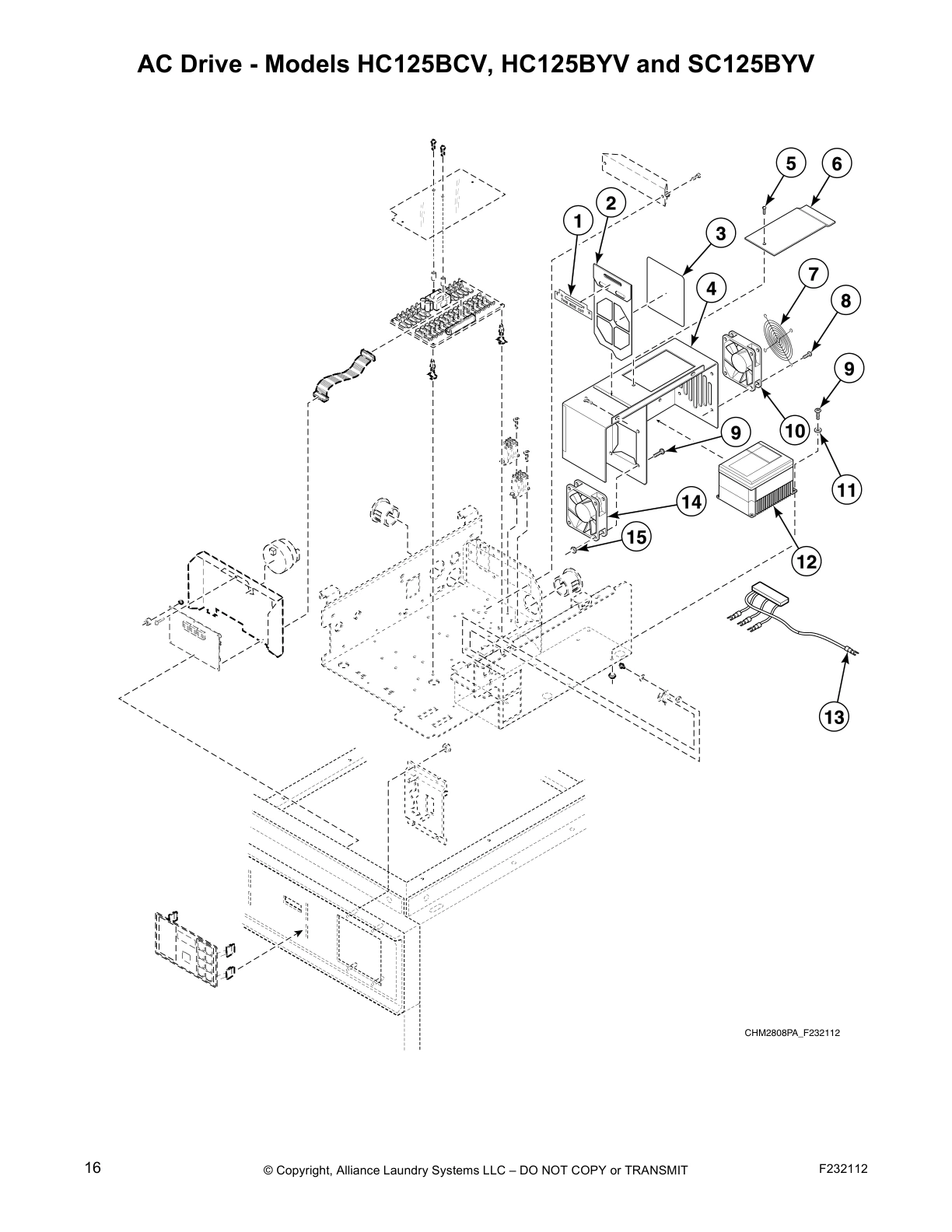

AC Drive - Models HC125BCV, HC125BYV and SC125BYV

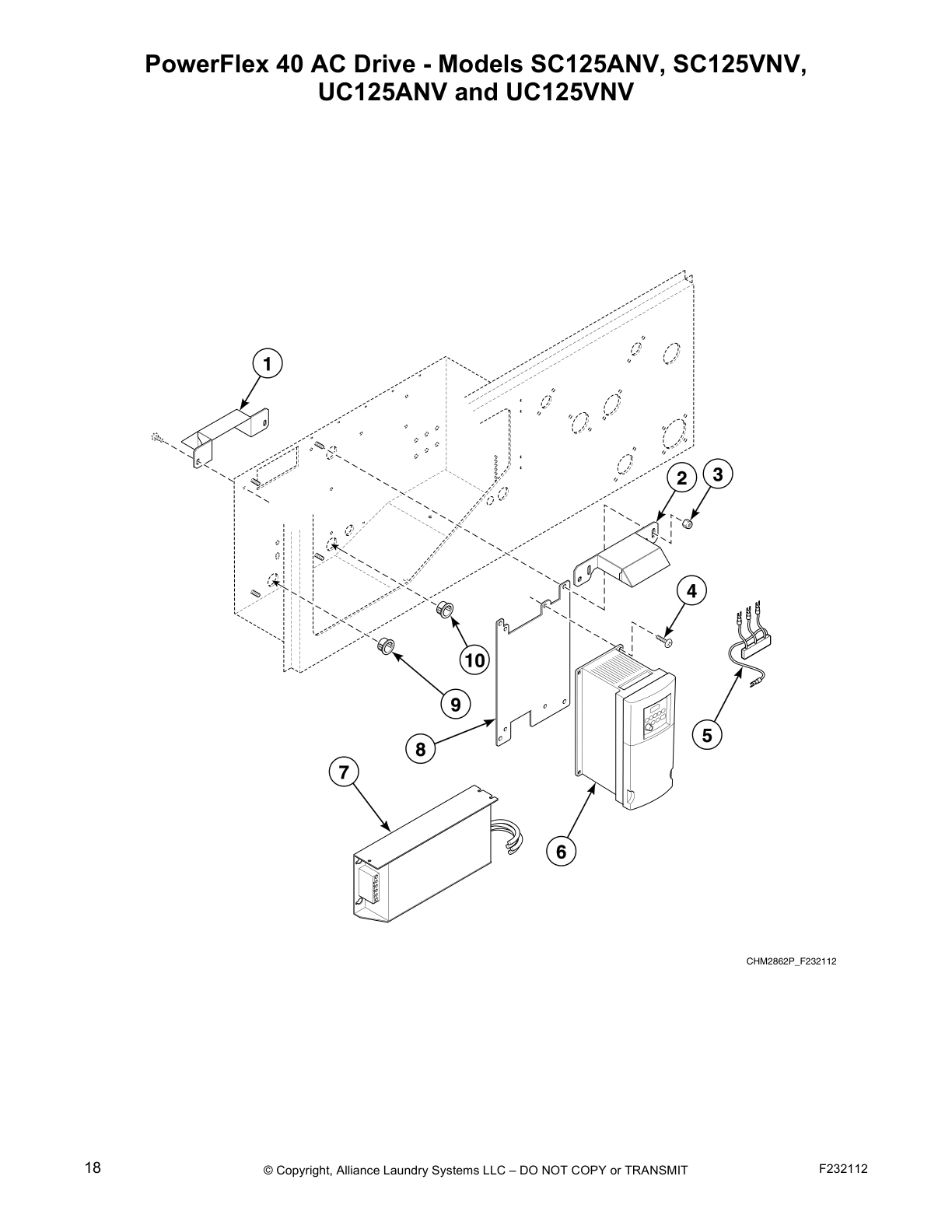

PowerFlex 40 AC Drive - Models SC125ANV, SC125VNV,
UC125ANV and UC125VNV

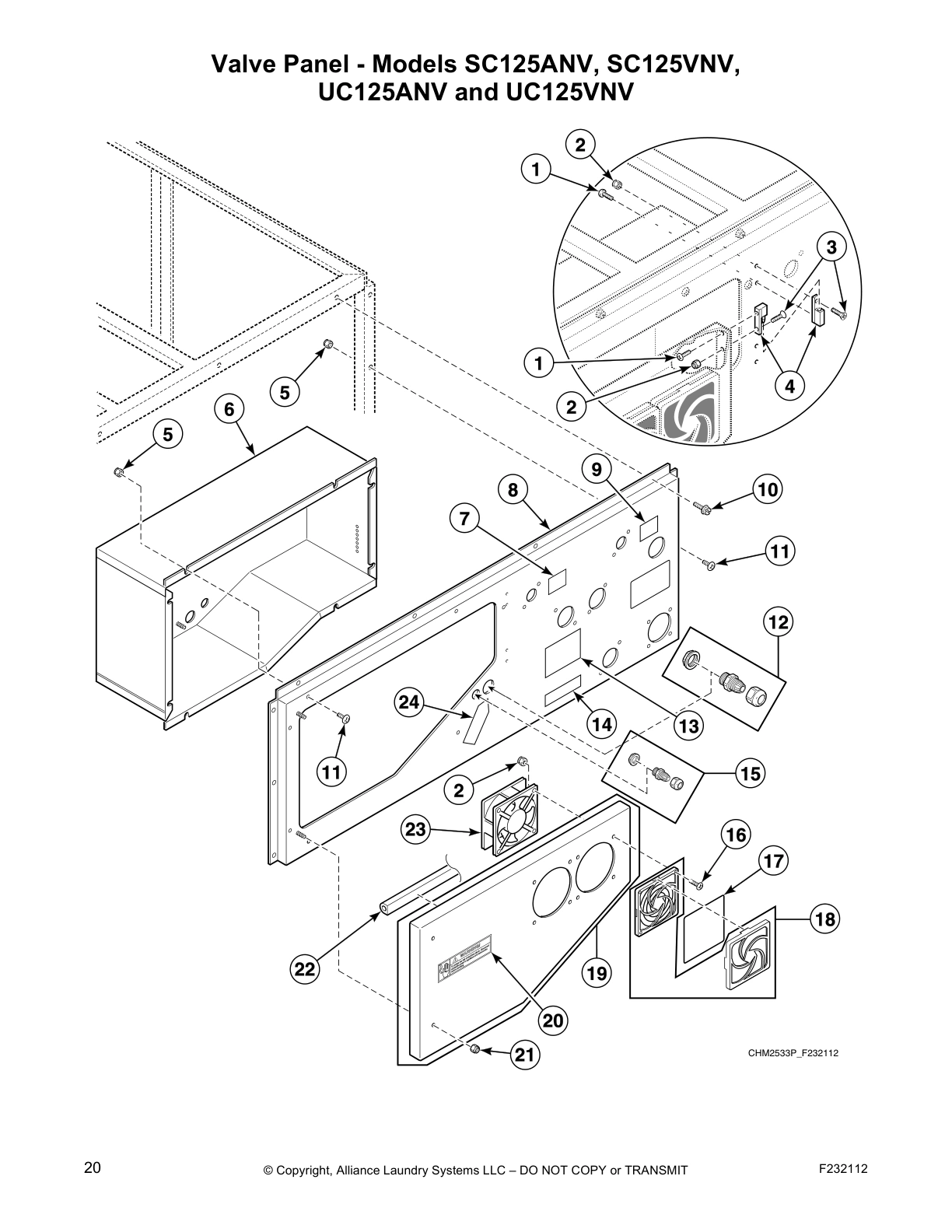

Valve Panel - Models SC125ANV, SC125VNV,
UC125ANV and UC125VNV

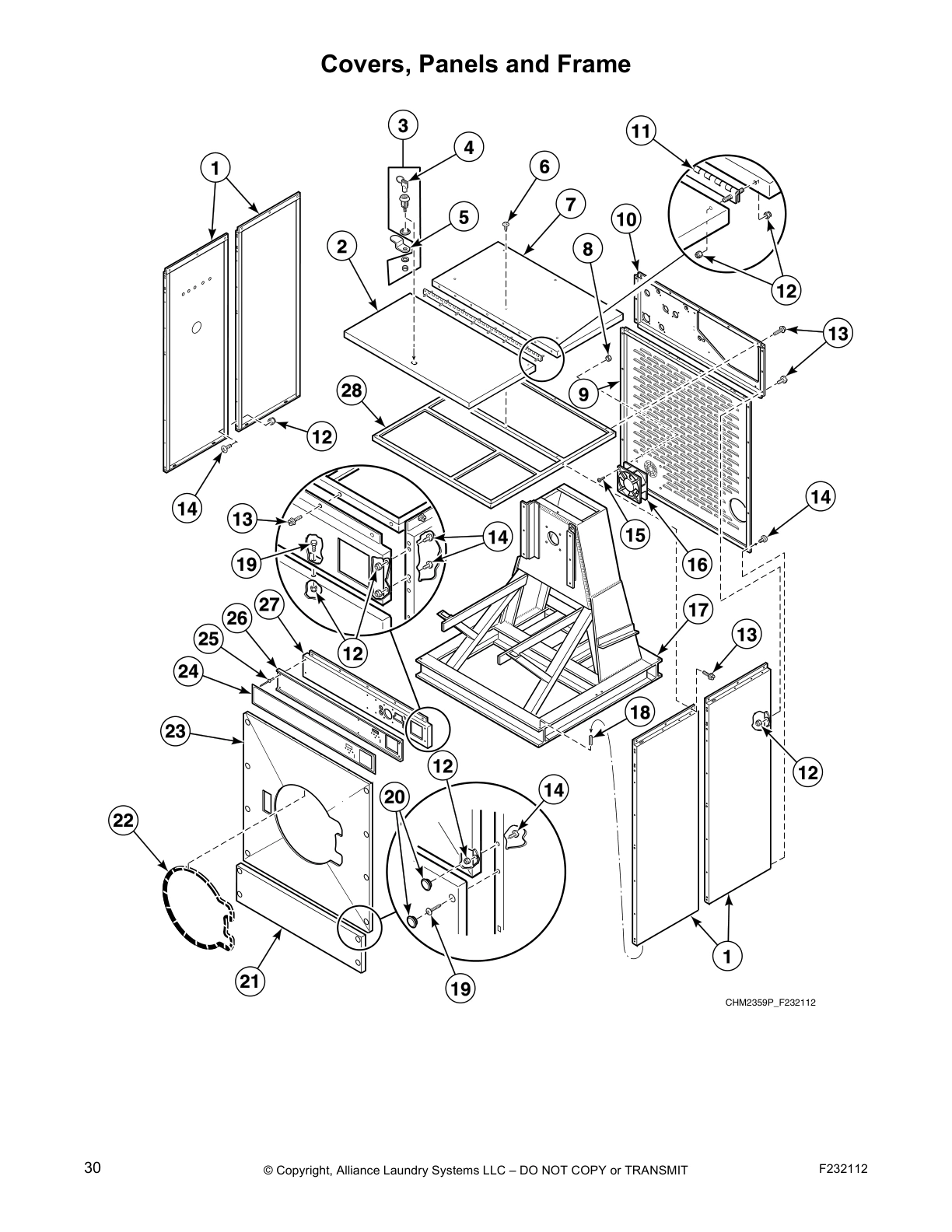

Covers, Panels and Frame

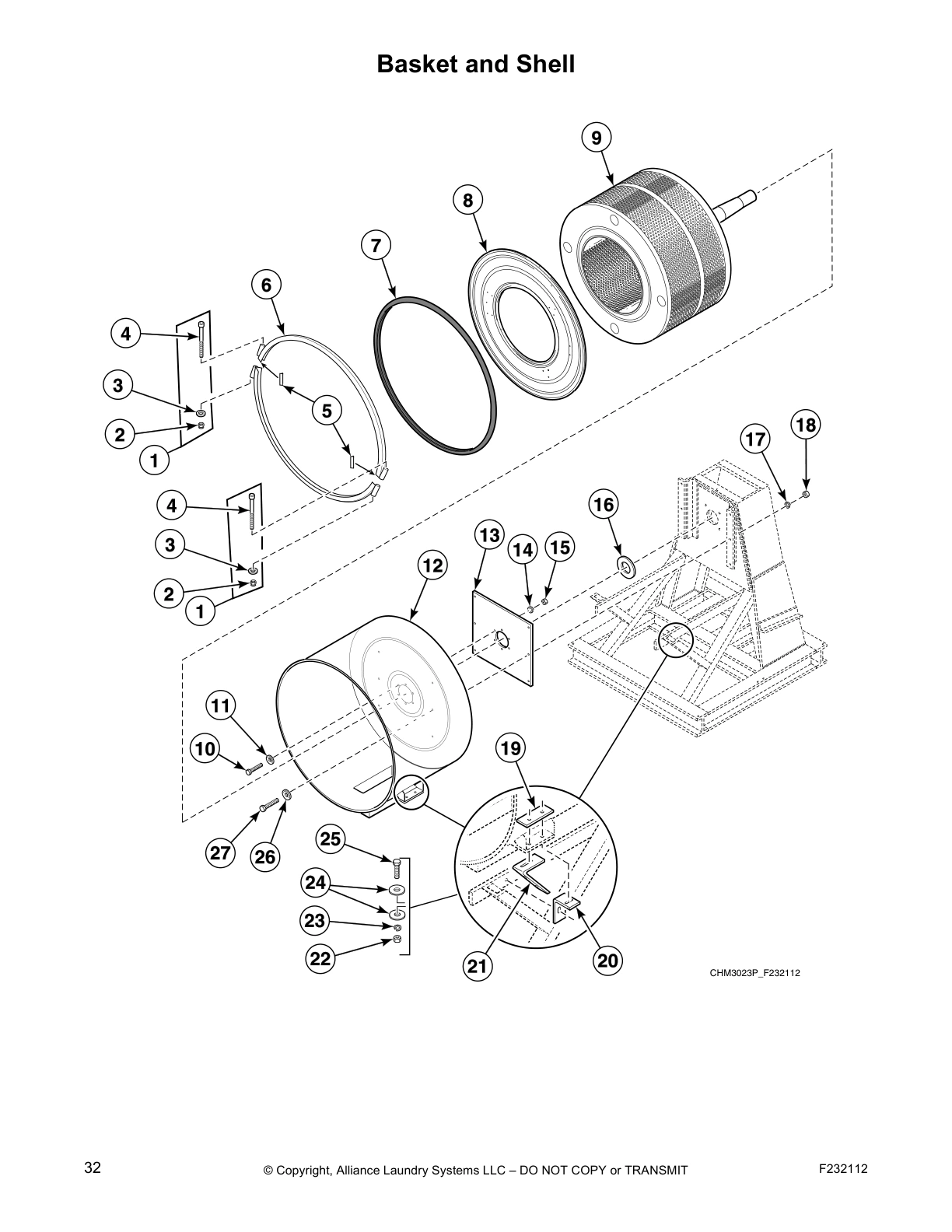

Basket and Shell

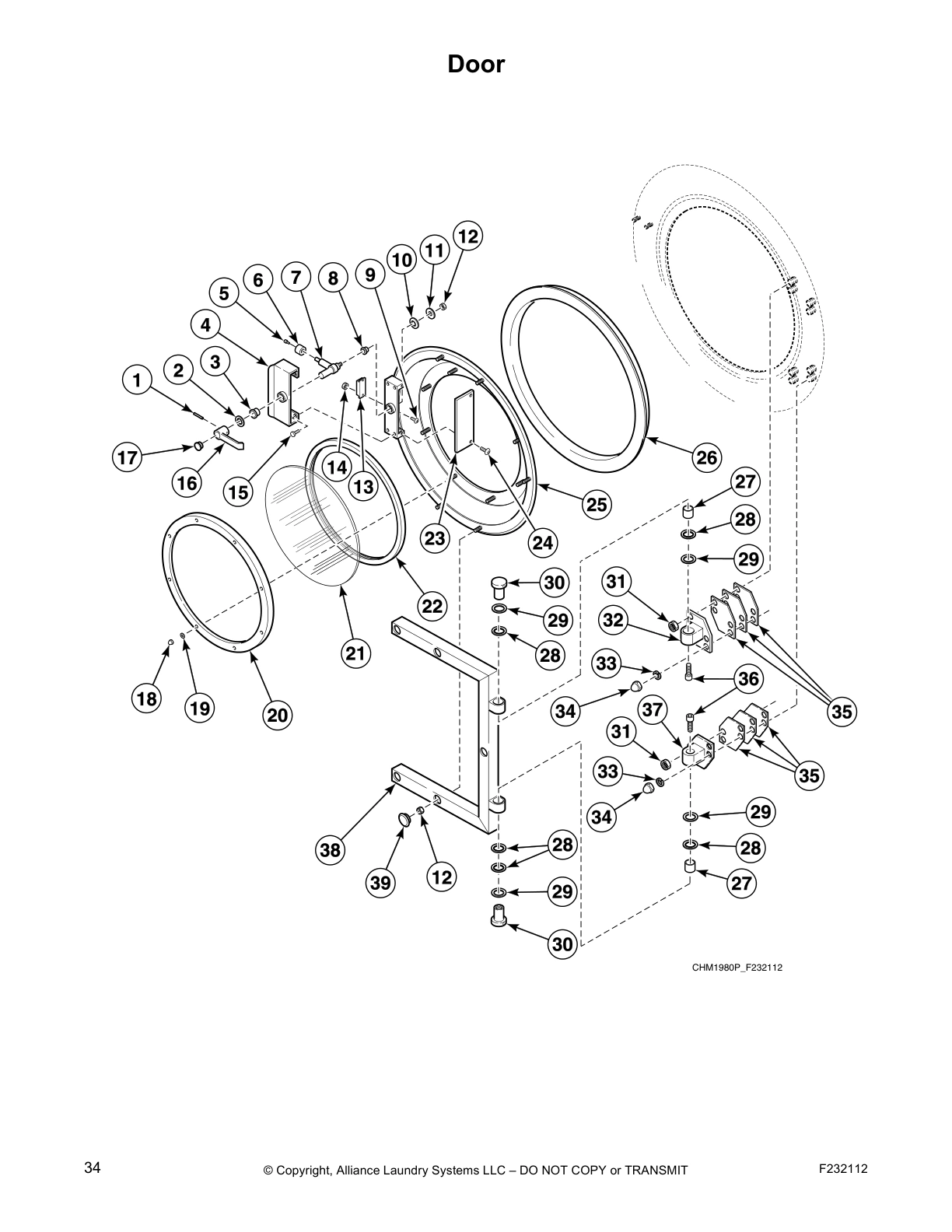

Door

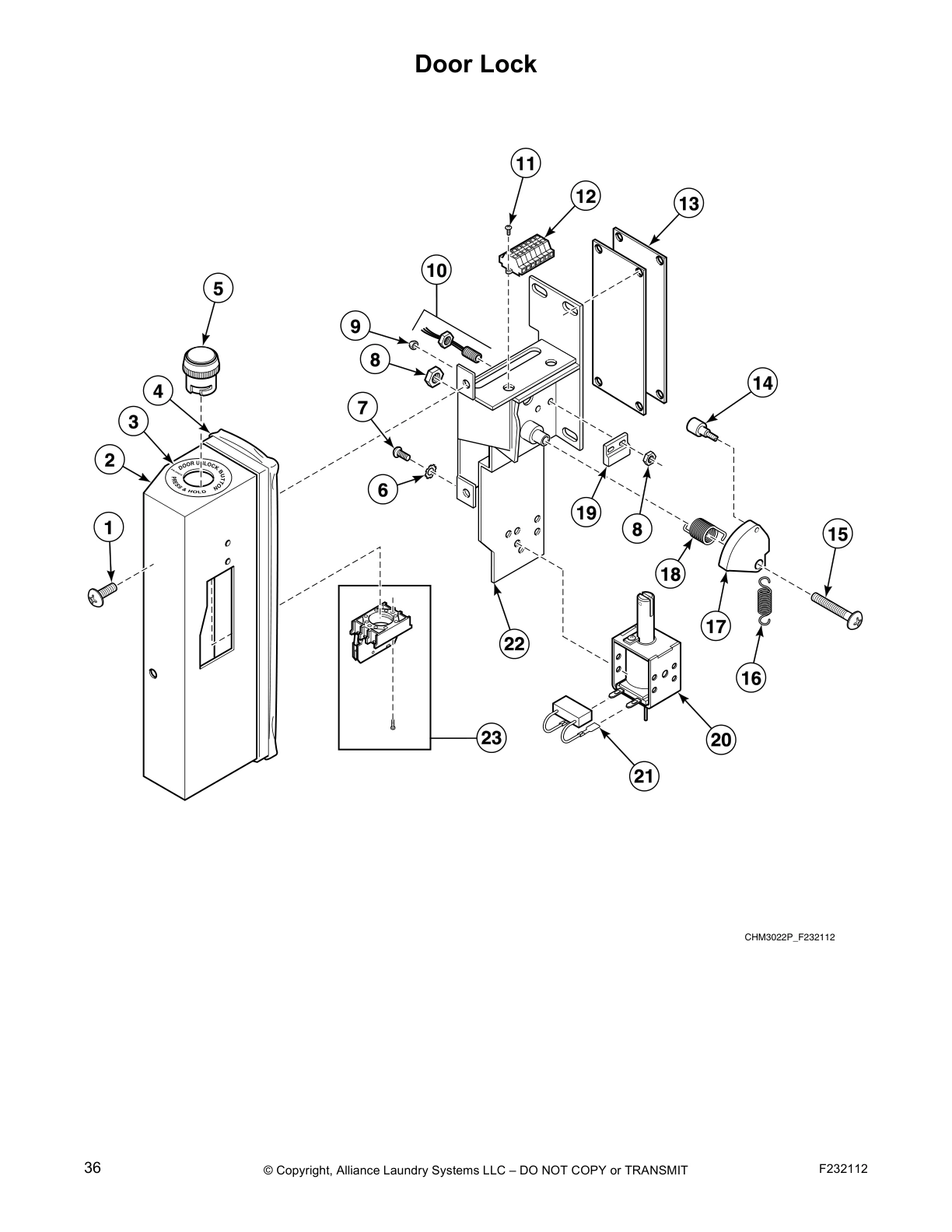

Door Lock

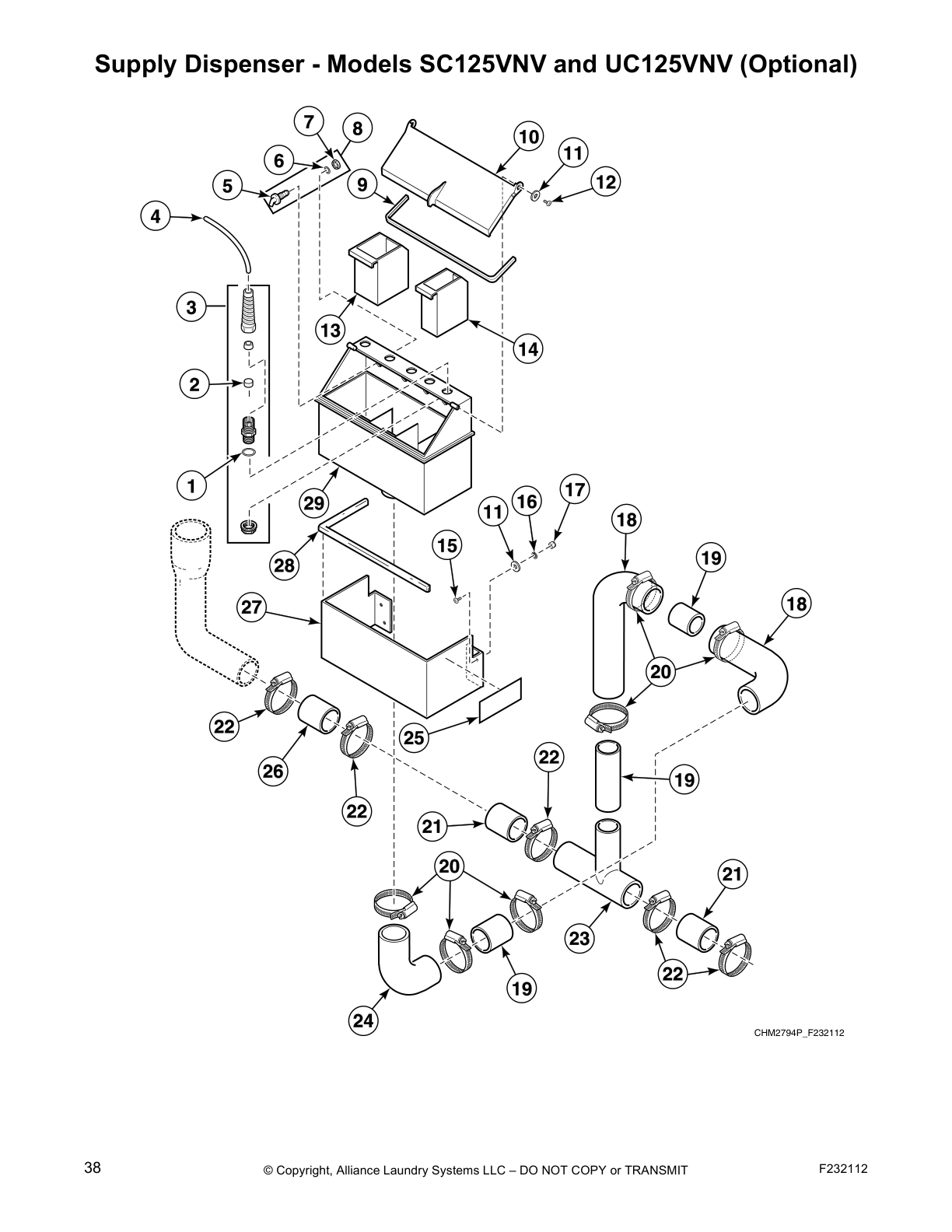

Supply Dispenser - Models SC125VNV and UC125VNV (Optional)

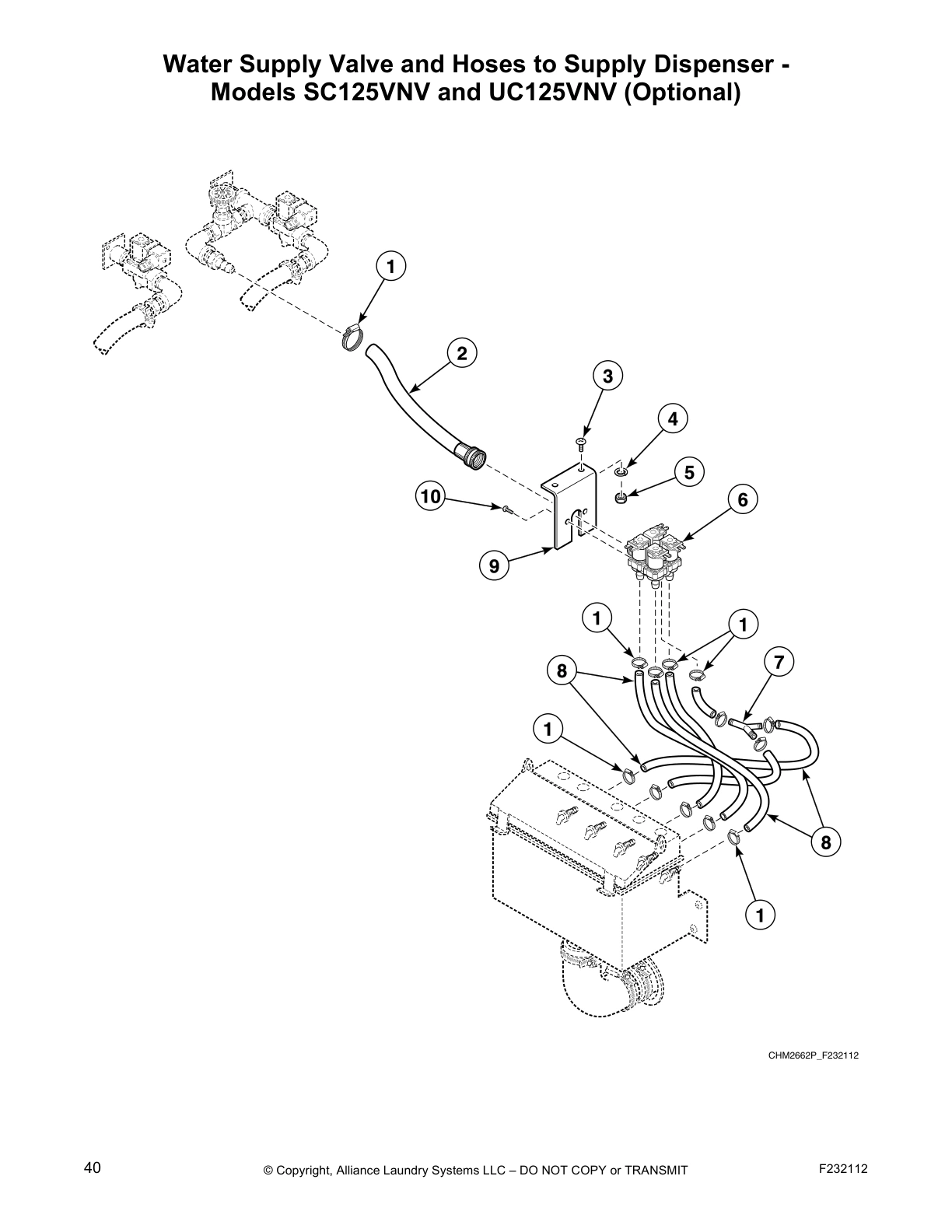

Water Supply Valve and Hoses to Supply Dispenser -
Models SC125VNV and UC125VNV (Optional)

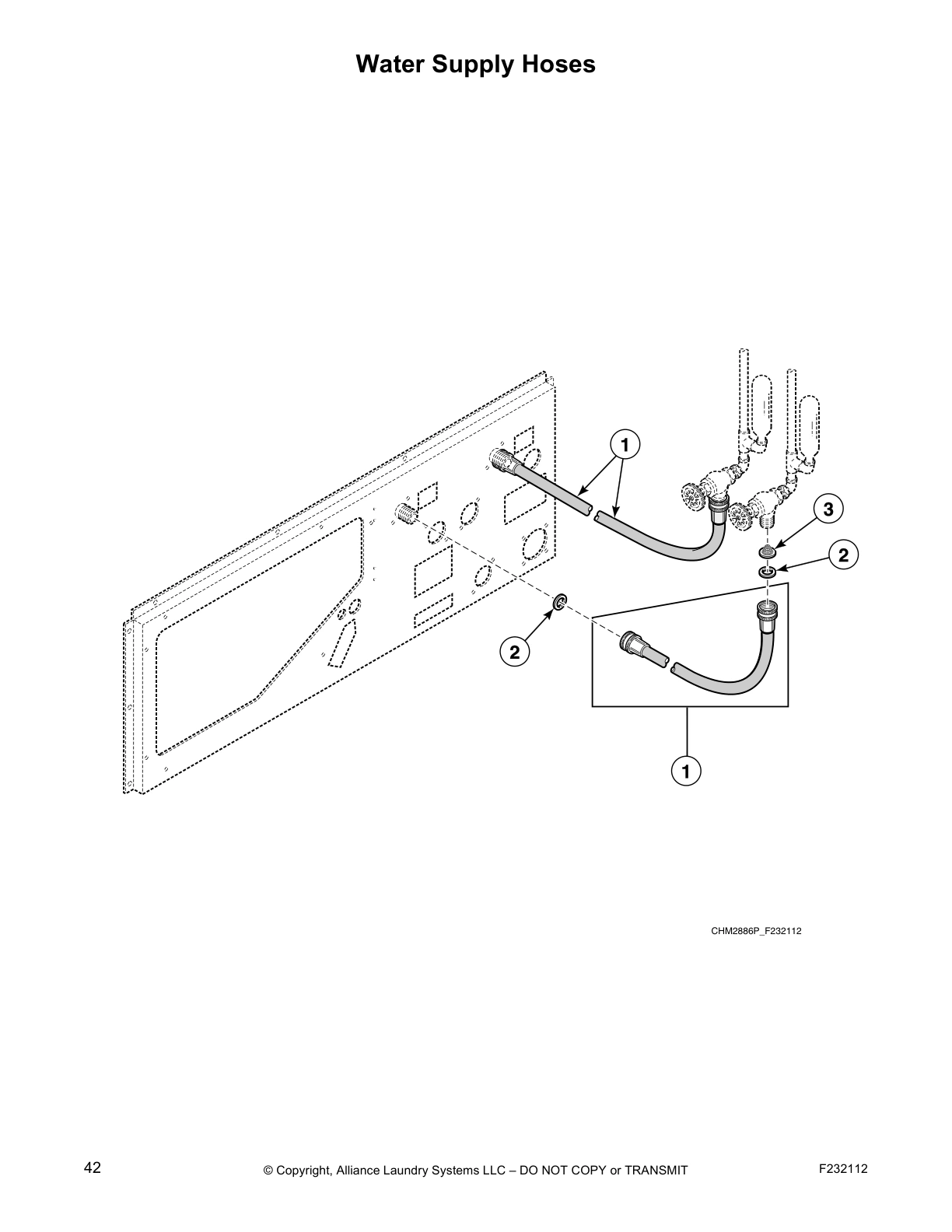

Water Supply Hoses

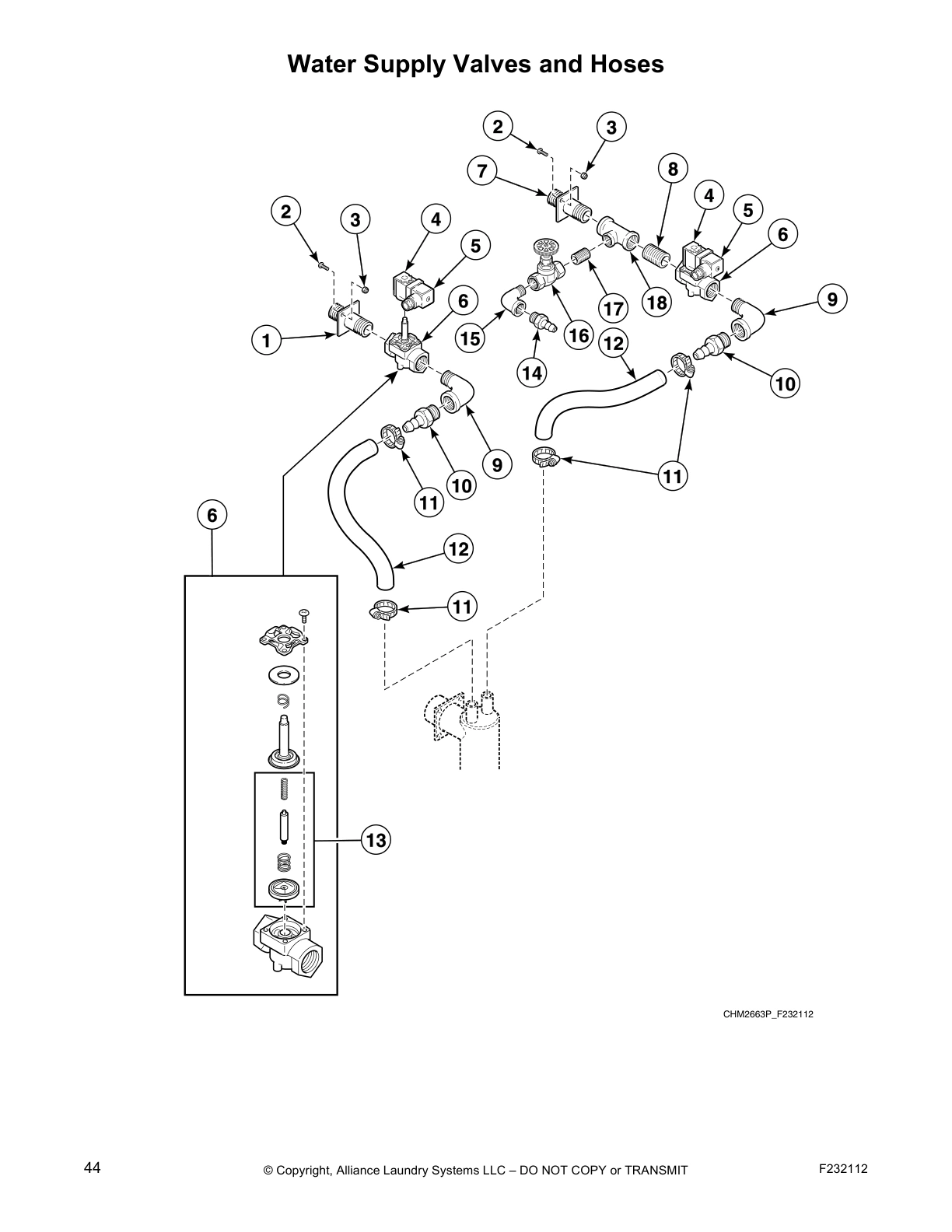

Water Supply Valves and Hoses

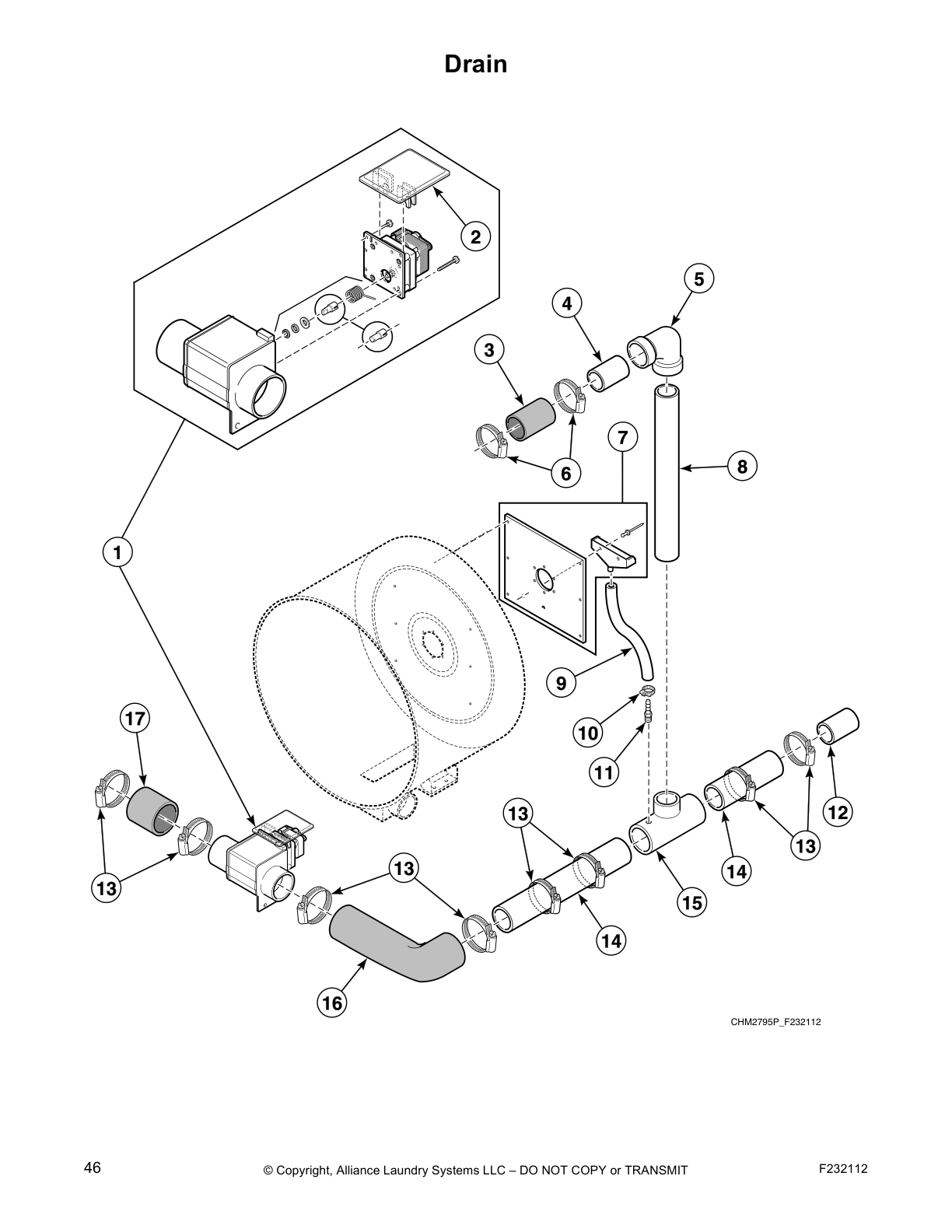

Drain

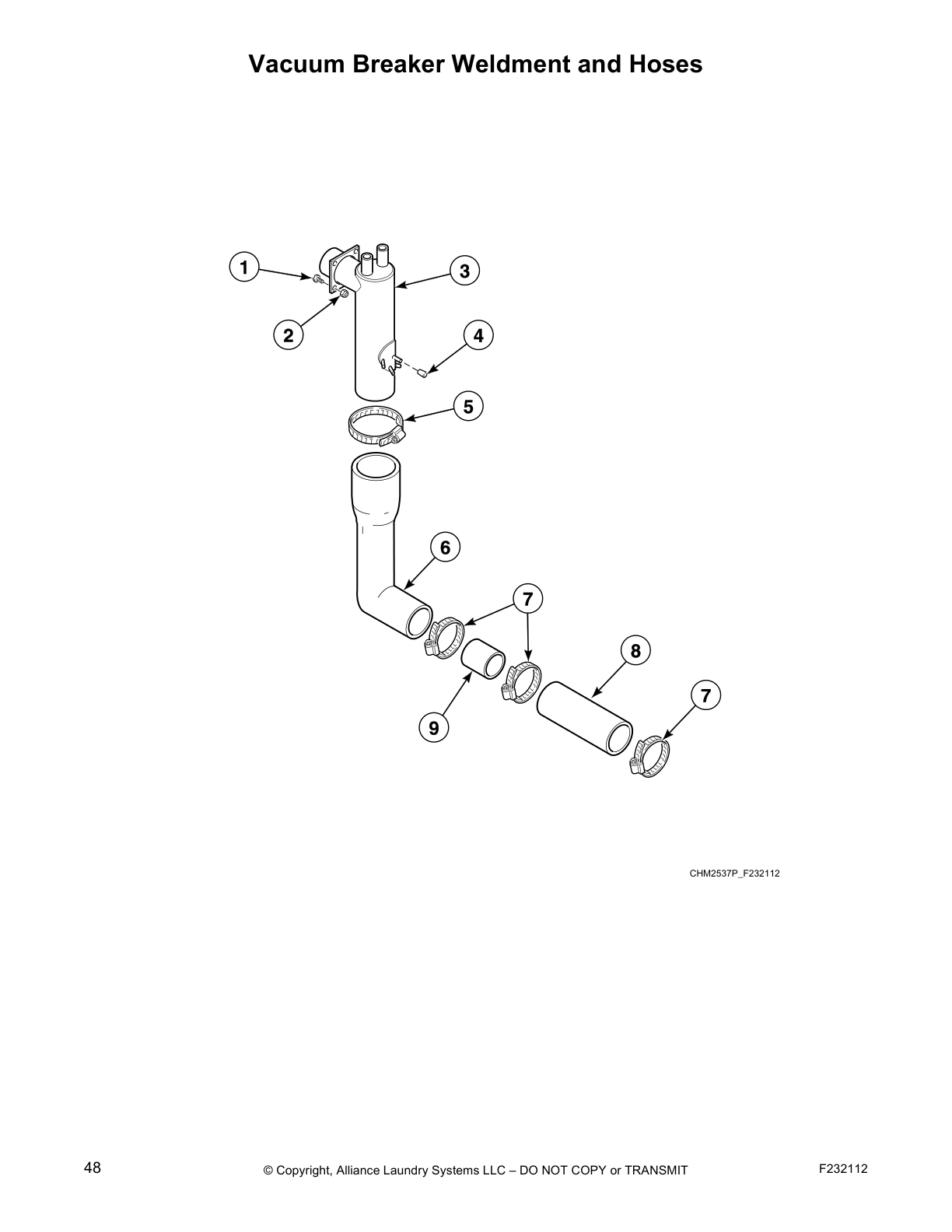

Vacuum Breaker Weldment and Hoses

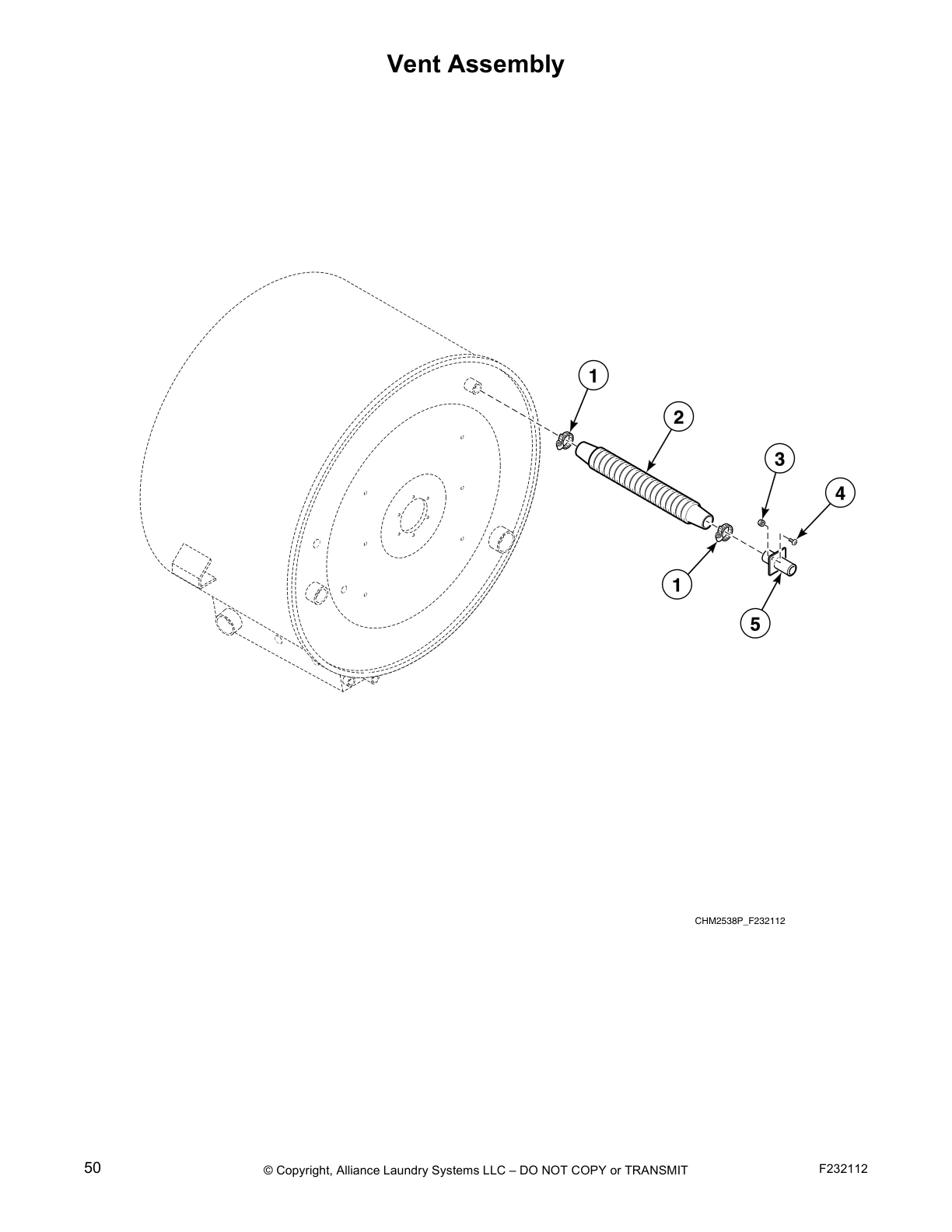

Vent Assembly

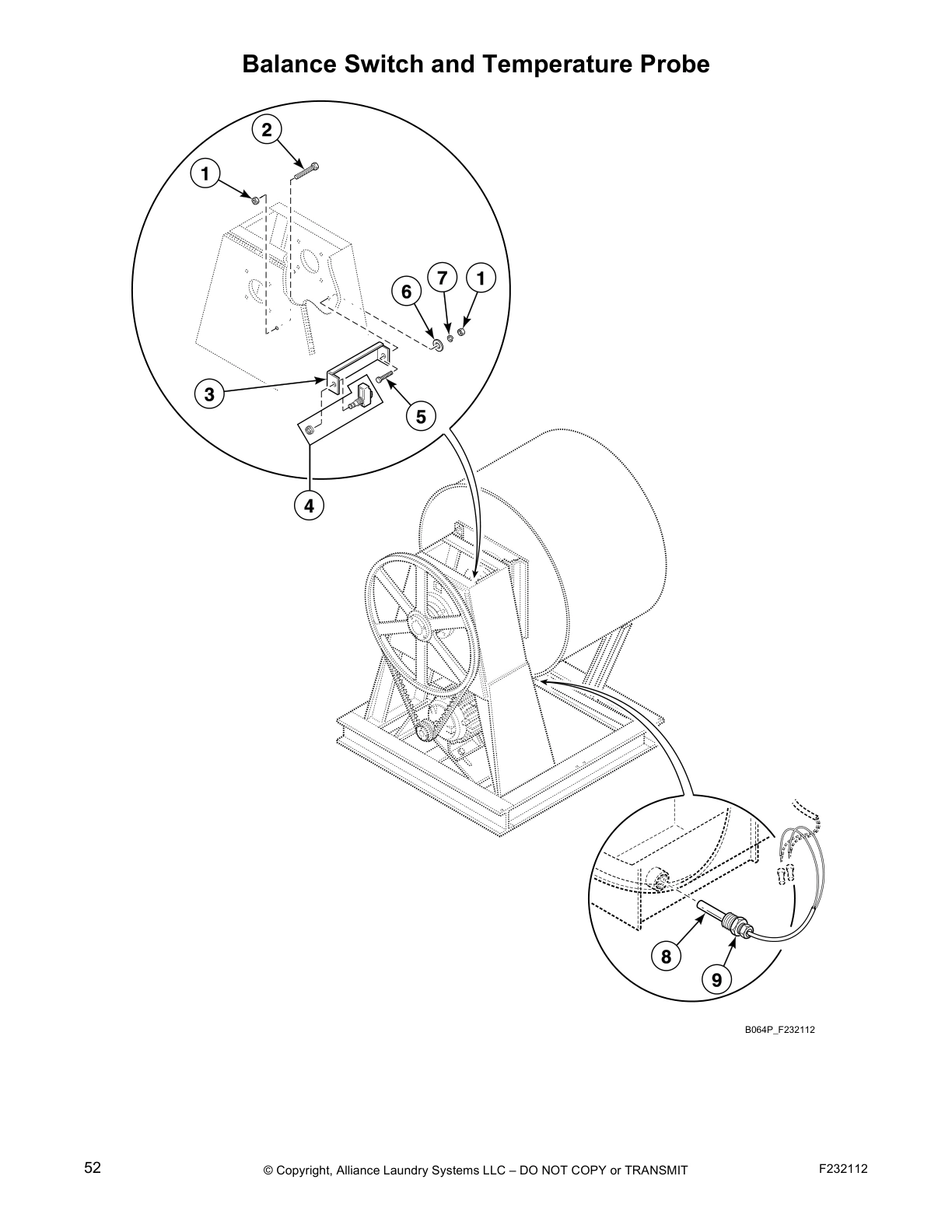

Balance Switch and Temperature Probe

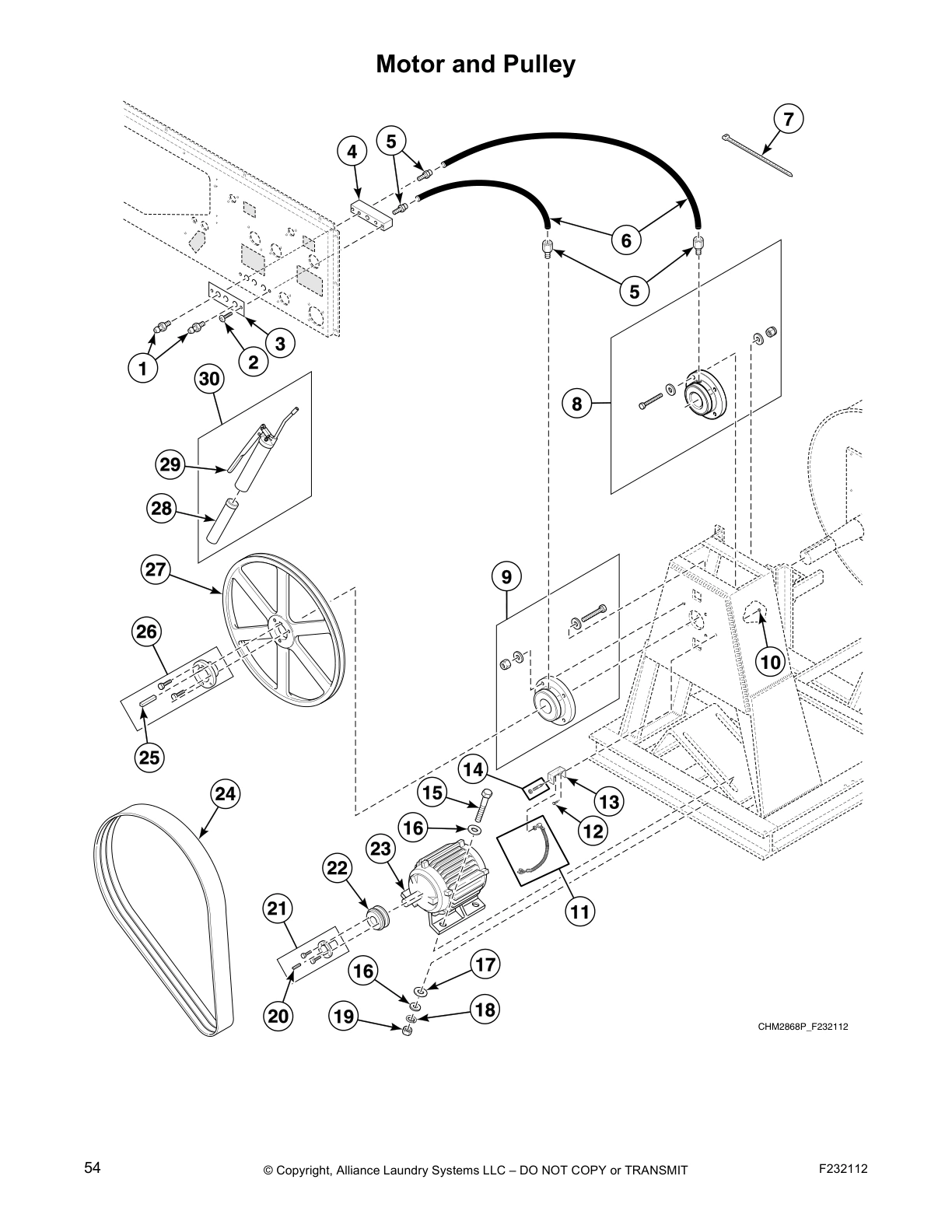

Motor and Pulley

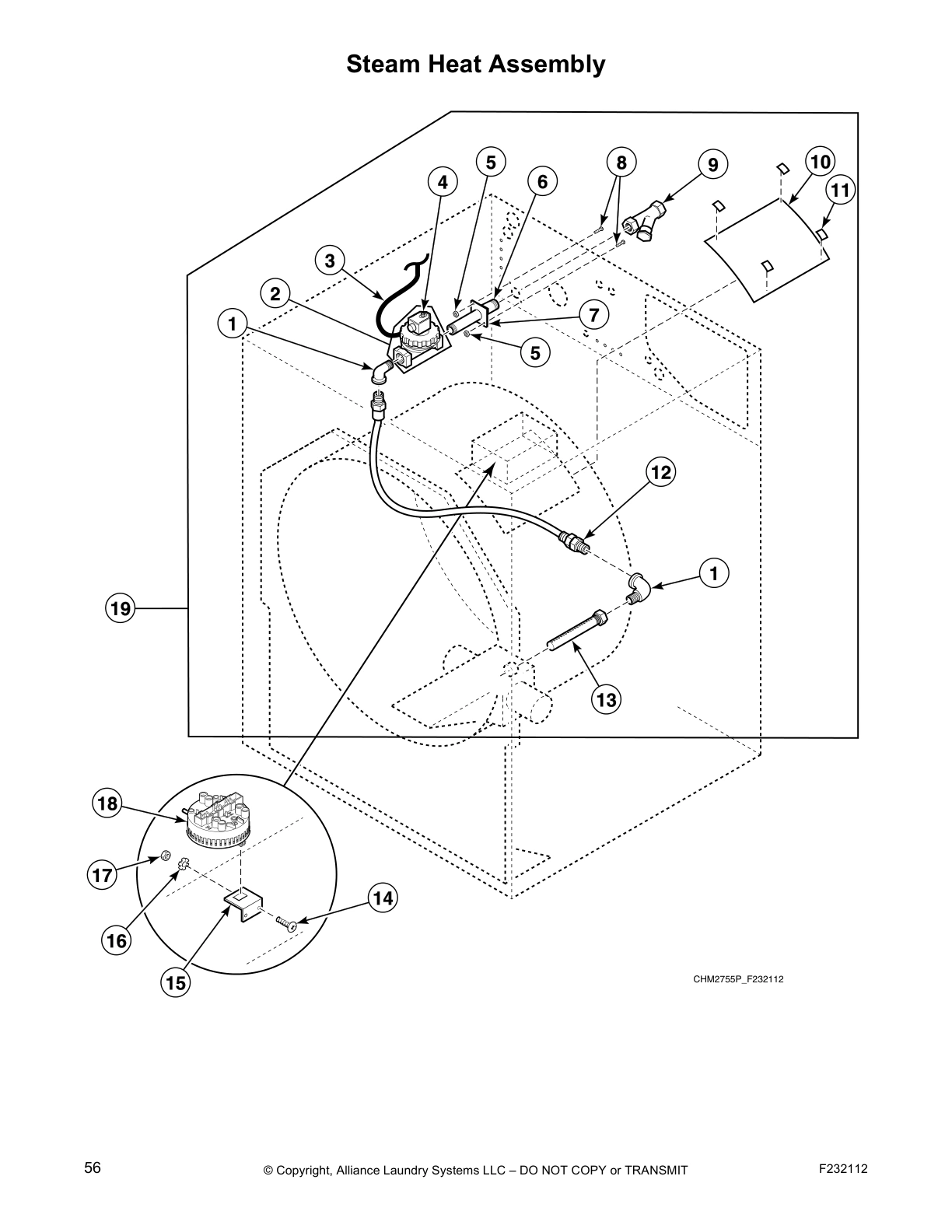

Steam Heat Assembly

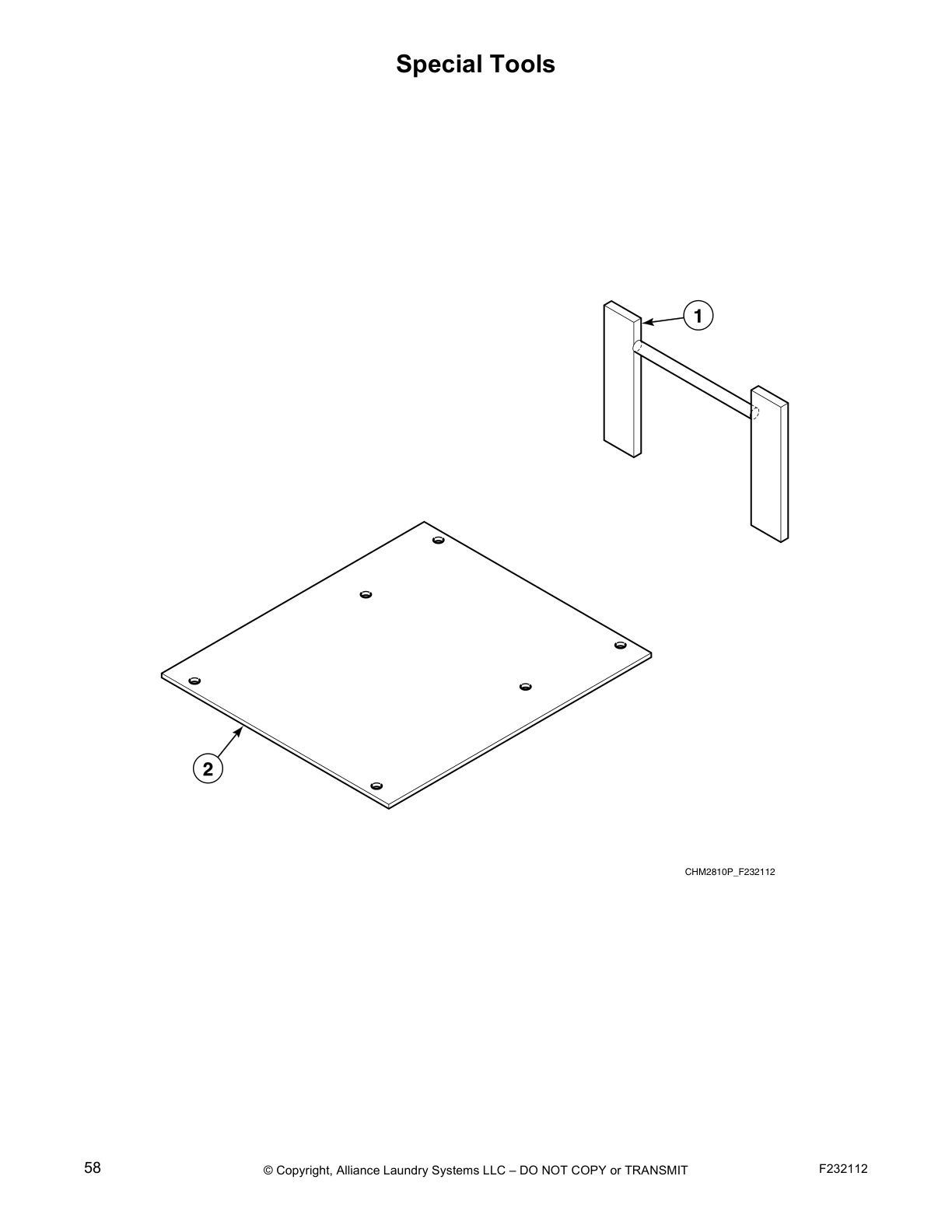

Special Tools
Common parts from model Unimac UC125VNV Washer
1336-Series to PowerFlex 40 Drive Kit SPQ F170611 Contact Us For Availability
Drive Power Harness SPQ F8323902 Contact Us For Availability
SPQ F8149301 SPQ F8149301 Contact Us For Availability
SPQ F010030901P SPQ F010030901P Contact Us For Availability
SPQ F200041800P SPQ F200041800P Contact Us For Availability
1
Drain Valve Kit SPQ F200166302 Contact Us For Availability
1
Spring Pin SPQ F431222 Contact Us For Availability
1
Standoff SPQ F180506 Contact Us For Availability
1
AC Drive Exterior Exhaust Duct SPQ F200321000 Contact Us For Availability
1
Screw SPQ F430929 Contact Us For Availability
1
Side Panel SPQ F634190 Contact Us For Availability
1
Shell Band Fastener Kit SPQ F791001 Contact Us For Availability
1
O-Ring SPQ F170215 Contact Us For Availability
1
Water Hose SPQ F200193 Contact Us For Availability
1
Grease Fitting SPQ F190701 Contact Us For Availability
1
Street Elbow SPQ M411264 Contact Us For Availability
1
Basket Pulley Puller Tool SPQ F460131P Contact Us For Availability
2
Nut SPQ F430231 Contact Us For Availability
2
Washer SPQ F180501 Contact Us For Availability
2
External Supply Fuse Decal SPQ F231271 Contact Us For Availability
2
Drive Motor Pulley SPQ F430916 Contact Us For Availability
2
AC Drive Interior Exhaust Duct SPQ F200321100 Contact Us For Availability
2
Door Weldment SPQ F431907 Contact Us For Availability
2
RC Network Filter SPQ F8071203 Contact Us For Availability
2
Tee SPQ F170165 Contact Us For Availability
2
Supply Dispenser Hose SPQ F150493 Contact Us For Availability
2
Washer SPQ F200185 Contact Us For Availability
2
Shell Plate Assembly SPQ F200133600 Contact Us For Availability
2
Vent Hose SPQ F200170 Contact Us For Availability
2
Screw SPQ F430124 Contact Us For Availability
2
Steam Valve Repair Kit SPQ F380985P Contact Us For Availability
2
Rebar Frame Template SPQ F601862P Contact Us For Availability
3
Cable Tie SPQ F231345-4 Contact Us For Availability
3
Hot Water Decal SPQ F432231 Contact Us For Availability
3
Washer SPQ F430939 Contact Us For Availability
3
Top Rear Cover SPQ F633563 Contact Us For Availability
3
SPQ F430924 SPQ F430924 Contact Us For Availability
3
Switch Magnet SPQ F431934 Contact Us For Availability
3
Momentary Pushbutton SPQ F230816 Contact Us For Availability
3
SPQ F749802 SPQ F749802 Contact Us For Availability
3
Strainer SPQ F200503 Contact Us For Availability
3
Water Hose SPQ F609401 Contact Us For Availability
3
Vacuum Breaker Weldment SPQ F633606 Contact Us For Availability
3
Balance Switch Bracket SPQ F8124301 Contact Us For Availability
3
Harness Assembly SPQ F140887P Contact Us For Availability
4
SPQ F150390 SPQ F150390 Contact Us For Availability
4
Terminal SPQ F601515 Contact Us For Availability
4
Screw SPQ F430920 Contact Us For Availability
4
SPQ F190209P SPQ F190209P Contact Us For Availability
4
Rear Panel SPQ F200149000 Contact Us For Availability
4
SPQ F430317 SPQ F430317 Contact Us For Availability
4
SPQ F633663 SPQ F633663 Contact Us For Availability
4
Button Kit SPQ F170404 Contact Us For Availability
4
Nut SPQ F431147 Contact Us For Availability
4
DIN Connector SPQ F300127P Contact Us For Availability
4
SPQ F0602364-13 SPQ F0602364-13 Contact Us For Availability
4
Cap SPQ F190303 Contact Us For Availability
4
Interlock Switch SPQ F340900 Contact Us For Availability
4
Tubing SPQ F798700 Contact Us For Availability
4
DIN Coil SPQ F380986P Contact Us For Availability
5
SPQ F290115 SPQ F290115 Contact Us For Availability
5
4-Way Valve SPQ F431024 Contact Us For Availability
5
AC Drive Radio Filter Assembly SPQ F200320902 Contact Us For Availability
5
Nipple SPQ F430215 Contact Us For Availability
5
SPQ F633562 SPQ F633562 Contact Us For Availability
5
SPQ F430500 SPQ F430500 Contact Us For Availability
5
SPQ F8210001 SPQ F8210001 Contact Us For Availability
5
Washer SPQ F8069602 Contact Us For Availability
5
Hose Clamp SPQ F200201 Contact Us For Availability
5
Valve SPQ F140609P Contact Us For Availability
5
SPQ F422900 SPQ F422900 Contact Us For Availability
5
Vent Nipple SPQ F422517 Contact Us For Availability
5
Washer SPQ F8122701 Contact Us For Availability
5
Cable Tie SPQ F761900 Contact Us For Availability
6
Screw SPQ F430311 Contact Us For Availability
6
SPQ F231393 SPQ F231393 Contact Us For Availability
6
PowerFlex 40 Drive SPQ F8169429 Contact Us For Availability
6
SPQ F8147601 SPQ F8147601 Contact Us For Availability
6
SPQ F190802P SPQ F190802P Contact Us For Availability
6
SPQ F601216 SPQ F601216 Contact Us For Availability
6
SPQ F0637580-00 SPQ F0637580-00 Contact Us For Availability
6
Nut SPQ F8069902P Contact Us For Availability
6
SPQ F200213 SPQ F200213 Contact Us For Availability
6
Rear Drain Hose SPQ F0150399-00 Contact Us For Availability
6
Y Connector SPQ F381724P Contact Us For Availability
6
Nipple Weldment SPQ F381727P Contact Us For Availability
6
Front Bearing Kit SPQ F320326 Contact Us For Availability
6
Steam Inlet Pipe Flange SPQ F421323 Contact Us For Availability
7
SPQ F350117 SPQ F350117 Contact Us For Availability
7
EMI Filter SPQ F8169428 Contact Us For Availability
7
SPQ F633632-2 SPQ F633632-2 Contact Us For Availability
7
SPQ F160562 SPQ F160562 Contact Us For Availability
7
SPQ F603630 SPQ F603630 Contact Us For Availability
7
Door Lock Assembly SPQ F431106 Contact Us For Availability
7
Water Hose SPQ F422808 Contact Us For Availability
7
SPQ F607532 SPQ F607532 Contact Us For Availability
7
SPQ F604051 SPQ F604051 Contact Us For Availability
7
Face Seal SPQ J1408004 Contact Us For Availability
7
Steam Filter SPQ F607659 Contact Us For Availability
8
SPQ F730168 SPQ F730168 Contact Us For Availability
8
Ribbon Cable SPQ F370576P Contact Us For Availability
8
SPQ F350115 SPQ F350115 Contact Us For Availability
8
AC Drive Mounting Plate Assembly SPQ F8054002 Contact Us For Availability
8
SPQ F633632-1 SPQ F633632-1 Contact Us For Availability
8
SPQ F633713 SPQ F633713 Contact Us For Availability
8
SPQ F170120RP SPQ F170120RP Contact Us For Availability
8
SPQ F100145 SPQ F100145 Contact Us For Availability
8
SPQ F430995 SPQ F430995 Contact Us For Availability
8
SPQ F430925 SPQ F430925 Contact Us For Availability
8
Valve Bracket SPQ F200110P Contact Us For Availability
8
SPQ F420118 SPQ F420118 Contact Us For Availability
8
SPQ F200107P SPQ F200107P Contact Us For Availability
8
Drain Hose SPQ F150442 Contact Us For Availability
8
Rear Bearing Kit SPQ C000628P Contact Us For Availability
9
SPQ F350110 SPQ F350110 Contact Us For Availability
9
SPQ F140605 SPQ F140605 Contact Us For Availability
9
Cap Plug SPQ F8054001 Contact Us For Availability
9
SPQ F230857 SPQ F230857 Contact Us For Availability
9
SPQ F633952 SPQ F633952 Contact Us For Availability
9
SPQ F608536 SPQ F608536 Contact Us For Availability
9
SPQ F170158P SPQ F170158P Contact Us For Availability
9
SPQ F634261 SPQ F634261 Contact Us For Availability
9
SPQ F421706 SPQ F421706 Contact Us For Availability
9
Pipe SPQ F0602365-07 Contact Us For Availability
9
SPQ F421936 SPQ F421936 Contact Us For Availability
9
SPQ F270308 SPQ F270308 Contact Us For Availability
10
Battery Backup Wire Harness SPQ F140249 Contact Us For Availability
10
Ribbon Cable SPQ F140219P Contact Us For Availability
10
Side Panel SPQ F633566P Contact Us For Availability
10
Screw SPQ F430913 Contact Us For Availability
10
Washer SPQ F431143 Contact Us For Availability
10
Hall Effect Sensor Switch SPQ F340503P Contact Us For Availability
10
Dispenser Lid SPQ F0150514-00 Contact Us For Availability
10
Screw SPQ F430948 Contact Us For Availability
10
Hose Barb SPQ F421952 Contact Us For Availability
10
Fiberglass Blanket SPQ F410301 Contact Us For Availability
11
Ground Decal SPQ F230630 Contact Us For Availability
11
Washer SPQ F431133 Contact Us For Availability
11
Valve Panel SPQ F0637357-00P Contact Us For Availability
11
Washer SPQ F431112 Contact Us For Availability
11
Nut SPQ F431142 Contact Us For Availability
11
Hose Clamp SPQ F200222 Contact Us For Availability
11
Hose Barb SPQ F421929 Contact Us For Availability
12
Filter SPQ F140331 Contact Us For Availability
12
Ground Terminal Lug SPQ F140734 Contact Us For Availability
12
Door Lock Shim SPQ F140766 Contact Us For Availability
12
Top Cover Hinge Weldment SPQ F633581 Contact Us For Availability
12
Shell Weldment SPQ F634647 Contact Us For Availability
12
Hose SPQ F200155P Contact Us For Availability
12
Drain Hose SPQ F200165100 Contact Us For Availability
12
Steam Hose SPQ F200183 Contact Us For Availability
13
Screw SPQ F8390801 Contact Us For Availability
13
AC Drive Radio Filter Assembly SPQ F200320901 Contact Us For Availability
13
Filter Retainer Guard SPQ F230877 Contact Us For Availability
13
Nut SPQ F633958 Contact Us For Availability
13
Shell Reinforcement Plate SPQ F601718 Contact Us For Availability
13
Switch Magnet SPQ F606563 Contact Us For Availability
13
Chemical Supply Cup SPQ F150386 Contact Us For Availability
13
Water Valve Repair Kit SPQ F0381007P Contact Us For Availability
13
Steam Injection Tube Assembly SPQ F060313201 Contact Us For Availability
14
Screw SPQ F430232 Contact Us For Availability
14
Screw SPQ F430928 Contact Us For Availability
14
Input Power Block SPQ F140747 Contact Us For Availability
14
Spring SPQ F340502P Contact Us For Availability
14
Nut SPQ F150385 Contact Us For Availability
14
Street Elbow SPQ F421964 Contact Us For Availability
14
Tee SPQ F0602365-20 Contact Us For Availability
15
Standoff SPQ F191101 Contact Us For Availability
15
Input Power Connector Decal SPQ F230677 Contact Us For Availability
15
Fan Kit SPQ F430179 Contact Us For Availability
15
AC Drive Box Cover SPQ F140329 Contact Us For Availability
15
Slinger SPQ F431005 Contact Us For Availability
15
Plug SPQ F430923 Contact Us For Availability
15
Door Lock Cam SPQ F430921 Contact Us For Availability
15
Drain Valve Cover SPQ F422803 Contact Us For Availability
15
Gate Valve SPQ F420502 Contact Us For Availability
15
Screw SPQ F430993 Contact Us For Availability
15
Water Level Switch Bracket SPQ F630242 Contact Us For Availability
16
Standoff SPQ F350109 Contact Us For Availability
16
Circuit Board Support SPQ F8206501P Contact Us For Availability
16
Washer SPQ F431113 Contact Us For Availability
16
Pipe SPQ F431100 Contact Us For Availability
16
Shell Bracket Support SPQ F100205 Contact Us For Availability
16
Door Glass Retainer SPQ F150225 Contact Us For Availability
16
Door Cam Torsion Spring SPQ F310107 Contact Us For Availability
16
Nipple SPQ F380500 Contact Us For Availability
16
Tubing SPQ F150411 Contact Us For Availability
17
Gasket SPQ F200318900P Contact Us For Availability
17
Screw SPQ F350108 Contact Us For Availability
17
Nut SPQ F431022 Contact Us For Availability
17
Top Front Panel SPQ F430910 Contact Us For Availability
17
Glass SPQ F140563 Contact Us For Availability
17
Shell Adjusting Bracket Assembly SPQ M400013 Contact Us For Availability
17
Magnetic Switch SPQ F0150518-00 Contact Us For Availability
17
Tee SPQ F420101 Contact Us For Availability
17
Nut SPQ F430300 Contact Us For Availability
18
Muffin Fan SPQ F220900 Contact Us For Availability
18
Water Pressure Switch SPQ F8223001P Contact Us For Availability
18
Snap Spade Terminal SPQ 00446 Contact Us For Availability
18
Plug SPQ F758501 Contact Us For Availability
18
Shell Gasket Shield SPQ 70142 Contact Us For Availability
18
Door Lock Cover Weldment SPQ F310133 Contact Us For Availability
18
Hose Clamp SPQ F150308 Contact Us For Availability
18
Screw SPQ F420419 Contact Us For Availability
19
Water Level Switch Bracket SPQ F432001 Contact Us For Availability
19
External Supply Connection Decal SPQ F633588 Contact Us For Availability
19
Bottom Front Panel SPQ F633272 Contact Us For Availability
19
Shell Band Assembly SPQ F601950 Contact Us For Availability
19
Intermittent Duty Solenoid SPQ F0340723-00 Contact Us For Availability
19
Rear Drain Hose SPQ F0602364-06 Contact Us For Availability
20
Control Module Box SPQ F631920 Contact Us For Availability
20
Middle Front Panel SPQ F430174 Contact Us For Availability
20
Shell Front Weldment SPQ F601951 Contact Us For Availability
20
Door Gasket SPQ F8504901 Contact Us For Availability
20
Door Lock Bracket Weldment SPQ F300122P Contact Us For Availability
20
Motor Retrofit Kit SPQ F430802 Contact Us For Availability
21
Hose Clamp SPQ F370313-13P Contact Us For Availability
21
Contact Block and Mounting Switch SPQ F330217P Contact Us For Availability
21
Circuit Breaker SPQ F350217 Contact Us For Availability
21
Control Panel Decal SPQ F633602 Contact Us For Availability
21
Basket Assembly SPQ F603615 Contact Us For Availability
21
Bearing Sleeve SPQ F290210P Contact Us For Availability
21
Motor SPQ F280242 Contact Us For Availability
22
Air Trap Hose SPQ F631579 Contact Us For Availability
22
Contactor SPQ F330180P Contact Us For Availability
22
AC Drive Box Assembly SPQ F170176 Contact Us For Availability
22
Seal Kit SPQ F603592 Contact Us For Availability
22
Bushing SPQ F170115 Contact Us For Availability
22
Door Unlock Decal SPQ F8209801 Contact Us For Availability
22
Belt SPQ F280289P Contact Us For Availability
23
Water Level Switch SPQ F200215 Contact Us For Availability
23
Trim SPQ F340444 Contact Us For Availability
23
Cold Water Decal SPQ F110106 Contact Us For Availability
23
Top Frame Weldment SPQ F633565 Contact Us For Availability
23
Basket Pulley Bushing SPQ F8356402 Contact Us For Availability
24
Bridge Rectifier SPQ F200163 Contact Us For Availability
24
Contactor Mounting Rail SPQ F370818 Contact Us For Availability
24
Valve Panel SPQ F230917-1 Contact Us For Availability
24
Hinge Pin SPQ F430986 Contact Us For Availability
24
Lid Lock SPQ F170400RP Contact Us For Availability
24
Dispenser Assembly SPQ F150391 Contact Us For Availability
24
Basket Pulley SPQ F220237P Contact Us For Availability
25
Terminal SPQ F602595-4 Contact Us For Availability
25
Base Weldment SPQ F8203901 Contact Us For Availability
25
Strain Relief Adapter Kit SPQ F231020 Contact Us For Availability
25
Bearing Grease SPQ F200140400P Contact Us For Availability
26
Light SPQ F370310 Contact Us For Availability
26
Control Transformer Decal SPQ F140768 Contact Us For Availability
26
Cap Plug SPQ F633650 Contact Us For Availability
26
Siphon Tube SPQ F0602365-15 Contact Us For Availability
26
Grease Gun SPQ F608824-1 Contact Us For Availability
27
External Supply Caution Decal SPQ F231299 Contact Us For Availability
27
Key SPQ F633564 Contact Us For Availability
27
SPQ F431116 SPQ F431116 Contact Us For Availability
27
Hinge Weldment SPQ F8434801 Contact Us For Availability
27
Injection Nozzle SPQ F634189 Contact Us For Availability
27
Grease Gun Kit SPQ F280294P Contact Us For Availability
28
Emergency Stop Pushbutton SPQ F350411 Contact Us For Availability
28
Latch SPQ F0231584-00 Contact Us For Availability
28
Pivot Lock Cover Weldme SPQ F280293 Contact Us For Availability
28
Injection Nozzle Kit SPQ F170401P Contact Us For Availability
28
Grease Manifold Kit SPQ F150268 Contact Us For Availability
29
Contact Block Switch SPQ F200233700P Contact Us For Availability
29
External Supply Connection Decal SPQ F231345-5 Contact Us For Availability
29
Door Support Weldment SPQ F431933 Contact Us For Availability
29
SPQ F0150512-00P SPQ F0150512-00P Contact Us For Availability
29
Grease Manifold SPQ F210206P Contact Us For Availability
30
Washer SPQ F200233401P Contact Us For Availability
30
Tie Wrap Mounting Clamp SPQ F231394 Contact Us For Availability
30
Follower Cam SPQ F280253 Contact Us For Availability
30
Connector SPQ F210207P Contact Us For Availability
31
Emergency Stop Weldment SPQ F231083 Contact Us For Availability
31
Strain Relief Connector SPQ F231376-6 Contact Us For Availability
31
Pivot Lock Weldment SPQ F432306 Contact Us For Availability
32
Clip SPQ F231391 Contact Us For Availability
32
Thermostat SPQ F231376-5 Contact Us For Availability
32
Door Assembly SPQ F431036 Contact Us For Availability
34
Keypad SPQ F633750 Contact Us For Availability
34
Fuse Holder SPQ F140602 Contact Us For Availability
34
SPQ F633751 SPQ F633751 Contact Us For Availability
36
SPQ F431047 SPQ F431047 Contact Us For Availability
37
SPQ F432285 SPQ F432285 Contact Us For Availability
38
SPQ F633753 SPQ F633753 Contact Us For Availability
39
SPQ F190309 SPQ F190309 Contact Us For Availability
NI
SPQ F0340348-10P SPQ F0340348-10P Contact Us For Availability
NI
SPQ F0350312-10 SPQ F0350312-10 Contact Us For Availability
NI
SPQ 45101 SPQ 45101 Contact Us For Availability
NI
Grommet SPQ F200322700 Contact Us For Availability
NI
1305-Series to PowerFlex 40 Drive Kit SPQ F180486 Contact Us For Availability
NI
Control Input Harness SPQ F8324002 Contact Us For Availability
NI
AC Drive Control Harness SPQ F8149401 Contact Us For Availability
NI
SPQ F8147301 SPQ F8147301 Contact Us For Availability
NI
SPQ F230856 SPQ F230856 Contact Us For Availability
NI
SPQ F633592 SPQ F633592 Contact Us For Availability
NI
SPQ F633611 SPQ F633611 Contact Us For Availability
NI
SPQ F633619 SPQ F633619 Contact Us For Availability
NI
SPQ F798833-00 SPQ F798833-00 Contact Us For Availability
NI
SPQ F280252 SPQ F280252 Contact Us For Availability
NI
SPQ F8211401 SPQ F8211401 Contact Us For Availability
NI
SPQ F8210402 SPQ F8210402 Contact Us For Availability
NI
SPQ F8126601 SPQ F8126601 Contact Us For Availability
NI
Vent Assembly SPQ F634256 Contact Us For Availability
NI
SPQ F798835-00 SPQ F798835-00 Contact Us For Availability
NI
SPQ F745010 SPQ F745010 Contact Us For Availability
NI
Communication Box Kit SPQ F200098600P Contact Us For Availability
NI
SPQ F200098500P SPQ F200098500P Contact Us For Availability
NI
SPQ F200041700P SPQ F200041700P Contact Us For Availability
NI
SPQ F200040300P SPQ F200040300P Contact Us For Availability
× ![]()
