Model UniMac UAH332I Washer – Common Parts & Diagrams

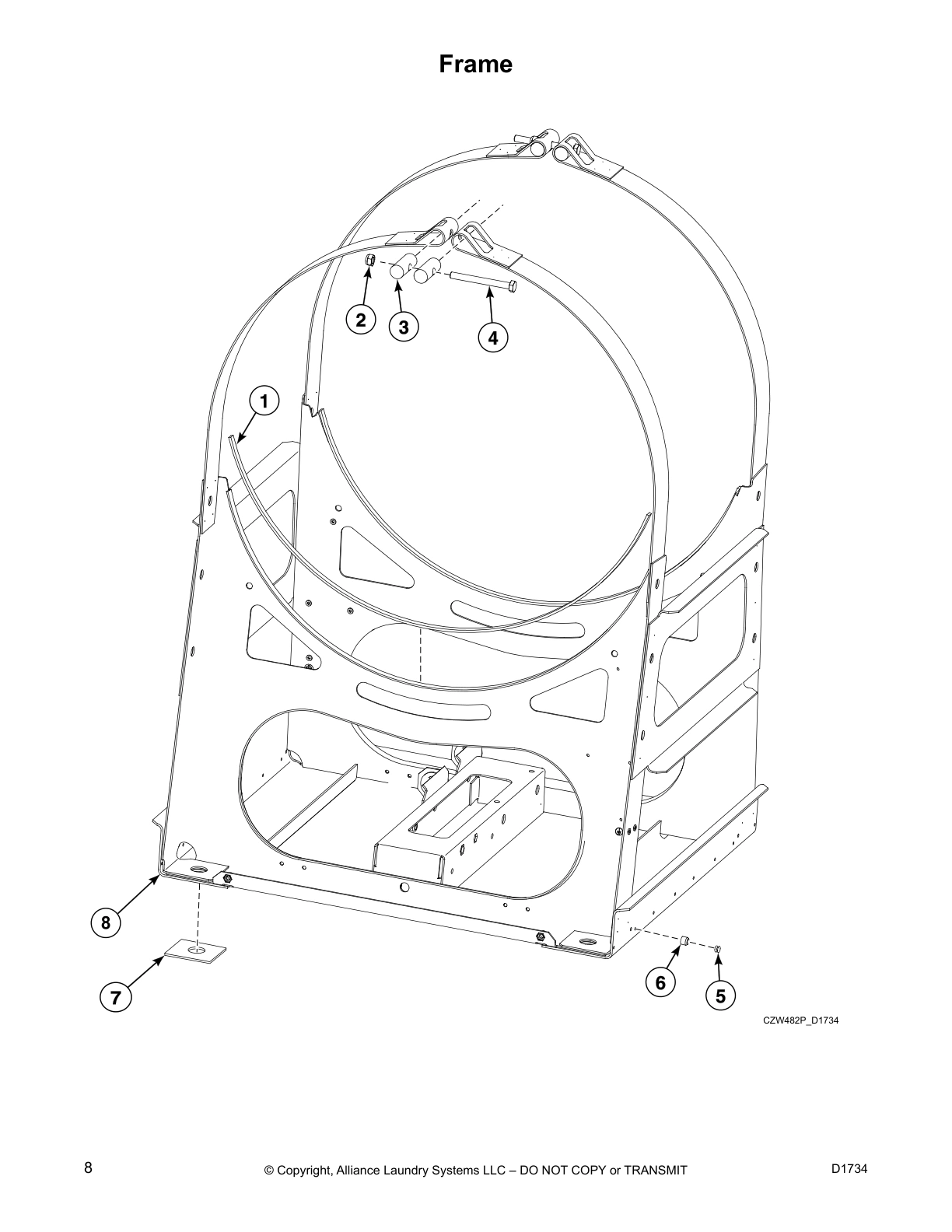

Frame

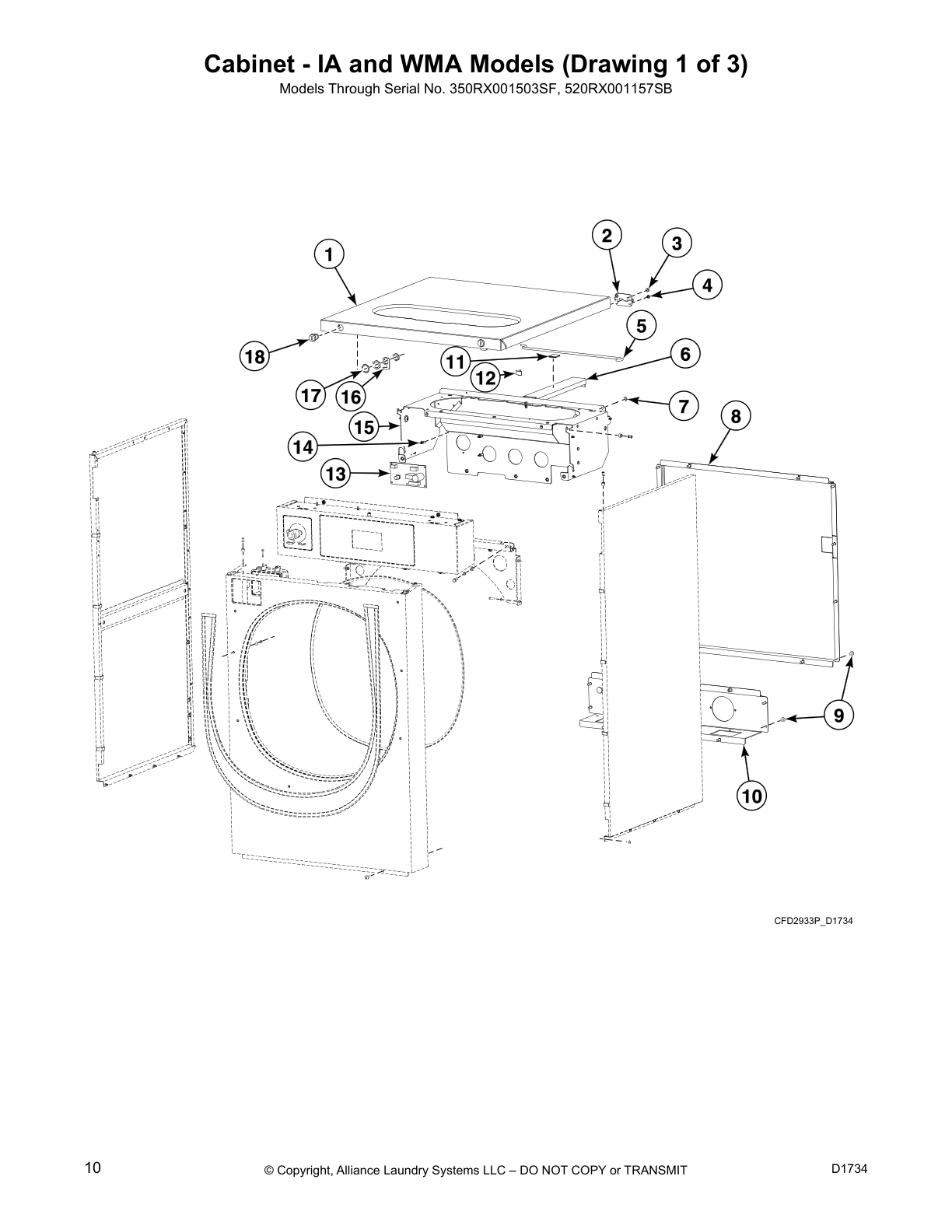

Cabinet - IA and WMA Models (Drawing 1 of 3)
Cabinet - IA and WMA Models (Drawing 2 of 3)
Cabinet - IA and WMA Models (Drawing 3 of 3)
Cabinet - AR Non-Brand, NA and SA Models (Dra wing 1 of 2)
Cabinet - AR Non-Brand, NA and SA Models (Drawing 2 of 2)
Cabinet (Drawing 1 of 3)
Cabinet (Drawing 2 of 3)
Cabinet (Drawing 3 of 3)
Cabinet (Drawing 1 of 3)
Cabinet (Drawing 2 of 3)
Cabinet (Drawing 3 of 3)
Control Panel - IA and WMA Models
Control Panel (Drawing 1 of 2)
Control Panel (Drawing 2 of 2)
Control Panel OPL
Control Panel Vended
Control Panel for Central Payment System
Coin Meter Case
Coin Meter Box
Door (Drawing 1 of 3)
Door (Drawing 2 of 3)
Door (Drawing 3 of 3)
Water Inlet System (Drawing 1 of 2)
Water Inlet System (Drawing 2 of 2)
Water Inlet System - 120 and 520 Models (Drawing 1 of 2)
Water Inlet System - 120 and 520 Models (Drawing 2 of 2)
Drain System
Drain System
Rear Panel (Drawing 1 of 3)
Rear Panel (Drawing 2 of 3)
Rear Panel (Drawing 3 of 3)
Rear Panel - 230V 1/3AC, 400V with Neutral, CE (Drawing 1 of 2)
Rear Panel - 230V 1/3AC, 400V with Neutral, CE (Drawing 2 of 2)
Rear Panel - 400V, 440-480V, CE (Drawing 1 of 2)
Rear Panel - 400V, 440-480V, CE (Drawing 2 of 2)
Rear Panel - 230V 1AC, CE (Drawing 1 of 2)
Rear Panel - 230V 1AC, CE (Drawing 2 of 2)
Rear Panel - 230V 3AC, CE (Drawing 1 of 2)
Rear Panel - 230V 3AC, CE (Drawing 2 of 2)
Rear Panel - 400V, 440-480V, CE (Drawing 1 of 2)
Rear Panel - 400V, 440-480V, CE (Drawing 2 of 2)
Steam Heating
Washing Drum (Drawing 1 of 2)
Washing Drum (Drawing 2 of 2)
Drive (Drawing 1 of 2)
Drive (Drawing 2 of 2)
Bearing Housing
Liquid Soap Supply System - Pumps
Common parts from model UniMac UAH332I Washer
SPQ SP245704003021 SPQ SP245704003021 Contact Us For Availability
SPQ SP547075 SPQ SP547075 Contact Us For Availability
SPQ SPPRI540020005 SPQ SPPRI540020005 Contact Us For Availability
1
End Stop SPQ SP555405 Contact Us For Availability
1
Cover Plate SPQ SP550149 Contact Us For Availability
1
Emergency Stop Knob SPQ SP528310 Contact Us For Availability
1
Emergency Stop Interconnection SPQ SP520033 Contact Us For Availability
1
Glass Seal SPQ SP273115021905 Contact Us For Availability
1
Distinguishing Ring SPQ SP535411 Contact Us For Availability
1
Soap Hopper SPQ SP554214 Contact Us For Availability
1
Tee SPQ SPPRI426001107 Contact Us For Availability
1
Spring Clamp SPQ SP540183 Contact Us For Availability
1
Rear Panel SPQ SP559328 Contact Us For Availability
1
Nut SPQ SP310934100006 Contact Us For Availability
1
Contactor SPQ SP514038 Contact Us For Availability
1
Steam Valve Holder SPQ SP559341 Contact Us For Availability
1
Cross Piece SPQ SP556184 Contact Us For Availability
1
Washing Drum SPQ SP556195 Contact Us For Availability
1
Clamp SPQ SP529013 Contact Us For Availability
1
Motor with Pulley SPQ SP560436 Contact Us For Availability
1
Bearing Housing SPQ SP537867 Contact Us For Availability
1
Pump SPQ 529746 Contact Us For Availability
2
Holder SPQ SPPRI326002004 Contact Us For Availability
2
Tape SPQ SP510846 Contact Us For Availability
2
Terminal Board SPQ SPPRI350000007 Contact Us For Availability
2
Fixed Lower Hinge SPQ 568984 Contact Us For Availability
2
Compression Spring SPQ SP553524 Contact Us For Availability
2
Connector SPQ SPPRI426001217 Contact Us For Availability
2
Water Level Switch Hose SPQ SP311902100008 Contact Us For Availability
2
SPQ SP311125100006 SPQ SP311125100006 Contact Us For Availability
2
Bolt SPQ SP309933000625 Contact Us For Availability
2
Bolt SPQ SP554310 Contact Us For Availability
2
Sealing SPQ SP273222012025 Contact Us For Availability
2
Speed Sensor Holder SPQ SP557701 Contact Us For Availability
2
Bearing SPQ SPPRI608000080 Contact Us For Availability
2
Manifold Flush Kit SPQ 529745 Contact Us For Availability
3
Automatic Door Opening Module Wiring SPQ SP552455 Contact Us For Availability
3
SPQ SP309933000616 SPQ SP309933000616 Contact Us For Availability
3
Seal SPQ SP560322 Contact Us For Availability
3
Coin Meter Cover SPQ SP547565 Contact Us For Availability
3
Isolation Paper SPQ SPPRI350012007 Contact Us For Availability
3
Handle Ball SPQ SP535406 Contact Us For Availability
3
Elbow SPQ SPPRI426003217 Contact Us For Availability
3
Foam Roller SPQ SP519463 Contact Us For Availability
3
Washer SPQ SP552996 Contact Us For Availability
3
External Tub Front Pla SPQ SP556178 Contact Us For Availability
3
Speed Sensor Plate SPQ SP555547 Contact Us For Availability
3
Retaining Ring SPQ SP307732031130 Contact Us For Availability
3
Suction Tube SPQ 529744 Contact Us For Availability
4
Bolt SPQ SP527093 Contact Us For Availability
4
SPQ SP309084000416 SPQ SP309084000416 Contact Us For Availability
4
Front Panel SPQ SP558949 Contact Us For Availability
4
Panel Holder SPQ SP557520 Contact Us For Availability
4
Emergency Stop Connector SPQ SP528311 Contact Us For Availability
4
Control Board Holder SPQ SP550117 Contact Us For Availability
4
Handle Element SPQ SP310985000005 Contact Us For Availability
4
Casing SPQ SP535407 Contact Us For Availability
4
Internal Vessel SPQ 567174 Contact Us For Availability
4
Nut SPQ SPPRI426002072 Contact Us For Availability
4
Flap SPQ SP540115 Contact Us For Availability
4
SPQ SP313251002104 SPQ SP313251002104 Contact Us For Availability
4
Nut SPQ SP311125000013 Contact Us For Availability
4
Door Lock Holder SPQ SP559954 Contact Us For Availability
4
Spring Holder SPQ SP555542 Contact Us For Availability
4
Mounting Cone SPQ SPPRI242000014 Contact Us For Availability
4
Hose SPQ 529743 Contact Us For Availability
5
Bolt SPQ SP537854 Contact Us For Availability
5
Fastener SPQ SP550115 Contact Us For Availability
5
Washer SPQ SP313251000006 Contact Us For Availability
5
Side Panel SPQ SP558947 Contact Us For Availability
5
Automatic Door Opening Module SPQ SP547004 Contact Us For Availability
5
Switching Unit SPQ SP528312 Contact Us For Availability
5
Board Interconnection Cable SPQ SP547005 Contact Us For Availability
5
SPQ SP311125000004 SPQ SP311125000004 Contact Us For Availability
5
Casing SPQ SP556197 Contact Us For Availability
5
Handle Lower Part SPQ SP529739 Contact Us For Availability
5
Dispenser Lid SPQ SP540117 Contact Us For Availability
5
SPQ SPPRI241000017 SPQ SPPRI241000017 Contact Us For Availability
5
SPQ SP101420 SPQ SP101420 Contact Us For Availability
5
SPQ SP524740 SPQ SP524740 Contact Us For Availability
5
Heating Element SPQ SP309933001235 Contact Us For Availability
5
Spring SPQ SP533394 Contact Us For Availability
5
Grease Holder SPQ SP556115 Contact Us For Availability
5
Connection SPQ 529742 Contact Us For Availability
6
Hook SPQ SPPRI551016250 Contact Us For Availability
6
SPQ SP557533 SPQ SP557533 Contact Us For Availability
6
Bolt SPQ SP309798500306 Contact Us For Availability
6
Locating Segment SPQ SP535429 Contact Us For Availability
6
Dispenser Seal SPQ SP540113 Contact Us For Availability
6
SPQ SP283449080200 SPQ SP283449080200 Contact Us For Availability
6
Bolt SPQ SP559333 Contact Us For Availability
6
Sealant SPQ SP310934240008 Contact Us For Availability
6
Lock SPQ SP556137 Contact Us For Availability
6
SPQ SP311902100012 SPQ SP311902100012 Contact Us For Availability
6
Sealing Ring SPQ SP552973 Contact Us For Availability
6
SPQ 529789 SPQ 529789 Contact Us For Availability
7
Nut SPQ SP537760 Contact Us For Availability
7
SPQ SP517232 SPQ SP517232 Contact Us For Availability
7
SPQ SP557525 SPQ SP557525 Contact Us For Availability
7
Seal SPQ SP311125000006 Contact Us For Availability
7
Rivet SPQ SP311679800003 Contact Us For Availability
7
Lock Pin SPQ SP535402 Contact Us For Availability
7
SPQ SP529710 SPQ SP529710 Contact Us For Availability
7
SPQ SP345000626088 SPQ SP345000626088 Contact Us For Availability
7
SPQ SP516648 SPQ SP516648 Contact Us For Availability
7
Anticorrosive Agent SPQ SP311125240008 Contact Us For Availability
7
SPQ SP560361 SPQ SP560361 Contact Us For Availability
7
Bearing Replacement Tool Kit SPQ SPPRI608000079 Contact Us For Availability
8
Frame SPQ SP556340 Contact Us For Availability
8
SPQ SP311679800004 SPQ SP311679800004 Contact Us For Availability
8
Wiring Steam - Electrical Heating SPQ SP311127000006 Contact Us For Availability
8
Top Cover SPQ SP557523 Contact Us For Availability
8
Set of Hinges SPQ SP556190 Contact Us For Availability
8
Front Panel SPQ SP310985000006 Contact Us For Availability
8
SPQ SP551695 SPQ SP551695 Contact Us For Availability
8
SPQ SP100188 SPQ SP100188 Contact Us For Availability
8
SPQ SP517509 SPQ SP517509 Contact Us For Availability
8
Adhesive SPQ SP506475 Contact Us For Availability
9
Emergency Stop Interconnection SPQ SP547779 Contact Us For Availability
9
Coin Meter Box SPQ SP102532 Contact Us For Availability
9
SPQ SP540158 SPQ SP540158 Contact Us For Availability
9
Steam Heat Wiring SPQ SP309933000620 Contact Us For Availability
9
SPQ SP547886 SPQ SP547886 Contact Us For Availability
9
Adhesive SPQ SP554369 Contact Us For Availability
9
SPQ SP556239 SPQ SP556239 Contact Us For Availability
9
SPQ SP310985000012 SPQ SP310985000012 Contact Us For Availability
9
Lubrication Grease SPQ SP537879 Contact Us For Availability
10
Washer SPQ SPPRI522000012 Contact Us For Availability
10
3-Way Valve SPQ SP547959 Contact Us For Availability
10
Soap Hopper Plug SPQ SP526468 Contact Us For Availability
10
Drain Valve SPQ SPPRI340055051 Contact Us For Availability
10
Rear Panel SPQ SP554388 Contact Us For Availability
10
External Block Signal Cable SPQ SP557947 Contact Us For Availability
10
Cable Sleeve SPQ SPPRI407000091 Contact Us For Availability
10
Steam Tube SPQ SP554351 Contact Us For Availability
10
Bolt SPQ SPF02119000415 Contact Us For Availability
10
Washer SPQ SP560403 Contact Us For Availability
11
Hook Lock SPQ SPPRI610002007 Contact Us For Availability
11
Bolt SPQ SP309084000408 Contact Us For Availability
11
Holder Cover SPQ SP535436 Contact Us For Availability
11
Hose SPQ SPPRI540001019 Contact Us For Availability
11
1-Way Valve SPQ SP554211 Contact Us For Availability
11
Air Trap Reduction SPQ SPPRI503000027 Contact Us For Availability
11
Main Switch SPQ SP554343 Contact Us For Availability
11
Bolt SPQ SP309933100625 Contact Us For Availability
11
Pump Relay Board to LED Terminal Cable SPQ SP528150 Contact Us For Availability
11
Clip SPQ SPF02119000014 Contact Us For Availability
11
Belt SPQ SP557509 Contact Us For Availability
12
Tape SPQ SP284000012003 Contact Us For Availability
12
Washer SPQ SP311125240006 Contact Us For Availability
12
Fixed Upper Hinge SPQ 568981 Contact Us For Availability
12
Hose Clamp SPQ SPPRI240000002 Contact Us For Availability
12
Screw SPQ SP309798124313 Contact Us For Availability
12
Hose Clamp SPQ SPPRI240000003 Contact Us For Availability
12
Nut SPQ SP101416 Contact Us For Availability
12
Soap Relay Board SPQ SP524714 Contact Us For Availability
12
Motor and Frequency Inverter Cover SPQ SP559320 Contact Us For Availability
12
Steam Injector SPQ SP554357 Contact Us For Availability
12
External Tub SPQ SP556196 Contact Us For Availability
12
V-Pulley Drum SPQ SP557535 Contact Us For Availability
13
Pin Insertion SPQ SP533103 Contact Us For Availability
13
Soap Hopper Upper Cov SPQ SP540112 Contact Us For Availability
13
Screw SPQ SP526497 Contact Us For Availability
13
Hose SPQ SPPRI540000014 Contact Us For Availability
13
Main Switch SPQ SPPRI404000099 Contact Us For Availability
13
Main Switch SPQ SPPRI404000100 Contact Us For Availability
13
Pipe Nipple SPQ SP559344 Contact Us For Availability
13
Ring SPQ SP556212 Contact Us For Availability
13
Nut SPQ SP310985000008 Contact Us For Availability
14
Hinge SPQ SP516832 Contact Us For Availability
14
Insert SPQ SPF02107001815 Contact Us For Availability
14
Tee SPQ SP526454 Contact Us For Availability
14
Nut SPQ SPPRI404000098 Contact Us For Availability
14
Wiring Holder SPQ SP309933241035 Contact Us For Availability
14
Bolt SPQ SP309933001630 Contact Us For Availability
15
Profiled Sealing SPQ SP529206 Contact Us For Availability
15
Emergency Stop Wiring SPQ SP520032 Contact Us For Availability
15
Hinge Spacer SPQ SP535421 Contact Us For Availability
15
Hose Clamp SPQ SP540116 Contact Us For Availability
15
Drain Elbow SPQ SPPRI240000007 Contact Us For Availability
15
Fuse SPQ SP347700125175 Contact Us For Availability
15
Feather SPQ SP511924 Contact Us For Availability
16
Leading Pin SPQ SP550113 Contact Us For Availability
16
Bolt SPQ SP310917240006 Contact Us For Availability
16
Extension SPQ SPPRI240000021 Contact Us For Availability
16
Air Trap Elbow SPQ SP526500 Contact Us For Availability
16
Fuse SPQ SPPRI404001099 Contact Us For Availability
16
Washer SPQ SP309933240408 Contact Us For Availability
16
Steam Filter SPQ SP405054057006 Contact Us For Availability
16
Speed Sensor SPQ SP308726014050 Contact Us For Availability
17
Upper Lid Prop SPQ SP533341 Contact Us For Availability
17
Transformer SPQ SP311902100004 Contact Us For Availability
17
Cover SPQ SPPRI543000004 Contact Us For Availability
17
Transformer SPQ SP309933000416 Contact Us For Availability
17
Bolt SPQ SPR35100017014 Contact Us For Availability
17
Filter SPQ SP552251 Contact Us For Availability
17
Extension Tube SPQ SP319413104563 Contact Us For Availability
18
Rear Cover SPQ SP557527 Contact Us For Availability
18
Recycle Drain Valve SPQ SP309933000820 Contact Us For Availability
18
Fuse Holder SPQ SP345805163032 Contact Us For Availability
18
Transformer SPQ 571473 Contact Us For Availability
18
Filter SPQ SP525935 Contact Us For Availability
18
Steam Valve SPQ SP514162 Contact Us For Availability
19
Cable Passage SPQ SP273121005052 Contact Us For Availability
19
Overflow Tube SPQ SP526510 Contact Us For Availability
19
Washer SPQ SPPRI340072051 Contact Us For Availability
19
Fuse Cover SPQ SP345805005020 Contact Us For Availability
19
Transformer SPQ 571475 Contact Us For Availability
19
Steam Valve Body SPQ SP514166 Contact Us For Availability
20
Drain Valve Interconnection SPQ SPPRI540001003 Contact Us For Availability
20
Coil SPQ SP554156 Contact Us For Availability
21
Top Cover Reinforcement SPQ SP557678 Contact Us For Availability
21
SPQ SPPRI505000058 SPQ SPPRI505000058 Contact Us For Availability
21
Filling Elbow Pipe SPQ SPPRI240000017 Contact Us For Availability
21
Tub to Drain Valve Hose SPQ SP559346 Contact Us For Availability
21
Bushing SPQ SPPRI345002019 Contact Us For Availability
21
Bolt SPQ SP554110 Contact Us For Availability
22
Extension SPQ SP555658 Contact Us For Availability
22
Filling Hose Pipe SPQ F200164 Contact Us For Availability
22
Screw SPQ SP554176 Contact Us For Availability
22
Cylinder Cap SPQ SPR35100016214 Contact Us For Availability
22
Switch SPQ SP554311 Contact Us For Availability
23
Lower Rear Cover SPQ SP557518 Contact Us For Availability
23
MC7 Control Board Main Wiring SPQ SP545234 Contact Us For Availability
23
Seal SPQ SP533036 Contact Us For Availability
23
Mixer Body SPQ SP526439 Contact Us For Availability
23
Water Level Switch Hose SPQ SP559337 Contact Us For Availability
23
SPQ SP311679824006 SPQ SP311679824006 Contact Us For Availability
23
SPQ 571478 SPQ 571478 Contact Us For Availability
23
SPQ 571477 SPQ 571477 Contact Us For Availability
24
Main Switch Knob SPQ SP555504 Contact Us For Availability
24
Filter SPQ SPPRI520001009 Contact Us For Availability
24
Spiral SPQ SPPRI240000008 Contact Us For Availability
25
Mixer SPQ SP526491 Contact Us For Availability
25
Binding Strip SPQ SP526568 Contact Us For Availability
26
Mixer Lid SPQ SP526506 Contact Us For Availability
26
Plug SPQ SP101406 Contact Us For Availability
27
Pin SPQ SPPRI340004030 Contact Us For Availability
27
SPQ SP547006 SPQ SP547006 Contact Us For Availability
27
Cable Bushing SPQ SP100388 Contact Us For Availability
28
Washer SPQ SPPRI404000095 Contact Us For Availability
29
SPQ SP526565 SPQ SP526565 Contact Us For Availability
29
SPQ SP345900043132 SPQ SP345900043132 Contact Us For Availability
30
SPQ SP526558 SPQ SP526558 Contact Us For Availability
30
SPQ SP514043 SPQ SP514043 Contact Us For Availability
30
SPQ SP101409 SPQ SP101409 Contact Us For Availability
31
SPQ SP526557 SPQ SP526557 Contact Us For Availability
31
SPQ SP534913 SPQ SP534913 Contact Us For Availability
33
Soap Hopper Upper Cover SPQ SP554346 Contact Us For Availability
34
SPQ SP101410 SPQ SP101410 Contact Us For Availability
35
SPQ SP101419 SPQ SP101419 Contact Us For Availability
NI
SPQ SP535479 SPQ SP535479 Contact Us For Availability
NI
Programming Cable SPQ SP520408 Contact Us For Availability
NI
Adhesive SPQ SP560320 Contact Us For Availability
NI
SPQ F8600501 SPQ F8600501 Contact Us For Availability
NI
Door Lock Wiring SPQ SP552454 Contact Us For Availability
NI
Adhesive SPQ SP552453 Contact Us For Availability
NI
SPQ 570554 SPQ 570554 Contact Us For Availability
NI
SPQ SP311902100006 SPQ SP311902100006 Contact Us For Availability
NI
SPQ SPPRI404001098 SPQ SPPRI404001098 Contact Us For Availability
NI
SPQ SP557821 SPQ SP557821 Contact Us For Availability
NI
SPQ SP506575 SPQ SP506575 Contact Us For Availability
NI
SPQ SP526564 SPQ SP526564 Contact Us For Availability
NI
SPQ 528393 SPQ 528393 Contact Us For Availability
NI
SPQ 528064 SPQ 528064 Contact Us For Availability
NI
SPQ SPPRI704000053 SPQ SPPRI704000053 Contact Us For Availability
NI
SPQ SP510889 SPQ SP510889 Contact Us For Availability
NI
SPQ SP245704000050 SPQ SP245704000050 Contact Us For Availability
NI
SPQ SP560435 SPQ SP560435 Contact Us For Availability
NI
SPQ SP538787 SPQ SP538787 Contact Us For Availability
NI
SPQ SP245704000603 SPQ SP245704000603 Contact Us For Availability
NI
SPQ 529787 SPQ 529787 Contact Us For Availability
NI
SPQ 529747 SPQ 529747 Contact Us For Availability
NI
SPQ 547808 SPQ 547808 Contact Us For Availability
× ![]()
