Model Maytag U3100I COMMERCIAL MICROWAVE – Common Parts & Diagrams

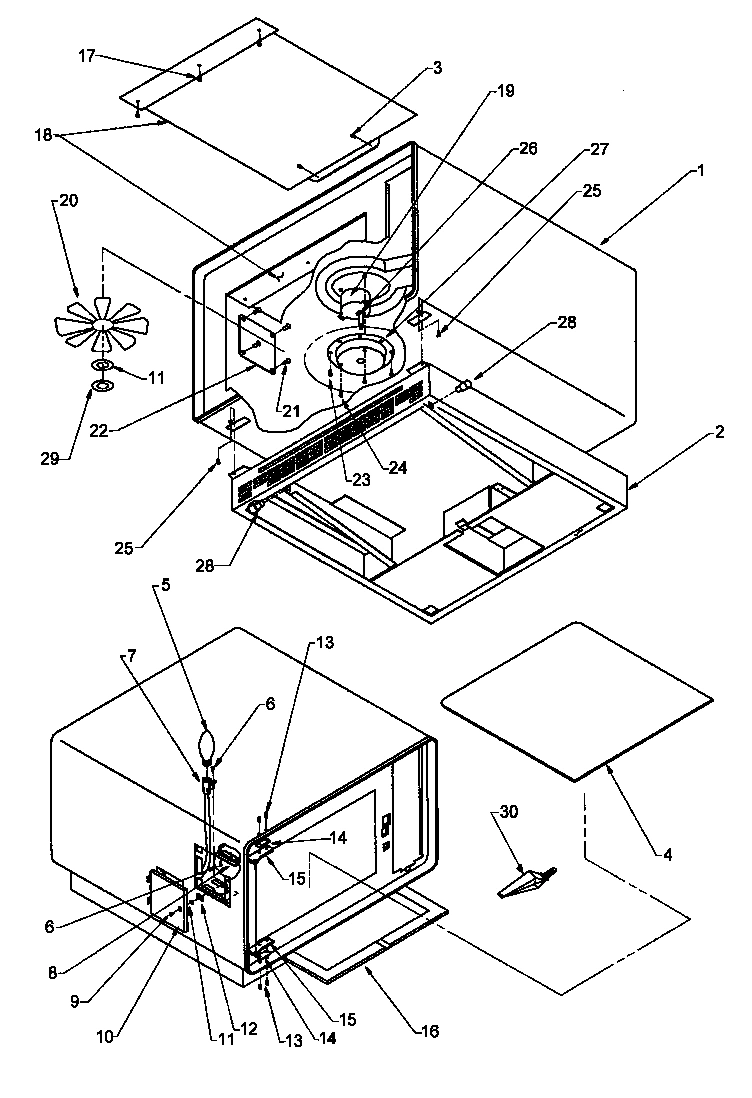

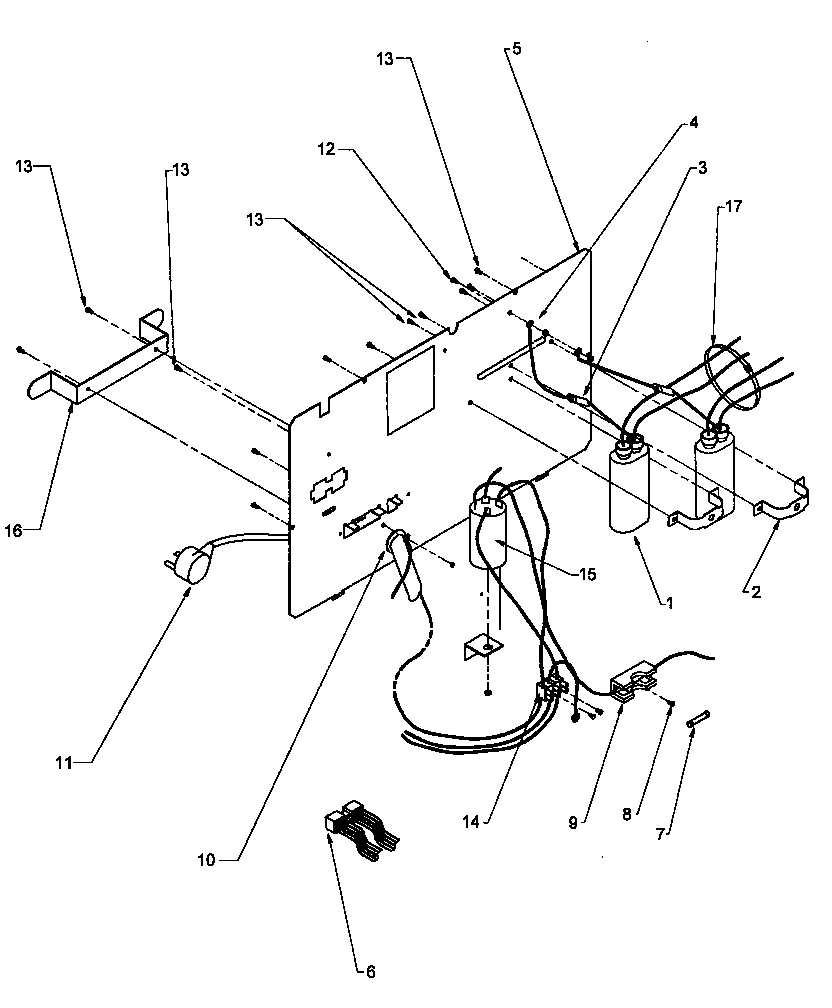

01 - BACK PANEL AND COMPONENTS
02 - CAVITY ASSY

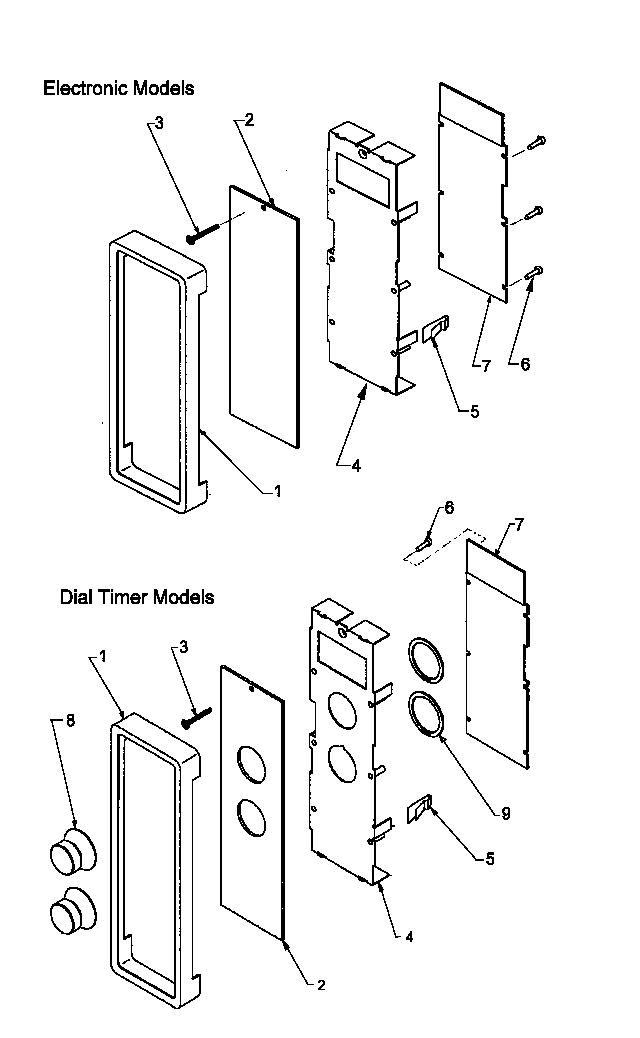

03 - CONTROL PANEL ASSY

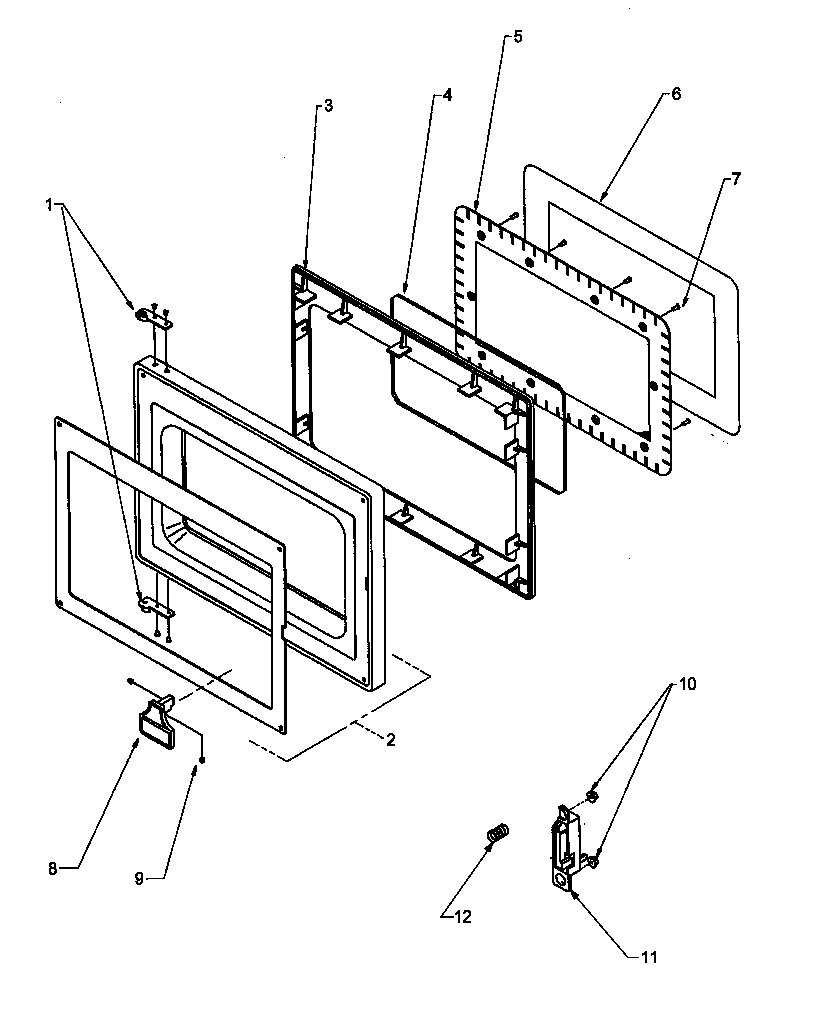

04 - DOOR ASSY

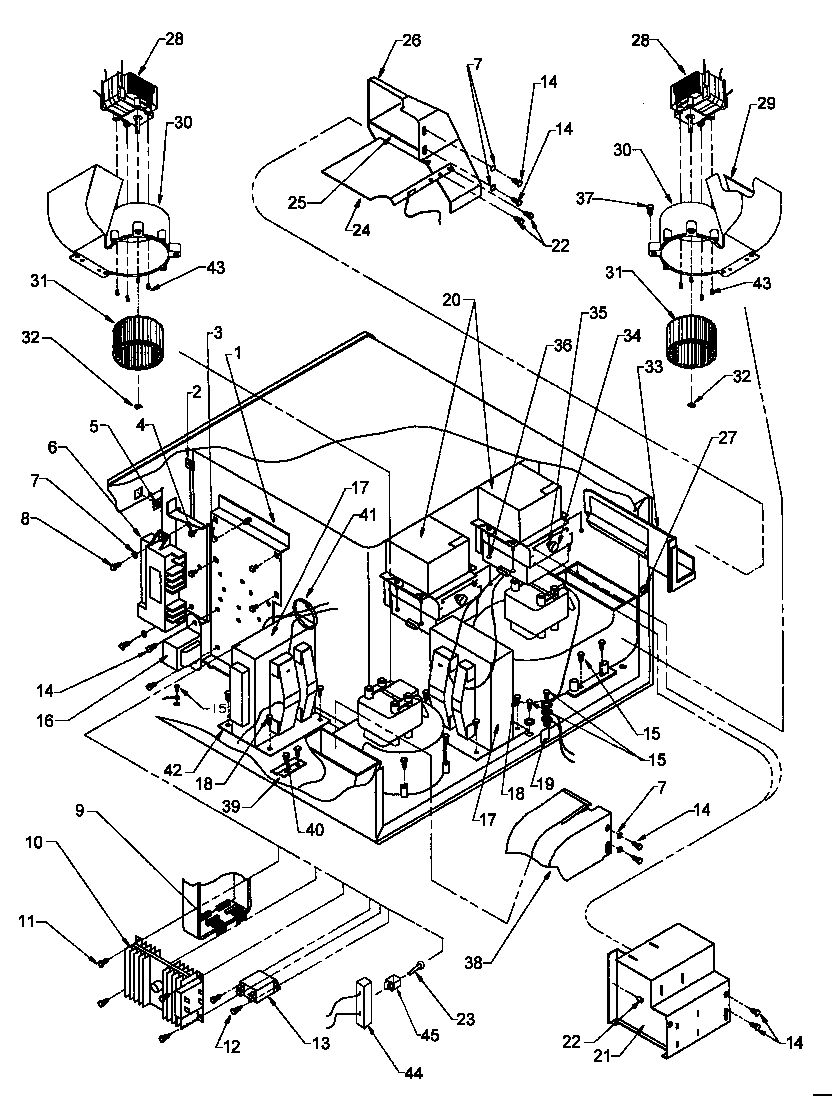

05 - INTERIOR ELEC COMPONENTS AND MTG PARTS
Common parts from model Maytag U3100I COMMERCIAL MICROWAVE
1
MAY 10804104 MAY 10804104 Contact Us For Availability
1
MAY R0163301 MAY R0163301 Contact Us For Availability
1
FRAME, CONT PNL MAY 45398P04 Contact Us For Availability
1
HINGE ASY KIT MAY R0163252 Contact Us For Availability
1
MAY 10791901 MAY 10791901 Contact Us For Availability
2
MAY 10825501 MAY 10825501 Contact Us For Availability
2
KIT, BASE MAY R0163258 Contact Us For Availability
2
MAY 4100010317 MAY 4100010317 Contact Us For Availability
2
OUTER DOOR ASSY. MAY R0163257 Contact Us For Availability
2
MAY 42365P01 MAY 42365P01 Contact Us For Availability
3
MAY B8383102 MAY B8383102 Contact Us For Availability
3
SCREW,No.8-32 X 1-1/4 FL HD SCRE MAY 5149-P Contact Us For Availability
3
MAY M55D18 MAY M55D18 Contact Us For Availability
4
MAY R0156904 MAY R0156904 Contact Us For Availability
4
MAY 4180001602 MAY 4180001602 Contact Us For Availability
4
MAY M70D246 MAY M70D246 Contact Us For Availability
5
MAY 4160001001 MAY 4160001001 Contact Us For Availability
5
MAY 2033349101 MAY 2033349101 Contact Us For Availability
5
No.8-32 CAPTIVE NUT(25) MAY 5072-D Contact Us For Availability
5
CLIP MAY 5522546002 Contact Us For Availability
5
INNER DOOR KIT MAY R0163255 Contact Us For Availability
6
MAY 10798801 MAY 10798801 Contact Us For Availability
6
No.6 PAN HD MACHINE SCREW MAY 5057-N Contact Us For Availability
6
MAY 10785001 MAY 10785001 Contact Us For Availability
6
SVC INTERLOCK SWITCH ASY MAY 4002006801 Contact Us For Availability
7
MAY M0805102 MAY M0805102 Contact Us For Availability
7
MAY 46534P01 MAY 46534P01 Contact Us For Availability
7
KIT, CONTROLLER +$50.00 CORE MAY M31R60 Contact Us For Availability
8
MAY A4539601 MAY A4539601 Contact Us For Availability
8
MAY 4520500504 MAY 4520500504 Contact Us For Availability
8
MAY 3000029501 MAY 3000029501 Contact Us For Availability
8
SCREW, SM MAY 5015-X Contact Us For Availability
9
SET SCREW No.10 X .25 MAY 5051032202 Contact Us For Availability
9
ASSY, CONNECTOR MAY 4520400703 Contact Us For Availability
10
MAY 26632P01 MAY 26632P01 Contact Us For Availability
10
COVER LIGHT (SS) MAY 10785601 Contact Us For Availability
10
No.10-24 FLANGE WHIZ-LK NUT MAY 5015-T Contact Us For Availability
10
TRIAC - COMM/JETWAVE LST IV MAY 4070001301 Contact Us For Availability
11
MAY 1734386115 MAY 1734386115 Contact Us For Availability
11
SCREW, SM MAY 5042-B Contact Us For Availability
11
MAY 32383P01 MAY 32383P01 Contact Us For Availability
11
DOOR LATCH KIT MAY R0163256 Contact Us For Availability
12
MAY 41205P01 MAY 41205P01 Contact Us For Availability
12
SCREW K MAY 5074-DD Contact Us For Availability
13
No.8-32 PAN HD MACH SCR (25) MAY 5149-C Contact Us For Availability
13
MAY 38806P04 MAY 38806P04 Contact Us For Availability
14
MAY 5027-ZZ MAY 5027-ZZ Contact Us For Availability
14
MAY 46610P01 MAY 46610P01 Contact Us For Availability
14
MAY 45540P01 MAY 45540P01 Contact Us For Availability
15
MAY 1640000201 MAY 1640000201 Contact Us For Availability
15
MAY 4180032601Q MAY 4180032601Q Contact Us For Availability
15
SCREW MAY 5078-CC Contact Us For Availability
16
MAY 45531P01 MAY 45531P01 Contact Us For Availability
16
MAY 45412P01 MAY 45412P01 Contact Us For Availability
16
MAY M60D149 MAY M60D149 Contact Us For Availability
17
MAY 46364P01 MAY 46364P01 Contact Us For Availability
18
STIRRER COVER MAY 45422P01 Contact Us For Availability
18
MAY 5021032501 MAY 5021032501 Contact Us For Availability
19
MAY R0163263 MAY R0163263 Contact Us For Availability
19
MAY 39126P01 MAY 39126P01 Contact Us For Availability
20
MAY M35D53 MAY M35D53 Contact Us For Availability
20
MAY 10794403 MAY 10794403 Contact Us For Availability
21
MAY M1D955 MAY M1D955 Contact Us For Availability
21
MAY 94388P01 MAY 94388P01 Contact Us For Availability
22
.187 DIA PUSH RIVET MAY 5039-T Contact Us For Availability
22
MAY 2570000202 MAY 2570000202 Contact Us For Availability
23
MAY 5067-P MAY 5067-P Contact Us For Availability
24
MAY 5001-ZZ MAY 5001-ZZ Contact Us For Availability
24
DEFLECTOR-AIR M65D344 MAY 46762P01 Contact Us For Availability
26
MAY 24597P01 MAY 24597P01 Contact Us For Availability
26
M65D345 DUCT, AIR MAY 45407P01 Contact Us For Availability
27
MAY 45437P01 MAY 45437P01 Contact Us For Availability
27
MAY 5147-ZZ MAY 5147-ZZ Contact Us For Availability
28
MAY 5571173001 MAY 5571173001 Contact Us For Availability
28
MAY 2010000801 MAY 2010000801 Contact Us For Availability
29
MAY 5147-V MAY 5147-V Contact Us For Availability
29
MAY 10825601 MAY 10825601 Contact Us For Availability
30
MAY M0275598 MAY M0275598 Contact Us For Availability
30
MAY 45559P01 MAY 45559P01 Contact Us For Availability
31
WHEEL, BLOWER M35D39 MAY 36300P01 Contact Us For Availability
32
SEE NOTE E-RING -- (QTY 2) (M1, M2, M8, M9, M MAY Y00000000 Contact Us For Availability
33
TRANSITION-CAV EXH FS-10 MAY 45753P01 Contact Us For Availability
34
PROTECTOR,THERMAL 180C 25 AMP MAY 1751802501 Contact Us For Availability
35
SCREW MAY M0251717 Contact Us For Availability
36
MAY 35691P01 MAY 35691P01 Contact Us For Availability
37
MAY M1D504 MAY M1D504 Contact Us For Availability
38
MAY 46385P01 MAY 46385P01 Contact Us For Availability
39
CLIP, BLOWER MTG MAY 45537P01 Contact Us For Availability
40
.187 DIA POP RIVET STEEL MAY 5067-A Contact Us For Availability
41
TIE-ELECT. MAY 5140-FF Contact Us For Availability
42
MAY 45602P01 MAY 45602P01 Contact Us For Availability
43
MAY M1D888 MAY M1D888 Contact Us For Availability
44
MAY 31860P01 MAY 31860P01 Contact Us For Availability
45
MAY 5014-MM MAY 5014-MM Contact Us For Availability
× ![]()
