Model Whirlpool U23C FREEZER – Common Parts & Diagrams
02 - DOOR ASSY

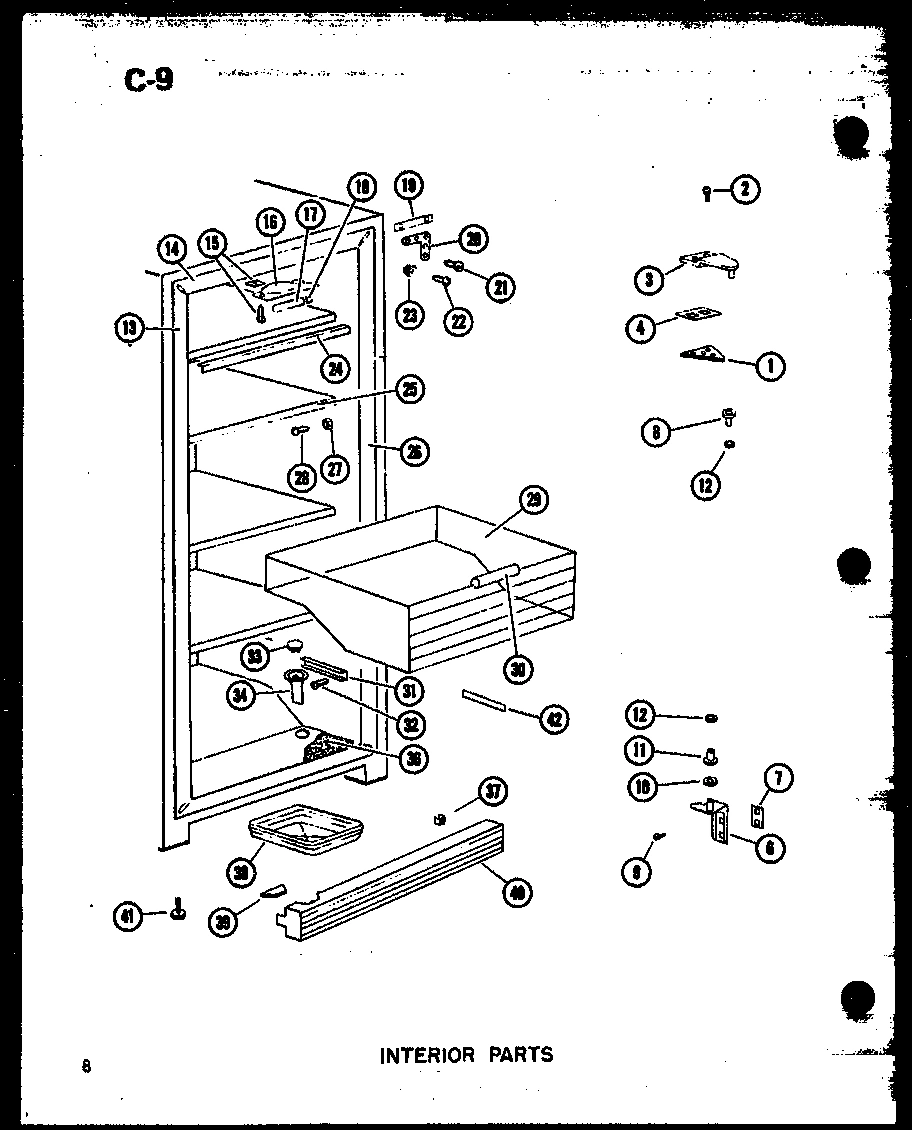

03 - INTERIOR PARTS
01 - COMPRESSOR PARTS

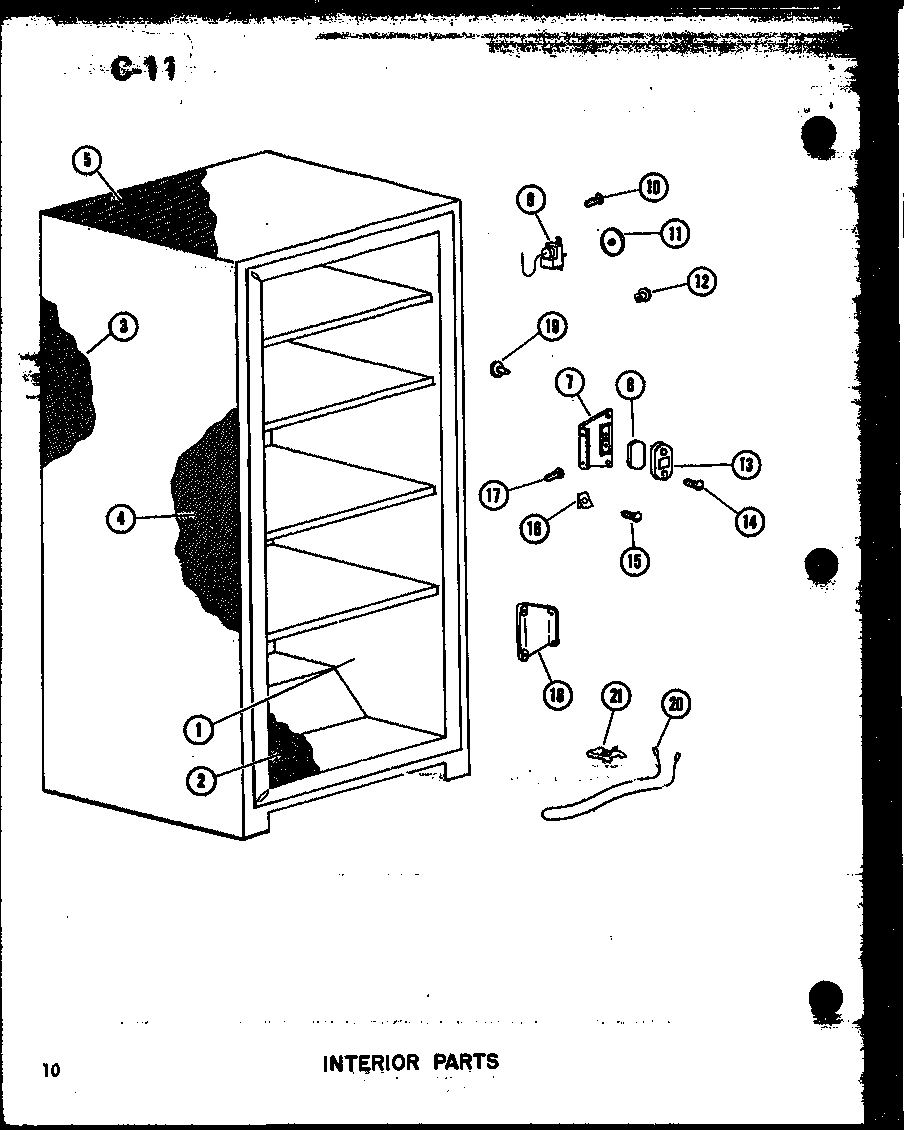

04 - INTERIOR PARTS
Common parts from model Whirlpool U23C FREEZER
1
RETAINER WPL C3683101 Contact Us For Availability
1
TAP STRIP WPL A3139701 Contact Us For Availability
1
SCREW WPL M0221461 Contact Us For Availability
1
LINER ASSEMBLY AND TUBING WPL D7329004 Contact Us For Availability
2
END CAP WPL B5687901 Contact Us For Availability
2
GROMMET K WPL A4002702 Contact Us For Availability
2
INSULATION, BATT - BOTTOM, 1-5 WPL B0523528 Contact Us For Availability
3
RETAINER WPL B5632008 Contact Us For Availability
3
HINGE-TOP WPL B5721501 Contact Us For Availability
3
COMPRESSOR AE1413A WPL C3667002 Contact Us For Availability
3
INSULATION-BACK WPL B0572707 Contact Us For Availability
4
PAD-HANDLE WPL D7344401 Contact Us For Availability
4
SHIM, TOP HINGE WPL A3270301 Contact Us For Availability
4
SHIM-TOP HINGE K WPL A3270302 Contact Us For Availability
4
SHIM KIT WPL A3270303 Contact Us For Availability
4
WIRING HARNESS WPL D7237101 Contact Us For Availability
4
POWER CORD WPL R0157154 Contact Us For Availability
4
INSULATION, BATT, SIDE WPL B0572908 Contact Us For Availability
5
INSULATION WPL B0566711 Contact Us For Availability
5
INSULATION FT. K WPL B0572805 Contact Us For Availability
5
INSULATION, BATT, TOP, 3-1/8` WPL B0535214 Contact Us For Availability
6
TIE ROD WPL B0569803 Contact Us For Availability
6
HINGE, BOTTOM WPL C8728101 Contact Us For Availability
6
STRAIN RELIEF K WPL A0319703 Contact Us For Availability
7
NAMEPLATE WPL B5758807 Contact Us For Availability
7
SHIM WPL A3061901 Contact Us For Availability
7
SHIM WPL A3061902 Contact Us For Availability
7
OVERLOAD WPL C3689104 Contact Us For Availability
8
DOOR W-T-U23C WPL D7388134 Contact Us For Availability
8
OUTER DOOR SHELL, COPPERTONE WPL D7388135 Contact Us For Availability
8
OUTER DOOR SHELL, AVOCADO WPL D7388136 Contact Us For Availability
8
OUTER DOOR SHELL, GOLD WPL D7388137 Contact Us For Availability
8
OUTER DOOR SHELL, ALMOND WPL D7388138 Contact Us For Availability
8
SPRING K WPL A3043601 Contact Us For Availability
8
SHIM WPL A3063201 Contact Us For Availability
8
SHIM WPL A3063202 Contact Us For Availability
9
INNER DOOR PANEL WPL D7156401 Contact Us For Availability
9
SCREW WPL M0246159 Contact Us For Availability
9
RELAY WPL C3689201 Contact Us For Availability
9
COLD CONTROL WPL B0543809 Contact Us For Availability
10
SCREW-SM WPL M0241118 Contact Us For Availability
10
WASHER K WPL M0274013 Contact Us For Availability
10
TERMINAL COVER WPL B0551801 Contact Us For Availability
10
SCREW WPL M0202528 Contact Us For Availability
11
GASKET WPL D7158703 Contact Us For Availability
11
BEARING FLAT (TOP HINGE) WPL B0539806 Contact Us For Availability
11
STRAP K WPL A3041801 Contact Us For Availability
11
KNOB, CONTROL WPL C3577902 Contact Us For Availability
12
KEY, LOCK WPL B5775301 Contact Us For Availability
12
SEAL-O RING WPL M0500901 Contact Us For Availability
12
WALL SPACER WPL A3032901 Contact Us For Availability
12
RIVET PLASTIC WPL A3032601 Contact Us For Availability
13
HANDLE WPL C8787101 Contact Us For Availability
13
BREAKER FRAME WPL D3914103 Contact Us For Availability
13
GASKET WPL A0382801 Contact Us For Availability
13
STRIKE-LOCK WPL B5728001 Contact Us For Availability
14
SCREW-HANDLE WPL M0218330 Contact Us For Availability
14
BREAKER FRAME WPL D3710305 Contact Us For Availability
14
COVER PLATE -G WPL A0382904 Contact Us For Availability
14
PLATE-AL WPL A0382906 Contact Us For Availability
14
COVER PLATE A WPL A0382907 Contact Us For Availability
14
COVER PLATE G WPL A0382908 Contact Us For Availability
14
COVER PLATE C WPL A0382909 Contact Us For Availability
14
SCREW WPL M0230834 Contact Us For Availability
15
SEMS FASTNER WPL M0243037 Contact Us For Availability
15
SPEED NUT WPL M0288010 Contact Us For Availability
16
SPRING CLIP WPL B0544001 Contact Us For Availability
16
SHIELD, LIGHT WPL C8730101 Contact Us For Availability
16
SPEED NUT WPL M0288107 Contact Us For Availability
17
HEAT EXCHANGE ASSY WPL D7164103 Contact Us For Availability
18
BLOCK-AIR VENT WPL C3684701 Contact Us For Availability
18
SOCKET-LIGHT WPL C8708801 Contact Us For Availability
18
TIE STRIP WPL D3913801 Contact Us For Availability
19
RETAINER-GASKET WPL D7158601 Contact Us For Availability
19
TAP STRIP WPL A3013201 Contact Us For Availability
19
CLAMP, DRIER WPL M0102316 Contact Us For Availability
19
SWITCH, LIGHT WPL D7101301 Contact Us For Availability
20
RETAINER-GASKET WPL D7158606 Contact Us For Availability
20
LINER GUSSET WPL C3523801 Contact Us For Availability
20
PLUG WPL M0310314 Contact Us For Availability
20
HEATER-L MULLION WPL C3684903 Contact Us For Availability
21
SCREW WPL M0250530 Contact Us For Availability
21
CLIP WPL M0110502 Contact Us For Availability
21
CLIP WPL M0113402 Contact Us For Availability
22
SEMS FASTNER WPL M0252047 Contact Us For Availability
23
GROMMET WPL A0381802 Contact Us For Availability
24
BOLT K WPL C8715301 Contact Us For Availability
24
TRIM WPL B5688802 Contact Us For Availability
25
BARREL-LOCK WPL B5775401 Contact Us For Availability
25
WELD SHELF D23B WPL D3856909 Contact Us For Availability
26
VENT ASSY WPL A3101901 Contact Us For Availability
26
BREAKER FRAME WPL D7098601 Contact Us For Availability
27
NUT A WPL M0281204 Contact Us For Availability
28
SCREW WPL M0207943 Contact Us For Availability
29
BASKET- WPL D7163001 Contact Us For Availability
30
HANDLE BASKET WPL B0571806 Contact Us For Availability
31
TRACK SHELF K WPL D7117102 Contact Us For Availability
31
TRACK SHELF K WPL D7122102 Contact Us For Availability
33
DRAIN SCREEN WPL A3113702 Contact Us For Availability
34
DRAIN-VALVE WPL A3044501 Contact Us For Availability
36
BLOCK WPL B0555404 Contact Us For Availability
37
CLIP, GRILLE WPL M0117301 Contact Us For Availability
38
PAN, DRAIN WPL D7001001 Contact Us For Availability
39
GRILLE-TOE WPL B5641301 Contact Us For Availability
40
GRILLE-TOE WPL D7070211 Contact Us For Availability
41
GLIDER BOLT WPL M0266510 Contact Us For Availability
42
TAP STRIP-GLIDE WPL B5695201 Contact Us For Availability
× ![]()
