Model Whirlpool U12F FREEZER – Common Parts & Diagrams

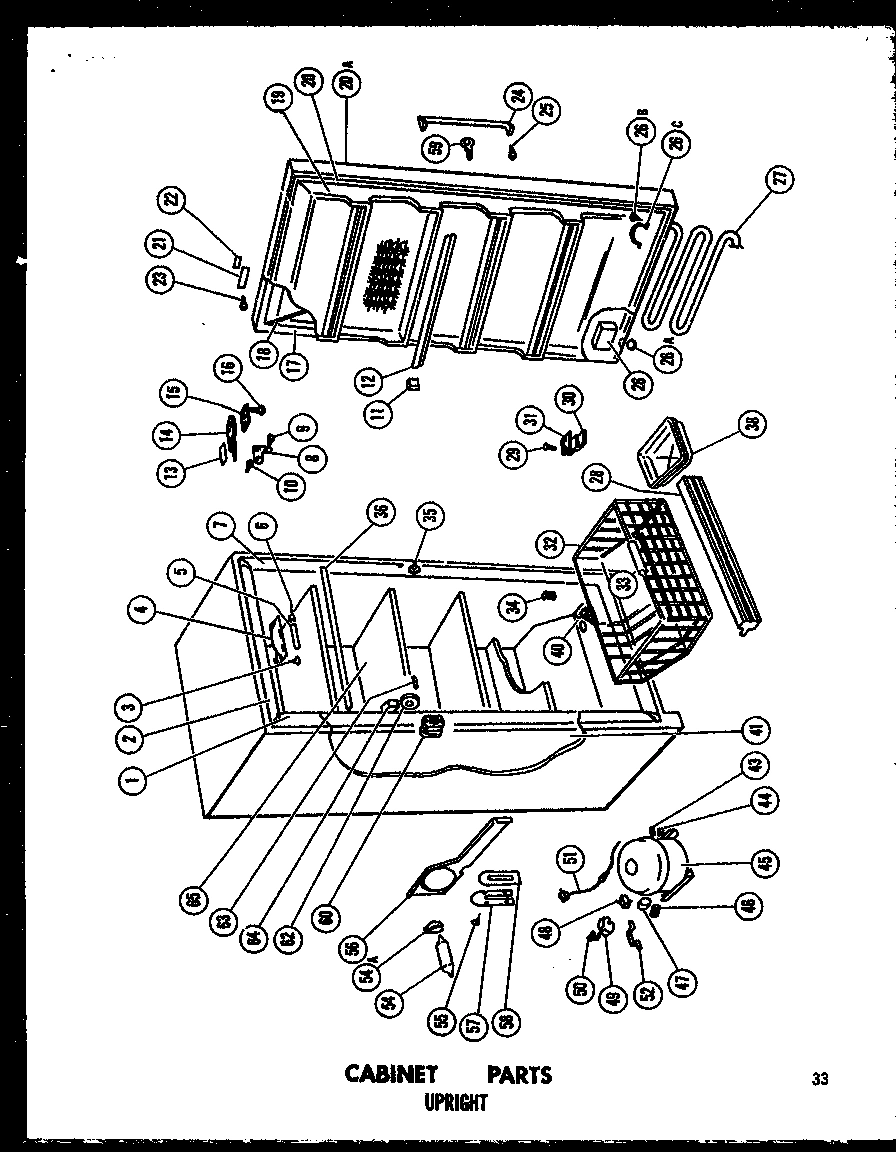

01 - CABINET PARTS
Common parts from model Whirlpool U12F FREEZER
1
BREAKER FRAME WPL D3914202 Contact Us For Availability
2
BREAKER FRAME WPL D3710305 Contact Us For Availability
7
BREAKER FRAME, HINGE SIDE WPL D3914001 Contact Us For Availability
8
LINER GUSSET WPL C3523802 Contact Us For Availability
9
SCREW WPL M0250531 Contact Us For Availability
10
SEMS FASTNER WPL M0252047 Contact Us For Availability
11
SUPPORT WPL D3976805 Contact Us For Availability
11
SUPPORT WPL D3976806 Contact Us For Availability
12
PACKAGE RETAINER WPL D3976703 Contact Us For Availability
14
TOP HINGE PLATE WPL B0525801 Contact Us For Availability
14
TOP HINGE ASSY WPL C3524001 Contact Us For Availability
15
TOP HINGE SHIM WPL A3009801 Contact Us For Availability
16
SCREW WPL M0247058 Contact Us For Availability
17
INSULATION, BATT FILLER WPL B0523820 Contact Us For Availability
17
INSULATION WPL B0565607 Contact Us For Availability
17
INSULATION WPL B0568903 Contact Us For Availability
18
TIE RODS WPL B0569801 Contact Us For Availability
19
INNER DR PANEL WPL D3908304 Contact Us For Availability
20
GASKET, DOOR WPL D3908101 Contact Us For Availability
20
DOOR W-AUE12-1 WPL D7017007 Contact Us For Availability
21
NAMEPLATE WPL C3578003 Contact Us For Availability
22
ESCUTCHEON WPL C3577601 Contact Us For Availability
23
STUD WPL M0550001 Contact Us For Availability
24
HANDLE, DOOR WPL D3890301 Contact Us For Availability
25
SCREW WPL M0248231 Contact Us For Availability
26
VENT ASSY WPL A3101901 Contact Us For Availability
26
INSULATION WPL A3126701 Contact Us For Availability
26
BLOCK, AIR VENT WPL C3576001 Contact Us For Availability
27
WIRING HARNESS WPL C3643801 Contact Us For Availability
28
GRILLE-TOE WPL C3574707 Contact Us For Availability
29
SCREW WPL M0246159 Contact Us For Availability
30
HINGE, BOTTOM WPL C3566701 Contact Us For Availability
31
SHIM WPL A3015201 Contact Us For Availability
31
SHIM WPL A3015202 Contact Us For Availability
31
HINGE PLATE, BOTTOM WPL B0528101 Contact Us For Availability
36
TRIM, SHELF WPL B0560001 Contact Us For Availability
38
DRAIN PAN WPL C3523101 Contact Us For Availability
40
DRAIN SCREEN WPL A3113701 Contact Us For Availability
41
INSULATION BOTTOM WPL B0523554 Contact Us For Availability
41
INSULATION BATT, TOP WPL B0535212 Contact Us For Availability
41
INSULATION BATT BACK WPL B0572703 Contact Us For Availability
41
INSULATION FT. K WPL B0572828 Contact Us For Availability
41
INSULATION BOTTOM WPL B0573001 Contact Us For Availability
41
INSULATION BATT SIDE WPL B0573101 Contact Us For Availability
43
CLIP WPL M0111001 Contact Us For Availability
44
GROMMET K WPL A4002702 Contact Us For Availability
46
SPRING K WPL A3043601 Contact Us For Availability
47
OVERLOAD WPL C3561601 Contact Us For Availability
48
RELAY WPL C3561701 Contact Us For Availability
49
COVER K WPL B0559501 Contact Us For Availability
50
STRAP K WPL A3041801 Contact Us For Availability
51
WIRING HARNESS WPL D7098302 Contact Us For Availability
52
WALL SPACER WPL A3032901 Contact Us For Availability
54
CLAMP WPL M0102315 Contact Us For Availability
55
SCREW WPL M0216532 Contact Us For Availability
57
COVER PLATE -G WPL A0382904 Contact Us For Availability
58
GASKET WPL A0382801 Contact Us For Availability
59
STRIKE LOCK WPL B0570101 Contact Us For Availability
59
INSULATION, LOCK WPL B0576001 Contact Us For Availability
59
LOCK ASSEMBLY WPL C3571301 Contact Us For Availability
59
WASHER-LOCK WPL C3571303 Contact Us For Availability
59
NUT WPL C3571304 Contact Us For Availability
59
LOCK LEVER WPL C3571306 Contact Us For Availability
59
LOCKWASHER WPL C3571307 Contact Us For Availability
59
SCREW WPL C3571308 Contact Us For Availability
59
WASHER WPL M0274016 Contact Us For Availability
62
KNOB, CONTROL WPL C3577902 Contact Us For Availability
63
RIVET PLASTIC WPL A3032601 Contact Us For Availability
64
COLD CONTROL WPL B0543809 Contact Us For Availability
65
LINER ASSY WPL D7035471 Contact Us For Availability
NI
WPL B0544001 WPL B0544001 Contact Us For Availability
NI
WPL M0243037 WPL M0243037 Contact Us For Availability
NI
WPL D3913901 WPL D3913901 Contact Us For Availability
NI
x$x WIRE TIE WPL A0300301 Contact Us For Availability
NI
STRAIN RELIEF K WPL A0319703 Contact Us For Availability
NI
PLUG WPL A0353901 Contact Us For Availability
NI
SLEEVE PER FT WPL A0363605 Contact Us For Availability
NI
WELD PIN WPL A0365901 Contact Us For Availability
NI
TAP STRIP WPL A3013202 Contact Us For Availability
NI
DRAIN-VALVE WPL A3044501 Contact Us For Availability
NI
ACCUMULATOR WPL A3059801 Contact Us For Availability
NI
TAP STRIP WPL A3061401 Contact Us For Availability
NI
SHIM WPL A3063201 Contact Us For Availability
NI
WPL A3063202 WPL A3063202 Contact Us For Availability
NI
WPL A3130001 WPL A3130001 Contact Us For Availability
NI
WPL B0539806 WPL B0539806 Contact Us For Availability
NI
WPL B0539807 WPL B0539807 Contact Us For Availability
NI
WPL B0565201 WPL B0565201 Contact Us For Availability
NI
WPL B5646005 WPL B5646005 Contact Us For Availability
NI
WPL C3569502 WPL C3569502 Contact Us For Availability
NI
WPL C3569504 WPL C3569504 Contact Us For Availability
NI
WPL D3909501 WPL D3909501 Contact Us For Availability
NI
WPL D3913801 WPL D3913801 Contact Us For Availability
NI
WPL M0110502 WPL M0110502 Contact Us For Availability
NI
WPL M0202528 WPL M0202528 Contact Us For Availability
NI
WPL M0207943 WPL M0207943 Contact Us For Availability
NI
WPL M0230834 WPL M0230834 Contact Us For Availability
NI
WPL M0233116 WPL M0233116 Contact Us For Availability
NI
WPL M0241018 WPL M0241018 Contact Us For Availability
NI
WPL M0241118 WPL M0241118 Contact Us For Availability
NI
WPL M0287014 WPL M0287014 Contact Us For Availability
× ![]()
