Model Maytag U11JS-2KW GAS RANGE – Common Parts & Diagrams

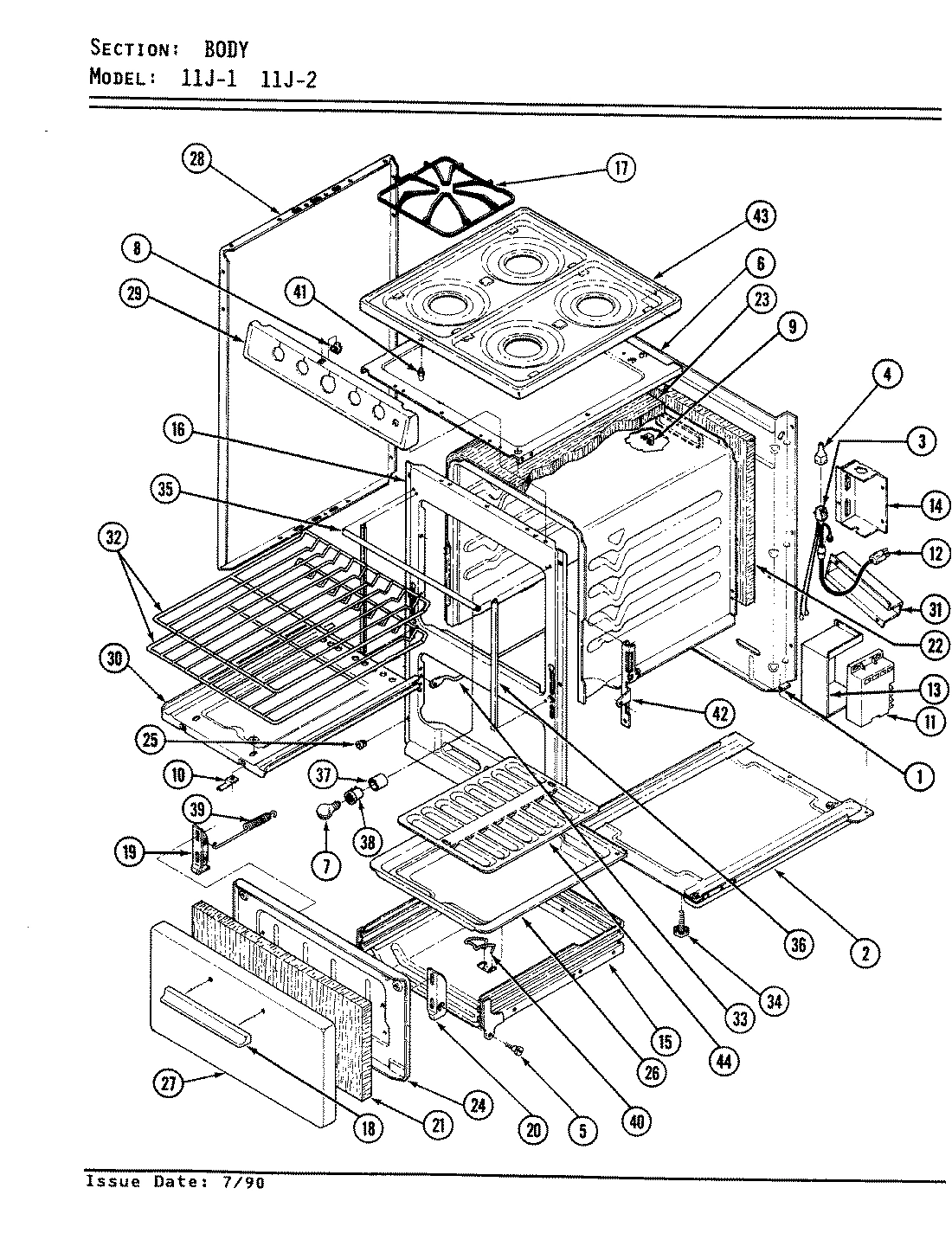

01 - BODY
02 - CONTROL PANEL

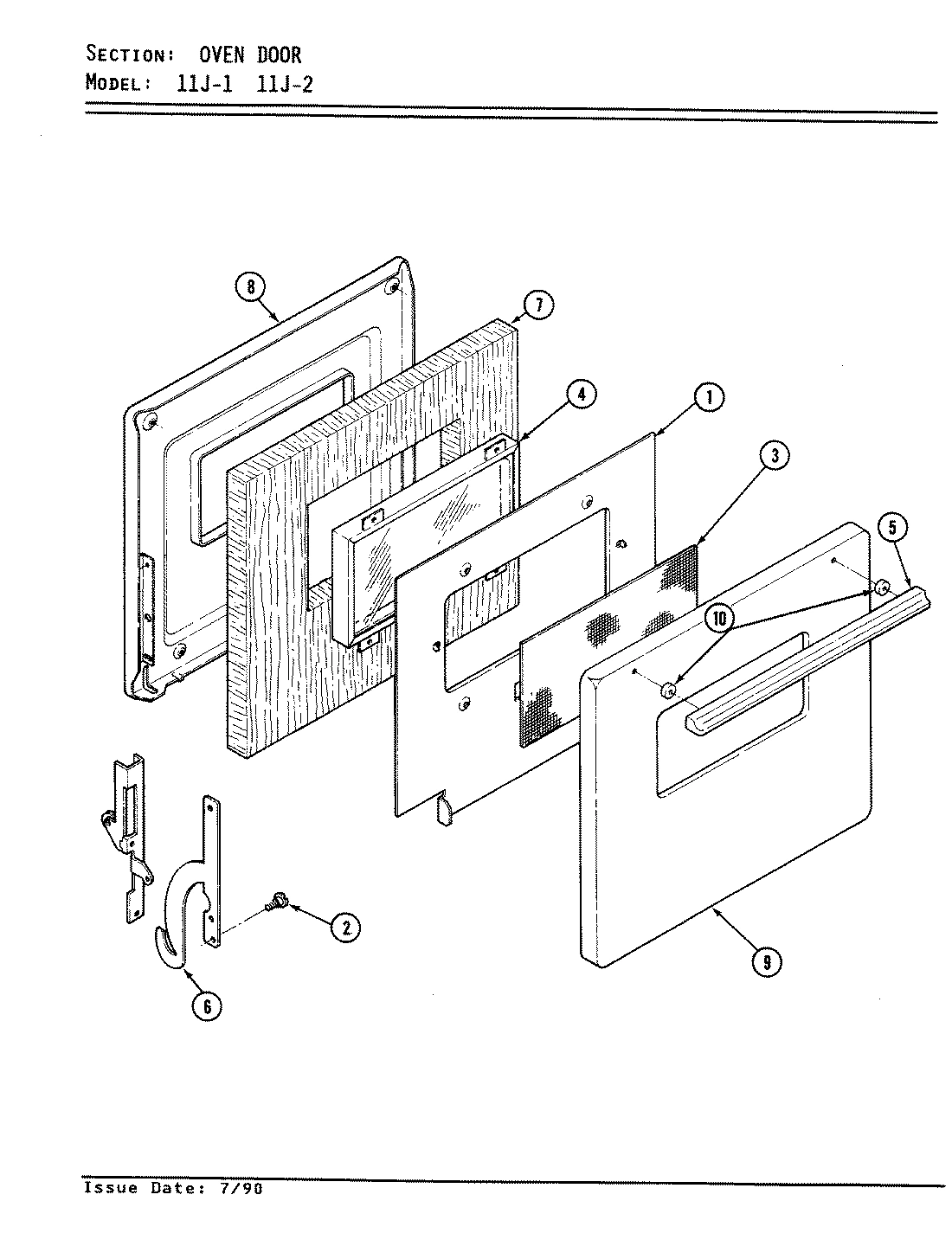

03 - DOOR

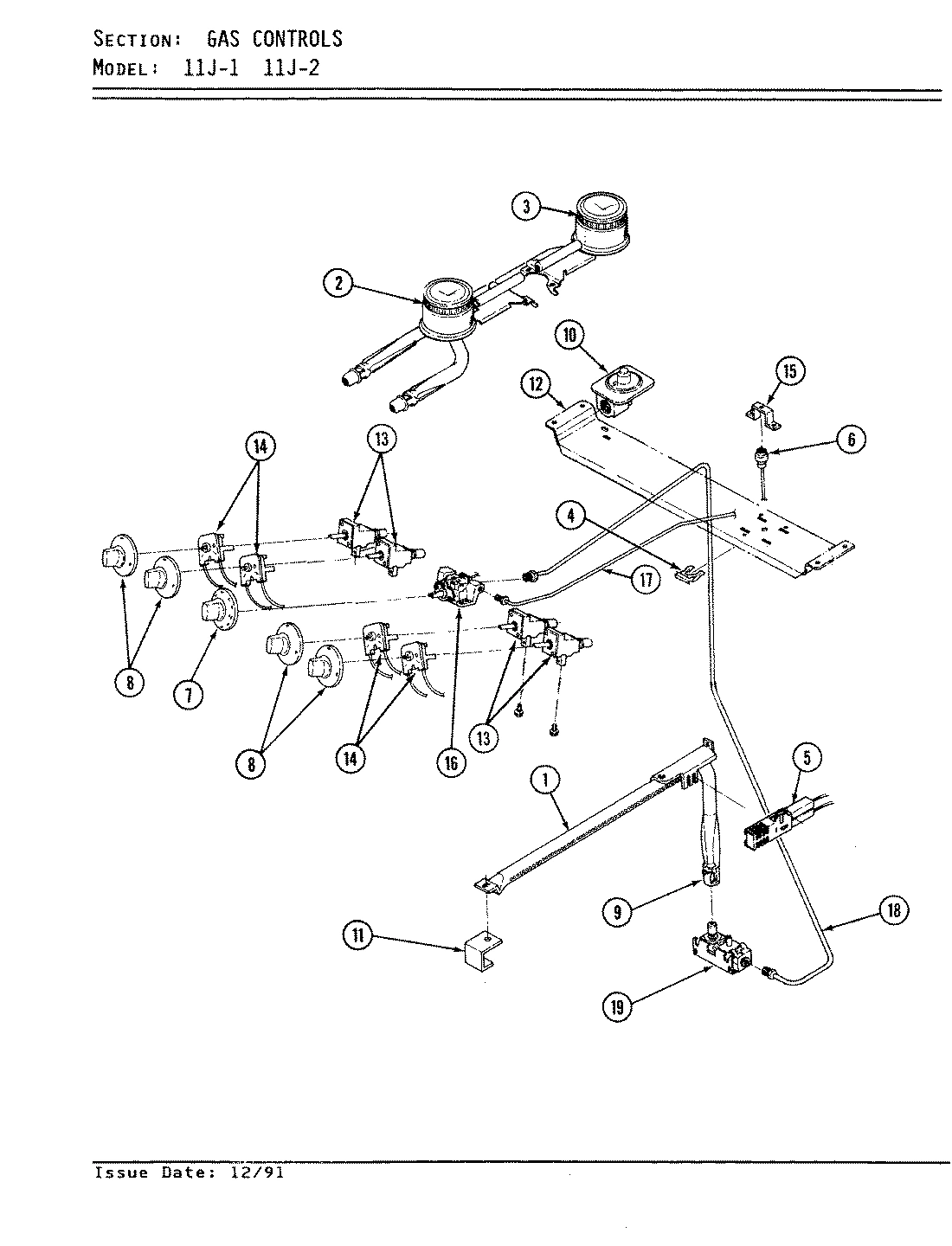

04 - GAS CONTROLS
Common parts from model Maytag U11JS-2KW GAS RANGE
1
MAY 7726P009-60 MAY 7726P009-60 Contact Us For Availability
1
MAY 7726P020-60 MAY 7726P020-60 Contact Us For Availability
1
MAY 3601F196-60 MAY 3601F196-60 Contact Us For Availability
1
MAY 3403A017-45 MAY 3403A017-45 Contact Us For Availability
1
MAY 3403D048-45 MAY 3403D048-45 Contact Us For Availability
2
MAY 1327151 MAY 1327151 Contact Us For Availability
2
MAY 7602P056-60 MAY 7602P056-60 Contact Us For Availability
2
MAY 7719P005-60 MAY 7719P005-60 Contact Us For Availability
2
MAY 7118P009-60 MAY 7118P009-60 Contact Us For Availability
2
MAY 7505P173-60 MAY 7505P173-60 Contact Us For Availability
3
MAY 7902P244-60 MAY 7902P244-60 Contact Us For Availability
3
MAY 7505P172-60 MAY 7505P172-60 Contact Us For Availability
4
MAY 3807F345-51 MAY 3807F345-51 Contact Us For Availability
4
MAY 3807F346-51 MAY 3807F346-51 Contact Us For Availability
4
MAY 7907P007-60 MAY 7907P007-60 Contact Us For Availability
4
MAY 7112P062-60 MAY 7112P062-60 Contact Us For Availability
5
MAY 7101P047-60 MAY 7101P047-60 Contact Us For Availability
5
MAY 7101P080-60 MAY 7101P080-60 Contact Us For Availability
5
MAY 7701P029-60 MAY 7701P029-60 Contact Us For Availability
5
MAY 7401P017-60 MAY 7401P017-60 Contact Us For Availability
5
MAY 7432P067-60 MAY 7432P067-60 Contact Us For Availability
6
MAY 3801F218-51 MAY 3801F218-51 Contact Us For Availability
6
MAY 4011F164-80 MAY 4011F164-80 Contact Us For Availability
6
MAY 7101P289-60 MAY 7101P289-60 Contact Us For Availability
6
NOT REQUIRED PART OR SEE NOTE BRACKET/SCREW ( MAY W10124350 Contact Us For Availability
6
MAY 3418F053-34 MAY 3418F053-34 Contact Us For Availability
6
MAY 7432P028-60 MAY 7432P028-60 Contact Us For Availability
6
MAY 7432P029-60 MAY 7432P029-60 Contact Us For Availability
7
MAY 7407P026-60 MAY 7407P026-60 Contact Us For Availability
7
MAY 7002P102-60 MAY 7002P102-60 Contact Us For Availability
7
MAY 7731P040-60 MAY 7731P040-60 Contact Us For Availability
8
MAY 8002P022-60 MAY 8002P022-60 Contact Us For Availability
8
MAY 2402W103-23 MAY 2402W103-23 Contact Us For Availability
8
MAY 7733P015-60 MAY 7733P015-60 Contact Us For Availability
9
MAY 7112P053-60 MAY 7112P053-60 Contact Us For Availability
9
MAY 7101P059-60 MAY 7101P059-60 Contact Us For Availability
9
MAY 3411F006-35 MAY 3411F006-35 Contact Us For Availability
9
MAY 7513P100-60 MAY 7513P100-60 Contact Us For Availability
9
MAY 7513P129-60 MAY 7513P129-60 Contact Us For Availability
9
MAY 7513P143-60 MAY 7513P143-60 Contact Us For Availability
10
MAY 3819F011-61 MAY 3819F011-61 Contact Us For Availability
10
MAY 8010P020-60 MAY 8010P020-60 Contact Us For Availability
10
MAY 7510P023-60 MAY 7510P023-60 Contact Us For Availability
11
MAY 7431P006-60 MAY 7431P006-60 Contact Us For Availability
11
MAY 3807F336-51 MAY 3807F336-51 Contact Us For Availability
12
MAY 7402P018-60 MAY 7402P018-60 Contact Us For Availability
12
MAY 3807F354-80 MAY 3807F354-80 Contact Us For Availability
13
MAY 4005F319-45 MAY 4005F319-45 Contact Us For Availability
13
MAY 7101P043-60 MAY 7101P043-60 Contact Us For Availability
13
MAY 7101P296-60 MAY 7101P296-60 Contact Us For Availability
13
MAY 7502P127-60 MAY 7502P127-60 Contact Us For Availability
13
MAY 7502P167-60 MAY 7502P167-60 Contact Us For Availability
13
MAY 7502P187-60 MAY 7502P187-60 Contact Us For Availability
13
MAY 7502P237-60 MAY 7502P237-60 Contact Us For Availability
14
MAY 4005F326-51 MAY 4005F326-51 Contact Us For Availability
14
MAY 7403P216-60 MAY 7403P216-60 Contact Us For Availability
14
MAY 7403P257-60 MAY 7403P257-60 Contact Us For Availability
14
MAY 7403P259-60 MAY 7403P259-60 Contact Us For Availability
14
MAY 7403P285-60 MAY 7403P285-60 Contact Us For Availability
15
MAY 3407W005-23 MAY 3407W005-23 Contact Us For Availability
15
MAY 3807F315-51 MAY 3807F315-51 Contact Us For Availability
16
MAY 2201W048-23 MAY 2201W048-23 Contact Us For Availability
16
MAY 7404P062-60 MAY 7404P062-60 Contact Us For Availability
17
MAY 2003W001-00 MAY 2003W001-00 Contact Us For Availability
17
MAY 2003W026-00 MAY 2003W026-00 Contact Us For Availability
17
MAY 3414F015-44 MAY 3414F015-44 Contact Us For Availability
18
MAY 7701P012-60 MAY 7701P012-60 Contact Us For Availability
18
MAY 3414F085-44 MAY 3414F085-44 Contact Us For Availability
19
MAY 3418F034-80 MAY 3418F034-80 Contact Us For Availability
19
MAY 7501P015-60 MAY 7501P015-60 Contact Us For Availability
19
MAY 7501P106-60 MAY 7501P106-60 Contact Us For Availability
20
MAY 3418F035-80 MAY 3418F035-80 Contact Us For Availability
21
MAY 7002P067-60 MAY 7002P067-60 Contact Us For Availability
22
MAY 7002P091-60 MAY 7002P091-60 Contact Us For Availability
23
MAY 7002P083-60 MAY 7002P083-60 Contact Us For Availability
24
MAY 2404F022-23 MAY 2404F022-23 Contact Us For Availability
25
MAY 7103P080-60 MAY 7103P080-60 Contact Us For Availability
26
MAY 3401F016-23 MAY 3401F016-23 Contact Us For Availability
28
MAY 7101P061-60 MAY 7101P061-60 Contact Us For Availability
30
MAY 5720A003-23 MAY 5720A003-23 Contact Us For Availability
31
MAY 3830F001-51 MAY 3830F001-51 Contact Us For Availability
32
MAY 7801P019-60 MAY 7801P019-60 Contact Us For Availability
33
MAY 3808F007-61 MAY 3808F007-61 Contact Us For Availability
33
MAY 3808F008-61 MAY 3808F008-61 Contact Us For Availability
33
MAY 7101P068-60 MAY 7101P068-60 Contact Us For Availability
34
MAY Y7101P25460 MAY Y7101P25460 Contact Us For Availability
35
MAY 7212P014-60 MAY 7212P014-60 Contact Us For Availability
36
MAY 7212P015-60 MAY 7212P015-60 Contact Us For Availability
37
MAY 3414F011-51 MAY 3414F011-51 Contact Us For Availability
38
MAY 7408P021-60 MAY 7408P021-60 Contact Us For Availability
39
MAY 7803P032-60 MAY 7803P032-60 Contact Us For Availability
39
MAY 7803P033-60 MAY 7803P033-60 Contact Us For Availability
40
MAY 7809P004-60 MAY 7809P004-60 Contact Us For Availability
41
MAY 8024P003-60 MAY 8024P003-60 Contact Us For Availability
42
MAY 3807F290-34 MAY 3807F290-34 Contact Us For Availability
42
MAY 3807F291-34 MAY 3807F291-34 Contact Us For Availability
42
MAY 7101P188-60 MAY 7101P188-60 Contact Us For Availability
42
MAY 7103P071-60 MAY 7103P071-60 Contact Us For Availability
42
MAY 7403P144-60 MAY 7403P144-60 Contact Us For Availability
44
MAY 3413F007-23 MAY 3413F007-23 Contact Us For Availability
× ![]()
