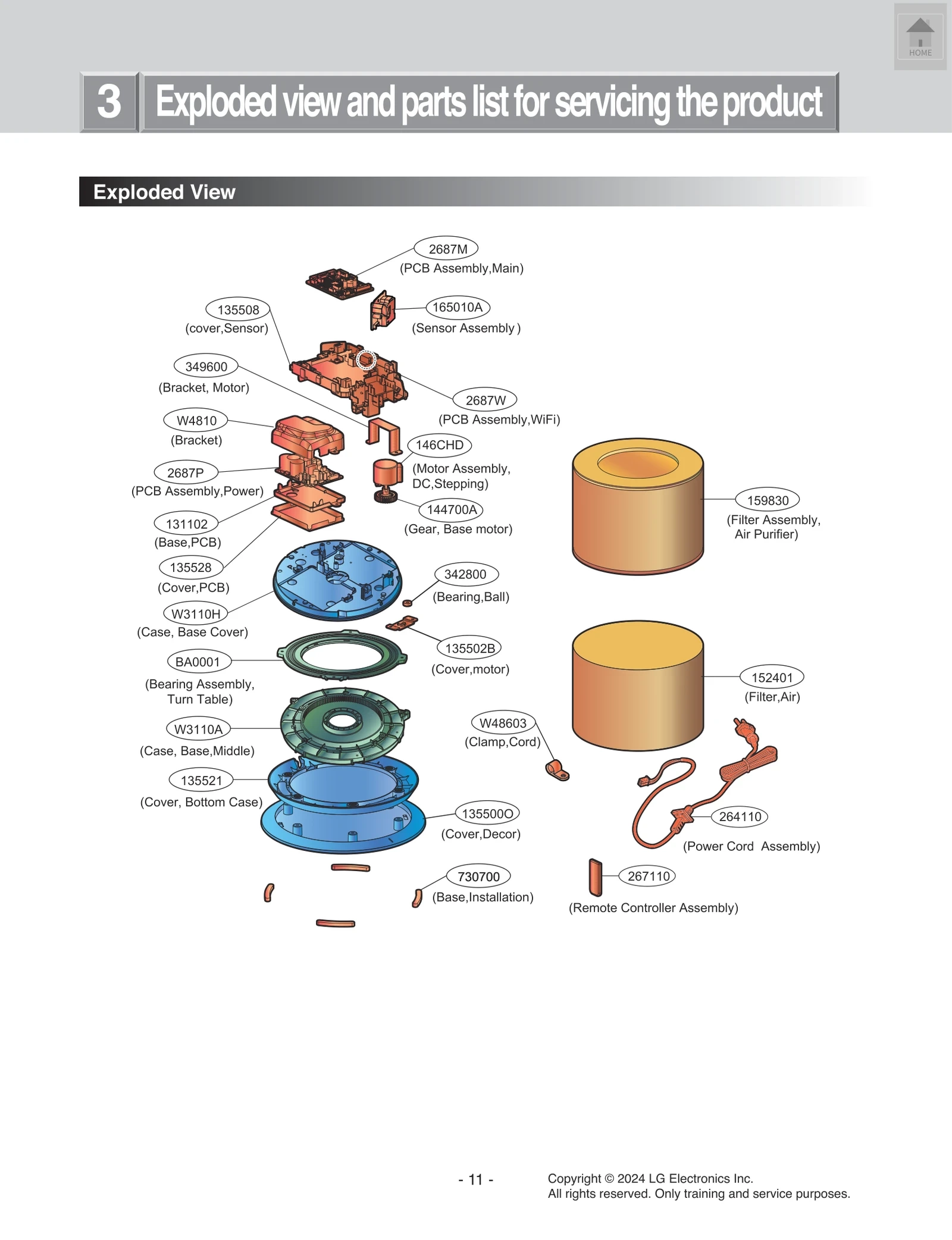

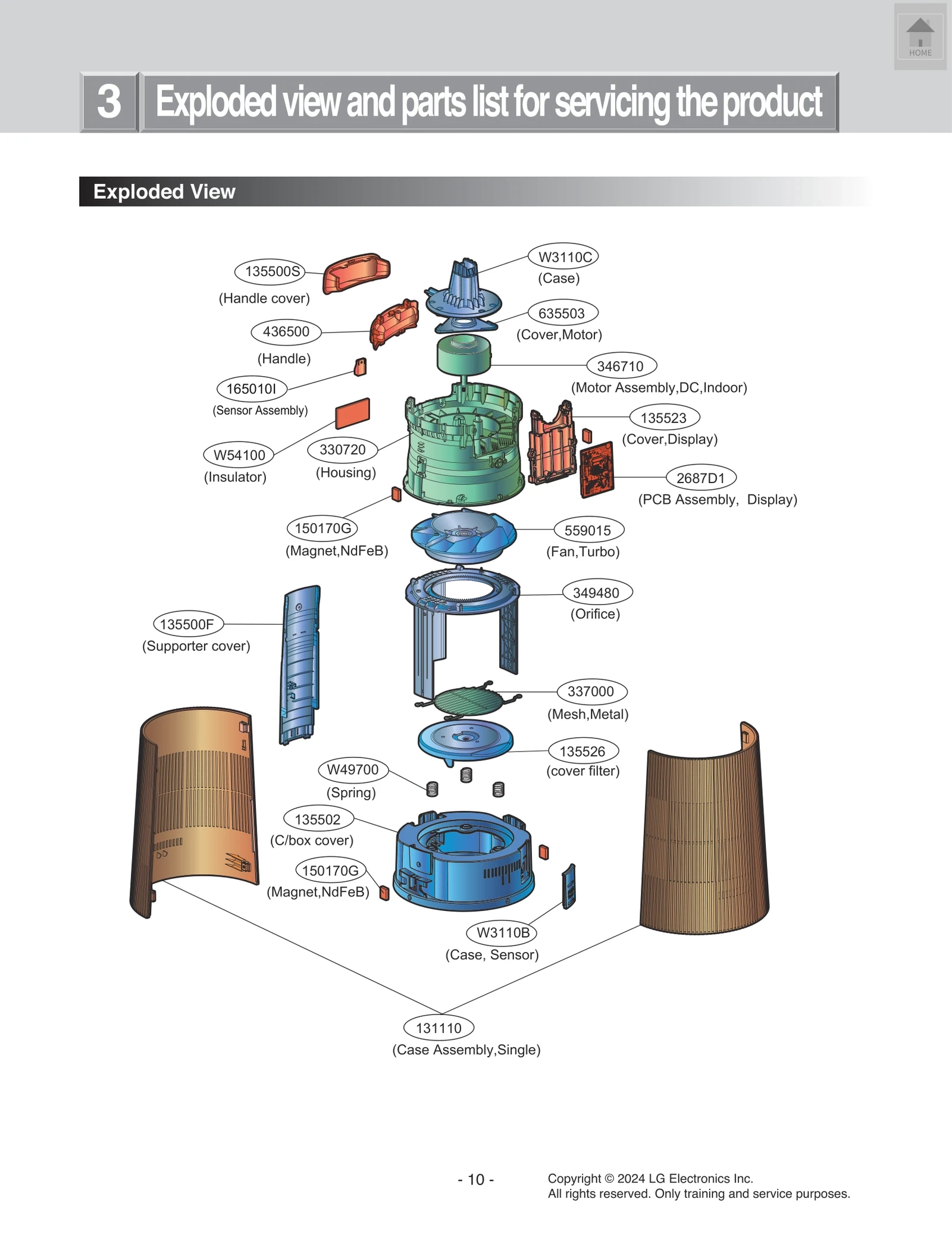

Model LG U10CS1C – Common Parts & Diagrams

146CHD
Motor Assembly,DC,Stepping
Motor Assembly,DC,Stepping LGE EAU51126707 Contact Us For Availability
View on Model
2687M
PCB Assembly,Main
PCB Assembly,Main LGE EBR34626617 Contact Us For Availability
View on Model
2687P
PCB Assembly,Power
PCB Assembly,Power LGE EBR85168502 Contact Us For Availability
View on Model
2687S2
PCB Assembly,Sub
PCB Assembly,Sub LGE EBR33070802 Contact Us For Availability
View on Model
131102
Base,PCB
Base,PCB LGE MAM63645701 Contact Us For Availability
View on Model
131104
Case,Rear
Case,Rear LGE MBN66486201 Contact Us For Availability
View on Model
131104B
Case,Rear
Case,Rear LGE MBN66486202 Contact Us For Availability
View on Model
131110
Case Assembly,Single
Case Assembly,Single LGE ABQ30117526 Contact Us For Availability
View on Model
135500F
Cover
Cover LGE MCK71520202 Contact Us For Availability
View on Model
135500I
Cover Assembly
Cover Assembly LGE ACQ30603401 Contact Us For Availability
View on Model
135500O
Cover,Decor
Cover,Decor LGE MCK71555108 Contact Us For Availability
View on Model
135500S
Cover,Handle
Cover,Handle LGE MCK71604602 Contact Us For Availability
View on Model
135501D
Cover Assembly
Cover Assembly LGE ACQ30602408 Contact Us For Availability
View on Model
135502B
Cover,Motor
Cover,Motor LGE MCK69588403 Contact Us For Availability
View on Model
135508
Cover,Sensor
Cover,Sensor LGE MCK71678901 Contact Us For Availability
View on Model
135521
Cover
Cover LGE MCK71518301 Contact Us For Availability
View on Model
135526
Cover
Cover LGE MCK71518204 Contact Us For Availability
View on Model
135528
Cover,PCB
Cover,PCB LGE MCK68532601 Contact Us For Availability
View on Model
144700A
Gear
Gear LGE MDT64514801 Contact Us For Availability
View on Model
150170F
Magnet,NdFeB
Magnet,NdFeB LGE 5016F73001B Contact Us For Availability
View on Model
159830
Filter Assembly,Air Purifier
Filter Assembly,Air Purifier LGE ADQ74834395 Contact Us For Availability
View on Model
165010I
Sensor Assembly
Sensor Assembly LGE EBD62905702 Contact Us For Availability
View on Model
264110
Power Cord Assembly
Power Cord Assembly LGE EAD65925706 Contact Us For Availability
View on Model
337000
Mesh,Metal
Mesh,Metal LGE MFN63062203 Contact Us For Availability
View on Model
346710
Motor Assembly,DC,Indoor
Motor Assembly,DC,Indoor LGE EAU62243921 Contact Us For Availability
View on Model
349480
Orifice
Orifice LGE MFX63426101 Contact Us For Availability
View on Model
349600
Bracket,Motor
Bracket,Motor LGE MAZ67615501 Contact Us For Availability
View on Model
436500
Handle
Handle LGE MEB65422501 Contact Us For Availability
View on Model
559015
Fan,Turbo
Fan,Turbo LGE MDG63964901 Contact Us For Availability
View on Model
635503
Cover,Motor
Cover,Motor LGE 3550F71004B Contact Us For Availability
View on Model
730700
Base,Installation
Base,Installation LGE MAM64524006 Contact Us For Availability
View on Model
BA0001
Bearing Assembly
Bearing Assembly LGE AAQ73570002 Contact Us For Availability
View on Model
W3110A
Case
Case LGE MBN66486402 Contact Us For Availability
View on Model
W3110B
Case,Sensor
Case,Sensor LGE MBN66541101 Contact Us For Availability
View on Model
W3110C
Case
Case LGE MBN66487301 Contact Us For Availability
View on Model
W3110F1
Case,Outer
Case,Outer LGE MBN66486066 Contact Us For Availability
View on Model
W3110F2
Case,Outer
Case,Outer LGE MBN66486067 Contact Us For Availability
View on Model
W3110G1
Case
Case LGE MBN66486101 Contact Us For Availability
View on Model
W3110G2
Case
Case LGE MBN66486102 Contact Us For Availability
View on Model
W3110H
Case
Case LGE MBN66486301 Contact Us For Availability
View on Model
W4810
Bracket
Bracket LGE MAZ64549002 Contact Us For Availability
View on Model
W48603
CLAMP,CORD
CLAMP,CORD LGE 4H01688E Contact Us For Availability
View on Model
W49700
Spring
Spring LGE MHY64444102 Contact Us For Availability
View on Model
W54100
Insulator
Insulator LGE MEV65390908 Contact Us For Availability
View on Model
