Model U-Line U-3018WCS-01A Uline U3018WCS-01A – Common Parts & Diagrams

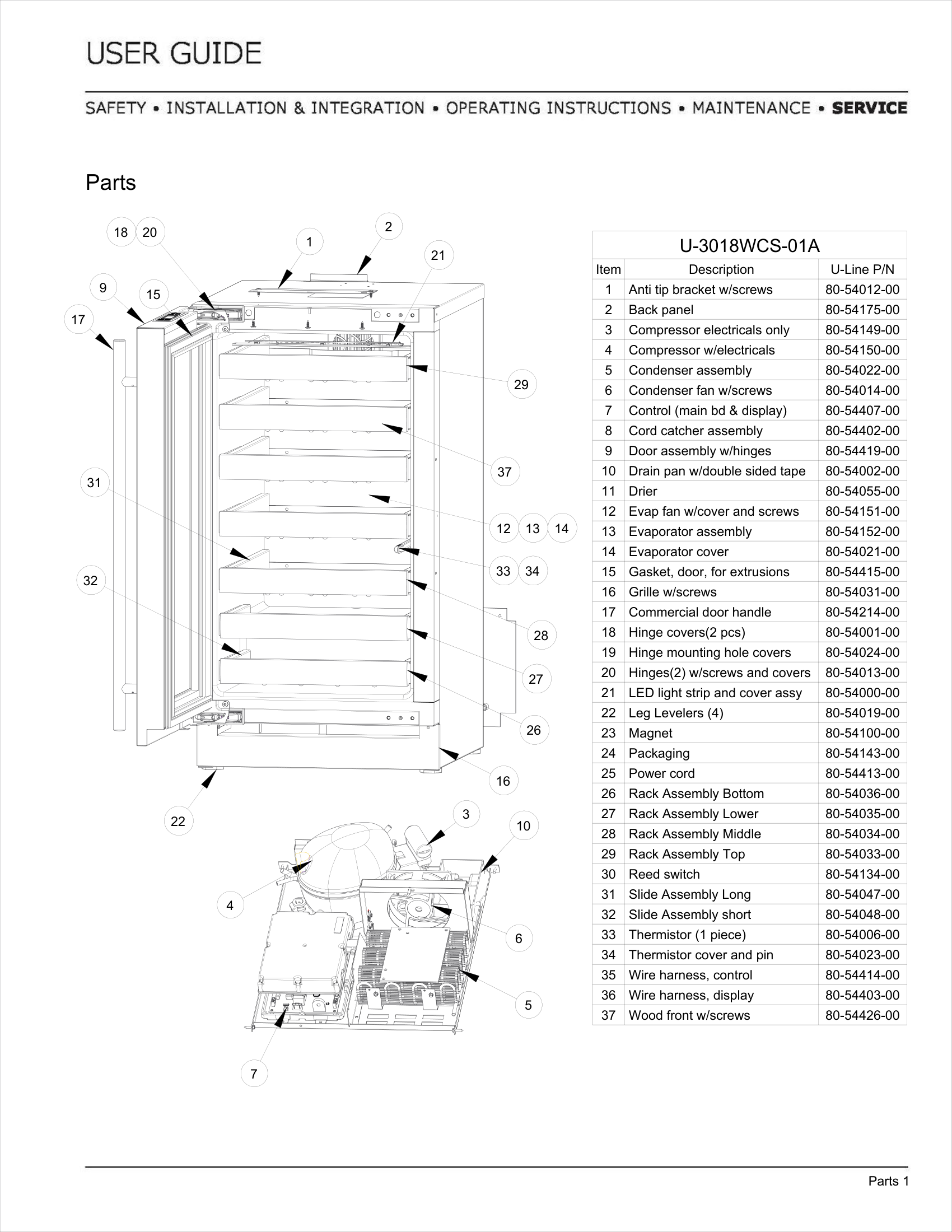

Exploded View
Common parts from model U-Line U-3018WCS-01A Uline U3018WCS-01A
1
Anti tip bracket w/screws ULC 80-54012-00 Contact Us For Availability
3
Compressor electricals only ULC 80-54149-00 Contact Us For Availability
4
Compressor w/electricals ULC 80-54150-00 Contact Us For Availability
6
Condenser fan w/screws ULC 80-54014-00 Contact Us For Availability
7
Control (main bd & display) ULC 80-54407-00 Contact Us For Availability
8
Cord catcher assembly ULC 80-54402-00 Contact Us For Availability
11
Drier ULC 80-54055-00 Contact Us For Availability
12
Evap fan w/cover and screws ULC 80-54151-00 Contact Us For Availability
15
Gasket, door, for extrusions ULC 80-54415-00 Contact Us For Availability
17
Commercial door handle ULC 80-54214-00 Contact Us For Availability
20
Hingesw/screws and covers ULC 80-54013-00 Contact Us For Availability
21
LED light strip and cover assy ULC 80-54000-00 Contact Us For Availability
22
Leg Levelers ULC 80-54019-00 Contact Us For Availability
23
Magnet ULC 80-54100-00 Contact Us For Availability
30
Reed switch ULC 80-54134-00 Contact Us For Availability
31
Slide Assembly Long ULC 80-54047-00 Contact Us For Availability
32
Slide Assembly short ULC 80-54048-00 Contact Us For Availability
33
Thermistor ULC 80-54006-00 Contact Us For Availability
34
Thermistor cover and pin ULC 80-54023-00 Contact Us For Availability
35
Wire harness, control ULC 80-54414-00 Contact Us For Availability
36
Wire harness, display ULC 80-54403-00 Contact Us For Availability
× ![]()
