Model Maytag TX21VL REFRIGERATOR – Common Parts & Diagrams

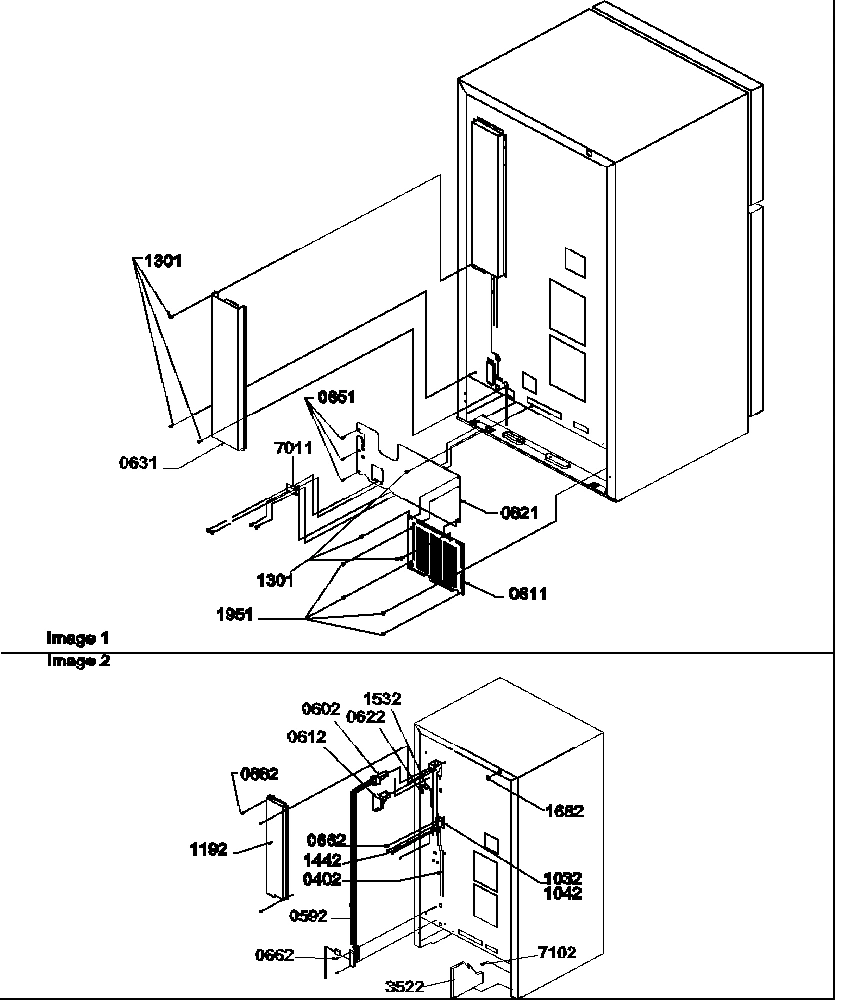

01 - CABINET BACK

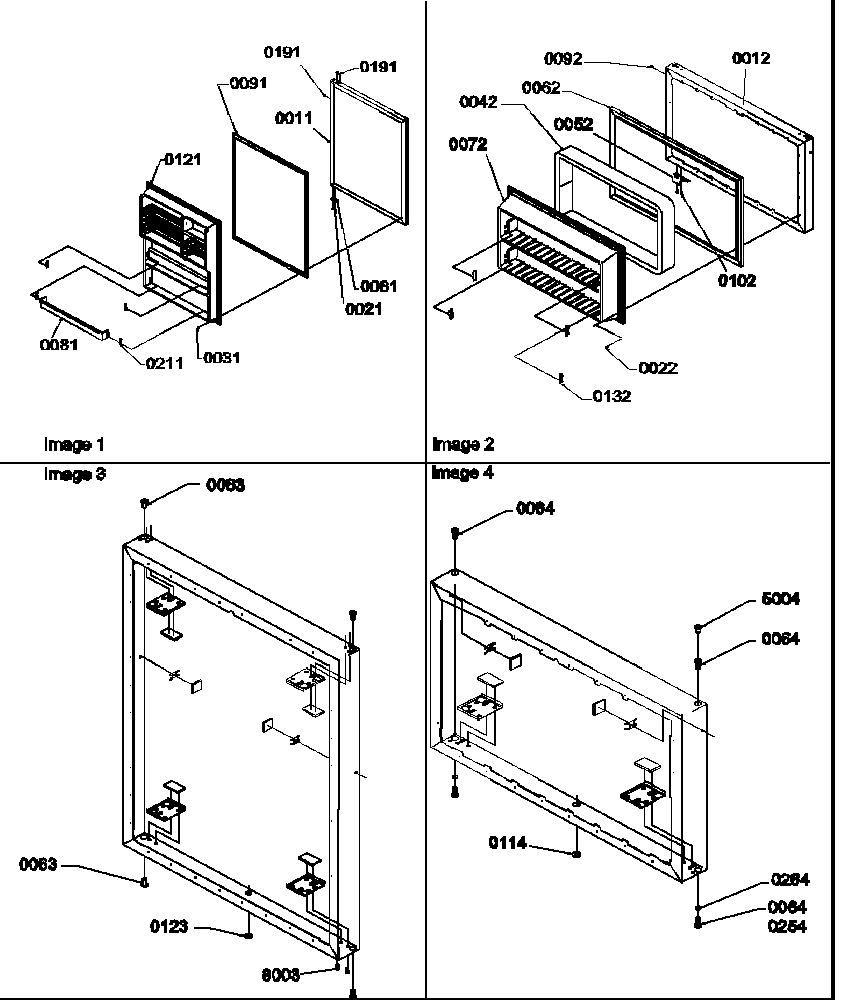

02 - DOOR ASSEMBLIES

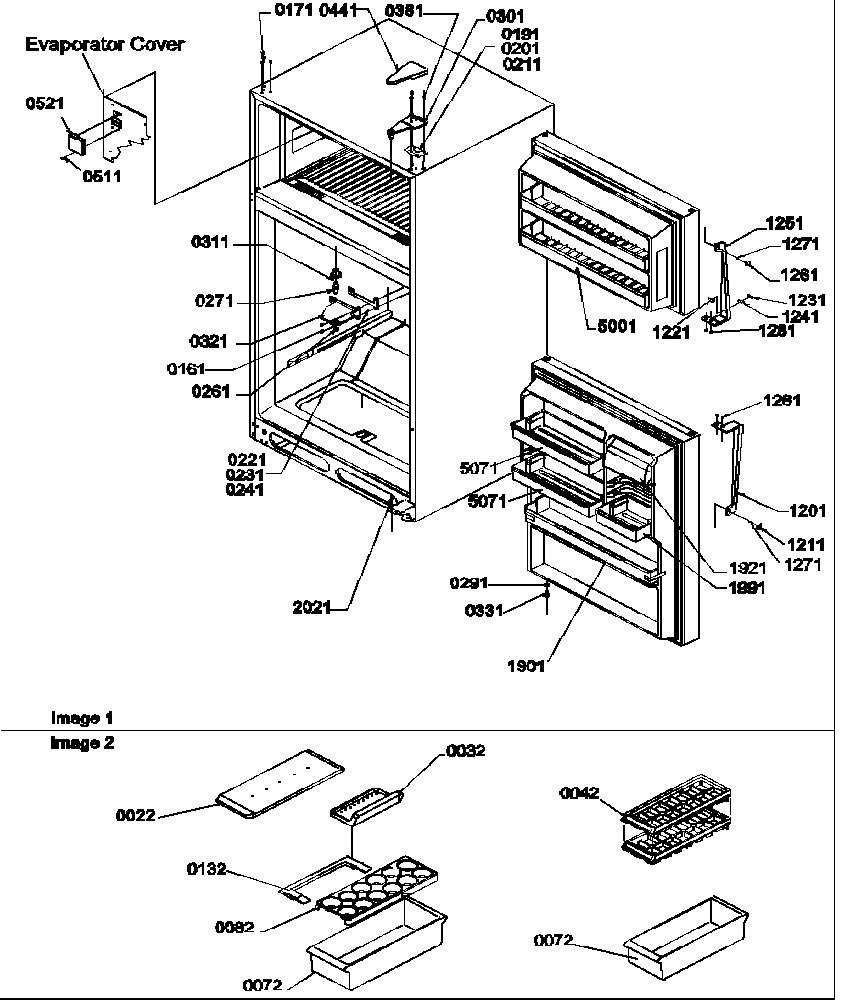

03 - DOOR, HINGES AND ACCESSORIES

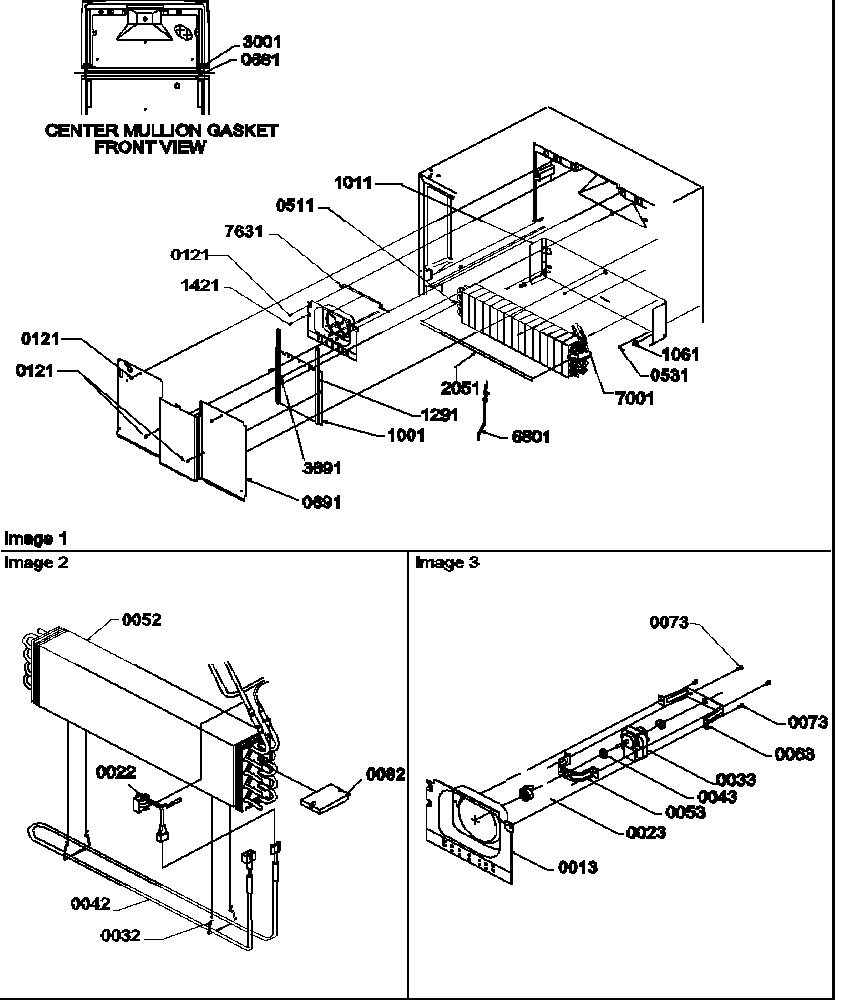

04 - EVAP AND FAN MOTOR ASSEMBLIES

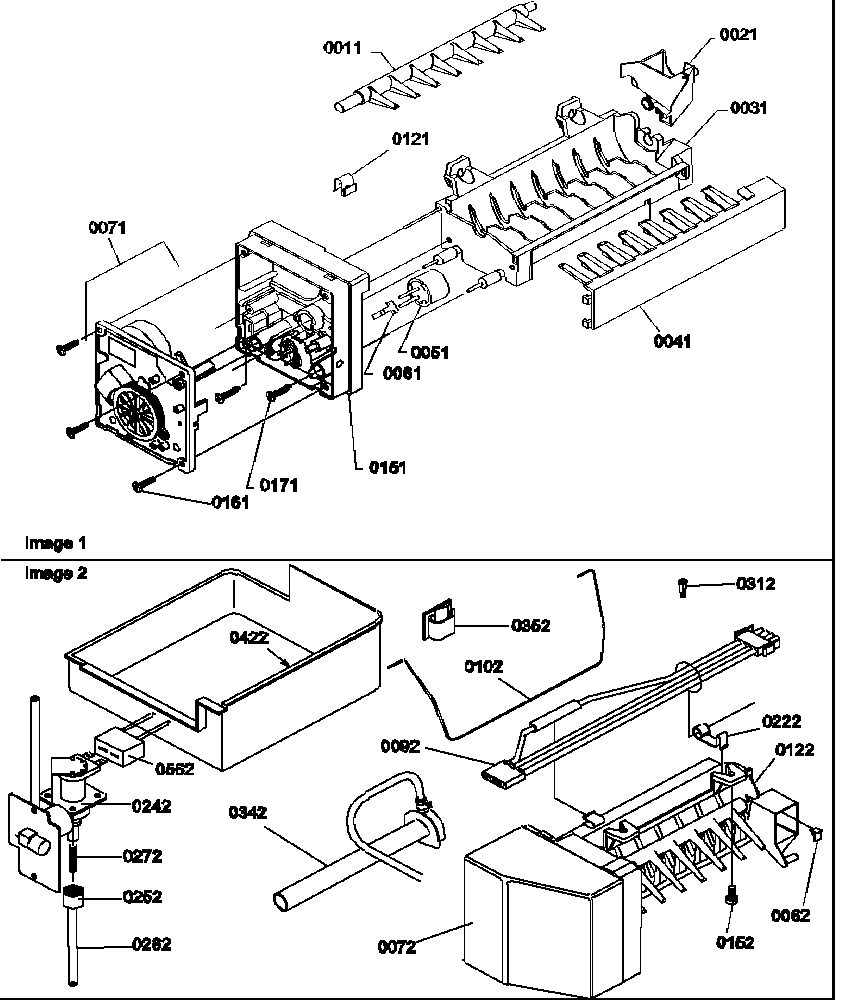

05 - ICE MAKER ASSY AND PARTS

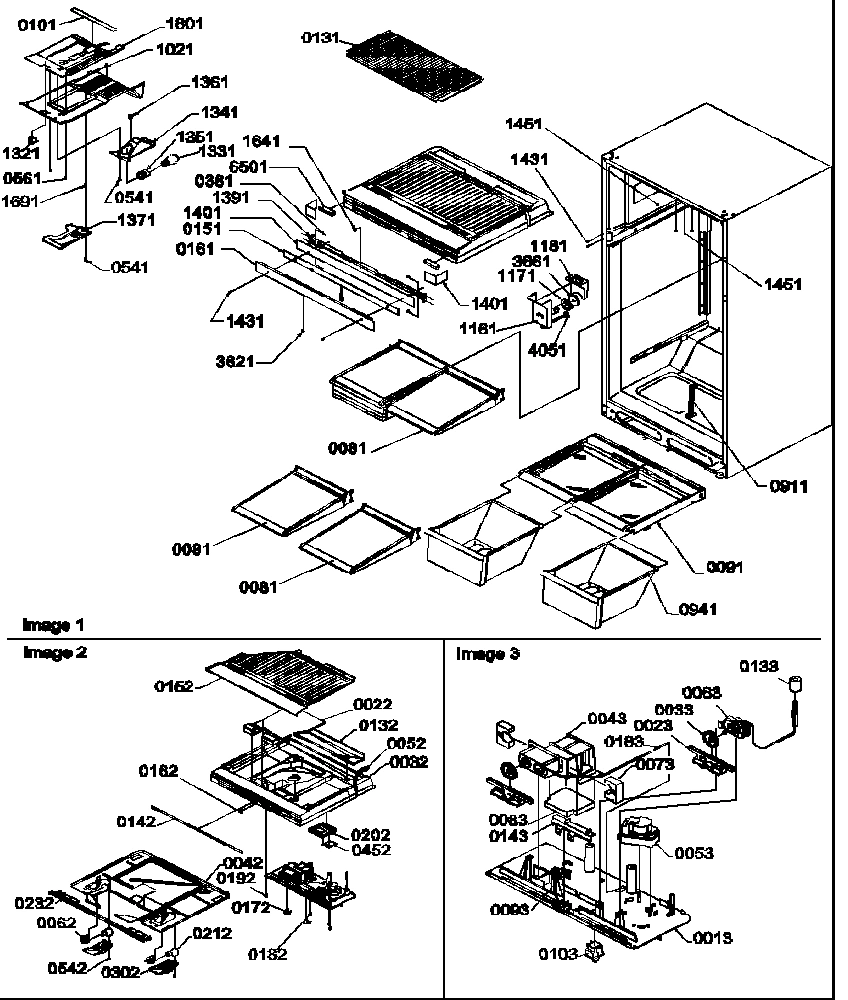

06 - INTERIOR CABINET AND DRAIN BLOCK ASSY

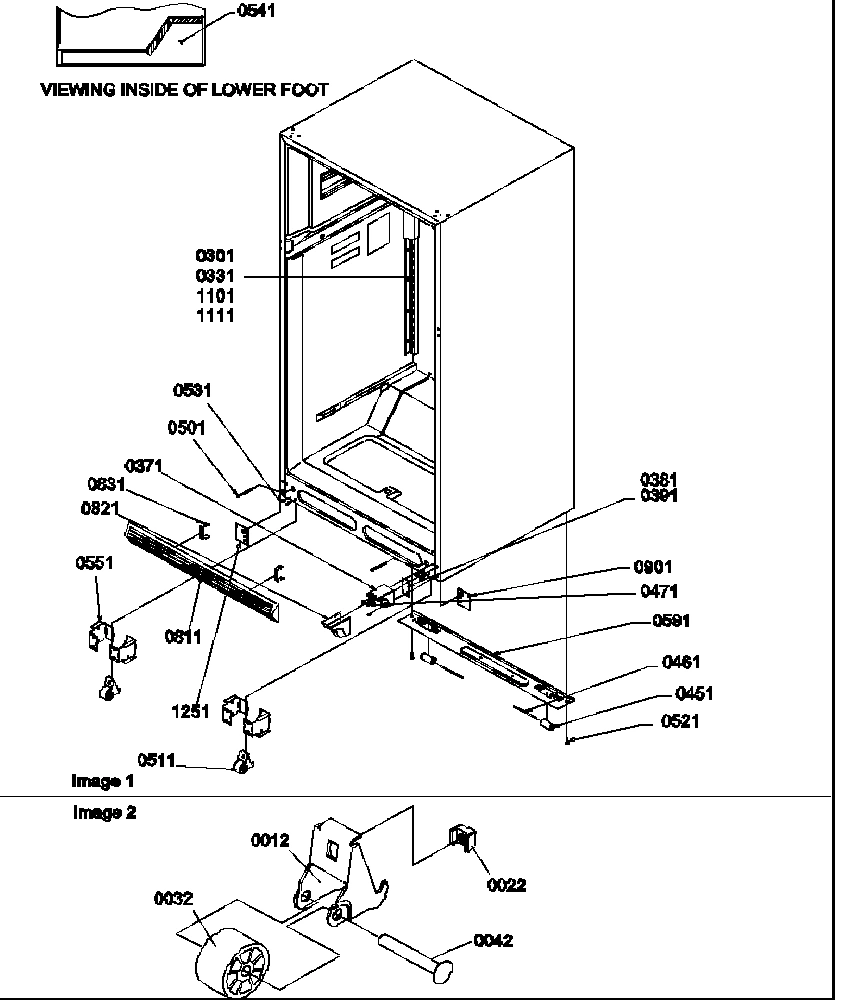

07 - LADDERS, LOWER CABINET AND ROLLERS

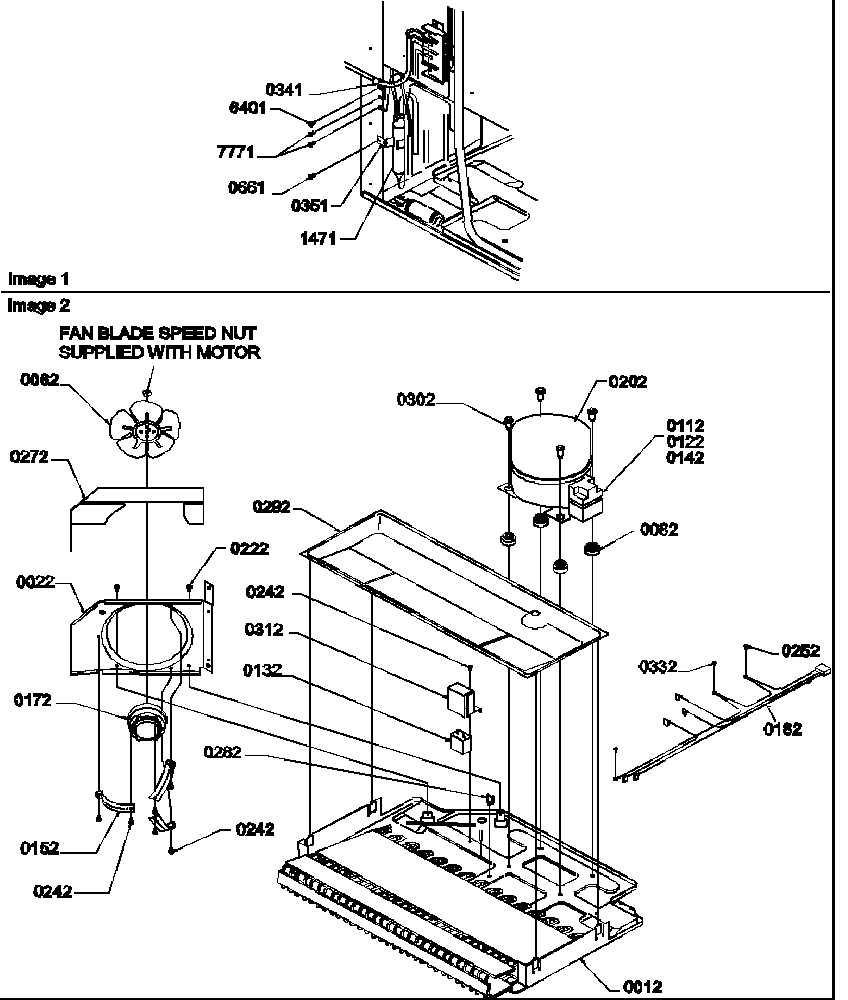

08 - MACHINE COMPARTMENT

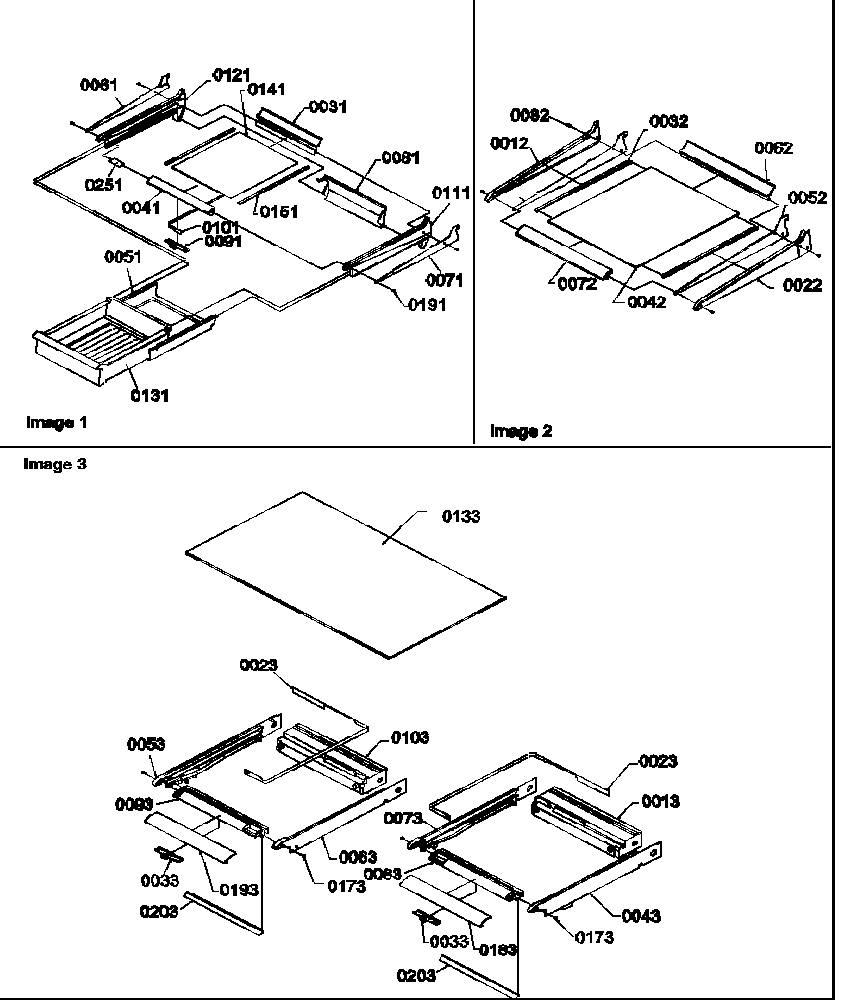

09 - SHELVING ASSEMBLIES
Common parts from model Maytag TX21VL REFRIGERATOR
11
MAY 10925405L MAY 10925405L Contact Us For Availability
11
MAY R0183119 MAY R0183119 Contact Us For Availability
12
MAY 10925613L MAY 10925613L Contact Us For Availability
12
MAY 10514801 MAY 10514801 Contact Us For Availability
12
MAY 10481210 MAY 10481210 Contact Us For Availability
12
MAY 10436603 MAY 10436603 Contact Us For Availability
13
MAY 10422304 MAY 10422304 Contact Us For Availability
13
MAY 12035101 MAY 12035101 Contact Us For Availability
13
MAY 10433804 MAY 10433804 Contact Us For Availability
21
MAY R0156839 MAY R0156839 Contact Us For Availability
22
MAY 10436404 MAY 10436404 Contact Us For Availability
22
MAY 10442408 MAY 10442408 Contact Us For Availability
22
MAY 10476402 MAY 10476402 Contact Us For Availability
22
MAY M0286708 MAY M0286708 Contact Us For Availability
22
MAY 10426911 MAY 10426911 Contact Us For Availability
22
MAY 10436604 MAY 10436604 Contact Us For Availability
23
MAY 10855401 MAY 10855401 Contact Us For Availability
23
MAY 10439601 MAY 10439601 Contact Us For Availability
23
MAY 10467804 MAY 10467804 Contact Us For Availability
31
MAY M0219730 MAY M0219730 Contact Us For Availability
31
MAY 10451404 MAY 10451404 Contact Us For Availability
32
MAY 10310901 MAY 10310901 Contact Us For Availability
32
MAY 10996101 MAY 10996101 Contact Us For Availability
32
MAY 10450602 MAY 10450602 Contact Us For Availability
33
MAY 10449501 MAY 10449501 Contact Us For Availability
33
MAY 10442601 MAY 10442601 Contact Us For Availability
33
MAY 10797501 MAY 10797501 Contact Us For Availability
41
MAY R0183120 MAY R0183120 Contact Us For Availability
41
MAY 10450321 MAY 10450321 Contact Us For Availability
42
MAY B0523593 MAY B0523593 Contact Us For Availability
42
ICE TRAY MAY D7725402 Contact Us For Availability
42
MAY 10991106 MAY 10991106 Contact Us For Availability
42
MAY 12035216 MAY 12035216 Contact Us For Availability
42
MAY M1205302 MAY M1205302 Contact Us For Availability
43
MAY A1017202 MAY A1017202 Contact Us For Availability
43
MAY R0161072 MAY R0161072 Contact Us For Availability
43
MAY 10432701 MAY 10432701 Contact Us For Availability
51
MAY 10437304 MAY 10437304 Contact Us For Availability
52
MAY R0170068 MAY R0170068 Contact Us For Availability
52
MAY 10573504 MAY 10573504 Contact Us For Availability
53
MAY 10492801 MAY 10492801 Contact Us For Availability
53
MAY 10428601 MAY 10428601 Contact Us For Availability
53
MAY 10432702 MAY 10432702 Contact Us For Availability
61
MAY 10447107 MAY 10447107 Contact Us For Availability
61
MAY R0191094 MAY R0191094 Contact Us For Availability
61
MAY 10681403 MAY 10681403 Contact Us For Availability
62
MAY 10456834 MAY 10456834 Contact Us For Availability
62
MAY B5720302 MAY B5720302 Contact Us For Availability
62
MAY B5742604 MAY B5742604 Contact Us For Availability
62
MAY 10436905 MAY 10436905 Contact Us For Availability
63
MAY 10492701 MAY 10492701 Contact Us For Availability
63
MAY R9700005 MAY R9700005 Contact Us For Availability
63
MAY 10432803 MAY 10432803 Contact Us For Availability
64
MAY 10961001 MAY 10961001 Contact Us For Availability
71
SEE NOTE MODULE AND MOTOR ASSEMBLY -- (ORDER MAY Y00000000 Contact Us For Availability
71
MAY 10681402 MAY 10681402 Contact Us For Availability
72
MAY 10415501 MAY 10415501 Contact Us For Availability
72
MAY 10423129 MAY 10423129 Contact Us For Availability
72
MAY 10519801 MAY 10519801 Contact Us For Availability
72
MAY 10436817 MAY 10436817 Contact Us For Availability
73
MAY 10442801 MAY 10442801 Contact Us For Availability
73
MAY 10432804 MAY 10432804 Contact Us For Availability
81
MAY 10480715 MAY 10480715 Contact Us For Availability
81
MAY 10445701 MAY 10445701 Contact Us For Availability
82
MAY 10436506 MAY 10436506 Contact Us For Availability
82
MAY 10991002 MAY 10991002 Contact Us For Availability
82
GROMMET, COMPRESSOR MAY 10835901 Contact Us For Availability
83
MAY 10442901 MAY 10442901 Contact Us For Availability
83
MAY 10687801 MAY 10687801 Contact Us For Availability
91
MAY 10456833 MAY 10456833 Contact Us For Availability
91
MAY 10698539 MAY 10698539 Contact Us For Availability
91
MAY 10588201 MAY 10588201 Contact Us For Availability
92
MAY D7813004 MAY D7813004 Contact Us For Availability
93
MAY M0350201 MAY M0350201 Contact Us For Availability
93
MAY 10687802 MAY 10687802 Contact Us For Availability
101
MAY B8386613 MAY B8386613 Contact Us For Availability
101
MAY 10454004 MAY 10454004 Contact Us For Availability
102
MAY 10884401 MAY 10884401 Contact Us For Availability
103
MAY 10435604 MAY 10435604 Contact Us For Availability
111
MAY 10417301 MAY 10417301 Contact Us For Availability
112
MAY 10377015 MAY 10377015 Contact Us For Availability
121
MAY 10440804 MAY 10440804 Contact Us For Availability
121
MAY 10319801 MAY 10319801 Contact Us For Availability
121
MAY 10432101 MAY 10432101 Contact Us For Availability
122
MAY D7824705 MAY D7824705 Contact Us For Availability
122
MAY 10097202 MAY 10097202 Contact Us For Availability
123
MAY M0310338 MAY M0310338 Contact Us For Availability
131
MAY Y10440002 MAY Y10440002 Contact Us For Availability
131
MAY 10417013 MAY 10417013 Contact Us For Availability
132
MAY 12106902 MAY 12106902 Contact Us For Availability
132
MAY 10435913 MAY 10435913 Contact Us For Availability
132
MAY C8931604 MAY C8931604 Contact Us For Availability
133
MAY 10673602 MAY 10673602 Contact Us For Availability
133
MAY 10370012 MAY 10370012 Contact Us For Availability
141
MAY 10370010 MAY 10370010 Contact Us For Availability
142
MAY 10450833 MAY 10450833 Contact Us For Availability
142
MAY 10757301 MAY 10757301 Contact Us For Availability
143
MAY 10565101 MAY 10565101 Contact Us For Availability
151
MAY R0183121 MAY R0183121 Contact Us For Availability
151
MAY 10543602 MAY 10543602 Contact Us For Availability
151
MAY 10562504 MAY 10562504 Contact Us For Availability
152
MAY 10995004 MAY 10995004 Contact Us For Availability
152
MAY 10582501 MAY 10582501 Contact Us For Availability
161
MAY M0226233 MAY M0226233 Contact Us For Availability
161
MAY R0186041 MAY R0186041 Contact Us For Availability
161
MAY 10433344 MAY 10433344 Contact Us For Availability
162
MAY 10453001 MAY 10453001 Contact Us For Availability
171
MAY M0310716 MAY M0310716 Contact Us For Availability
171
MAY R0186040 MAY R0186040 Contact Us For Availability
172
MAY 10565401 MAY 10565401 Contact Us For Availability
172
MAY 10884501 MAY 10884501 Contact Us For Availability
173
MAY M0237932 MAY M0237932 Contact Us For Availability
182
MAY M0238616 MAY M0238616 Contact Us For Availability
182
MAY 10705803 MAY 10705803 Contact Us For Availability
183
MAY A3012543 MAY A3012543 Contact Us For Availability
183
MAY 10688055 MAY 10688055 Contact Us For Availability
191
MAY M0211533 MAY M0211533 Contact Us For Availability
191
MAY 10448501 MAY 10448501 Contact Us For Availability
192
MAY M0224128 MAY M0224128 Contact Us For Availability
193
MAY 10688054 MAY 10688054 Contact Us For Availability
201
MAY 10448502 MAY 10448502 Contact Us For Availability
202
MAY 10995201 MAY 10995201 Contact Us For Availability
202
MAY 12049707 MAY 12049707 Contact Us For Availability
203
MAY 10530204 MAY 10530204 Contact Us For Availability
211
MAY 10202001 MAY 10202001 Contact Us For Availability
211
MAY 10448503 MAY 10448503 Contact Us For Availability
221
MAY 10562201 MAY 10562201 Contact Us For Availability
222
MAY M0224416 MAY M0224416 Contact Us For Availability
222
MAY 10526701 MAY 10526701 Contact Us For Availability
231
MAY 10562202 MAY 10562202 Contact Us For Availability
232
MAY 10435512 MAY 10435512 Contact Us For Availability
241
MAY 10562203 MAY 10562203 Contact Us For Availability
242
MAY 10524606 MAY 10524606 Contact Us For Availability
242
MAY M0223816 MAY M0223816 Contact Us For Availability
251
MAY 12019301 MAY 12019301 Contact Us For Availability
252
NUT, SLEEVE MAY M0753001 Contact Us For Availability
252
MAY M0231604 MAY M0231604 Contact Us For Availability
254
MAY 12028601 MAY 12028601 Contact Us For Availability
261
SHIM, NON METAL (WHT) MAY M0274057 Contact Us For Availability
264
MAY 10252903 MAY 10252903 Contact Us For Availability
271
MAY 10351002 MAY 10351002 Contact Us For Availability
272
MAY A1055101 MAY A1055101 Contact Us For Availability
272
MAY 10442702 MAY 10442702 Contact Us For Availability
282
MAY B5705308 MAY B5705308 Contact Us For Availability
282
MAY B5667304 MAY B5667304 Contact Us For Availability
291
MAY M0274058 MAY M0274058 Contact Us For Availability
292
MAY 10427405 MAY 10427405 Contact Us For Availability
301
MAY 12077303 MAY 12077303 Contact Us For Availability
301
SCREW, SM MAY M0238642 Contact Us For Availability
302
MAY 10508701 MAY 10508701 Contact Us For Availability
302
MAY M0221523 MAY M0221523 Contact Us For Availability
311
MAY 12028501 MAY 12028501 Contact Us For Availability
312
INSERT, PLASTIC TUBE MAY A3223101 Contact Us For Availability
312
MAY 10266402 MAY 10266402 Contact Us For Availability
321
MAY 10433412 MAY 10433412 Contact Us For Availability
331
MAY 10200801 MAY 10200801 Contact Us For Availability
331
MAY D7599105 MAY D7599105 Contact Us For Availability
332
MAY M0232903 MAY M0232903 Contact Us For Availability
341
MAY M0103904 MAY M0103904 Contact Us For Availability
342
ELBOW, FILL TUBE MAY 10463201 Contact Us For Availability
351
MAY 10547001 MAY 10547001 Contact Us For Availability
371
MAY 10433209 MAY 10433209 Contact Us For Availability
381
MAY M0238731 MAY M0238731 Contact Us For Availability
381
MAY 10447904 MAY 10447904 Contact Us For Availability
391
MAY 10447903 MAY 10447903 Contact Us For Availability
422
MAY 10476201 MAY 10476201 Contact Us For Availability
441
MAY 10444706 MAY 10444706 Contact Us For Availability
451
MAY 10450701 MAY 10450701 Contact Us For Availability
452
MAY 10594901 MAY 10594901 Contact Us For Availability
461
MAY 10450901 MAY 10450901 Contact Us For Availability
471
MAY M0233847 MAY M0233847 Contact Us For Availability
501
MAY M0204338 MAY M0204338 Contact Us For Availability
511
MAY 10428301 MAY 10428301 Contact Us For Availability
511
MAY 10476101 MAY 10476101 Contact Us For Availability
521
MAY D7874403 MAY D7874403 Contact Us For Availability
521
MAY M0260242 MAY M0260242 Contact Us For Availability
531
MAY M0211031 MAY M0211031 Contact Us For Availability
541
MAY 10663001 MAY 10663001 Contact Us For Availability
542
MAY M0216716 MAY M0216716 Contact Us For Availability
551
MAY 10427204 MAY 10427204 Contact Us For Availability
561
MAY M0211018 MAY M0211018 Contact Us For Availability
562
MAY 10525901 MAY 10525901 Contact Us For Availability
591
MAY 10427112 MAY 10427112 Contact Us For Availability
611
MAY 12039806 MAY 12039806 Contact Us For Availability
612
MAY 10428001 MAY 10428001 Contact Us For Availability
621
MAY 12041821 MAY 12041821 Contact Us For Availability
622
MAY 10916502 MAY 10916502 Contact Us For Availability
661
MAY M0227217 MAY M0227217 Contact Us For Availability
681
MAY 10685508 MAY 10685508 Contact Us For Availability
691
MAY 10432406 MAY 10432406 Contact Us For Availability
811
MAY 10474810 MAY 10474810 Contact Us For Availability
821
MAY 10462805 MAY 10462805 Contact Us For Availability
831
MAY 10551502 MAY 10551502 Contact Us For Availability
901
MAY 10567205 MAY 10567205 Contact Us For Availability
911
MAY 10461901 MAY 10461901 Contact Us For Availability
941
MAY Y10430111 MAY Y10430111 Contact Us For Availability
1001
MAY 10440714 MAY 10440714 Contact Us For Availability
1011
MAY 10427712 MAY 10427712 Contact Us For Availability
1021
MAY 10440403 MAY 10440403 Contact Us For Availability
1032
MAY 10163201 MAY 10163201 Contact Us For Availability
1042
MAY A3132301 MAY A3132301 Contact Us For Availability
1061
MAY 10442301 MAY 10442301 Contact Us For Availability
1101
MAY D7599002 MAY D7599002 Contact Us For Availability
1111
MAY M0238636 MAY M0238636 Contact Us For Availability
1161
MAY 10642103 MAY 10642103 Contact Us For Availability
1171
MAY 10479401 MAY 10479401 Contact Us For Availability
1181
MAY 10479103 MAY 10479103 Contact Us For Availability
1192
MAY 10442205 MAY 10442205 Contact Us For Availability
1201
MAY 10253523 MAY 10253523 Contact Us For Availability
1211
MAY 10201812 MAY 10201812 Contact Us For Availability
1221
MAY 10184306 MAY 10184306 Contact Us For Availability
1231
MAY 10184401 MAY 10184401 Contact Us For Availability
1241
MAY 10184501 MAY 10184501 Contact Us For Availability
1251
MAY 10253524 MAY 10253524 Contact Us For Availability
1251
MAY 10567206 MAY 10567206 Contact Us For Availability
1261
MAY 10201811 MAY 10201811 Contact Us For Availability
1281
MAY M0221718 MAY M0221718 Contact Us For Availability
1291
MAY A3030356 MAY A3030356 Contact Us For Availability
1321
MAY C3680308 MAY C3680308 Contact Us For Availability
1331
MAY A0282803 MAY A0282803 Contact Us For Availability
1341
MAY C8730103 MAY C8730103 Contact Us For Availability
1351
MAY D7714406 MAY D7714406 Contact Us For Availability
1361
MAY B5733302 MAY B5733302 Contact Us For Availability
1371
MAY 10678401 MAY 10678401 Contact Us For Availability
1391
MAY 10433611 MAY 10433611 Contact Us For Availability
1401
MAY B0523584 MAY B0523584 Contact Us For Availability
1431
MAY M0310730 MAY M0310730 Contact Us For Availability
1442
MAY B8372901 MAY B8372901 Contact Us For Availability
1451
MAY M0311605 MAY M0311605 Contact Us For Availability
1471
DRIER MAY B2150504 Contact Us For Availability
1641
MAY M0253916 MAY M0253916 Contact Us For Availability
1682
MAY 10544301 MAY 10544301 Contact Us For Availability
1691
MAY M0580007 MAY M0580007 Contact Us For Availability
1801
MAY 10779601 MAY 10779601 Contact Us For Availability
1901
MAY 10183114 MAY 10183114 Contact Us For Availability
1921
MAY 10423416 MAY 10423416 Contact Us For Availability
1991
MAY 10502906 MAY 10502906 Contact Us For Availability
2051
MAY A3189348 MAY A3189348 Contact Us For Availability
3001
MAY B5759626 MAY B5759626 Contact Us For Availability
3522
MAY 10663002 MAY 10663002 Contact Us For Availability
3621
MAY M0211520 MAY M0211520 Contact Us For Availability
3661
MAY 12411301 MAY 12411301 Contact Us For Availability
4051
MAY 10852401 MAY 10852401 Contact Us For Availability
5001
MAY 10419007 MAY 10419007 Contact Us For Availability
5004
MAY 10686402 MAY 10686402 Contact Us For Availability
5071
MAY 10416906 MAY 10416906 Contact Us For Availability
6501
MAY 10772301 MAY 10772301 Contact Us For Availability
6801
MAY 10586601 MAY 10586601 Contact Us For Availability
7001
MAY M0321210 MAY M0321210 Contact Us For Availability
7011
MAY 12047201 MAY 12047201 Contact Us For Availability
7102
MAY B5720303 MAY B5720303 Contact Us For Availability
7631
MAY A3030354 MAY A3030354 Contact Us For Availability
7771
MAY M0239216 MAY M0239216 Contact Us For Availability
NI
MAY 10244904 MAY 10244904 Contact Us For Availability
NI
MAY 10527028 MAY 10527028 Contact Us For Availability
NI
MAY 10834701 MAY 10834701 Contact Us For Availability
NI
MAY A3036901 MAY A3036901 Contact Us For Availability
NI
MAY A3124301 MAY A3124301 Contact Us For Availability
NI
MAY M0114003 MAY M0114003 Contact Us For Availability
NI
MAY M0311301 MAY M0311301 Contact Us For Availability
NI
MAY 10573401 MAY 10573401 Contact Us For Availability
× ![]()
