Model Whirlpool TVF15FRJW00 VERTICAL FREEZER – Common Parts & Diagrams
01 - CABINET, LITERATURE
02 - LINER

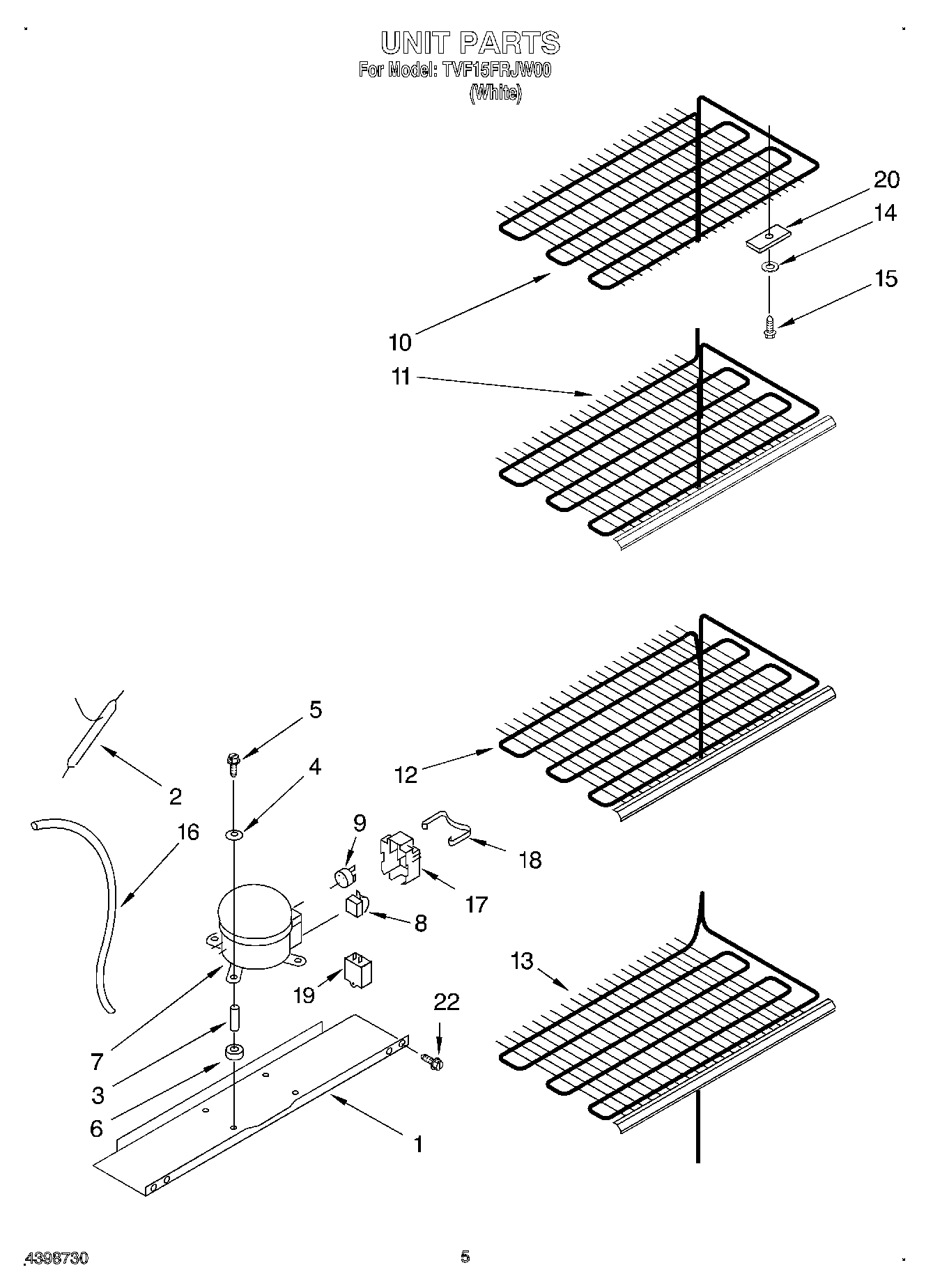

03 - UNIT

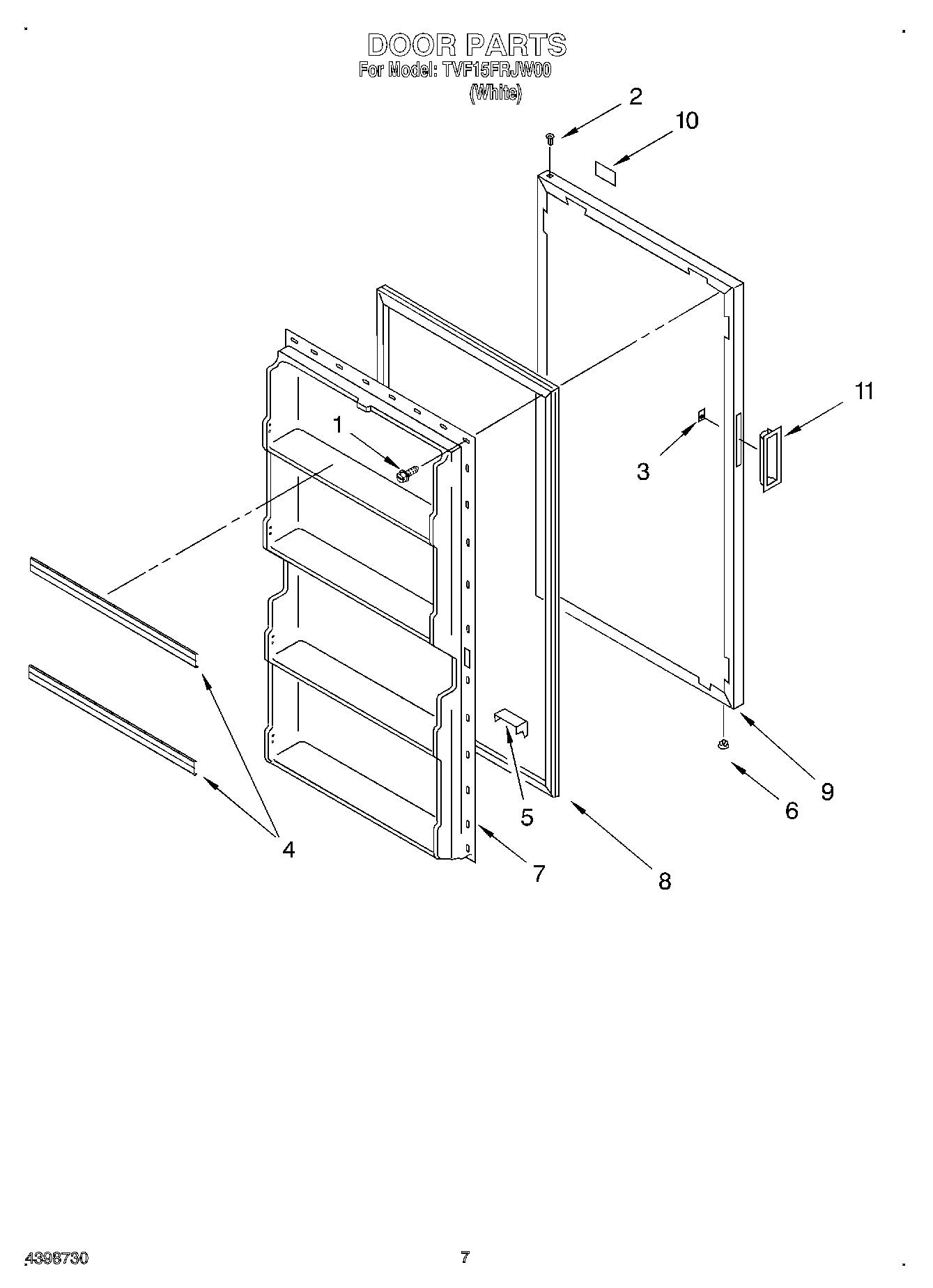

04 - DOOR
Common parts from model Whirlpool TVF15FRJW00 VERTICAL FREEZER
1
Liner (Not A Serviceable Part) WPL ARI134137A Contact Us For Availability
1
Compressor Mounting Pan WPL 4357087 Contact Us For Availability
2
Control Knob WPL 4357292 Contact Us For Availability
3
Clip, Handle WPL 4356306 Contact Us For Availability
4
Thermostat WPL 4356808 Contact Us For Availability
4
Washer WPL 4356847 Contact Us For Availability
4
Door Shelf Trim (4) WPL 4390608 Contact Us For Availability
5
Compressor Mounting Screw WPL 4356852 Contact Us For Availability
5
Foam Block WPL 4356893 Contact Us For Availability
6
Compressor Grommet WPL 4356335 Contact Us For Availability
7
Basket WPL 4390621 Contact Us For Availability
7
Interior Door WPL 4390651 Contact Us For Availability
8
Relay WPL 4356730 Contact Us For Availability
9
Exterior Door WPL 4390640 Contact Us For Availability
10
Evaporator Top WPL 4357232 Contact Us For Availability
10
Nameplate WPL 4356705 Contact Us For Availability
11
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
11
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
11
Evaporator Shelf WPL 4357233 Contact Us For Availability
11
Handle WPL 4390641 Contact Us For Availability
12
Drain Plug WPL 4357019 Contact Us For Availability
12
Evaporator Shelf WPL 4357234 Contact Us For Availability
13
Evaporator Shelf WPL 4357235 Contact Us For Availability
15
Grommet, Drain WPL 4357269 Contact Us For Availability
16
Power Cord WPL 4357058 Contact Us For Availability
16
Heat Exchanger WPL 4356990 Contact Us For Availability
17
Cover WPL 4390603 Contact Us For Availability
18
Clip WPL 4390604 Contact Us For Availability
× ![]()
