Model Whirlpool TUD2000W4 DISHWASHER – Common Parts & Diagrams

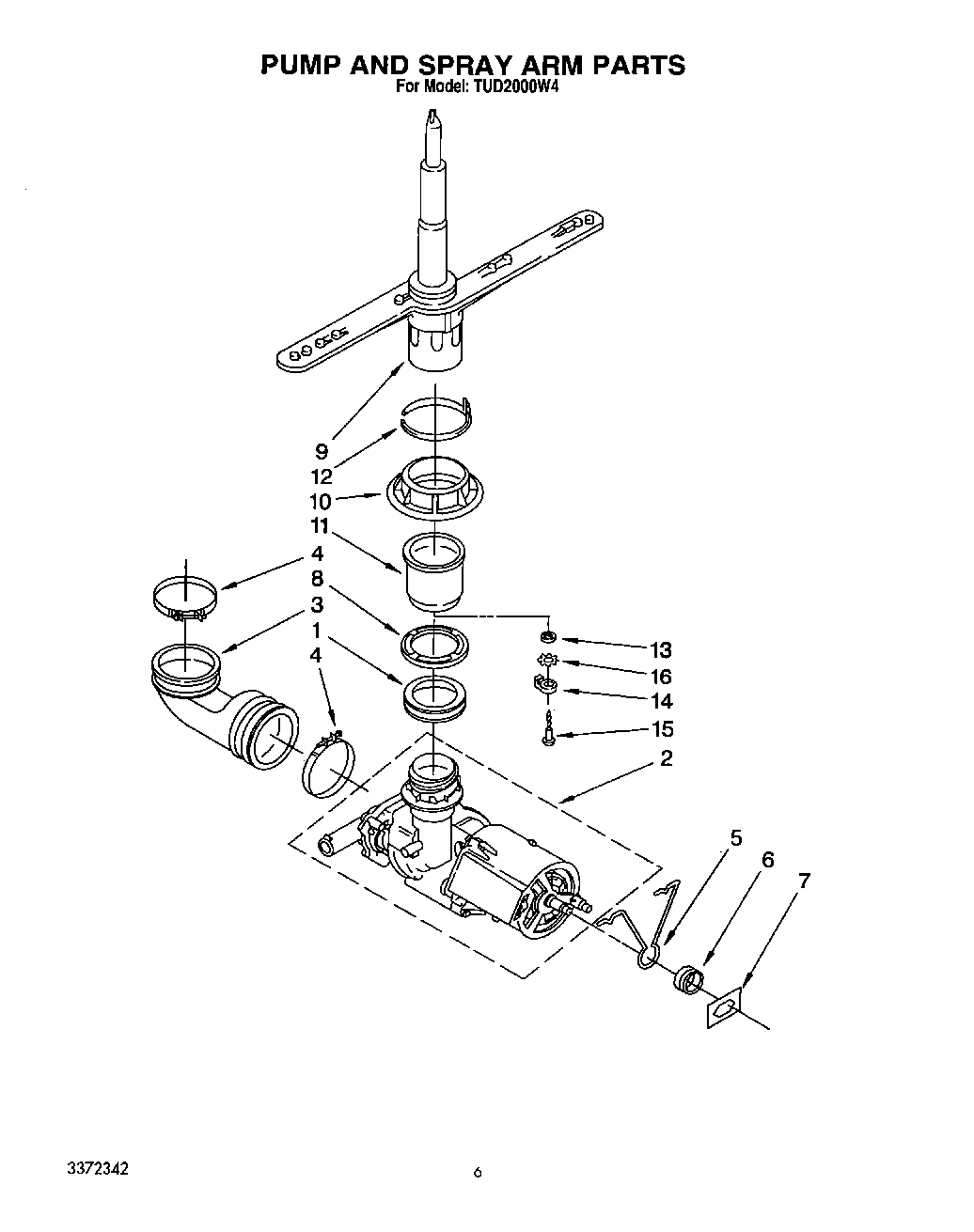

05 - PUMP AND SPRAY ARM

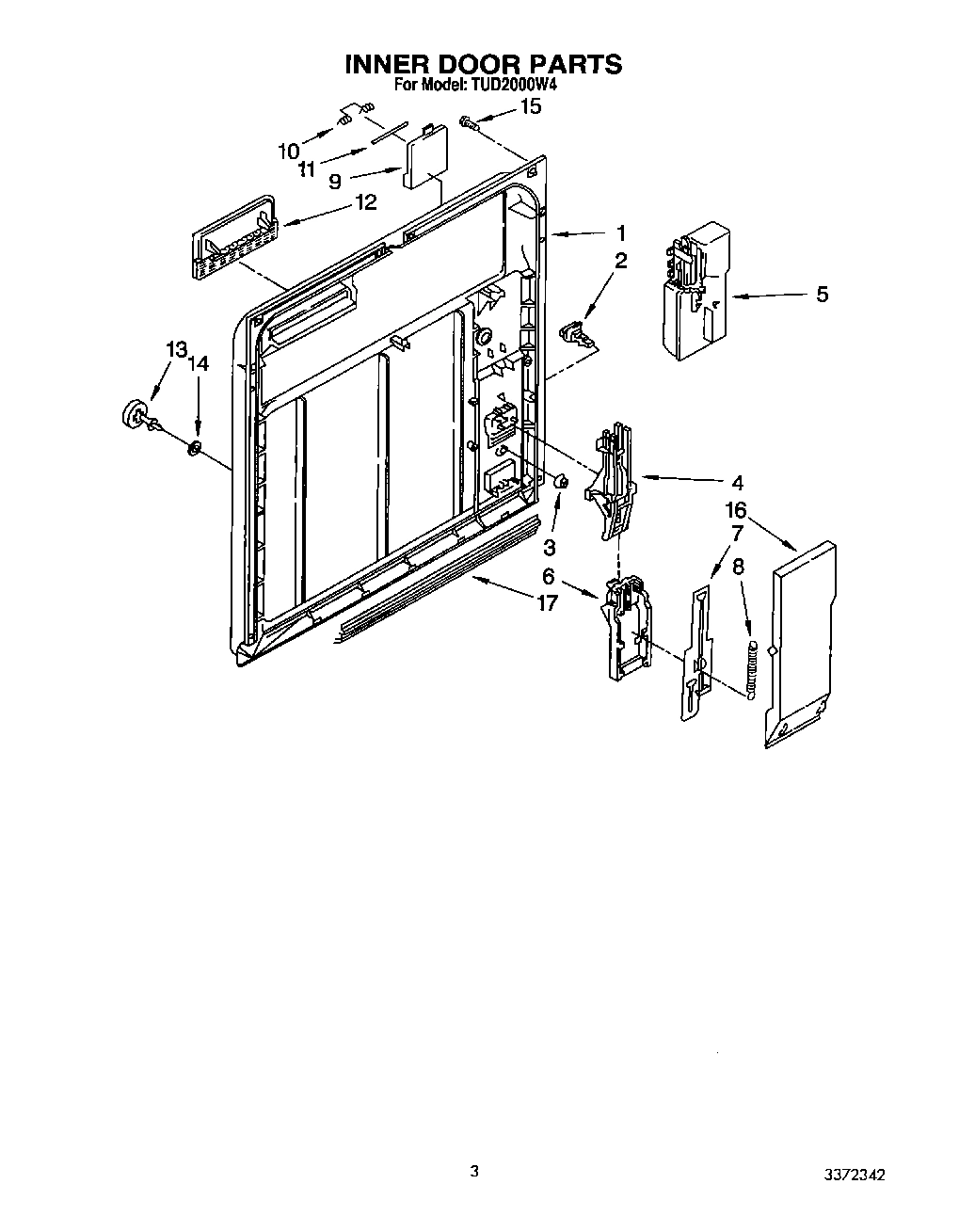

03 - INNER DOOR
04 - TUB ASSEMBLY, LIT/OPTIONAL
06 - PUMP AND MOTOR, MISCELLANEOUS
02 - FRAME AND CONSOLE
07 - DISHRACK
Common parts from model Whirlpool TUD2000W4 DISHWASHER
1
Grommet, Pump Seal WPL 3369037 Contact Us For Availability
1
Miscellaneous Parts Bag (Includes 2 Screws & WPL 3369816 Contact Us For Availability
1
Console (Includes Item 2) WPL 3370378 Contact Us For Availability
2
Insert, Console WPL 3370256 Contact Us For Availability
3
Diaphragm WPL 3369028 Contact Us For Availability
3
Bumper, Dishrack (2) WPL 304490 Contact Us For Availability
4
Ring, Diaphragm WPL 3369029 Contact Us For Availability
4
Follower, Cam WPL 3368997 Contact Us For Availability
5
Cover, Drain Valve WPL 3369030 Contact Us For Availability
5
Timer WPL 3369310 Contact Us For Availability
5
Basket, Silverware WPL 3368966 Contact Us For Availability
6
Draw Bar, (Upper Dispenser) WPL 3369000 Contact Us For Availability
6
Cam WPL 3368996 Contact Us For Availability
6
Track, Dishrack (2) WPL 3369071 Contact Us For Availability
7
Seal Seat WPL 3369020 Contact Us For Availability
7
Stop, Track (2) WPL 3369046 Contact Us For Availability
8
Washer, Grommet WPL 3369038 Contact Us For Availability
8
Door Frame WPL 3368900 Contact Us For Availability
9
Wheel & Axle Assembly (4) WPL 3371581 Contact Us For Availability
10
End Cap, Track (2) WPL 300845 Contact Us For Availability
11
Motor WPL 3372625 Contact Us For Availability
11
Switch, (2) WPL 3369325 Contact Us For Availability
12
Pin, Switch (2) WPL 3368955 Contact Us For Availability
13
Washer WPL 3369044 Contact Us For Availability
13
Harness and Protector WPL 3372247 Contact Us For Availability
16
Cover, Drip WPL 3371569 Contact Us For Availability
16
Washer, Curved WPL 3371634 Contact Us For Availability
16
Cover, Timer WPL 3369192 Contact Us For Availability
17
Knob, Timer WPL 3370254 Contact Us For Availability
18
Spacer, Corrugated WPL 3368979 Contact Us For Availability
19
Front Panel (Almond) WPL 3369851 Contact Us For Availability
20
Retainer, Panel WPL 3370441 Contact Us For Availability
22
Clamp (2) WPL 371499 Contact Us For Availability
27
Shield, Harness WPL 3368983 Contact Us For Availability
28
Spring & Bearing Assembly (2) WPL 3369337 Contact Us For Availability
29
Housing, Float Switch WPL 3369048 Contact Us For Availability
30
Switch, Float WPL 3369067 Contact Us For Availability
31
Cover, Switch Housing WPL 3369049 Contact Us For Availability
33
Nut WPL 717488 Contact Us For Availability
35
Panel, Access WPL 3368936 Contact Us For Availability
37
Hose, Inlet WPL 3369414 Contact Us For Availability
41
Box, Terminal WPL 3370292 Contact Us For Availability
45
Support, Heater WPL 3368987 Contact Us For Availability
46
Screw, 8-18 WPL 3369138 Contact Us For Availability
49
Relief, Strain WPL 3370307 Contact Us For Availability
49
Leveler (Thinner) WPL 350941 Contact Us For Availability
49
SIDE PANEL KITS: (WHITE) WPL 4317925 Contact Us For Availability
49
Side Panel Kits (Avocado) WPL 4317926 Contact Us For Availability
49
Side Panel Kits (Gold) WPL 4317927 Contact Us For Availability
49
Side Panel Kits (Almond) WPL 4317929 Contact Us For Availability
49
Side Panel Kits (Toast) WPL 4317930 Contact Us For Availability
49
Side Panel Kits (Platinum) WPL 4317931 Contact Us For Availability
49
Tine Tip Repair Kit (Blue - Enough For Two Co WPL 675677 Contact Us For Availability
49
WPL 72112 WPL 72112 Contact Us For Availability
49
WPL 799340 WPL 799340 Contact Us For Availability
49
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
