Model Whirlpool TU950QPXB1 TRASH COMPACTOR – Common Parts &amp; Diagrams

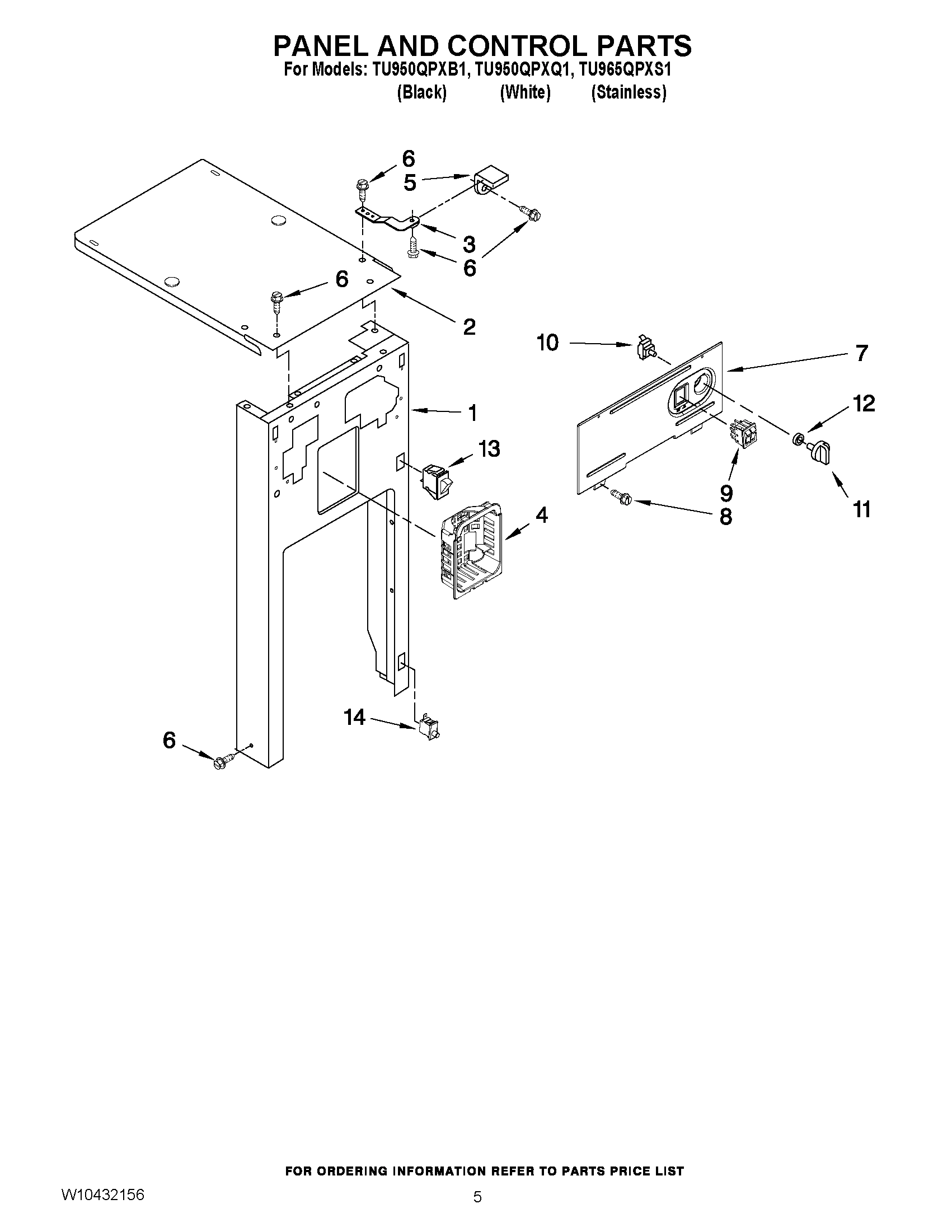

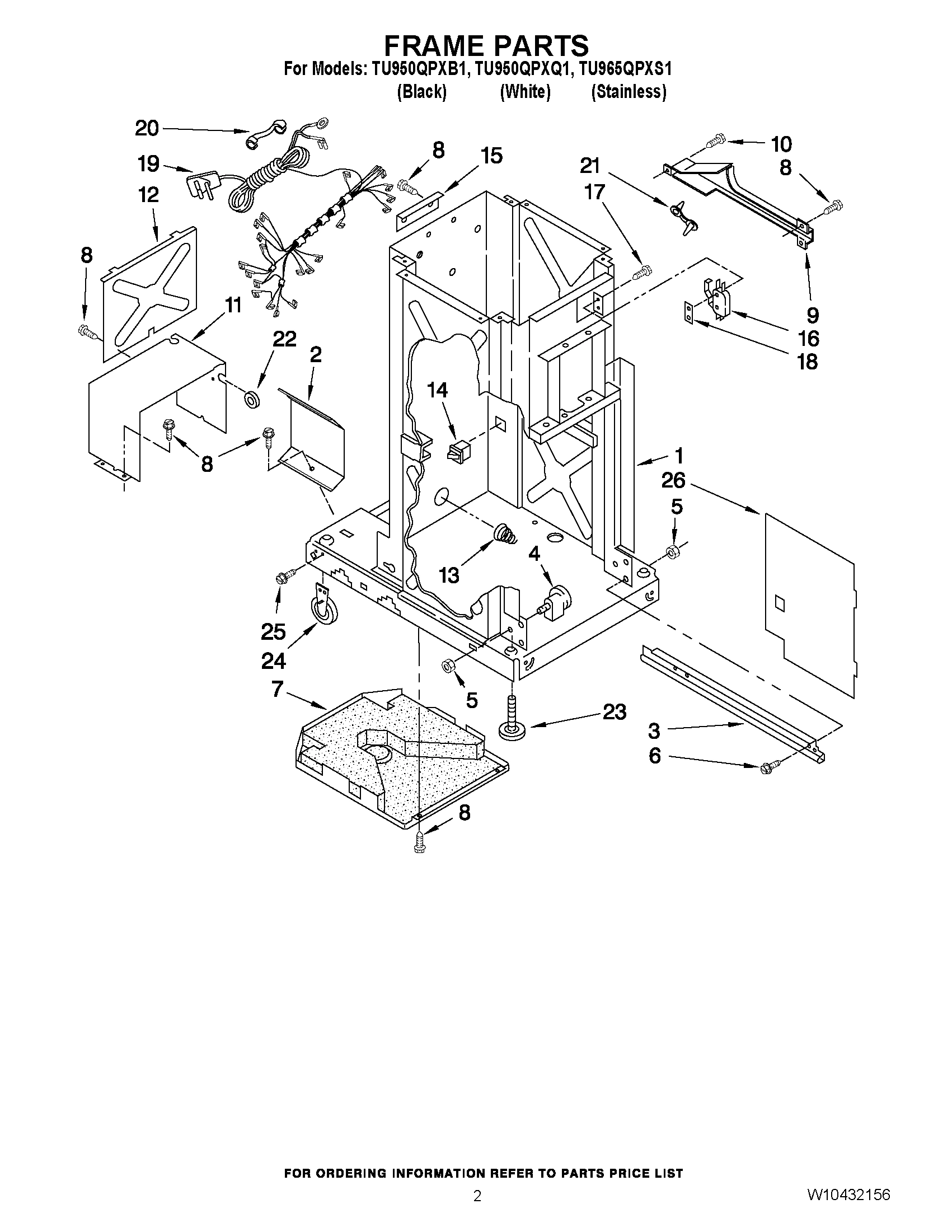

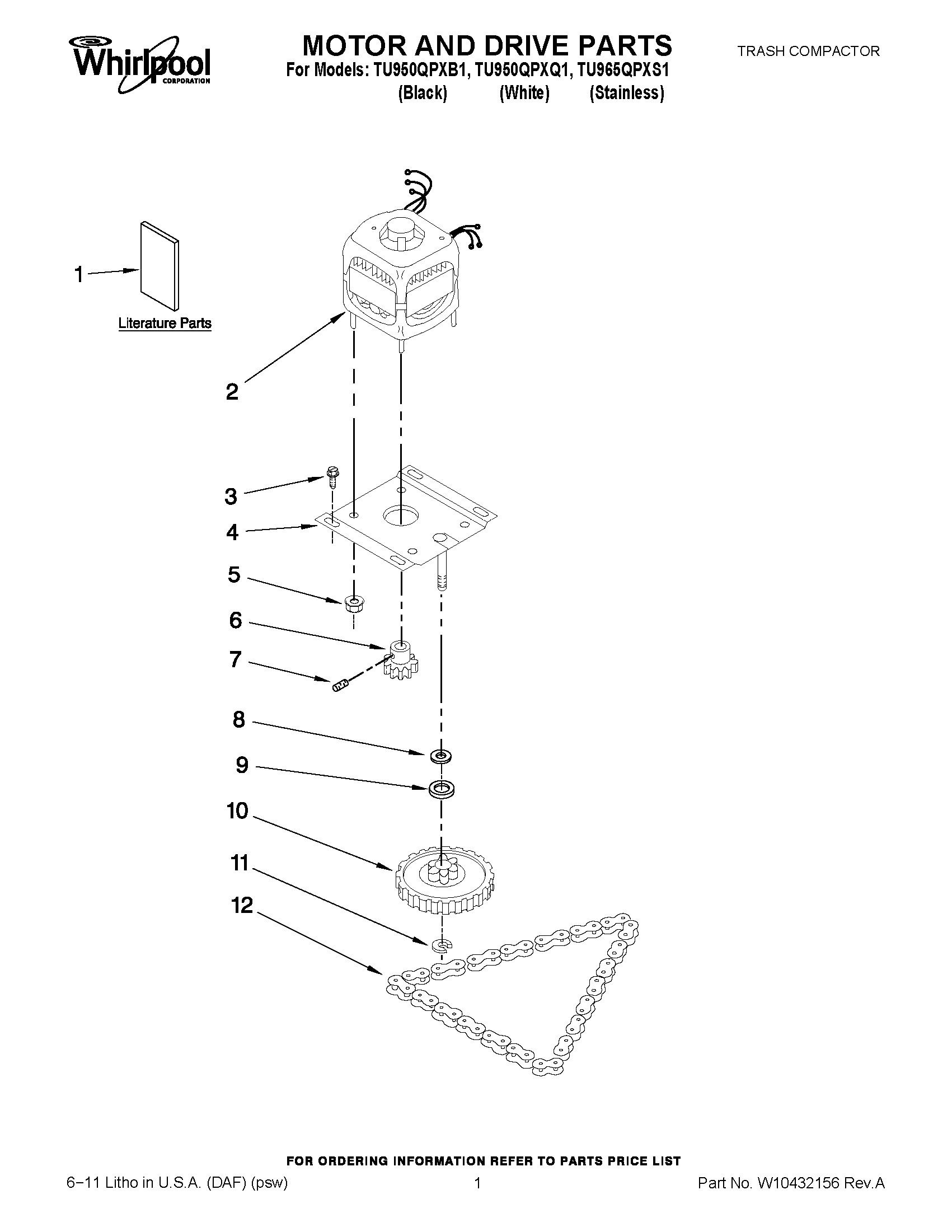

1

Tech Sheet WPL 9871923 Contact Us For Availability

1

GUIDE, USE & CARE WPL W10318827 Contact Us For Availability

1

INSTRUCTION SHEET WPL W10318872 Contact Us For Availability

2

9870867 Whirlpool Shield Backorder WPL 9870867 $8.05

2

W10318906 Whirlpool Drive Motor Backorder WPL W10318906 $201.17

2

Cover, Top WPL 608572 Contact Us For Availability

3

779121 Whirlpool Compactor Plate Backorder WPL 779121 $12.32

3

9872187S Whirlpool Compactor Stainless Steel Backorder WPL 9872187S $335.51

3

W11722978 Whirlpool Slide Backorder WPL W11722978 $51.02

3

W11729437 Whirlpool Retaining Bracket Backorder WPL W11729437 $8.78

3

WP8204624 Whirlpool Bolt Backorder WPL WP8204624 $8.82

3

WP9870975 Whirlpool Compactor Slide Backorder WPL WP9870975 $32.94

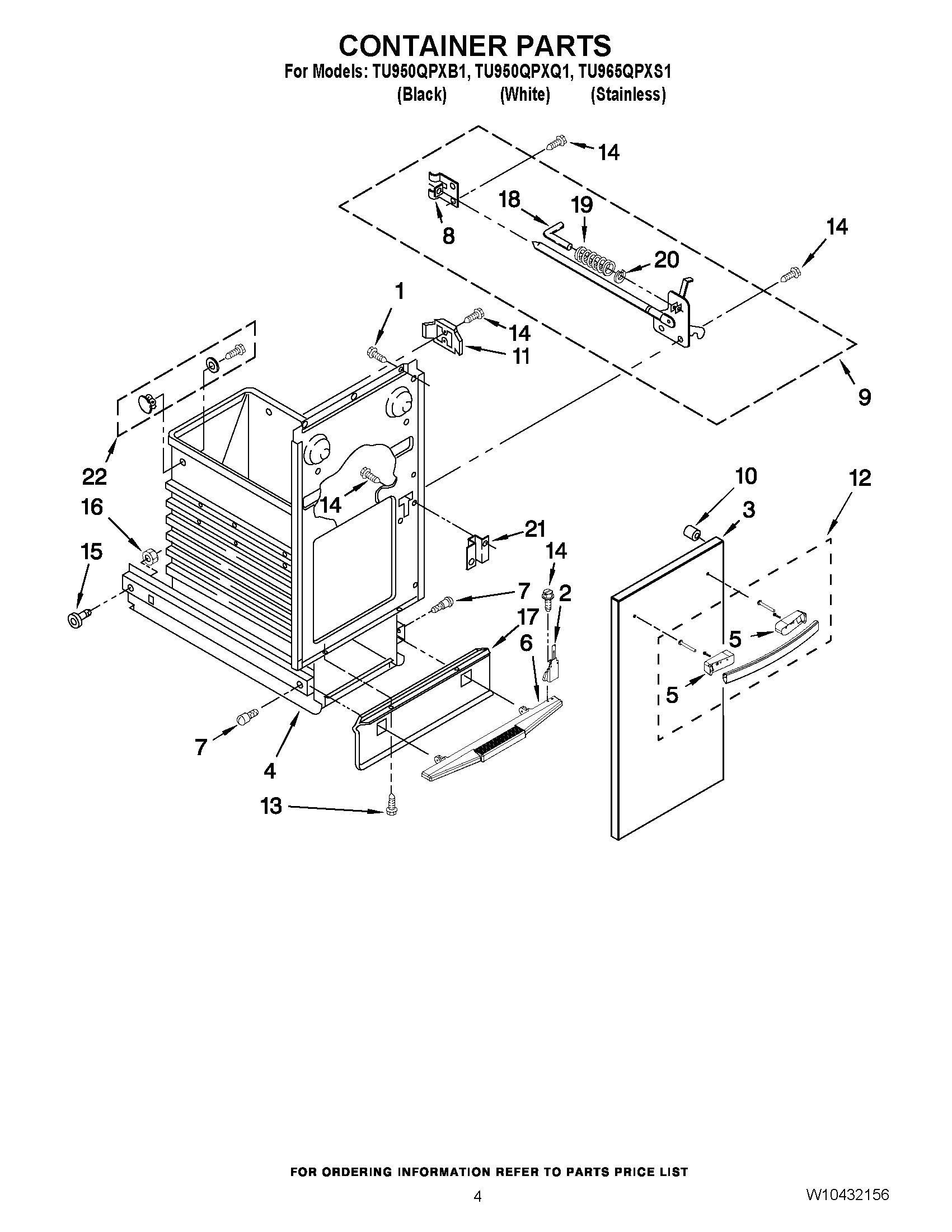

4

776327 Whirlpool Compactor Motor Plate Backorder WPL 776327 $40.88

4

9871066 Whirlpool Compactor Compartment Backorder WPL 9871066 $28.80

4

W10540355 Whirlpool Deodorant In Stock WPL W10540355 $5.95

4

W10917043 Whirlpool Compactor Bearing Backorder WPL W10917043 $9.59

4

WPW10451276 Whirlpool Compactor Container Backorder WPL WPW10451276 $220.65

5

776941 Whirlpool Compactor Power Crew Hub Backorder WPL 776941 $8.86

5

W10318807 Whirlpool Spacer Backorder WPL W10318807 $44.34

5

WP776338 Whirlpool Compactor Nut Backorder WPL WP776338 $7.28

5

WP780239 Whirlpool Compactor Bracket Retainer Backorder WPL WP780239 $12.32

5

END CAP (BLACK) WPL W10318808 Contact Us For Availability

5

END CAP (WHITE) WPL W10318809 Contact Us For Availability

6

775481 Whirlpool Compactor Bearing Backorder WPL 775481 $29.74

6

882699 Whirlpool Trash Compactor Gear Drive K In Stock WPL 882699 $54.57

6

W11679165 Whirlpool Foot Pedal Backorder WPL W11679165 $21.96

6

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

6

WP777108 Whirlpool Compactor Bag Handle Backorder WPL WP777108 $8.16

7

675351 Whirlpool Compactor Grease In Stock WPL 675351 $34.20

7

WP454512 Whirlpool Compactor Spring Pin Backorder WPL WP454512 $3.70

7

WP780263 Whirlpool Compactor Screw In Stock WPL WP780263 $2.51

7

ESCUTCHEON, CONTROL (BLACK) WPL W10318831 Contact Us For Availability

8

4154842 Whirlpool Compactor Nut Backorder WPL 4154842 $29.10

8

776035 Whirlpool Compactor Washer In Stock WPL 776035 $9.59

8

WP776395 Whirlpool Compactor Guide Backorder WPL WP776395 $29.43

8

Screw WPL 246131 Contact Us For Availability

9

675379 Whirlpool Compactor Drawer Latch Backorder WPL 675379 $57.49

9

W11214485 Whirlpool Compactor Washer Backorder WPL W11214485 $9.59

9

WP279368 Whirlpool High-Temperature Silicone In Stock WPL WP279368 $29.08

9

WP777332 Whirlpool Compactor Washer Backorder WPL WP777332 $2.38

9

SWITCH ASSEMBLY (BLACK) WPL NP Contact Us For Availability

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

8171571 Whirlpool Touch-Up Paint Cobalt Blue In Stock WPL 8171571 $12.81

8171652 Whirlpool Touch-Up Backorder WPL 8171652 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WP9871563 Whirlpool Compactor Spacer Backorder WPL WP9871563 $4.58

WP9871971 Whirlpool Compactor Off Switch In Stock WPL WP9871971 $60.80

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

9871125 Whirlpool Compactor Actuator Backorder WPL 9871125 $9.52

W11696573 Whirlpool Ram Backorder WPL W11696573 $129.98

WP776036 Whirlpool Compactor Clip Backorder WPL WP776036 $3.70

WP9871920 Whirlpool Compactor Switch Knob Backorder WPL WP9871920 $40.48

780477 Whirlpool Compactor Drive Chain In Stock WPL 780477 $80.02

W11515901 Whirlpool Handle Backorder WPL W11515901 $71.98

WP777383 Whirlpool Compactor Nut In Stock WPL WP777383 $4.89

WP9870163 Whirlpool Compactor Trunnion Nut In Stock WPL WP9870163 $29.77

HANDLE ASSEMBLY (BLACK) WPL W10318811 Contact Us For Availability

HANDLE ASSEMBLY (WHITE) WPL W10318812 Contact Us For Availability

13

9871829 Whirlpool Trash Compactor Door Switch In Stock WPL 9871829 $28.42

13

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

13

WP777180 Whirlpool Compactor Spring In Stock WPL WP777180 $28.80

14

WP9870037 Whirlpool Ram Stop Backorder WPL WP9870037 $3.70

14

WPW10242556 Whirlpool Compactor Off Switch Backorder WPL WPW10242556 $63.31

15

WP9871602 Whirlpool Compactor Bearing In Stock WPL WP9871602 $7.01

15

Bracket, Top Limit Switch WPL 9870498 Contact Us For Availability

16

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

16

WP776356 Whirlpool Compactor Nut Backorder WPL WP776356 $2.51

16

WP777811 Whirlpool Compactor Directional Swit In Stock WPL WP777811 $38.74

17

777849 Whirlpool Compactor Screw Backorder WPL 777849 $4.85

17

W10917704 Whirlpool Compactor Guard Backorder WPL W10917704 $56.54

17

W11696574 Whirlpool Trash Compactor Guard Backorder WPL W11696574 $54.86

18

W10917246 Whirlpool Compactor RAM Slide Backorder WPL W10917246 $45.64

18

Pin WPL 776654 Contact Us For Availability

19

775736 Whirlpool Compactor Spring Backorder WPL 775736 $28.80

20

CLIP Backorder WPL W11679168 $8.11

21

775665 Whirlpool Compactor Plate Latch Backorder WPL 775665 $35.28

22

Retainer, Bag (Contains 4 Each) WPL 4147703 Contact Us For Availability

26

WP9870444 Whirlpool Compactor Inner Panel Backorder WPL WP9870444 $35.76

NI

9870118A Whirlpool Compactor Bracket Kit Backorder WPL 9870118A $22.88
