Model Whirlpool TU900QPDB0 TRASH COMPACTOR – Common Parts & Diagrams

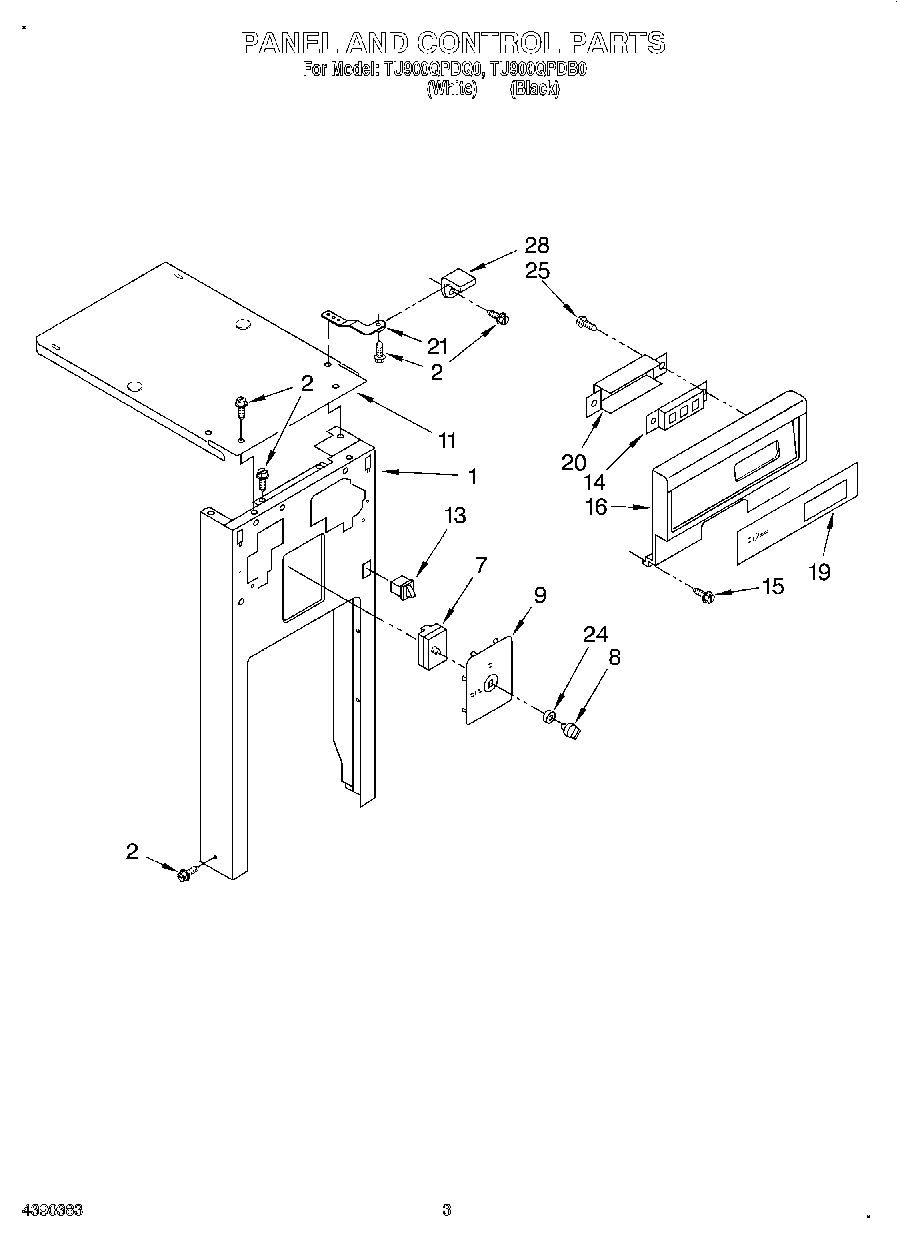

03 - PANEL AND CONTROL

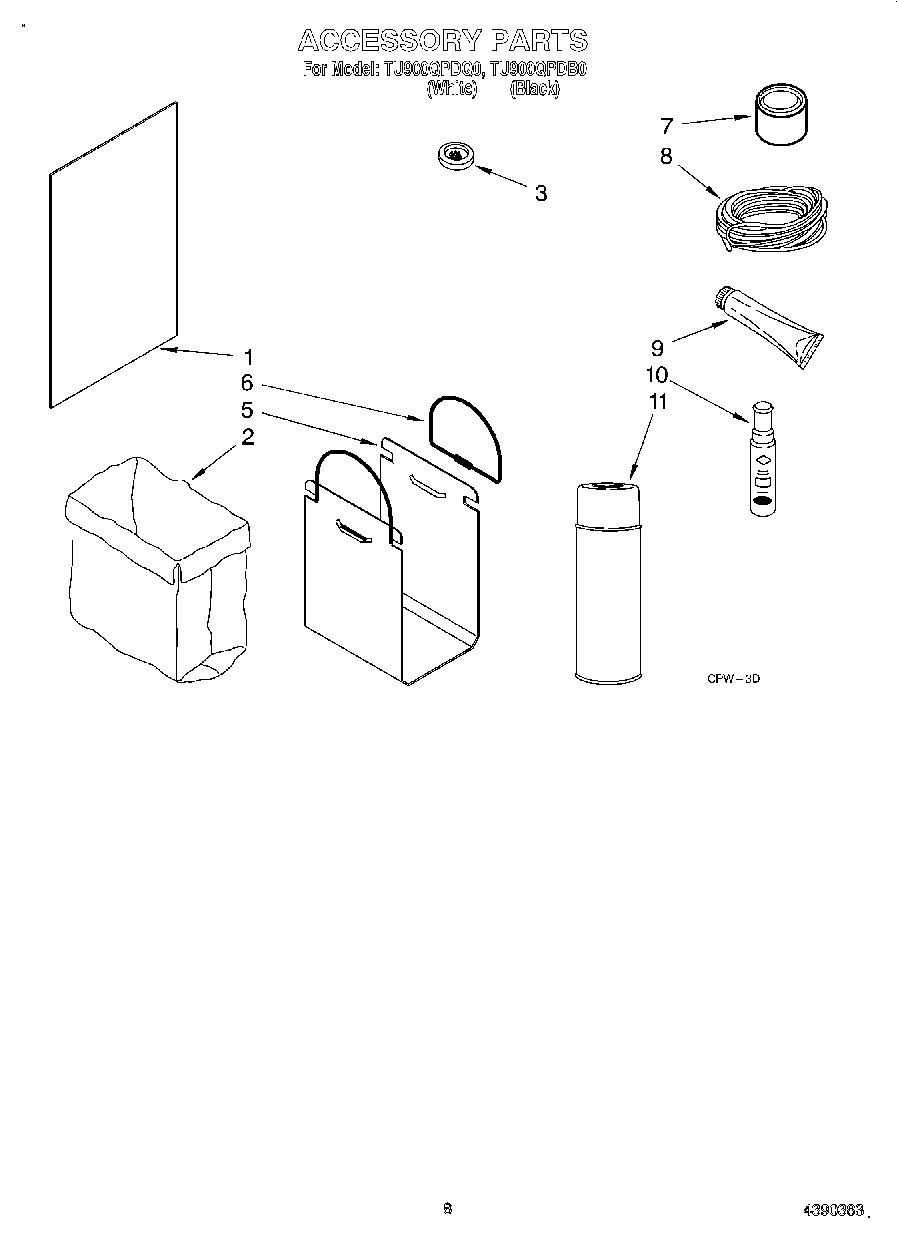

06 - ACCESSORY

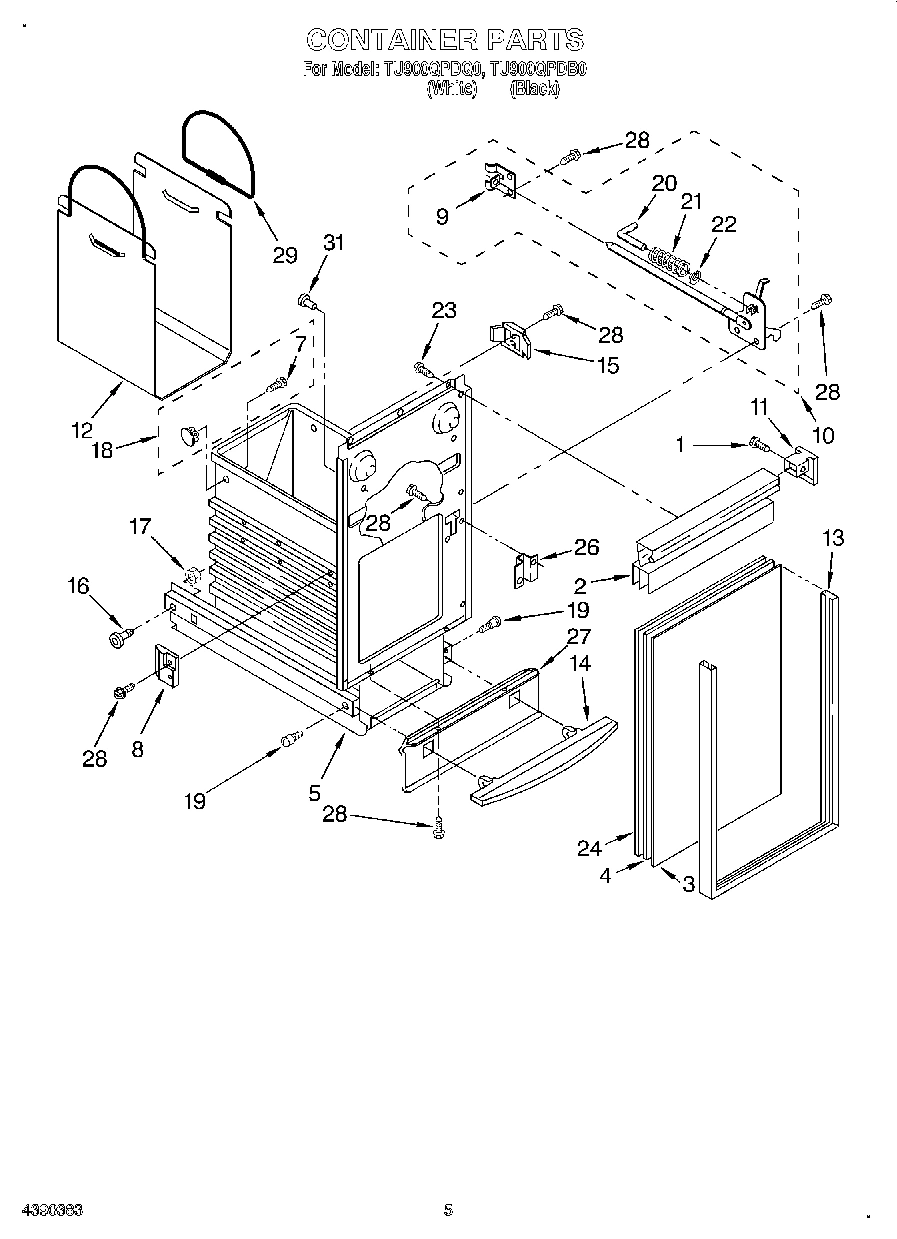

04 - CONTAINER

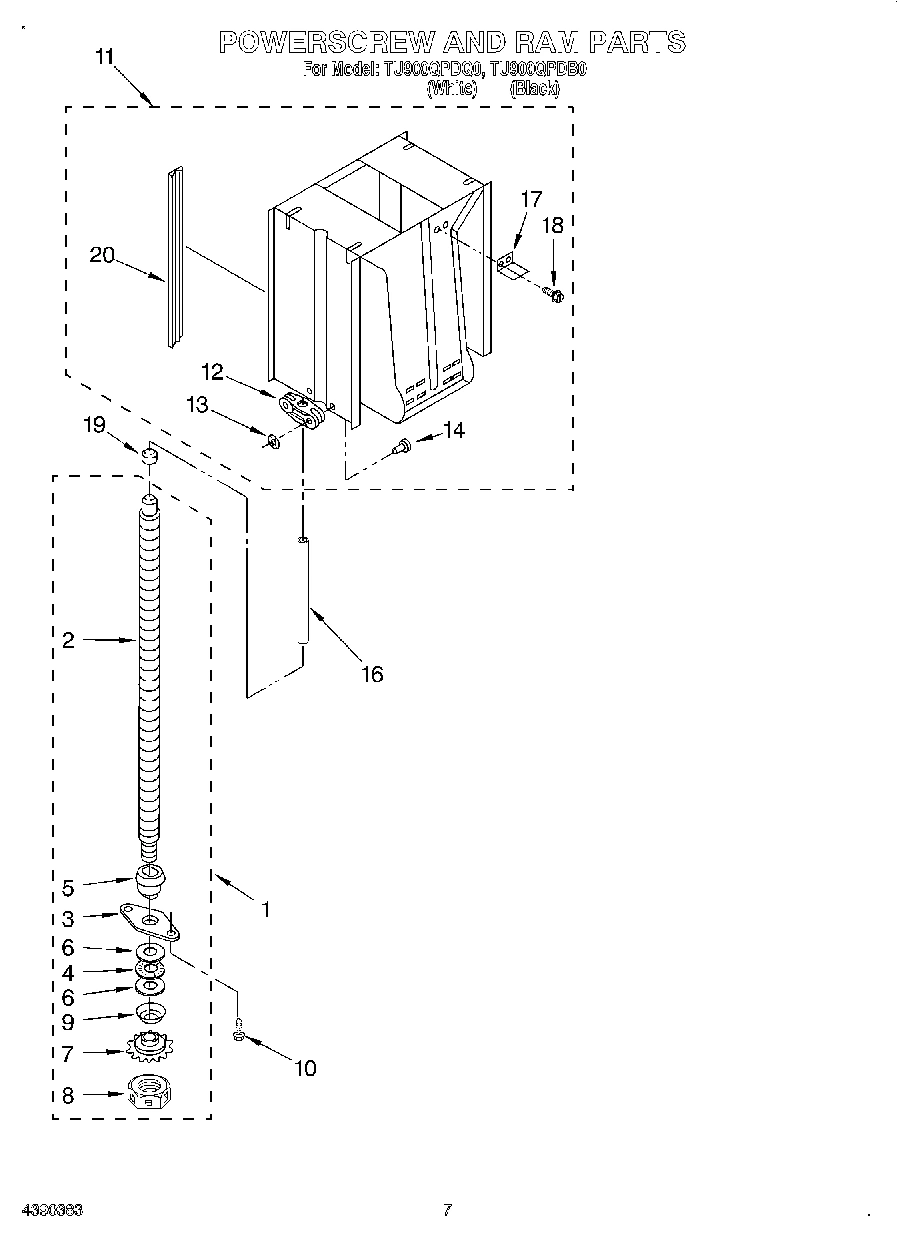

05 - POWERSCREW AND RAM

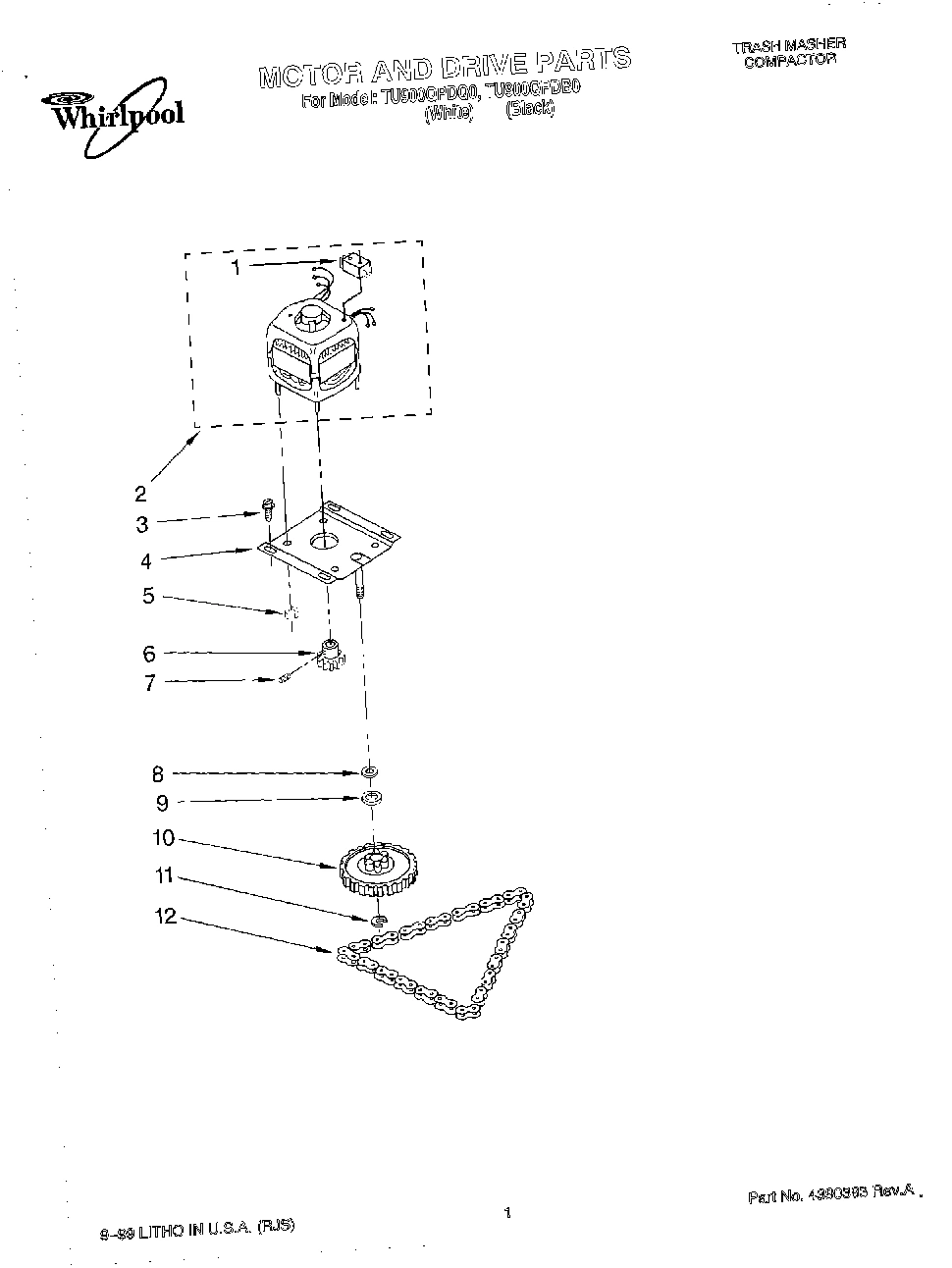

01 - MOTOR AND DRIVE, LITERATURE

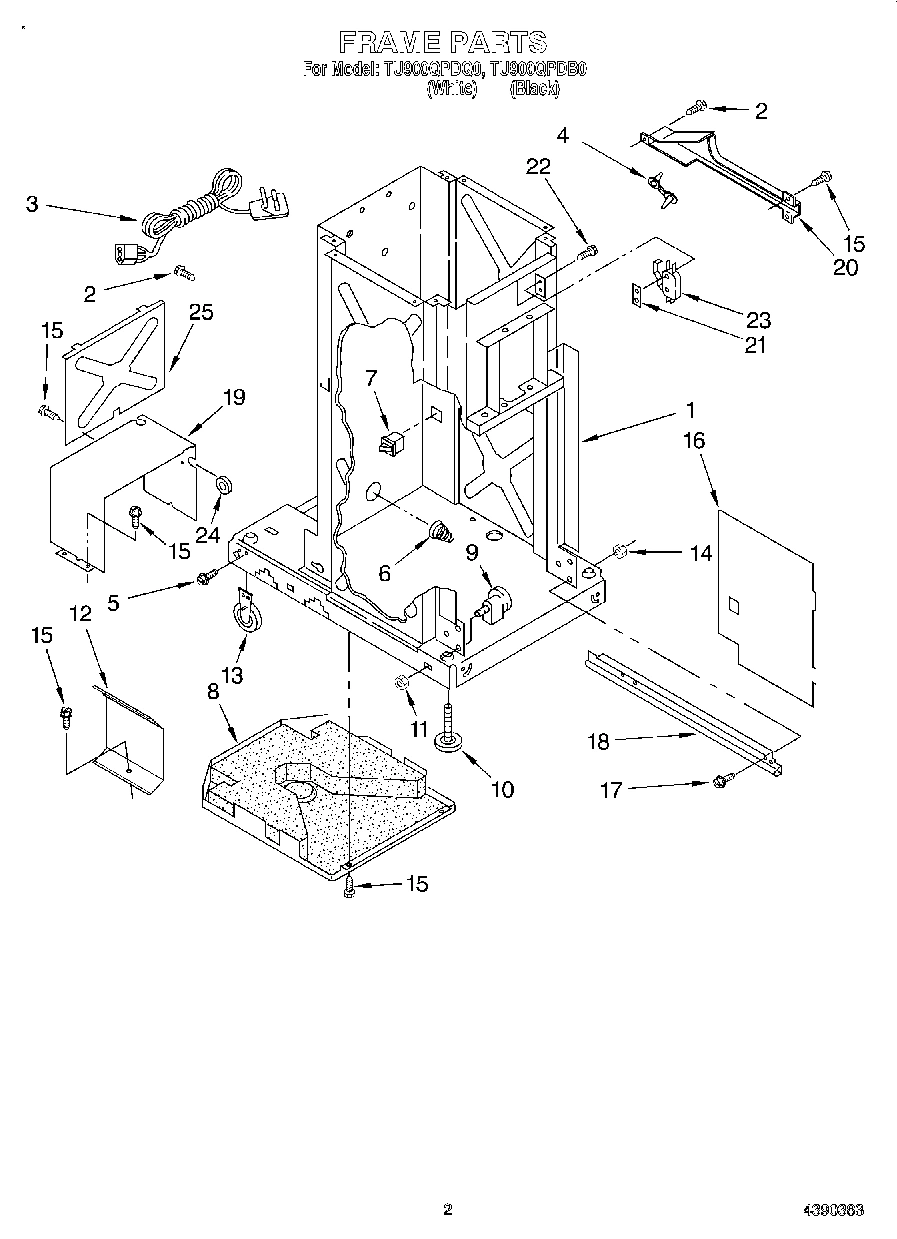

02 - FRAME
Common parts from model Whirlpool TU900QPDB0 TRASH COMPACTOR
Do-It-Yourself Manual WPL LIT677821 Contact Us For Availability
Instructions, Installation WPL LIT9870491 Contact Us For Availability
Label, 1-800 Number WPL LIT9871133 Contact Us For Availability
Guide, Use and Care WPL LIT9871224 Contact Us For Availability
1
Frame (Not a Serviceable Part) WPL ARI133887A Contact Us For Availability
2
Handle, Container (Black) WPL 4154608 Contact Us For Availability
2
Handle, Container (White) WPL 9871245 Contact Us For Availability
2
Screw, Power (Available Only As Complete Asse WPL ARI133888A Contact Us For Availability
3
Plate, Bearing (2) WPL 779121 Contact Us For Availability
3
Panel, Container Front (White) WPL 777941 Contact Us For Availability
3
Panel, Container Front (Almond & Black) WPL 780334 Contact Us For Availability
3
Cord, Power WPL 778575 Contact Us For Availability
4
Spacer, Center Panel WPL 777784 Contact Us For Availability
5
Container Assembly WPL 884573 Contact Us For Availability
5
Hub, Power Screw (2) WPL 776941 Contact Us For Availability
6
Race, Thrust (4) WPL 775481 Contact Us For Availability
7
Switch, Rotary WPL 777380 Contact Us For Availability
7
GREASE 4 OZ. (USE ON POWER SCREW AND RAM PRES WPL 675351 Contact Us For Availability
8
Nut, Power Screw (2) WPL 4154842 Contact Us For Availability
8
Washer, Wave WPL 776035 Contact Us For Availability
8
Guide, Container (2) WPL 9870774 Contact Us For Availability
10
PAINT, TOUCH-UP (1/2OZ. WHITE) WPL 72017 Contact Us For Availability
10
PAINT, TOUCH-UP (1/2OZ. BLACK) WPL 72032 Contact Us For Availability
10
Paint, Touch-Up 1/2 Oz. (Harvest Gold) WPL 72110 Contact Us For Availability
10
Paint, Touch-Up 1/2 Oz. (Platinum) WPL 72113 Contact Us For Availability
10
Paint, Touch-Up 1/2 Oz. (Avocado) WPL 72109 Contact Us For Availability
10
Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability
11
WPL 350930 WPL 350930 Contact Us For Availability
11
paint, spray 13 oz. (black) WPL 285006 Contact Us For Availability
11
WPL 350956 WPL 350956 Contact Us For Availability
11
paint, spray 13 oz. (coffee) WPL 261886 Contact Us For Availability
11
Paint, Spray 13 Oz. (Avocado) WPL 261888 Contact Us For Availability
11
Paint, Spray 13 Oz. (Harvest Gold) WPL 261890 Contact Us For Availability
11
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
11
Paint, Spray (13 Oz.) WPL 285366 Contact Us For Availability
11
WPL 978726 WPL 978726 Contact Us For Availability
11
(Cap, Handle End L.H.) (White) WPL 9871238 Contact Us For Availability
11
Cap, Handle End (White, RH) WPL 9871239 Contact Us For Availability
11
(Cap, Handle End L.H.) (Black) WPL 9871240 Contact Us For Availability
11
Cap, Handle End R.H. (Black) WPL 9871241 Contact Us For Availability
12
Chain, Drive WPL 780477 Contact Us For Availability
12
Shield, Slide Track (2) WPL 9870867 Contact Us For Availability
12
Harness, Wiring WPL 9870130 Contact Us For Availability
13
Trim, Container (White) WPL 9870490 Contact Us For Availability
13
Trim, Container (Black) WPL 9871120 Contact Us For Availability
14
Assembly, Switch (Black) WPL 9871140 Contact Us For Availability
14
Nut, 6-32 WPL 4159104 Contact Us For Availability
15
Actuator, Saftey Switch WPL 9871125 Contact Us For Availability
17
Bracket, Top Limit Switch WPL 9870498 Contact Us For Availability
18
Retainer, Bag (Contains 4 Each) WPL 4147703 Contact Us For Availability
19
Cover, Motor WPL 780434 Contact Us For Availability
20
Pin WPL 776654 Contact Us For Availability
20
Shield, Harness WPL 4149659 Contact Us For Availability
21
Spring WPL 775736 Contact Us For Availability
21
Plate, Nut WPL 777850 Contact Us For Availability
23
Screw, 8-18 x 3/8 WPL 4153701 Contact Us For Availability
24
Panel, Spacer WPL 777783 Contact Us For Availability
24
Grommet, Motor Cover WPL 776118 Contact Us For Availability
25
Plate, Cover WPL 608009 Contact Us For Availability
31
Bumper, Container (2) WPL 775785 Contact Us For Availability
× ![]()
