Model Whirlpool TU8700XXP0 TRASH COMPACTOR – Common Parts & Diagrams

1

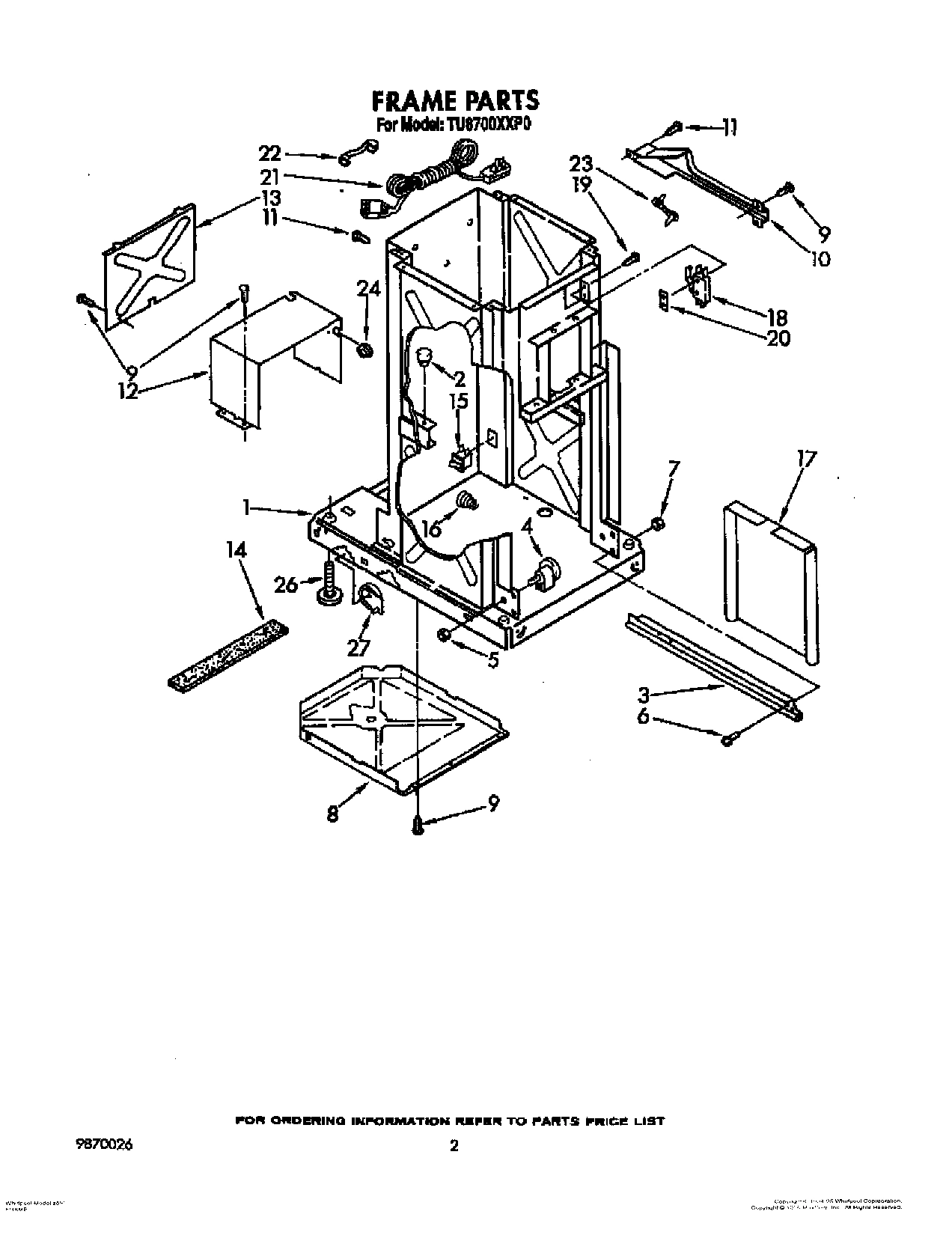

Frame (Not a Serviceable Part)
Frame (Not a Serviceable Part) WPL ARI133883A Contact Us For Availability
View on Model
1
Screw, Power Complete Assembly (2)
Screw, Power Complete Assembly (2) WPL 777876 Contact Us For Availability
View on Model
1
Panel, Contianer Front (White & Copper Hi-Lit
Panel, Contianer Front (White & Copper Hi-Lit WPL 608438 Contact Us For Availability
View on Model
1
Panel, Contianer Front (Brushed Chrome)
Panel, Contianer Front (Brushed Chrome) WPL 675378 Contact Us For Availability
View on Model
1
Panel, Container Front (Coffee & Harvest Gold
Panel, Container Front (Coffee & Harvest Gold WPL 777714 Contact Us For Availability
View on Model
1
Panel, Contianer Front (White & New Avocado)
Panel, Contianer Front (White & New Avocado) WPL 777761 Contact Us For Availability
View on Model
1
Panel, Container Front (Almond & Harvest Gold
Panel, Container Front (Almond & Harvest Gold WPL 777762 Contact Us For Availability
View on Model
1
Panel, Contianer Front (Coffee & Avocado)
Panel, Contianer Front (Coffee & Avocado) WPL 777912 Contact Us For Availability
View on Model
1
Panel, Container Front (Black & White)
Panel, Container Front (Black & White) WPL 777941 Contact Us For Availability
View on Model
1
Panel, Contianer Front (Platinum & Toast)
Panel, Contianer Front (Platinum & Toast) WPL 780280 Contact Us For Availability
View on Model
1
Panel, Container Front (Almond & Black)
Panel, Container Front (Almond & Black) WPL 780334 Contact Us For Availability
View on Model
2
Bumper (4)
Bumper (4) WPL 775643 Contact Us For Availability
View on Model
2
Screw, Power (Available Only As Complete Asse
Screw, Power (Available Only As Complete Asse WPL ARI133884A Contact Us For Availability
View on Model
3
Deodorizer, Solid Stick-Ups (2-Pack)
Deodorizer, Solid Stick-Ups (2-Pack) WPL 777635 Contact Us For Availability
View on Model
4
Trash, Container (Reusable)
Trash, Container (Reusable) WPL 882653 Contact Us For Availability
View on Model
6
Cam, Spray Actuator (2)
Cam, Spray Actuator (2) WPL 776523 Contact Us For Availability
View on Model
7
Nut, 6-32 (4)
Nut, 6-32 (4) WPL 776188 Contact Us For Availability
View on Model
8
Wire (16 Ga. 80 c Blue)
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
View on Model
8
Wire (14 Ga. 150 c Black)
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
View on Model
8
Wire (14 Ga. 150 c Red)
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
View on Model
8
Wire, 25`` Roll (White 14 GA.)
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
View on Model
8
Wire, 25` Roll (Red 12 Ga.)
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
View on Model
8
Wire, 25`` Roll (Black 12 GA.)
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
View on Model
8
Wire, 25`` Roll (White 12 GA.)
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
View on Model
9
Bracket, Protector
Bracket, Protector WPL 9870125 Contact Us For Availability
View on Model
10
Insert, Decorative
Insert, Decorative WPL 4154904 Contact Us For Availability
View on Model
10
Screw, 10-24 x 3/4 (4)
Screw, 10-24 x 3/4 (4) WPL 775071 Contact Us For Availability
View on Model
10
Paint, Touch-Up 1/2 Oz. (Stanford Brown)
Paint, Touch-Up 1/2 Oz. (Stanford Brown) WPL 72106 Contact Us For Availability
View on Model
10
Paint, Touch-Up 1/2 Oz. (Coffee)
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
View on Model
10
WPL 72112
WPL 72112 WPL 72112 Contact Us For Availability
View on Model
11
Ram Assembly
Ram Assembly WPL 608729 Contact Us For Availability
View on Model
11
WPL 261886
WPL 261886 WPL 261886 Contact Us For Availability
View on Model
11
WPL 261888
WPL 261888 WPL 261888 Contact Us For Availability
View on Model
11
WPL 261890
WPL 261890 WPL 261890 Contact Us For Availability
View on Model
11
WPL 285365
WPL 285365 WPL 285365 Contact Us For Availability
View on Model
11
WPL 285366
WPL 285366 WPL 285366 Contact Us For Availability
View on Model
11
WPL 675167
WPL 675167 WPL 675167 Contact Us For Availability
View on Model
11
WPL 978726
WPL 978726 WPL 978726 Contact Us For Availability
View on Model
12
Cover, Motor
Cover, Motor WPL 608849 Contact Us For Availability
View on Model
12
Pad, Ram (8)
Pad, Ram (8) WPL 777758 Contact Us For Availability
View on Model
13
Trim, Top
Trim, Top WPL 4154862 Contact Us For Availability
View on Model
13
Plate, Motor Cover
Plate, Motor Cover WPL 780441 Contact Us For Availability
View on Model
13
Plate, Doubler (2)
Plate, Doubler (2) WPL 608733 Contact Us For Availability
View on Model
14
Barrier, Glass
Barrier, Glass WPL 776780 Contact Us For Availability
View on Model
14
Retainer, Nut (2)
Retainer, Nut (2) WPL 780036 Contact Us For Availability
View on Model
17
Trim, Side
Trim, Side WPL 4154910 Contact Us For Availability
View on Model
17
Panel, Inner Frame
Panel, Inner Frame WPL 780412 Contact Us For Availability
View on Model
17
Cover, Ram
Cover, Ram WPL 608723 Contact Us For Availability
View on Model
18
Wiper, Ram
Wiper, Ram WPL 780021 Contact Us For Availability
View on Model
20
Shield, Switch
Shield, Switch WPL 9870123 Contact Us For Availability
View on Model
20
Plate, Nut
Plate, Nut WPL 777850 Contact Us For Availability
View on Model
20
Block, Container Stop
Block, Container Stop WPL 777691 Contact Us For Availability
View on Model
21
Cord, Power
Cord, Power WPL 778575 Contact Us For Availability
View on Model
22
Bushing, Cord
Bushing, Cord WPL 776119 Contact Us For Availability
View on Model
22
Protector, Powerscrew
Protector, Powerscrew WPL 780413 Contact Us For Availability
View on Model
23
Clamp, Wire
Clamp, Wire WPL 777035 Contact Us For Availability
View on Model
24
Grommet, Motor Cover
Grommet, Motor Cover WPL 776118 Contact Us For Availability
View on Model
27
Wheel, Leveler (Right Side)
Wheel, Leveler (Right Side) WPL 780139 Contact Us For Availability
View on Model
