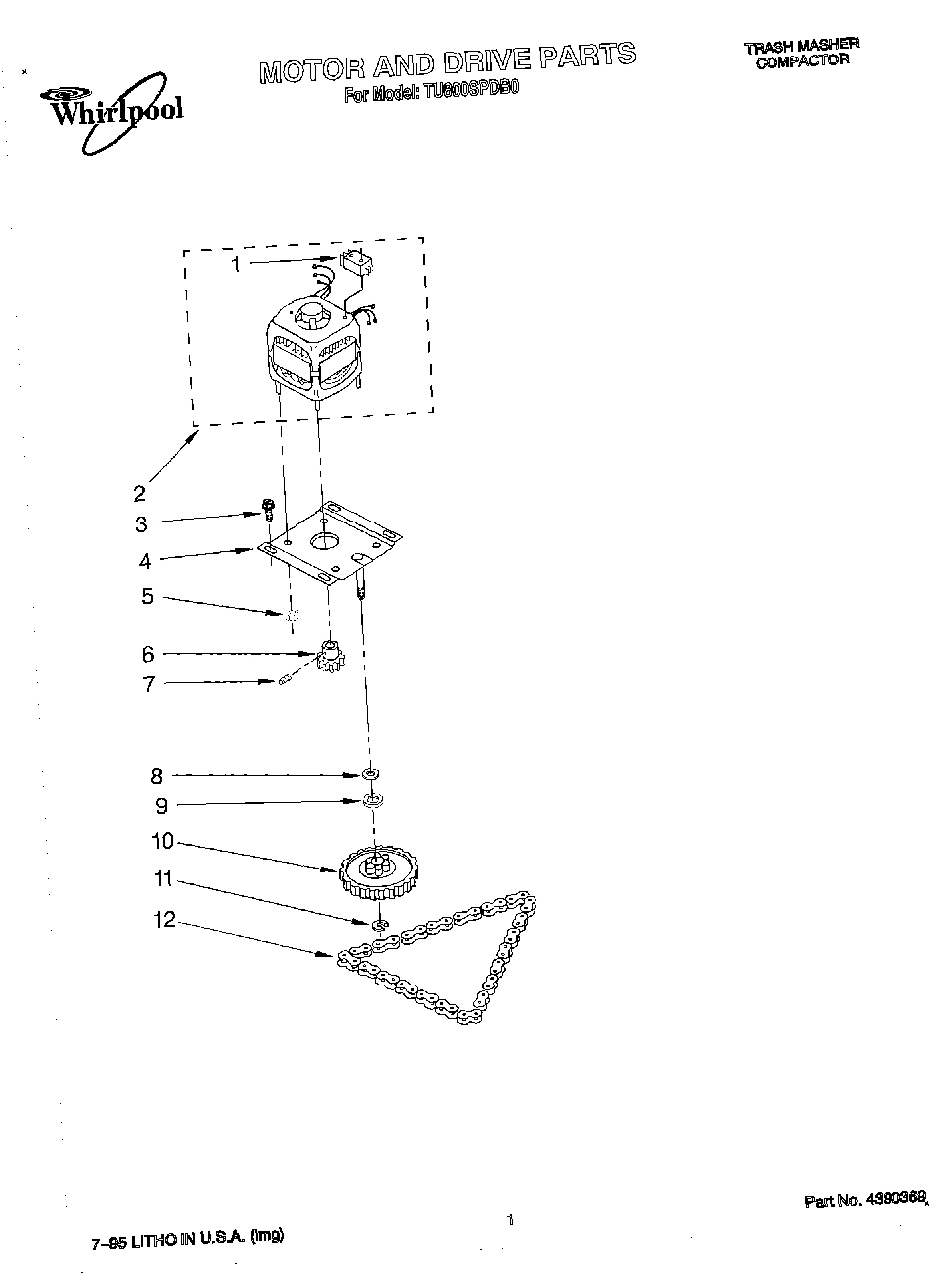

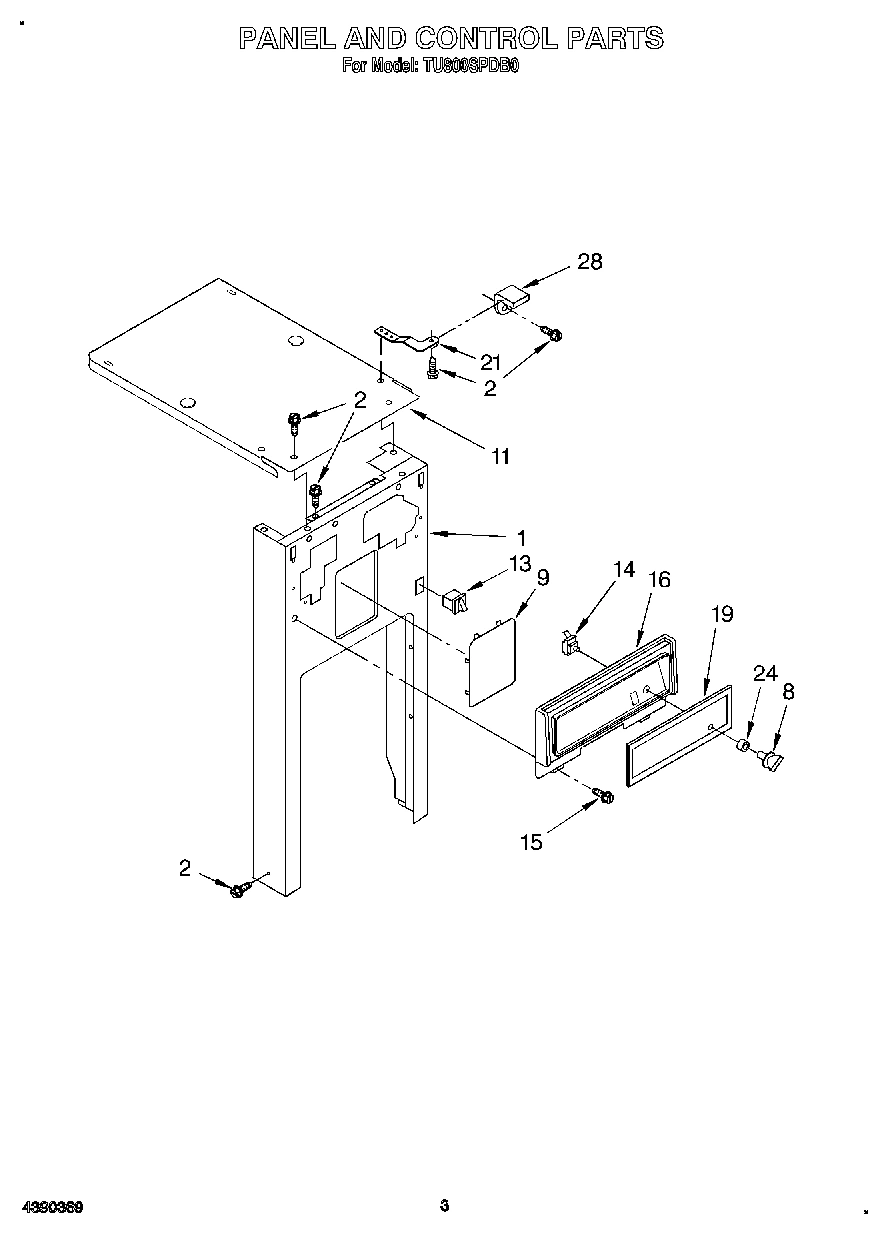

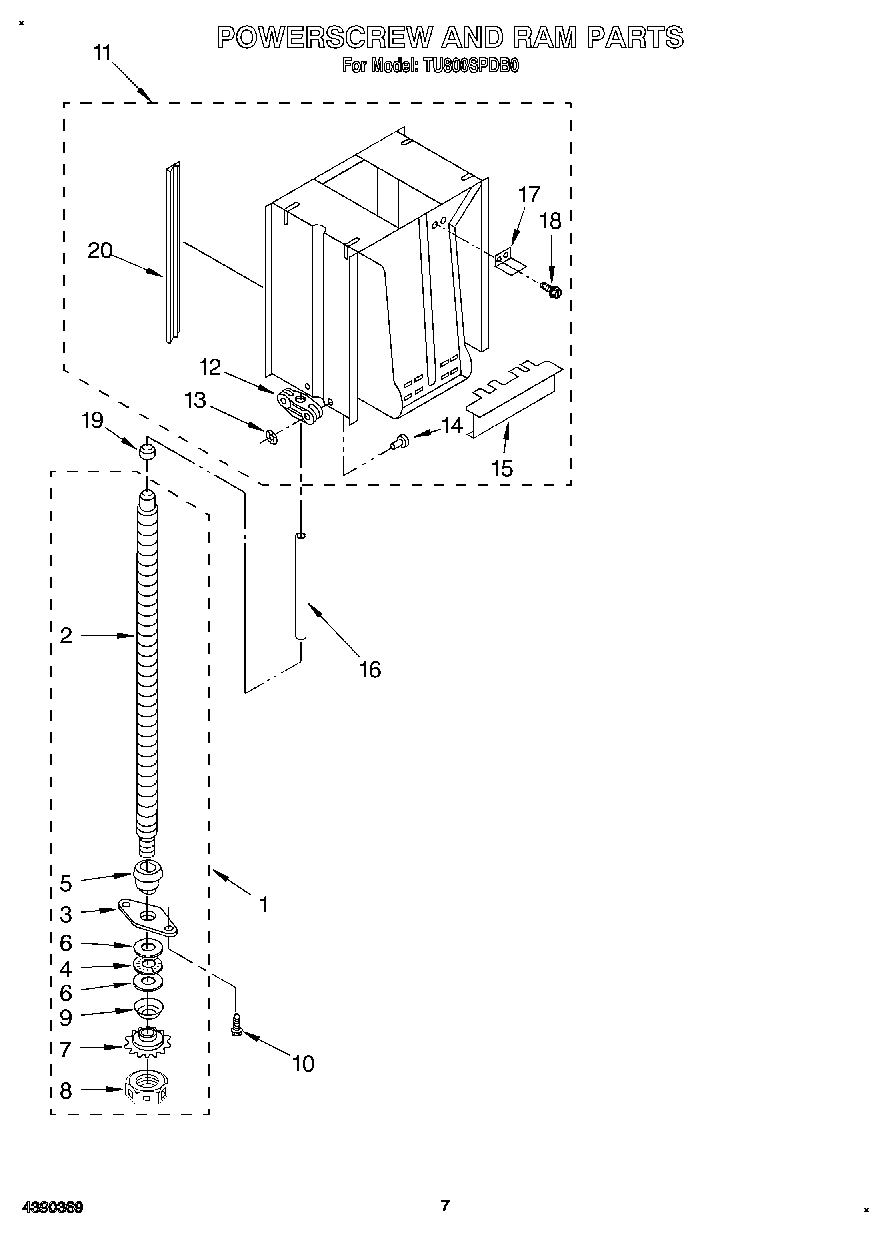

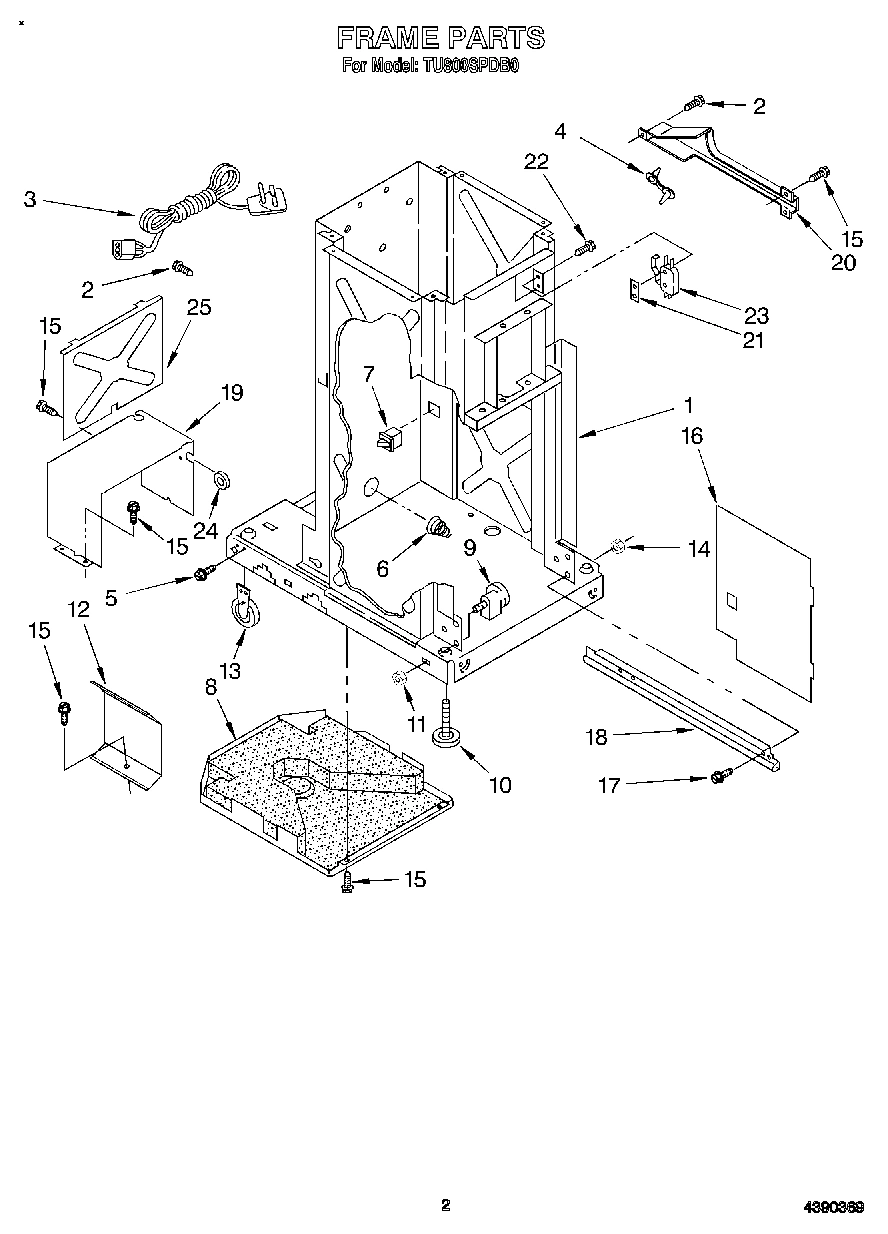

Model Whirlpool TU800SPDB0 TRASH COMPACTOR – Common Parts &amp; Diagrams

1

WPW10451272 Whirlpool Trash Compactor Power S Backorder WPL WPW10451272 $143.90

1

Panel WPL 9871072 Contact Us For Availability

1

Frame (Not a Serviceable Part) WPL ARI133827A Contact Us For Availability

2

W10165294RB Whirlpool Trash Compactor Bags (1 In Stock WPL W10165294RB $44.67

2

W10165295RP Whirlpool Trash Compactor Bags 15 In Stock WPL W10165295RP $10.21

2

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.09

2

Screw, Power (Available Only As Complete Asse WPL ARI133828A Contact Us For Availability

3

779121 Whirlpool Compactor Plate Backorder WPL 779121 $12.32

3

Cord, Power WPL 778575 Contact Us For Availability

4

776327 Whirlpool Compactor Motor Plate Backorder WPL 776327 $42.93

4

W10917043 Whirlpool Compactor Bearing Backorder WPL W10917043 $9.59

4

W11705832 Whirlpool Clamp Backorder WPL W11705832 $12.17

5

776941 Whirlpool Compactor Power Crew Hub Backorder WPL 776941 $8.86

5

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

5

Container Assembly WPL 884573 Contact Us For Availability

6

775481 Whirlpool Compactor Bearing Backorder WPL 775481 $31.22

6

WP777180 Whirlpool Compactor Spring In Stock WPL WP777180 $30.25

7

675351 Whirlpool Compactor Grease Backorder WPL 675351 $35.90

7

W11679164 Whirlpool Sprocket In Stock WPL W11679164 $10.07

7

WP4387911 Whirlpool Refrigerator Switch In Stock WPL WP4387911 $13.43

7

WP454512 Whirlpool Compactor Spring Pin Backorder WPL WP454512 $3.70

8

4154842 Whirlpool Compactor Nut Backorder WPL 4154842 $30.56

8

776035 Whirlpool Compactor Washer Backorder WPL 776035 $9.59

8

WP780437 Whirlpool Compactor Bottom Pan Backorder WPL WP780437 $120.60

8

Knob, Switch WPL 9871257 Contact Us For Availability

9

882688 Whirlpool Compactor Bearing Backorder WPL 882688 $12.37

9

9871160 Whirlpool Switch Plate Backorder WPL 9871160 $27.52

9

W11214485 Whirlpool Compactor Washer Backorder WPL W11214485 $9.59

9

WP279368 Whirlpool High-Temperature Silicone In Stock WPL WP279368 $29.08

9

WP777332 Whirlpool Compactor Washer Backorder WPL WP777332 $2.38

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WP8204624 Whirlpool Bolt In Stock WPL WP8204624 $8.82

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

W11696573 Whirlpool Ram Backorder WPL W11696573 $186.35

Cover, Top (Recessed) WPL 608572 Contact Us For Availability

780477 Whirlpool Compactor Drive Chain Backorder WPL 780477 $84.02

9870867 Whirlpool Shield Backorder WPL 9870867 $8.05

WP9870163 Whirlpool Compactor Trunnion Nut In Stock WPL WP9870163 $45.92

Harness, Wiring WPL 4152077 Contact Us For Availability

13

W11023674 Whirlpool Compactor Leveling Wheel Backorder WPL W11023674 $36.89

13

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

14

675382 Whirlpool Trash Compactor On/Off Start In Stock WPL 675382 $85.97

14

882694 Whirlpool Compactor Stud Backorder WPL 882694 $2.51

14

Nut, 6-32 WPL 4159104 Contact Us For Availability

9871125 Whirlpool Compactor Actuator Backorder WPL 9871125 $9.52

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

Screw, 6-20 x 3/8AB WPL 776559 Contact Us For Availability

Wiper WPL 9870164 Contact Us For Availability

16

WP9870037 Whirlpool Ram Stop Backorder WPL WP9870037 $3.70

16

WP9870444 Whirlpool Compactor Inner Panel Backorder WPL WP9870444 $37.55

16

Escutcheon, Control WPL 4151493 Contact Us For Availability

17

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 $2.51

17

WP776356 Whirlpool Compactor Nut Backorder WPL WP776356 $2.51

17

Bracket, Top Limit Switch WPL 9870498 Contact Us For Availability

18

W11722978 Whirlpool Slide Backorder WPL W11722978 $53.56

18

WP9870975 Whirlpool Compactor Slide Backorder WPL WP9870975 $34.59

780434 Whirlpool Motor Cover Backorder WPL 780434 $7.19

CAP-PWRSCR Backorder WPL W11724671 $7.72

WP780263 Whirlpool Compactor Screw In Stock WPL WP780263 $2.51

Insert, Decorative WPL 9871208 Contact Us For Availability

20

4149659 Whirlpool Shield Assembly Backorder WPL 4149659 $30.25

20

W10917246 Whirlpool Compactor RAM Slide Backorder WPL W10917246 $47.93

21

775736 Whirlpool Compactor Spring Backorder WPL 775736 $30.25

21

W11729437 Whirlpool Retaining Bracket Backorder WPL W11729437 $8.78

21

Plate, Nut WPL 777850 Contact Us For Availability

22

777849 Whirlpool Compactor Screw Backorder WPL 777849 $4.85

23

WP777811 Whirlpool Compactor Directional Swit In Stock WPL WP777811 $51.04

24

WP777383 Whirlpool Compactor Nut In Stock WPL WP777383 $4.89

24

Grommet, Motor Cover WPL 776118 Contact Us For Availability

25

Plate, Cover WPL 608009 Contact Us For Availability

26

775665 Whirlpool Compactor Plate Latch Backorder WPL 775665 $37.04

27

WPW10242557 Whirlpool Compactor Guard Backorder WPL WPW10242557 $54.86

28

WP780239 Whirlpool Compactor Bracket Retainer Backorder WPL WP780239 $12.32

29

WP777108 Whirlpool Compactor Bag Handle Backorder WPL WP777108 $8.16
